USER MANUAL H1T DANFOSS

Revision history Table of revisions

Date Changed Rev
March 2023 Corrected parts numbers, document release date 1003
March 2022 Updated H1 and H2 auxiliary mounting part numbers 1001
August 2021 Added new options; updated automotive controls part numbers 0901
February 2021 Added adapter seal part numbers 0802
December 2020 Moved pressure limiter screens from housing kits to pressure limiter kits 0801
May 2020 Changed document number from 'AX00000163' to 'AX152886480638' and corrected CCO part numbers	0711
January 2020 Corrected aux mounting E3 adapter flange description and control gasket part numbers 0609
June 2019 Updated part numbers; added new options	0608
February 2019 Added various new options	0607
November 2018 Added control options T6, T7, T8 and T9		0606
August 2018 Minor updates	0605
May 2018 Added control option U1	0604
April 2018 Updated to Engineering Tomorrow	0603

Contents

General information

	Service parts identification.	6
	Nameplate.	6
	Date code.	7
	About service bulletins.	7
	Procedure to identify a part.	8
	Regional part numbers.	8
	Example of a part identification (H1P 115).	8
	Adobe Acrobat 2-page viewing.	9
	Order code.	10
	Notes.	11
Common parts and special hardware
	H1P 115/130cc common parts and special hardware.	12
Controls
	Control A2, A3.	16
	Control A4, A5.	18
	Control A6.	20
	Control A7.	22
	Control A8.	24
	Control A9, B1.	26
	Control B5.	28
	Control B7.	30
	Control B8.	32
	Control B9.	34
	Control C1.	36
	Control C2.	38
	Control C3.	40
	Control C9, D1.	42
	Control E6, E7.	44
	Control E8.	46
	Control F1, F2.	48
	Control F4.	50
	Control G7.	52
	Control G9.	54
	H1P control H2, H3.	56
	Control H6, H7.	58
	Control H8, H9.	60
	Control M1, M2.	62
	Control M3, M4.	64
	Control M5, M6.	66
	Control N1, N2.	68
	Control N3, N4.	70
	Control N5, N6.	72
	Control N7, N8.	74
	Control ND, NN.	76
	Control P5.	78
	Control P6, P7.	80
	Control P8, P9.	82
	Control R1, R2.	84
	Control R3.	86
	Control R4.	88
	Control S6.	90
	Control S7.	92
	Control T6, T7.	94
	Control T8, T9.	96
	Control U1, U2.	98
Displacement limitation
	Displacement limitation B-N.	100

Contents
Orifice	Orifice C-D. 102

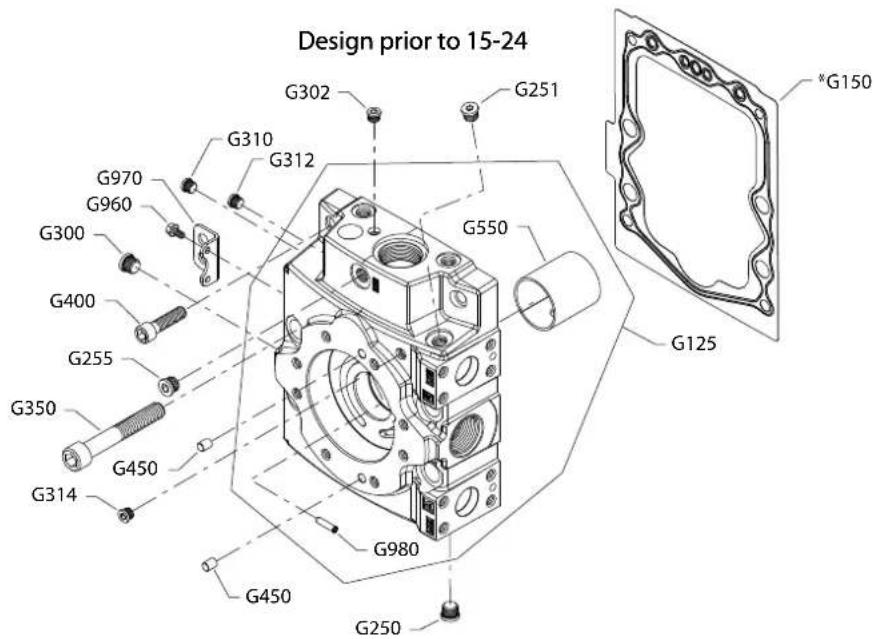

End cap	End cap D3. 106
	End cap D4. 108
	End cap D6. 110
	End cap D8. 112
	End cap E8. 114
	End cap G3. 116

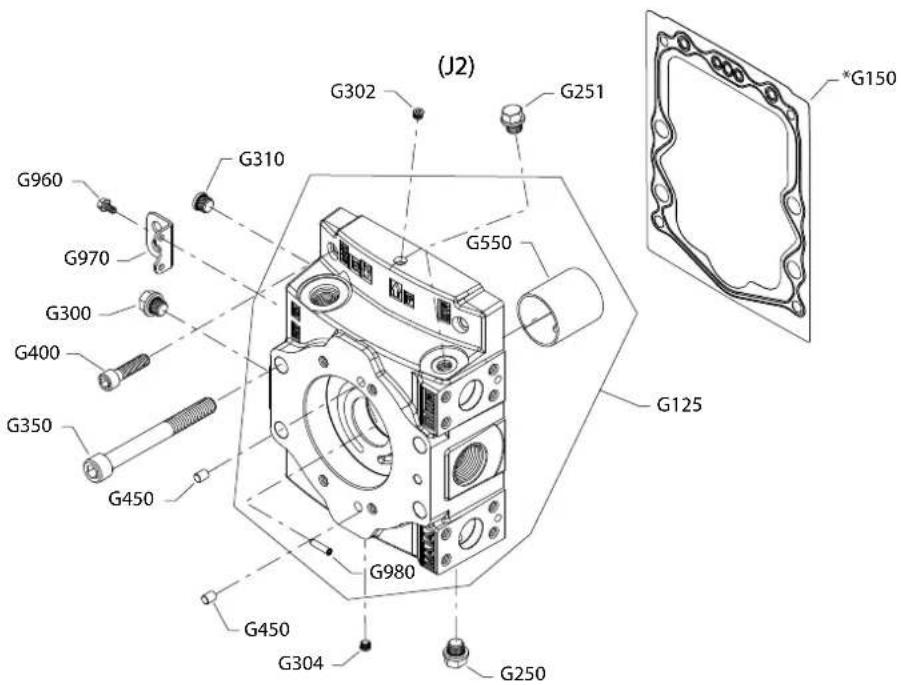

	End cap G9, J2. 118
	End cap J3. 120
Housing	Housing G, L, M. 122
Shaft	Shaft A8-G2. 124

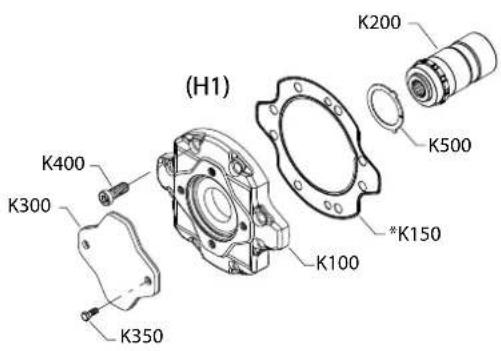

Auxiliary mounting	Auxiliary mounting E3-H3. 128

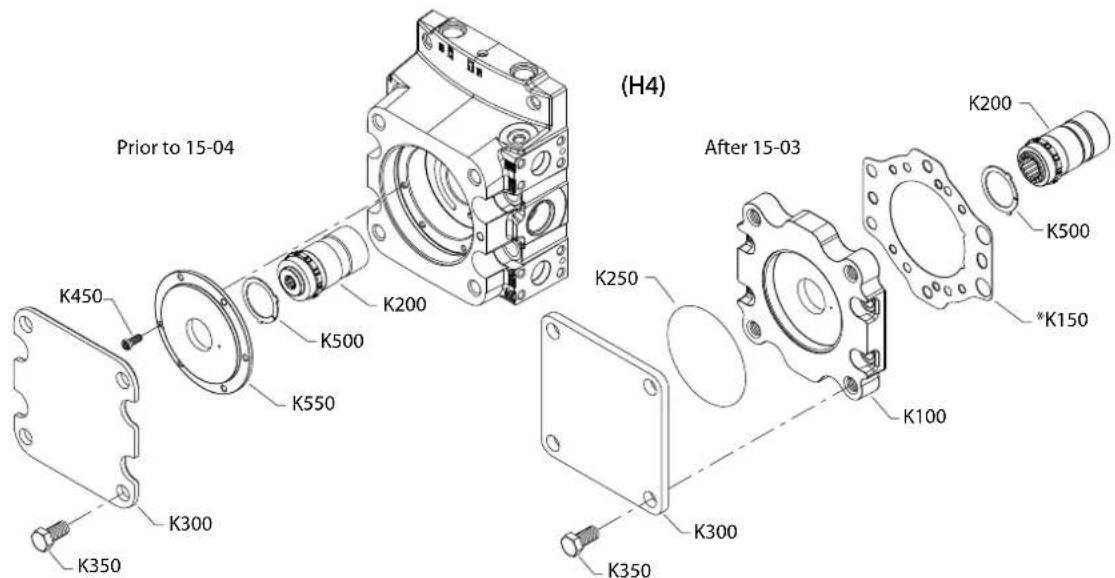

	Auxiliary mounting H4-S1. 132

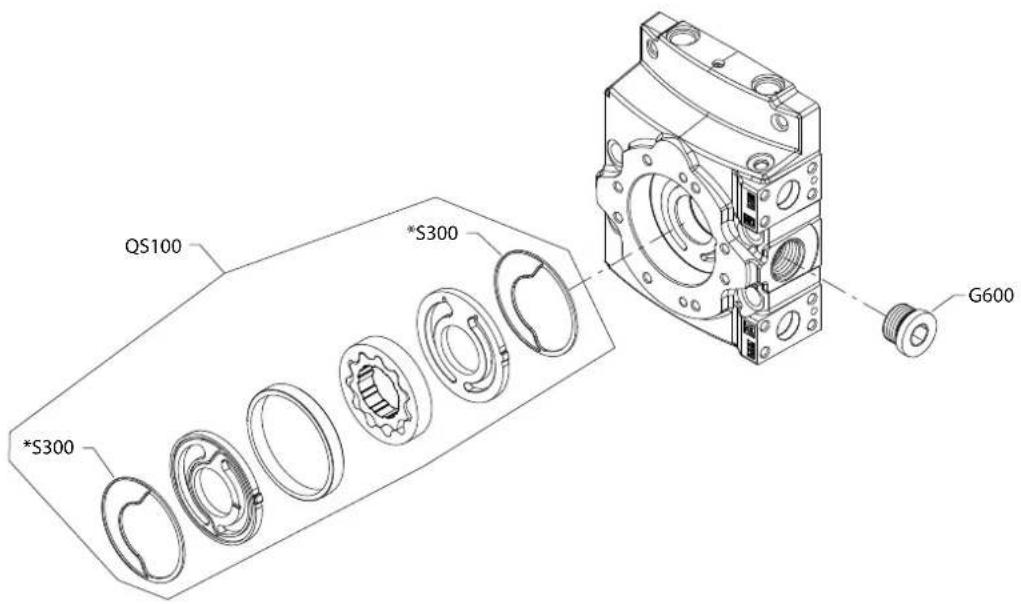

High pressure setting	Port A. 136
	H1P HPS (port A) F01-K33. 136

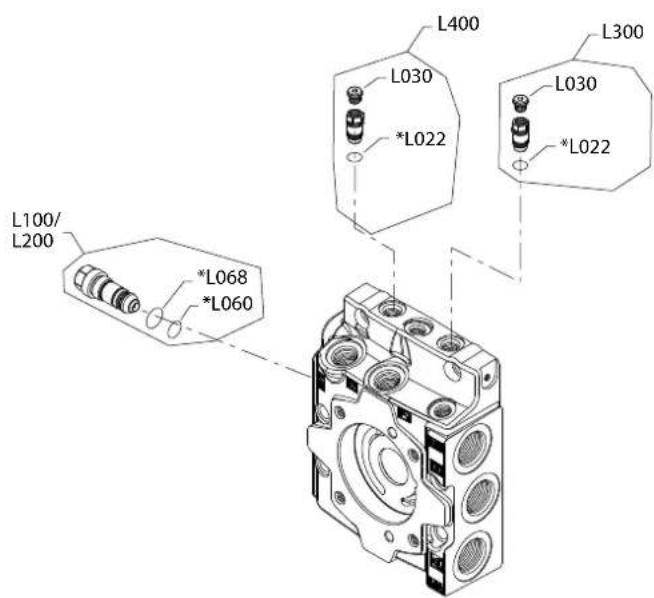

	High pressure setting K35-L20. 140
	H1P HPS (port A) L23-L43. 144
	High pressure setting L44-S45. 148
	High pressure setting (port A) S40. 152
	Port B. 154
	High pressure setting (port B) F01-K28. 154
	High pressure setting (port B) K30-KWY. 160
	High pressure setting (port B) L15-L41. 164
	High pressure setting (port B) L42-LED. 168
	High pressure setting (port B) S40. 172
	H1P HPS S42-S45. 174
Charge pump	Charge pump. 176
Filtration	Filtration C. 178
	Filtration D-S. 180
Charge pressure relief and ISL settings	Charge pressure relief 14-40. 184
	ISL setting A01-G23. 186
	ISL setting G25-Y4E. 188
Overhaul seal kit	H1P 115/130cc seal kit. 192
Service bulletin	SB-2006-030. 193
	SB-2007-052. 194
	SB-2009-046. 195
	SB-2009-068. 197
	SB-2011-002. 199
	SB-2011-022. 201
	SB-2011-039. 202
	SB-2012-026. 204
	SB-2013-003. 205
	SB-2013-019. 207

Contents

SB-2015-035 208
SB-2016-004 210
SB-2016-005 211
SB-2016-033 213
SB-2018-006 214
SB-2018-010 216
SB-2018-025 217
SB-2018-036. 218
SB-2020-029 218
SB-2021-014 220

General information

Service parts identification

The following information and procedure is used to identify the module group, item number, manufacture date, part number, and part name of the parts included in the H1P 115 and 130cc.

The parts listed include all parts which may be used when performing either "Minor Repairs", "Major Repairs" or "Conversions" on the .

Nameplate

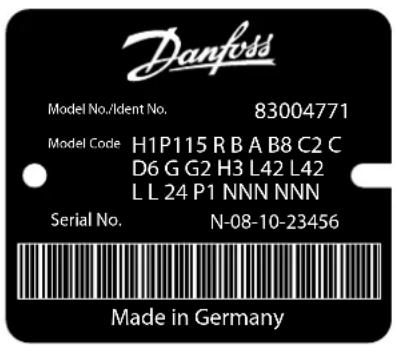

Each unit will have a nameplate affixed to the housing. The nameplate of the will include the following information:

Model code

The Danfoss model code completely defines the specific unit and must be used when ordering parts to service this product.

Model/material number

The Danfoss model number (also known as material number) is used by the factory in manufacturing. On repeat orders, a complete unit can be ordered by the model number.

Serial number

The Danfoss serial number is used to identify the manufacture date and the unit sequence in the build. The serial number is also used to identify the units warranty time period.

The letter code indicates the location of original manufacture (assembly).

The first number (2 digits) indicates the year of manufacture. The second number (2 digits) indicates the calendar week of manufacture.

The third number (5 digits) is a sequential number used to identify a specific unit.

General information

Date code

The date code is defined as the year and week of manufacture. The same item number may list more than one part number. This indicates that there is more than one configuration for that item number. You will see that there are different date codes for the different part numbers. Find the date code of your unit from the nameplate to determine which service part number you need to order.

Example: The service part desired is item G30

Order Code Item	Date Begin Date	Date End Part Number	ber Part Name	Qty. per		Model/Kit
80 G30 89-17 80	00243 End cap gasket 1
	G30 89-16 8000	51 End cap gasket			(SB-1995-006)	1

All units using this order code with a date code prior to 89-17 must use part number "8000151." All units with a date code of 89-17 and newer must use part number "8000243."

About service bulletins

A Service Bulletin Number (SB- - - ) may follow the "Part Name" of the part you desire. You must read that Service Bulletin prior to ordering that part. The information contained in these Service Bulletins, as of the print date of this bulletin, are included at the end of this manual. Service Bulletins contain more detailed information such as interchangeability, what additional parts are involved, etc. It is suggested that you add additional Service Bulletins to this manual as you receive them.

General information

Procedure to identify a part

The modular design of this product results in a simplified service parts list and part number identification procedure.

The same item numbers are used for same part names on all units within a product type. A part number that has another number following it in parentheses is done to make this a world wide manual.

Regional part numbers

Some part numbers are region specific and should be ordered accordingly.

As an example, the part number (example: 314583 (9008000-0118) will be used. The first number is sold in Germany. The number in parentheses is sold in the United States. Customers would order 9008000-0118 if ordering the part in the United States.

Example of a part identification (H1P 115)

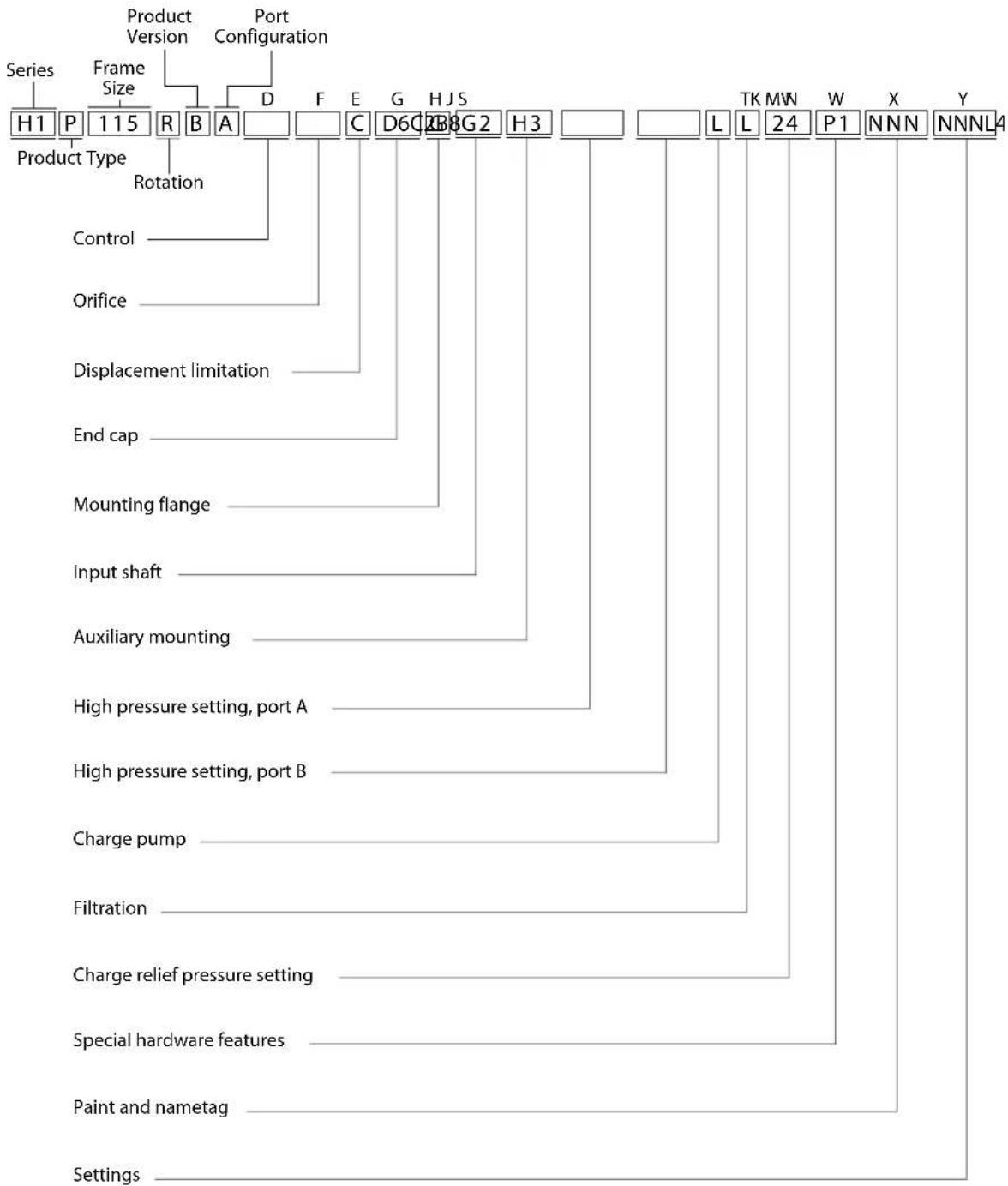

The nameplate on an H1 pump has an Order Code of H1P115 R B A B8 C2 C D6 G G2 H3 L42 L42 L L 24 P1 NNN NNN. Use the following procedures to determine the part number of the drive shaft used on this pump.

1. Referring to the input shaft module in the Order code on page 10, the input shaft option for this pump is identified by the code "G1". (H1P115 R B A B8 C2 C D6 G G2H3 L42 L42 L L 24 P1 NNN NNN)
2. Referring to the Service Parts List, find the shaft group. Next find the order code that relates to this unit, which is "G2". The shaft is found to be item J100 and part number 11123698

General information

Adobe Acrobat 2-page viewing

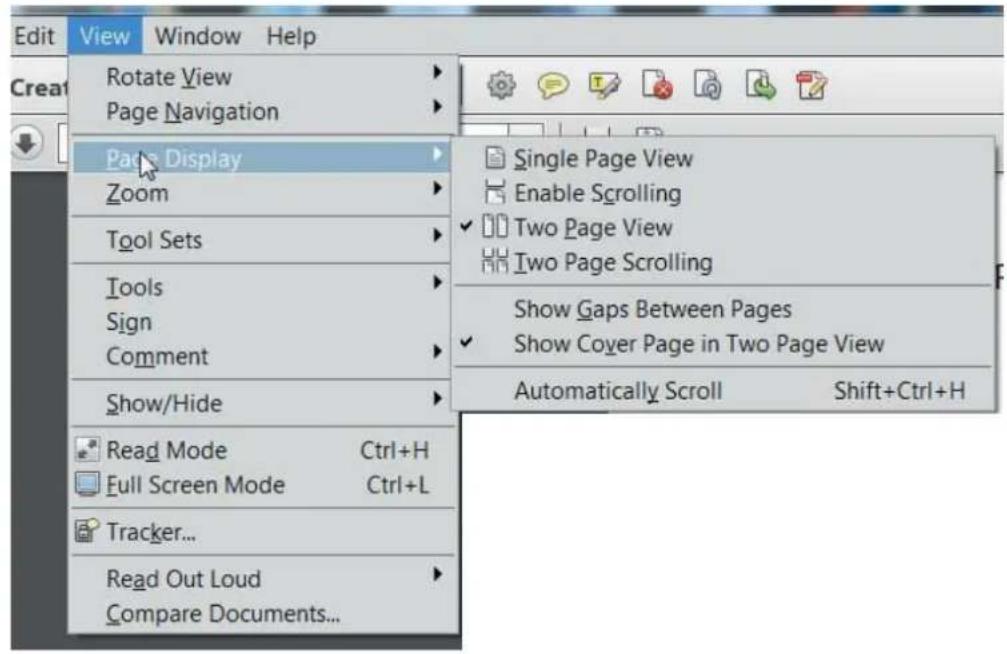

While viewing manual in Adobe Acrobat, the following settings need to be applied to ensure proper page display.

1. Select "View" "Page Display" "Two Page View"
2. Select "View" "Page Display" "Show Cover Page in Two Page View"

General information

Order code

General information

Notes

Common parts and special hardware

H1P 115/130cc common parts and special hardware

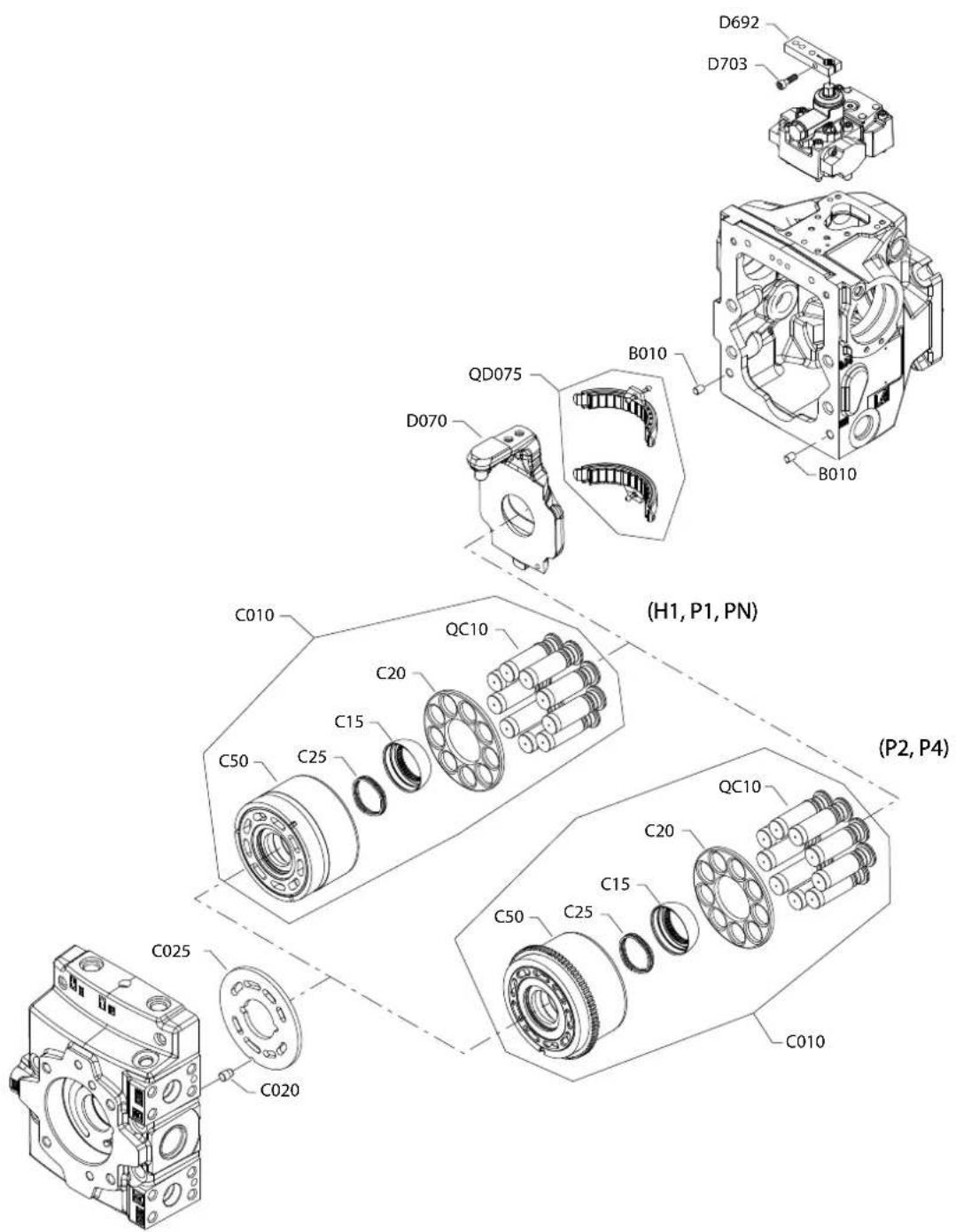

Parts configuration

Generic control and housing used to show part location only.

Common parts and special hardware

Common parts
Special hardware

Item Date Begin	Date End Part	Number Part Name Qty. per		Model/Kit
B010 08-10 9004	4800-3708 Dowel pin 2
C020 08-10 141	28 Valve plate pin, CCW 1
C020 08-10 141	26 Valve plate pin, CW 1
C15 17-47 11139	801 Slipper retainer ball guide, 115 and 130cc (SB-2018-006 on page 214)			1
C20 08-10 1412	4 Slipper retainer 1
C25 11-38 1117	204 Spring washer 115cc (SB-2011-039 on page 202) 1
C25	11-35		11175204	Spring washer, 130cc (SB-2011-039 on page 202)
D070	08-10 11295610	Swashplate		1
QC10	08-10 11046044	Slipper/piston kit, 115cc		1
QC10	08-10 11046045	Slipper/piston kit, 130cc		1
QD075	08-10 11046046	Swashplate bearing kit		1

Order code: H1

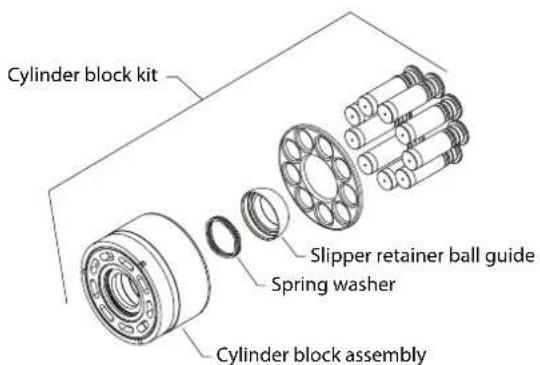

C010	17-47		11190003	Cylinder block kit, 115 cc (SB-2018-006 on page 214)	1
C010	17-47		11190004	Cylinder block kit, 130 cc (SB-2018-006 on page 214)	1
C025 13-28 1112	25571 Valve plate	CCW		1
C025 13-28 1112	23707 Valve plate	CW		1
C50 13-28 1112	4490 Cylinder block assembly, 115cc			1
C50 13-28 1112	6003 Cylinder block assembly, 130cc			1
D692	17-04		11185938	Control handle (SB-2018-010 on page 216)	1
D703	17-04		11173701	Screw, M6 x 20 (SB-2018-010 on page 216)	1

Order code: NN and PN

C010	17-47		11190003	Cylinder block kit, 115cc (SB-2018-006 on page 214)	1
C010	17-47		11190004	Cylinder block kit, 130cc (SB-2018-006 on page 214)	1
C025 09-51 1112	25571 Valve plate	CCW (SB-2013-003 on page 205)		1
C025 09-51 1112	23707 Valve plate	CW (SB-2013-003 on page 205)		1
C50 11-38 1112	4490 Cylinder block assembly, 115cc			1
C50 11-35 1112	6003 Cylinder block assembly, 130cc			1

Order code: M1 and P1

C010	17-47		11190003	Cylinder block kit, 115cc (SB-2018-006 on page 214)	1
C010	17-47		11190004	Cylinder block kit, 130cc (SB-2018-006 on page 214)	1
C025 09-51 1112	25569 Valve plate	CCW (SB-2013-003 on page 205)		1
C025 09-51 1112	25572 Valve plate	CW (SB-2013-003 on page 205)		1
C50 11-38 1112	4490 Cylinder block	ck assembly, 115cc		1
C50 11-35 1112	6003 Cylinder block	ck assembly, 130cc		1

Parts continue to the next 2 pages.

Common parts and special hardware

Parts configuration

Generic control and housing used to show part location only.

Common parts and special hardware

Order code: M2 and P2

Item Date Begin	Date End Part	Number Part Name	Qty. per		Model/Kit
C010 17-47 11191005 Cylinder block kit w/speed ring, 115cc (SB-2018-006 on page 214)					1
C010 17-47 11191006 Cylinder block kit w/speed ring, 130cc (SB-2018-006 on page 214)					1
C025 09-51 11125569 Valve plate	CCW (SB-2013-003 on page 205) 1
C025 09-51 11125572 Valve plate	CW (SB-2013-003 on page 205) 1
C50 11-38 11124491 Cylinder block assembly, speed ring, 115cc 1
C50 11-35 11124493 Cylinder block assembly, speed ring, 130cc 1

Order code: P4

C010 17-47 1119	1005 Cylinder block kit w/speed ring, 115cc (SB-2018-006 on page 214)
C010 17-47 1119	1006 Cylinder block kit w/speed ring, 130cc (SB-2018-006 on page 214)
C025 10-17 1112	25571 Valve plate	CCW (SB-2013-003 on page 205) 1
C025 10-17 1112	23707 Valve plate	CW (SB-2013-003 on page 205) 1
C50 11-38 1112	4491 Cylinder block assembly, speed ring, 115cc 1
C50 11-35 1112	4493 Cylinder block assembly, speed ring, 130cc 1

Controls

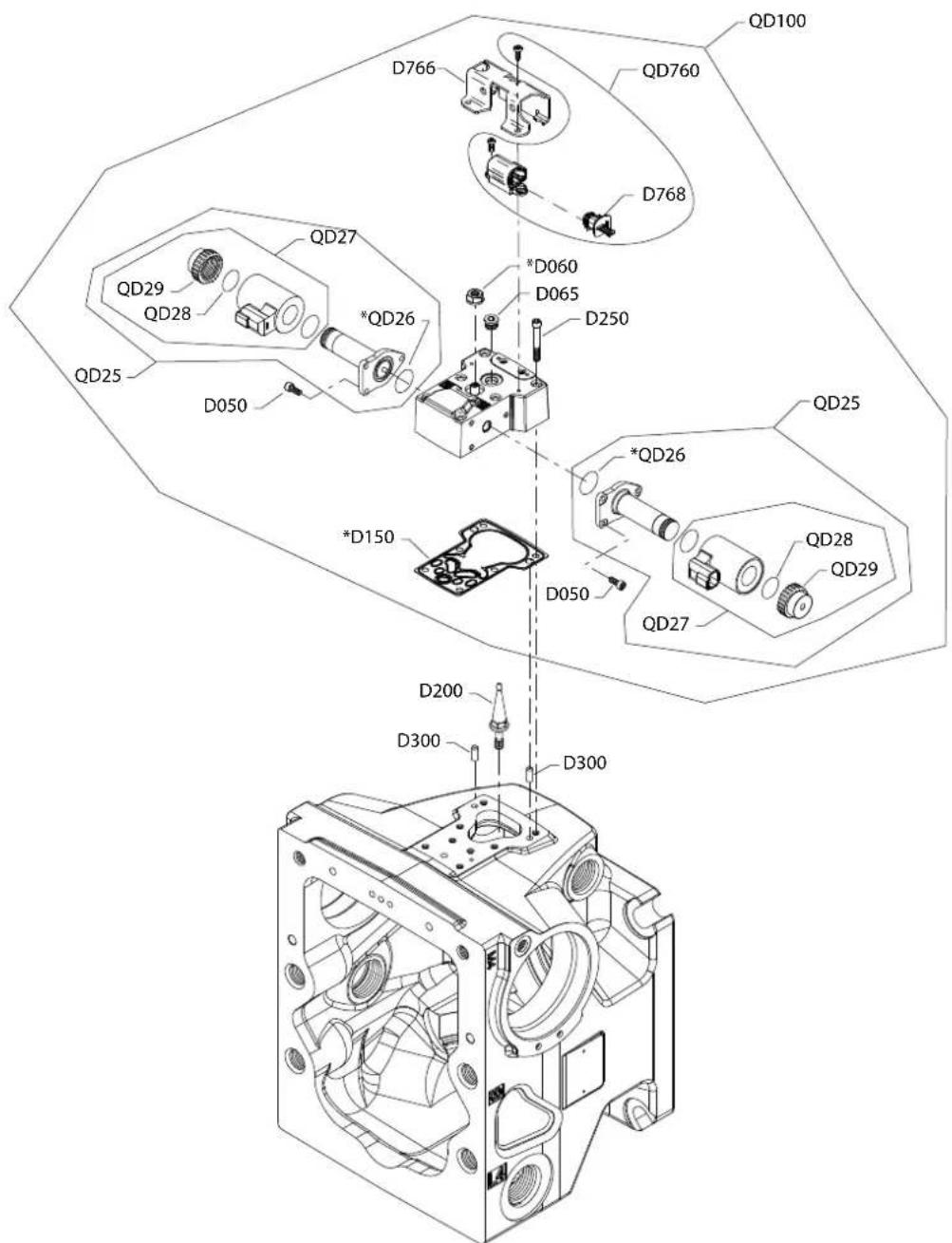

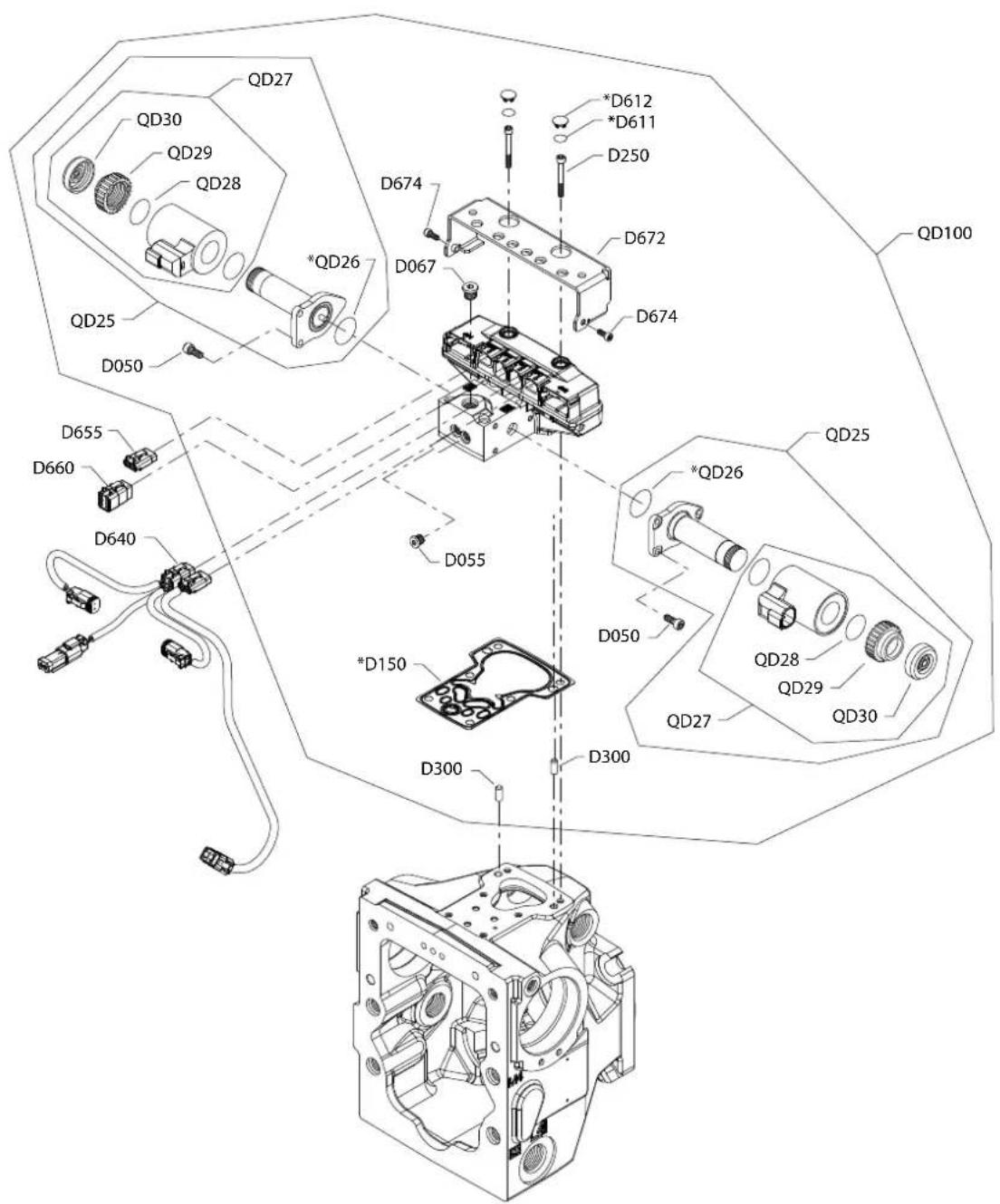

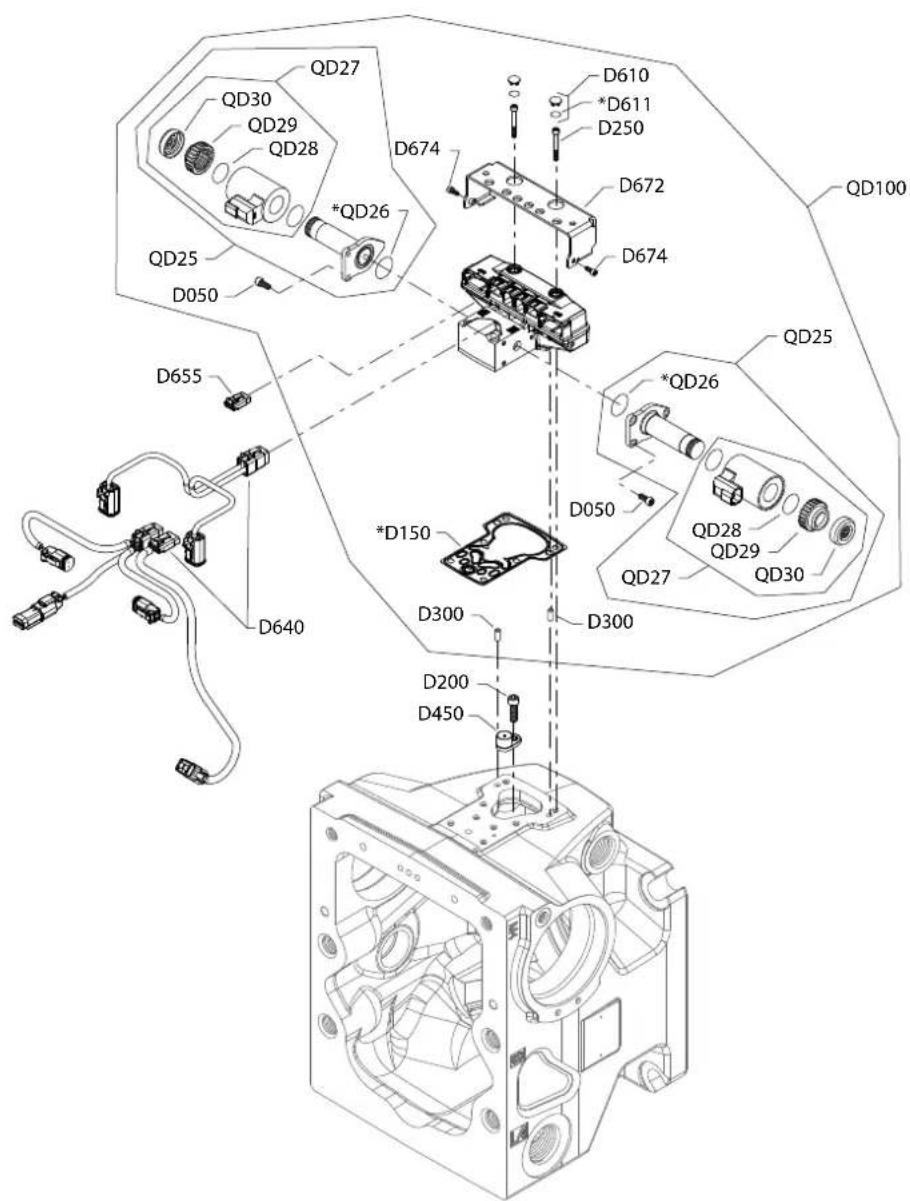

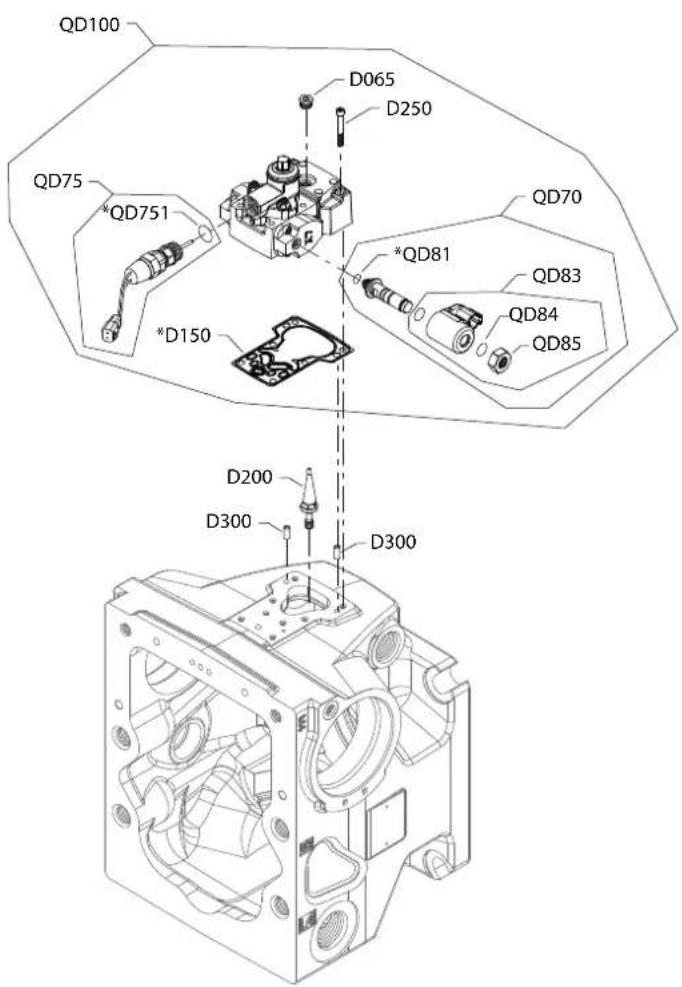

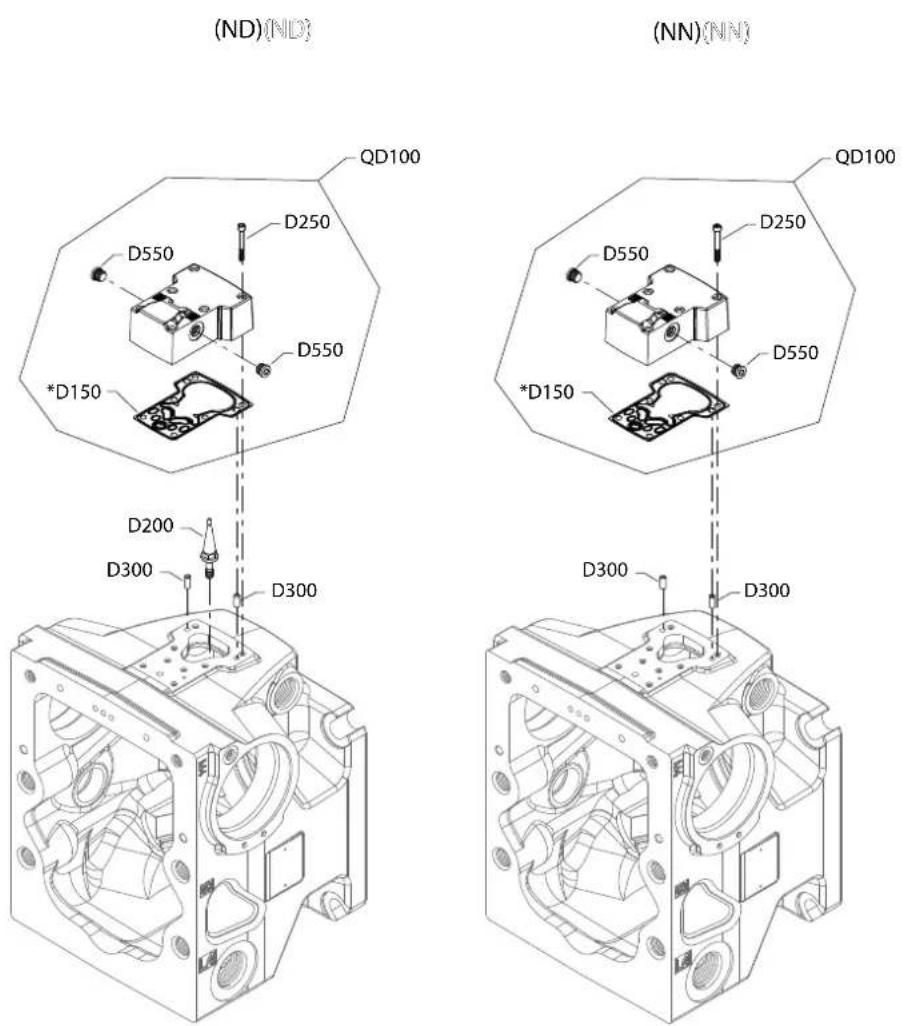

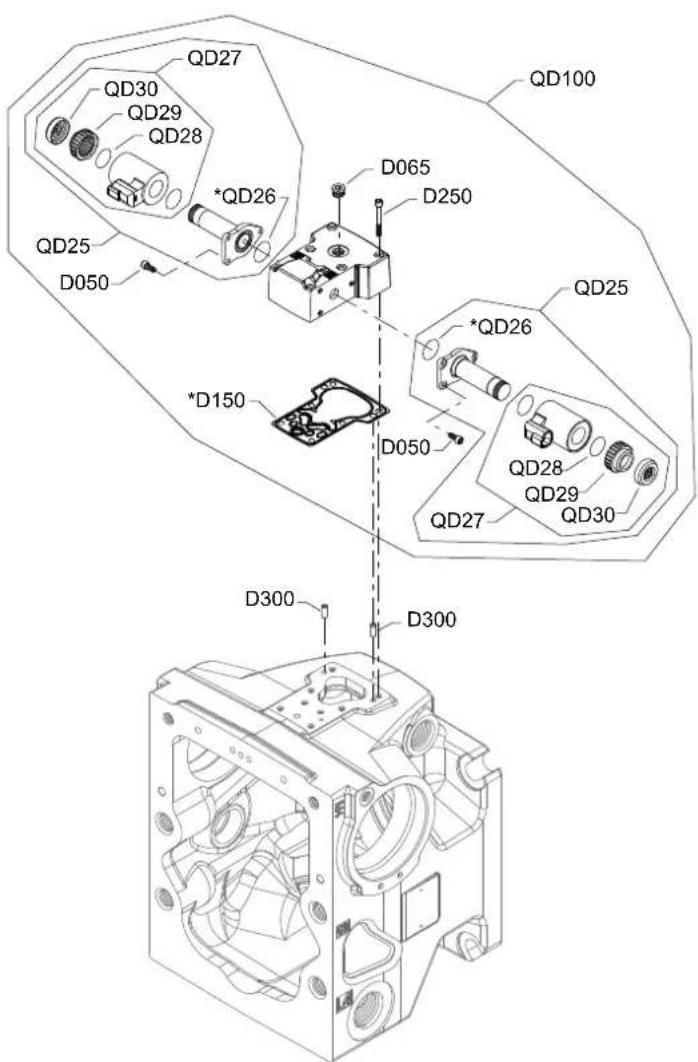

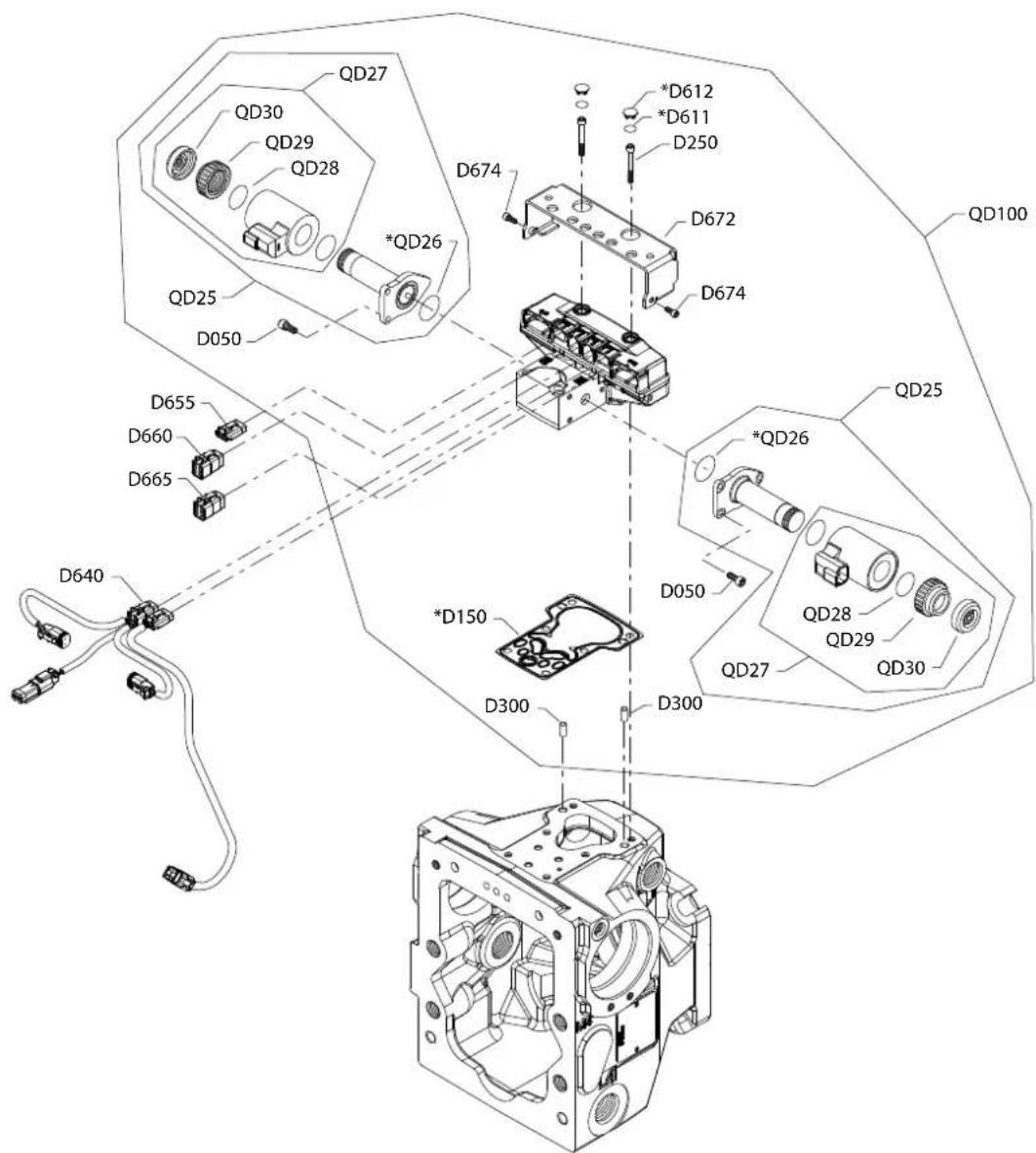

H1P control A2, A3

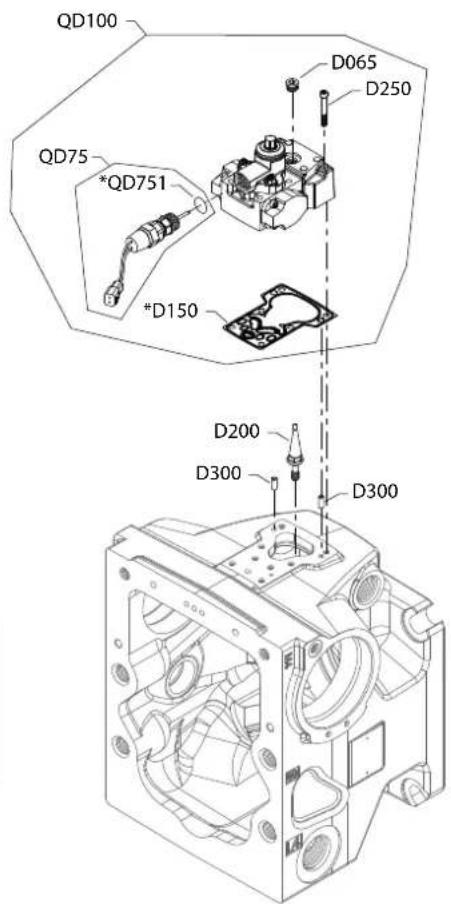

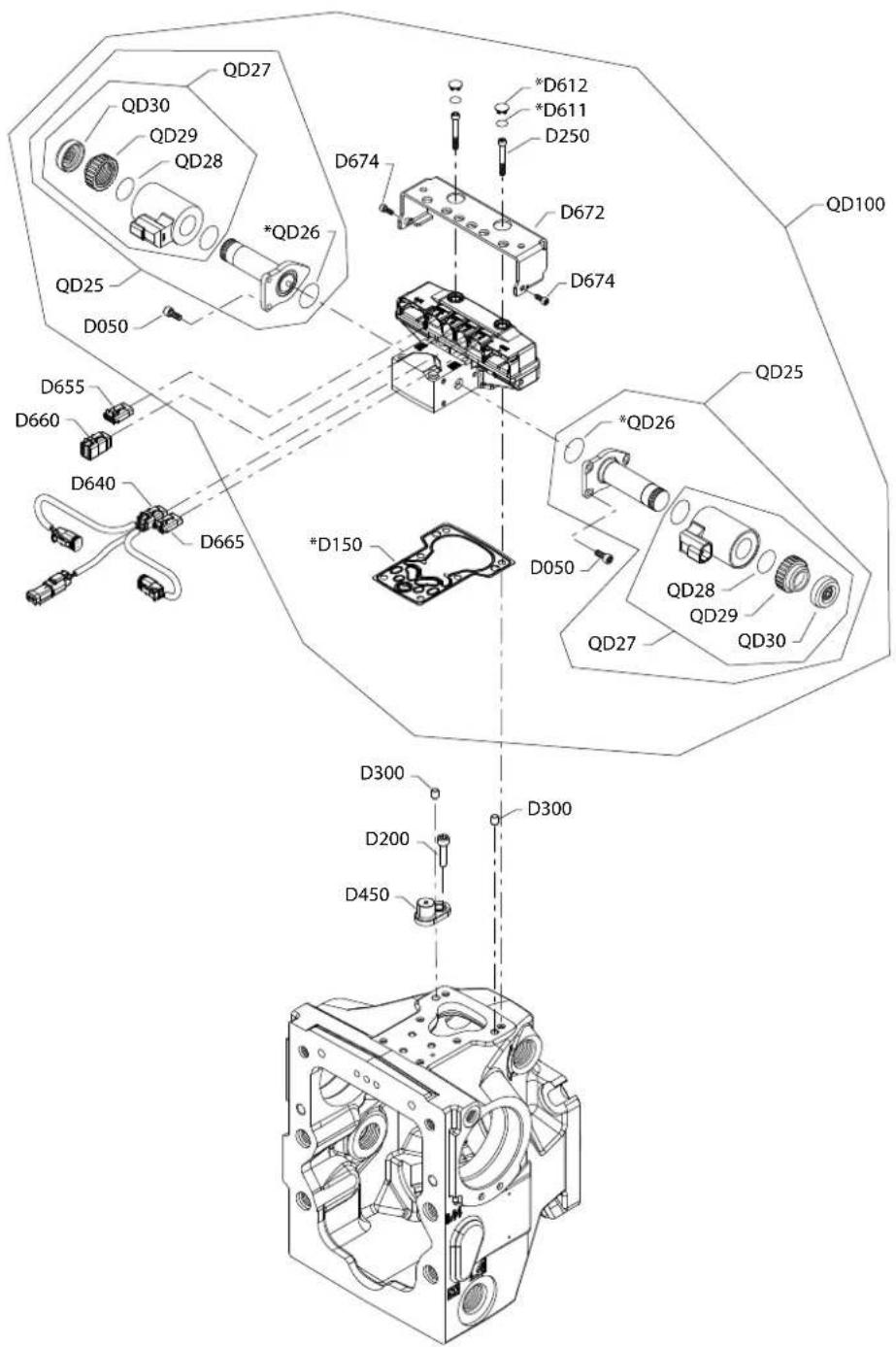

E100912E

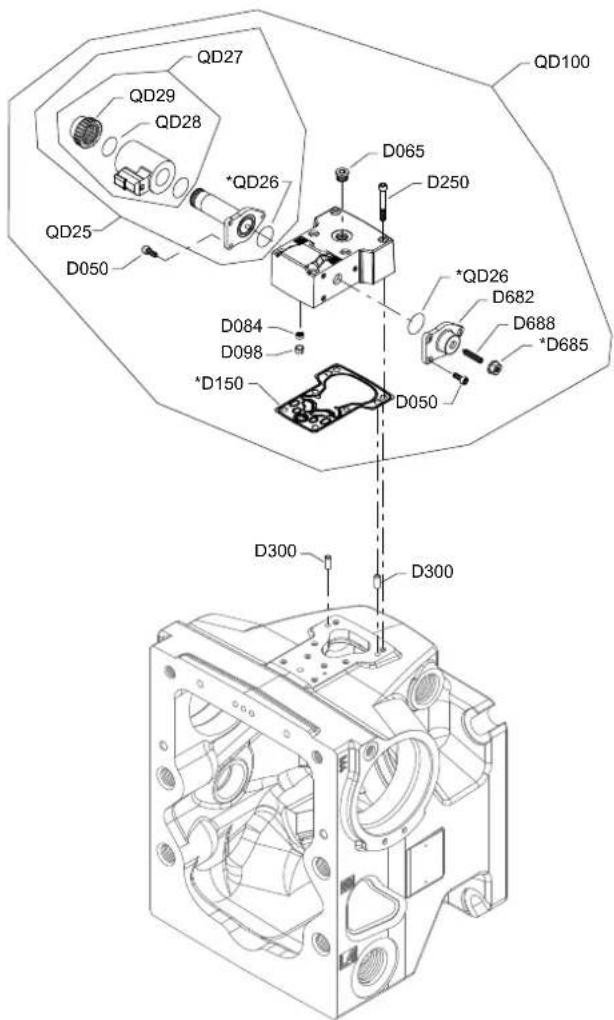

Generic housing shown.

Option A2 is available in SAE and metric configurations. Please order accordingly.

• Included in overhaul seal kit Q210

Controls

Common parts

Item Date Begin	Date End Part	Number Part Name	Qty. per	Model/Kit
D050 08-10 716	860 Screw, M5 x 12 6
D060 08-10 612	291 (9003508-0008) Seal nut, M8 1
D065 08-10 327	007 Plug assembly (SAE) 1
D150 08-10 112	27209 Control gasket (SB-2016-033) on page 213) 1
D200 08-10 112	02172 Swash plate feedback link (SB-2018-025 on page 217)			1
D250 08-10 505	038 Screw, M6 x 45 6
D300 08-10 310	979 Dowel pin 2
QD26 08-10 110	01952 O-ring		2
QD28 08-10 063	172 O-ring		2

Order code: A2

D065 16-09 500	0572	Plug assembly, M12 (metric)		1
QD25 08-10 110	12457 Proportional solenoid, 12v	2
QD27 08-10 110	28018 Coil kit, 12v, DEUTSCH connector	2
QD29 08-10 110	27046 Coil nut		2
QD100	08-10 11019680	EDC kit, 12v, DEUTSCH connector, fast		1
QD100	16-09		11173918	EDC kit, 12v DEUTSCH connector, fast (metric)	1

Order code: A3

QD25 08-10 110	12459 Proportional solenoid, 24v	2
QD27 08-10 110	28019 Coil kit, 24v, DEUTSCH connector	2
QD29 08-10 110	28024 Coil nut		2
QD100	08-10 11019681	EDC kit, 24v, DEUTSCH connector, fast	1

Controls

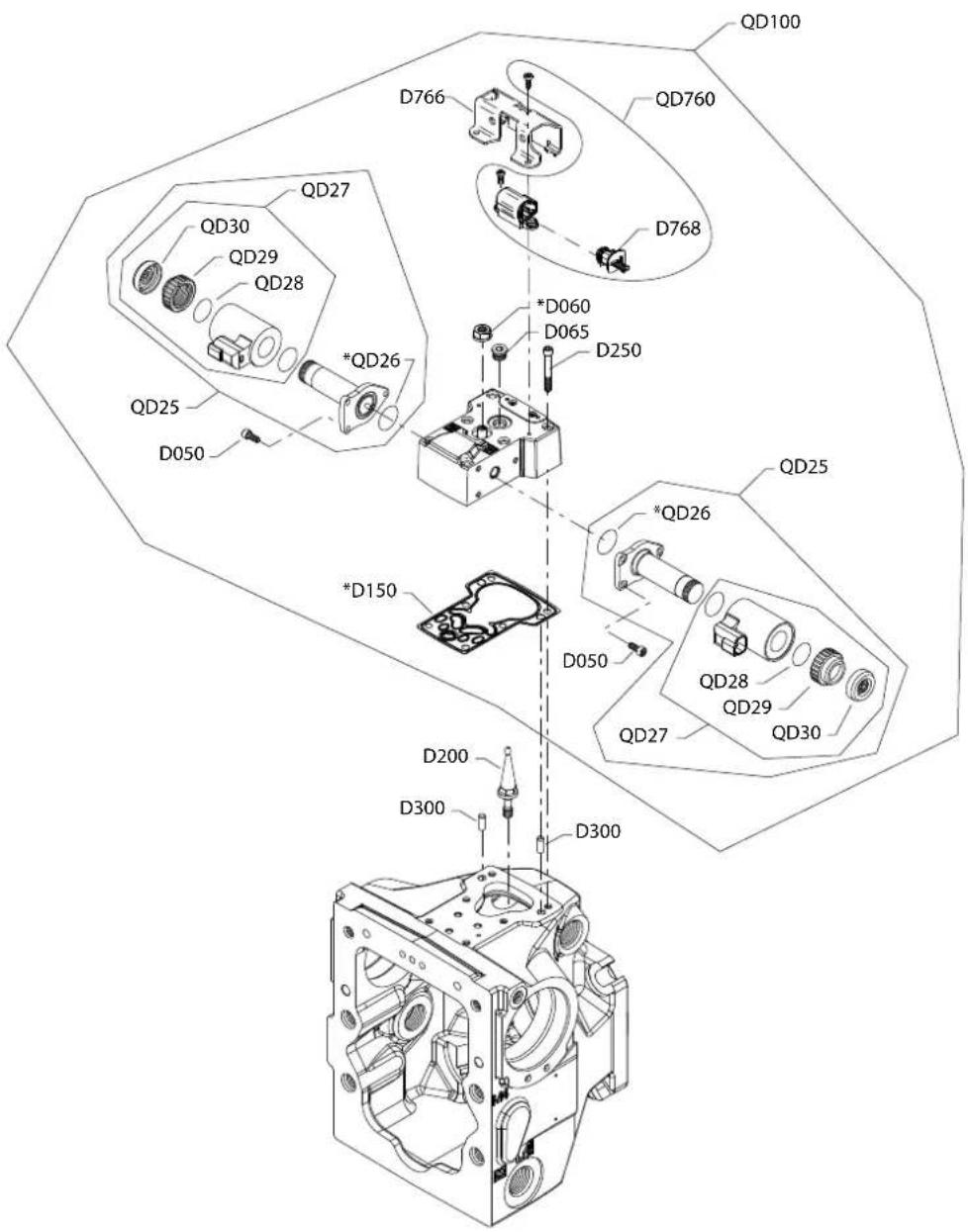

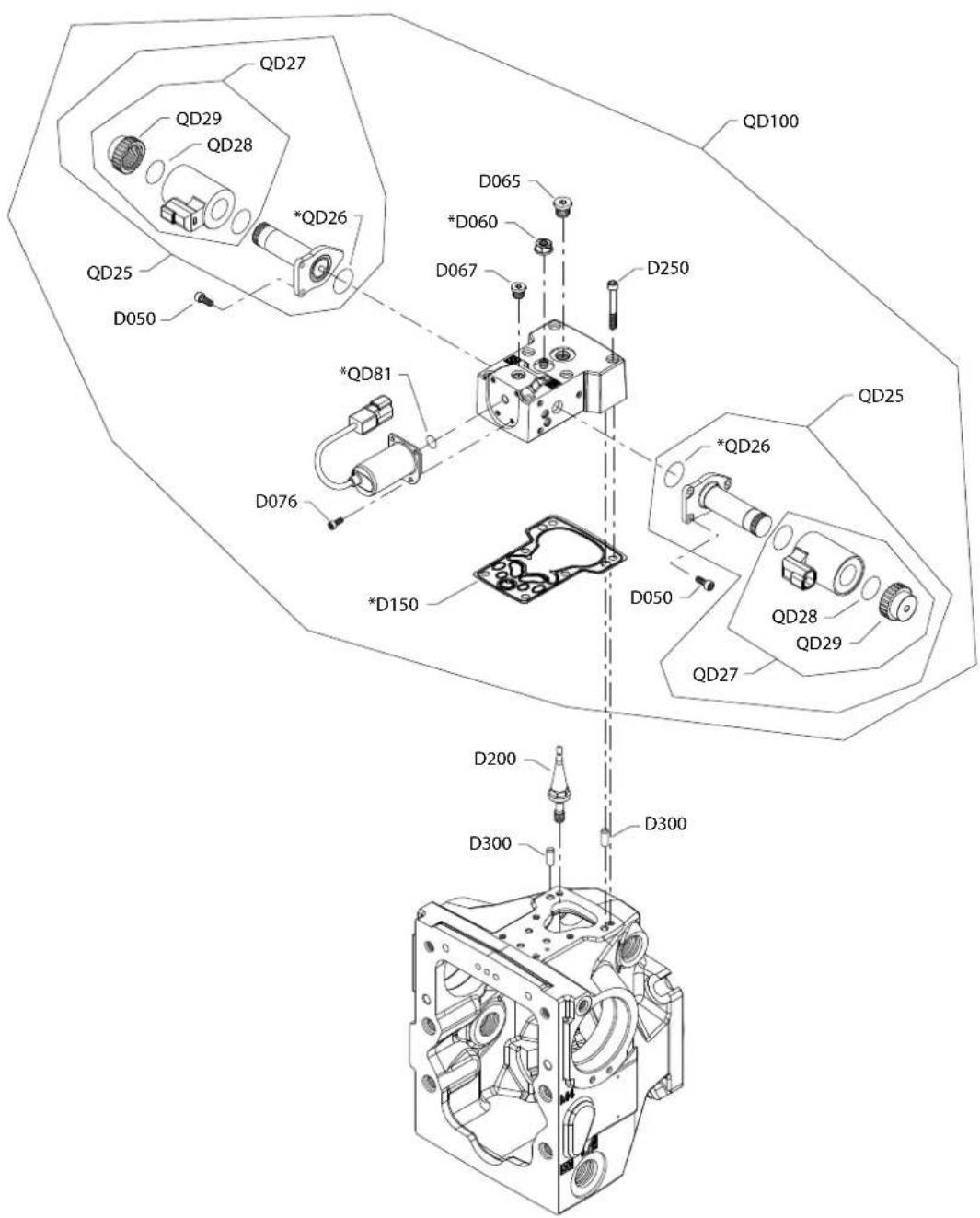

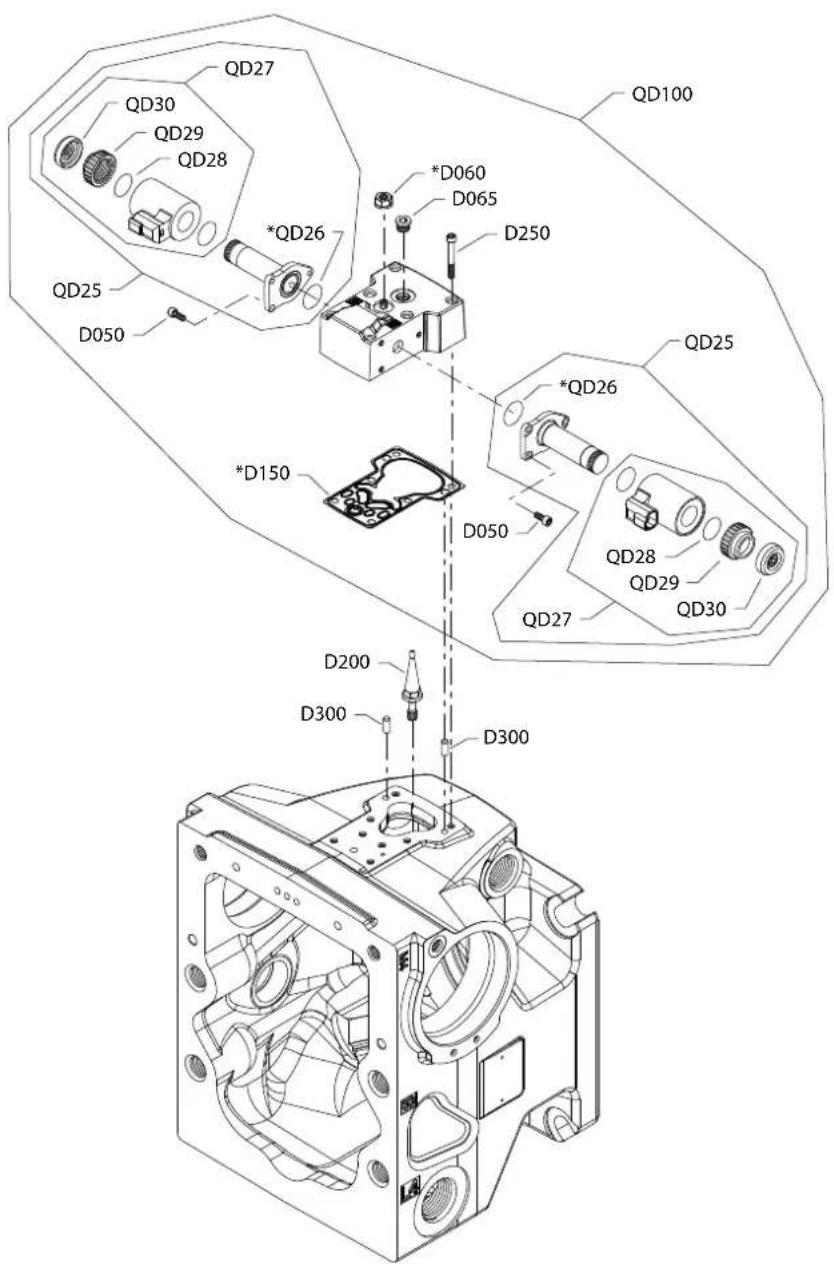

H1P control A4, A5

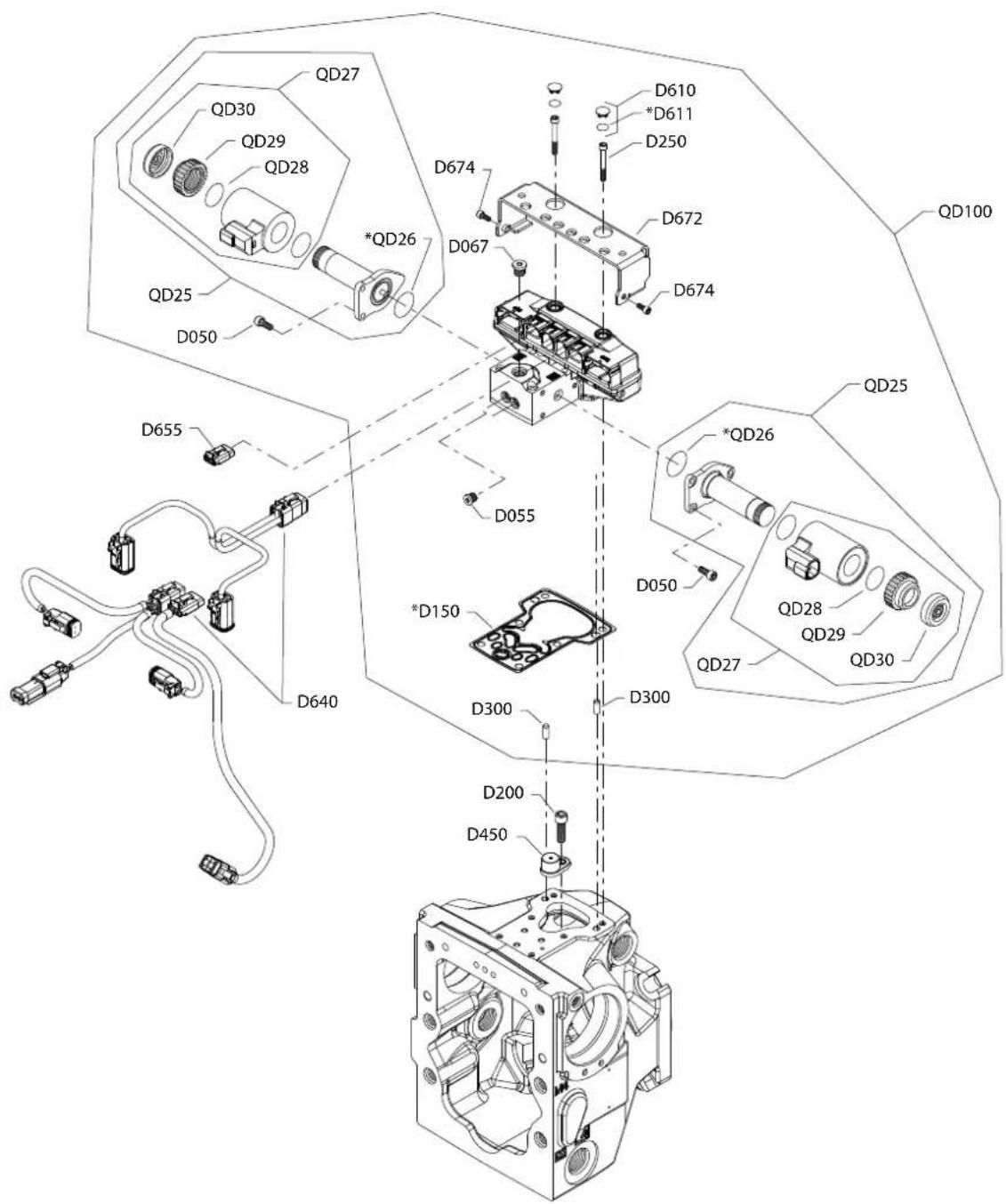

A4 and A5 configuration

Generic housing shown.

Option A5 is available in SAE and metric configurations. Please order accordingly.

• Included in overhaul seal kit Q210

Controls

Common parts

Item Date Begin	Date End Part	Number Part Name	Qty. per		Model/Kit
D050 08-10 716	860 Screw, M5 x 1	2 6
D060 08-10 612	291 (9003508-0008) Seal nut, M8 1
D065 08-10 327	007 Plug assembly 1
D150 08-10 112	27209 Control gasket (SB-2016-033) on page 213 1
D200 08-10 112	02172 Swash plate feedback link (SB-2018-025 on page 217)				1
D250 08-10 505	038 Screw, M6 x 45 6
D300 08-10 310	979 Dowel pin 2
QD26 08-10 110	01952 O-ring		2
QD28 08-10 063	172 O-ring		2
QD30 08-10 110	27883 Cap		2

Order code:A4

QD25 08-10 140	750 Proportional	solenoid, 12v	2
QD27 08-10 110	04698 Coil kit, 12	v, DEUTSCH connector	2
QD29 08-10 110	04749 Coil nut		2
QD100	08-10 11019732	EDC kit, 12v, DEUTSCH connector, fast, manual	override		1

Order code: A5

D065 16-09 500	0572	Plug	assembly, M12 (metric)	1
QD25 08-10 140	751 Proportional	solenoid, 24v	2
QD27 08-10 110	04700 Coil kit, 24v, DEUTSCH connector	v, DEUTSCH connector	2
QD29 08-10 110	04750 Coil nut		2
QD100	08-10 11019733	EDC kit, 24v, DEUTSCH connector, fast, manual		override	1
QD100	16-09 11170082	EDC kit, 24v DEUTSCH connector, fast, manual		override (metric)	1

Controls

H1P control A6

Parts configuration

Generic housing shown.

• Included in overhaul seal kit Q210

Controls

Order code: A6

Item Date Begin	Date End Part	Number Part Name	Qty. per		Model/Kit
D050 08-10 12-5	2 716860 Screw,	M5 x 12 6
D060 08-10 12-5	2 612291 (90035)	08-0008) Seal nut,	M8 1
D065 08-10 12-5	2 327007 Plug assembly 1
D067 08-10 12-5	2 11040532 Plug assembly 1
D076 08-10 12-5	2 346957 Screw,	M4 x 8 4
D150 08-10 12-5	2 11227209 Control gasket (SB-2016-033 on page 213) 1
D200 08-10 12-5	2 11202172 Swashplate feedback	link (SB-2018-025 on page	217)		1
D250 08-10 12-5	2 505038 Screw,	M6 x 45 6
D300 08-10 12-5	2 310979 Dowel pin 2
QD25 08-10 12-5	2 11012457 Proportional solenoid,	12V	2
QD26 08-10 12-5	2 11001952 O-ring		2
QD27 08-10 12-5	2 11028018 Coil	kit, 12V, DEUTSCH connector	2
QD28 08-10 12-5	2 063172 O-ring		2
QD29 08-10 12-5	2 11027046 Coil	nut	2
QD081	08-10 12-52 110	59551 O-ring		1
QD100	08-10 12-52 111	52574 EDC kit, 12V, high gain spool, control override(SB-2015-035 on page 208)			1

Controls

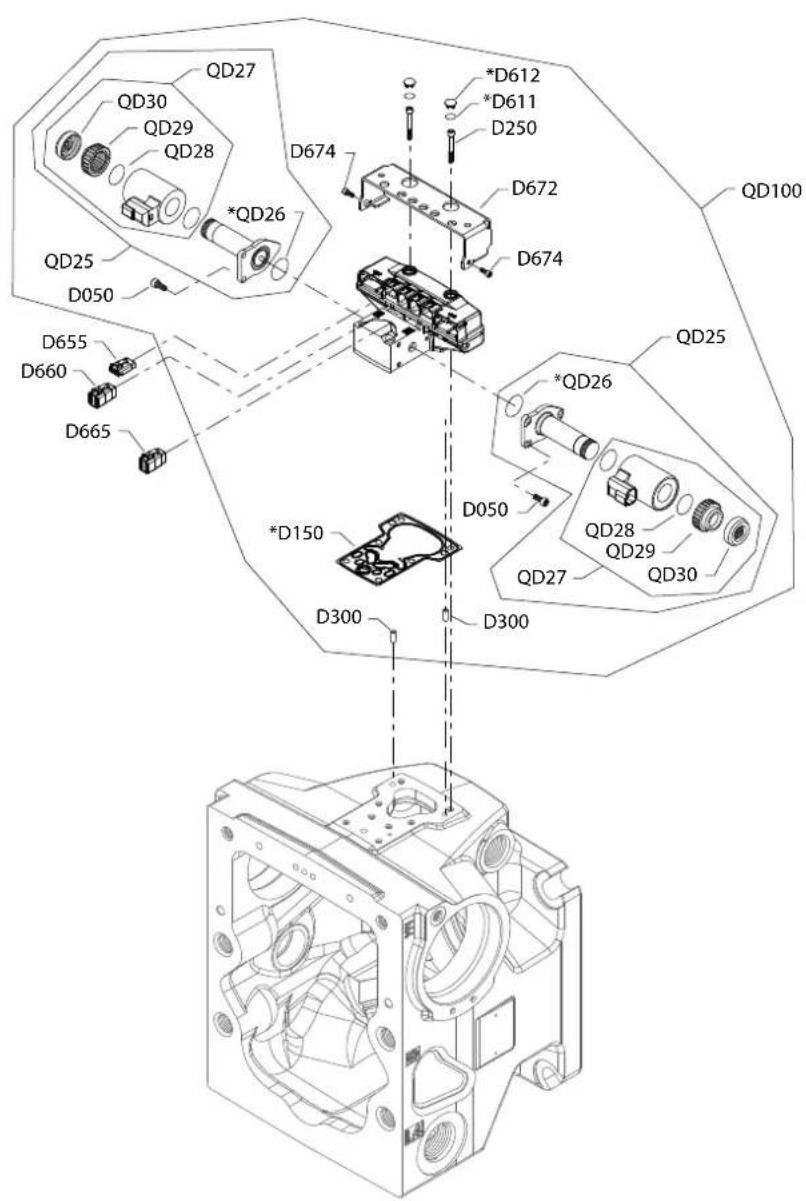

H1P control A7

Parts configuration

Generic housing shown

• Included in overhaul seal kit

Controls

Order code:A7

Item Date Begin	Date End Part	Number Part Name	Qty. per		Model/Kit
D050 10-14 716	860 Screw, M5 x 12 6
D055 10-14 110	40532 Plug assembly 2
D067 10-14 327	007 Plug assembly 1
D150 10-14 112	27209 Control gasket (SB-2016-033 on page 213) 1
D250 10-14 505	038 Screw, M6 x 45 6
D300 10-14 110	86469 Dowel pin 2
D612 10-14 21-12	11003126 Plug (SB-2021-014 on page 220) 2
D612 21-13 112	23708 Plug 2
D611 10-14 21-12	11066774 O-ring (SB-2021-014 on page 220) 2
D611 21-13 112	25703 O-ring		2
D640 10-14 110	23348 AC wiring harness		1
D655 10-14 110	84827 Connector	DTM 06-35	1
D660 10-14 110	84822 Connector	DTM 06-65	1
D672 10-14 111	51875 Protection		1
D674 10-14 716	860 Screw, M5 x 12 2
QD25 10-14 140	750 Proportional solenoid, 12 volt	2
QD26 10-14 110	01952 O-ring		2
QD27 10-14 110	04698 Coil kit, 12v, DEUTSCH connector	2
QD28 10-14 063	172 O-ring		2
QD29 10-14 110	04749 Coil nut		2
QD30 10-14 110	27883 Cap		2
QD100	10-14		11065118	Automotive control kit, 12v, manual override	1

Controls

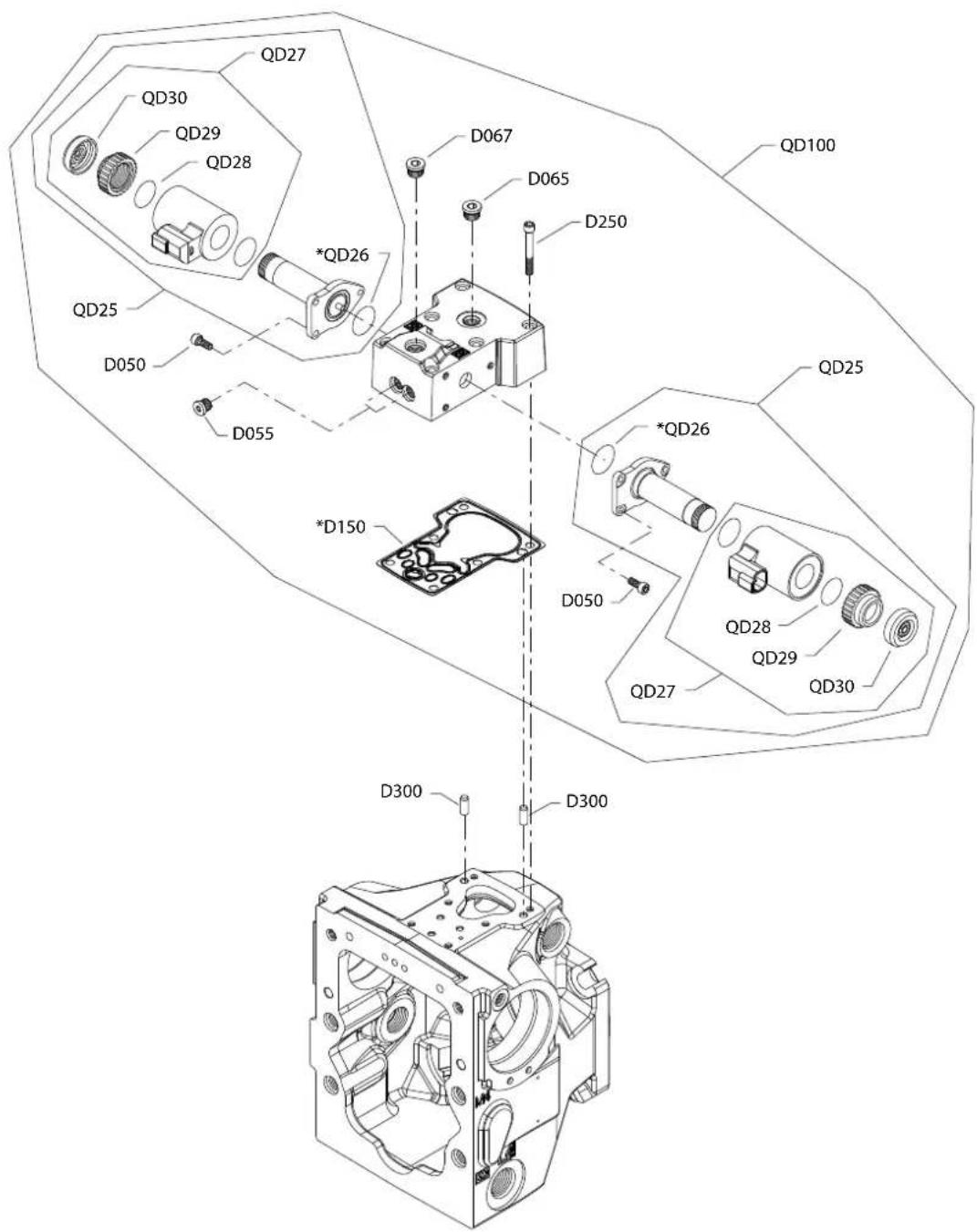

H1P control A8

Parts configuration

Generic housing shown.

• Included in overhaul seal kit Q210

Controls

Order code: A8

Item Date Begin	Date End Part	Number Part Name	Qty. per		Model/Kit
D050 08-10 716	860 Screw, M5 x 12 6
D055 08-10 110	40532 Plug assembly 2
D065 08-10 327	007 Plug assembly 1
D067 08-10 327	007 Plug assembly 1
D150 08-10 112	27209 Control gasket (SB-2016-033) on page 213) 1
D250 08-10 505	038 Screw, M6 x 45 6
D300 08-10 310	979 Dowel pin 2
QD25 08-10 140	750 Proportional solenoid, 12v, DEUTSCH connector 2
QD26 08-10 110	01952 O-ring 2
QD27 08-10 110	04698 Coil kit, 12v, DEUTSCH connector 2
QD28 08-10 063	172 O-ring 2
QD29 08-10 110	04749 Coil nut		2
QD30 08-10 110	27883 Cap		2
QD100	08-10 11015803	NFPE control kit,	12V, manual override, DEUTSCH	connector	1

Controls

H1P control A9, B1

Parts configuration

Generic housing shown

• Included in overhaul seal kit Q210

Controls

Common parts

Item Date Begin	Date End Part	Number Part Name	Qty. per	Model/Kit
D050 08-10 716	860 Screw, M5 x 12 6
D065 08-10 327	007 Plug assembly 1
D150 08-10 112	27209 Control gasket 1
D250 08-10 505	038 Screw, M6 x 45 6
D300 08-10 310	979 Dowel pin 2
QD26 08-10 110	01952 O-ring 2
QD28 08-10 063	172 O-ring 2
QD30 08-10 110	27883 Cap 2

Order code: A9

QD25 08-10 141	301 Proportional	solenoid, 12v, DEUTSCH connector 2
QD27 08-10 110	05222 Coil kit, 12	v, DEUTSCH connector 2
QD29 08-10 110	04749 Coil nut		2
QD100	08-10 11025905	FNR control kit, 1	2v, manual override, DEUTSCH	connector

Order code: B1

QD25 08-10 141	313 Proportional	solenoid, 24v, DEUTSCH connector 2
QD27 08-10 110	05223 Coil kit, 24v, DEUTSCH connector 2
QD29 08-10 110	04750 Coil nut		2
QD100	08-10 11025906	FNR control kit, 2	4v, manual override, DEUTSCH	connector

Controls

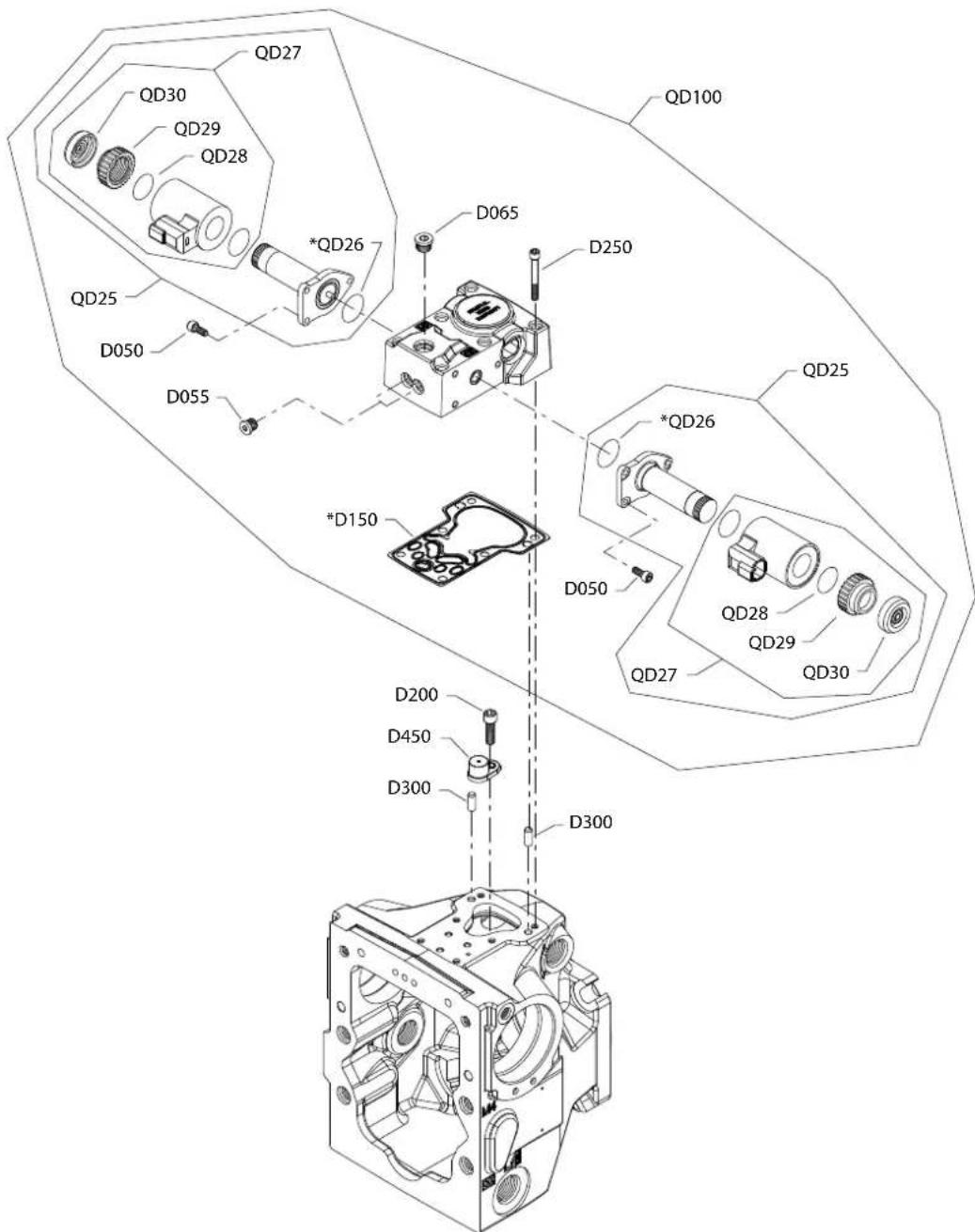

H1P control B5

Parts configuration

Generic housing shown

• Included in overhaul seal kit Q210

Controls

Order code: B5

Item Date Begin	Date End Part	Number Part Name	Qty. per		Model/Kit
D050 10-14 716	860 Screw 6
D055 10-14 110	40532 Plug assembly 2
D067 10-14 327	007 Plug assembly 1
D150 10-14 112	27209 Control gasket (SB-2016-033 on page 213) 1
D200 10-14 141	472 Screw 1
D250 10-14 505	038 Screw 6
D300 10-14 310	979 Dowel pin 2
D450 10-14 110	03097 Magnet carrier 1
QD25 10-14 140	750 Proportional solenoid, 12 volt 2
QD26 10-14 110	01952 O-ring		2
QD27 10-14 110	04698 Coil kit, 12 V, DEUTSCH connector 2
QD28 10-14 063	172 O-ring		2
QD29 10-14 110	04749 Coil nut		2
QD30 10-14 110	27883 Cap		2
QD100	10-14 11050138	NFPE control kit,	12V, manual override	1

Controls

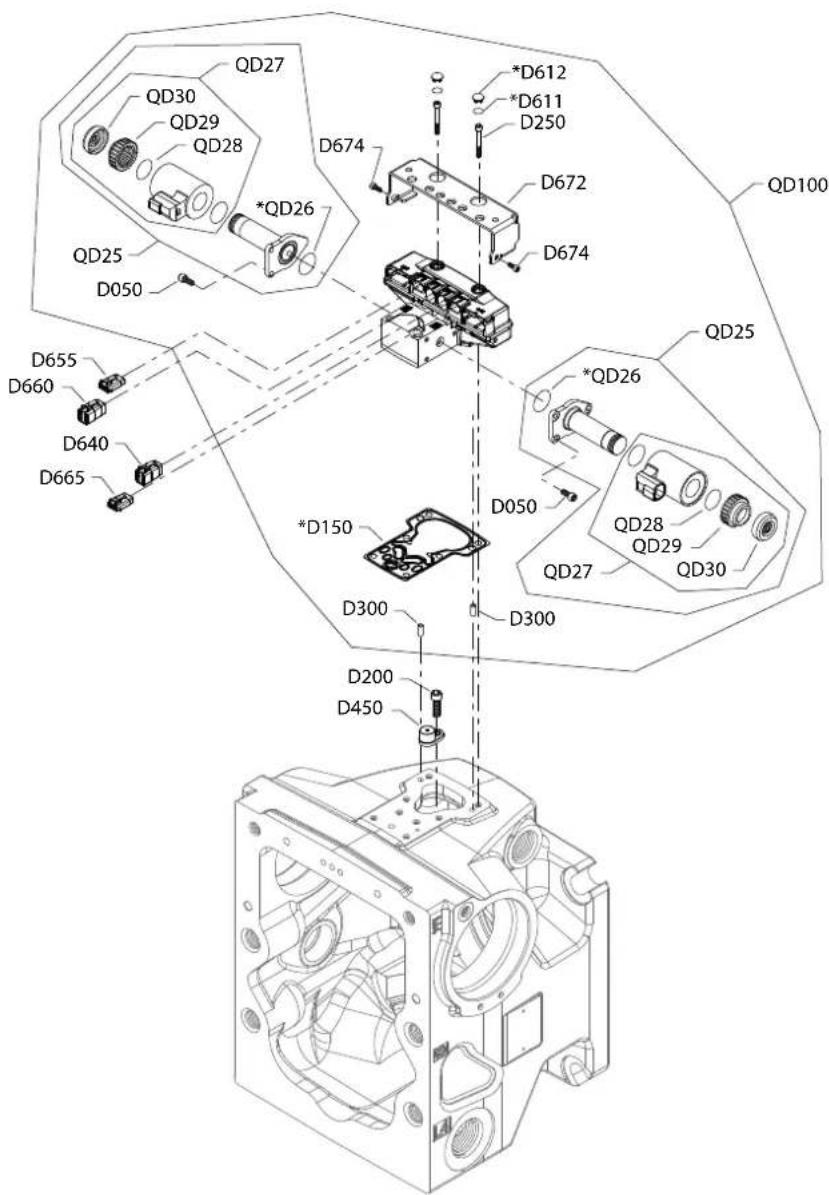

H1P control B7

Parts configuration

Generic housing shown.

• Included in overhaul seal kit Q210

Controls

Order code:B7

Item Date Begin	Date End Part	Number Part Name	Qty. per		Model/Kit
D050 10-14 716	860 Screw, M5 x 12 6
D055 10-14 110	40532 Plug assembly 2
D067 10-14 327	007 Plug assembly 1
D150 10-14 112	27209 Control gasket (SB-2016-033 on page 213) 1
D200 10-14 141	472 Screw, special 1
D250 10-14 505	038 Screw, M6 x 4 5 6
D300 10-14 110	86469 Dowel pin 2
D450 10-14 110	03097 Magnet carrier 1
D611 10-14 21-12	11066774 O-ring (SB-2021-014 on page 220) 2
D611 21-13 112	25703 O-ring		2
D612 10-14 21-12	11003126 Plug (SB-2021-014 on page 220) 2
D612 21-13 112	23708 Plug		2
D640 10-14 110	23348 AC wiring harness		1
D655 10-14 110	84827 Connector	DTM 06-35	1
D660 10-14 110	84822 Connector	DTM 06-65	1
D672 10-14 111	51875 Protection		1
D674 10-14 716	860 Screw, M5 x 12 2
QD25 10-14 140	750 Proportional solenoid, 12 volt	2
QD26 10-14 110	01952 O-ring		2
QD27 10-14 110	04698 Coil kit, 12 v, DEUTSCH connector	2
QD28 10-14 063	172 O-ring		2
QD29 10-14 110	04749 Coil nut		2
QD30 10-14 110	27883 Cap		2
QD100	10-14		11065119	Automotive control kit, 12v, manual override	1

Controls

H1P control B8

Parts configuration

Generic housing shown.

• Included in overhaul seal kit Q210

Controls

Order code:B8

Item Date Begin	Date End Part	Number Part Name	Qty. per		Model/Kit
D050 08-10 716	860 Screw, M5 x 12 6
D055 08-10 110	40532 Plug assembly 2
D065 08-10 327	007 Plug assembly 1
D067 08-10 327	007 Plug assembly 1
D150 08-10 112	27209 Control gasket (SB-2016-033) on page 213) 1
D250 08-10 505	038 Screw, M6 x 45 6
D300 08-10 310	979 Dowel pin 2
QD25 08-10 140	751 Proportional solenoid, 24v, DEUTSCH connector 2
QD26 08-10 110	01952 O-ring 2
QD27 08-10 110	04700 Coil kit, 24v, DEUTSCH connector 2
QD28 08-10 063	172 O-ring 2
QD29 08-10 110	04750 Coil nut		2

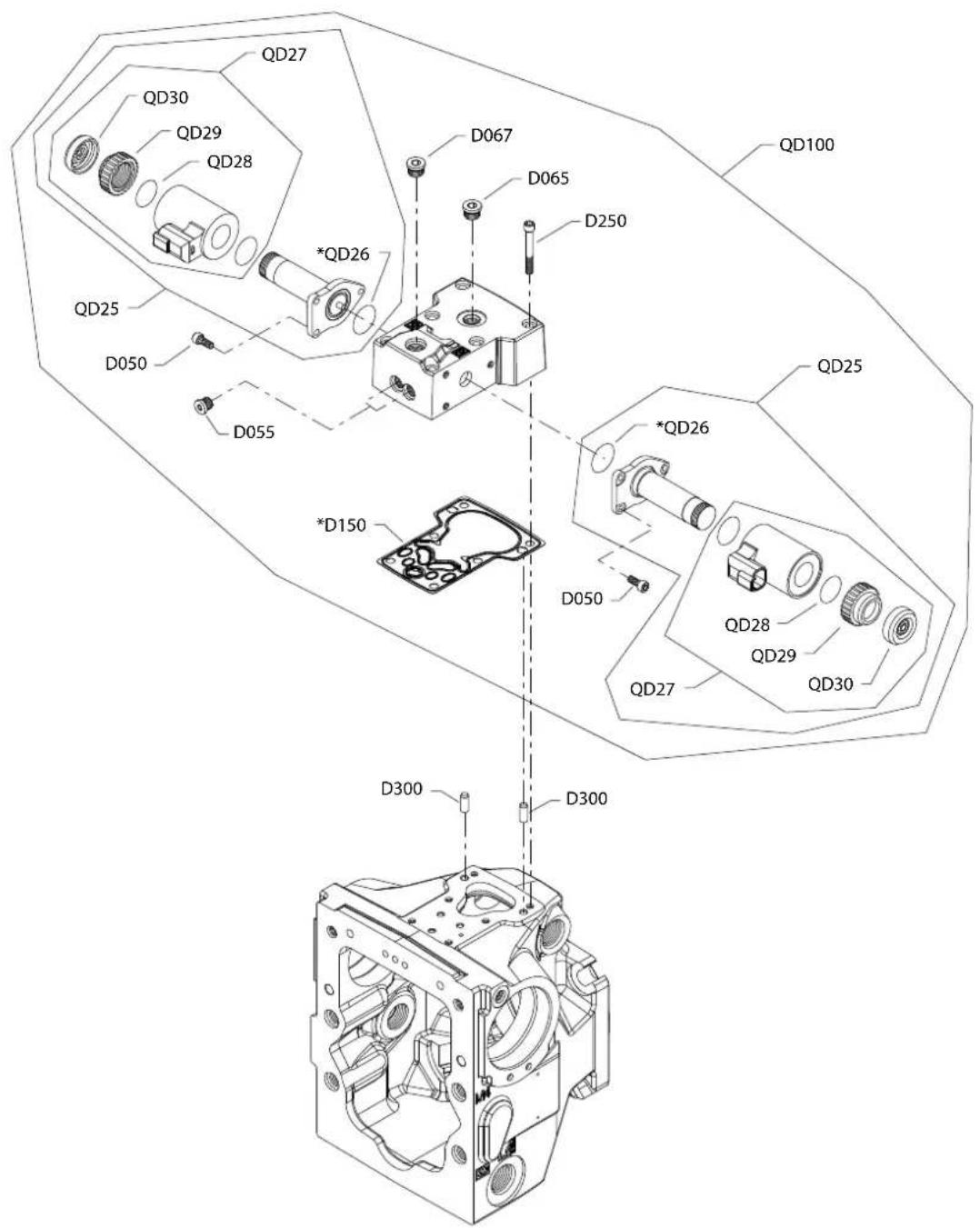

QD30 08-10 110	27883 Cap		2
QD100	08-10 11025904	NFPE control kit,	24v, manual override, DEUTSCH connector	1

Controls

H1P control B9

Parts configuration

Generic housing shown.

• Included in overhaul seal kit Q210

Controls

Order code: B9

Item Date Begin	Date End Part	Number Part Name	Qty. per		Model/Kit
D050 08-10 716	860 Screw 6
D055 08-10 110	40532 Plug assembly 2
D067 08-10 327	007 Plug assembly 1
D150 08-10 112	27209 Control gasket (SB-2016-033 on page 213) 1
D200 08-10 141	472 Screw 1
D250 08-10 505	038 Screw 6
D300 08-10 310	979 Dowel pin 2
D450 08-10 110	03097 Magnet carrier 1
QD25 08-10 140	751 Proportional solenoid, 24v, DEUTSCH connector 2
QD26 08-10 110	01952 O-ring		2
QD27 08-10 110	4700	Coil kit, 24v, DEUTSCH connector		2
QD28 08-10 063	172 O-ring		2
QD29 08-10 110	04750 Coil nut		2
QD30 08-10 110	27883 Cap		2
QD100	08-10 11050137	NFPE control kit,	24V, manual override	1

Controls

H1P control C1

Parts configuration

Generic housing shown.

• Included in overhaul seal kit Q210

Controls

Order code: C1

Item Date Begin	Date End Part	Number Part Name	Qty. per		Model/Kit
D050 08-10 12-5	52 716860 Screw 6
D060 08-10 12-5	52 612291 (90035) 08-0008) Seal nut 1
D065 08-10 12-5	52 327007 Plug assembly 1
D067 08-10 12-5	52 11040532 Plug assembly 1
D076 08-10 12-5	52 346957 Screw, M4 x 8 4
D150 08-10 12-5	52 11227209 Control gasket (SB-2016-033 on page 213) 1
D200 08-10 12-5	52 11202172 Swashplate feedback link (SB-2018-025 on page 217) 1
D250 08-10 12-5	52 505038 Screw 6
D300 08-10 12-5	52 310979 Dowel pin 2
QD25 08-10 12-5	52 11012459 Proportional solenoid, 24V, DEUTSCH connector 2
QD26 08-10 12-5	52 11001952 O-ring	2
QD27 08-10 12-5	52 11028019 Coil kit, 24V, DEUTSCH connector 2
QD28 08-10 12-5	52 063172 O-ring	2
QD29 08-10 12-5	52 11028024 Coil nut	2
QD81 08-10 12-5	52 11059551 O-ring	1
QD100	08-10 12-52 111 47472 EDC kit, 24V, high gain spool, control override (SB-2015-035 on page 208)				1

Controls

H1P control C2

Parts configuration

Generic housing shown.

• Included in overhaul seal kit Q210

Controls

Order code: C2

Item Date Begin	Date End Part	Number Part Name	Qty. per		Model/Kit
D050 10-14 716	860 Screw, M5 x 12 6
D055 10-14 110	40532 Plug assembly 2
D067 10-14 327	007 Plug assembly 1
D150 10-14 112	27209 Control gasket (SB-2016-033 on page 213) 1
D250 10-14 505	038 Screw, M6 x 45 6
D300 10-14 110	86469 Dowel pin 2
D611 10-14 21-12	11066774 O-ring (SB-2021-014 on page 220) 2
D611 21-13 112	25703 O-ring 2
D612 10-14 21-12	11003126 Plug (SB-2021-014 on page 220) 2
D612 21-13 112	23708 Plug		2
D640 10-14 110	23348 AC wiring harness		1
D655 10-14 110	84827 Connector	DTM 06-35	1
D660 10-14 110	84822 Connector	DTM 06-65	1
D672 10-14 111	51875 Protection		1
D674 10-14 716	860 Screw, M5 x 12 2
QD25 10-14 140	751 Proportional solenoid, 24 volt	2
QD26 10-14 110	01952 O-ring 2
QD27 10-14 110	04700 Coil kit, 24 v, DEUTSCH connector	2
QD28 10-14 063	172 O-ring 2
QD29 10-14 110	04750 Coil nut		2
QD30 10-14 110	27883 Cap		2
QD100	10-14		11065120	Automotive control kit, 24v, manual override	1

Controls

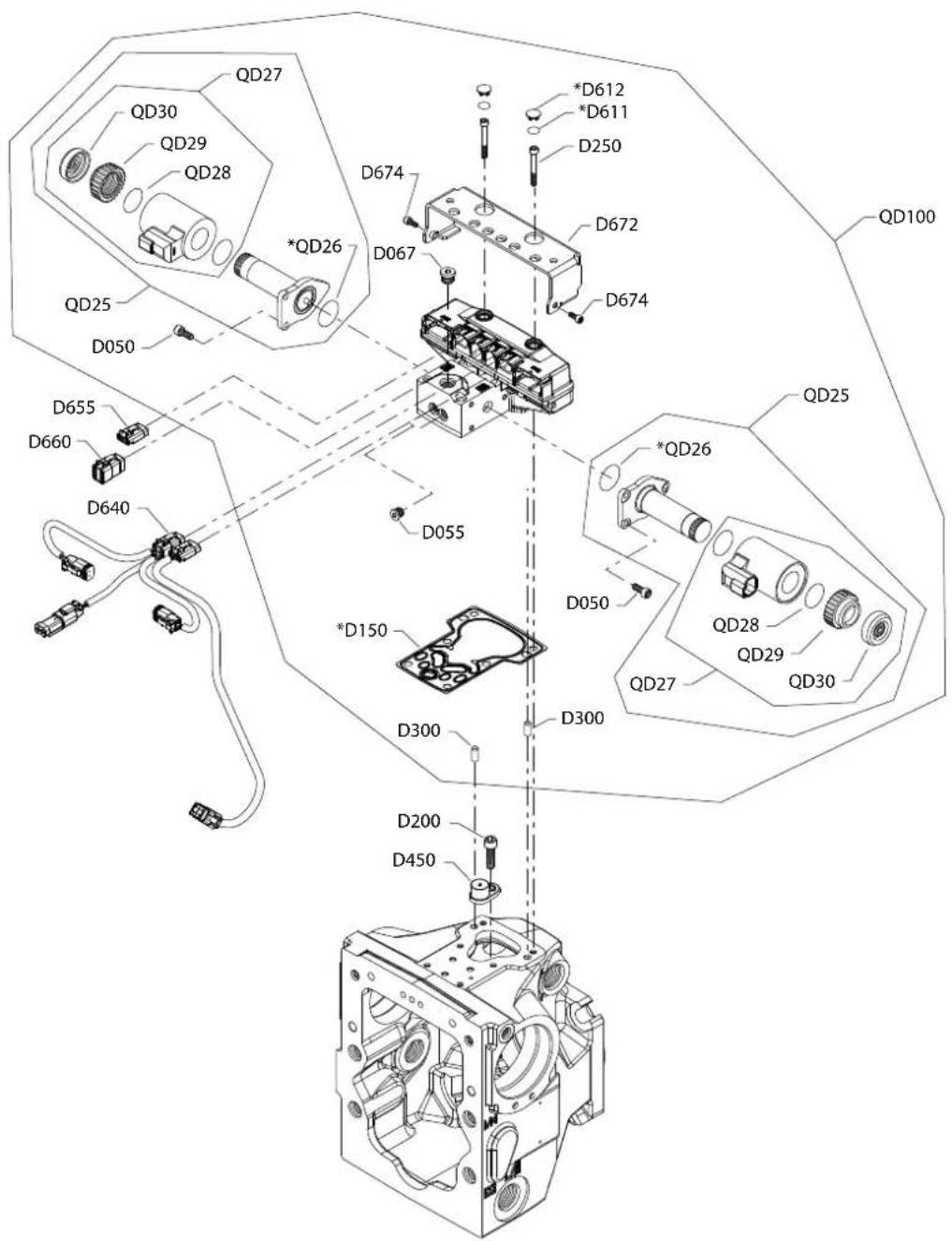

H1P control C3

Parts configuration

Generic housing shown.

• Included in overhaul seal kit Q210

Controls

Order code: C3

Item Date Begin	Date End Part	Number Part Name	Qty. per		Model/Kit
D050 10-14 716	860 Screw, M5 x 12 6
D055 10-14 110	40532 Plug assembly 2
D067 10-14 327	007 Plug assembly 1
D150 10-14 112	27209 Control gasket (SB-2016-033 on page 213) 1
D200 10-14 141	472 Screw, special 1
D250 10-14 505	038 Screw, M6 x 45 6
D300 10-14 110	86469 Dowel pin 2
D450 10-14 110	03097 Magnet carrier 1
D611 10-14 21-12	11066774 O-ring (SB-2021-014 on page 220) 2
D611 21-13 112	25703 O-ring		2
D612 10-14 21-12	11003126 Plug (SB-2021-014 on page 220) 2
D612 21-13 112	23708 Plug		2
D640 10-14 110	23348 AC wiring harness		1
D655 10-14 110	84827 Connector	DTM 06-35	1
D660 10-14 110	84822 Connector	DTM 06-65	1
D672 10-14 111	51875 Protection		1
D674 10-14 716	860 Screw, M5 x 12 2
QD25 10-14 140	751 Proportional solenoid, 24 volt	2
QD26 10-14 110	01952 O-ring	2
QD27 10-14 110	04700 Coil kit, 24 v, DEUTSCH connector	2
QD28 10-14 063	172 O-ring	2
QD29 10-14 110	04750 Coil nut	2
QD30 10-14 110	27883 Cap	2
QD100	10-14		11065121	Automotive control kit, 24v, manual override	1

Controls

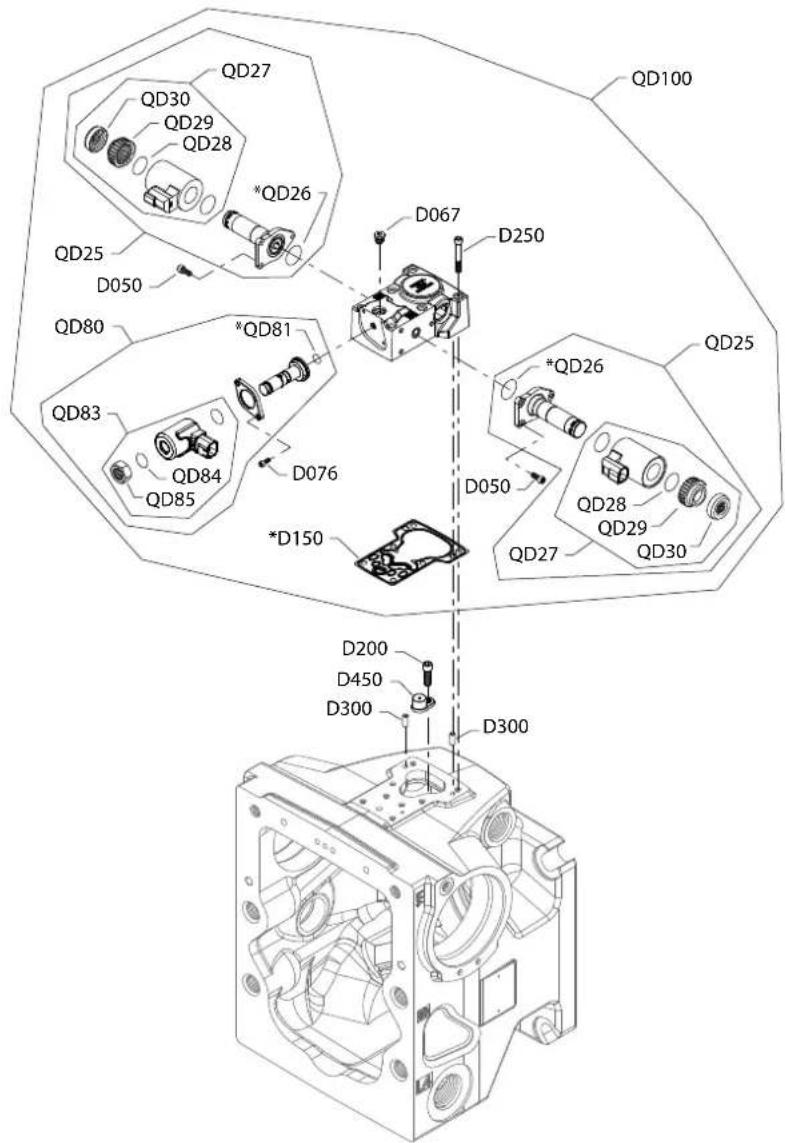

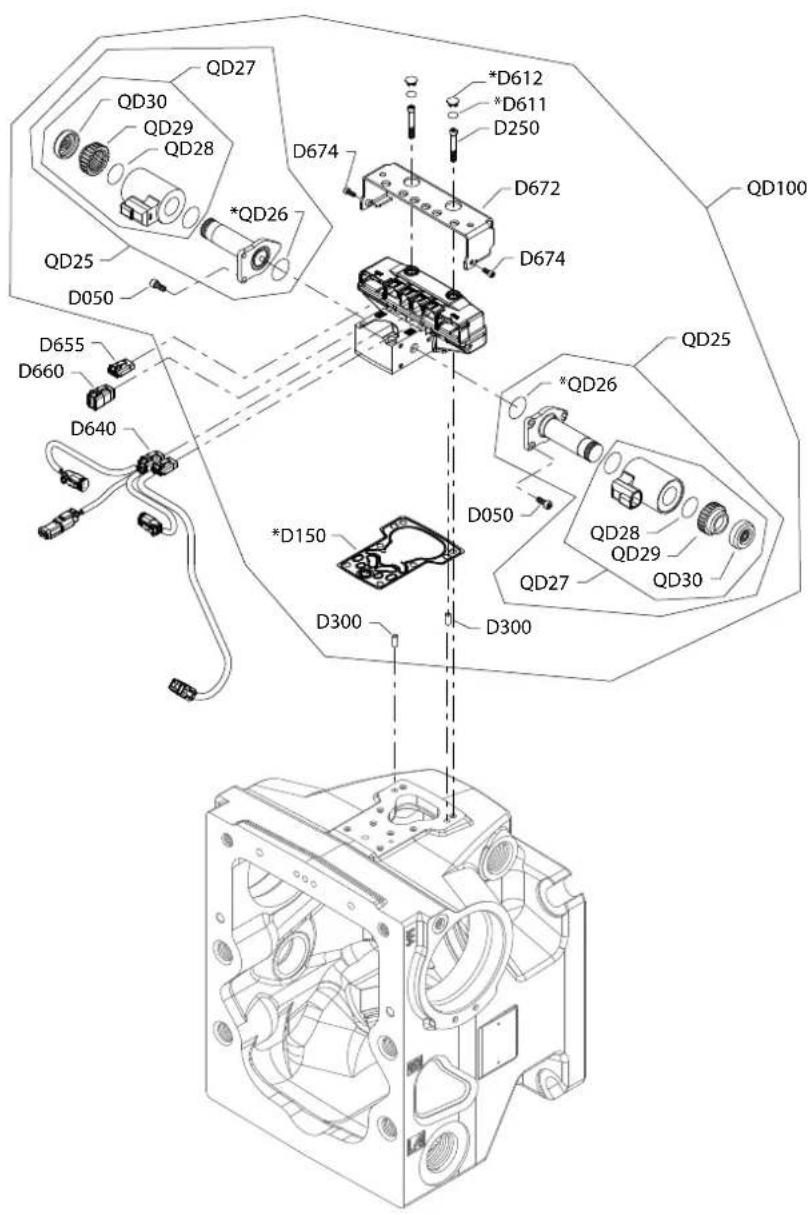

H1P control C9, D1

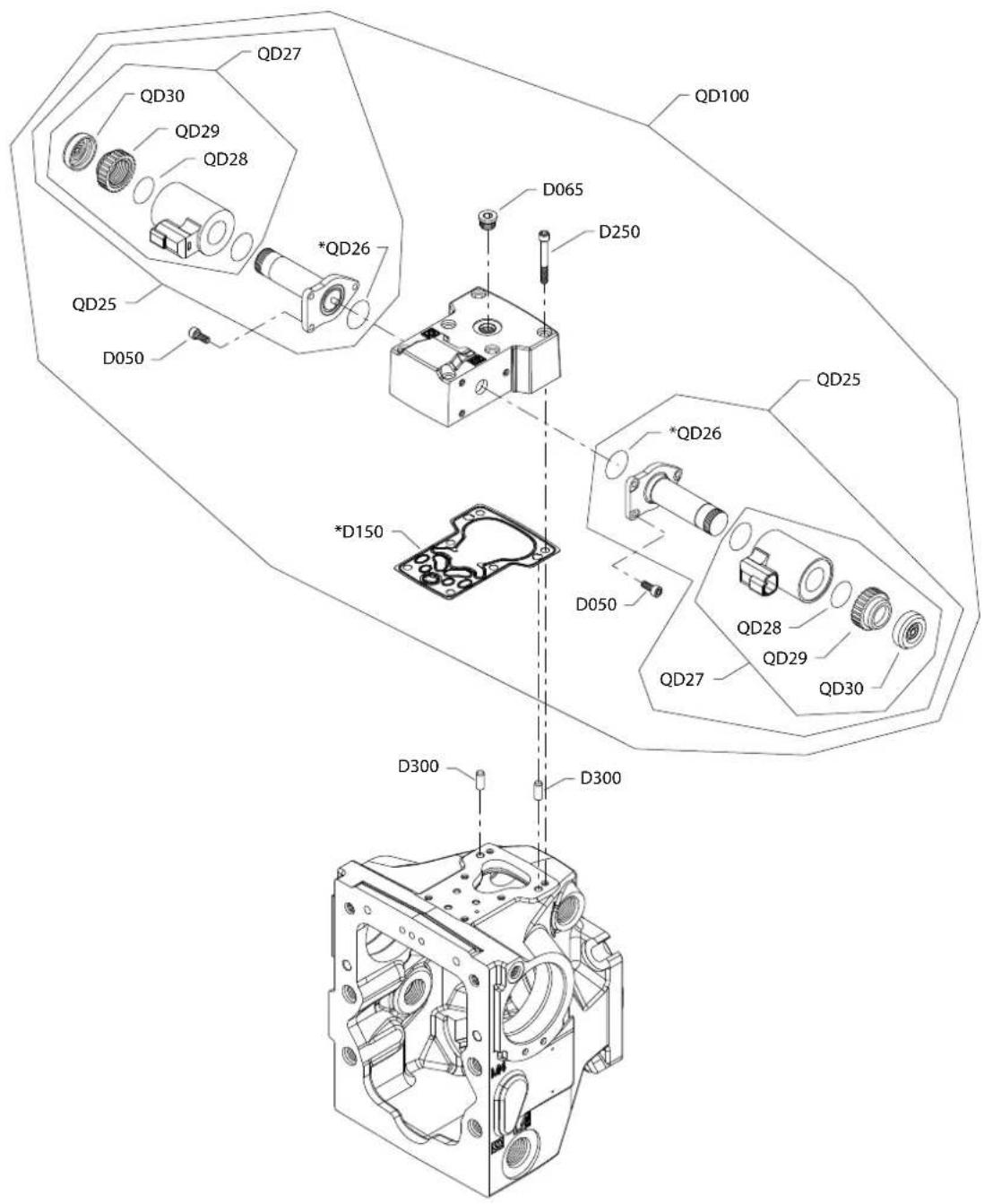

Parts configuration

Generic housing shown.

• Included in overhaul seal kit Q210

Controls

Common parts

Item Date Begin	Date End Part	Number Part Name	Qty. per		Model/Kit
D050 12-22 716	860 Screw, M5 x 1	2 6
D055 12-22 110	40532 Plug assembly 2
D067 12-22 327	007 Plug assembly 1
D150 12-22 112	27209 Control gasket (SB-2016-033 on page 213) 1
D200 12-22 141	472 Screw, special 1
D250 12-22 505	038 Screw, M6 x 4	5 6
D300 12-22 110	86469 Dowel pin 2
D450 12-22 110	03097 Magnet carrier 1
D610 12-22 110	00467 Plug assembly 2
D611 12-22 110	66774 O-ring 2
D640 12-22 111	05876 AC wiring harness		1
D655 12-22 110	84827 Connector	DTM 06-35	1
D672 12-22 111	51875 Protection		1
D674 12-22 716	860 Screw, M5 x 1	2 2
QD26	12-22 11001952	O-ring 2
QD28	12-22 063172 O-ring 2
QD30	12-22 11027883	Cap		2

Order code: C9

QD25	12-22 140751 Proportional solenoid, 24v 2
QD27	12-22 11004700 Coil kit, 24v, DEUTSCH connector	2
QD29	12-22 11004750 Coil nut	2
QD100	12-22	11065121	Automotive control kit, 24v, manual override 1

Order code: D1

QD25	12-22 140750 Proportional solenoid, 12v 2
QD27	12-22 11004698 Coil kit, 12v, DEUTSCH connector	2
QD29	12-22 11004749 Coil nut	2
QD100	12-22	11065119	Automotive control kit, 12v, manual override

Controls

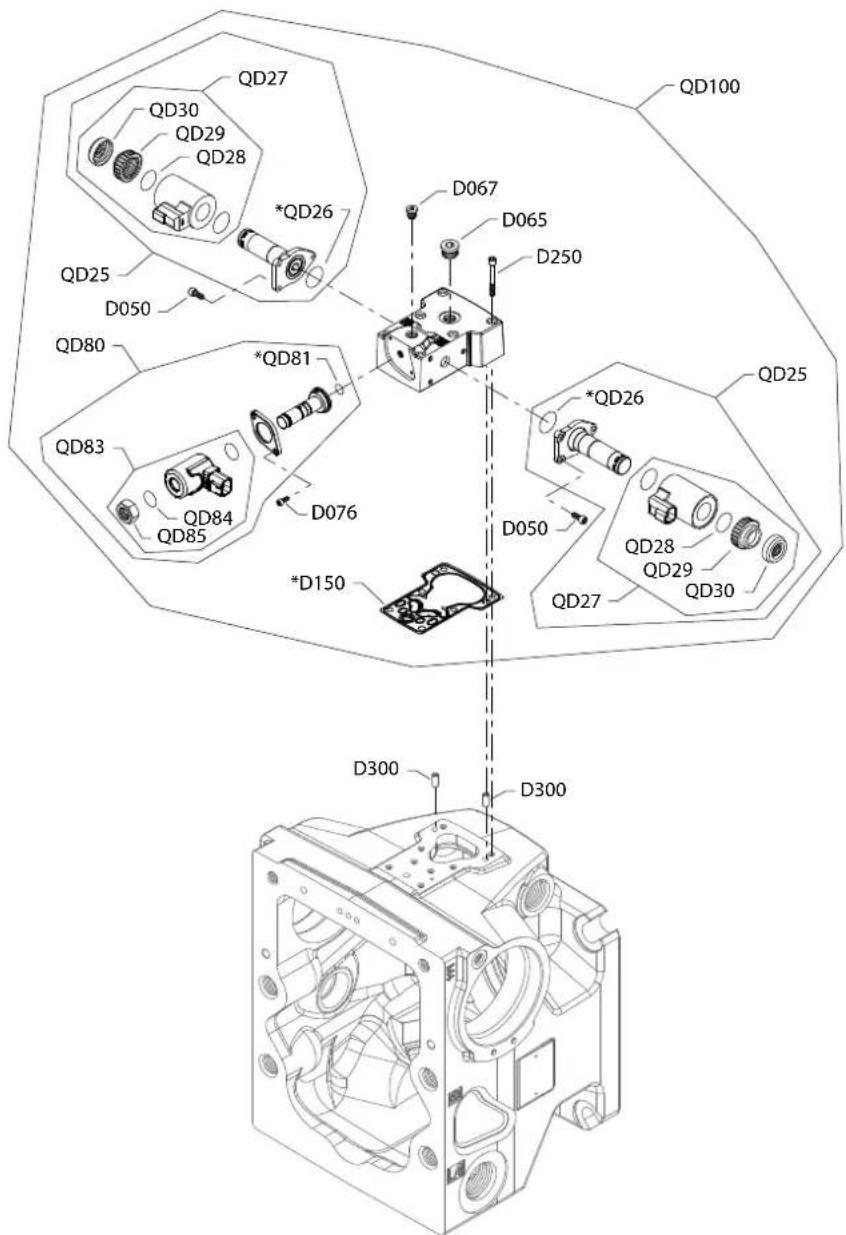

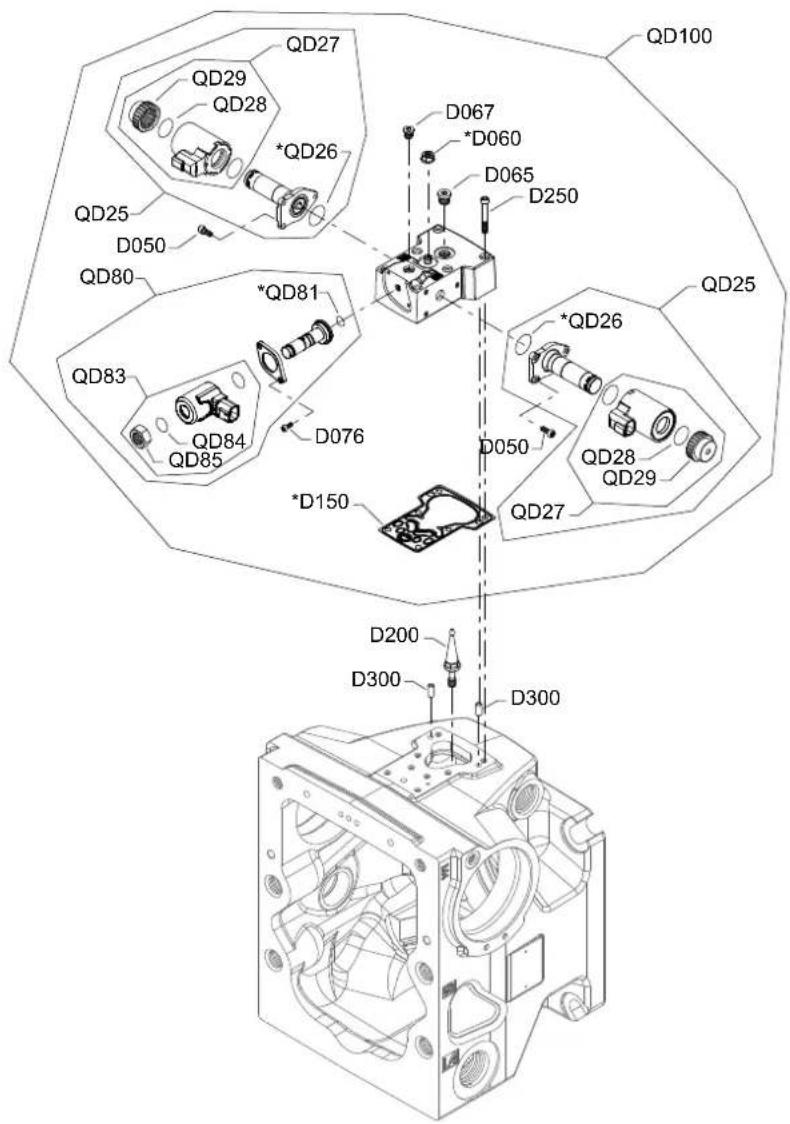

H1P control E6, E7

E6 and E7 configuration

Generic housing shown.

Option E7 is available in SAE and metric. Please order accordingly.

• Included in overhaul seal kit Q210

Controls

Common parts

Item Date Begin	Date End Part	Number Part Name	Qty. per		Model/Kit
D050 14-25 716	860 Screw, M5 x 1	2 6
D060 14-25 612	291 (9003508-0008) Seal nut, M8 1
D065 14-25 327	007 Plug assembly (SAE) 1
D067 14-25 327	007 Plug assembly (SAE) 1
D076 14-25 067	694 Screw, M4 x 10 2
D150 14-25 112	27209 Control gasket (SB-2016-033 on page 213) 1
D200 14-25 112	02172 Swash plate feedback link (SB-2018-025 on page 217)				1
D250 14-25 505	038 Screw, M6 x 45 6
D300 14-25 310	979 Dowel pin 2
QD26 14-25 110	01952 O-ring		2
QD28 14-25 063	172 O-ring		2
QD81 14-25 111	52257 O-ring		1
QD85 14-25 111	40394 Coil nut		1

Order code:E6

QD25 14-25 110	12459 Proportional solenoid, 12v	2
QD27 14-25 110	28019 Coil kit, 24v, DEUTSCH connector	2
QD29 14-25 110	28024 Coil nut		2
QD80 14-25 112	31201 Solenoid valve, on/off, 24v	1
QD83 14-25 112	32697 Coil kit, 24v	1
QD84 14-25 112	32752 O-ring	1
QD100	14-25 11147423 EDC kit, 24v, CCO	1

Order code: E7

D065 16-09 500	0572	Plug assembly (metric) 1
D067 16-09 500	0572	Plug assembly, (metric)	1
QD25 14-25 110	12457 Proportional solenoid, 12v	2
QD27 14-25 110	28018 Coil kit, 124v, DEUTSCH connector	2
QD29 14-25 110	27046 Coil nut		2
QD80 14-25 112	31200 Solenoid valve, on/off, 12v	1
QD83 14-25 112	32757 Coil kit, 12v	1
QD84 14-25 112	32752 O-ring	1
QD100	14-25 11147471	EDC kit, 12v, CCO (SAE)	1
QD100	16-09 11164610	EDC kit, 12v, CCO (metric)	1

Controls

H1P control E8

Parts configuration

Generic housing shown.

• Included in overhaul seal kit Q210

Controls

Order code: E8

Item Date Begin	Date End Part	Number Part Name	Qty. per		Model/Kit
D050 14-25 716	860 Screw, M5 x 12 6
D060 14-25 612	291 (9003508-0008) Seal nut, M8 1
D065 14-25 327	007 Plug assembly 1
D067 14-25 327	007 Plug assembly 1
D076 14-25 067	694 Screw, M4 x 10 2
D150 14-25 112	27209 Control gasket (SB-2016-033 on page 213) 1
D200 14-25 112	02172 Swashplate feedback link (SB-2018-025 on page 217)				1
D250 14-25 505	038 Screw, M6 x 45 6
D300 14-25 310	979 Dowel pin 2
QD25 14-25 110	12459 Proportional solenoid, 24v	2
QD26 14-25 110	01952 O-ring	2
QD27 14-25 110	28019 Coil kit, 24v, DEUTSCH connector	2
QD28 14-25 063	172 O-ring	2
QD29 14-25 110	28024 Coil nut	2
QD80 14-25 112	31201 Solenoid vale, on/off, 24v	1
QD81 14-25 111	52257 O-ring	1
QD83 14-25 111	47332 Coil kit, 24v	1
QD84 14-25 112	32752 O-ring	1
QD85 14-25 111	40394 Coil nut	1
QD100	14-25 11147472	EDC kit, 24v, CCO	1

Controls

H1P control F1, F2

F1 and F2 configuration

Generic housing shown.

Warning

This control is for Fan Drive systems only. Use in other systems could result in unintended movement of machine or its elements. Loss of the input signal to this control will cause the pump to produce maximum flow. Contact Danfoss or an authorized distributor with questions regarding the use of this product.

• Included in overhaul seal kit Q210

Controls

Common parts

Item Date Begin	Date End Part	Number Part Name	Qty. per		Model/Kit
D050 12-33 716	860 Screw, M5 x 1	2 6
D065 12-33 327	007 Plug assembly 1
D150 12-33 112	27209 Control gasket (SB-2016-033) on page 213) 1
D250 12-33 505	038 Screw, M6 x 45 6
D300 12-33 310	979 Dowel pin 2
D682 12-33 110	79441 Flange 1
D685 12-33 612	291 (9003508-0008) Seal nut, M8 1
D688 12-33 110	79453 Adjusting screw		1
QD26	12-33 11001952	O-ring		2
QD28	12-33 063172 O-ring		1

Order code: F1

QD25	12-33 11012457	Proportional solenoid, 12v	1
QD27	12-33 11028018	Coil kit, 12v, DEUTSCH connector	1
QD29	12-33 11027046	Coil nut	1
QD100	12-33 11081306	FDC kit, 12v, DEUTSCH connector	1

Order code:F2

QD25	12-33 11012459	Proportional solenoid, 24v	1
QD27	12-33 11028019	Coil kit, 24v, DEUTSCH connector	1
QD29	12-33 11028024	Coil nut	1
QD100	12-33 11081307	FDC kit, 24v, DEUTSCH connector	1

Controls

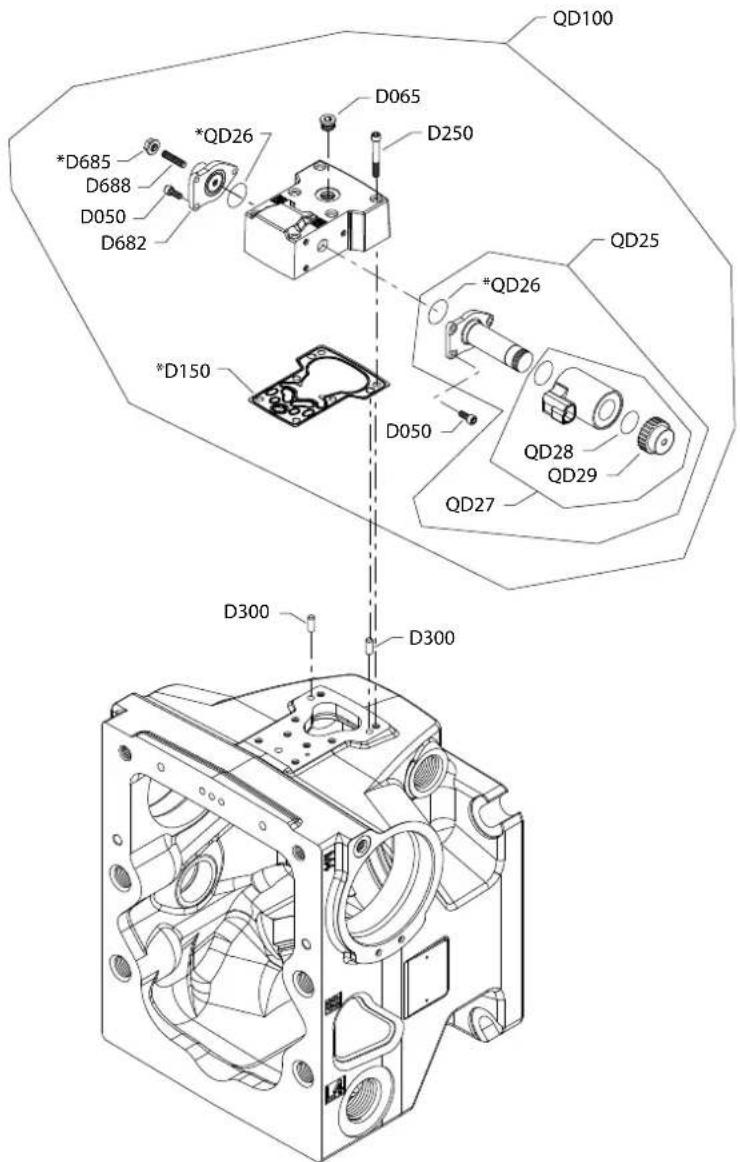

H1P control F4

F4 configuration

Generic housing shown.

• Included in overhaul seal kit

Controls

Order code: F4

Item Date Begin	Date End Part	Number Part Name	Qty. per		Model/Kit
D050 08-10 716	860 Screw, M5 x 1	2 6
D065 08-10 327	007 Plug assembly 1
D150 08-10 112	27209 Control gasket (SB-2016-033) on page 213) 1
D250 08-10 505	038 Screw, M6 x 45 6
D300 08-10 310	979 Dowel pin 2
D682 08-10 110	79441 Flange 1
D685 08-10 612	291 (9003508-0008) Seal nut, M8 1
D688 08-10 110	79453 Adjusting screw		1
QD25	08-10 11012459	Proportional solenoid, 24v		1
QD26	08-10 11001952	O-ring		2
QD27	08-10 11028019	Coil kit, 24v, DEUTSCH connector		1
QD28	08-10 063172 O-ring		1
QD29	08-10 11028024	Coil nut		1
QD100	08-10 11174982	FDC kit, 24v, DEUTSCH connector		1

Controls

H1P control G7

Parts configuration

Generic housing shown.

• Included in overhaul seal kit Q210

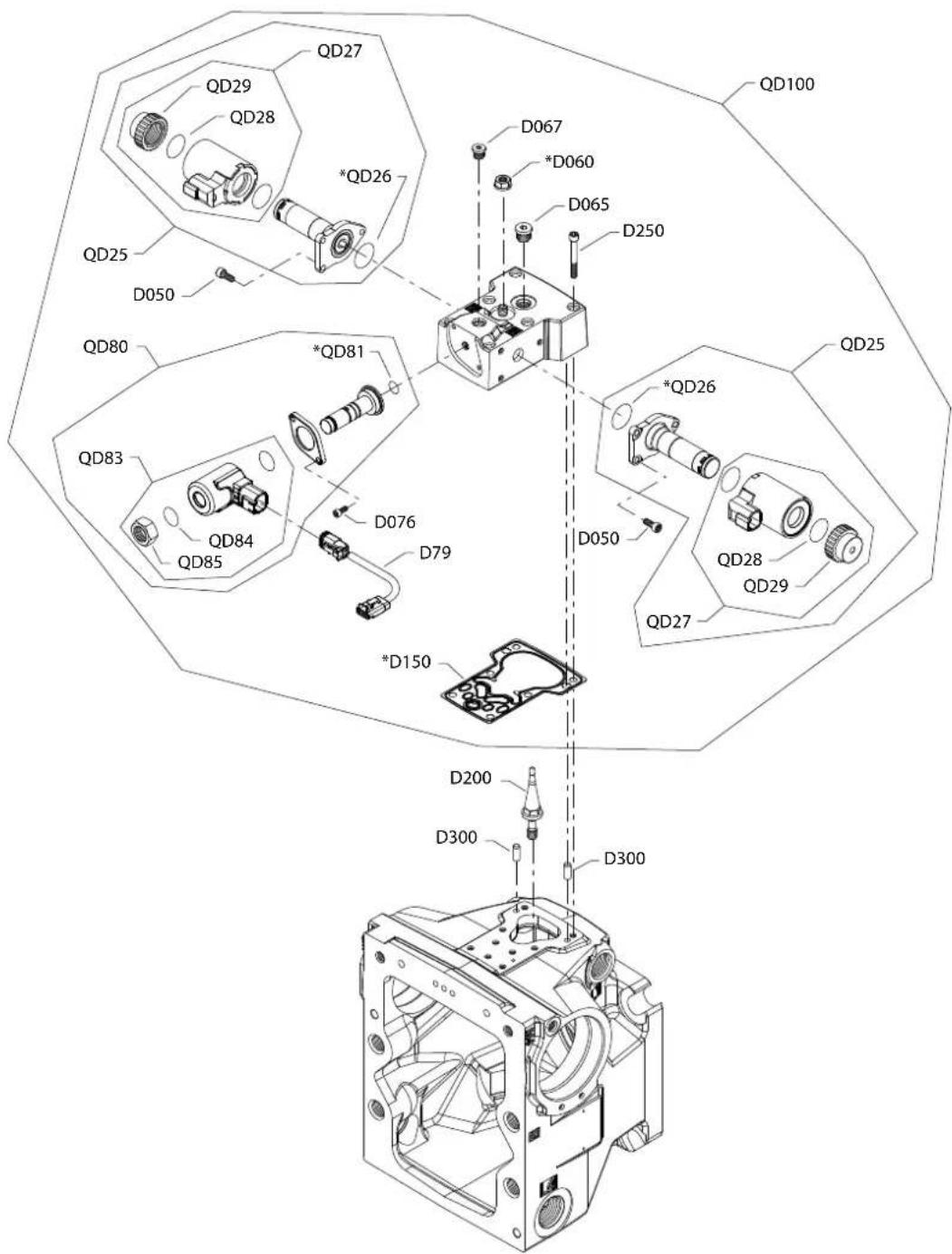

Controls

Order code: G7

Item Date Begin	Date End Part	Number Part Name	Qty. per		Model/Kit
D79 14-31 1115	8287 Cable adapter 1
D050 14-31 716	860 Screw, M5 x 1	26
D060 14-31 612	291 (9003508-0008) Seal nut, M8 1
D065 14-31 327	007 (9005110-4400) Plug assembly 1
D067 14-31 327	007 (9005110-4400) Plug assembly 1
D076 14-31 067	694 Screw, M4 x 10 2
D150 14-31 112	27209 Control gasket (SB-2016-033 on page 213) 1
D200 14-31 112	02172 Swashplate feedback link (SB-2018-025 on page 217)				1
D250 14-31 505	038 Screw, M6 x 45 6
D300 14-31 310	979 Dowel pin		2
QD25	14-31 11012457	Proportional solenoid, 12v		2
QD26	14-31 11001952	O-ring		2
QD27	14-31 11028018	Coil kit, 12v, DEUTSCH connector		2
QD28	14-31 063172 O-ring		2
QD29	14-31 11027046	Coil nut		2
QD80	14-31 11231200	Solenoid vale, on/off, 12v		1
QD81	14-31 11152257	O-ring		1
QD83	14-31 11232757	Coil kit, 12v		1
QD84	14-31 11232752	O-ring		1
QD85	14-31 11140394	Coil nut		1
QD100	14-31 11156149	EDC kit, 12v, CCO		1

Controls

H1P control G9

Parts configuration

Generic housing shown.

• Included in overhaul seal kit Q210

Controls

Order code: G9

Item Date Begin	Date End Part	Number Part Name	Qty. per		Model/Kit
D79 14-37 1115	0437 Cable adapter 1
D050 14-37 716	860 Screw, M5 x 12.6
D060 14-37 612	291 (9003508-0008) Seal nut, M8 1
D065 14-37 327	007 (9005110-4400) Plug assembly 1
D067 14-37 327	007 (9005110-4400) Plug assembly 1
D076 14-37 067	694 Screw, M4 x 10.2
D150 14-37 112	27209 Control gasket (SB-2016-033 on page 213) 1
D200 14-37 112	02172 Swashplate feedback link (SB-2018-025 on page 217)				1
D250 14-37 505	038 Screw, M6 x 45.6
D300 14-37 310	979 Dowel pin		2
QD25	14-37 11012457	Proportional solenoid, 12v		2
QD26	14-37 11001952	O-ring		2
QD27	14-37 11028018	Coil kit, 12v, DEUTSCH connector		2
QD28	14-37 063172 O-ring		2
QD29	14-37 11027046	Coil nut		2
QD80	14-37 11231200	Solenoid vale, on/off, 12v		1
QD81	14-37 11152257	O-ring		1
QD83	14-37 11232757	Coil kit, 12v		1
QD84	14-37 11232752	O-ring		1
QD85	14-37 11140394	Coil nut		1
QD100	14-37 11147471	EDC kit, 12v, CCO		1

Controls

H1P control H2, H3

Parts configuration

Generic housing shown

• Included in overhaul seal kit Q210

Controls

Common parts

Item Date Begin	Date End Part	Number Part Name	Qty. per		Model/Kit
D050 18-11 716	860 Screw, M5 x 12 6
D060 18-11 612	291 Seal nut 1
D065 18-11 327	007 Plug assembly 1
D150 18-11 112	27209 Control gasket 1
D200 18-11 112	02172 Swashplate feedback link 1
D250 18-11 505	038 Screw, M6 x 45 6
D300 18-11 310	979 Dowel pin 2
D766 18-11 111	87406 Protection cover 1
D768 18-11 111	84617 Paint cover 1
QD26	18-11 11001952	O-ring		2
QD28	18-11 063172 O-ring		2
QD760	18-11 11201819	EDC sensor service kit		1

Order code: H2

QD100	18-11 11196619	EDC kit, 12v, ASN	SR	1
QD25	18-11 11012457	Proportional solenoid, 12v	2
QD27	18-11 11028018	Coil kit, 12V, DEUTSCH connector	2
QD29	18-11 11027046	Nut		2

Order code: H3

QD100	18-11 11179280	EDC kit, 24v, ASN	SR	1
QD25	18-11 11012459	Proportional solenoid, 24v	2	2
QD27	18-11 11028019	Coil kit, 24v DEUTSCH connector	2	2
QD29	18-11 11028024	Nut		2

Controls

H1P control H6, H7

Parts configuration

Generic housing shown

• Included in overhaul seal kit Q210

Controls

Common parts

Item Date Begin	Date End Part	Number Part Name	Qty. per		Model/Kit
D050 18-13 716	860 Screw, M5 x 1	2 6
D060 18-13 612	291 Seal nut 1
D065 18-13 327	007 Plug assembly 1
D150 18-13 112	27209 Control gasket 1
D200 18-13 112	02172 Swashplate feedback link 1
D250 18-13 505	038 Screw, M6 x 45 6
D300 18-13 310	979 Dowel pin 2
D766 18-13 111	87406 Protection cover 1
D768 18-13 111	84617 Paint cover 1
QD26	18-13 11001952	O-ring		2
QD28	18-13 063172 O-ring		2
QD30	18-13 11027883	Cap		2
QD760	18-13 11201819	EDC sensor service kit		1

Order code: H6

QD100	18-13 11179281	EDC kit, 12V		1
QD25	18-13 140750 Proportional solenoid, 12V			2
QD27	18-13 11004698	Coil kit, 12V, DEUTSCH connector		2
QD29	18-13 11004749	Coil nut		2

Order code: H7

QD100	18-13 11179292	EDC kit, 24V		1
QD25	18-13 140751 Proportional solenoid, 24V
QD27	18-13 11004700	Coil kit, 24V, DEU Tsch connector		2
QD29	18-13 11004750	Coil nut		2

Controls

H1P control H8, H9

Parts configuration

Generic housing shown

Option H8 is available in SAE and metric configurations. Please order accordingly.

• Included in overhaul seal kit Q210

Controls

Common parts

Item Date Begin	Date End Part	Number Part Name	Qty. per		Model/Kit
D050 18-13 716	860 Screw, M5 x 1	2 6
D060 18-13 612	291 Seal nut 1
D065 18-13 327	007 Plug assembly 1
D067 18-13 327	007 Plug assembly 1
D076 18-13 067	694 Screw, M4 x 10 2
D150 18-13 112	27209 Control gasket 1
D200 18-13 112	02172 Swashplate feedback link 1
D250 18-13 505	038 Screw, M6 x 45 6

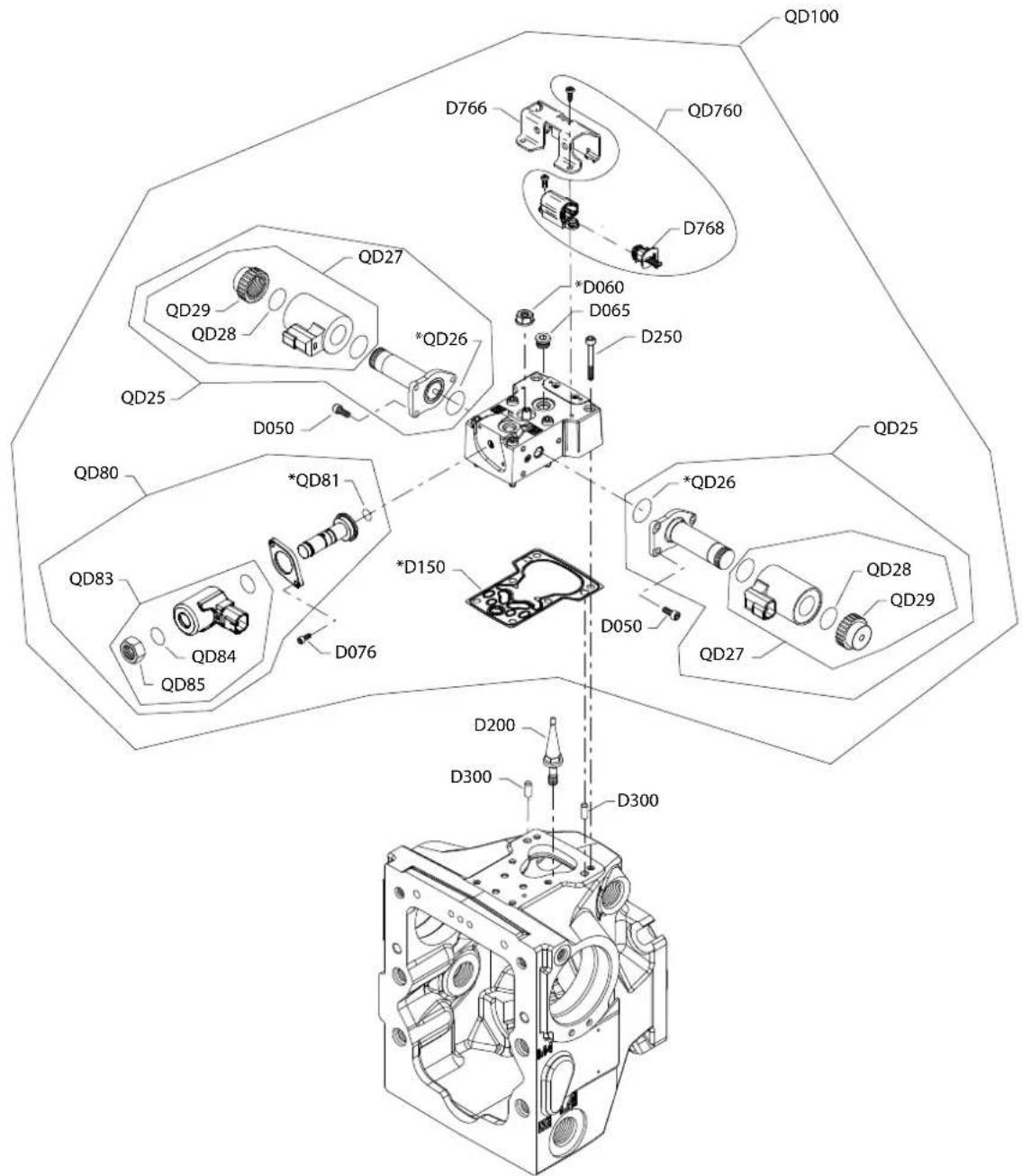

D300 18-13 310	979 Dowel pin 2
D766 18-13 111	87406 Protection cover 1
D768 18-13 111	84617 Paint cover 1
QD28	18-13 063172 O-ring	2
QD85	18-13 11140394 Nut	1
QD760	18-13 11201819 EDC sensor service kit	1

Order code: H8

QD100	18-13 11179293	EDC kit, 12V		1
QD100	16-30 11182566	EDC kit, 12v ASN SR (metric)		1
QD25	18-13 11012457	Proportional solenoid, 12V		2
QD27	18-13 11028018	Coil kit, 12V, DEU TSCH connector		2
QD29	18-13 11027046	Coil nut		2
QD80	18-13 11231200	Solenoid, 12V, DEUTSCH connector		1
QD83	18-13 11232757	Coil kit, 12V, DEU TSCH connector		1
QD84	18-13 11232752	O-ring		1

Order code: H9

QD100	18-13 11179296	EDC kit, 24V		1
QD25	18-13 11012459	Proportional solenoid, 24V	2
QD27	18-13 11028019	Coil kit, 24V, DEUTSCH connector	2
QD29	18-13 11028024	Coil nut		2
QD80	18-13 11231201	Solenoid, 24V, DEUTSCH connector	1
QD83	18-13 11232697	Coil kit, 24V, DEUTSCH connector	1
QD84	18-13 11232752	O-ring		1

Controls

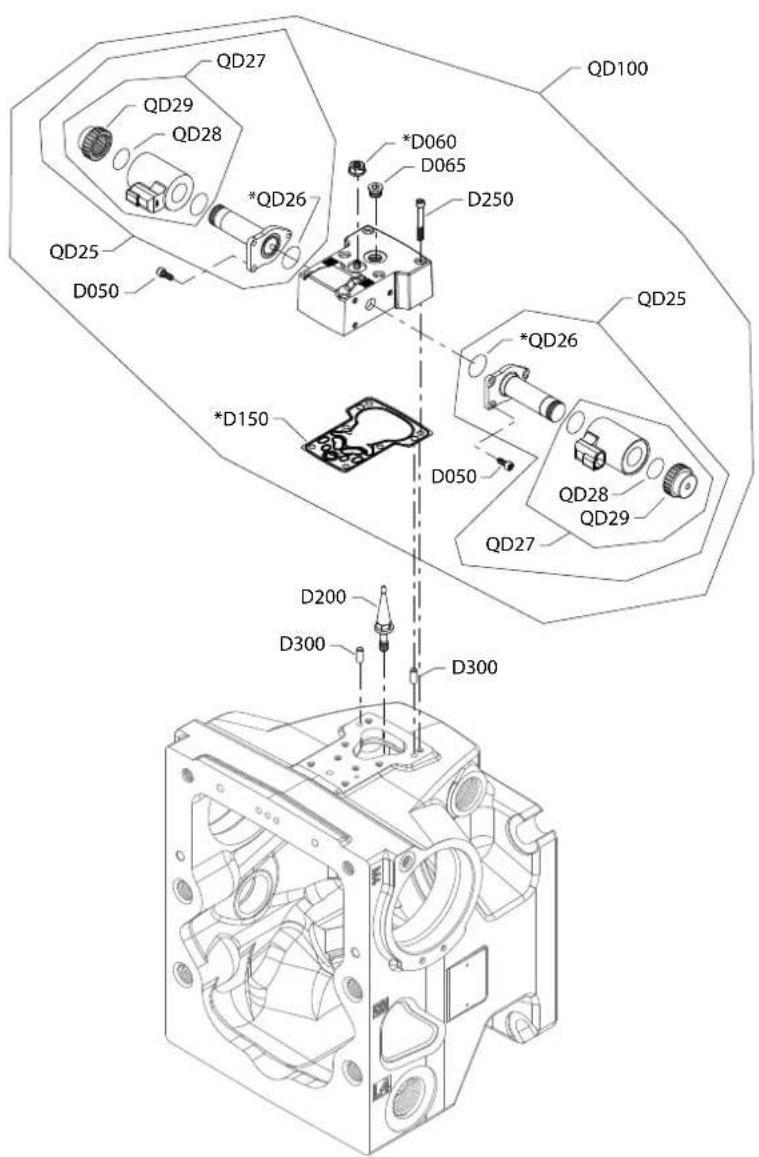

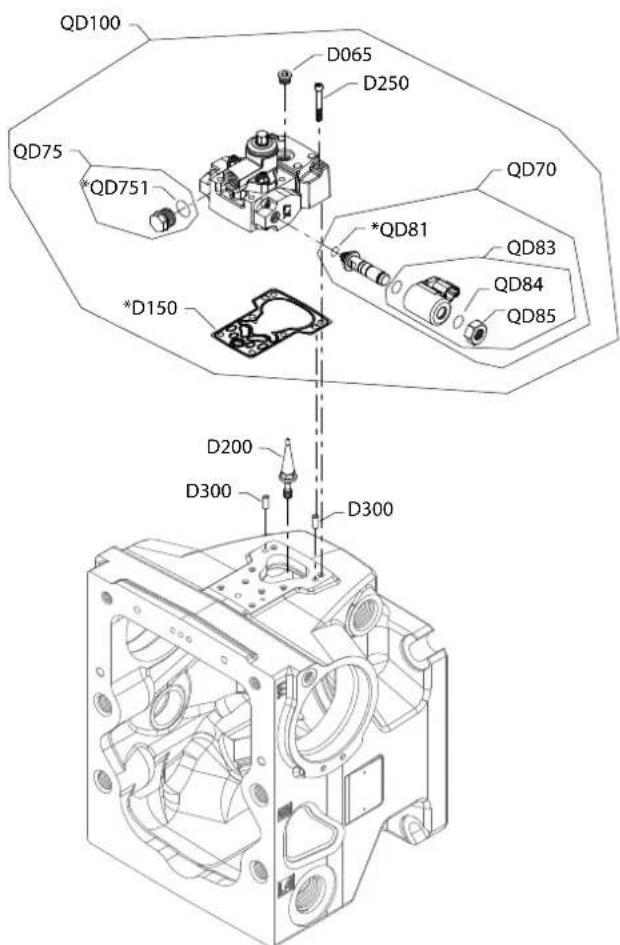

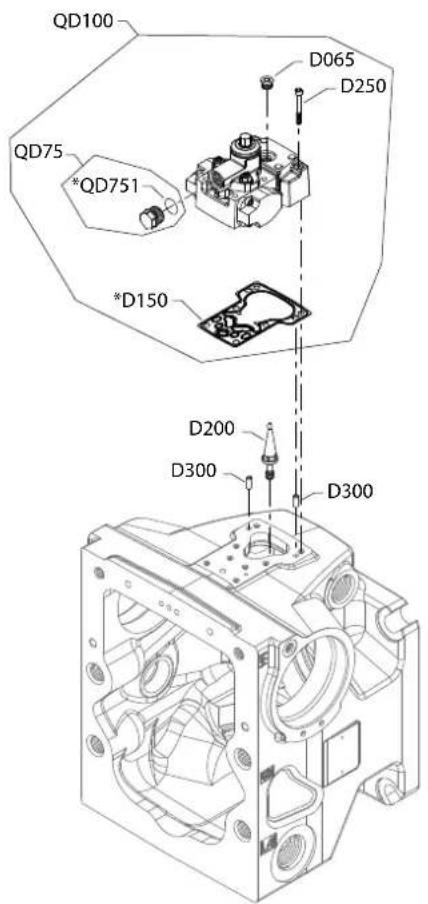

H1P control M1, M2

M1 and M2 configuration

(M1)(M1)

(M2)

Generic housing shown

• Included in overhaul seal kit

Controls

Common parts

Item Date Begin	Date End Part	Number Part Name	Qty. per	Model/Kit
D065 14-01 327	007 Plug assembly 1
D150 14-01 112	27209 Control gasket (SB-2016-033) on page 213 1
D200 14-01 112	02172 Swashplate feedback link (SB-2018-025 on page 217)			1
D250 14-01 505	038 Screw, M6 x 45 6
D300 14-01 310	979 Dowel pin 2
QD751 14-01 00	1131 (9004201-5000) O-ring 1

Order code: M1

QD75	14-01 11119332	Spring seat assembly		1
QD100 14-01 11	141225 MDC kit		1

Order code:M2

QD75	14-01 11126847	Spring seat/neutral start switch assembly 1
QD100 14-01 11	141236 MDC kit		1

Controls

H1P control M3, M4

M3 and M4 configuration

Generic housing shown

• Included in overhaul seal kit Q210

Controls

Common parts

Item Date Begin	Date End Part	Number Part Name	Qty. per		Model/Kit
D065 14-01 327	007 Plug assembly 1
D150 14-01 112	27209 Control gasket (SB-2016-033) on page 213 1
D200 14-01 112	02172 Swashplate feedback link (SB-2018-025 on page 217)				1
D250 14-01 505	038 Screw, M6 x 45 6
D300 14-01 310	979 Dowel pin 2
QD81 14-01 111	52257 O-ring 1
QD84 14-01 111	40393 O-ring 1
QD85 14-01 111	40394 Coil nut 1
QD751	14-01 001131 (9004201-5000)	O-ring 1

Order code: M3

QD70 14-01 111	29916 Solenoid valve, 12v	1
QD75 14-01 111	19332 Spring seat assembly	1
QD83 14-01 111	36347 Coil kit, 12v	1
QD100	14-01 11218976 MDC kit, 12v, CCO	1

Order code:M4

QD70 14-01 111	29917 Solenoid valve, 24v	1
QD83 14-01 111	36348 Coil kit, 24v, CCO	1
QD100	14-01 11218977	MDC kit, 24v	1

Controls

H1P control M5, M6

M5 and M6 configuration

Generic housing shown

• Included in overhaul seal kit Q210

Controls

Common parts

Item Date Begin	Date End Part	Number Part Name	Qty. per		Model/Kit
D065 14-01 327	007 Plug assembly 1
D150 14-01 112	27209 Control gasket (SB-2016-033) on page 213 1
D200 14-01 112	02172 Swashplate feedback link (SB-2018-025 on page 217)				1
D250 14-01 505	038 Screw, M6 x 45 6
D300 14-01 310	979 Dowel pin 2
QD75 14-01 111	26847 Spring seat/neutral start switch assembly 1
QD81 14-01 111	52257 O-ring 1
QD84 14-01 111	40393 O-ring 1
QD85 14-01 111	40394 Coil nut		1
QD751 14-01 00	1131 (9004201-5000) O-ring 1

Order code:M5

QD70 14-01 111	29916 Solenoid valve, 12v	1
QD83 14-01 111	36347 Coil kit, 12v	1
QD100 14-01 111	218978 MDC kit, 12v, neutral start	switch assembly, CCO 1

Order code:M6

QD70 14-01 111	29917 Solenoid valve, 24v	1
QD83 14-01 111	36348 Coil kit, 24v	1
QD100 14-01 111	218979 MDC kit, 24v, neutral start	switch assembly, CCO 1

Controls

H1P control N1, N2

N1 and N2 configuration

Generic housing shown

• Included in overhaul seal kit Q210

Controls

Common parts

Item Date Begin	Date End Part	Number Part Name	Qty. per	Model/Kit
D050 16-30 716	860 Screw, M5 x 12 6
D065 16-30 327	007 Plug assembly 1
D150 16-30 112	27209 Control gasket 1
D250 16-30 505	038 Screw, M6 x 45 6
D300 16-30 310	979 Dowel pin 2
QD26 16-30 110	01952 O-ring 2
QD28 16-30 063	172 O-ring 2
QD30 16-30 110	27883 Cap 2

Order code: N1

QD25 16-30 140	750 Proportional	solenoid, 12v, DEUTSCH connector 2
QD27 16-30 110	04698 Coil kit, 12	v, DEUTSCH connector 2
QD29 16-30 110	04749 Coil nut		2
QD100	16-30 11147921	NFPE control kit, 12v, manual override, DEUTSCH connector		1

Order code: N2

QD25 16-30 140	751 Proportional	solenoid, 24v, DEUTSCH connector 2
QD27 16-30 110	04700 Coil kit, 24v, DEUTSCH connector 2
QD29 16-30 110	04750 Coil nut		2
QD100	16-30 11147925	NFPE control kit, 24v, manual override, DEUTSCH connector		1

Controls

H1P control N3, N4

N3 and N4 configuration

Generic housing shown

• Included in overhaul seal kit Q210

Controls

Common parts

Item Date Begin	Date End Part	Number Part Name	Qty. per	Model/Kit
D050 16-30 716	860 Screw, M5 x 12 6
D067 16-30 327	007 Plug assembly 1
D076 16-30 067	694 Screw, M4 x 10 2
D150 16-30 112	27209 Control gasket 1
D200 16-30 141	472 Screw, special 1
D250 16-30 505	038 Screw, M6 x 45 6
D300 16-30 310	979 Dowel pin 2
D450 16-30 110	03097 Magnetic carrier 1
QD26 16-30 110	01952 O-ring		2
QD28 16-30 063	172 O-ring		2
QD29 16-30 110	04749 Coil nut		2
QD30 16-30 110	27883 Cap		2
QD81 16-30 111	52257 O-ring		1
QD85 16-30 111	40394 Nut		1

Order code:N3

QD25 16-30 140	750 Proportional	solenoid, 12v	2
QD27 16-30 110	04698 Coil kit, 12	v, DEUTSCH connector	2
QD80 16-30 112	31200 Solenoid, 12	v, DEUTSCH connector	1
QD83 16-30 112	32757 Coil kit, 12	v, DEUTSCH connector	1
QD84 16-30 112	32752 O-ring		1
QD100	16-30 11147920	NFPE control kit,	12v, CCO	1

Order code: N4

QD25 16-30 140	751 Proportional	solenoid, 24v	2
QD27 16-30 110	04700 Coil kit, 24v, DEUTSCH connector		2
QD80 16-30 112	31201 Solenoid, 24V, DEUTSCH connector		1
QD83 16-30 112	32697 Coil kit, 24v, DEUTSCH connector		1
QD84 16-30 112	32752 O-ring		1
QD100	16-30 11147924	NFPE control kit,	24v, CCO	1

Controls

H1P control N5, N6

N5 and N6 configuration

Generic housing shown

• Included in overhaul seal kit Q210

Controls

Common parts

Item Date Begin	Date End Part	Number Part Name	Qty. per	Model/Kit
D050 16-30 716	860 Screw, M5 x 12 6
D150 16-30 112	27209 Control gasket 1
D200 16-30 141	472 Screw, special 1
D250 16-30 505	038 Screw, M6 x 45 6
D300 16-30 310	979 Dowel pin 2
D450 16-30 110	03097 Magnetic carrier 1
QD26 16-30 110	01952 O-ring 2
QD28 16-30 063	172 O-ring 2
QD29 16-30 110	04749 Coil nut		2
QD30 16-30 110	27883 Cap		2

Order code: N5

QD25 16-30 140	750 Proportional	solenoid, 12v	2
QD27 16-30 110	04698 Coil kit, 12	v, DEUTSCH connector	2
QD100	16-30 11147918	NFPE control kit,	12v, manual override	1

Order code: N6

QD25 16-30 140	751 Proportional	solenoid, 24v	2
QD27 16-30 110	04700 Coil kit, 24v, DEUTSCH connector 2
QD100	16-30 11147922	NFPE control kit,	24v, manual override	1

Controls

H1P control N7, N8

N7 and N8 configuration

Generic housing shown

• Included in overhaul seal kit Q210

Controls

Common parts

Item Date Begin	Date End Part	Number Part Name	Qty. per	Model/Kit
D050 16-30 716	860 Screw, M5 x 1	2.6
D067 16-30 327	007 Plug assembly 1
D076 16-30 067	694 Screw, M4 x 10 1
D150 16-30 112	27209 Control gasket 1
D250 16-30 505	038 Screw, M6 x 45 6
D300 16-30 310	979 Dowel pin 2
QD26 16-30 110	01952 O-ring 2
QD28 16-30 063	172 O-ring 2
QD30 16-30 110	27883 Cap 2
QD81 16-30 111	52257 O-ring 1
QD85 16-30 111	40394 Nut		1

Order code:N7

QD25 16-30 140	750 Proportional	solenoid, 12v	2
QD27 16-30 110	04698 Coil kit, 12	v, DEUTSCH connector	2
QD29 16-30 110	04749 Coil nut		2
QD80 16-30 112	31200 Solenoid,	2V, DEUTSCH connector	1
QD83 16-30 112	32757 Coil kit, 12	v, DEUTSCH connector	1
QD84 16-30 112	32752 O-ring 1
QD100	16-30 11147919	NFPE control kit,	12v, CCO	1

Order code:N8

QD25 16-30 140	751 Proportional	solenoid, 24v	2
QD27 16-30 110	04700 Coil kit, 24v, DEUTSCH connector	2
QD29 16-30 110	04750 Coil nut		2
QD80 16-30 112	31201 Solenoid, 24V, DEUTSCH connector	1
QD83 16-30 112	32697 Coil kit, 24v, DEUTSCH connector	1
QD84 16-30 112	32752 O-ring 1
QD100	16-30 11147923	NFPE control kit, 24v, CCO	1

Controls

H1P control ND, NN

ND and NN configuration

Generic housing shown

• Included in overhaul seal kit Q210

Controls

Order code: ND

Item Date Begin	Date End Part	Number Part Name	Qty. per	Model/Kit
D150 16-02 112	27209 Control gasket 1
D200 16-02 112	02172 Swashplate feedback link 1
D250 16-02 505	038 Screw, M6 x 45 6
D300 16-02 310	979 Dowel pin 2
D550 16-02 140	644 Plug assembly 2
QD100 16-02 11	121984 Control cover kit 1

Order code: NN

D150 14-01 112	27209 Control gasket (SB-2016-033) on page 213	1
D250 14-01 505	038 Screw, M6 x 45 6
D300 14-01 310	979 Dowel pin 2
D550 14-01 140	644 Plug assembly 2
QD100 14-01 11	121984 Control cover kit 1

Controls

H1P control P5

P5 configuration

Generic housing shown

• Included in overhaul kit Q210

Controls

Order code: P5

Item Date Begin	Date End Part	Number Part Name	Qty. per		Model/Kit
D050 17-15 716	860 Screw, M5 x 12 6
D150 17-15 112	27209 Control gasket 1
D250 17-15 505	038 Screw, M6 x 45 6
D300 17-15 110	86469 Dowel pin 2
D611 17-15 21-12	11066774 O-ring (SB-2021-014 on page 220) 2
D611 21-13 112	25703 O-ring 2

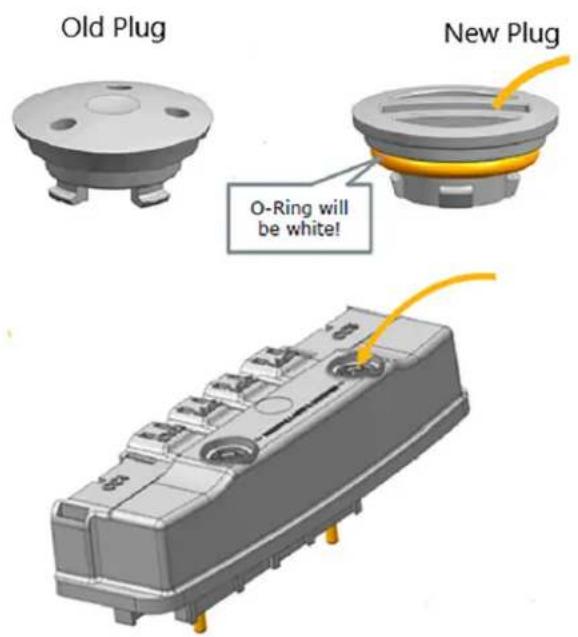

D612 17-15 21-12	11003126 Plug (SB-2021-014 on page 220) 2
D612 21-13 112	23708 Plug		2
D655 17-15 110	84827 Blank, connector DTM 06-3S	1
D660 17-15 110	84822 Blank, connector DTM 06-6S	1
D665 17-15 110	84827 Blank, connector DTM 06-3S	1
D672 17-15 111	51875 Protection		1
D674 17-15 716	860 Screw, M5 x 12 2
QD25 17-15 140	750 Proportional solenoid, 12 volt	2
QD26 17-15 110	01952 O-ring 2
QD27 17-15 110	04698 Coil kit, 12 v, DEUTSCH connector	2
QD28 17-15 063	172 O-ring 2
QD29 17-15 110	04749 Coil nut		2
QD30 17-15 110	27883 Cap		2
QD100	17-15		11232768	Automotive control kit, 12v, manual override	1

Controls

H1P control P6, P7

P6 and P7 configuration

Generic housing shown

• Included in overhaul seal kit Q210

Controls

Common parts

Item Date Begin	Date End Part	Number Part Name	Qty. per		Model/Kit
D050 16-30 716	860 Screw, M5 x 12 6
D150 16-30 112	27209 Control gasket 1
D250 16-30 505	038 Screw, M6 x 45 6
D300 16-30 110	86469 Dowel pin 2
D611 16-30 21-12	11066774 O-ring (SB-2021-014 on page 220) 2
D611 21-13 112	25703 O-ring 2
D612 16-30 21-12	11003126 Plug (SB-2021-014 on page 220) 2
D612 21-13 112	23708 Plug		2
D640 16-30 110	23348 AC wiring harness		1
D655 16-30 110	84827 Blank, connector DTM 06-3S		1
D660 16-30 110	84822 Blank, connector DTM 06-6S		1
D672 16-30 111	51875 Protection		1
D674 16-30 716	860 Screw, M5 x 12 2
QD26 16-30 110	01952 O-ring 2
QD28 16-30 063	172 O-ring 2
QD29 16-30 110	04749 Coil nut		2
QD30 16-30 110	27883 Cap		2

Order code: P6

QD25 16-30 140	750 Proportional	solenoid, 12 volt	2
QD27 16-30 110	04698 Coil kit, 12	v, DEUTSCH connector	2
QD100	16-30		11232768	Automotive control kit, 12v, manual override	1

Order code: P7

QD25 16-30 140	751 Proportional	solenoid, 24 volt	2
QD27 16-30 110	04700 Coil kit, 24v, DEUTSCH connector		2
QD100	16-30		11232769	Automotive control kit, 24v, manual override	1

Controls

H1P control P8, P9

P8 and P9 configuration

Generic housing shown

• Included in overhaul seal kit Q210

Controls

Common parts

Item Date Begin	Date End Part	Number Part Name	Qty. per		Model/Kit
D050 16-30 716	860 Screw, M5 x 1	26
D150 16-30 112	27209 Control gasket 1
D200 16-30 141	472 Screw, special 1
D250 16-30 505	038 Screw, M6 x 45 6
D300 16-30 110	36469 Dowel pin 2
D450 16-30 110	03097 Magnetic carrier 1
D611 16-30 21-12	11066774 O-ring (SB-2021-014 on page 220) 2
D611 21-13 112	25703 O-ring		2
D612 16-30 21-12	11003126 Plug	(SB-2021-014 on page 220)	2
D612 21-13 112	23708 Plug		2
D640 16-30 110	23348 AC wiring harness		1
D655 16-30 110	84827 Blank, connector DTM 06-3S		1
D660 16-30 110	84822 Blank, connector DTM 06-6S		1
D672 16-30 111	51875 Protection		1
D674 16-30 716	860 Screw, M5 x 1	22
QD26 16-30 110	01952 O-ring		2
QD28 16-30 063	172 O-ring		2
QD30 16-30 110	27883 Cap		2

Order code: P8

QD25 16-30 140	750 Proportional	solenoid, 12 volt	2
QD27 16-30 110	04698 Coil kit, 12v, DEUTSCH connector	2
QD29 16-30 110	04749 Coil nut		2
QD100	16-30		11232770	Automotive control kit, 12v, manual override	1

Order code: P9

QD25 16-30 140	751 Proportional	solenoid, 24 volt	2
QD27 16-30 110	04700 Coil kit, 24v, DEUTSCH connector		2
QD29 16-30 110	04750 Coil nut		2
QD100	16-30		11232771	Automotive control kit, 24v, manual override	1

Controls

H1P control R1, R2

R1 and R2 configuration

Generic housing shown

• Included in overhaul seal kit Q210

Controls

Common parts

Item Date Begin	Date End Part	Number Part Name	Qty. per	Model/Kit
D050 16-30 716	860 Screw, M5 x 1	2 6
D150 16-30 112	27209 Control gasket 1
D200 16-30 141	472 Screw, special 1
D250 16-30 505	038 Screw, M6 x 45 6
D300 16-30 110	86469 Dowel pin 2
D450 16-30 110	03097 Magnetic carrier 1
D610 16-30 110	00467 Plug assembly 2
D611 16-30 110	66774 O-ring 2
D640 16-30 111	05876 AC wiring harness		1
D655 16-30 110	84827 Blank, connector DTM 06-3S		1
D672 16-30 111	51875 Protection		1
D674 16-30 716	860 Screw, M5 x 12 2
QD26	16-30 11001952	O-ring 2
QD28	16-30 063172 O-ring 2
QD30	16-30 11027883	Cap		2

Order code: R1

QD25	16-30 140750 Proportional solenoid, 12 volt 2
QD27	16-30 11004698 Coil kit, 12v, DEUTSCH connector	2
QD29	16-30 11004749 Coil nut	2
QD100	16-30	11232770	Automotive control kit, 12v, manual override 1

Order code: R2

QD25	16-30 140751 Proportional solenoid, 24 volt 2
QD27	16-30 11004700 Coil kit, 24v, DEUTSCH connector	2
QD29	16-30 11004750 Coil nut	2
QD100	16-30	11232771	Automotive control kit, 24v, manual override 1

Controls

H1P control R3

R3 configuration

Generic housing shown

• Included in overhaul seal kit Q210

Controls

Order code: R3

Item Date Begin	Date End Part	Number Part Name	Qty. per		Model/Kit
D050 16-17 716	860 Screw, M5 x 12 6
D150 16-17 112	27209 Control gasket 1
D200 16-17 141	472 Screw, special 1
D250 16-17 505	038 Screw, M6 x 45 6
D300 16-17 110	86469 Dowel pin 2
D450 16-17 110	03097 Magnetic carrier 1
D611 16-17 21-1	12 11066774 O-ring (SB-2021-014 on page 220) 2
D611 21-13 112	25703 O-ring		2
D612 16-17 21-1	12 11003126 Plug (SB-2021-014 on page 220) 2
D612 21-13 112	23708 Plug		2
D640 16-17 110	84822 Blank, connector DTM 06-6S	1
D655 16-17 110	84827 Blank, connector DTM 06-3S	1
D660 16-17 110	84822 Blank, connector DTM 06-6S	1
D665 16-17 110	84827 Blank, connector DTM 06-3S	1
D672 16-17 111	51875 Protection		1
D674 16-17 716	860 Screw, M5 x 12 2
QD25 16-17 140	751 Proportional solenoid, 24 volt	2
QD26 16-17 110	01952 O-ring	2
QD27 16-17 110	04700 Coil kit, 24 v, DEUTSCH connector	2
QD28 16-17 063	172 O-ring	2
QD29 16-17 110	04750 Coil nut	2
QD30 16-17 110	27883 Cap	2
QD100	16-17		11232769	Automotive control kit, 24v, manual override	1

Controls

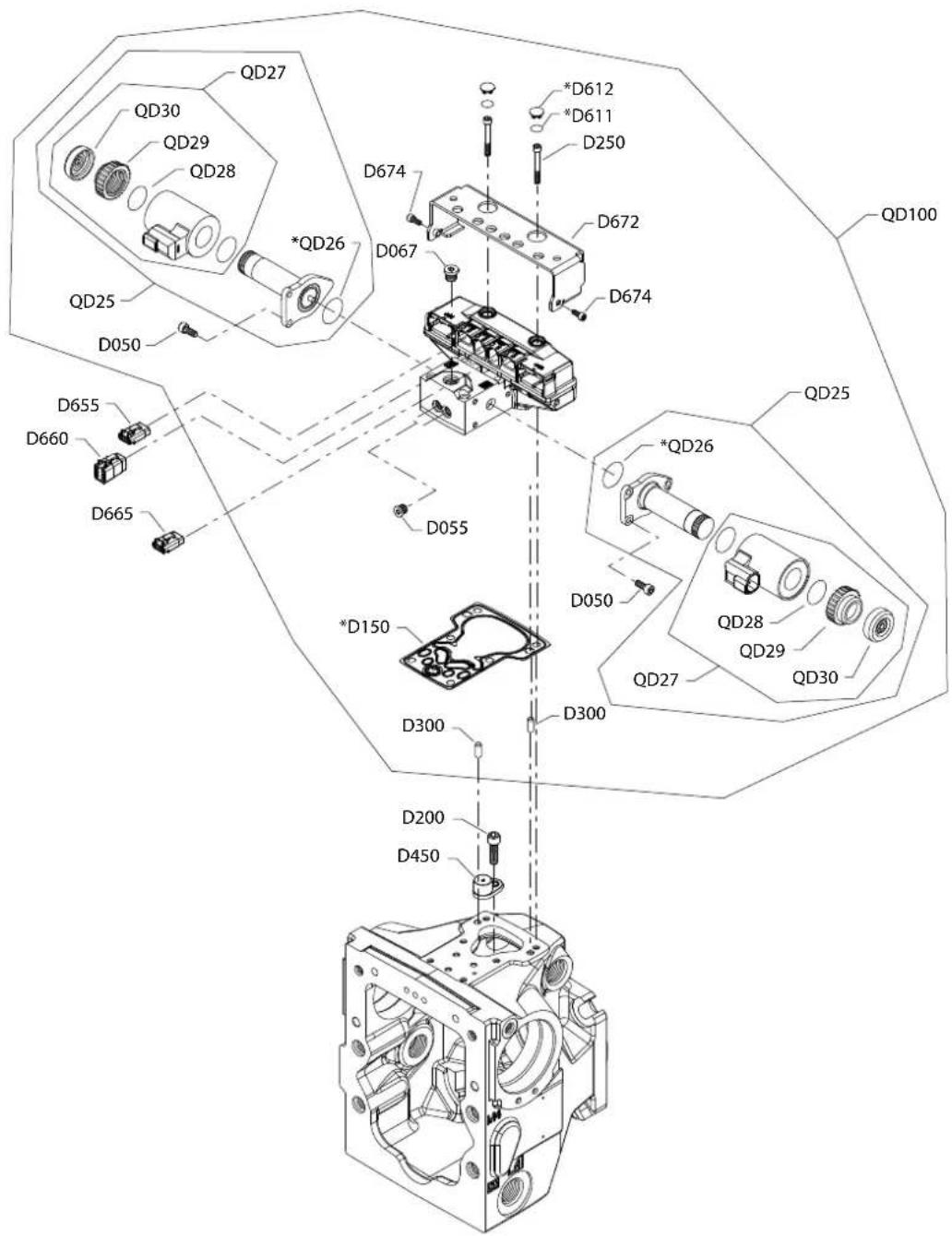

H1P control R4

R4 configuration

Generic housing shown

• Included in overhaul seal kit Q210

Controls

Order code: R4

Item Date Begin	Date End Part	Number Part Name	Qty. per		Model/Kit
D050 17-15 716	860 Screw, M5 x 12 6
D150 17-15 112	27209 Control gasket 1
D200 17-15 141	472 Screw, special 1
D250 17-15 505	038 Screw, M6 x 45 6
D300 17-15 110	36469 Dowel pin 2
D450 17-15 110	03097 Magnetic carrier 1
D611 17-15 21-12	11066774 O-ring (SB-2021-014 on page 220) 2
D611 21-13 112	25703 O-ring		2
D612 17-15 21-12	11003126 Plug (SB-2021-014 on page 220) 2
D612 21-13 112	23708 Plug		2
D655 17-15 110	84827 Blank, connector DTM 06-3S		1
D660 17-15 110	84822 Blank, connector DTM 06-6S		1
D665 17-15 110	84827 Blank, connector DTM 06-3S		1
D672 17-15 111	51875 Protection		1
D674 17-15 716	860 Screw, M5 x 12 2
QD25 17-15 140	750 Proportional solenoid, 12 volt		2
QD26 17-15 110	01952 O-ring		2
QD27 17-15 110	04698 Coil kit, 12v, DEUTSCH connector		2
QD28 17-15 063	172 O-ring		2
QD29 17-15 110	04749 Coil nut		2
QD30 17-15 110	27883 Cap		2
QD100	17-15		11232770	Automotive control kit, 12v, manual override	1

Controls

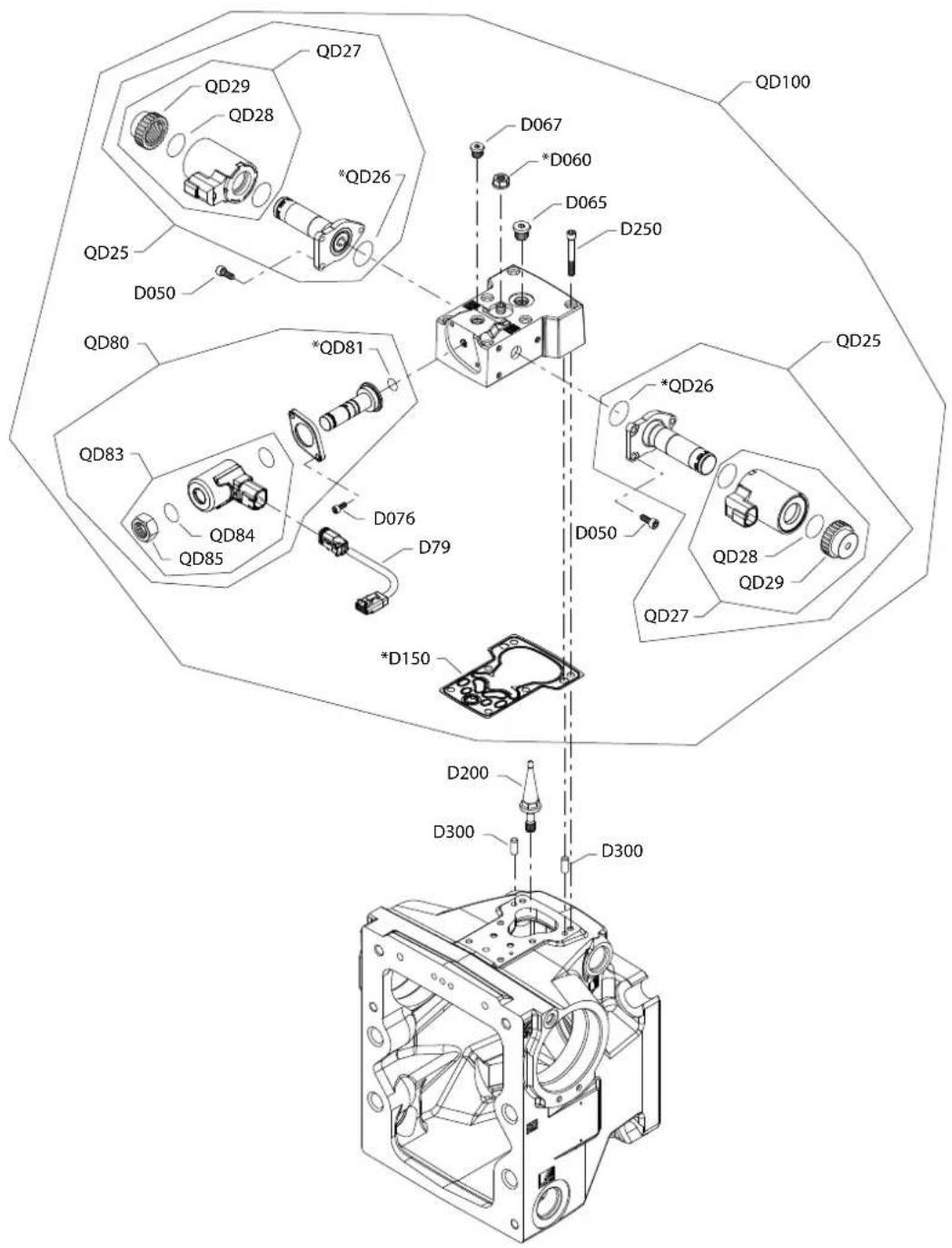

H1P control S6

Parts configuration

Generic housing shown.

• Included in overhaul seal kit Q210

Controls

Order code: S6

Item Date Begin	Date End Part	Number Part Name	Qty. per		Model/Kit
D79 14-25 1115	0437 Cable adapter 1
D050 14-25 716	860 Screw, M5 x 1	26
D060 14-25 612	291 (9003508-0008) Seal nut, M8 1
D065 14-25 327	007 Plug assembly 1
D067 14-25 110	40532 Plug assembly 1
D076 14-25 067	694 Screw, M4 x 10 2
D150 14-25 112	27209 Control gasket (SB-2016-033 on page 213) 1
D200 14-25 112	02172 Swashplate feedback link (SB-2018-025 on page 217)				1
D250 14-25 505	038 Screw, M6 x 45 6
D300 14-25 310	979 Dowel pin		2
QD25	14-25 11012457	Proportional solenoid, 12v		2
QD26	14-25 11001952	O-ring		2
QD27	14-25 11028018	Coil kit, 12v, DEUTSCH connector		2
QD28	14-25 063172 O-ring		2
QD29	14-25 11027046	Coil nut		2
QD80	14-25 11231200	Solenoid vale, on/off, 12v		1
QD81	14-25 11152257	O-ring		1
QD83	14-25 11232757	Coil kit, 12v		1
QD84	14-25 11232752	O-ring		1
QD85	14-25 11140394	Coil nut		1
QD100	14-25 11152574	EDC kit, 12v, CORF		1

Controls

H1P control S7

Parts configuration

Generic housing shown.

• Included in overhaul seal kit Q210

Controls

Order code: S7

Item Date Begin	Date End Part	Number Part Name	Qty. per		Model/Kit
D050 14-31 716	860 Screw, M5 x 12 6
D060 14-31 612	291 (9003508-0008) Seal nut, M8 1
D065 14-31 327	007 Plug assembly 1
D067 14-31 110	40532 Plug assembly 1
D076 14-25 067	694 Screw, M4 x 10 2
D150 14-31 112	27209 Control gasket (SB-2016-033 on page 213) 1
D200 14-31 112	02172 Swashplate feedback link (SB-2018-025 on page 217)				1
D250 14-31 505	038 Screw, M6 x 45 6
D300 14-31 310	979 Dowel pin 2
QD25 14-31 110	12457 Proportional solenoid, 12v	2
QD26 14-31 110	01952 O-ring	2
QD27 14-31 110	28018 Coil kit, 12v, DEUTSCH connector	2
QD28 14-31 063	172 O-ring	2
QD29 14-31 110	27046 Coil nut	2
QD80 14-31 112	31200 Solenoid vale, on/off, 12v	1
QD81 14-31 111	52257 O-ring	1
QD83 14-31 112	32757 Coil kit, 12v	1
QD84 14-31 112	32752 O-ring	1
QD85 14-31 111	40394 Coil nut	1
QD100	14-31 11152574	EDC kit, 12v, CORF	1

Controls

H1P control T6, T7

Parts configuration

Generic housing shown

• Included in overhaul seal kit Q210

Controls

Order code: T6

Item Date Begin	Date End Part	Number Part Name	Qty. per		Model/Kit
D050 18-15 716	860 Screw, M5 x 12 6
D150 18-15 112	27209 Control Gasket 1
D250 18-15 505	038 Screw, M6 x 45 6
D300 18-15 110	86469 Dowel pin 2
D611 18-15 21-12	12 11066774 O-ring (SB-2021-014 on page 220) 1
D611 21-13 112	25703 O-ring 2
D612 18-15 21-12	12 11003126 Plug (SB-2021-014 on page 220) 2
D612 21-13 112	23708 Plug 2
D640 18-15 111	97432 AC wiring harness		1
D655 18-15 110	84827 Blank, connector DTM 06-3S		1
D660 18-15 110	84822 Blank, connector DTM 06-6S		1
D665 18-15 110	84827 Blank, connector DTM 06-3S		1
D672 18-15 111	51875 Protection		1
D674 18-15 716	860 Screw, M5 x 12 2
QD100	18-15		11232768	Automotive control kit, 12v, manual override	1
QD25 18-15 140	750 Proportional solenoid, 12v		2
QD26 18-15 110	01952 O-ring 2
QD27 18-15 110	04698 Coil kit, 12 v, DEUTSCH connector		2
QD28 18-15 063	172 O-ring 2
QD29 18-15 110	04749 Coil nut		2
QD30 18-15 110	27883 Cap		2

Order code: T7

D050 18-15 716	860 Screw, M5 x 12.6
D150 18-15 112	27209 Control gasket	1
D250 18-15 505	038 Screw, M6 x 45.6
D300 18-15 110	36469 Dowel pin 2
D611 18-15 21-1	2 11066774 O-ring (SB-2021-014 on page 220) 1
D611 21-13 112	25703 O-ring 2
D612 18-15 21-1	2 11003126 Plug (SB-2021-014 on page 220) 2
D612 21-13 112	23708 Plug 2
D640 18-15 111	97432 AC wiring harness	1
D655 18-15 110	84827 Blank, connector DTM 06-3S	1
D660 18-15 110	84822 Blank, connector DTM 06-6S	1
D665 18-15 110	84827 Blank, connector DTM 06-3S	1
D672 18-15 111	51875 Protection	1
D674 18-15 716	860 Screw, M5 x 12.2
QD100	18-15	11232769	Automotive control kit, 24v, manual override	1
QD25 18-15 140	751 Proportional solenoid, 24v	2
QD26 18-15 110	01952 O-ring 2
QD27 18-15 110	04700 Coil kit, 24v, DEUTSCH connector	2
QD28 18-15 063	172 O-ring 2
QD29 18-15 110	04750 Coil nut	2
QD30 18-15 110	27883 Cap	2

Controls

H1P control T8, T9

Parts configuration

Generic housing shown

* Included in overhaul seal kit Q210

Controls

Order code: T8

Item Date Begin	Date End Part	Number Part Name	Qty. per		Model/Kit
D050 18-12 716	860 Screw, M5 x 12 6
D150 18-12 112	27209 Control gasket 1
D200 18-12 141	472 Screw, special 1
D250 18-12 505	038 Screw, M6 x 45 6
D300 18-12 110	86469 Dowel pin 2
D450 18-12 110	03097 Magnet carrier 1
D611 18-12 21-1	12 11066774 O-ring (SB-2021-014 on page 220) 1
D611 21-13 112	25703 O-ring 2
D612 18-12 21-1	12 11003126 Plug (SB-2021-014 on page 220) 2
D612 21-13 112	23708 Plug		2
D640 18-12 111	97432 AC wiring harness		1
D655 18-12 110	84827 Blank, connector DTM 06-3S		1
D660 18-12 110	84822 Blank, connector DTM 06-6S		1
D665 18-12 110	84827 Blank, connector DTM 06-3S		1
D672 18-12 111	51875 Protection		1
D674 18-12 716	860 Screw, M5 x 12 2
QD100	18-12		11232770	Automotive control kit, 12v, manual override	1
QD25 18-12 140	750 Proportional solenoid, 12v	2
QD26 18-12 110	01952 O-ring 2
QD27 18-12 110	04698 Coil kit, 12 v, DEUTSCH connector 2
QD28 18-12 063	172 O-ring 2
QD29 18-12 110	04749 Coil nut		2
QD30 18-12 110	27883 Cap		2

Order code: T9

D150 18-12 112	27209 Control gasket 1
D200 18-12 141	472 Screw, special 1
D250 18-12 505	038 Screw, M6 x 45 6
D450 18-12 110	03097 Magnet carrier 1
D610 18-12 110	00467 Plug assembly	2
D611 18-12 110	66774 O-ring 1
D640 18-12 111	97432 AC wiring harness	1
D655 18-12 110	84827 Blank, connector DTM 06-3S	1
D660 18-12 110	84822 Blank, connector DTM 06-6S	1
D665 18-15 110	84827 Blank, connector DTM 06-3S	1
D672 18-12 111	51875 Protection		1
D674 18-12 716	860 Screw, M5 x 12 2
QD100	18-12		11232771	Automotive control kit, 24v, manual override
QD25 18-12 140	751 Proportional solenoid, 24v	2
QD26 18-12 110	01952 O-ring 2
QD27 18-12 110	04700 Coil kit, 24v, DEUTSCH connector	2
QD28 18-12 063	172 O-ring 2
QD29 18-12 110	04750 Coil nut		2
QD30 18-12 110	27883 Cap		2

Controls

H1P control U1, U2

Parts configuration

Generic housing shown

• Included in overhaul seal kit Q210

Controls

Common parts

Item Date Begin	Date End Part	Number Part Number	Qty. per		Model/Kit
D050 18-10 716	860 Screw, M5 x 1	2 6
D150 18-10 112	27209 Control gasket 1
D250 18-10 505	038 Screw, M6 x 45 6
D300 18-10 110	86469 Dowel pin 2
D611 18-10 21-12	11066774 O-ring (SB-2021-014 on page 220) 1
D611 21-13 112	25703 O-ring 2
D612 18-10 21-12	11003126 Plug (SB-2021-014 on page 220) 2
D612 21-13 112	23708 Plug		2
D640 18-10 111	97432 AC wiring harness		1
D655 18-10 110	84827 Connector	DTM 06-3s	1
D660 18-10 110	84822 Connector	DTM 06-6s	1
D665 18-10 110	84827 Connector	DTM 06-3s	1
D672 18-10 111	51875 Protection		1
D674 18-10 716	860 Screw, M5 x 1	2 2
QD26 18-10 110	01952 O-ring 2
QD28 18-10 063	172 O-ring 2
QD30 18-10 110	27883 Cap		2

Order code: U1

QD100	18-10 11232792	Service control kit, 12v		1
QD25 18-10 140	750 Proportional	solenoid, 12v	2
QD27 18-10 110	04698 Coil kit, 12	v, DEUTSCH connector	2
QD29 18-10 110	04749 Coil nut		2

Order code: U2

QD100	16-29		11232793	Automotive control kit, 24V, manual override	1
QD25 16-29 140	751 Proportional	solenoid, 24V	2
QD27 16-29 110	04700 Coil kit, 24V, DEUTSCH connector	2
QD29 16-29 110	04750 Coil nut		2

Displacement limitation

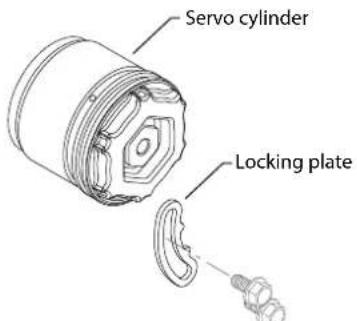

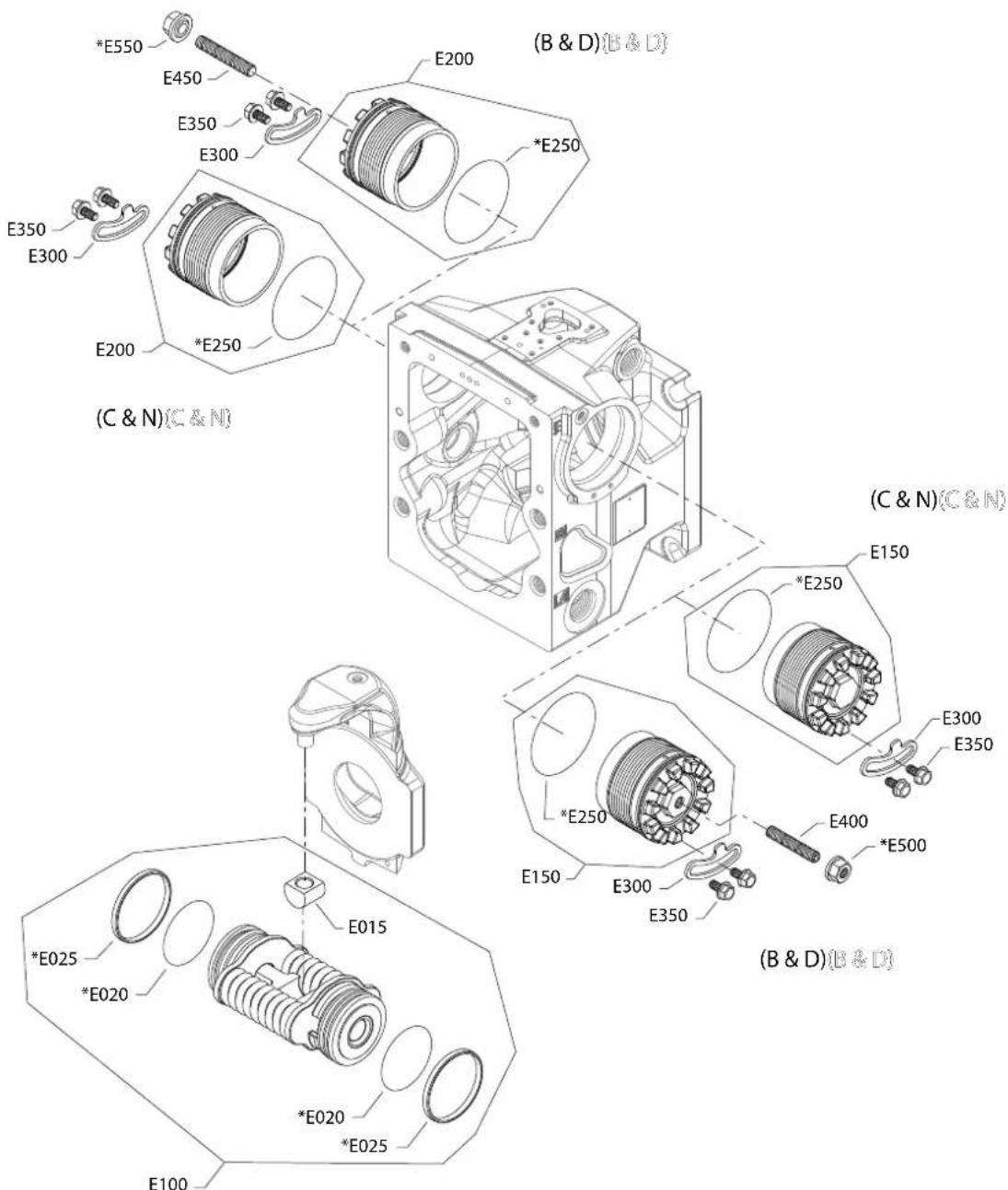

H1P 115/130cc displacement limitation

Parts configuration

• Included in overhaul seal kit Q210

Displacement limitation

Common parts

Item Date Begin	Date End Part	Number Part Name	Qty. per	Model/Kit
E015 08-10 1114	1991 Slider block	1
E020 08-10 1107	5557 O-ring 2
E025 08-10 1107	5556 Piston seal ring 2
E250 08-10 0718	45 (9004104-1510) O-ring 2
E300 10-35 1103	3382 Locking plate 2
E300 08-10 10-34	140513 Locking plate (SB-2009-046 on page 195) 2
E350 08-10 5084	38 Screw 4

Order code: B

E100 08-10 141	243 Servo piston assembly	1
E150 08-10 1108	9772 Servo cylinder assembly (SB)	2009-046 on page	195)	1
E200 08-10 1108	9772 Servo cylinder assembly (SB)	2009-046 on page	195)	1
E400 08-10 1100	0798 Set screw	1
E450 08-10 1100	0798 Set screw	1
E500 08-10 6498	22 Seal nut	1
E550 08-10 6498	22 Seal nut	1

Order code: C

E100 08-10 1100	1831 Servo piston assembly w/nested spring 1
E150 08-10 1108	9773 Servo cylinder assembly (SB) 2009-046 on page 195			1
E200 08-10 1108	9773 Servo cylinder assembly (SB) 2009-046 on page 195			1

Order code: D

E100 08-10 1100	1831 Servo piston assembly w/nested spring 1
E150 08-10 1108	9772 Servo cylinder assembly (SB) 2009-046 on page 195)		1
E200 08-10 1108	9772 Servo cylinder assembly (SB) 2009-046 on page 195)		1
E400 08-10 1100	0798 Set screw	1
E450 08-10 1100	0798 Set screw	1
E500 08-10 6498	22 Seal nut	1
E550 08-10 6498	22 Seal nut	1

Order code: N

E100 08-10 141	43 Servo piston assembly	1
E150 08-10 1108	9773 Servo cylinder assembly (SB-2009-046 on page 195)			1
E200 08-10 1108	9773 Servo cylinder assembly ( SB-2009-046 on page 195)			1

Orifice

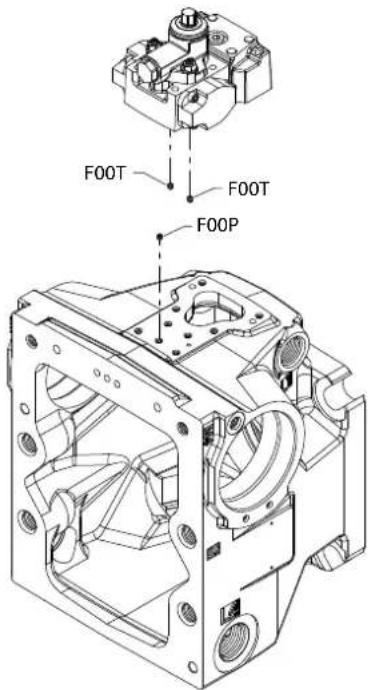

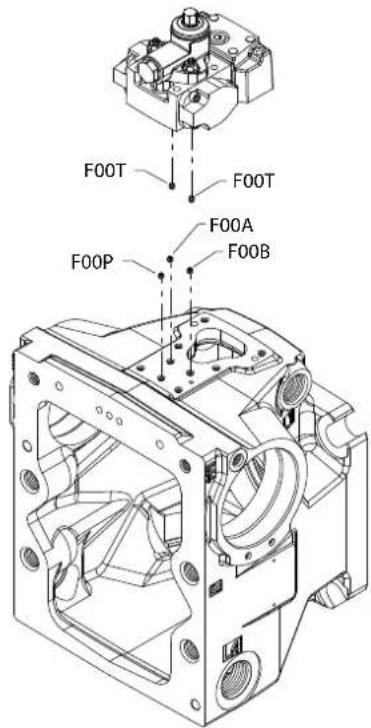

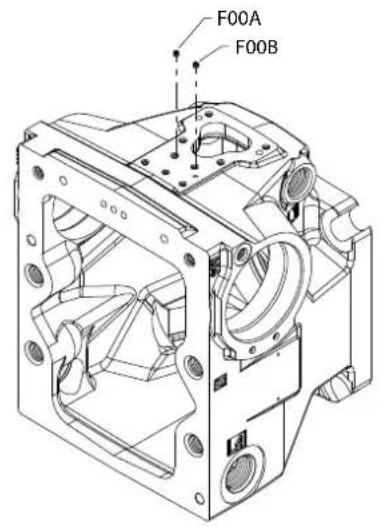

H1P orifice C-D

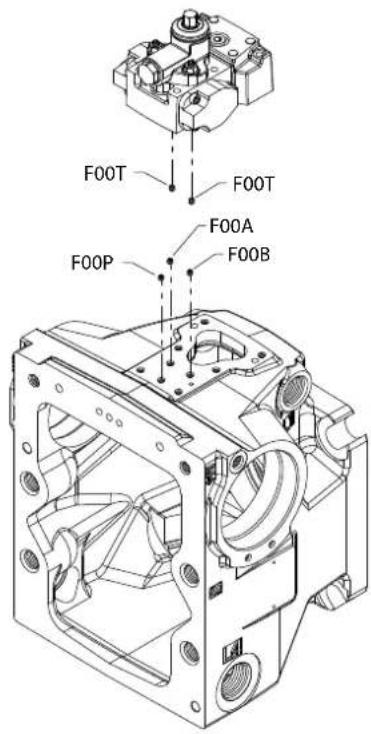

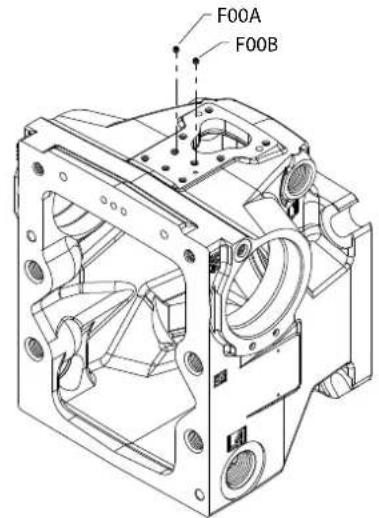

Parts configuration

(C1,C2,C4,C5,D7,D8)

(C6,C7)

(D1, D2, D3, D6, E5)

(D4)

Generic controls and housings shown.

Orifice

Order code: C1

Item Date Begin	Date End Part	Number Part Name	Qty. per		Model/Kit
F00A 08-10 1406	11 Orifice, 0.8, M6 x 0.75 mm 1
F00B 08-10 1406	11 Orifice, 0.8, M6 x 0.75 mm 1

Order code: C2

F00A 08-10 140	54 Orifice, 1.3, M6 x 0.75 mm 1
F00B 08-10 140	54 Orifice, 1.3, M6 x 0.75 mm 1

Order code: C3

No parts

Order code: C4

F00A 14-01 140	57 Orifice, 1.8, M6 x 0.75 mm 1
F00B 14-01 140	57 Orifice, 1.8, M6 x 0.75 mm 1

Order code: C5

F00A 18-01 140759 Orifice, 2.5, M6 x 0.75mm 1
F00B 18-01 140759 Orifice, 2.5, M6 x 0.75mm 1

Order code: C6

F00T 14-01 1115

1734 Orifice, 1.0, M6 x 0.75 mm 2

Order code: C7

F00T 14-01 140754 Orifice, 1.3, M6 x 0.75 mm 2

Order code:D1

F00P 14-01 1115	1734 Orifice, 1.0	M6 x 0.75 mm 1
F00T 14-01 1406	11 Orifice, 0.8 M6	x 0.75 mm 2

Order code:D2

F00P 14-01 1407	54 Orifice, 1.3, M6 x 0.75 mm 1
F00T 14-01 1406	11 Orifice, 0.8 M6 x 0.75 mm 2

Orifice

Parts configuration

(C1,C2,C4,C5,D7,D8)

(C6,C7)

(D1, D2, D3, D6, E5)

(D4)

Generic controls and housings shown.

Orifice

Order code: D3

Item Date Begin	Date End Part	Number Part Name	Qty. per	Model/Kit
F00P 14-01 1407	54 Orifice, 1.3, M6 x 0.75 mm 1
F00T 14-01 1115	1734 Orifice, 1.0	M6 x 0.75 mm 2

Order code:D4

F00A 14-01 140754 Orifice, 1.3, M6 x 0.75 mm 1
F00B 14-01 140754 Orifice, 1.3, M6 x 0.75 mm 1
F00P 14-01 140754 Orifice, 1.3, M6 x 0.75 mm 1
F00T 14-01 11151734 Orifice, 1.0M6 x 0.75 mm 2

Order code: D6

F00P 14-01 140754 Orifice, 1.3, M6 x 0.75 mm 1
F00T 14-01 140754 Orifice, 1.3, M6 x 0.75 mm 2

Order code: D8

F00A 17-07 11189557 Orifice, 2.3,	M6 x 0.75mm 1
F00B 17-07 11189557 Orifice, 2.3,	M6 x 0.75mm 1

Order code: E1

F00A 17-09 1111734 Orifice, 1.0	M6 x 0.75 1
F00B 17-09 1111734 Orifice, 1.0	M6 x 0.75 1

Order code: E5

F00P 20-38 1115	1734 Orifice, 1.0, M6 x 0.75 1
F00T 20-38 1407	54 Orifice, 1.3, M6 x 0.75 2

End cap

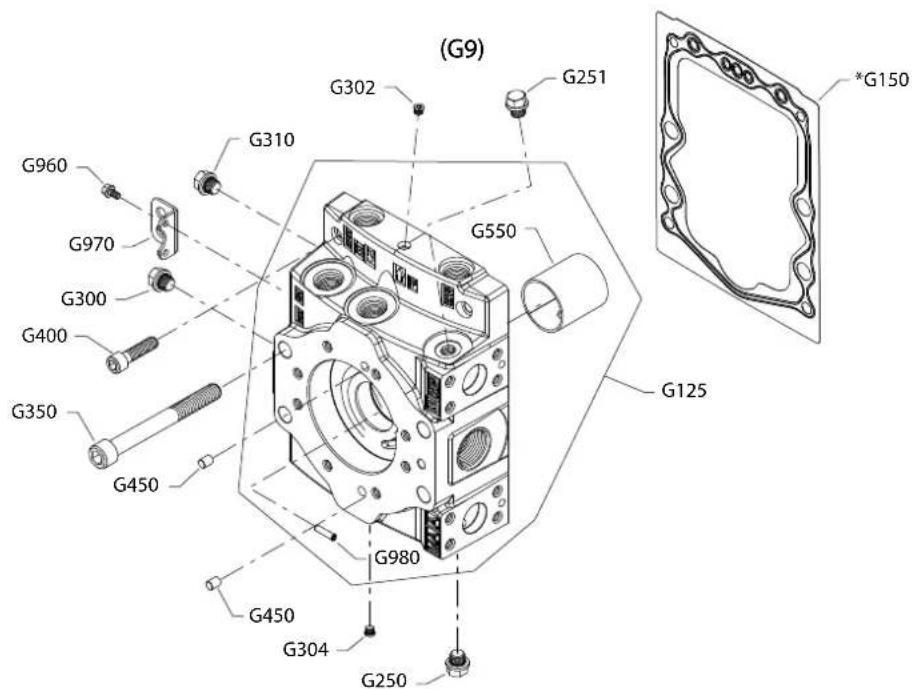

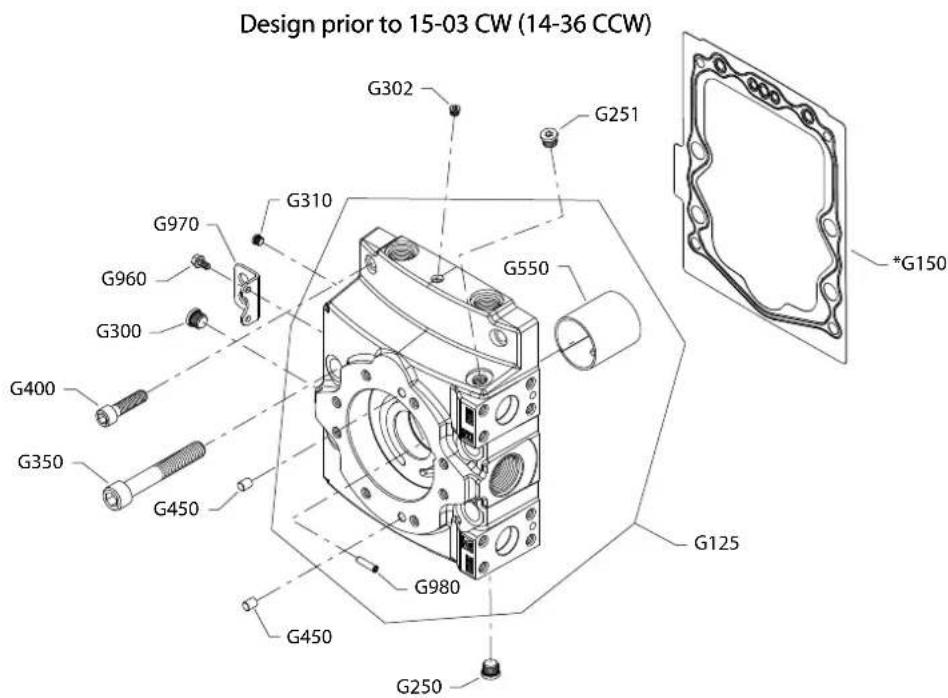

H1P 115/130cc end cap D3

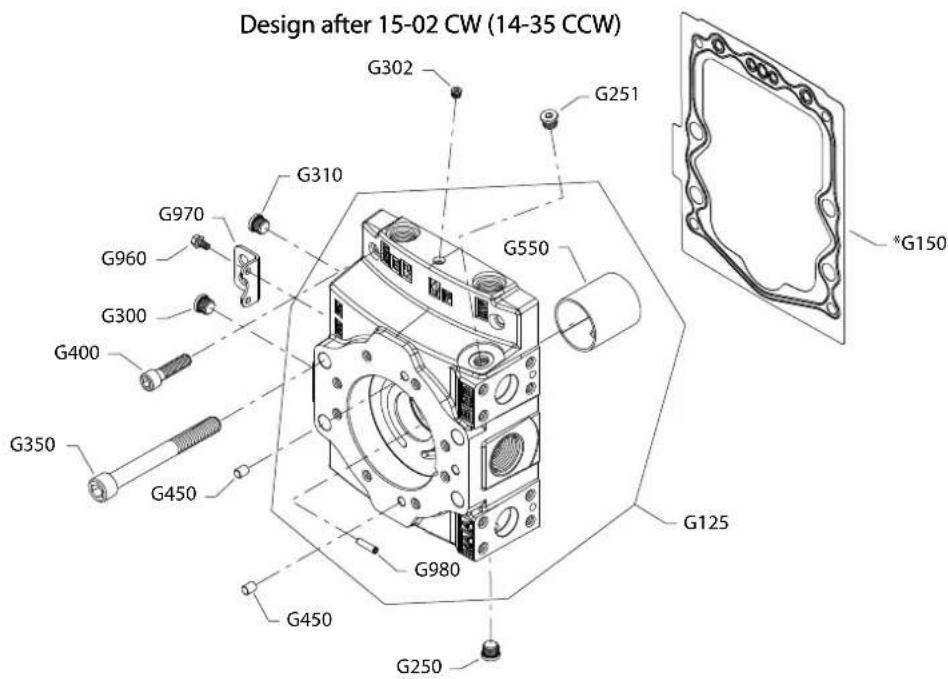

Parts configuration

* Included in overhaul seal kit Q210

End cap

Order code: D3 (CW)

Item Date Begin	Date End Part	Number Part Name	Qty. per		Model/Kit
G125 15-03 110	03665 End cap assembly, CW 1
G150 08-10 110	01894 End cap gasket 1
G250 08-10 140	644 Plug assembly 1
G251 08-10 140	644 Plug assembly 1
G300 08-10 140	644 Plug assembly 1
G302 08-10 110	40532 Plug assembly (CW rotation pump) 1
G310 15-03 140	644 Plug assembly (CW rotation pump) 1
G310 08-10 15-02 11040532 Plug assembly (CW rotation pump) 1
G350 15-03 500	0676 Screw, M16 x 130 (CW rotation pump) 4
G350 08-10 15-02 519508 Screw, M16 x 100 (CW rotation pump) 4
G400 08-10 147	900 Screw, M10 x 45	2
G450 08-10 900	4800-3708	Dowel pin	2
G550 08-10 110	70150 Journal bearing	1
G960 08-10 508	438 Screw M6 x 12 2
G970 08-10 446	0311 Lifting bracket	1
G980 08-10 110	00229 Lubrication orifice	1

Order code: D3 (CCW)

G125 14-36 1100	03643 End cap assembly, CCW	1
G150 08-10 1100	01894 End cap gasket 1
G250 08-10 1400	644 Plug assembly 1
G251 08-10 1400	644 Plug assembly 1
G300 08-10 1400	644 Plug assembly 1
G302 14-36 1100	40532 Plug assembly (CCW rotation pump)	1
G310 14-36 1400	644 Plug assembly (CCW rotation pump)	1
G310 08-10 14-35	11040532 Plug assembly (CCW rotation pump)	1
G350 14-36 5000	0676 Screw, M16 x 130 (CCW rotation pump)	4
G350 08-10 14-35	519508 Screw, M16 x 100 (CCW rotation pump)	4
G400 08-10 1470	900 Screw, M10 x 45	2
G450 08-10 9000	4800-3708	Dowel pin	2
G550 08-10 1100	70150 Journal bearing	1
G960 08-10 5080	438 Screw M6 x 12.2
G970 08-10 4460	0311 Lifting bracket	1
G980 08-10 1100	00229 Lubrication orifice	1

End cap

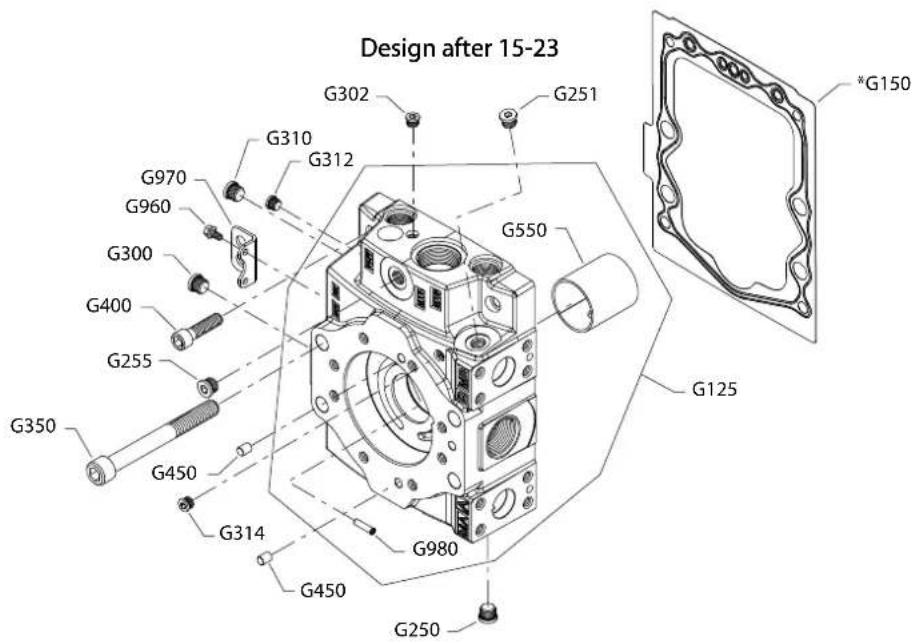

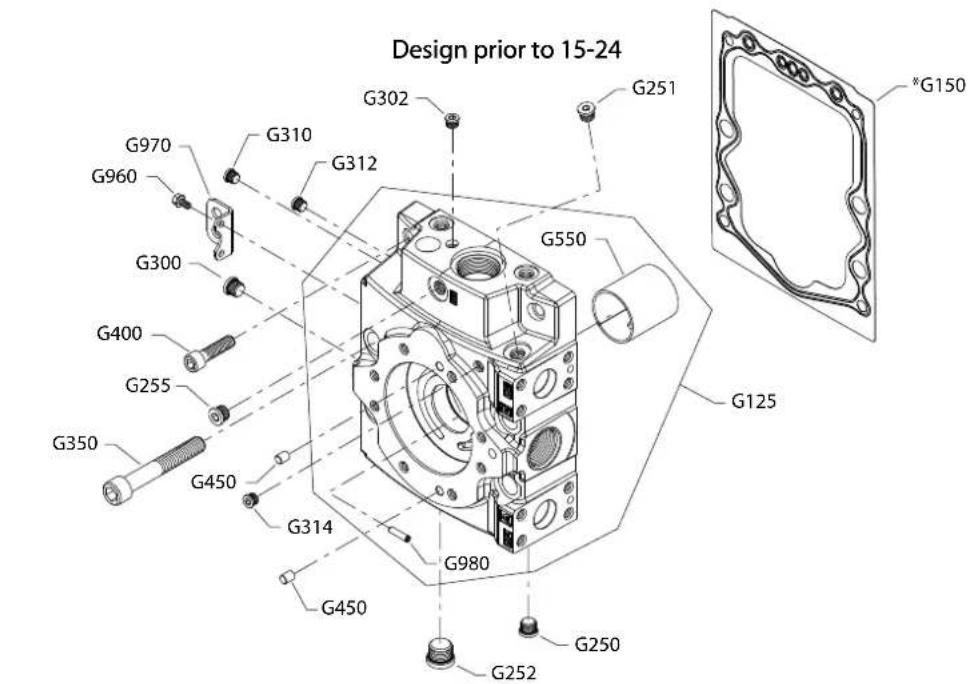

H1P 115/130cc end cap D4

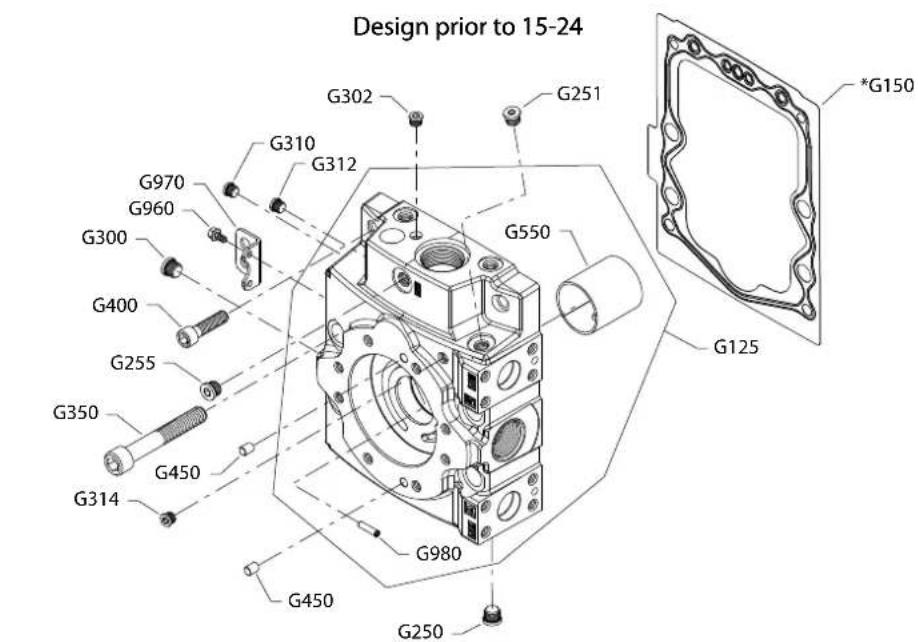

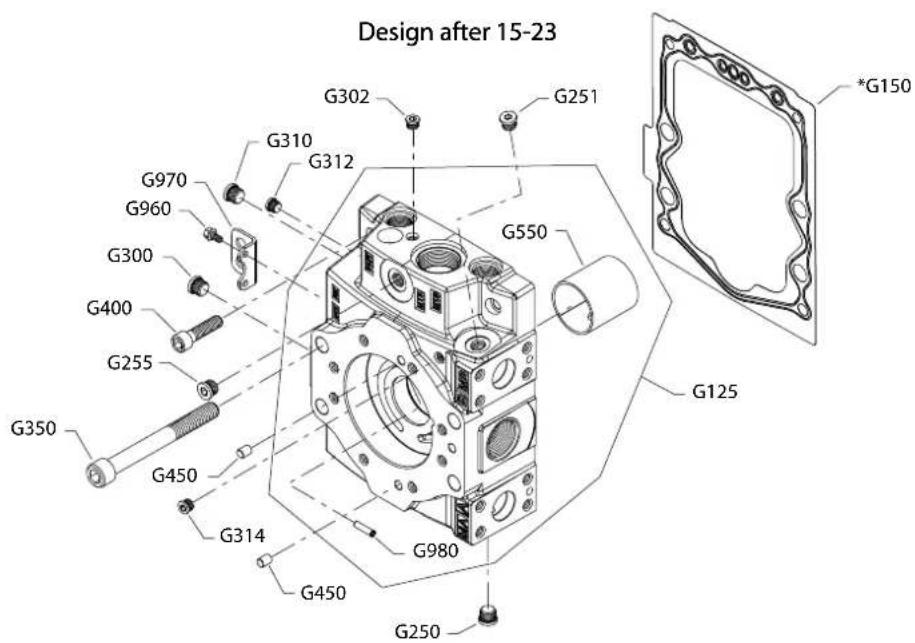

Parts configuration

This option is available in SAE and metric configurations. Please order accordingly.

• Included in overhaul seal kit Q210

End cap

Order code: D4

Item Date Begin	Date End Part	Number Part Name	Qty. per		Model/Kit
G125 15-24 110	03672 End cap assembly, CW 1
G125 16-09 111	73128 End cap assembly, CW (metric) 1
G125 15-24 110	03650 End cap assembly, CCW 1
G150 08-10 110	01894 End cap gasket 1
G250 08-10 140	644 Plug assembly 1
G251 08-10 140	644 Plug assembly 1
G255 08-10 140	644 Plug assembly 1
G300 08-10 140	644 Plug assembly 1
G250 16-09 111	78808 Plug assembly, M14 (metric) 1
G251 16-09 111	78808 Plug assembly, M14 (metric) 1
G255 16-09 111	78808 Plug assembly, M14 (metric) 1
G300 16-09 111	78808 Plug assembly, M14 (metric) 1
G302 08-10 110	40532 Plug assembly 1
G310 15-24 140	644 Plug assembly 1
G310 08-10 15-23	11040532 Plug assembly 1
G310 16-09 111	78808 Plug assembly, M14 (metric) 1
G312 08-10 110	40532 Plug assembly 1
G314 15-24 110	40532 Plug assembly 1
G350 15-24 500	0676	Screw, M16 x 130	4
G350 08-10 15-23	519508 Screw, M16 x 100	4
G350 16-09 500	0676	Screw, M16 x 130 (metric)	4
G400 08-10 147	900 Screw, M10 x 45	2
G450 08-10 900	4800-3708	Dowel pin	2
G550 08-10 110	70150 Journal bearing	1
G960 08-10 508	438 Screw M6 x 12 2
G970 08-10 446	0311	Lifting bracket	1
G980 08-10 110	00229 Lubrication orifice	1

End cap

H1P 115/130cc end cap D6

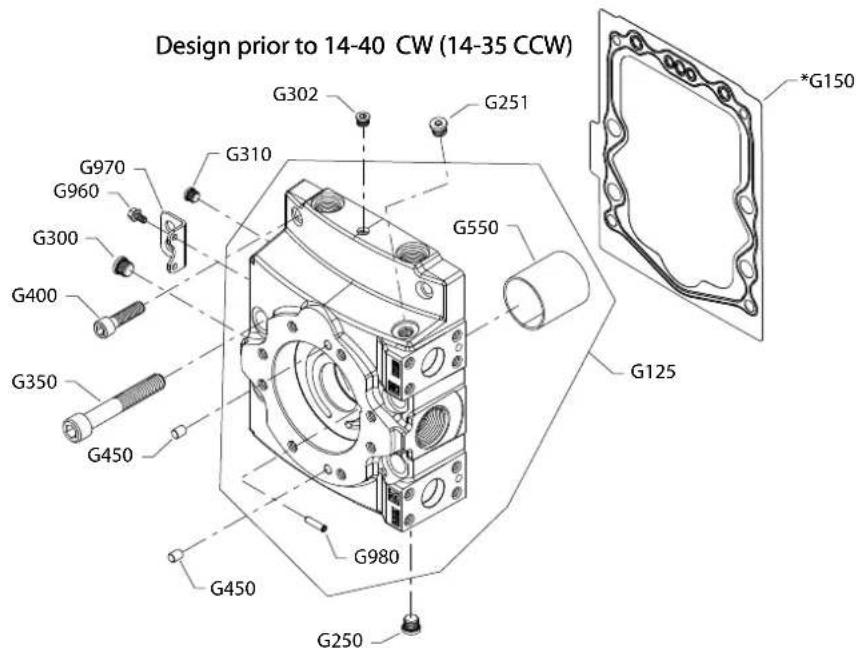

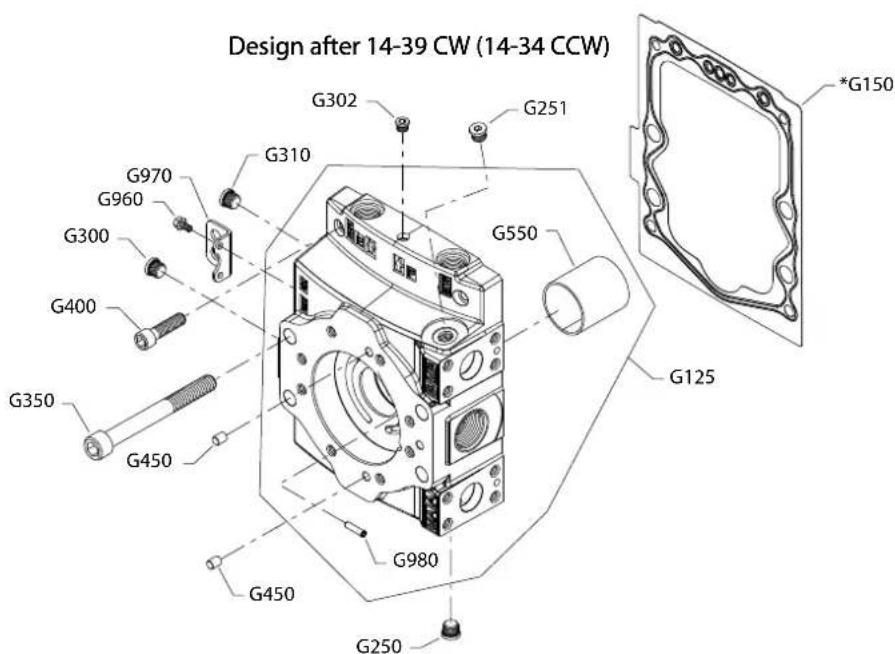

Parts configuration

* Included in overhaul seal kit Q210

End cap

Common parts

Item Date Begin	Date End Part	Number Part Name	Qty. per	Model/Kit
G150 08-10 1100	01894 End cap gasket 1
G250 08-10 1400	644 Plug assembly 1
G251 08-10 1400	644 Plug assembly 1
G300 08-10 1400	644 Plug assembly 1
G400 08-10 1470	900 Screw, M10 x 45 2
G450 08-10 900	4800-3708 Dowel pin 2
G550 08-10 1100	70150 Journal bearing 1
G960 08-10 5080	438 Screw M6 x 12 2
G970 08-10 4460	0311 Lifting bracket	1
G980 08-10 1100	00229 Lubrication orifice	1

Order code: D6 (CW)

G125 14-40 1100	03667 End cap assembly, CW	1
G302 08-10 1100	40532 Plug assembly (CW rotation pump)	1
G310 14-40 1400	644 Plug assembly (CW rotation pump)	1
G310	08-10	14-39	11040532	Plug assembly (CW rotation pump)
G350 14-40 5000	0676 Screw, M16 x 130 (CW rotation pump)	4
G350	08-10	14-39	519508	Screw, M16 x 100 (CW rotation pump)

Order code: D6 (CCW)

G125 14-35 110	03645 End cap assembly, CCW	1
G302 08-10 110	40532 Plug assembly (CCW rotation pump)	1
G310 14-35 140	644 Plug assembly (CCW rotation pump)	1
G310	08-10	14-34	11040532	Plug assembly (CCW rotation pump)
G350 14-35 500	0676 Screw, M16 x 130 (CCW rotation pump)	4
G350	08-10	14-34	519508	Screw, M16 x 100 (CCW rotation pump)

End cap

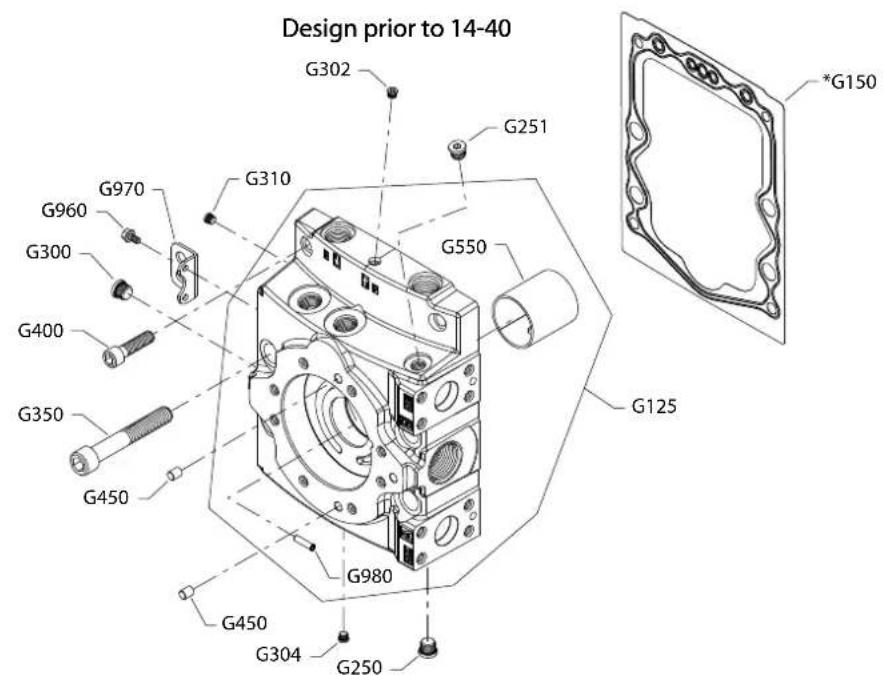

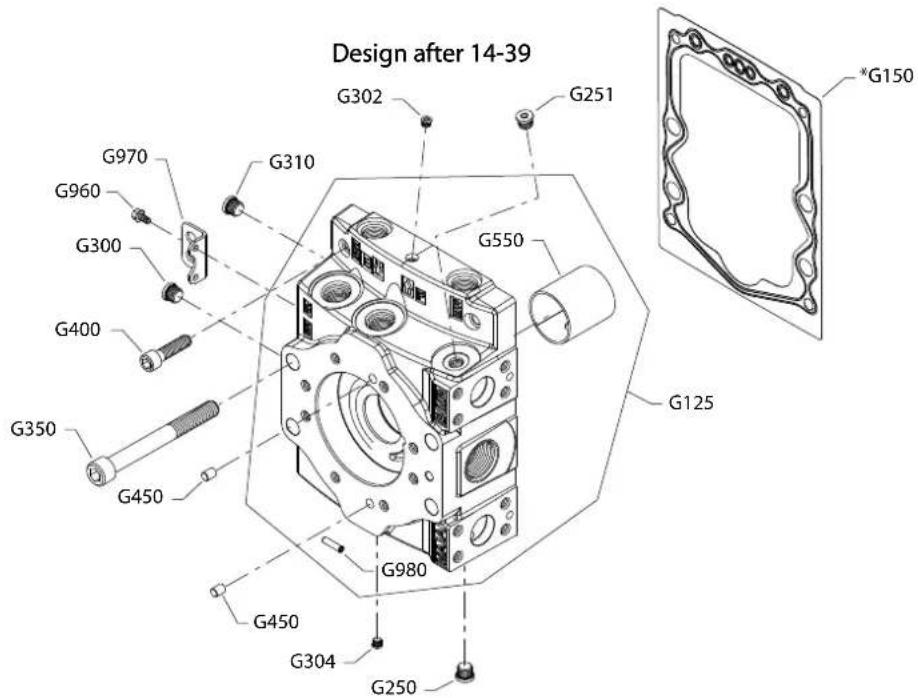

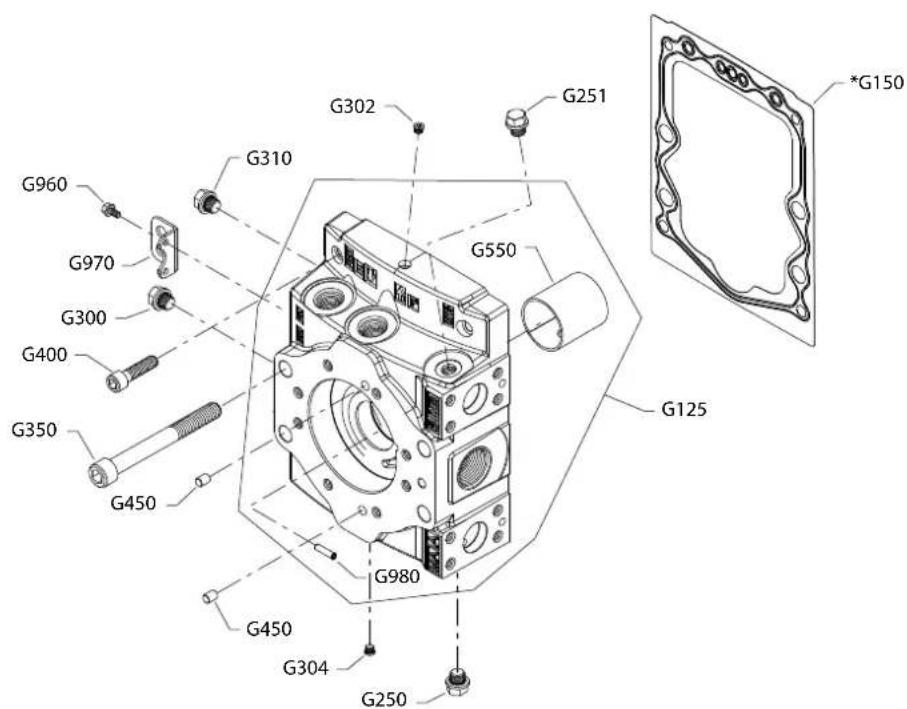

H1P 115/130cc end cap D8

Parts configuration

This option is available in SAE and metric configurations. Please order accordingly.

• Included in overhaul seal kit Q210.

End cap

Order code: D8

Item Date Begin	Date End Part	Number Part Name	Qty. per		Model/Kit
G125 14-40 110	03669 End cap assembly, CW 1
G125 14-40 110	03647 End cap assembly, CCW 1
G125 16-09 111	74364 End cap assembly, CCW (metric) 1
G150 08-10 110	01894 End cap gasket 1
G250 08-10 140	644 Plug assembly 1
G250 16-09 111	78808 Plug assembly, M14 (metric) 1
G251 08-10 140	644 Plug assembly 1
G251 16-09 111	78808 Plug assembly, M14 1
G300 08-10 140	644 Plug assembly 1
G300 16-09 111	78808 Plug assembly, M14 (metric) 1
G302 08-10 110	40532 Plug assembly 1
G304 12-30 110	40532 Plug assembly 1
G310 14-40 140	644 Plug assembly 1
G310 16-09 111	78808 Plug assembly, M14 (metric) 1
G310 08-10	14-39	11040532	Plug assembly 1
G350 14-40 500	0676	Screw, M16 x 130		4
G350	08-10	14-39	519508	Screw, M16 x 100	4
G400 08-10 147	900 Screw, M10 x 45	2
G450 08-10 900	4800-3708	Dowel pin		2
G550 08-10 110	70150 Journal bearing	1
G960 08-10 508	438 Screw M6 x 12 2
G970 08-10 446	0311	Lifting bracket		1
G980 08-10 110	00229 Lubrication orifice	1

End cap

H1P 115/130cc end cap E8

Parts configuration

* Included in overhaul seal kit Q210

End cap

Order code: E8

Item Date Begin	Date End Part	Number Part Name	Qty. per		Model/Kit
G125 15-24 110	03671 End cap assembly, CW 1
G125 15-24 110	03649 End cap assembly, CCW 1
G150 08-10 110	01894 End cap gasket 1
G250 08-10 140	044 Plug assembly 1
G251 08-10 140	044 Plug assembly 1
G255 08-10 140	044 Plug assembly 1
G300 08-10 140	044 Plug assembly 1
G302 15-24 110	040532 Plug assembly 1
G310 15-24 140	044 Plug assembly 1
G310 08-10 15-23	11040532 Plug assembly 1
G312 08-10 110	040532 Plug assembly 1
G314 08-10 110	040532 Plug assembly 1
G350 15-24 500	0676 Screw, M16 x 130 4
G350 08-10 15-23	519508 Screw, M16 x 100 4
G400 08-10 147	900 Screw, M10 x 45	2
G450 08-10 900	4800-3708	Dowel pin	2
G550 08-10 110	70150 Journal bearing	1
G960 08-10 508	438 Screw	2
G970 08-10 446	0311 Lifting bracket	1
G980 08-10 110	00229 Lubrication orifice	1

End cap

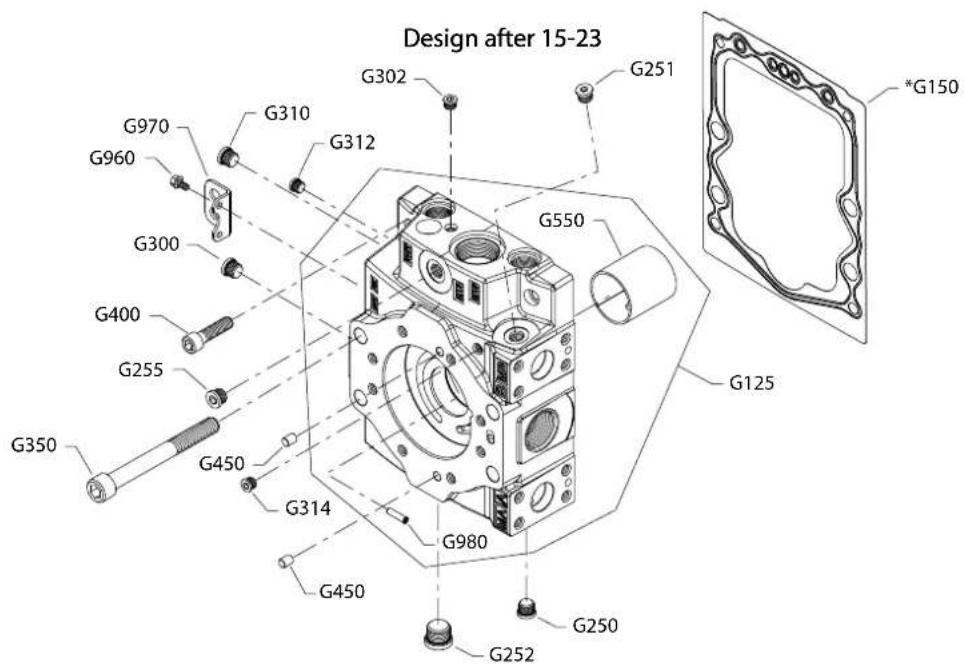

H1P 115/130cc end cap G3

Parts configuration

* Included in overhaul seal kit Q210

End cap

Order code: G3

Item Date Begin	Date End Part	Number Part Name	Qty. per		Model/Kit
G125 15-24 110	89752 End cap assembly, CW 1
G150 10-40 110	01894 End cap gasket 1
G250 10-40 140	644 Plug assembly 1
G251 10-40 140	644 Plug assembly 1
G252 10-40 315	825 (9005110-8700) Plug assembly 1
G255 10-40 140	644 Plug assembly 1
G300 10-40 140	644 Plug assembly 1
G302 10-40 110	40532 Plug assembly 1
G310 15-24 140	644 Plug assembly 1
G310 10-40 15-23	11040532 Plug assembly 1
G312 10-40 110	40532 Plug assembly 1
G314 10-40 110	40532 Plug assembly 1
G350 15-24 500	0676 Screw, M16 x 130 4
G350 10-40 15-23	519508 Screw, M16 x 100 4
G400 10-40 147	900 Screw, M10 x 45	2
G450 10-40 900	4800-3708	Dowel pin	2
G550 10-40 110	70150 Journal bearing	1
G650 10-40 880	0565 Lifting bracket	1
G960 10-40 508	438 Screw	2
G970 10-40 446	0311 Lifting bracket	1
G980 10-40 110	00229 Lubrication orifice	1

End cap

H1P 115/130cc end cap G9, J2

Parts configuration

* Included in overhaul seal kit Q210

End cap

Order code: G9

Item Date Begin	Date End Part	Number Part Name	Qty. per	Model/Kit
G125 15-12 110	03669 End cap assembly, CW 1
G150 15-12 110	01894 End cap gasket 1
G250 15-12 111	47119 Plug assembly, special 1
G251 15-12 111	47119 Plug assembly, special 1
G300 15-12 111	47119 Plug assembly, special 1
G302 15-12 110	40532 Plug assembly 1
G304 15-12 110	40532 Plug assembly 1
G310 15-12 111	47119 Plug assembly, special 1
G350 15-12 500	0676 Screw, M16 x 130 4
G400 15-12 147	900 Screw, M10 x 45 2
G450 15-12 900	4800-3708 Dowel pin	2
G550 15-12 110	70150 Journal bearing	1
G650 15-12 880	0565 Lifting bracket	1
G960 15-12 508	438 Screw	2
G970 15-12 446	0311 Lifting bracket	1
G980 15-12 110	00229 Lubrication orifice	1

Order code: J2

G125 14-12 111	30755 End cap assembly, CW 1
G150 14-12 110	01894 End cap gasket 1
G250 14-12 111	47119 Plug assembly, special 1
G251 14-12 111	47119 Plug assembly, special 1
G300 14-12 111	47119 Plug assembly, special 1
G302 14-12 110	40532 Plug assembly 1
G304 14-12 110	40532 Plug assembly 1
G310 14-12 140	644 Plug assembly 1
G350 14-12 500	0676 Screw, M16 x 130 4
G400 14-12 147	900 Screw, M10 x 45 2
G450 14-12 900	4800-3708 Dowel pin	2
G550 14-12 110	70150 Journal bearing	1
G650 14-12 880	0565 Lifting bracket	1
G960 14-12 508	438 Screw, M6 x 12	2
G961 14-12 508	438 Screw, M6 x 12	2
G970 14-12 446	0311 Lifting bracket	1
G971 14-12 480	0754 Lifting bracket	2
G980 14-12 110	00229 Lubrication orifice	1

End cap

H1P 115/130cc end cap J3

Parts configuration

• Included in overhaul seal kit Q210

End cap

Order code: J3

Item Date Begin	Date End Part	Number Part Name	Qty. per	Model/Kit
G125 15-23 111	66551 End cap assembly, CW 1
G150 15-23 110	01894 End cap gasket 1
G250 15-23 111	47119 Plug assembly, special 1
G251 15-23 111	47119 Plug assembly, special 1
G300 15-23 111	47119 Plug assembly, special 1
G302 15-23 110	40532 Plug assembly 1
G304 15-23 110	40532 Plug assembly 1
G310 15-23 111	47119 Plug assembly, special 1
G350 15-23 500	0676 Screw, M16 x 130 4
G400 15-23 147	900 Screw, M10 x 45 2
G450 15-23 900	4800-3708 Dowel pin	2
G550 15-23 110	70150 Journal bearing	1
G960 15-23 508	438 Screw	2
G970 15-23 446	0311 Lifting bracket	1
G980 15-23 110	00229 Lubrication orifice	1

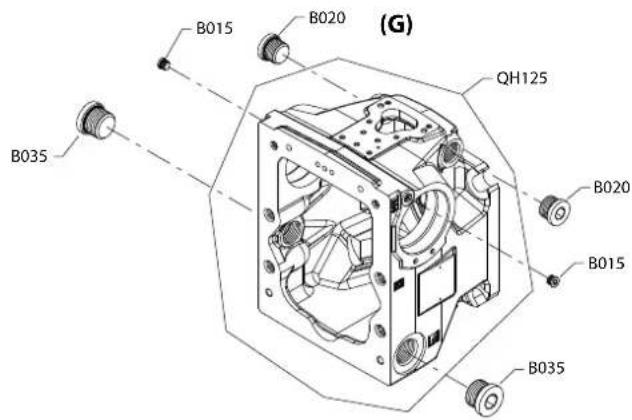

Housing

H1P 115/130cc housing G, L, M

Parts configuration

Option G is available in SAE and metric configurations. Please order accordingly.

• Included in overhaul seal kit Q210

Housing

Order code: G

Item Date Begin	Date End Part	Number Part Name	Qty. per		Model/Kit
B015 08-10 3270	007 (9005110-4400) Plug assembly	2
B015 16-09 5000	0572 Plug assembly, M12 (metric)	2
B020 08-10 6645	24 (9005110-9000) Plug assembly	2
B020 16-09 111	78807 Plug assembly, M27 (metric)	2
B035 08-10 3200	002 (9005110-9200) Plug assembly	2
B035 16-09 111	4204 Plug assembly, M33 (metric)	2
QH125 08-10 11	005070 Housing assembly (SB-2009-068 on page 197)	1
QH125 16-09 11	173134 Housing assembly (metric)	1

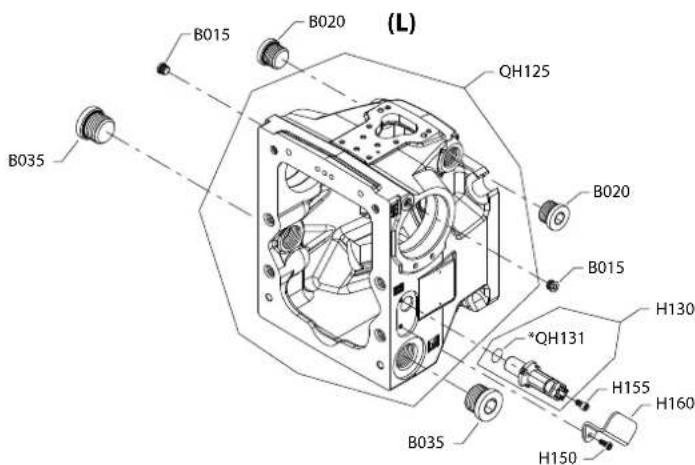

Order code: L

B015 08-10 327	007 (9005110-440) Plug assembly	2
B020 08-10 664	24 (9005110-900) Plug assembly	2
B035 08-10 320	002 (9005110-920) Plug assembly	2
H130 08-10 149	055	Speed sensor assembly	1
H150 08-10 508	438	Screw, M6 x 12	1
H155 08-10 376	749	Screw, M6 x 12	1
H160 08-10 111	86383 Speed sensor protector	1
QH125 08-10 11	030118 Housing assembly (SB-2009-068 on page 197) 1
QH131 08-10 11	013397 O-ring	1

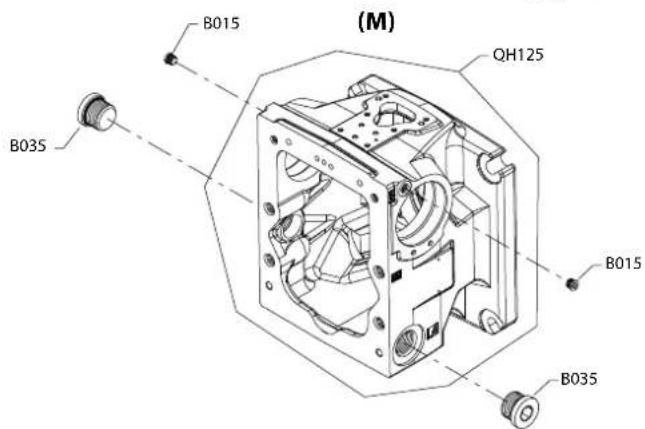

Order code: M

B015 13-13 327	007 (9005110-440) Plug assembly	2
B035 13-13 320	002 (9005110-920) Plug assembly	2
QH125 13-13 11	130855 Housing assembly	1

Shaft

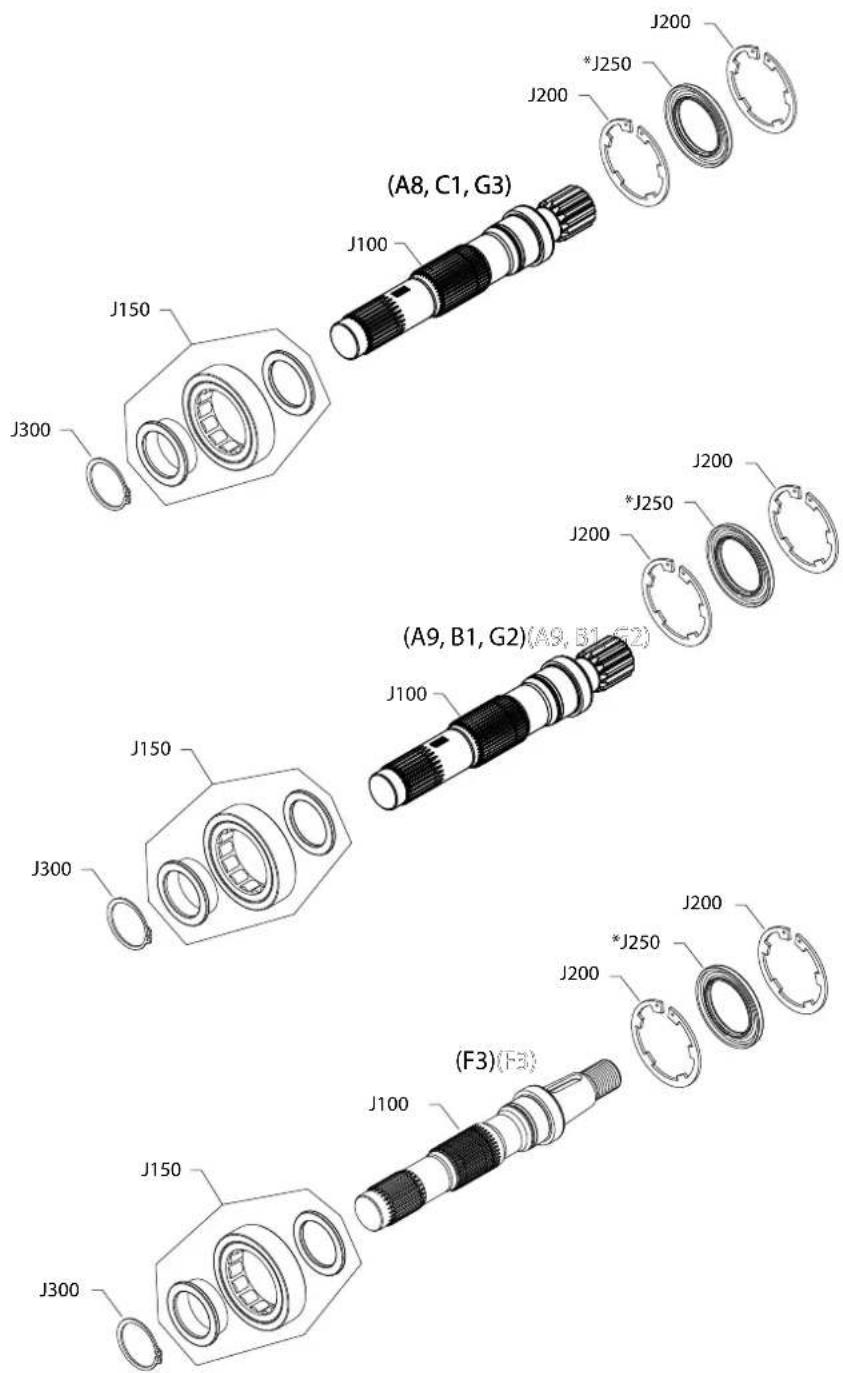

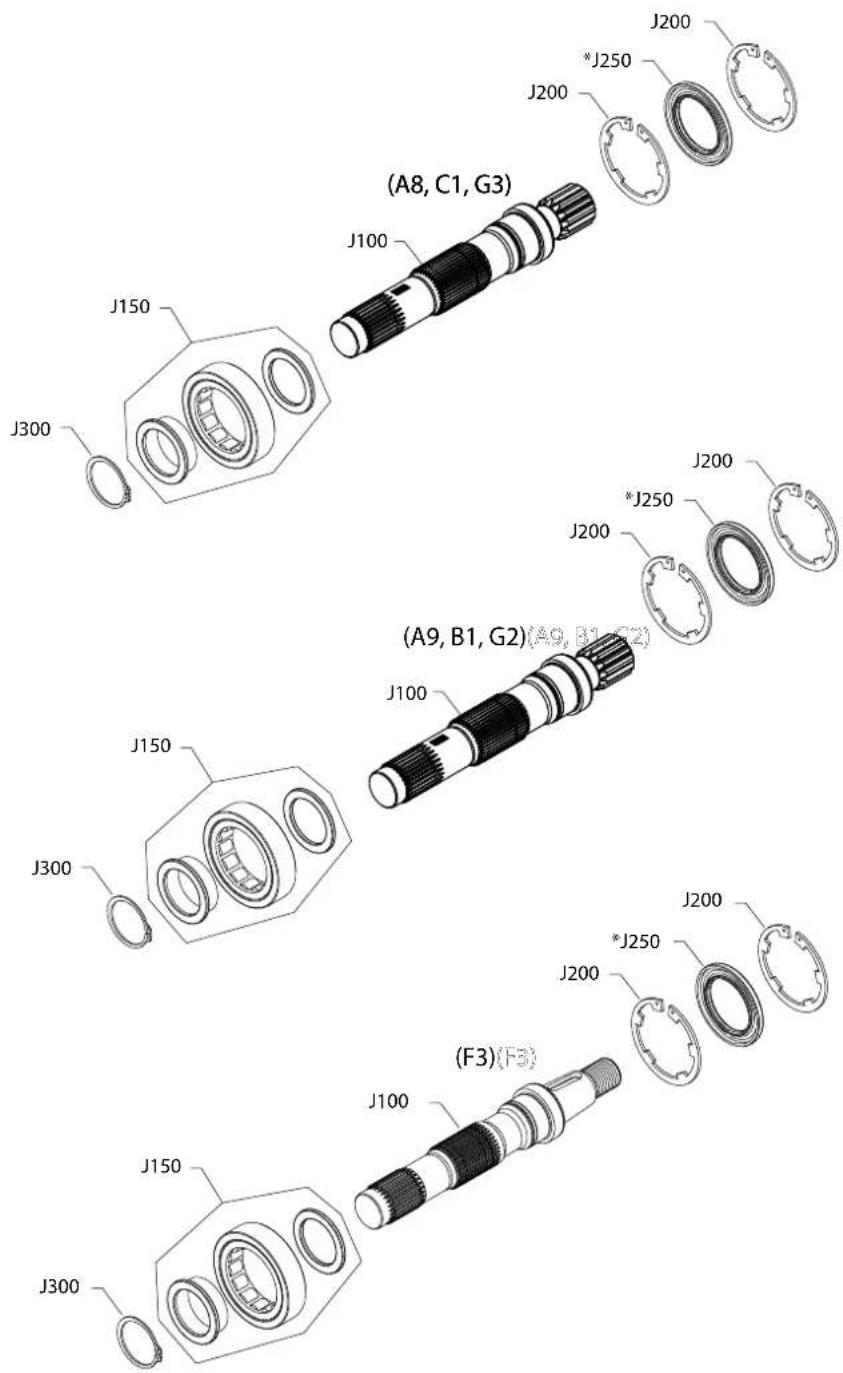

H1P 115/130cc shaft A8-G2

Parts configuration

* Included in overhaul seal kit Q210

Shaft

Order code:A8

Item Date Begin	Date End Part	Number Part Name	Qty. per	Model/Kit
J100 17-45 1117	6728 Shaft, 13 tooth spline (SB-20)	8-006 on page 214) 1
J150 08-10 1104	5851 Roller bearing 1
J200 08-10 1400	63 Retaining ring 2
J250 08-10 1106	6133 Lip seal 1
J300 08-10 3922	09 Retaining ring 1

Order code: A9

J100 17-45 1117	9438 Shaft, 27 toth spline (SB-20)	8-006 on page 214) 1
J150 08-10 1104	5851 Roller bearing 1
J200 08-10 1400	63 Retaining ring	2
J250 08-10 1106	6133 Lip seal 1
J300 08-10 3922	09 Retaining ring	1

Order code: B1

J100 17-45 1117	9439 Shaft, 18 tooth spline (SB-20)	8-006 on page 214) 1
J150 08-10 1104	5851 Roller bearing 1
J200 08-10 1400	63 Retaining ring	2
J250 08-10 1102	4711 Lip seal 1
J300 08-10 3922	09 Retaining ring	1

Order code: C1

J100 18-12 1117	9439 Shaft, 18 tooth spline 1
J150 18-12 1104	5851 Roller bearing 1
J200 18-12 1400	63 Retaining ring 2
J250 18-12 1102	4711 Lip seal 1
J300 18-12 3922	09 Retaining ring 1

Order code: F3

J100 17-45 1117	9440 Shaft, tapered (SB-2012-026 on page 204 and SB-2018-006 on page 214)		1
J150 08-10 1104	5851 Roller bearing 1
J200 08-10 1400	63 Retaining ring 2
J250 08-10 1102	4711 Lip seal 1
J300 08-10 3922	09 Retaining ring 1

Parts continue to the next 2 pages.

Shaft

Parts configuration

* Included in overhaul seal kit Q210

Shaft

Order code: G2

Item Date Begin	Date End Part	Number Part Name	Qty. per	Model/Kit
J100 17-45 1117	9438 Shaft, 27 tooth spline (SB-20)	2-026 on page 204	and SB-2018-006 on page 214)	1
J150 08-10 1104	5851 Roller bearing 1
J200 08-10 1400	63 Retaining ring 2
J250 08-10 1102	4711 Lip seal 1
J300 08-10 3922	09 Retaining ring 1

Order code: G3

J100 17-45 1117	6728 Shaft, 13 to	both spline (SB-20)	2-026 on page 204	and SB-2018-006 on page 214)	1
J150 08-10 1104	5851 Roller bearing	1
J200 08-10 1400	63 Retaining ring	2
J250 08-10 1102	4711 Lip seal	1
J300 08-10 3922	09 Retaining ring	1

Auxiliary mounting

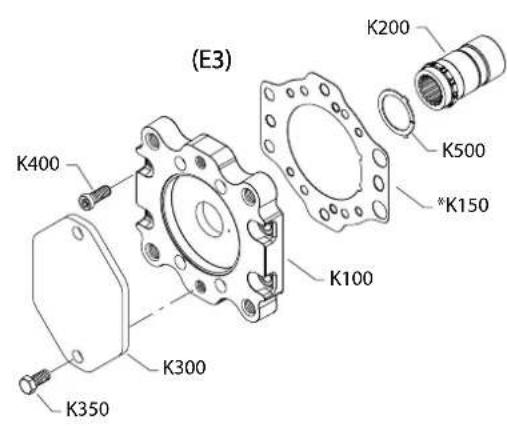

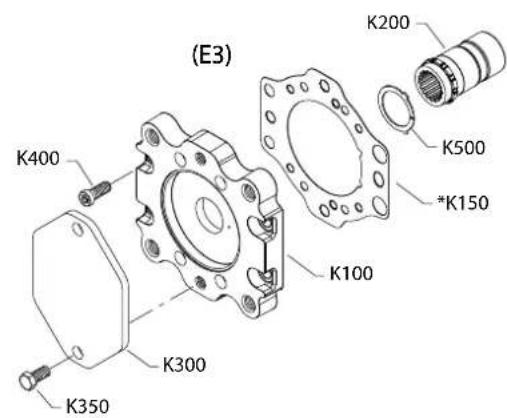

H1P 115/130cc aux mounting E3-H3

Parts configuration

* Included in overhaul seal kit Q210

Auxiliary mounting

Order code: E3

Item Date Begin	Date End Part	Number Part Name	Qty. per	Model/Kit
K100 13-13 1113	30751 Adapter flange, SAE C 1
K150 13-13 1112	25012 Adapter seal 1
K200 13-13 1112	29807 Charge pump shaft 1
K300 13-13 1123	35993 Flange cover 1
K350 13-13 1116	67542 Screw, M16 x 30 2
K400 13-13 1407	700 Screw, M12 x 30 (SB-2018-036 on page 218) 4
K500 13-13 1100	1182 Thrust washer 1

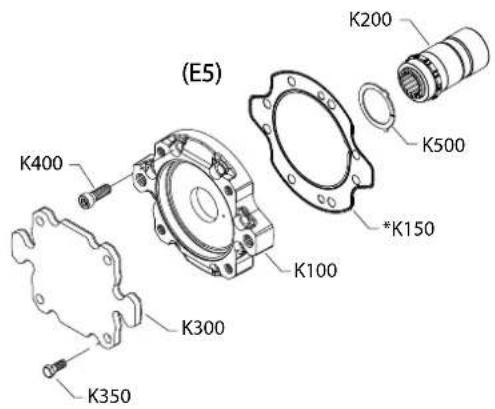

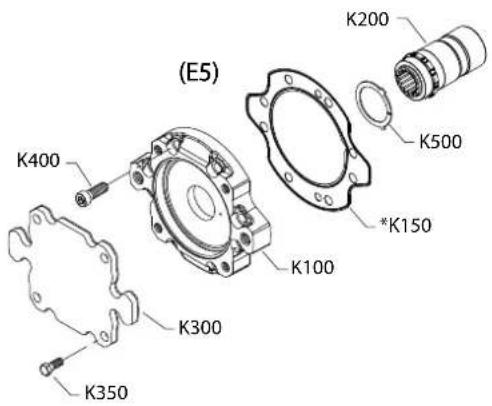

Order code: E5

K100	13-39		11138744	Adapter flange, SAE C (SB-2018-036 on page 218)	1
K150 13-39 1100	02236 Adapter seal 1
K200 13-39 1119	0719 Charge pump shaft 1
K300 13-39 1116	65485 Flange cover 1
K350 13-39 5095	28 Screw, M12 x 20 4
K400 13-39 1400	700 Screw, M12 x 30 (SB-2018-036 on page 218) 8
K500 13-39 1100	1182 Thrust washer 1

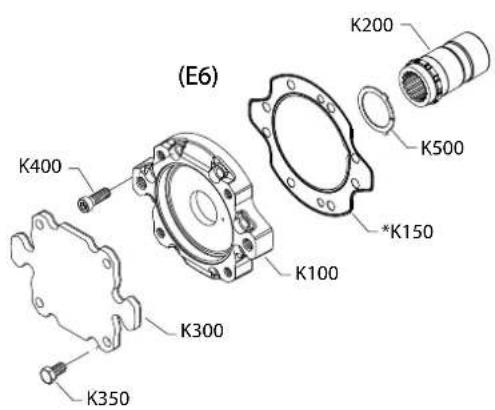

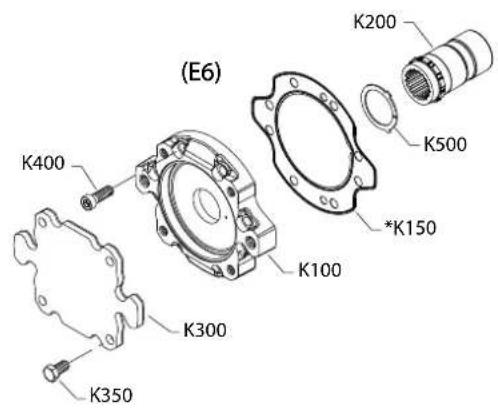

Order code: E6

K100	13-39		11138744	Adapter flange, SAE C (SB-2018-036 on page 218)	1
K150 13-39 1100	2236 Adapter seal 1
K200 13-39 1111	29807 Charge pump shaft 1
K300 13-39 1116	65485 Flange cover 1
K350 13-39 5095	28 Screw, M12 x 20 2
K400 13-39 1400	700 Screw, M12 x 30 (SB-2018-036 on page 218) 8
K500 13-39 1100	1182 Thrust washer 1

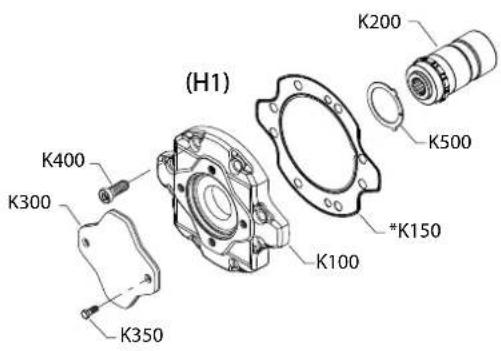

Order code: H1

K100 08-10 11002191 Adapter flange, SAE A			1
K150 08-10 11002236 Adapter seal 1
K200 10-36 11064258 Charge pump shaft, 11 tooth			1
K200	08-10	10-35	11002333	Charge pump shaft, 11 tooth (SB-2011-022 on page 201)	1
K300 08-10 11165482 Flange cover 1
K350 08-10 370247 Screw, M10 x 20 2
K400 08-10 140700 Screw, M12 x 30 (SB-2018-036 on page 218) 8
K500 08-10 11001182 Thrust washer 1

Parts continue to the next 2 pages.

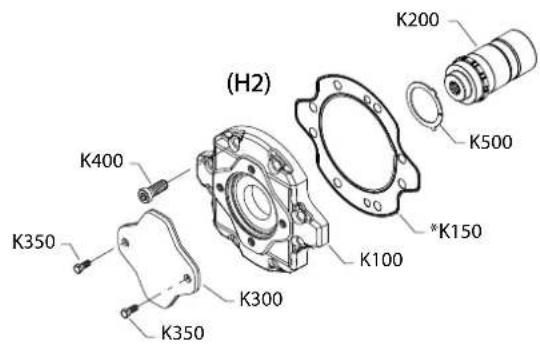

Auxiliary mounting

Parts configuration

* Included in overhaul seal kit Q210

Auxiliary mounting

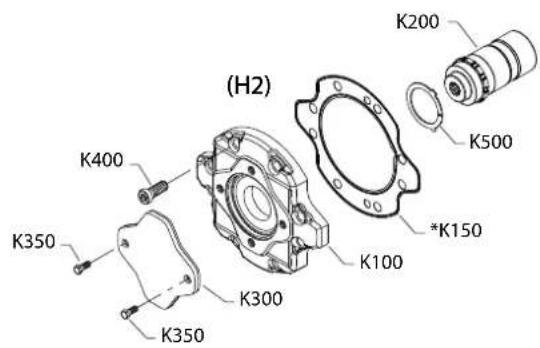

Order code: H2

Item Date Begin	Date End Part	Number Part Name	Qty. per	Model/Kit
K100 08-10 1100	02191 Adapter flange, SAE A 1
K150 08-10 1100	02236 Adapter seal 1
K200 10-36 1119	92283 Charge pump shaft, 9 tooth 1
K200 08-10 10-3	5 11002231 Charge pump shaft, 9 tooth (SB-2011-022 on page 201)			1
K300 08-10 1116	65482 Flange cover 1
K350 08-10 370	247 Screw, M10 x 20 2
K400 08-10 140	700 Screw, M12 x 30 (SB-2018-036 on page 218) 8
K500 08-10 1100	1182 Thrust washer	1

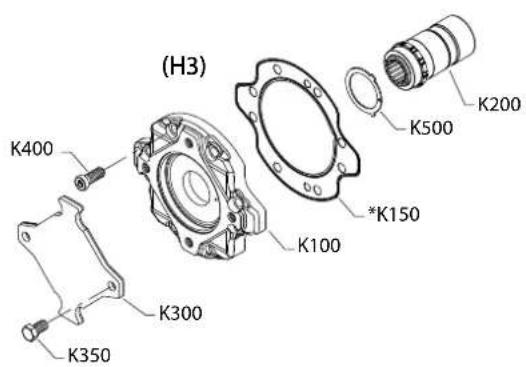

Order code: H3

K100 08-10 11002192 Adapter flange, SAE B	1
K150 08-10 11002236 Adapter seal 1
K200 10-36 11192285 Charge pump shaft, 13 tooth	1
K200 08-10 10-35 11002232 Charge pump shaft, 13 tooth (SB-2011-022 on page 201)		1
K300 08-10 11023747 Flange cover 1
K350 13-39 509528 Screw, M12 x 20 2
K400 08-10 140700 Screw, M12 x 30 (SB-2018-036 on page 218) 8
K500 08-10 11001182 Thrust washer	1

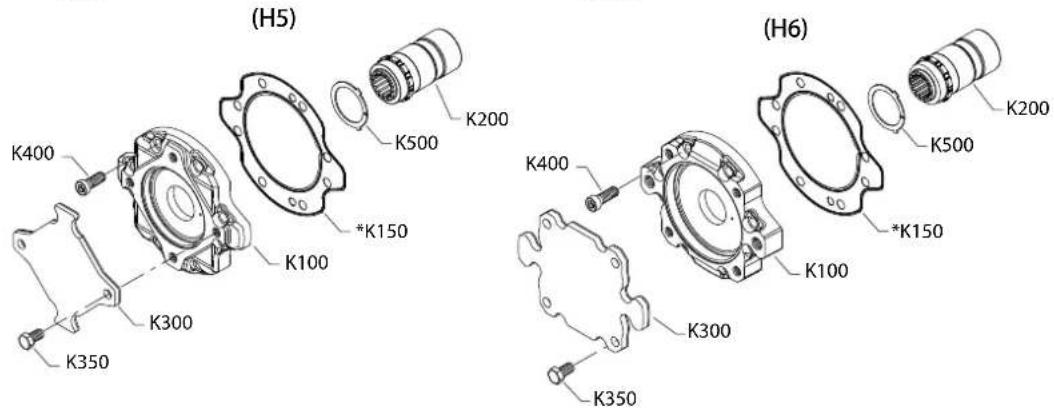

Auxiliary mounting

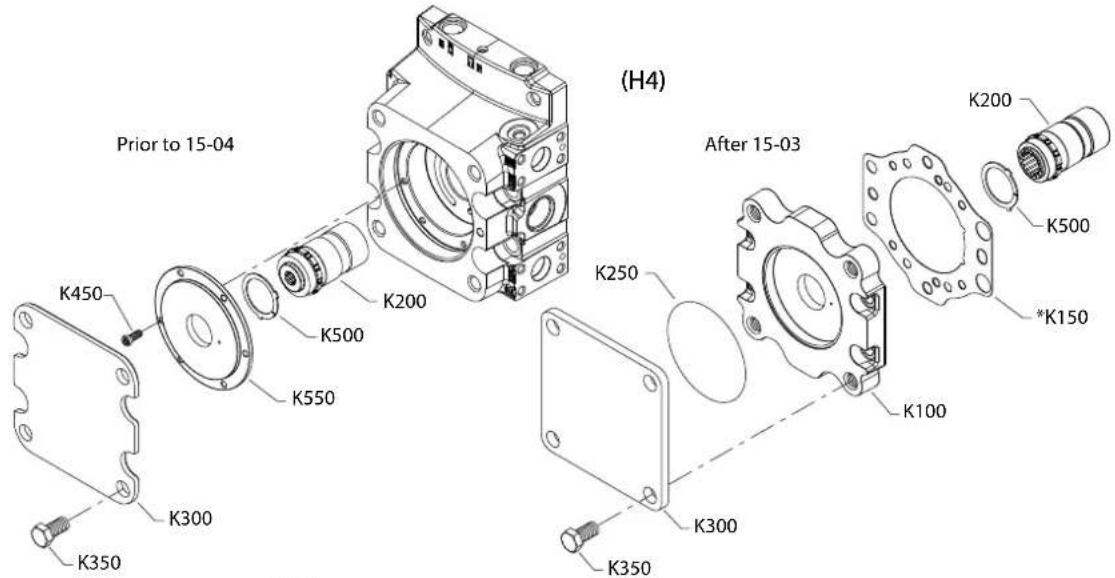

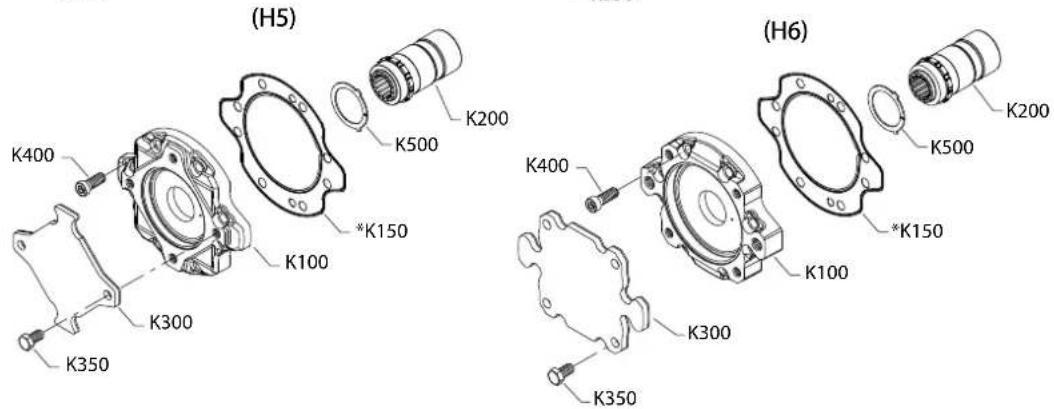

H1P 115/130cc aux mounting H4-S1
Parts configuration

* Included in overhaul seal kit Q210

Auxiliary mounting

Order code: H4

Item Date Begin	Date End Part	Number Part Name	Qty. per		Model/Kit
K100 15-04 11109108 Adapter (SB-2016-005 on page 211) 1
K150 15-04 11125012 Adapter seal (SB-2016-005 on page 211) 1
K200 10-36 11190719 Charge pump shaft, 13 tooth 1
K200 08-10 10-35 11002234 Charge pump shaft, 13 tooth, (SB-2011-022 on page 201)					1
K250 15-04 7269927 O-ring (SB-2016-005 on page 211) 1
K300 15-04 338400 Flange cover (SB-2016-005 on page 211) 1
K300 08-10 15-03 11023751 Flange cover 1
K350 08-10 11024165 Screw, M20 x 30 4
K450 08-10 15-03 11001141 Screw (SB-2016-005 on page 211) 6
K500 08-10 11001182 Thrust washer			1
K550	08-10	15-03	11158373	Charge pump cover (SB-2016-005 on page 211)	1

Order code: H5

K100 08-10 11002192 Adapter flange, SAE B	1
K150 08-10 11002236 Adapter seal	1
K200 10-36 110064275 Charge pump shaft, 15 tooth 1
K200 08-10 10-35 11002235 Charge pump shaft, 15 tooth, (SB-2011-022 on page 201)		1
K300 08-10 11023747 Flange cover 1
K350 08-10 509528 Screw		2
K400 08-10 140700 Screw, M12 x 30 (SB-2018-036 on page 218) 8
K500 08-10 11001182 Thrust washer	1

Order code: H6

K100	08-10		11138744	Adapter flange, SAE C (SB-2018-036 on page 218)	1
K150 08-10 1100	02236 Adapter seal		1
K200 10-36 1119	0740 Charge pump shaft, 14 tooth 1
K200 08-10 10-3	5 11002233 Charge pump shaft, 14 tooth, (SB-2011-022 on page 201)				1
K300 08-10 1116	65485 Flange cover 1
K350 08-10 5095	28 Screw		4
K400 08-10 1400	700 Screw, M12 x 30 (SB-2018-036 on page 218)	8
K500 08-10 1100	1182 Thrust washer		1

Parts continue to the next 2 pages.

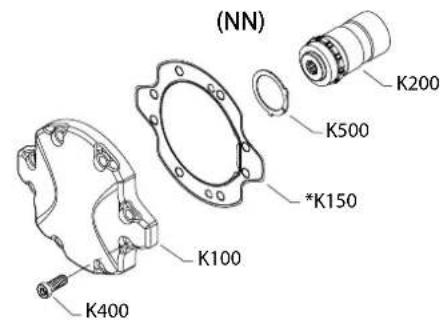

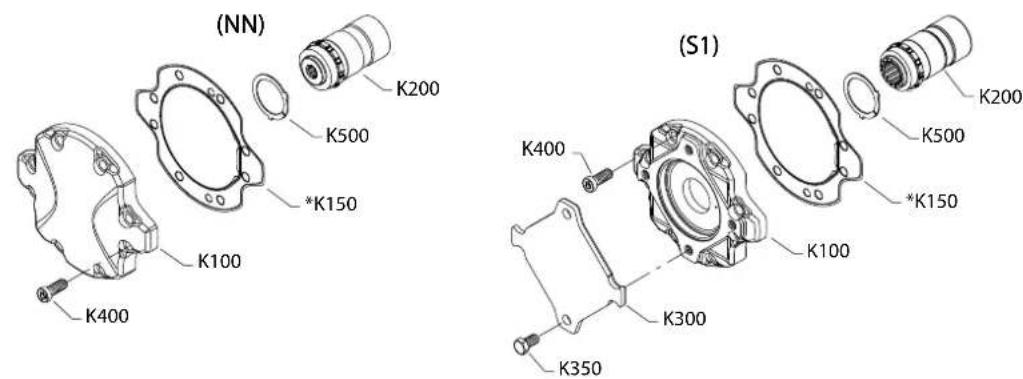

Auxiliary mounting

Parts configuration

* Included in overhaul seal kit Q210

Auxiliary mounting

Order code: NN

Item Date Begin	Date End Part	Number Part Name	Qty. per	Model/Kit
K100 08-10 1100	2194 Adapter flange, no pad 1
K150 08-10 1100	2236 Adapter seal 1
K200 10-36 1119	2283 Charge pump shaft, 9 tooth 1
K200 08-10 10-35	11002231 Charge pump shaft, 9 tooth, (SB-2011-022 on page 201)
K400 08-10 1400	700 Screw, M12 x 30 (SB-2018-036 on page 218) 8
K500 08-10 1100	1182 Thrust washer 1

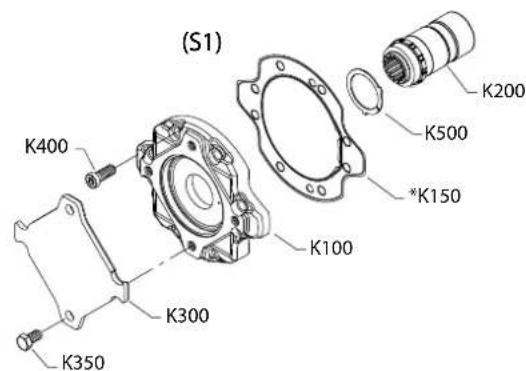

Order code: S1

K100 08-10 11002192 Adapter flange, SAE B 1
K150 08-10 11002236 Adapter seal 1
K200 10-36 11190740 Charge pump shaft, 14 tooth	1
K200 08-10 10-35 11002233 Charge pump shaft, 14 tooth, (SB-2011-022 on page 201)			1
K300 08-10 11023747 Flange cover	1
K350 08-10 509528 Screw	2
K400 08-10 140700 Screw, M12 x 30 (SB-2018-036 on page 218) 8
K500 08-10 11001182 Thrust washer 1

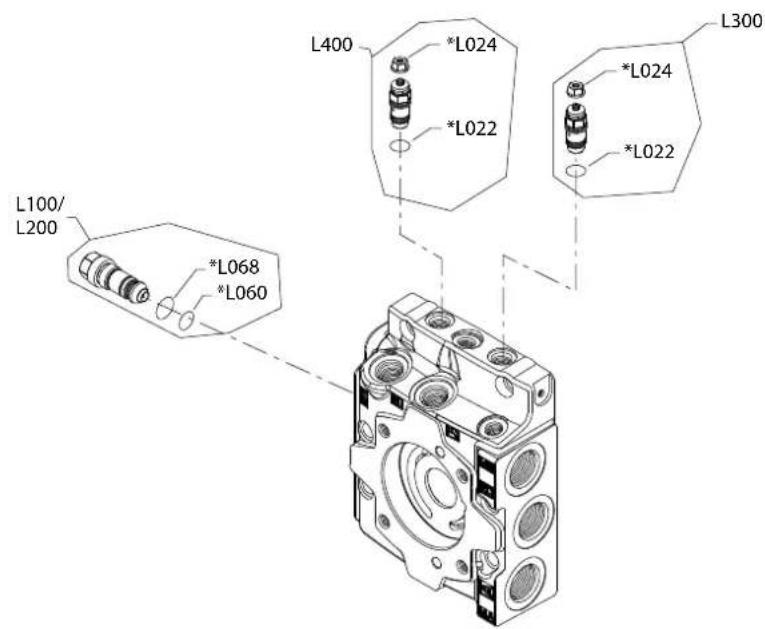

High pressure setting

Port A

Parts configuration

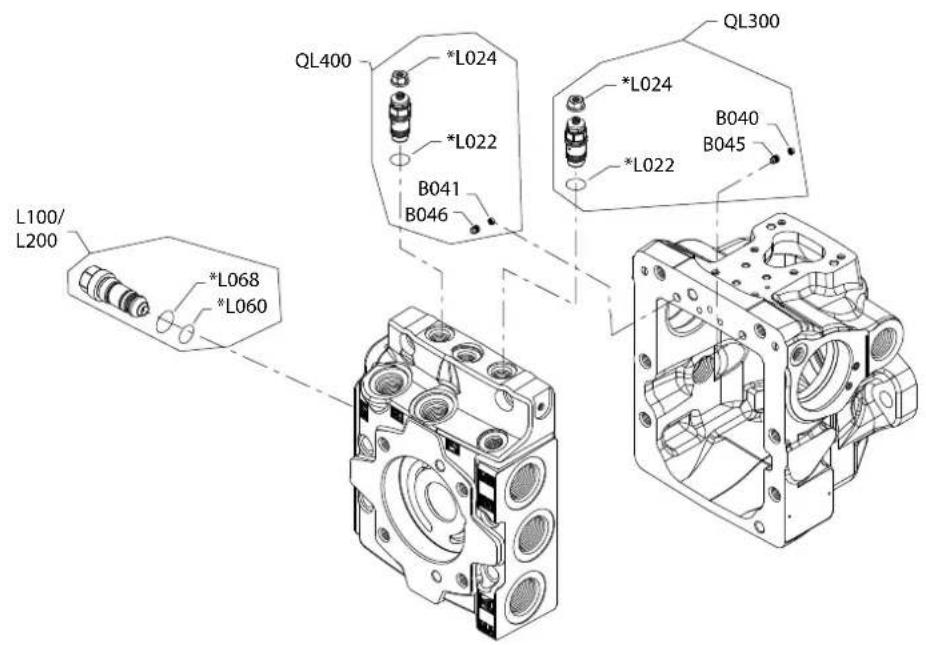

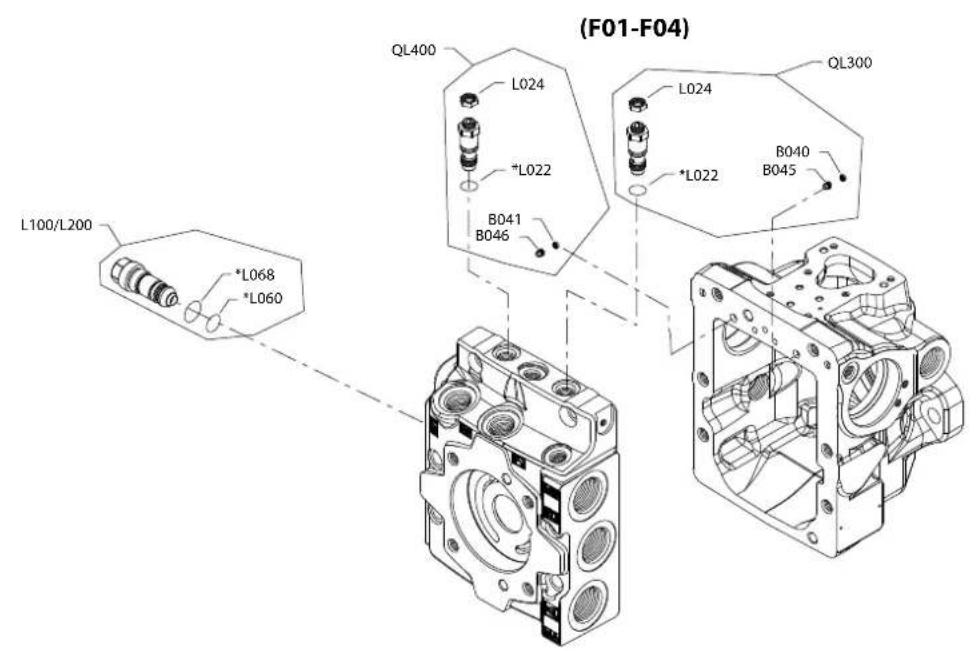

H1P HPS (port A) F01-K33

(J44-J45)

* Included in overhaul seal kit Q210

High pressure setting

Common parts

Item Date Begin	Date End Part	Number Part Name	Qty. per	Model/Kit
L022 08-10 5042	07 O-ring 1
L060 08-10 3650	23 O-ring 1
L068 08-10 1105	2201 O-ring 1

Order code:F01

B040 20-40 140967 Screen (SB-2020-029 on page 2) 18) 1
B041 20-40 140967 Screen (SB-2020-029 on page 2) 18) 1
B045 20-40 110662648 Screen retainer (SB-2020-029 on page 218) 1
B046 20-40 110662648 Screen retainer (SB-2020-029 on page 218) 1
L024 13-14 336826 Seal nut 1
L100 13-14 11049147 High pressure relief valve, 250 bar 1
QL300 13-14 11004709 Pressure limiter kit, adjustable, CCW rotation pump 1
QL400 13-14 11004709 Pressure limiter kit, adjustable, CW rotation pump 1

Order code:F02

B040 20-40 140967 Screen (SB-2020-029 on page 2) 18) 1
B041 20-40 140967 Screen (SB-2020-029 on page 2) 18) 1
B045 20-40 110662648 Screen retainer (SB-2020-029 on page 218) 1
B046 20-40 110662648 Screen retainer (SB-2020-029 on page 218) 1
L024 13-14 336826 Seal nut 1
L100 13-14 11049149 High pressure relief valve, 300 bar 1
QL300 13-14 11004709 Pressure limiter kit, adjustable, CCW rotation pump
QL400 13-14 11004709 Pressure limiter kit, adjustable, CW rotation pump	1

Order code:F03

B040 20-40 140967 Screen (SB-2020-029 on page 2) 18) 1
B041 20-40 140967 Screen (SB-2020-029 on page 2) 18) 1
B045 20-40 110662648 Screen retainer (SB-2020-029 on page 218) 1
B046 20-40 110662648 Screen retainer (SB-2020-029 on page 218) 1
L024 13-14 336826 Seal nut 1
L100 13-14 11049151 High pressure relief valve, 350 bar 1
QL300 13-14 11004709 Pressure limiter kit, adjustable, CCW rotation pump
QL400 13-14 11004709 Pressure limiter kit, adjustable, CW rotation pump	1

Order code:F04

L024 13-14 3368	26 Seal nut 1
L100 13-14 1104	9153 High pressure relief valve, 40	bar 1
QL300 13-14 11	004709 Pressure limiter kit, adjustable, CW rotation pump 1
QL400 13-14 11	004709 Pressure limiter kit, adjustable, CW rotation pump 1

Parts continue to the next 2 pages.

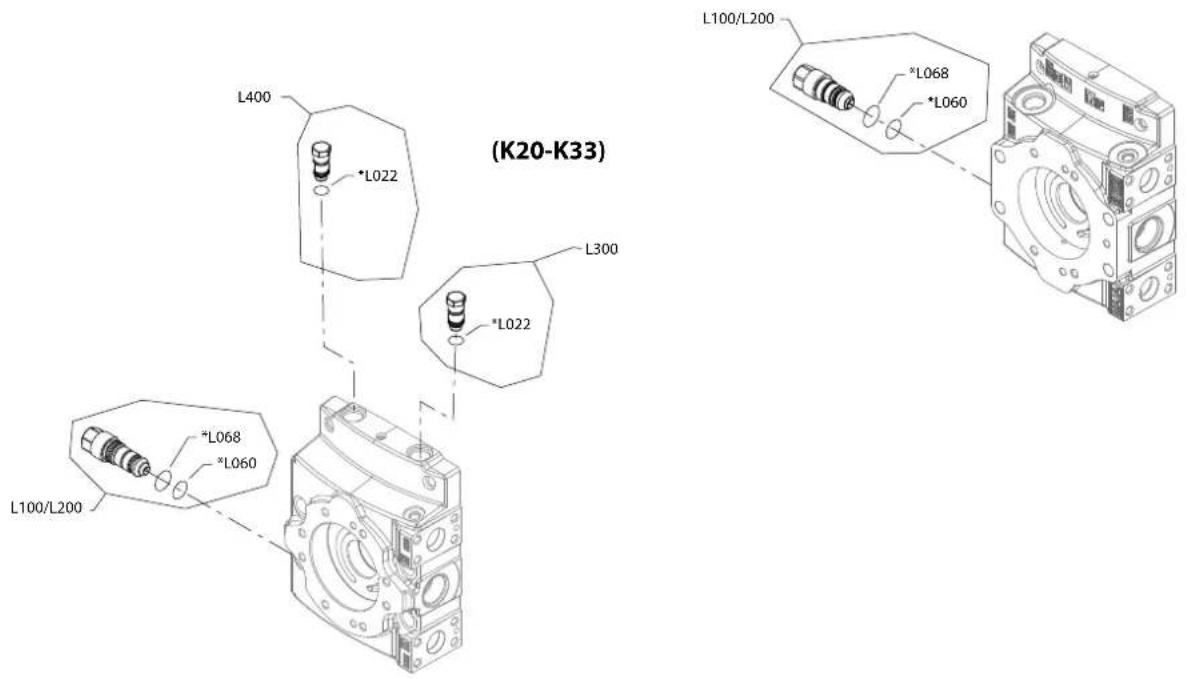

High pressure setting

Parts configuration

(J44-J45)

* Included in overhaul seal kit Q210

High pressure setting

Common parts

Item Date Begin	Date End Part	Number Part Name	Qty. per	Model/Kit
L022 08-10 5042	207 O-ring 1
L060 08-10 3650	23 O-ring 1
L068 08-10 1105	2201 O-ring 1

Order code: K20

L100 08-10 1104	9144 High pressure relief valve, 200 bar 1
L300 08-10 1100	2302 Pressure limiter plug assembly, CCW rotation pump 1
L400 08-10 1100	2302 Pressure limiter plug assembly, CW rotation pump 1

Order code: K23

L100 08-10 1104	9146 High pressure relief valve, 230 bar 1
L300 08-10 1100	2302 Pressure limiter plug assembly, CCW rotation pump 1
L400 08-10 1100	2302 Pressure limiter plug assembly, CW rotation pump 1

Order code: K25

L100 08-10 11049147 High pressure relief valve, 250 bar 1
L300 08-10 11002302 Pressure limiter plug assembly, CCW rotation pump 1
L400 08-10 11002302 Pressure limiter plug assembly, CW rotation pump 1

Order code: K28

L100 08-10 1104	9148 High pressure relief valve, 280 bar 1
L300 08-10 1100	2302 Pressure limiter plug assembly, CCW rotation pump 1
L400 08-10 1100	2302 Pressure limiter plug assembly, CW rotation pump 1

Order code: K30

L100 08-10 11049149 High pressure relief valve, 300 bar 1
L300 08-10 11002302 Pressure limiter plug assembly, CCW rotation pump 1
L400 08-10 11002302 Pressure limiter plug assembly, CW rotation pump 1

Order code: K33

L100 08-10 1104	9150 High pressure relief valve, 330 bar 1
L300 08-10 1100	2302 Pressure limiter plug assembly, CCW rotation pump 1
L400 08-10 1100	2302 Pressure limiter plug assembly, CW rotation pump 1

High pressure setting

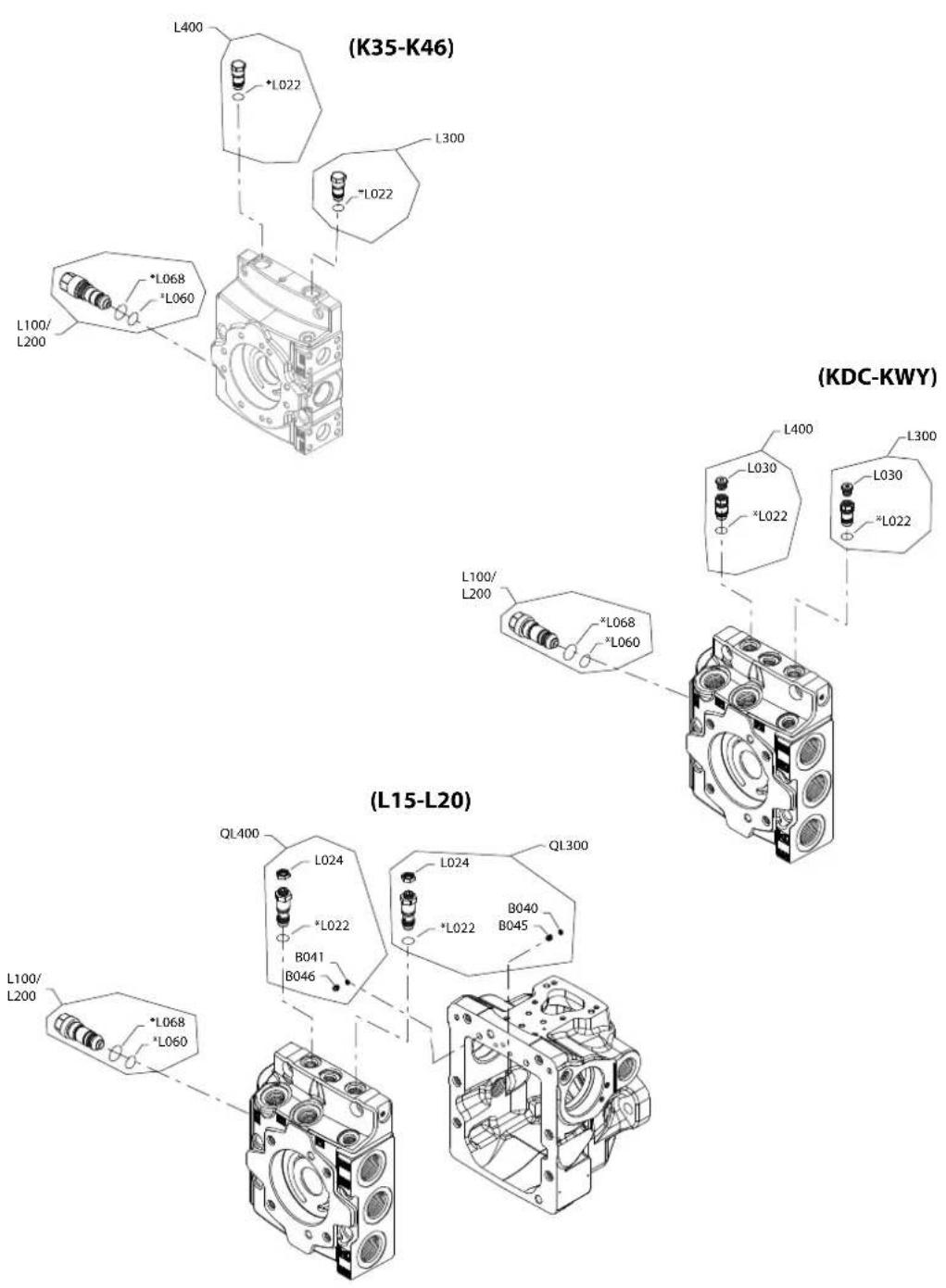

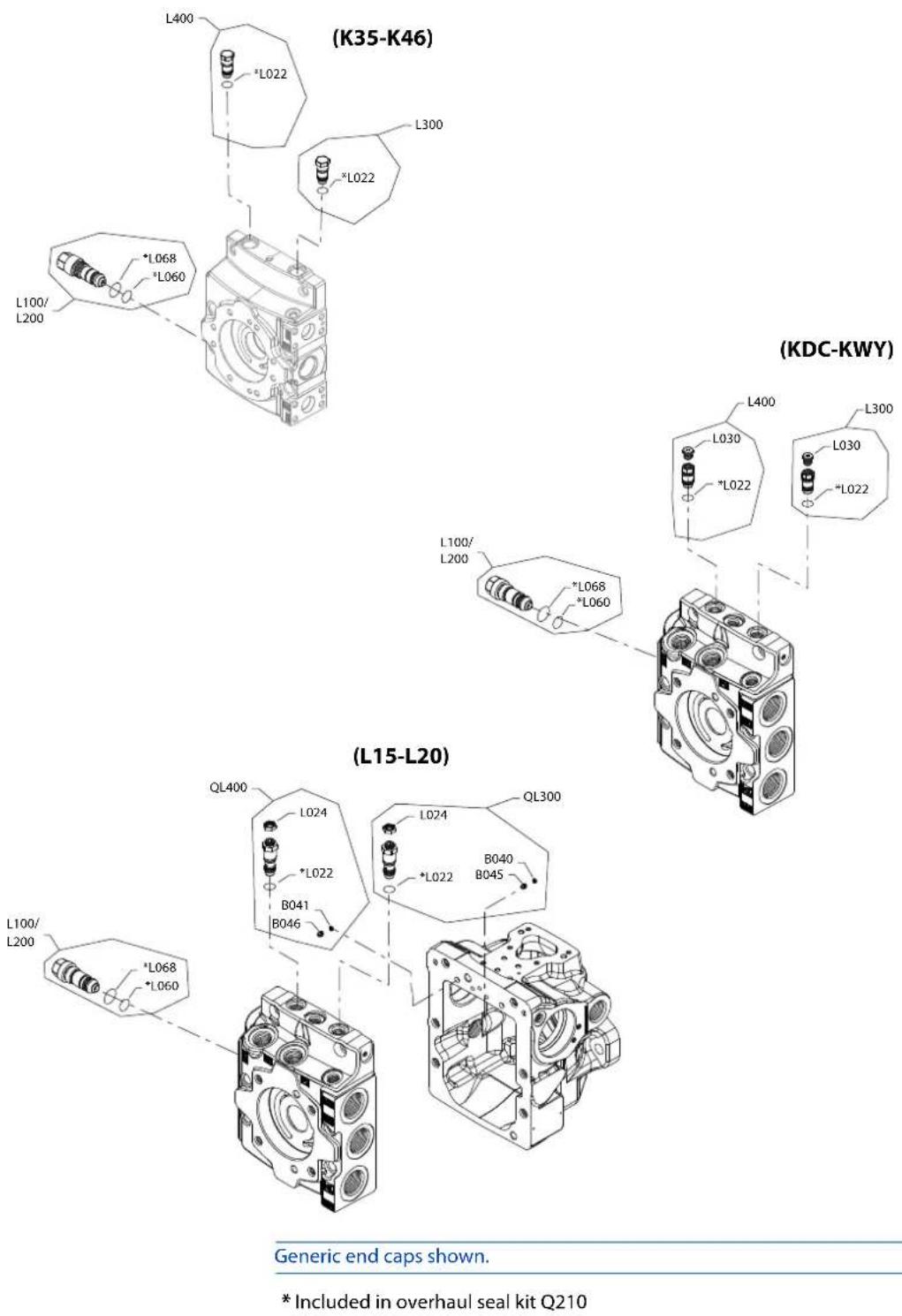

H1P 115/130cc HPS (port A) K35-L20

Parts configuration

High pressure setting

Common parts

Item Date Begin	Date End Part	Number Part Name	Qty. per	Model/Kit
L022 08-10 5042	207 O-ring 1
L060 08-10 3650	23 O-ring 1
L068 08-10 1105	2201 O-ring 1

Order code: K35

L100 08-10 1104	9151 High pressure relief valve, 350 bar 1
L300 08-10 1100	2302 Pressure limiter plug assembly, CCW rotation pump 1
L400 08-10 1100	2302 Pressure limiter plug assembly, CW rotation pump 1

Order code: K38

L100 08-10 1104	9152 High pressure relief valve, 380 bar 1
L300 08-10 1100	2302 Pressure limiter plug assembly, CCW rotation pump 1
L400 08-10 1100	2302 Pressure limiter plug assembly, CW rotation pump 1

Order code: K40

L100 08-10 11049153 High pressure relief valve, 400 bar 1
L300 08-10 11002302 Pressure limiter plug assembly, CCW rotation pump 1
L400 08-10 11002302 Pressure limiter plug assembly, CW rotation pump 1

Order code: K42

L100 08-10 1104	9154 High pressure relief valve, 420 bar 1
L300 08-10 1100	2302 Pressure limiter plug assembly, CCW rotation pump 1
L400 08-10 1100	2302 Pressure limiter plug assembly, CW rotation pump 1

Order code: K45

L100 08-10 11049155 High pressure relief valve, 450 bar 1
L300 08-10 11002302 Pressure limiter plug assembly, CCW rotation pump 1
L400 08-10 11002302 Pressure limiter plug assembly, CW rotation pump 1

Order code: K46

L100 08-10 1110	6573 High pressure relief valve, 460 bar 1
L300 08-10 1100	2302 Pressure limiter plug assembly, CCW rotation pump 1
L400 08-10 1100	2302 Pressure limiter plug assembly, CW rotation pump 1

Parts continue to the next 2 pages.

High pressure setting

Parts configuration

Generic end caps shown.
* Included in overhaul seal kit Q210

High pressure setting

Common parts

Item Date Begin	Date End Part	Number Part Name	Qty. per	Model/Kit
L022 08-10 5042	07 O-ring 1
L060 08-10 3650	23 O-ring 1
L068 08-10 1105	2201 O-ring 1

Order code: KDC

L030 08-10 5134	43 Plug assembly 1
L100 08-10 1106	9762 High pressure relief valve, 43	bar 1
L300 08-10 1103	5112 Pressure sensor adapter assembly, CCW rotation pump 1
L400 08-10 1103	5112 Pressure sensor adapter assembly, CW rotation pump 1

Order code: KWY

L030 08-10 513443 Plug assembly 1
L100 08-10 11049155 High pressure relief valve, 45bar 1
L300 08-10 11035112 Pressure sensor adapter assembly, CCW rotation pump 1
L400 08-10 11035112 Pressure sensor adapter assembly, CW rotation pump 1

Order code: L15

B040 20-40 140967 Screen (SB-2020-029 on page 2)18) 1
B041 20-40 140967 Screen (SB-2020-029 on page 2)18) 1
B045 20-40 11062648 Screen retainer (SB-2020-029 on page 218) 1
B046 20-40 11062648 Screen retainer (SB-2020-029 on page 218) 1
L024 08-10 336826 Seal nut			1
L100 08-10 11049144 High pressure relief valve, 200 bar 1
QL300	08-10		11119002	Pressure limiter kit, adjustable, CCW rotation pump
QL400	08-10		11119002	Pressure limiter kit, adjustable, CW rotation pump

Order code:L20

B040 20-40 140967 Screen (SB-2020-029 on page 2) 18) 1
B041 20-40 140967 Screen (SB-2020-029 on page 2) 18) 1
B045 20-40 11062648 Screen retainer (SB-2020-029 on page 218) 1
B046 20-40 11062648 Screen retainer (SB-2020-029 on page 218) 1
L024 08-10 336826 Seal nut			1
L100 08-10 11049147 High pressure relief valve, 250 bar 1
QL300	08-10		11004709	Pressure limiter kit, adjustable, CCW rotation pump
QL400	08-10		11004709	Pressure limiter kit, adjustable, CW rotation pump

High pressure setting

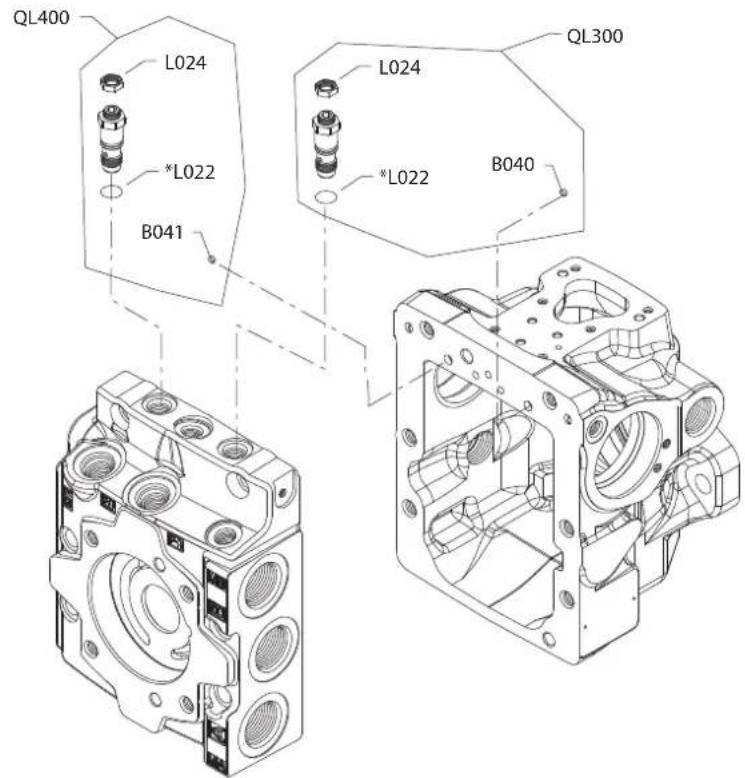

H1P HPS (port A) L23-L43

Parts configuration

Generic end cap shown

• Included in overhaul seal kit Q210

High pressure setting

Common parts

Item Date Begin	Date End Part	Number Part Name	Qty. per		Model/Kit
B040 20-40 140967 Screen (SB-2020-029 on page 2) 18) 1
B041 20-40 140967 Screen (SB-2020-029 on page 2) 18) 1
B045 20-40 11062648 Screen retainer (SB-2020-029 on page 218) 1
B046 20-40 11062648 Screen retainer (SB-2020-029 on page 218) 1
L022 08-10 504207 O-ring 1
L024 08-10 336826 Seal nut 1
L060 08-10 365023 O-ring 1
L068 08-10 11052201 O-ring 1

Order code:L23

L100 08-10 11049148 High pressure relief valve, 280 bar 1
QL300 08-10 11004709 Pressure limiter kit, adjustable, CCW rotation pump
QL400 08-10 11004709 Pressure limiter kit, adjustable, CW rotation pump		1

Order code:L25

L100 08-10 1104	9149 High pressure relief valve, 300 bar 1
QL300 08-10 1111	004709 Pressure limiter kit, adjustable, CCW rotation pump
QL400 08-10 1111	004709 Pressure limiter kit, adjustable, CW rotation pump	1

Order code:L28

L100 08-10 11049150 High pressure relief valve, 330 bar 1
QL300 08-10 11004709 Pressure limiter kit, adjustable, CCW rotation pump 1
QL400 08-10 11004709 Pressure limiter kit, adjustable, CW rotation pump 1

Order code:L30

L100 08-10 11049151 High pressure relief valve, 350 bar 1
QL300 08-10 11004709 Pressure limiter kit, adjustable, CCW rotation pump 1
QL400 08-10 11004709 Pressure limiter kit, adjustable, CW rotation pump 1

Parts continue to the next 2 pages.

High pressure setting

Parts configuration

Generic end cap shown

• Included in overhaul seal kit Q210

High pressure setting

Common parts

Item Date Begin	Date End Part	Number Part Name	Qty. per		Model/Kit
B040 20-40 140967 Screen (SB-2020-029 on page 2) 18) 1
B041 20-40 140967 Screen (SB-2020-029 on page 2) 18) 1
B045 20-40 11062648 Screen retainer (SB-2020-029 on page 218) 1
B046 20-40 11062648 Screen retainer (SB-2020-029 on page 218) 1
L022 08-10 504207 O-ring 1
L024 08-10 336826 Seal nut 1
L060 08-10 365023 O-ring 1
L068 08-10 11052201 O-ring 1

Order code:L33

L100 08-10 11049152 High pressure relief valve, 380 bar 1
QL300 08-10 11004709 Pressure limiter kit, adjustable, CCW rotation pump
QL400 08-10 11004709 Pressure limiter kit, adjustable, CW rotation pump		1

Order code:L35

L100 08-10 1104	9153 High pressure relief valve, 40 bar 1
QL300 08-10 1111	004709 Pressure limiter kit, adjustable, CCW rotation pump
QL400 08-10 1111	004709 Pressure limiter kit, adjustable, CW rotation pump	1

Order code:L38

L100 08-10 11049154 High pressure relief valve, 420 bar 1
QL300 08-10 11004709 Pressure limiter kit, adjustable, CCW rotation pump 1
QL400 08-10 11004709 Pressure limiter kit, adjustable, CW rotation pump 1

Order codes:L40,L41,L42

L100 08-10 11049155 High pressure relief valve, 450 bar 1
QL300 08-10 11004709 Pressure limiter kit, adjustable, CCW rotation pump
QL400 08-10 11004709 Pressure limiter kit, adjustable, CW rotation pump		1

Order code:L43

L100 08-10 11049156 High pressure relief valve, 480 bar 1
QL300 08-10 11004709 Pressure limiter kit, adjustable, CCW rotation pump
QL400 08-10 11004709 Pressure limiter kit, adjustable, CW rotation pump				1

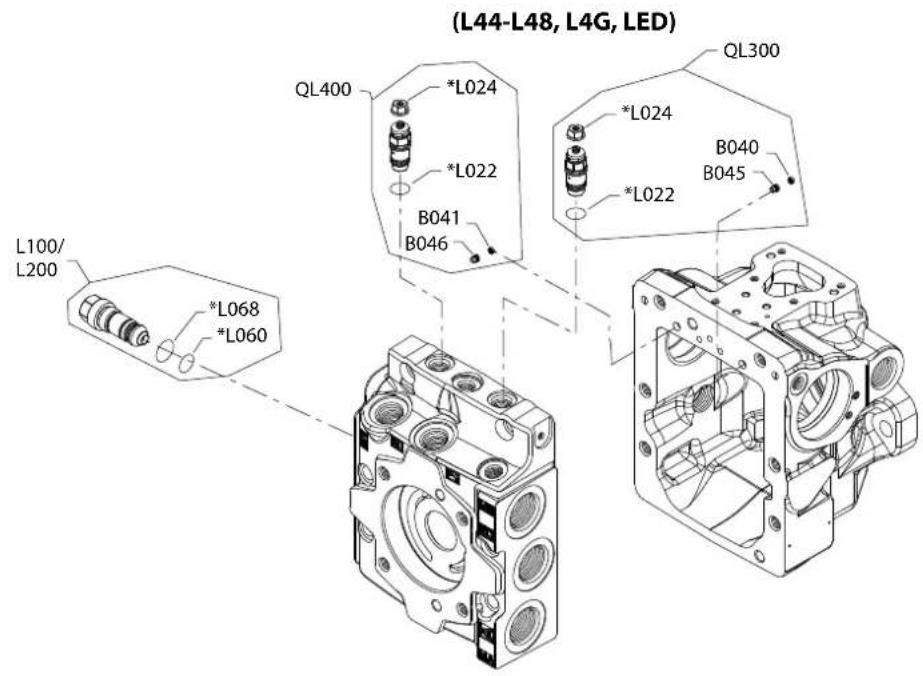

High pressure setting

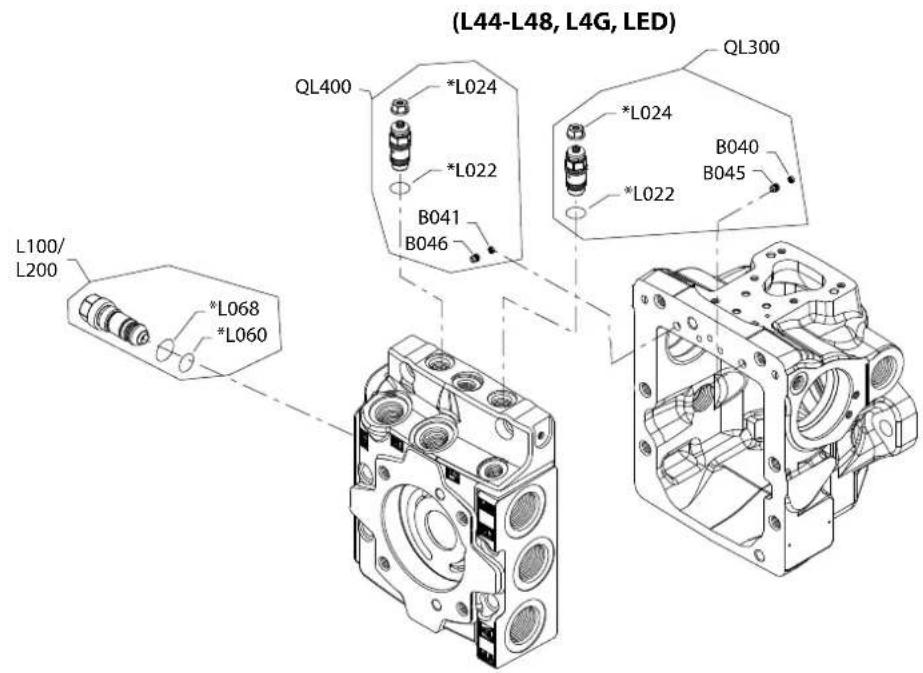

H1P 115/130cc HPS (port A) L44-S45

Parts configuration

Generic end caps shown

• Included in overhaul seal kit Q210

High pressure setting

Lxx common parts

Item Date Begin	Date End Part	Number Part Name	Qty. per		Model/Kit
B040 20-40 1409	967 Screen (SB-20)	20-029 on page 2	18) 1
B041 20-40 1409	967 Screen (SB-20)	20-029 on page 2	18) 1
B045 20-40 1106	2648 Screen retainer (SB-2020-029) on page 218) 1
B046 20-40 1106	2648 Screen retainer (SB-2020-029) on page 218) 1
L022 08-10 5042	207 O-ring 1
L060 08-10 3650	23 O-ring 1
L068 08-10 1105	2201 O-ring 1

Order code:L44

L024 08-10 3368	26 Seal nut 1
L100 08-10 1104	9156 High pressure relief valve, 480 bar 1
QL300 08-10 11	004709 Pressure limiter, adjustable, CCW rotation pump 1
QL400 08-10 11	004709 Pressure limiter, adjustable, CW rotation pump 1

Order code: L45 and LEG

L024 08-10 3368	26 Seal nut 1
L100 08-10 1104	9156 High pressure relief valve, 480 bar 1
QL300 08-10 11	004709 Pressure limiter, adjustable, CCW rotation pump 1
QL400 08-10 11	004709 Pressure limiter, adjustable, CW rotation pump 1

Order code:L46

L024 08-10 3368 26 Seal nut 1
L100 08-10 1104	9157 High pressure relief valve, 510 bar 1
QL300 08-10 11004709 Pressure limiter, adjustable, CCW rotation pump 1
QL400 08-10 11004709 Pressure limiter, adjustable, CW rotation pump 1

Order code:L47

L024 08-10 3368	26 Seal nut 1
L100 08-10 1104	9157 High pressure relief valve, 51	0 bar 1
QL300 08-10 11	004709 Pressure limiter, adjustable, CCW rotation pump 1
QL400 08-10 11	004709 Pressure limiter, adjustable, CW rotation pump 1

Order code:L48

L024 08-10 3368 26 Seal nut 1
L100 08-10 1104 9157 High pressure relief valve, 510 bar 1
QL300 08-10 11004709 Pressure limiter, adjustable, CCW rotation pump 1
QL400 08-10 11004709 Pressure limiter, adjustable, CW rotation pump 1

Parts continue to the next 2 pages.

High pressure setting

Parts configuration

Generic end caps shown

• Included in overhaul seal kit Q210

High pressure setting

Common parts

Item Date Begin	Date End Part	Number Part Name	Qty. per	Model/Kit
L022 08-10 5042	207 O-ring 1
L060 08-10 3650	23 O-ring 1
L068 08-10 1105	2201 O-ring 1

Order code:LED

B040 20-40 140967 Screen (SB-2020-029 on page 2) 18) 1
B041 20-40 140967 Screen (SB-2020-029 on page 2) 18) 1
B045 20-40 110662648 Screen retainer (SB-2020-029 on page 218) 1
B046 20-40 110662648 Screen retainer (SB-2020-029 on page 218) 1
L024 08-10 336826 Seal nut 1
L100 08-10 11106573 High pressure relief valve, 460 bar 1
QL300 08-10 11004709 Pressure limiter, adjustable, CCW rotation pump 1
QL400 08-10 11004709 Pressure limiter, adjustable, CW rotation pump 1

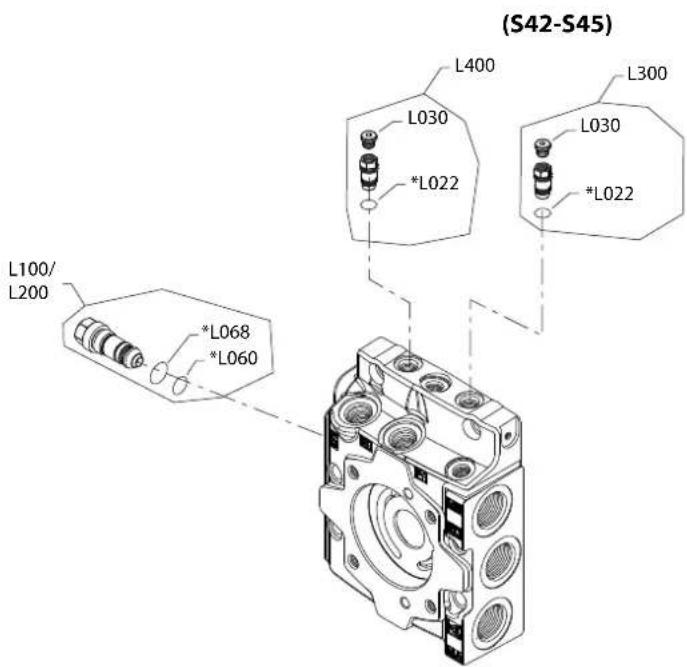

Order code: S42

L030 12-04 1406 44 Plug assembly		1
L100 12-04 1104 9154 High pressure relief valve, 420 bar 1
L300 12-02 1108 5422 Pressure sensor adapter, CCW rotation pump 1
L400 12-04 1108 5422 Pressure sensor adapter, CW rotation pump 1

Order code: S44

L030 12-02 140644 Plug assembly		1
L100 12-02 11116160 High pressure relief valve, 440 bar 1
L300 12-02 11085422 Pressure sensor adapter, CCW rotation pump 1
L400 12-02 11085422 Pressure sensor adapter, CW rotation pump 1

Order code: S45

L030 12-22 140644 Plug assembly		1
L100 12-22 11049155 High pressure relief valve, 450 bar 1
L300 12-22 11085422 Pressure sensor adapter, CCW rotation pump 1
L400 12-22 11085422 Pressure sensor adapter, CW rotation pump 1

High pressure setting

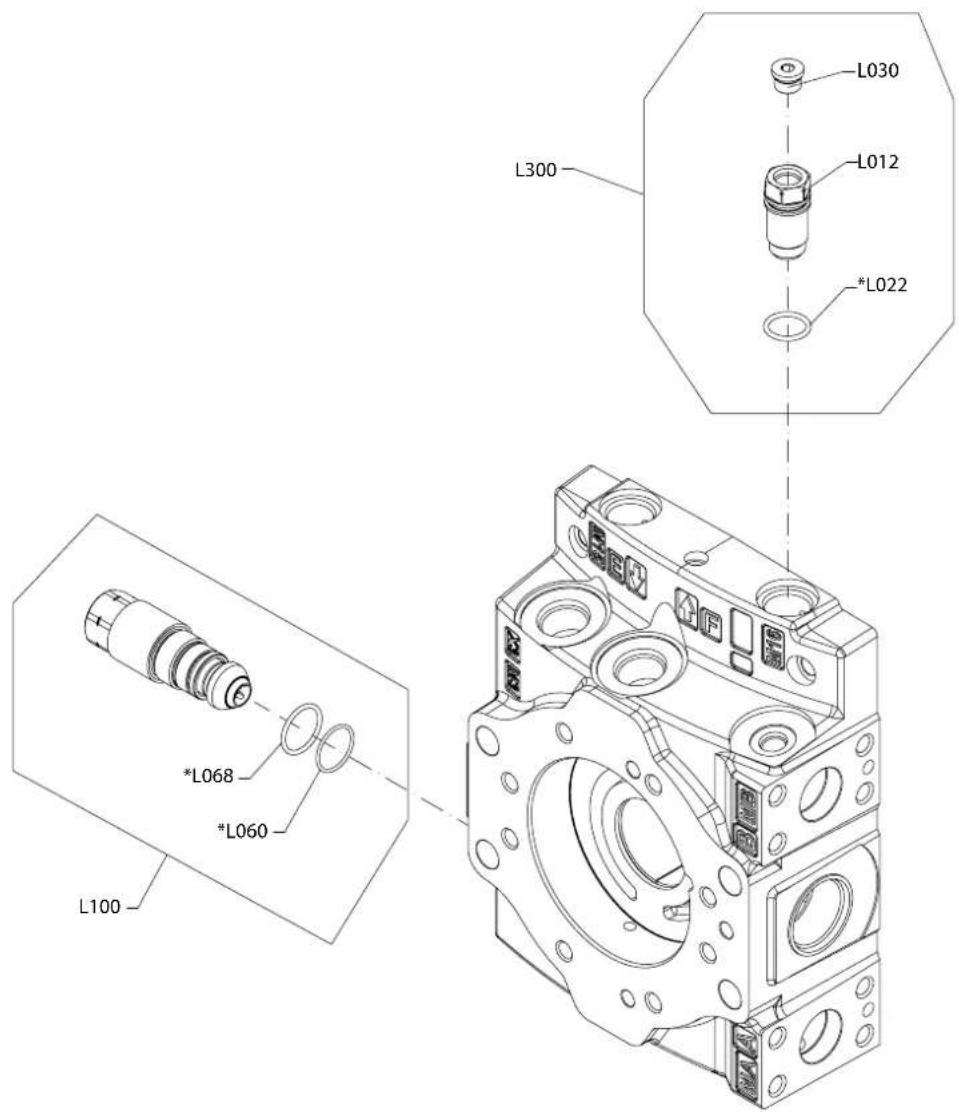

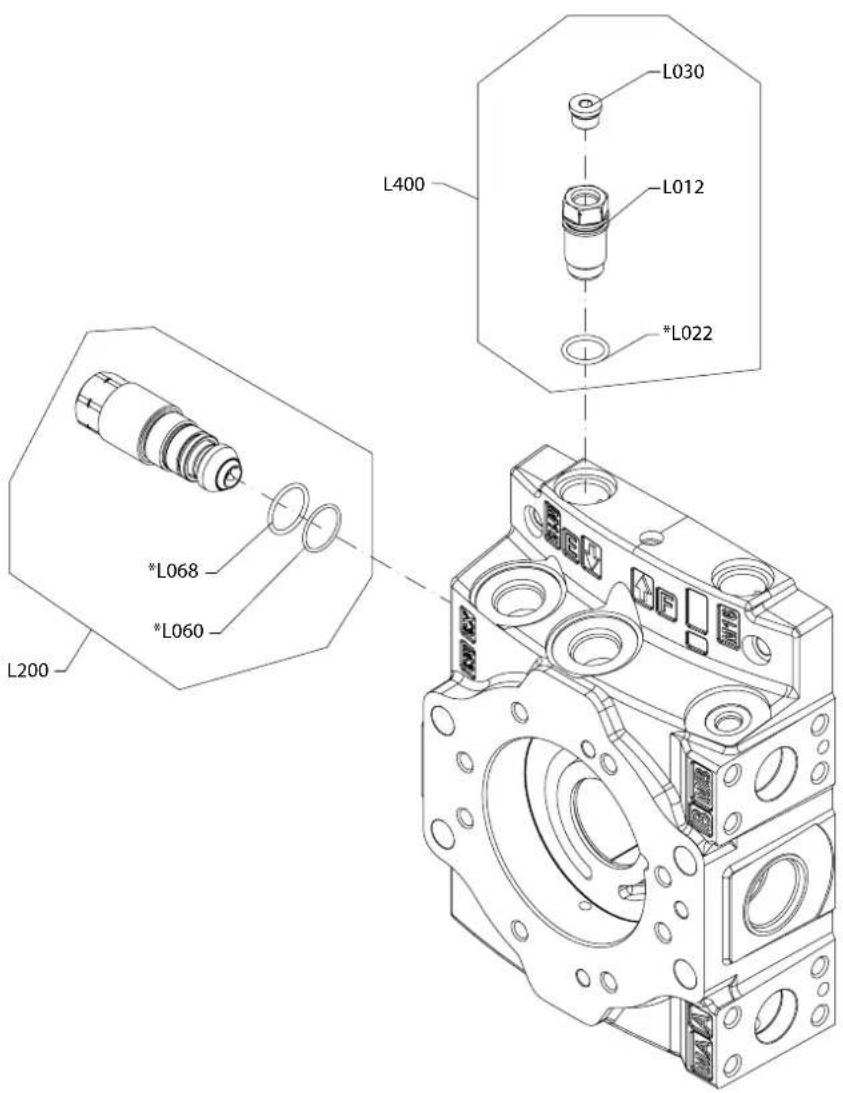

H1P high pressure setting (port A) S40

Parts configuration

Generic endcap shown.

• Included in overhaul seal kit Q210

High pressure setting

Order code: S40

Item Date Begin	Date End Part	Number Part Name	Qty. per	Model/Kit
L012 21-11 1108	5423 Pressure sensor adapter 1
L022 21-11 5042	07 O-ring 1
L030 21-11 1406	44 Plug assembly 1
L060 21-11 3650	23 O-ring 1
L068 21-11 1105	2201 O-ring 1
L100 21-11 1104	9153 High pressure relief valve, 400 bar 1
L300 21-11 1108	5422 Pressure sensor adapter 1

High pressure setting

Port B

Parts configuration

H1P HPS (port B) F01-K28

(J44-J45)

Generic end caps shown

• Included in overhaul seal kit Q210

High pressure setting

Common parts

Item Date Begin	Date End Part	Number Part Name	Qty. per	Model/Kit
L060 08-10 3650	23 O-ring 1
L068 08-10 1105	2201 O-ring 1

Order code:F01

B040 20-40 140967 Screen (SB-2020-029 on page 2) 18) 1
B041 20-40 140967 Screen (SB-2020-029 on page 2) 18) 1
B045 20-40 110662648 Screen retainer (SB-2020-029 on page 218) 1
B046 20-40 110662648 Screen retainer (SB-2020-029 on page 218) 1
L022 13-14 504207 O-ring 1
L024 13-14 336826 Seal nut 1
L200 13-14 11049147 High pressure relief valve, 250 bar 1
QL300 13-14 110004709 Pressure limiter kit, adjustable, CW rotation pump 1
QL400 13-14 110004709 Pressure limiter kit, adjustable, CCW rotation pump 1

Order code:F02

B040 20-40 140967 Screen (SB-2020-029 on page 2) 18) 1
B041 20-40 140967 Screen (SB-2020-029 on page 2) 18) 1
B045 20-40 11062648 Screen retainer (SB-2020-029 on page 218) 1
B046 20-40 11062648 Screen retainer (SB-2020-029 on page 218) 1
L022 13-14 504207 O-ring 1
L024 13-14 336826 Seal nut 1
L200 13-14 11049149 High pressure relief valve, 300 bar 1
QL300 13-14 11004709 Pressure limiter kit, adjustable, CW rotation pump 1
QL400 13-14 11004709 Pressure limiter kit, adjustable, CCW rotation pump 1

Order code:F03

B040 20-40 140967 Screen (SB-2020-029 on page 2) 18) 1
B041 20-40 140967 Screen (SB-2020-029 on page 2) 18) 1
B045 20-40 110662648 Screen retainer (SB-2020-029 on page 218) 1
B046 20-40 110662648 Screen retainer (SB-2020-029 on page 218) 1
L022 13-14 504207 O-ring 1
L024 13-14 336826 Seal nut 1
L200 13-14 11049151 High pressure relief valve, 350 bar 1
QL300 13-14 110004709 Pressure limiter kit, adjustable, CW rotation pump 1
QL400 13-14 110004709 Pressure limiter kit, adjustable, CCW rotation pump 1

Parts continue to the next 2 pages.

High pressure setting

Parts configuration

(J44-J45)
Generic end caps shown

* Included in overhaul seal kit Q210

High pressure setting

Common parts

Item Date Begin	Date End Part	Number Part Name	Qty. per	Model/Kit
L060 08-10 3650	23 O-ring 1
L068 08-10 1105	2201 O-ring 1

Order code:F04

B040 20-40 140967 Screen (SB-2020-029 on page 2) 18) 1
B041 20-40 140967 Screen (SB-2020-029 on page 2) 18) 1
B045 20-40 11062648 Screen retainer (SB-2020-029 on page 218) 1
B046 20-40 11062648 Screen retainer (SB-2020-029 on page 218) 1
L022 13-14 504207 O-ring 1
L024 13-14 336826 Seal nut 1
L200 13-14 11049153 High pressure relief valve, 400 bar 1
QL300 13-14 110004709 Pressure limiter kit, adjustable, CW rotation pump 1
QL400 13-14 110004709 Pressure limiter kit, adjustable, CCW rotation pump 1

Order code: J44

L200 14-02 111

6160 High pressure relief valve, 440 bar 1

Order code: J45

L200 14-02 1104

9155 High pressure

ure relief valve, 450 bar 1

Order code: K20

L022 08-10 5042	07 O-ring 1
L200 08-10 1104	9144 High pressure relief valve, 200 bar 1
L300 08-10 1100	2302 Pressure limiter plug assembly, CW rotation pump	1
L400 08-10 1100	2302 Pressure limiter plug assembly, CCW rotation pump	1

Order code: K23
Parts continue to the next 2 pages.

L022 08-10 5042	207 O-ring 1
L200 08-10 1104	9146 High pressure relief valve, 230 bar 1
L300 08-10 1100	2302 Pressure limiter plug assembly, CW rotation pump	1
L400 08-10 1100	2302 Pressure limiter plug assembly, CCW rotation pump	1

High pressure setting

Parts configuration

(J44-J45)
Generic end caps shown

* Included in overhaul seal kit Q210

High pressure setting

Common parts

Item Date Begin	Date End Part	Number Part Name	Qty. per	Model/Kit
L060 08-10 3650	23 O-ring 1
L068 08-10 1105	2201 O-ring 1

Order code: K25

L022 08-10 5042	07 O-ring 1
L200 08-10 1104	9147 High pressure relief valve, 250 bar 1
L300 08-10 1100	2302 Pressure limiter plug assembly, CW rotation pump 1
L400 08-10 1100	2302 Pressure limiter plug assembly, CCW rotation pump 1

Order code: K28

L022 08-10 5042	07 O-ring 1
L200 08-10 1104	9148 High pressure relief valve, 280 bar 1
L300 08-10 1100	2302 Pressure limiter plug assembly, CW rotation pump 1
L400 08-10 1100	2302 Pressure limiter plug assembly, CCW rotation pump 1

High pressure setting

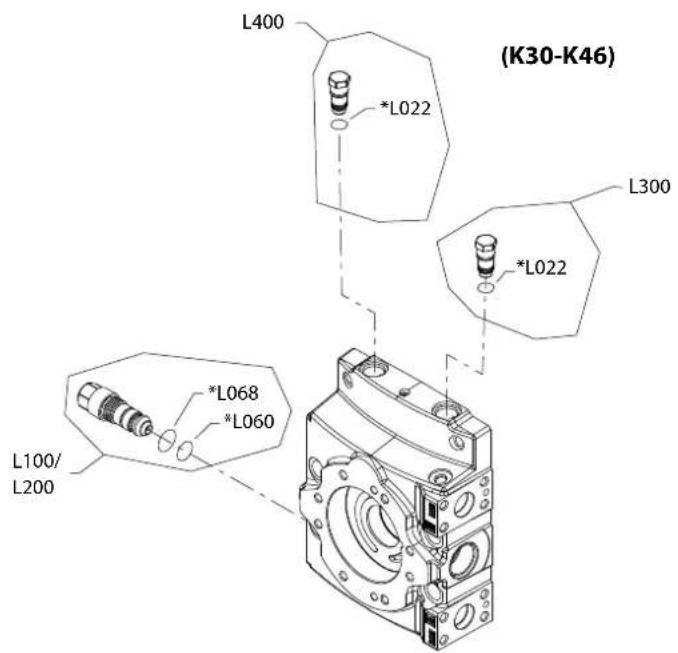

H1P HPS (port B) K30-KWY

Parts configuration

(KDC-KWY)

Generic end cap shown

• Included in overhaul seal kit Q210

High pressure setting

Common parts

Item Date Begin	Date End Part	Number Part Name	Qty. per	Model/Kit
L022 08-10 5042	207 O-ring 1
L060 08-10 3650	23 O-ring 1
L068 08-10 1105	2201 O-ring 1

Order code: K30

L200 08-10 1104	9149 High pressure relief valve, 300 bar 1
L300 08-10 1100	2302 Pressure limiter plug assembly, CW rotation pump 1
L400 08-10 1100	2302 Pressure limiter plug assembly, CCW rotation pump 1

Order code: K33

L200 08-10 1104	9150 High pressure relief valve, 330 bar 1
L300 08-10 1100	2302 Pressure limiter plug assembly, CW rotation pump 1
L400 08-10 1100	2302 Pressure limiter plug assembly, CCW rotation pump 1

Order code: K35

L200 08-10 11049151 High pressure relief valve, 350 bar 1
L300 08-10 11002302 Pressure limiter plug assembly, CW rotation pump 1
L400 08-10 11002302 Pressure limiter plug assembly, CCW rotation pump 1

Order code: K38

L200 08-10 1104	9152 High pressure relief valve, 380 bar 1
L300 08-10 1100	2302 Pressure limiter plug assembly, CW rotation pump 1
L400 08-10 1100	2302 Pressure limiter plug assembly, CCW rotation pump 1

Order code: K40

L200 08-10 11049153 High pressure relief valve, 400 bar 1
L300 08-10 11002302 Pressure limiter plug assembly, CW rotation pump 1
L400 08-10 11002302 Pressure limiter plug assembly, CCW rotation pump 1

Order code: K42

L200 08-10 1104	9154 High pressure relief valve, 420 bar 1
L300 08-10 1100	2302 Pressure limiter plug assembly, CW rotation pump 1
L400 08-10 1100	2302 Pressure limiter plug assembly, CCW rotation pump 1

Parts continue to the next 2 pages.

High pressure setting

Parts configuration
(KDC-KWY)

Generic end cap shown

• Included in overhaul seal kit Q210

High pressure setting

Common parts

Item Date Begin	Date End Part	Number Part Name	Qty. per	Model/Kit
L022 08-10 5042	207 O-ring 1
L060 08-10 3650	23 O-ring 1
L068 08-10 1105	2201 O-ring 1

Order code: K45

L200 08-10 1104	9155 High pressure relief valve, 450 bar 1
L300 08-10 1100	2302 Pressure limiter plug assembly, CW rotation pump 1
L400 08-10 1100	2302 Pressure limiter plug assembly, CCW rotation pump 1

Order code: K46

L200 08-10 1110	6573 High pressure relief valve, 460 bar 1
L300 08-10 1100	2302 Pressure limiter plug assembly, CW rotation pump 1
L400 08-10 1100	2302 Pressure limiter plug assembly, CCW rotation pump 1

Order code: KDC

L030 08-10 513443 Plug assembly 1
L200 08-10 11069762 High pressure relief valve, 43bar 1
L300 08-10 11035112 Pressure limiter plug assembly, CW rotation pump 1
L400 08-10 11035112 Pressure limiter plug assembly, CCW rotation pump 1

Order code: KWY

L030 08-10 5134	43 Plug assembly 1
L200 08-10 1104	9155 High pressure relief valve, 450 bar 1
L300 08-10 1103	5112 Pressure limiter plug assembly, CW rotation pump 1
L400 08-10 1103	5112 Pressure limiter plug assembly, CCW rotation pump 1

High pressure setting

H1P HPS (port B) L15-L41

Parts configuration

Generic end cap shown

• Included in overhaul seal kit Q210

High pressure setting

Common parts

Item Date Begin	Date End Part	Number Part Name	Qty. per		Model/Kit
B040 20-40 1409	67 Screen (SB-20)	20-029 on page 2	18) 1
B041 20-40 1409	67 Screen (SB-20)	20-029 on page 2	18) 1
B045 20-40 1106	62648 Screen retainer (SB-2020-029) on page 218) 1
B046 20-40 1106	62648 Screen retainer (SB-2020-029) on page 218) 1
L022 08-10 5042	207 O-ring 1
L024 08-10 3368	26 Seal nut 1
L060 08-10 3650	23 O-ring 1
L068 08-10 1105	2201 O-ring 1

Order code: L15

L200 08-10 1104	9144 High pressure relief valve, 200 bar 1
QL300 08-10 11	119002 Pressure limiter kit, adjustable, CW rotation pump 1
QL400 08-10 11	119002 Pressure limiter kit, adjustable, CCW rotation pump	1

Order code:L20

L200 08-10 1104	9147 High pressure relief valve, 250 bar 1
QL300 08-10 1111	004709 Pressure limiter kit, adjustable, CW rotation pump 1
QL400 08-10 1111	004709 Pressure limiter kit, adjustable, CCW rotation pump	1

Order code:L23

L200 08-10 11049148 High pressure relief valve, 280 bar 1
QL300 08-10 11004709 Pressure limiter kit, adjustable, CW rotation pump 1
QL400 08-10 11004709 Pressure limiter kit, adjustable, CCW rotation pump 1

Order code:L25

L200 08-10 11049149 High pressure relief valve, 300 bar 1
QL300 08-10 11004709 Pressure limiter kit, adjustable, CW rotation pump 1
QL400 08-10 11004709 Pressure limiter kit, adjustable, CCW rotation pump 1

Order code:L28

L200 08-10 11049150 High pressure relief valve, 330 bar 1
QL300 08-10 11004709 Pressure limiter kit, adjustable, CW rotation pump 1
QL400 08-10 11004709 Pressure limiter kit, adjustable, CCW rotation pump				1

Order code:L30
Parts continue to the next 2 pages.

L200 08-10 11049151 High pressure relief valve, 350 bar 1
QL300 08-10 11004709 Pressure limiter kit, adjustable, CW rotation pump 1
QL400 08-10 11004709 Pressure limiter kit, adjustable, CCW rotation pump				1

High pressure setting

Parts configuration

Generic end cap shown

• Included in overhaul seal kit Q210

High pressure setting

Common parts

Item Date Begin	Date End Part	Number Part Name	Qty. per		Model/Kit
B040 20-40 140967 Screen (SB-2020-029 on page 2) 18) 1
B041 20-40 140967 Screen (SB-2020-029 on page 2) 18) 1
B045 20-40 11062648 Screen retainer (SB-2020-029 on page 218) 1
B046 20-40 11062648 Screen retainer (SB-2020-029 on page 218) 1
L022 08-10 504207 O-ring 1
L024 08-10 336826 Seal nut 1
L060 08-10 365023 O-ring 1
L068 08-10 11052201 O-ring 1

Order code:L33

L200 08-10 11049152 High pressure relief valve, 380 bar 1
QL300 08-10 11004709 Pressure limiter kit, adjustable, CW rotation pump 1
QL400 08-10 11004709 Pressure limiter kit, adjustable, CCW rotation pump		1

Order code:L35

L200 08-10 1104	9153 High pressure relief valve, 40 bar 1
QL300 08-10 1111	004709 Pressure limiter kit, adjustable, CW rotation pump 1
QL400 08-10 1111	004709 Pressure limiter kit, adjustable, CCW rotation pump	1

Order code:L38

L200 08-10 11049154 High pressure relief valve, 420 bar 1
QL300 08-10 11004709 Pressure limiter kit, adjustable, CW rotation pump 1
QL400 08-10 11004709 Pressure limiter kit, adjustable, CCW rotation pump 1

Order code:L40

L200 08-10 11049155 High pressure relief valve, 450 bar 1
QL300 08-10 11004709 Pressure limiter kit, adjustable, CW rotation pump 1
QL400 08-10 11004709 Pressure limiter kit, adjustable, CCW rotation pump 1

Order code:L41

L200 08-10 11049155 High pressure relief valve, 450 bar 1
QL300 08-10 11004709 Pressure limiter kit, adjustable, CW rotation pump 1
QL400 08-10 11004709 Pressure limiter kit, adjustable, CCW rotation pump				1

High pressure setting

H1P HPS (port B) L42-LED

Parts configuration

Generic end cap shown

• Included in overhaul seal kit Q210

High pressure setting

Common parts

Item Date Begin	Date End Part	Number Part Name	Qty. per		Model/Kit
B040 20-40 1409	67 Screen (SB-2020-029 on page 2)	18) 1
B041 20-40 1409	67 Screen (SB-2020-029 on page 2)	18) 1
B045 20-40 1106	62648 Screen retainer (SB-2020-029 on page 218)	1
B046 20-40 1106	62648 Screen retainer (SB-2020-029 on page 218)	1
L022 08-10 5042	207 O-ring 1
L024 08-10 3368	26 Seal nut 1
L060 08-10 3650	23 O-ring 1
L068 08-10 1105	2201 O-ring 1

Order code:L42

L200 08-10 1104	9155 High pressure relief valve, 450 bar 1
QL300 08-10 11	004709 Pressure limiter kit, adjustable	ble, CW rotation	pump	1
QL400 08-10 11	004709 Pressure limiter kit, adjustable	ble, CCW rotation	pump	1

Order code:L43

L200 08-10 1104	9156 High pressure relief valve, 48	bar 1
QL300 08-10 11	004709 Pressure limiter kit, adjustable	ble, CW rotation	pump	1
QL400 08-10 11	004709 Pressure limiter kit, adjustable	ble, CCW rotation	pump	1

Order code:L44

L200 08-10 11049156 High pressure relief valve, 480 bar 1
QL300 08-10 11004709 Pressure limiter, adjustable, CW rotation pump 1
QL400 08-10 11004709 Pressure limiter, adjustable, CCW rotation pump 1

Order code:L45

L200 08-10 11049156 High pressure relief valve, 480 bar 1
QL300 08-10 11004709 Pressure limiter, adjustable, CW rotation pump 1
QL400 08-10 11004709 Pressure limiter, adjustable, CCW rotation pump 1

Order code:L46

L200 08-10 11049157 High pressure relief valve, 510 bar 1
QL300 08-10 11004709 Pressure limiter, adjustable, CW rotation pump 1
QL400 08-10 11004709 Pressure limiter, adjustable, CCW rotation pump 1

Order code:L47
Parts continue to the next 2 pages.

L200 08-10 11049157 High pressure relief valve, S10 bar 1
QL300 08-10 11004709 Pressure limiter, adjustable, CW rotation pump 1
QL400 08-10 11004709 Pressure limiter, adjustable, CCW rotation pump 1

High pressure setting

Parts configuration

Generic end cap shown

• Included in overhaul seal kit Q210

High pressure setting

Common parts

Item Date Begin	Date End Part	Number Part Name	Qty. per		Model/Kit
B040 20-40 140967 Screen (SB-2020-029 on page 2)18) 1
B041 20-40 140967 Screen (SB-2020-029 on page 2)18) 1
B045 20-40 11062648 Screen retainer (SB-2020-029 on page 218) 1
B046 20-40 11062648 Screen retainer (SB-2020-029 on page 218) 1
L022 08-10 504207 O-ring 1
L024 08-10 336826 Seal nut 1
L060 08-10 365023 O-ring 1
L068 08-10 11052201 O-ring 1

Order code:L48

L200 08-10 11049157 High pressure relief valve, S10 bar 1
QL300 08-10 11004709 Pressure limiter, adjustable, CW rotation pump 1
QL400 08-10 11004709 Pressure limiter, adjustable, CCW rotation pump 1

Order code:LEG

L200 08-10 1104	9156 High pressure relief valve, 480 bar 1
QL300 08-10 1111	004709 Pressure limiter, adjustable, CW rotation pump 1
QL400 08-10 1111	004709 Pressure limiter, adjustable, CCW rotation pump 1

Order code:LED

L200 08-10 11106573 High pressure relief valve, 460 bar 1
QL300 08-10 11004709 Pressure limiter, adjustable, CW rotation pump 1
QL400 08-10 11004709 Pressure limiter, adjustable, CCW rotation pump 1

High pressure setting

H1P high pressure setting (port B) S40

Parts configuration

Generic endcap shown.

• Included in overhaul seal kit Q210

High pressure setting

Order code: S40

Item Date Begin	Date End Part	Number Part Name	Qty. per	Model/Kit
L012 21-11 1108	5423 Pressure sensor adapter 1
L022 21-11 5042	07 O-ring 1
L030 21-11 1406	44 Plug assembly 1
L060 21-11 3650	23 O-ring 1
L068 21-11 1105	2201 O-ring 1
L200 21-11 1104	9153 High pressure relief valve, 400 bar 1
L400 21-11 1108	5422 Pressure sensor adapter 1

High pressure setting

H1P HPS S42-S45

Parts configuration

Generic end cap shown

• Included in overhaul seal kit Q210

High pressure setting

Common parts

Item Date Begin	Date End Part	Number Part Name	Qty. per	Model/Kit
L022 08-10 5042	207 O-ring 1
L060 08-10 3650	23 O-ring 1
L068 08-10 1105	2201 O-ring 1

Order code: S42

L030 12-04 140644 Plug assembly 1
L200 12-04 11049154 High pressure relief valve, 420 bar 1
L300 12-02 11085422 Pressure sensor adapter, CCW rotation pump 1
L400 12-04 11085422 Pressure sensor adapter, CW rotation pump 1

Order code: S44

L030 12-02 140644 Plug assembly 1
L200 12-02 11116160 High pressure relief valve, 440 bar 1
L300 12-02 11085422 Pressure sensor adapter, CCW rotation pump 1
L400 12-02 11085422 Pressure sensor adapter, CW rotation pump 1

Order code: S45

L030 12-22 140644 Plug assembly 1
L200 12-22 1104	9155 High pressure relief valve, 450 bar 1
L300 12-22 1108	5422 Pressure sensor adapter, CCW rotation pump 1
L400 12-22 1108	5422 Pressure sensor adapter, CW rotation pump 1

Charge pump

H1P charge pump

Parts configuration

Option N is available in SAE and metric configurations. Please order accordingly.

• Included in overhaul seal kit Q210

Charge pump

Order code: A

Item Date Begin	Date End Part	Number Part Name	Qty. per	Model/Kit
QS100 10-08 11	075695 Charge pump kit, 26cc (SB-2011-022 on page 201)	26cc (SB-2011-022 on page 201)		1
S300 08-10 1112	6778 Seal ring (SB-2013-019 on page 207) 2

Order code: L

QS100 10-08 11	69135 Charge pump kit, 34cc (SB-2011-022 on page 201)	1
S300 08-10 1112	6778 Seal ring (SB-2013-019 on page 207) 2

Order code: N

G600 10-15 676	734 (9005110-950) Plug assembly	1
G600 16-09 111	64205 Plug assembly, M42 (metric)	1

Filtration

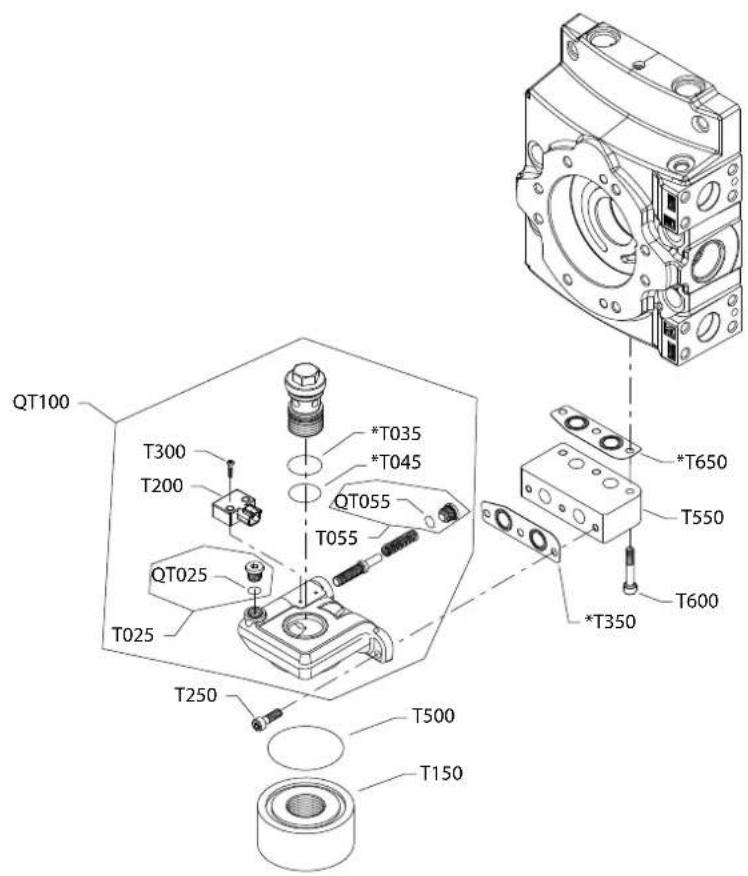

H1P filtration C

Parts configuration

Generic end cap shown

• Included in overhaul seal kit Q210

Filtration

Order code: C

Item Date Begin	Date End Part	Number Part Name	Qty. per	Model/Kit
T025 08-10 141	269 Plug assembly	1
T035 08-10 761	48 (9004100-0260) O-ring 1
T045 08-10 3145	500 (9004100-1250) O-ring 1
T055 08-10 141	269 Plug assembly	1
QT100 08-10 11	127352 Pressure filter adapter assembly 1
T150 08-10 1119	0584 Cover 1
T200 08-10 1103	1852 Filtration sensor (SB-2007-052 on page 194) 1
T250 08-10 1112	8665 Screw, M8 x 25 3
T300 08-10 1405	60 Screw, M3 x 15 2
T350 08-10 1407	37 Filter adapter gasket 1
T500 08-10 0009	43 (9004100-2300) O-ring 1
T550 08-10 1100	8273 Adapter plate	1
T600 08-10 3766	24 Screw, M8 x 45 3
T650 08-10 1407	37 Gasket		1

Filtration

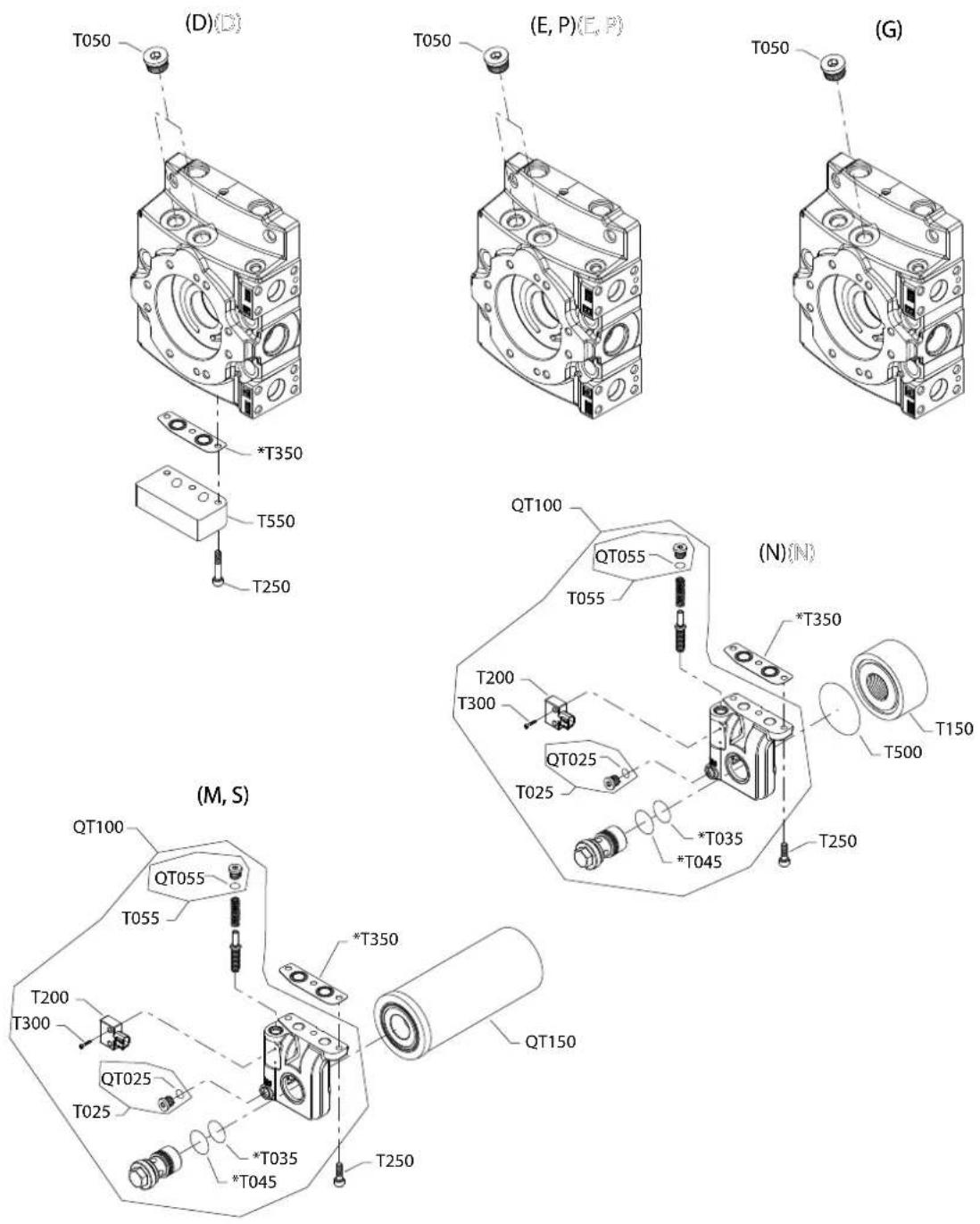

H1P filtration D-S

Parts configuration

Generic end caps shown

• Included in overhaul seal kit Q210

Filtration

Order code: D

Item Date Begin	Date End Part	Number Part Name	Qty. per	Model/Kit
T050 09-43 6645	24 (9005110-9000) Plug assembly	2
T250 09-43 0921	106 Screw 3
T350 09-43 1407	37 Filter adapter	gasket 1
T550 09-43 1107	4118 Adapter plate	1

Order code: E

T050 09-43 664524 (9005110-9000) Plug assembly 2

Order code: G

T050 09-43 664524 (9005110-9000) Plug assembly1

Order code: L

No parts

Order code: M

QT150 08-10 11	004919 Filter assembly 1
T025 08-10 141	269 Plug assembly 1
T035 08-10 761	48 (9004100-0260) O-ring 1
T045 08-10 3145	00 (9004100-1250) O-ring 1
T055 08-10 141	269 Plug assembly 1
QT100 08-10 11	127352 Pressure filter adapter assembly 1
T200	08-10		11031852	Filtration sensor (SB-2007-052 on page 194)
T250 08-10 111	28665 Screw 3
T300 08-10 1405	60 Screw 2
T350 08-10 1407	37 Filter adapter gasket 1

Order code: N
Parts continue to the next 2 pages

T025 08-47 141	269 Plug assembly 1
T035 08-47 761	48 (9004100-0260) O-ring 1
T045 08-47 3145	500 (9004100-1250) O-ring 1
T055 08-47 141	269 Plug assembly 1
QT100 08-47 11	127352 Pressure filter adapter assembly 1
T150 08-47 1100	8261 Cover		1
T200	08-47		11031852	Filtration sensor (SB-2007-052 on page 194)
T250 08-47 1112	8665 Screw 3
T300 08-47 1405	60 Screw 2
T350 08-47 1407	37 Filter adapter gasket 1
T500 08-47 0009	43 (9004100-2300) O-ring 1

Filtration

Parts configuration

Generic end caps shown

* Included in overhaul seal kit Q210

Filtration

Order code: P

Item Date Begin	Date End Part	Number Part Name	Qty. per		Model/Kit
T050 08-10 6645	24 (9005110-9000) Plug assembly	2

Order code: S

QT150 08-10 11	004919 Filter assembly 1
T025 08-10 141	269 Plug assembly 1
T035 08-10 761	48 (9004100-0260) O-ring 1
T045 08-10 3145	00 (9004100-1250) O-ring 1
T055 08-10 141	269 Plug assembly 1
QT100 08-10 11	230401 Pressure filter adapter assembly 1
T200 08-10 1103	1853 Filtration sensor (SB-2007-052 on page 194) 1
T250 08-10 111	28665 Screw 3
T300 08-10 1405	60 Screw 2
T350 08-10 1407	37 Filter adapter gasket 1

Charge pressure relief and ISL settings

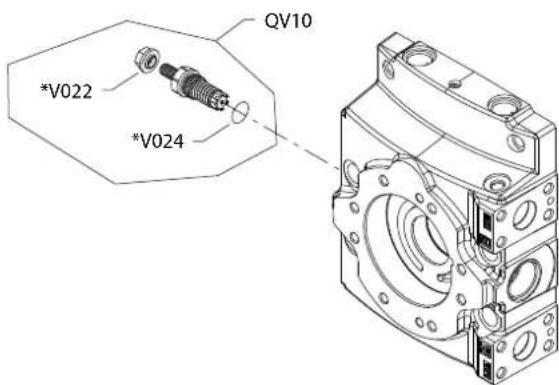

H1P 115/130cc charge pressure relief 14-40

Parts configuration

Generic end caps shown

• Included in overhaul seal kit Q210

Charge pressure relief and ISL settings

Order code: 14-22

Item Date Begin	Date End Part	Number Part Name	Qty. per	Model/Kit
QV10 15-04 111	37578 Charge relief valve kit (SB-2016-004 on page 210) 1
QV10 08-10 15-03	11004711 Charge relief valve kit 1
V022 15-04 066	59 Seal nut, M12 (SB-2016-004 on page 210) 1
V022 08-10 15-03	612291 (9003508-0008) Seal nut, M8 1
V024 08-10 001	49 (9004201-6200) O-ring		1

Order code:24-40

QV10 15-04 111	B7579 Charge reliefe valve kit (SB-2016-004 on page 210) 1
QV10 08-10 15-03	11017127 Charge relief valve kit	1
V022 15-04 066	59 Seal nut, M12	(SB-2016-004 on page 210) 1
V022 08-10 15-03	612291 (90035)	M8 1
V024 08-10 001	49 (9004201-6200) O-ring		1

Charge pressure relief and ISL settings

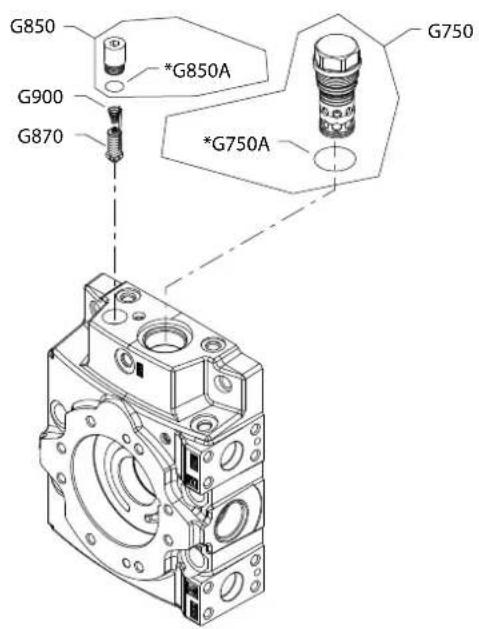

H1P 115/130cc ISL setting A01-G23

Parts configuration

Generic control shown

• Included in overhaul seal kit Q210

Charge pressure relief and ISL settings

Order code: A02 and G14

Item Date Begin	Date End Part	Number Part Name	Qty. per	Model/Kit
G750 08-10 111	37759 ISL valve assembly, 5.5 1
G750A 08-10 14	0866 O-ring 1
G850 08-10 111	26727 Plug assembly 1
G850A 08-10 00	1131 (9004201-5000) O-ring 1
G870 08-10 310	3375-0140 SCR valve assembly, 140 bar [2030 psi] 1
G900 08-10 480	0780 Spring		1

Order code: G16

G750 14-32 111	45639 ISL valve assembly, 4.4 1
G750A 14-32 14	D866 O-ring 1
G850 14-32 111	26727 Plug assembly 1
G850A 14-32 00	1131 (9004201-5000) O-ring 1
G870 14-32 310	3375-0160 SCR valve assembly, 160 bar [2320 psi] 1
G900 14-32 480	0780 Spring	1

Order code: G18

G750 08-10 111	B7759 ISL valve assembly, 5.5 1
G750A 08-10 14	D866 O-ring 1
G850 08-10 111	26727 Plug assembly 1
G850A 08-10 00	1131 (9004201-5000) O-ring 1
G870 08-10 310	B375-0175 SCR valve assembly, 175 bar [2538 psi] 1
G900 08-10 480	0780 Spring	1

Order code: G21

G750 08-10 11137759 ISL valve assembly, 5.5 1
G750A 08-10 140866 O-ring 1
G850 08-10 11126727 Plug assembly 1
G850A 08-10 001131 (9004201-5000) O-ring 1
G870 08-10 3103375-0210 SCR valve assembly, 210 bar [3045 psi] 1
G900 08-10 4800780	Spring	1

Order code: G23

G750 08-10 111	B7759 ISL valve assembly, 5.5 1
G750A 08-10 14	D866 O-ring 1
G850 08-10 111	26727 Plug assembly 1
G850A 08-10 00	1131 (9004201-5000) O-ring 1
G870 08-10 310	3375-0230 SCR valve assembly, 230 bar [3335 psi] 1
G900 08-10 480	0780 Spring	1

Charge pressure relief and ISL settings

H1P 115/130cc ISL setting G25-Y4E

Parts configuration

Generic end cap shown

• Included in overhaul seal kit Q210

Charge pressure relief and ISL settings

Order code: G25

Item Date Begin	Date End Part	Number Part Name	Qty. per	Model/Kit
G750 08-10 111	37759 ISL valve assembly, 5.5 1
G750A 08-10 14	0866 O-ring 1
G850 08-10 111	26727 Plug assembly 1
G850A 08-10 00	1131 (9004201-5000) O-ring 1
G870 08-10 310	3375-0250 SCR valve assembly, 250 bar [3625 psi] 1
G900 08-10 480	0780 Spring		1

Order code: GAA

G750 08-10 11145639 ISL valve assembly, 4.4 1
G750A 08-10 140866 O-ring 1
G850 08-10 11126727 Plug assembly 1
G850A 08-10 001131 (9004201-5000) O-ring 1
G870 08-10 3103375-0140 SCR valve assembly, 140bar [2030 psi] 1
G900 08-10 4800780	Spring	1

Order code: GAB

G750 08-10 111	45639 ISL valve assembly, 4.4 1
G750A 08-10 14	0866 O-ring 1
G850 08-10 111	26727 Plug assembly 1
G850A 08-10 00	1131 (9004201-5000) O-ring 1
G870 08-10 310	3375-0175 SCR valve assembly, 175 bar [2538 psi] 1
G900 08-10 480	0780 Spring	1

Order code: GAC

G750 08-10 111	45639 ISL valve assembly, 4.4 1
G750A 08-10 14	0866 O-ring 1
G850 08-10 111	26727 Plug assembly 1
G850A 08-10 00	1131 (9004201-5000) O-ring 1
G870 08-10 310	3375-0210 SCR valve assembly, 210 bar [3045 psi] 1
G900 08-10 480	0780	Spring	1

Order code: GAD
Parts continue to the next 2 pages.

G750 08-10 111	45639 ISL valve assembly, 4.4 1
G750A 08-10 14	0866 O-ring 1
G850 08-10 111	26727 Plug assembly 1
G850A 08-10 00	1131 (9004201-5000) O-ring 1
G870 08-10 310	3375-0230 SCR valve assembly, 230 bar [3335 psi] 1
G900 08-10 480	0780 Spring	1

Charge pressure relief and ISL settings

Parts configuration

Generic end cap shown

• Included in overhaul seal kit Q210

Charge pressure relief and ISL settings

Order code: GAE

Item Date Begin	Date End Part	Number Part Name	Qty. per	Model/Kit
G750 08-10 111	45639 ISL valve assembly, 4.4 1
G750A 08-10 14	0866 O-ring 1
G850 08-10 111	26727 Plug assembly 1
G850A 08-10 00	1131 (9004201-5000) O-ring 1
G870 08-10 310	3375-0250 SCR valve assembly, 250 bar [3625 psi] 1
G900 08-10 480	0780 Spring		1

Order code:GAU

G750 16-50 111	B7581 ISL valve assembly, 4.4 1
G750A 16-50 14	D866 O-ring 1
G850 16-50 111	26727 Plug assembly 1
G870 16-50 111	65436 SCR valve assembly, 110 bar	[1595 psi] 1
G900 16-50 480	0780	Spring	1

Order code: Y4E

G750 15-18 111	B7759 ISL valve assembly, 4.4 1
G750A 15-18 14	D866 O-ring 1
G850 15-18 111	26727 Plug assembly 1
G850A 15-18 00	1131 (9004201-5000) O-ring 1
G870 15-18 310	3375-0140 SCR valve assembly, 140 bar [2030 psi] 1
G900 15-18 480	0780 Spring	1

Overhaul seal kit

H1P 115/130cc seal kit

Item Date Begin	Date End Part	Number Part Name	Qty. per		Model/Kit
Q210 08-10 111	78088 Overhaul seal kit, H1P 115/1	30cc 1
D060 08-10 612	291 (9003508-0008) Seal nut 1
D150 07-01 112	27209 Control gasket (SB-2016-033 on page 213) 1
D611 07-01 21-	12 11066774 O-ring (SB-2021-014 on page 220) 2
D611 21-13 112	25703 O-ring 2
D612 07-01 21-	2 11003126 Plug (SB-2021-014 on page 220) 2
D612 21-13 112	23708 Plug		2
E020 08-10 1107	5557 O-ring 2
E025 08-10 1107	5556 Piston ring		2
E250 08-10 0718	45 (9004104-1510) O-ring			2
E500 08-10 6498	22	Seal nut 1
E550 08-10 6498	22	Seal nut 1
G150	08-10 11001894	End cap gasket		1
G750A	08-10 140866		O-ring	1
G850A	08-10 001131 (9004201-5000) O-ring			1
J250	07-29 11024711	Lip seal		1
K150	10-39 11002236	Adapter seal (SB2011-002 on page 199) 1
K150	10-39 11125012	Adapter seal		1
L022 08-10 5042	07	O-ring 2
L024 08-10 3368	26	Seal nut, M10 x 1		2
L060 08-10 3650	23	O-ring 2
L068 08-10 1105	2201 O-ring 2
QD26	08-10 11001952	O-ring		2
QD81	08-10 11059551	O-ring		1
QD81	08-10 11152257	O-ring		1
QD751	08-10 001131 (9004201-5000) O-ring			1
QH131	08-10 11013397	O-ring		1
S300 08-10 1112	6778 Seal ring		2
T035 08-10 761	48 (9004100-0260) O-ring			1
T045 08-10 3145	00 (9004100-1250) O-ring			1
T350 08-10 1407	37	Filter adapter gasket		1
T650 08-10 1407	37	Filter adapter gasket		1
V022	10-43		066159	Seal nut, M12 (SB-2016-004 on page 210)	1
V022	08-10		612291 (9003508-0008)	Seal nut, M8	1
V024	08-10		001149 (9004201-6200)	O-ring	1

Service bulletin

SB-2006-030

Products affected

Subject

Control, servo piston and housing

Description

As a product improvement, Danfoss made changes to the H1 147 and 165cc pumps. The following parts are affected by this change; control, servo piston, and pump housing.

Control: The old control had five mounting screws and the control pilot supply screen was between the pump housing and the end cap. The new control uses six mounting screws and has the supply screen integrated into the control. The new and old controls are not interchangeable. The old control will be available for a period of time.

Pump housing: The old pump housing was designed to accept the original five screw control. The old pump housing was also machined to have the control pilot supply screen in it. The new pump housing was designed to accept the new six mounting screw control. The supply screen has been moved to the control. Also, the new pump housing was changed slightly to accept the new servo piston assembly. The new and old pump housings are not interchangeable. The old pump housing is no longer available for service.

Servo piston assembly: The servo piston assembly has new spring seats. The new servo piston assembly can be used in the new and old housings. The old servo piston assembly can only be used in the old housings. The old servo piston assembly is obsolete and no longer available for service.

Service kit: A service kit has been created to service the older models requiring a new housing. This kit includes; the new control and screws, new pump housing, new servo piston assembly, and a pump overhaul seal kit.

Models affected

All H1 147 and 165cc pumps

Serial numbers

This change became effective at serial number N-07-01-xxxxx.

Part numbers affected

Description Old part number	New part number Servo piston type
Housing (Class) 11005477 11	019991 Nested spring assembly
Housing (standard) 11005069	According to control Standaard assembly
EDC 12V (A2) Kit 11004693 1	1019987 Standard assembly
EDC 24V (A3) Kit 11004695 1	1019988 Standard assembly
EDC 12V Mor (A4) Kit 11004697	11019989 Standard assembly
EDC 24V Mor (A5) Kit 11004699	11019990 Standard assembly
EDC 12V Corf (A6) Kit 11004701	11019991 Nested spring assembly

Description Old part number New part number
Servo piston assembly (standard) 1405	00 11005250
Servo piston assembly (nested springs)	11000580 11005249

Service bulletin

Parts disposition

Interchangeable

SB-2007-052

Products affected

H1 pumps

Subject

Filtration pressure sensor

Description

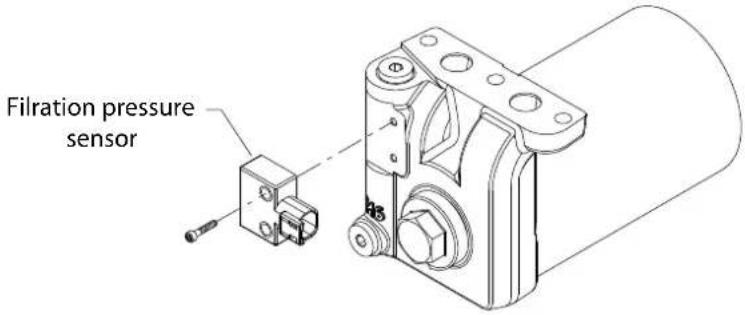

As a product improvement, Danfoss has changed the filtration pressure sensor. The new filtration pressure sensor is completely interchangeable with the old sensor. The old sensor will be obsoleted.

Models affected

All H1 pumps with an "M" or "S" filtration option

Serial numbers affected

This change became effective at serial number N-07-43-xxxxx

Part numbers affected

Description Old part number new part number
Filtration sensor position 140355 1103	1852
Filtration sensor position 11000357 11	031853

Parts disposition

Interchangeable, use parts in stock

Service bulletin

SB-2009-046

Products affected

H1 78, 115/130 and 147/165cc pumps

Subject

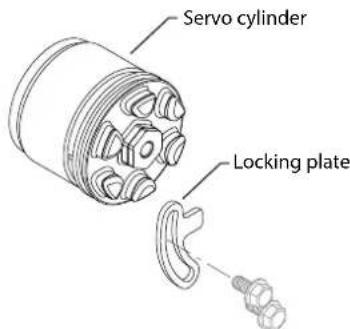

Servo cylinder and locking plate design change

Description

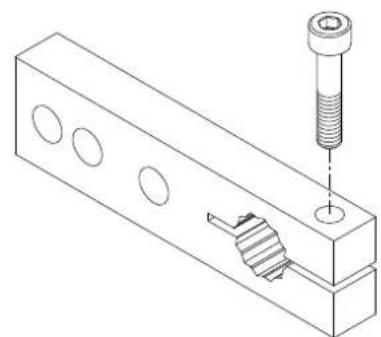

As a product improvement, Danfoss has changed the servo cylinder and locking plate. The new servo cylinder has a larger locking area to allow for a larger locking plate tab for added strength. The old servo cylinders are obsolete and no longer available for service. The old locking plate will remain available for repair. The new and old designs are interchangeable, if both parts are replaced together.

Old Design New Design

Models affected

All H1 78, 115/130 and 147/165cc pumps

Serial numbers

This change became effective at serial number

N-10-29-xxxxx (21 July 2010)
N-10-35-xxxxx (30 August 2010)
N-10-28-xxxxx. (15 July 2010)

Part numbers affected

Description Frame size Old part number	number New part number
Servo cylinder, no-adjust 78 cc 140853	11089749
Servo cylinder, adjustable 78 cc 140852	11089779
Locking plate 78 cc 140513 11033382
Servo cylinder, no-adjust 115 - 130 cc	141224 11089773
Servo cylinder, adjustable 115 - 130 cc	141225 11089772
Locking plate 115 - 130 cc 140513 11033382
Servo cylinder, no-adjust 147 - 165 cc	140493 11089775
Servo cylinder, adjustable 147 - 165 cc	140309 11089774
Locking plate 147 - 165 cc 140513 11033382

Service bulletin

Parts disposition

Interchangeable only if both parts are replaced together

Service bulletin

SB-2009-068

Products affected

H1 78, 115/130 and 147/165 cc pumps

Subject

Change to the design of servo screen retention in pump housing

Description

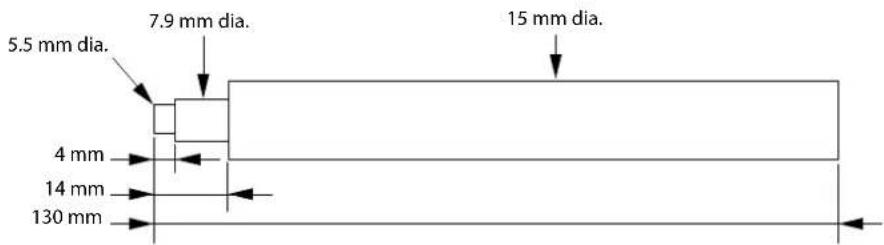

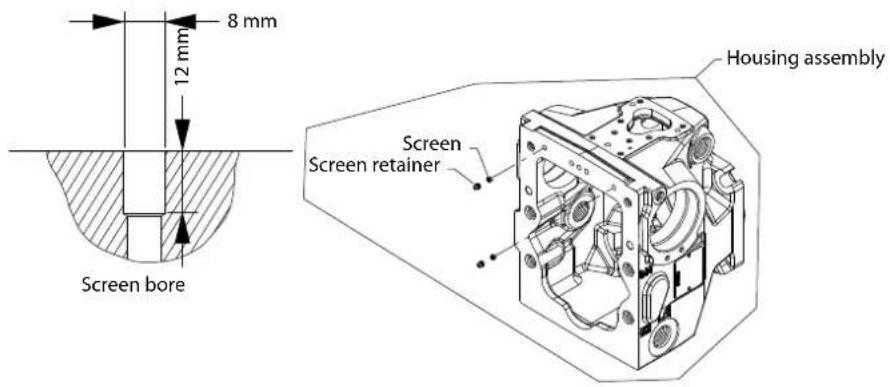

Danfoss has made a change to the way the servo passage screens are retained in the pump housing of H1- 78 cc, 115/130 cc and 147/165 cc pumps. The screens in the past were retained only by friction fit. The screens are now pressed into the bores to the step. The retainers are then pressed in the bore against the screens with a maximum force of 3000 Newtons. The retainers must be against the screens so no movement of the screens occurs. A tool for installation of the retainer can be made with the dimensions shown below. The bores in the housing for the screens have been cut deeper to allow for the length of the retainers. The housings sold for service parts have changed to a housing assembly, with the screens and retainers installed. The old housings can be reworked to allow for the use of the new retainers by boring the 8mm bores for the screen and retainer 12mm deep from the gasket surface to the step that the screen sets on. The screen part number remains the same.

Models affected

All H1 78, 115/130 and 147/165cc pump

Serial numbers

This change became effective at serial number

H1P147/165 (G): N09-25-XXX59
H1P147/165 (Z): N09-26-XXX36
H1P115/130 (G): N09-24-X4341

Service bulletin

H1P115/130 (L): N10-04-X3743
H1P078 (H): N09-25-00081
H1P078 (K): N09-29-03540

Part numbers affected

Frame size Old housing part number	Housing assembly
147/165 cc (G) 11005012 11005677
147/165 cc w/1 1/16 drain ports (Z) 11004991 11005674
115/130 cc (G) 11002342 11005070
115/130 cc w/speed sensing (L) 1103017 11030118
78 cc (H) 140904 11005071
78 cc w/speed sensing (K) 11024418 11011752

Parts disposition

• Interchangeable
  Use parts in stock
• Order replacement parts
• Rework housing parts in stock
  Revise existing part orders

Service bulletin

SB-2011-002

Products affected

H1 115-165cc pumps

Subject

Adapter and thrust plate

Description

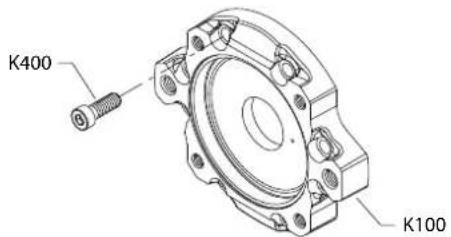

As a product improvement Danfoss has changed the adapter plate and thrust plate design. In case you have to replace either the adapter or the thrust plate you need to order the appropriate Repair Service Kit as per the attached cross reference list because the old adapter and thrust plate design will no longer be provided. The thrust plate in not interchangeable to the adapter.

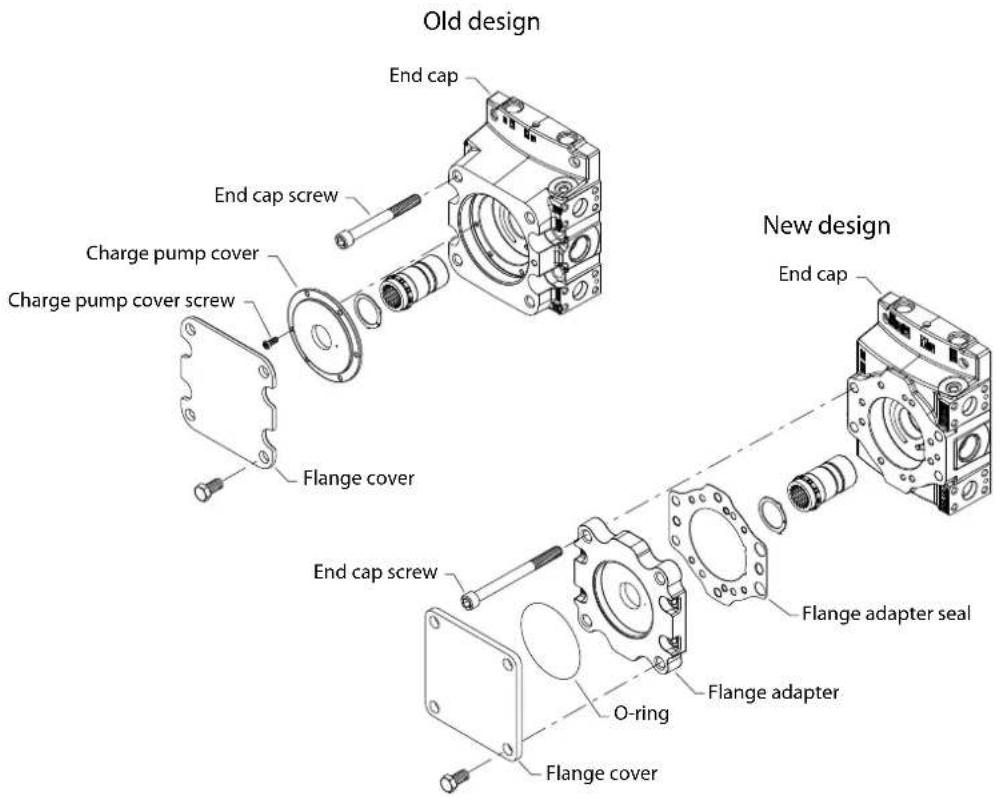

Old design New design

Models affected

H1 115-165cc pumps

Serial numbers affected

This change became effective at:

SAE-NN N-10-44-xxxxx (Nov 2010)
SAE-A N-11-05-xxxxxx (Feb 2011)
SAE-BN-11-14-xxxxx (April 2011)
SAE-B-BN-10-44-xxxxx (Nov 2010)
SAE-C N-10-48-xxxxx (Dec 2010)
SAE-DN-10-46-xxxxx (Nov 2010)
SAE-SNN-11-22-xxxxx (June 2011)

Part numbers affected

Description Old number new	new number Service kit (adapter and		thrust washer)
Thrust washer 140973 11001	182 -
Adapter seal 140703 110022	36 -
Adapter SAE (NN) 140969 11	087614 11086819
Adapter SAE A (H1) 140694 1	1087615 11086818

Service bulletin

Description Old number new number Service kit (adapter and thrust washer)
Adapter SAE A (H2) 140694 1	1087615 11086818
Adapter SAE B (H3) 140696 1	1087617 11086817
Adapter SAE D (H4) 141012 1	1023751 11086882
Adapter SAE B (H5) 140696 1	1087617 11086817
Adapter SAE C (H6) 140698 1	1087618 11086816
Adapter SAE C (SN) 1108118 8	11086770 -

Mounting kit

Description Old number new number
Mounting Kit (NN) 11079317 11083499
Mounting Kit (H1) 11079318 11083494
Mounting Kit (H2) 11079319 11083495
Mounting Kit (H3) 11079320 11083496
Mounting Kit (H4) 11069133 11083497
Mounting Kit (H5) 11079321 11083493
Mounting Kit (H6) 11079322 11083498
Mounting Kit (SN) 11071702 11088769

Parts disposition

Non-interchangeable, use parts in stock

Service bulletin

SB-2011-022

Products affected

H1 115/130cc pumps

Subject

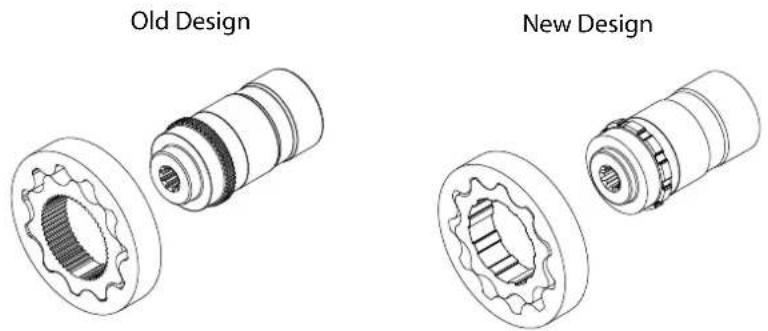

Gerotor and charge pump shaft design change

Description

As a product improvement and part commonality between models Danfoss is changing the charge pump shaft and gerotor set design. The inner and outer spline of the charge pump shaft and consequently the inner spline of the inner gerotor wheel are affected by this change.

Models affected

H1 115/130cc pumps

Serial numbers

This change became effective at N-10-36-xxxxx (6 September 2010)

Part numbers affected

Code Description Old part number New part number
H1 Charge pump shaft, 11T, 16/32 11002333 11064258
H2 Charge pump shaft, 9T, 16/32 11002231 11064260
H3 Charge pump shaft, 13T, 16/32 11002232 11064272
H4 Charge pump shaft, 13T, 8/16 11002234 11045667
H5 Charge pump shaft, 15T, 16/32 11002235 11064275
H6 Charge pump shaft, 14T, 12/24 11002233 11064276
NN Charge pump shaft, 9T, 16/32 11002231 11064260
S1 Charge pump shaft, 14T, 12/24 11002233 11064276
A Charge pump kit, 26 cc 11004702 11075695
L Charge pump kit, 34 cc 11004704 11069135

Parts disposition

Interchangeable only if both parts are replaced together

Use parts in stock; old and new design cannot be mixed

Service bulletin

SB-2011-039

Products affected

H1 115/130cc pumps

Subject

Cylinder block spring washer change

Description

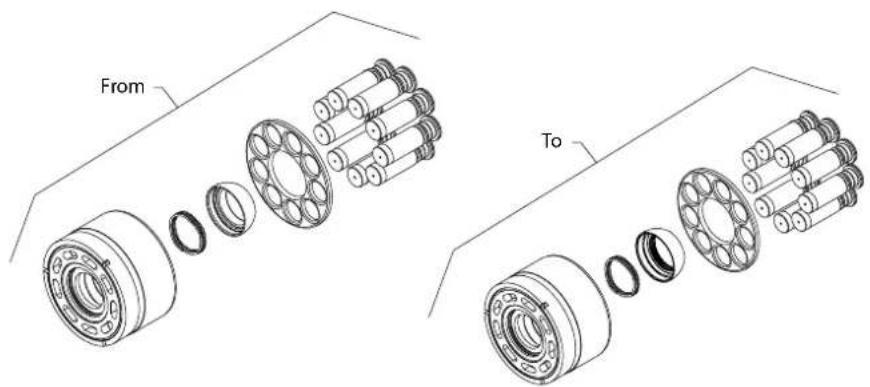

The new parts are not interchangeable with the old parts, and the old parts are no longer available. The cylinder block kit part number has not changed. If any of the old parts are needed, a new cylinder block kit must be used.

Models affected

H1 115/130cc pumps

Serial numbers

This change became effective at serial number

115 cc pumps N-11-38-xxxxx (20 September 2010)
130 cc pumps N-11-35-xxxxx. (29 August 2010)

Part numbers affected

Description Old part number New part number
Slipper retainer ball guide 141253 11121504
Spring washer 141276 11063561
Cylinder block assembly, 115cc - 11124490
Cylinder block assembly, 115cc, speed ring	- 11124491
Cylinder block assembly, 130cc - 11126003
Cylinder block assembly, 130cc, speed ring	- 11124493
Cylinder block kit, 115cc 141393/P no change
Cylinder block assembly, 115cc, speed ring	11030115 no change

Service bulletin

Description Old part number New part number
Cylinder block assembly, 130cc 141252	/P no change
Cylinder block assembly, 130cc, speed ring	11030173 no change

Parts disposition

Interchangeable only if both parts are replaced together

Service bulletin

SB-2012-026

Products affected

H1 115/130cc pumps

Subject

Shaft change

Description

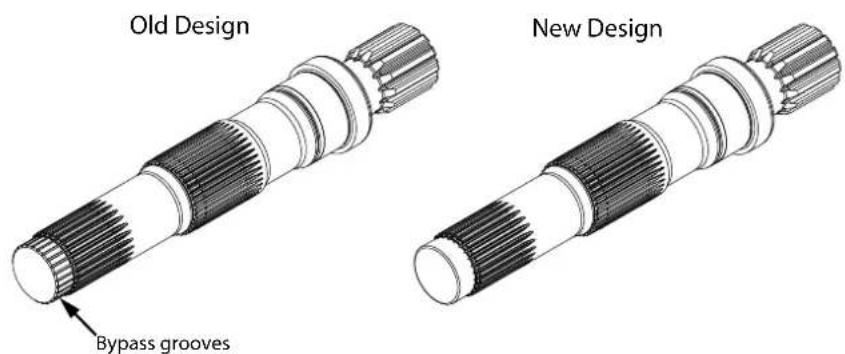

Danfoss has removed the bypass on the end of the shaft of 115/130cc H1 pumps. The old shaft allowed unfiltered oil from the pump case into the charge pump and the high pressure loop. The bypass feature is now in the end cap. This change is not interchangeable with EPF end caps that have external remote filtration built prior to 10-47-xxxxx (16 November 2010). The old design shafts are obsolete and no longer available.

Models affected

H1 115/130cc pumps

Serial numbers

See below

Part numbers affected

Description Old part number	New part number Effective	date
Shaft, tapered (F3) 11022062	11119637 N12-30-xxxxx (19 Sept.		2012)
Shaft, 27T (G2) 11001965 111	23698 N12-39-xxxxx (25 Sept.		2012)
Shaft, 13T (G3) 11001966 111	19634 N12-37-xxxxx (22 Oct. 2012)

Parts disposition

Non-interchangeable

Use parts in stock

Service bulletin

SB-2013-003

Products affected

H1 pumps

Subject

Valve plate change

Description

As part of continuing product improvement efforts, Danfoss is implementing a design change to the valve plates. The new valve plates are interchangeable with old valve plate. The new design reduces cavitation wear to the valve plate. The old valve plate will be become obsolete.

Models affected

H1 69 through 165cc pumps

Serial numbers

See below

Part numbers affected

Description Old part number	New part number Effective date
069/078 R CP17-1.5 11075607	11125564 N-13-05-xxxxx (31)	Jan 2013)
069/078 R CP17+2.5 11076867	11125563 N-13-05-xxxxx (31)	Jan 2013)
069/078 L CP17+2.5 11076867	11125551 N-13-05-xxxxx (31)	Jan 2013)
069/078 L CP17-1.5 11076866	11125562 N-13-05-xxxxx (31)	Jan 2013)
089/100 R CP17-1.5 11077025	11125566 N-13-05-xxxxx (31)	Jan 2013)
089/100 R CP17+2.5 11077027	11125567 N-12-50-xxxxx (12 Dec 2012)	Dec 2012)
089/100 L CP17-1.5 11077026	11125568 N-13-05-xxxxx (31)	Jan 2013)
089/100 L CP17+2.5 11077028	11125565 N-12-49-xxxxx (5 Dec 2012)
115/130 R CP17+2.5 11077029	11125572 N-13-05-xxxxx (25 Jan 2013)
115/130 R CP17-1.5 11077031	11123707 N-13-05-xxxxx (31 Jan 2013)

Service bulletin

Description Old part number	New part number Effective date
115/130 L CP17+2.5 1107703	0 11125569 N-13-05-xxxxx (3)	Jan 2013)
115/130 L CP17-1.5 1107706	2 11125571 N-13-03-xxxxx (16)	Jan 2013)
147/165 R CP17-1.5 1107706	3 11123708 N-13-05-xxxxx (3)	Jan 2013)
147/165 R CP17+2.5 1107706	4 11125576 N-13-05-xxxxx (3)	Jan 2013)
147/165 R (larger dia.) 11093	335 11126989 N-13-05-xxxxx	31 Jan 2013)
147/165 L CP17-1.5 1107706	4 11125575 N-13-03-xxxxx (14)	Jan 2013)
147/165 L CP17+2.5 1107706	6 11125574 N-13-05-xxxxx (3)	Jan 2013)

Parts disposition

• Interchangeable
  Use parts in stock

Service bulletin

SB-2013-019

Products affected

H1 pumps

Subject

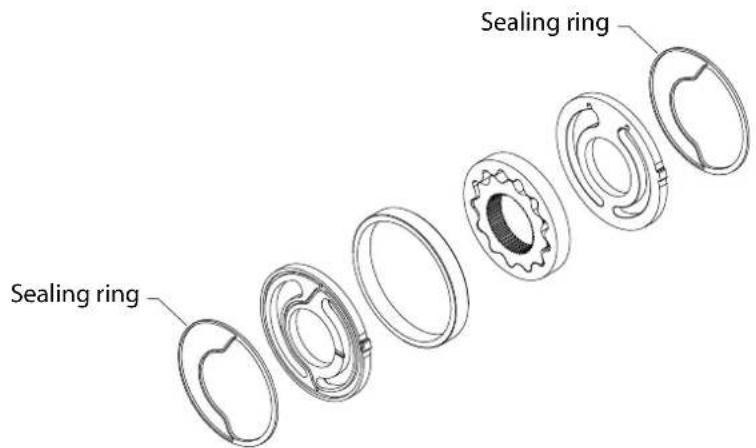

Charge pump seal

Description

As a product improvement, Danfoss has changed the material on the sealing ring in the charge pump port plates of H1 pumps. The part number was changed for tracking purposes because the parts look similar. The old part numbers will become obsolete and no longer available as service parts.

Models affected

H1 pumps

Serial numbers

Part 11126778 took effect at serial number: N-13-23-00773 (04June2013)

Part 11126777 took effect at serial number: N-13-22-25411 (28 May2013)

Part numbers affected

Description Old part number New part number
Seal Ring, H1P115-165 port plate 11008462 11126778
Seal Ring, H1P045-100 port plate 11009457 11126777

Parts disposition

Interchangeable

Scrap used parts

Service bulletin

SB-2015-035

Products affected

H1 pumps

Subject

Control override valve service kit change

Description

Service kits for Control Override Valves (CCO/COR) on H1 pumps have been reconfigured to include a new control option. There has been a connector change to the coil. The new connector is a DEUTSCH key-lock pin style (W2SC). The old solenoid has a wire lead with a standard DEUTSCH connector (W2P).

Old style control (W2P connector)

New style control (W2SC connector)

Each new service kit comes with an adapter cable which has a W2P and a W2SC on each end.

Adapter Cable

New service kit numbers have been issued for the new control option. The old service kits are no longer available. Reference PUB HY2014-175.

EDC, 12v DEUTSCH connector, COR

Before Change: H1-P-100-L-A-A6-C2-N-D8-H-F1-H5-L-42-L-42-D-P-24-PN-NNNNNN

After Change: H1-P-100-L-A-S6-C2-N-D8-H-F1-H5-L-42-L-42-D-P-24-PN-NNNNNN

EDC, 24v DEUTSCH connector, CCO

Before Change: H1-P-100-R-A-C1-C2-N-D6-H-G9-H2-L-38-L-38-M-L-24-PN-NNNNNN

After Change: H1-P-100-R-A-E8-C2-N-D6-H-G9-H2-L-38-L-38-M-L-24-PN-NNNNNN

Models affected

H1 pumps

Service bulletin

Serial numbers

No serial numbers affected. The new option began with the new part number.

Part numbers affected

Description Old control option Old number New control			option	New number
SVC KIT-EDC, H1P 12V DT04 FAST CORF A6 11019736 S6 11152574	4
SVC KIT-EDC, H1P 12V DT04 CCO C5 11086382 E7 11147471
SVC KIT-EDC, H1P 12V DT04 CCO KEY-C D4 11131492 E7 11147471
SVC KIT-EDC, H1P 24V DT04 CCO C6 11086383 E8 11147472
SVC KIT-EDC, H1P 24V DT04 FAST CORF C1 11037176 E8 11147472
SVC KIT-EDC, H1P 095 12V CCO E5 11147422
SVC KIT-EDC, H1P 095 24V CCO E6 11147423
CABLE-ADAPTER (W2SC/ W2SC) 11153287
CABLE-ADAPTER (W2SC/ W2P) 11150437

Control options S6, E7 and E8 contain parts for the new style connector. The attached cable adaptor W2P / W2SC supplied in the service kit is necessary to replace the old control.

Parts disposition

Non-interchangeable

Service bulletin

SB-2016-004

Products affected

H1 115/130cc pumps

Subject

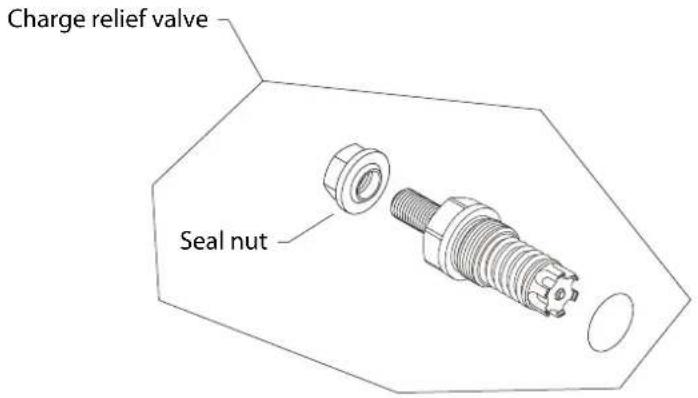

Charge relief valve

Description

A design change has been made to the charge pressure relief valve on all 115/130cc H1 pumps. The charge relief poppet drain hole has been relocated to the side and the adjusting set screw and seal lock nut have changed from M8 to M12 threading.

The old charge relief valve is interchangeable, but the new charge relief valve is not. Components within the assemblies are not interchangeable.

Models affected

H1 115/130cc pumps

Serial numbers

The STD end cap change became effective at serial number N-15-01-xxxxxx (03 Jan 2015)

The ISL end cap change became effective at serial number N-15-13-xxxxx (30 March 2015)

Part numbers affected

Description Old part number New part number
Charge pressure relief valve kit 18-22 bar	11004711 11137578
Charge pressure relief valve kit 24-34 bar	11017127 11137579
Seal nut 612291 (9003508-0008) 066159

Parts disposition

Non-interchangeable

Service bulletin

SB-2016-005

Products affected

H1 115/130cc pumps

Subject

End cap

Description

The SAE-D end cap on 115/130cc H1 pumps has been changed to a standard end cap with a SAE-D flange adapter. The SAE-D flange is now bolted to the standard end cap. The thread depth in the housing was deepened to allow for the standard end cap screws (130mm).

The integrated SAE-D end cap has been obsoleted and the end caps are not interchangeable.

Models affected

H1 115/130cc pumps

Serial numbers

See below

Service bulletin

Part numbers affected

Description Old part number New part num	ber Effective date
End cap assembly, 115/130L, SAE-D (D3) 11003	644 11003643 9/10/2014
End cap assembly, 115/130R, SAE-D (D3) 11003	666 11003665 1/09/2015
End cap assembly, 115/130L, SAE-D, ISL (D4) 11	003650 11003650 1/09/2015
End cap assembly, 115/130R, SAE-D, ISL (D4) 11	003672 11003672 1/09/2015
End cap assembly, 115/130L, SAE-D (D6) 11003	648 11003645 10/13/2014
End cap assembly, 115/130R, SAE-D (D6) 11003	670 11003667 10/23/2014
End cap assembly, 115/130L, SAE-D (D8) 11003	646 11003647 9/11/2014
End cap assembly, 115/130R, SAE-D (D8) 11003	668 11003669 10/20/2014
End cap assembly, 115/130L, SAE-D, ISL (E8) 11	101861 11003671 2/13/2015
End cap assembly, 115/130R, SAE-D, ISL (E8) 11	003649 11003649 2/1/2015
End cap screw 519508 5000676 N/A
Adapter, H1P115/130 SAE-D (H4) 11109108 11	109108 9/10/2014
Adapter seal 11125012 11125012 N/A

Parts disposition

Non-interchangeable

Service bulletin

SB-2016-033

Products H1 pumps and tandems, MP1 and M46 control kits affected

Subject Control Gasket

Description

Danfoss Power Solutions has made a two-part design change to the control gasket used on H1 pumps and tenders and in MP1 and M46 control kits. The electrical displacement controls (EDC) have changed from an 8mm port to 12mm with tabs on the pressure port. The interim gasket used in the manual displacement controls has changed from a 10mm port to 12mm with tabs in the pressure port.

The gasket is now a common part to all pump models and control service kits. The new part can be substituted for the old part, but the old part cannot be substituted for the new part.

Old gasket New gasket

Models H1 pumps and tandems, MP1 control kits, M46 control kits affected

Serial H1 Pumps - This change became effective on N-16-36-30132

H1 Tandems - This change became effective on N-16-37-30132

MP1 Control Kits - This change became effective on N-16-32-xxxxxx

M46 Control Kits - This change became effective on N-16-32-xxxxxx

Part numbers affected

Description Old part number	New part number
Electrical displa Caement control gasket	140879 11173377
Manual displa Caement control gasket	11159911 11173377

Parts Non-interchangeable - can substitute new for old disposition

Service bulletin

SB-2018-006

Products affected

H1 115/130cc pumps

Subject

Shaft and cylinder block kit change

Description

Danfoss has made design changes to the main shaft and the slipper retainer ball guide in the H1 115/130cc pumps cylinder block kit. The internal block splines on the shaft are now machined longer and the slipper retainer ball guide is now splined.

The new shaft may be substituted for the old shaft, but the old shaft cannot be substituted for the new shaft. The old shaft will be obsoleted.

The slipper retainer ball guide design is changed from non-splined to splined due to the new shaft spline design change. The new splined ball guide can be used only with the new shaft design and it is not interchangeable. The old slipper retainer ball guide will be obsoleted.

Shaft Change:
Cylinder Block Kit Change:

Models affected

H1 115/130cc pumps

Service bulletin

Serial numbers

Shaft change became effective at November 6, 2017 (N1745xxxxx)

Cylinder block kit change became effective at November 15, 2017 (N1747xxxxx)

Part numbers affected

Description Old Part Number New Part Number
Shaft, H1P115-130 13T 8/16 11119634	11176728
Shaft, H1P115-130 TAPER 44-3 Keyway	11119637 11179440
Shaft, H1P115-130 27T 16/32 11123698	11179438
Shaft, H1P115-130 21T DIN5480 11135	523 11179441
Shaft, H1P115-130 18T DIN 5480 11170	708 11179439
Shaft, H1P115-130 13T 8/16 VCP 11170	711 11179207
Kit-Cylinder-Block H1P130 RIF 1117184	1 11190004
Kit-Cylinder-Block H1P115 RIF 1117772	2 11190003
Kit-Cylinder-Block H1P115 141393/P 1	190003
Kit-Cylinder-Block H1P130 141252/P 1	190004
Kit-Cylinder-Block H1P115 Speed Sensor	11030115 11191005
Kit-Cylinder-Block H1P130 Speed Sensor	11030173 11191006
Guide-Slipper Retainer, H1P115-130 11	121504 11139801

Parts disposition

Shaft is interchangeable- new to old

Cylinder block kit is non-interchangeable

Slipper retainer ball guide is non-interchangeable

Service bulletin

SB-2018-010

Products affected

H1 controls

subject

Manual handle and bolt design change

Description

Danfoss has changed the manual handle and screw on all manual displacement controls used on 45/53cc, 60/68cc, 69/78cc, 89/100cc, 115/130cc, 147/165cc and 210/250cc H1 pumps as a product improvement.

The tension screw for the handle has been moved to the outer edge of the part to increase the clamping capacity onto the shaft. The screw has changed from a grade 12.9 to 10.8, changing the torque to 9Nm .

The new parts are interchangeable with the old parts. The old parts are not interchangeable with the new parts due to the clamp load of the part to the shaft.

Old control handle New control handle

Models affected

H1 45/53cc, 60/68cc, 69/78cc, 89/100cc, 115/130cc, 147/165cc, 210/250cc pumps

Serial numbers

This change became effective on January 31, 2018

Part numbers affected

Description Old number New number
Screw 041160 11173701
Handle 11113513 11185938

Parts disposition

Non-interchangeable (clamp load)

Service bulletin

SB-2018-025

Products affected

H1 pumps

Subject

Swashplate feedback link

Description

Danfoss has made a design change to the swashplate feedback link on H1 pumps. To improve the compatibility of the controls that uses the angle sensor. The contact point on the feedback link, to the spring linkage on the angle sensor, has increased in width.

The new part can be substituted for the old part, but the old part cannot be substituted for the new. Old parts will be obsoleted.

Old feedback link New feedback link

Models affected

H1 45/53cc, 60/68cc, 69/78cc, 89/100cc, 115/130cc, 147/165cc, 210/250cc Pumps and Tandems

Serial numbers

This change became effective in Ames A-18-09-xxxxx

This change became effective in Germany N-18-06-xxxxx

Part numbers affected

Description Old Part Number New Part Number
Link-Swashplate feedback, H1P 11167724 11202172
Link-Swashplate feedback, H1P 11148827 11202172

Parts disposition

Non-interchangeable

Service bulletin

SB-2018-036

Products affected

H1 115/130, 147/165, 210/25cc pumps

Subject

Adapter SAE-C flange and screws change

Description

Changes have been made to the adapter screws and the SAE-C adapter on H1 115/250cc pumps to reduce assembly variation. The screw length on the SAE-C adapter changed from 35mm to 30mm . The thickness of the adapter has been changed to improve thread engagement. The old adapter is 18.7mm and the new adapter is 15.7mm for the mounting bolt thickness.

The old versions of the screws and adapters are not interchangeable with the new versions. If an old screw (35mm) is used with a new adapter, screws will bottom out and cause a leak. If the new screw (30mm) is used with an old adapter, screws could strip before the proper torque is achieved.

Models affected

H1 115/130, 147/165, 210/250cc pumps

Serial numbers affected

This change became effective at serial number 15 July 2018 (N-19-29-xxxxx)

This change became effective at serial number 21 Dec 2018 (A-18-51-xxxxx)

Part numbers affected

Description Old Part Number New Part Number
Screw (K400) 11071462 140700
ADAPTER, H1P115-250 127-2-4 11002193 11138744

Parts disposition

Non-interchangeable

SB-2020-029

Products affected

H1 pumps and tandems

Subject

Pressure limiter kits

Service bulletin

Description

Danfoss has changed to the pressure limiter service kit. The screens from the housing service kit have been moved to the pressure limiter service kit. The housing assembly (QH125) will continue to come with the screens (and retainers depending on the frame size) pre-assembled.

There is no part number change to the pressure limiter service kit or the housing service kits. In case of conversion of such pumps to those with PL-valves the end cap must be removed to install PL screens and retainers. Please refer to the Repair Instructions.

Generic end cap and housing used to show part location only.

Models affected

H1 pumps and tandems: 45/53cc; 60/68cc; 89/100cc; 115/130cc; 147/165cc; 210/250cc

Serial numbers affected

This change became effective at (01 October 2020)

Part numbers affected

None

Parts disposition

Not applicable

Service bulletin

SB-2021-014

Products affected

H1 and MP1 pumps

Subject

Automotive control plug design change

Description

Danfoss Power Solutions has made a design change to the Automotive Control (AC) plug on H1 and MP1 products. The new O-ring has an improved seal around the plug to the housing. This affects all automotive control service kits (AC).

The new and old plugs are not interchangeable. Overhaul seal kits will contain both the old and new plugs. Automotive Control (AC) service kit part numbers have been because the plug is non-interchangeable. The older service kits have been obsoleted.

Models affected

H1, MP1 Automotive Control (AC)

Serial numbers affected

This change became effective at N-21-13-xxxx 01 April 2021
This change became effective at S-21-17-xxxx 28 May 2021
This change became effective at A-21-18-xxxx 03 May 2021

Service bulletin

Part numbers affected

Description Old Part Number New Part Number
PLUG-HOUSING-CONTROLLER-AC H1P ASSY 11000467 112	26992
SVC KIT-AC1, GEN1 12V GENERIC D3F 11065118 11232544
SVC KIT-AC2, GEN1 12V GENERIC D5F 11065119 11232766
SVC KIT-AC1, GEN1 24V GENERIC D4F 11065120 11232765
SVC KIT-AC2, GEN1 24V GENERIC D6F 11065121 11232767
SVC KIT-AC1, GEN3 12V GENERIC D3F 11147941 11232768
SVC KIT-AC2, GEN3 12V GENERIC D5F 11147940 11232770
SVC KIT-AC1, GEN3 24V GENERIC D4F 11147943 11232769
SVC KIT-AC2, GEN3 24V GENERIC D6F 11147942 11232771
SVC KIT-AC1, GEN3 FLASH 12V GENERIC F1E 11180761 112	32792
SVC KIT-AC1, GEN3 FLASH 24V GENERIC F1E 11180762 112	32793
SVC KIT-AC2, GEN3 FLASH 12V GENERIC F2J 11180763 112	32794
SVC KIT-AC2, GEN3 FLASH 24V GENERIC F2J 11180765 112	32795
SVC KIT-AC1, GEN1 HG 12V GENERIC D3F 11082509 11234	05
SVC KIT-AC2, GEN1 HG 12V GENERIC D5F 11082522 11234	06
SVC KIT-AC1, GEN1 HG 24V GENERIC D4F 11082524 11234	07
SVC KIT-AC2, GEN1 HG 24V GENERIC D6F 11052526 11234	08
SVC KIT-AC1, H1P078 GEN1 12V CUST D33 11134620 11234	311
SVC KIT-AC1, GEN1 12V CUST D57 11155464 11234317
SVC KIT-AC1, H1P078 GEN1 12V CUST D20 11160841 11234	319
SVC KIT-AC1, GEN1 24V CUST D61 11193660 11234326
SVC KIT-AC2, GEN1 24V GENERIC D5J 11195129 11234327
SVC KIT-AC2, GEN1 24V CUST C90 C93 11195374 11234328
SVC KIT-AC1, GEN1 12V CUST D90 11193446 11234416
SVC KIT-AC1, GEN3 12V CUST D90 11198212 11234417
SVC KIT-AC1, GEN3 12V CUST D93 11201433 11234418
SVC KIT-AC1, GEN1 12V CUST D12 11201908 11234419
SVC KIT-AC, H1P 12V CUST (D92) 11235075 11235075
SVC KIT-AC1, GEN3 FLASH 12V FA1 11239052 11281634

Parts disposition

Non-interchangeable

Products we offer:

• Cartridge valves
  DCV directional control valves
  Electric converters
  Electric machines
  Electric motors
  Gearmotors
  Gear pumps
  Hydraulic integrated circuits (HICs)
  Hydrostatic motors
• Hydrostatic pumps
  Orbital motors
  PLUS+1 controllers
  PLUS+1* displays
  PLUS+1 joysticks and pedals
  PLUS+1* operator interfaces
  PLUS+1* sensors
  PLUS+1* software
  PLUS+1 software services, support and training
  Position controls and sensors
• PVG proportional valves
• Steering components and systems
  Telematics

Hydro-Gear

www.hydro-gear.com

Daikin-Sauer-Danfoss

www.daikin-sauer-danfoss.com

Danfoss Power Solutions is a global manufacturer and supplier of high-quality hydraulic and electric components. We specialize in providing state-of-the-art technology and solutions that excel in the harsh operating conditions of the mobile off-highway market as well as the marine sector. Building on our extensive applications expertise, we work closely with you to ensure exceptional performance for a broad range of applications. We help you and other customers around the world speed up system development, reduce costs and bring vehicles and vessels to market faster.

Danfoss Power Solutions – your strongest partner in mobile hydraulics and mobile electrification.

Go to www.danfoss.com for further product information.

We offer you expert worldwide support for ensuring the best possible solutions for outstanding performance. And with an extensive network of Global Service Partners, we also provide you with comprehensive global service for all of our components.

Local address:

Danfoss

Power Solutions (US) Company 2800 East 13th Street

800 East 13th StreetAmes,IA50010,USA

D-24539 Neumunster, Germany

Phone: [phone]

Danfoss

Power Solutions ApS

Nordborgvej 81

DK-6430 Nordborg, Denmark

Phone: [phone]

Danfoss

Power Solutions Trading

(Shanghai) Co., Ltd.

Building #22, No. 1000 Jin Hai Rd

Jin Qiao, Pudong New District

Shanghai, China 201206

Phone: [phone]
