302318 - Hard Drive Aplic - Free user manual and instructions

Product Type	Hard Drive Docking Station
Brand	Aplic
Model	302318
Color	Black
Number of Bays	2
Supported Disk Formats	2.5 inch and 3.5 inch
Connection Interface	USB 3.0
Power Supply	12V, 2.5A (power adapter included)
Main Functions	Simultaneous read/write, disk cloning
Maximum Transfer Rate	Up to 5 Gbps (USB 3.0)
System Compatibility	Windows, Mac OS
LED Indicators	Cloning progress indicator
Buttons	Power On/Off, Clone
Safety	Do not open, avoid moisture, do not expose to high temperatures
Maintenance and Cleaning	Clean with a dry, lint-free cloth
Spare Parts and Repairability	Not provided - contact customer service
Warranty	2 years
Recycling	Compliant with WEEE directive 2012/19/EU
Included Accessories	Docking station, power adapter, USB 3.0 cable, user manual
Country of Origin	China (estimated)

Frequently Asked Questions - 302318 Aplic

What types of hard drives can I use with this docking station?

The Aplic 302318 docking station supports 2.5-inch and 3.5-inch hard drives with SATA interface.

How to use the cloning function?

Insert the source disk (to be cloned) into HDD1 bay and the target disk (at least equal capacity) into HDD2. Turn on the device, then press the Clone button twice. The indicator shows progress. Disconnect the USB cable during cloning.

Can I connect the docking station to a laptop without external power?

No, power is required because the station uses 12V, 2.5A. The USB cable alone does not provide enough power for 3.5-inch drives.

Why does my computer only recognize one disk after cloning?

After cloning, both disks have the same designation. In Windows, go to Disk Management, right-click the desired volume and choose Change Drive Letter and Paths to distinguish them.

Is it possible to clone a smaller disk to a larger one?

Yes, provided the target disk has at least the same capacity as the source disk. The target disk will be erased before cloning.

Is the docking station compatible with SSDs?

Yes, it supports hard drives and SSDs in 2.5 or 3.5 inch format with SATA interface.

What to do if the station does not turn on?

Check that the power adapter is properly connected to the station and to a working outlet. Press the Power button on the front panel.

Can I use the station to read data without cloning?

Yes, simply connect the station via USB to your computer, insert a hard drive, and turn it on. The disks will appear as external drives.

How to clean the docking station?

Unplug the device and clean it with a dry, lint-free cloth. Do not use liquid or abrasive products.

Where can I find spare parts if needed?

Spare parts are not provided by the manufacturer. In case of issues, please contact Aplic customer service or your retailer.

USER MANUAL 302318 Aplic

Thank you for having chosen this Aplic product and for placing your trust in our company. Please read this manual carefully before installation on to ensure your long-term enjoyment of this product. For future reference, please keep this manual.

1 Scope of supply

HDD Docking Station
Power supply
- USB 3.0 connecti on cable
- User manual

2 Technical specific cati ons

Power supply 12V, 2.5A
Connecti on USB 3.0
Supported hard disk size 2.5" and 3.5"
Features Clone functi on

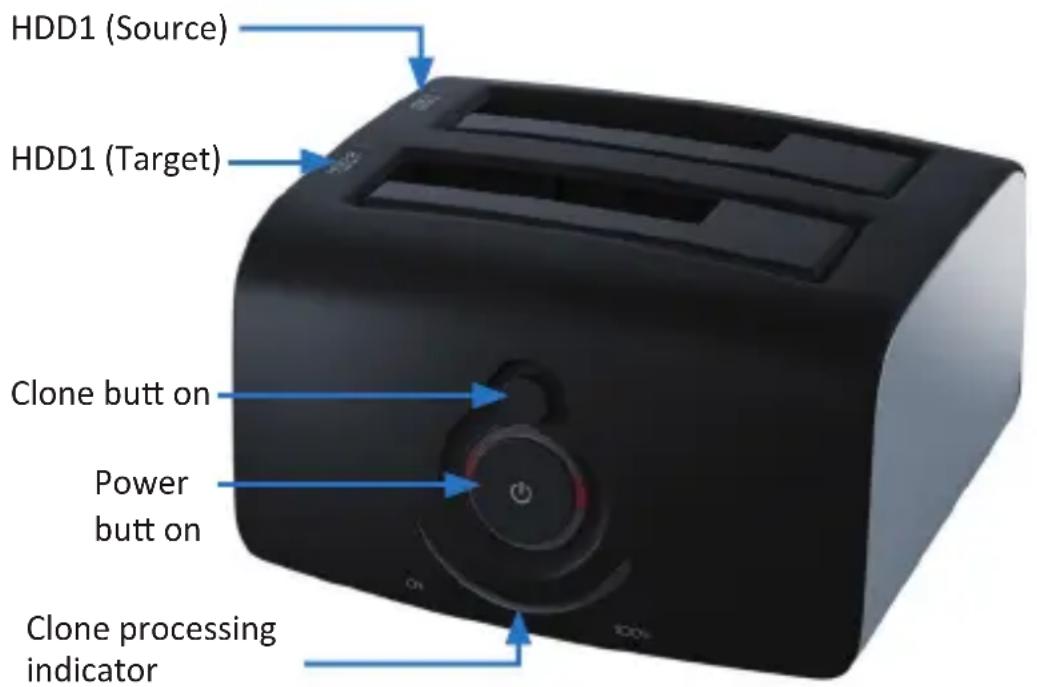

3 Product details

4 Functi ons

With the HDD docking stati on, you can read or write up to two hard drives simultaneously via one USB port. Due to the convenient clone functi on, you can backup data from one hard drive to another.

5 Initial use

Take the device out of the package and remove all the packaging material. Place the unit on a flat surface. Now connect one or two hard drives with the appropriate connections. Connect the included USB cable to the docking stati on and to your computer or notebook. Connect the 12V power supply to the docking stati on and then to a properly wired outlet. Then press the "power" butt on. The butt on is located on the front of the device. Aft er it, the docking stati on is ready for use.

6 Clone functi on

Note: The hard disks can get hot during the clone process.

Make sure that the destinati on hard disk has at least the same size as the hard disk to be cloned. The destinati on disk will be completely deleted at the start of the operation on. Please back-up your important data beforehand, if necessary.

Note: Please make sure that the USB 3.0 cable is not connected to your computer or laptop during the period of cloning.

The hard drive (source) to-be cloned should be plugged into one bay "HDD 1" and the destinati on disk into "HDD 2". Turn on the device with the "power" butt on on the front.

Press twice in rapid succession the "clone" butt on on the front of the device until the clone processing indicator starts flashing (from left to right: 0-100%). The cloning will start and the LED display shows the cloning process. The cloning process is completed if the progress indicator reaches 100% and stops flashing.

After a successful "clone" operati on, you can connect the docking stati on to your computer again. In few cases just one hard disk might be recognised because it both have the same names and data.

You can assign drive letters manually, by searching for "Computer Management", opening it and then navigating to "Disk Management". Perform a right-click on the desired drive and select "Change Drive Letter and Paths...".

7 Safety instructi ons and liability disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certi fi ed for use in the open air; only use it in dry condi ons. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibrati on as this might damage electronic components.

Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe nati onal regulati ons and restricti ons. Do not use the device for purposes other than those described in the instructi ons. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alterati on to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructi ons. The device specifi cati ons may change without any separate prior notice to this effect.

8 Disposal instructi ons

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by nati onal law. The symbol on the product, the operati ng instructi ons and/or the packaging refers to these regulations. By separati ng materials in this way, recycling and disposing of old devices, you are making an important contributi on towards protecting our environment.

WEEE guideline: 2012/19/EU
WEEE register number: DE 94495668

WD Plus GmbH, herewith declares that this product 302318/20170306SZ142 conforms to the principle requirements and other relevant stipulations of Directive. The complete Declaration on of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover
