303163 - Hard Drive Aplic - Free user manual and instructions

Product type	External USB 3.0 enclosure for M.2 SSD
Brand	Aplic
Model	303163
Interface	USB 3.0 (compatible with USB 2.0)
Compatible SSD format	M.2 (NGFF) 2242, 2260, 2280
Transfer speed	Up to 5 Gbit/s (USB 3.0)
UASP support	Yes
Dimensions	Approx. 100 x 40 x 10 mm
Weight	Approx. 50 g (without SSD)
Power supply	Via USB port (self-powered)
Material	Aluminum
Compatible operating systems	Windows, macOS, Linux
Package contents	Enclosure, USB 3.0 cable, Phillips screwdriver, quick guide
Installation	Requires insertion of M.2 SSD (not included)
Care and cleaning	Clean with a dry, soft cloth
Safety	Do not open, protect from moisture and shocks
Spare parts and repairability	Not user-repairable; spare parts not provided
Warranty	2 years
Certifications	Compliant with WEEE (2012/19/EU)
Registration number	DE 67896761
Main functions	Transform an M.2 SSD into a portable external drive

Frequently Asked Questions - 303163 Aplic

How to install an M.2 SSD into the enclosure?

Open the enclosure by unscrewing the cover with the provided screwdriver. Remove the cover, then insert the M.2 SSD into the connector on the adapter board. Replace the board into the enclosure and screw the cover back on. Then connect the USB 3.0 cable to the enclosure and then to your computer.

Which types of M.2 SSDs are compatible?

The enclosure accepts M.2 SSDs in formats 2242, 2260 and 2280 (lengths 42, 60 and 80 mm). It supports both SATA and NVMe interfaces via PCIe bus, thanks to UASP support.

Why doesn't my computer detect the enclosure?

First check that the USB cable is properly connected and that the USB port is functional. Make sure the SSD is correctly inserted. On Windows, open Device Manager to see if the enclosure appears. If the problem persists, try another USB port or another computer.

Does the enclosure require external power?

No, the enclosure is self-powered via the USB port. It draws power directly from the computer or USB hub. No external power supply is required.

What is the maximum transfer speed?

The enclosure uses the USB 3.0 interface, which allows transfer speeds up to 5 Gbit/s (theoretical). Actual performance depends on the SSD used and the computer configuration.

Can I use this enclosure with both SATA and NVMe M.2 SSDs?

Yes, the enclosure is compatible with both types. However, check that your SSD uses the M.2 (NGFF) form factor. UASP support ensures optimal performance for both protocols.

How to format the SSD after installation?

Once the enclosure is connected and detected, open your system's disk management utility (on Windows: Disk Management; on macOS: Disk Utility). Select the SSD, then format it with the file system of your choice (NTFS, exFAT, APFS, etc.). Note: formatting erases all data.

Is the enclosure compatible with operating systems other than Windows?

Yes, the enclosure is compatible with macOS and Linux. No specific drivers are needed. It is recognized as a standard storage device.

What to do if the enclosure gets hot?

Mild warming is normal during heavy transfers. The aluminum enclosure dissipates heat. If it becomes very hot, reduce the workload or check that the SSD is not overheating. Ensure the enclosure is in a well-ventilated area.

How to clean the enclosure?

Use a dry, soft cloth to wipe the exterior of the enclosure. Do not use chemical or abrasive cleaners. Never clean the interior, as opening the enclosure during operation may damage components.

USER MANUAL 303163 Aplic

Thank you having chosen this Aplic product and for placing your trust in our company. Please read this manual carefully before installation to ensure your long-term enjoyment of this product. For future reference, please keep this manual.

1 Scope of delivery

• USB 3.0, M.2 Hard drive enclosure
• Screwdriver
• User manual
  USB 3.0 cable

2 Technical data

Port USB 3.0
Suitable hard disk drive M.2
Features UASP

3 Initial startup and assembly

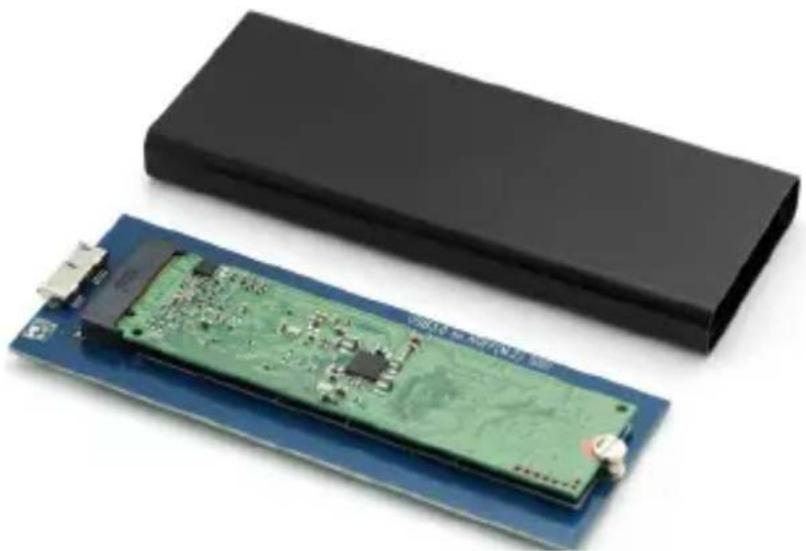

Please remove the hard disk enclosure from its packaging. Open the case with the screwdriver supplied in the scope of delivery. After loosening the screws please remove the front cover and take out the circuit board. Insert the hard drive using the adapter.

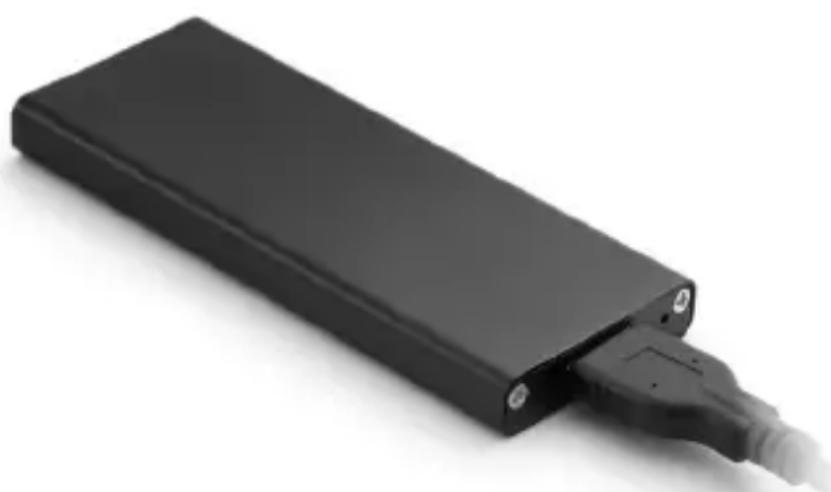

After it, insert the adapter including the hard drive into the casing and fix the front cover using the screws. Use the USB 3.0 cable supplied to connect the hard drive enclosure to a USB 3.0 port of a PC or other terminal devices.

4 Safety instructions and liability disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components.

Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

5 Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.

WEEE guideline: 2012/19/EU
WEEE register number: DE 67896761

WD Plus GmbH, herewith declares that this product 303163/20171211SZ144 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
