303473 - External hard drive enclosure Aplic - Free user manual and instructions

Product type	External enclosure for M.2 SSD
Model	303473 (Aplic)
Approximate dimensions	120 x 40 x 12 mm
Approximate weight	50 g
Power supply	USB bus-powered (5 V)
Connector	USB 3.0 (micro-USB on enclosure, USB-A on host)
Compatible SSD formats	M.2 (all common formats: 2230, 2242, 2260, 2280)
Supported protocol	UASP (USB Attached SCSI Protocol) for better performance
Maximum transfer speed	Up to 5 Gbps (USB 3.0 SuperSpeed)
Box contents	Enclosure, Phillips screwdriver, quick start guide, USB 3.0 cable
Care and cleaning	Clean with a dry, lint-free cloth. Do not use abrasive or liquid products.
Safety	Do not open, do not expose to moisture or high temperatures. Use only indoors and dry areas.
Spare parts and repairability	Parts supplied: USB cable, screwdriver. User repair not intended; contact after-sales service.
General information	Brand: Aplic. Model: 303473. Manufactured for WD Plus GmbH (Germany). Compliant with WEEE Directive 2012/19/EU.

Frequently Asked Questions - 303473 Aplic

What types of M.2 SSDs are compatible with this Aplic 303473 enclosure?

This enclosure accepts common M.2 SSD formats: 2230, 2242, 2260, and 2280. It supports both SATA and NVMe interfaces (via UASP compatible protocol).

How do I install an SSD in the 303473 enclosure?

Use the provided screwdriver to unscrew the front cover. Remove the adapter board, connect your M.2 SSD to the board, place everything back into the enclosure, and screw the cover back on. Then plug in the USB cable.

Does this enclosure require an external power supply?

No, it is powered directly from your computer's USB port. Make sure to use a USB 3.0 port for optimal performance.

What is the maximum transfer speed?

With a USB 3.0 connection, the theoretical speed can reach up to 5 Gbps (SuperSpeed). Actual performance depends on the SSD used and the protocol (UASP improves throughput).

Is the enclosure compatible with USB 2.0?

Yes, it is backward compatible with USB 2.0, but the speed will be limited to 480 Mbps. For best performance, use a USB 3.0 port.

Can I use this enclosure with a game console?

Yes, it can be used with USB-compatible consoles (like PS4/PS5 or Xbox in external storage mode). Check the required file formats for your console.

What if my computer does not detect the drive?

Check that the SSD is properly inserted into the board. Try a different USB port or cable. On Windows, open 'Disk Management' to initialize and format the disk if necessary.

How do I maintain the 303473 enclosure?

Clean it with a soft, dry cloth. Avoid moisture and extreme temperatures. Do not attempt to open it beyond the intended cover.

Is the enclosure compatible with SATA M.2 SSDs?

Yes, it supports M.2 SATA SSDs. Ensure the connector matches (key B and M). The enclosure uses a suitable USB 3.0 controller.

Can I use the enclosure without the provided screwdriver?

The screwdriver is required to open the enclosure. It is included with the product. If lost, a standard small Phillips screwdriver will work.

USER MANUAL 303473 Aplic

Hard Disk Enclosure, USB 3.0, M.2, black

Thank you having chosen this Aplic product and for placing your trust in our company. Please read this manual carefully before installation to ensure your long-term enjoyment of this product. For future reference, please keep this manual.

1 Scope of delivery

• USB 3.0, M.2 Hard drive enclosure
- Screwdriver
- User manual
- USB 3.0 cable

2 Technical data

Port USB 3.0
Suitable hard disk drive M.2
Features UASP

3 Initial startup and assembly

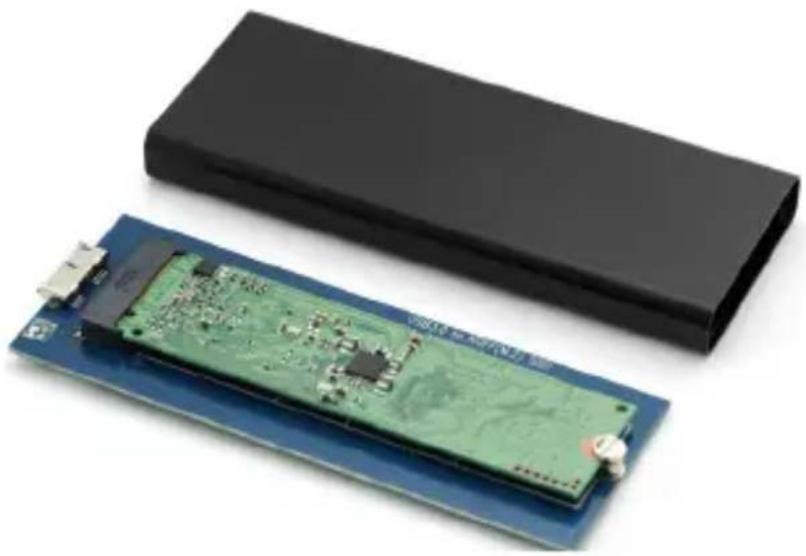

Please remove the hard disk enclosure from its packaging. Open the case with the screwdriver supplied in the scope of delivery. After loosening the screws please remove the front cover and take out the circuit board. Insert the hard drive using the adapter.

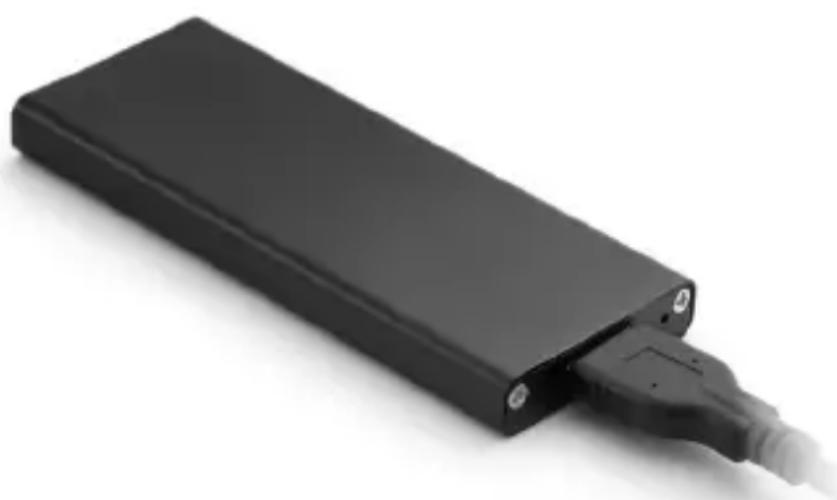

After it, insert the adapter including the hard drive into the casing and fix the front cover using the screws. Use the USB 3.0 cable supplied to connect the hard drive enclosure to a USB 3.0 port of a PC or other terminal devices.

4 Safety instructions and liability disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components.

Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

5 Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.

WEEE guideline: 2012/19/EU WEEE register number: DE 67896761

WD Plus GmbH, herewith declares that this product 303473/20190403SZ144 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
