USER MANUAL 302985 Aplic

Blue abstract logo shape resembling a stylized letter 'Q' or droplet (no text or symbols)

a p l i c

(DE) 0800 72 444 05

+49 511 / 13221 710

(UK) +49 511 / 13221 720

(FR) +49 511 / 13221 730

(IT) +49 511 / 13221 740

(ES) +49 511 / 13221 750

MON-FRI 9:30am - 18pm CET

QR code image containing encoded data, no visible human-readable text

https://downloads.ganzeinfach.de/

Electric plug connected to a cable with a separate screen showing a device (no text or symbols visible)

Thank you for having chosen this aplic product and for placing your trust in our company. Please read this manual carefully before installation to ensure your long-term enjoyment of this product. For future reference, please keep this manual

1. Scope of delivery

• Quick charger
• User manual

2. Technical data

Input voltage 100-240V AC 50/60Hz
Output voltage (Quick Charge 3.0)	3,6V-6,5V / 3A or 6,5V-9V / 2A or 9V-12V / 1,5A
Output current (Standard) 5V /2,4A
Port (Output) 1x USB (Quick Charge 3.0)
Protection class 2

3. Usage

With the aplic USB 1-Port Quick charger you have the option to charge quickly and easily mobile devices such as your smartphones, MP3 players, digital cameras and navigation devices via an electric socket. Due to the Quick Charge 3.0 port, Quick Charge enabled devices can be charged four times faster than conventional chargers. You only have to connect your Quick Charge 3.0 compatible device to the corresponding Quick Charge port. Please note that the maximum currents specified for each socket are not exceeded. Also note that the electrical current of the device you want to charge must not be higher than the output current of the USB charger.

Note: The USB 1-Port Quick charger is suitable for QC 3.0 devices and downwards compatible with Quick Charge 1.0 technology and also Quick Charge 2.0 devices.

Make sure your devices support the Quick Charge technology in order to speed up charging. Otherwise, there is no speed advantage. Apple devices do not support fast-charging. Only standard-charging is possible.

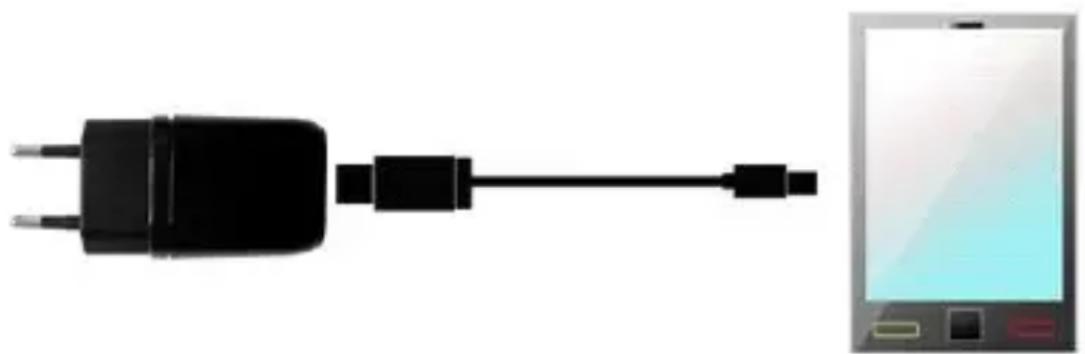

4. Getting started

At first, you have to connect your device via the USB port on the charger. For some devices, a separate connection cable (e.g. microUSB cable) is required for this. Then plug the charger into a properly installed socket.

Important note: Please remove the charger after charging process from the set in order to avoid constant recharging of all connected devices.

Electric plug connected to a cable via a connector, next to a smartphone screen (no text or symbols visible)

5. Safety instructions and liability disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a

toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

6. Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.

WEEE guideline: 2012/19/EU

WEEE register number: DE 67896761

WD Plus GmbH, herewith declares that this product 302985 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
