USER MANUAL SPJ-1200ABT Vonyx

SPJ Hi-End Active Speaker Series BT/USB/SD

Ref. nr.: 178.045 / 178.042

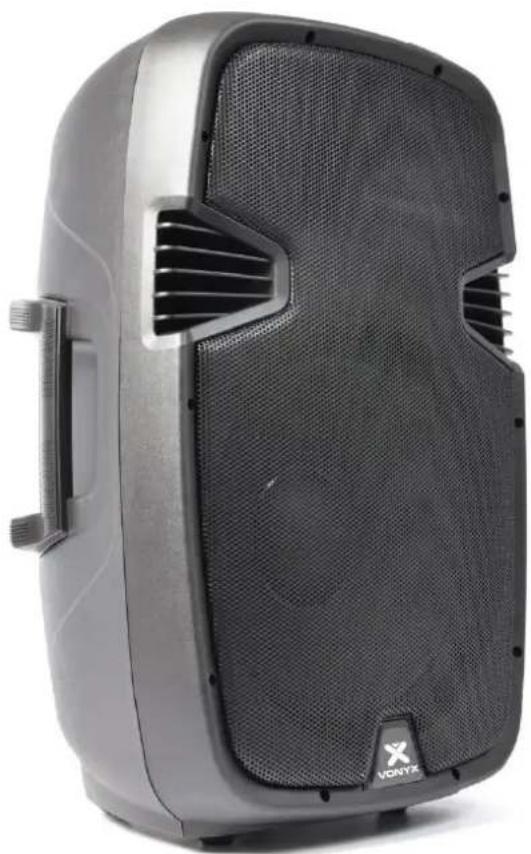

Exterior view of a black Vonyx audio amplifier speaker with visible grille and ventilation slots (no text or symbols on body)

INSTRUCTION MANUAL GEBRUIKSAANWIJZING GEBRAUCHSANLEITUNG MANUAL DE INSTRUCCIONES MANUEL D'INSTRUCTIONS INSTRUKCJA OBSŁUGI NÁVOD K POUŽITÍ

ENGLISH

Congratulations to the purchase of this Vonyx product. Please read this manual thoroughly prior to using the product in order to benefit fully from all features.

Read the manual prior to using the product. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the product, please ask advice from a specialist. When the product is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The product contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the product. This may cause electrical shock and malfunction.
• Do not place the product near heat sources such as radiators, etc. Do not place the product on a vibrating surface. Do not cover the ventilation holes.
• The product is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the product from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the product with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the product is damaged to such an extent that internal parts are visible, do NOT plug the product into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the product to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the product to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the product to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the product will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the product has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the product in humid rooms or outdoors.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Do not repeatedly switch the product on and off. This shortens the life time.

• Keep the product out of the reach of children. Do not leave the product unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Do not force the controls.
• If this product is with speaker inside which can cause magnetic field. Keep the product at least 60cm away from computer or TV.
• If the product has built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the unit for a long period of time. Or the battery may be damaged.
• If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
• If the product has fallen, always have it checked by a qualified technician before you switch the product on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the product with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the product off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the product.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this product.
• Keep the original packing material so that you can transport the product in safe conditions.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The product has been certified CE. It is prohibited to make any changes to the product. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the product will function normally, it must be used in rooms with a temperature between 5°C/41°F and 35°C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the product. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Vonyx cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

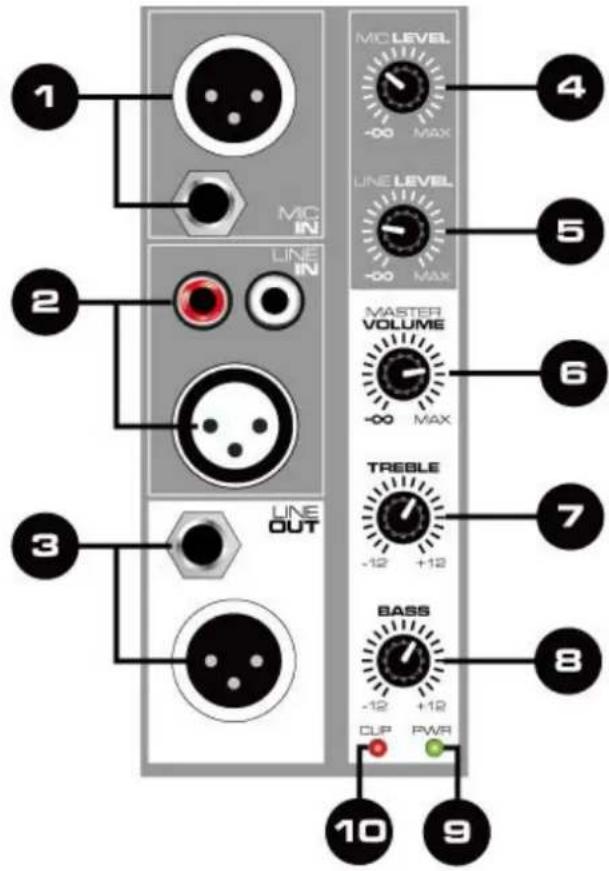

CONTROLS AND CONNECTIONS

1. Microphone Inputs

XLR and 6.3mm 14 " input jack for connecting a microphone.

2. Line Inputs

XLR and RCA jack input for connecting audio units with line level output (e.g. mixer, CD player)

3. Line Outputs

XLR and 6.3mm 14 " output jack for connecting an extra active speaker or audio unit with line level input.

4. Microphone Level

Adjust the signal level of microphone.

5. Line Level

Adjust the signal level of line input.

6. Master Volume

Adjust the overall output level of the portable sound set.

7. Treble

Adjust high tone control.

8. Bass

Adjust low tone control.

9. Clip Indicator

Indicator lights up when signal level is too high. When the LED light up continually you must reduce the volume to protect the speaker.

10. Power Indicator

Indicator lights up when power turned on.

1 MIC IN 2 LINE IN 3 LINE OUT 4 MIC LEVEL -∞ MAX LINE LEVEL -∞ MAX MASTER VOLUME -∞ MAX TREBLE -12 +12 BASS -12 +12 CLP PWR 8 10 9

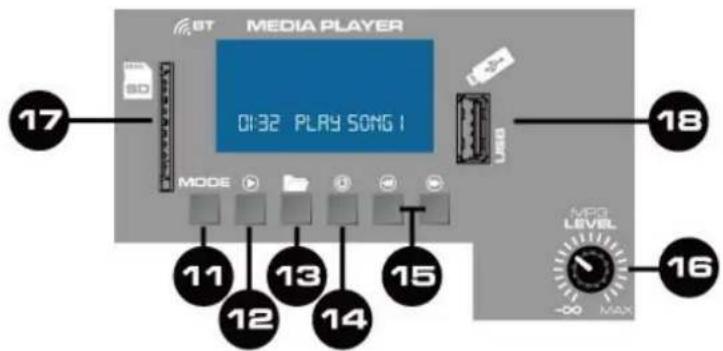

11. Mode button

Press the button to select BT/USB/SD function. Press for 2 seconds to turn the mediaplayer On or Off.

12. Play button

For switching between play and pause.

13. Folder button

Press this button to open the folder map of USB or SD-card.

14. Repeat button

Press key for repeating of single track or all tracks.

15. Forward - Backward button

For title selection (short actuation) and increase or decrease volume (long actuation).

16. SD port

Connect your SD/MMC devices to this slot to play music with MP3 or WMA format.

17. USB port

Connect your USB devices to this slot to play music with MP3 or WMA format.

18. MP3 Level

Adjust the level of media player.

MT MEDIA PLAYER 01:32 PLAY SONG I 17 MODE 18 11 12 13 14 15 MCG LEVEL -00 MAX 16

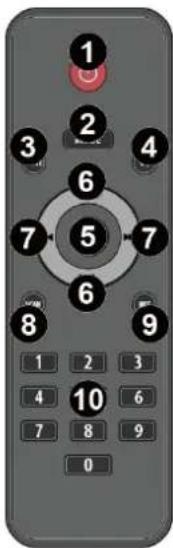

REMOTE CONTROL

1. Power

On/Off

1. Mode

Press to switch between modes: USB, MP3 and BT

1. Un(Mute)

Press to mute or unmute

1. EQ

Press to change EQ preset settings

1. Pause/Play

Press to pause/play

1. Vol +/vol -

Press to increase/decrease volume

1. Previous/Next

Press to go to previous or next track

1. Scan

No function

1. Repeat

Press to repeat track

1. Number pad

Numbers (0-9) to select numbers for songs

1 2 3 4 5 6 7 8 9 1 2 3 4 6 7 8 9 0

CONNECT BT-DEVICE

1. Set the search function on of the BT device you want to play the music. See the operating instructions for that device..
2. Press the "MODE" button and activate BT-function of media player.
3. Find on your BT-device "VONYX SPJ" and make the connection

If password is required, you can enter "0000".

BT
