USER MANUAL SLPAC9 SereneLife

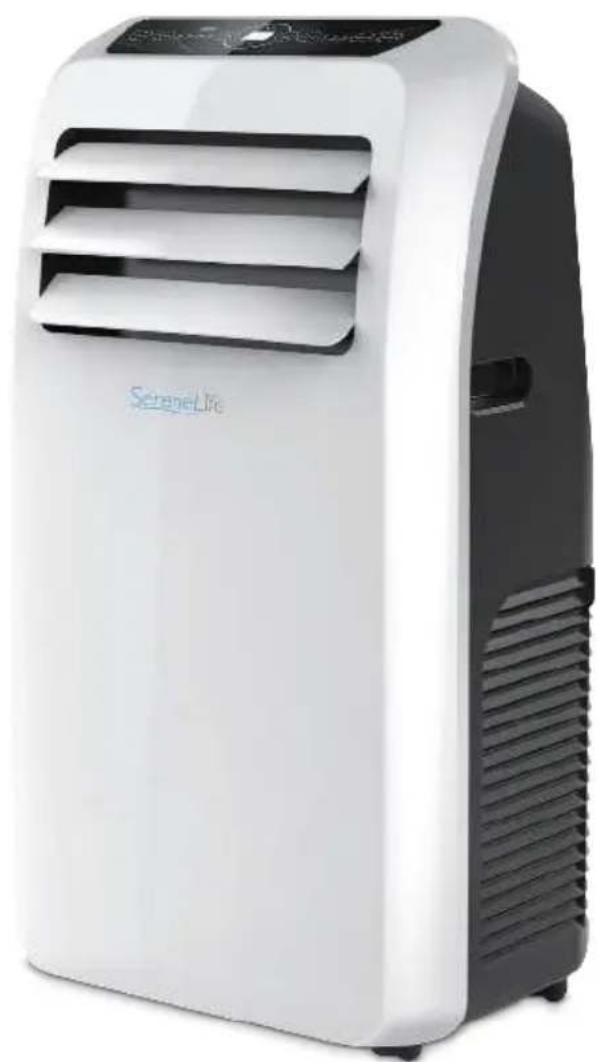

White and black portable air conditioner unit with ventilation slots (no visible text or symbols)

SLPAC9EU-SLPAC9UK

Portable Air Conditioner

Compact Home AC Cooling Unit with Built-in Dehumidifier & Fan Modes, Includes Window Mount Kit (9,000 BTU)

QR code image containing encoded data, no visible human-readable text

For user guides in multiple languages,

SCAN THE QR CODE

and enter your model number

serenelife™

CONTENT

Important Safety Tips

Precautions....3

Product Introduction

Main Parts and Components....7

Control Panel and Remote Controller....9

Product Operation

Placement and Installation....10

Operation Method....11

Clean and Maintenance

Drainage Method....12

Maintenance....13

Common Failures and Diagnosis

Intelligent Error Detection....14

Fuse Parameters....14

Troubleshooting....14

Features and Technical Specifications ....15

Important Safety Tips

Precautions

Please read the Manual carefully before operating the machine:

• This machine is for household use only.
• This machine is for indoor use only. Please place it in dry environment.
- Check power cord frequently. If power cord, plug or A/C is damaged, please don't operate. Cable should not scatter at places where power cord may be pulled out or people may be stumbled.

• The A/C should be away from heat source and avoid direct sunlight.

- Turn off the A/C before unplugging.

- Turn off and unplug the A/C before removing or cleaning it, or replacing its parts or when it is not used.

- Clean the A/C according to the Manual.

- Voltage of the A/C should meet requirements. Any damage incurred by incorrect power isn't included in the warranty.

• Children are not allowed to play with the A/C.

This appliance is not intended for use by children, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Don’t insert your fingers or any hard object to wind guide bar of the air outlet.

- Don't place the A/C at any place with water or other liquid. Prevent water or liquid from entering the A/C.

- Don’t repair the A/C by yourself. Any possible hazard incurred by maintenance of laypeople will violate the warranty. If the supply cord is damaged, it must be replaced by professional maintenance personnel.

- Please use the accessories provided by the A/C manufacturer; otherwise, the A/C may be damaged.

- Cleaning and user maintenance shall not be made by children without supervision.

SAFETY INSTRUCTIONS

IMPORTANT!

AIR CONDITIONERS MUST ALWAYS BE STORED AND TRANSPORTED UPRIGHT, OTHERWISE IRREPARABLE DAMAGE MAY BE CAUSED TO THE COMPRESSOR; IF IN DOUBT WE SUGGEST WAITING AT LEAST 24 HOURS FOLLOWING INSTALLTION BEFORE STARTING THE UNI

Simple line drawing of an open book with no text or symbols visible

• Carefully read the instructions before installing and/or operating the unit.
  • This appliance is for indoor use only.
• This unit must be only connected to a 220-240 V / 50 Hz earthed outlet.
• Installation must be in accordance with regulations of the country where the unit is used.
• If you are in any doubt about the suitability of your electrical supply have it checked and, if necessary, modified by a qualified electrician.
• This air conditioner has been tested and is safe to use. However, as with any electrical appliance - use it with care.
• Disconnect the power from the appliance before dismantling, assembling or cleaning.
• Avoid touching any moving parts of the appliance.
• Never insert fingers, pencils or any other objects though the guard.
• This appliance is not intended for use by persons (including children) with reduce physical, sensory or mental capabilities. It is also not intended for use by those with a lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• Do not leave children unsupervised with this appliance.
• Do not clean the unit by spraying it or immersing it in water.
• Never connect the unit to an electrical outlet using an extension cord. If an outlet is not available, one should be installed by a qualified electrician.

• Do not operate the unit unless it has been fully installed following the guidance provided within this manual.

• Never operate this appliance if the cord or plug is damaged. Ensure the power cord is not stretched or exposed to sharp objects/edges.

• A damaged supply cord should be replaced by the manufacturer or a qualified electrician in order to avoid a hazard.
• Any service other than regular cleaning or filter replacement should be performed by an authorized service representative. Failure to comply could result in a voided warranty.
• Do not use the appliance for any purpose other than its intended use.
• Avoid restarting the air conditioner unless 3 minutes have passed since being turned off. This prevents damage to the compressor.
• Never use the main plug as a switch to start and turn off the air conditioner. Use the provided ON/OFF button located on the control panel.
  • The appliance should not be installed in laundry or wet rooms.
• The appliance must be installed in a room without sources of ignition (for example: open flames, an operating gas appliance or an operating electric heater).
• The unit must be installed on a solid vertical wall by a competent person. The electricity supply must only be connected after installation is complete.
  • R290 refrigerant gas complies with European environmental directives.
  • R290 has a low GWP (Global Warming Potential) of 3.
  • The air conditioner contains about 235g of R290 refrigerant gas.
• Do not install or store in an unventilated space with an area smaller than 12 ~m^2 per unit. The room must be such as to prevent stagnation of possible leaks of refrigerant gas as there could be a danger of fire or explosion hazard should the refrigerant come into contact with electric heaters, stoves or other sources of ignition.
• If the appliance is installed, used or stored in an unventilated room, the room must be such as to prevent stagnation of possible leaks or refrigerant gas as there could be a danger of fire or explosion should the refrigerant come into contact with electric heaters, stoves or other sources of ignition.
  • Refrigerant gas may be odourless.

• Do not use the product and contact the retailer for advice, if damage has occurred to the unit which may have compromised the refrigerant system.

• Any repairs or maintenance must only be carried out on the unit by a suitably qualified engineer. Before opening and servicing the unit the authorized engineer must be in possession of a copy of the manufacturer's service manual and must follow the safety information contained within it to ensure all hazards are minimized.

• The refrigerant system should not be perforated or punctured.

NOTE: Some pictures and information may vary from the final product. This is due to continual product improvement.

Special Warning:

• Place the A/C on even ground and install it vertically, so as to ensure normal operation of the compressor.
• The A/C should be at least 50cm away from surrounding objects. Keep air inlet and outlet smooth.
• Don't use the A/C beside gasoline or any other inflammable liquid.
• Don’t use spraying agent and other solvent or inflammable substances near the A/C; otherwise, its plastic may deform and electric parts may be damaged.

Power

• The plug should be in good condition and can't be damaged. Don't replace the plug with power plug.
• In order to run the A/C, plug the power cord first, and then press the power key.
• Place unit in upright position for 2 hours before turning on for first time.

Product Introduction

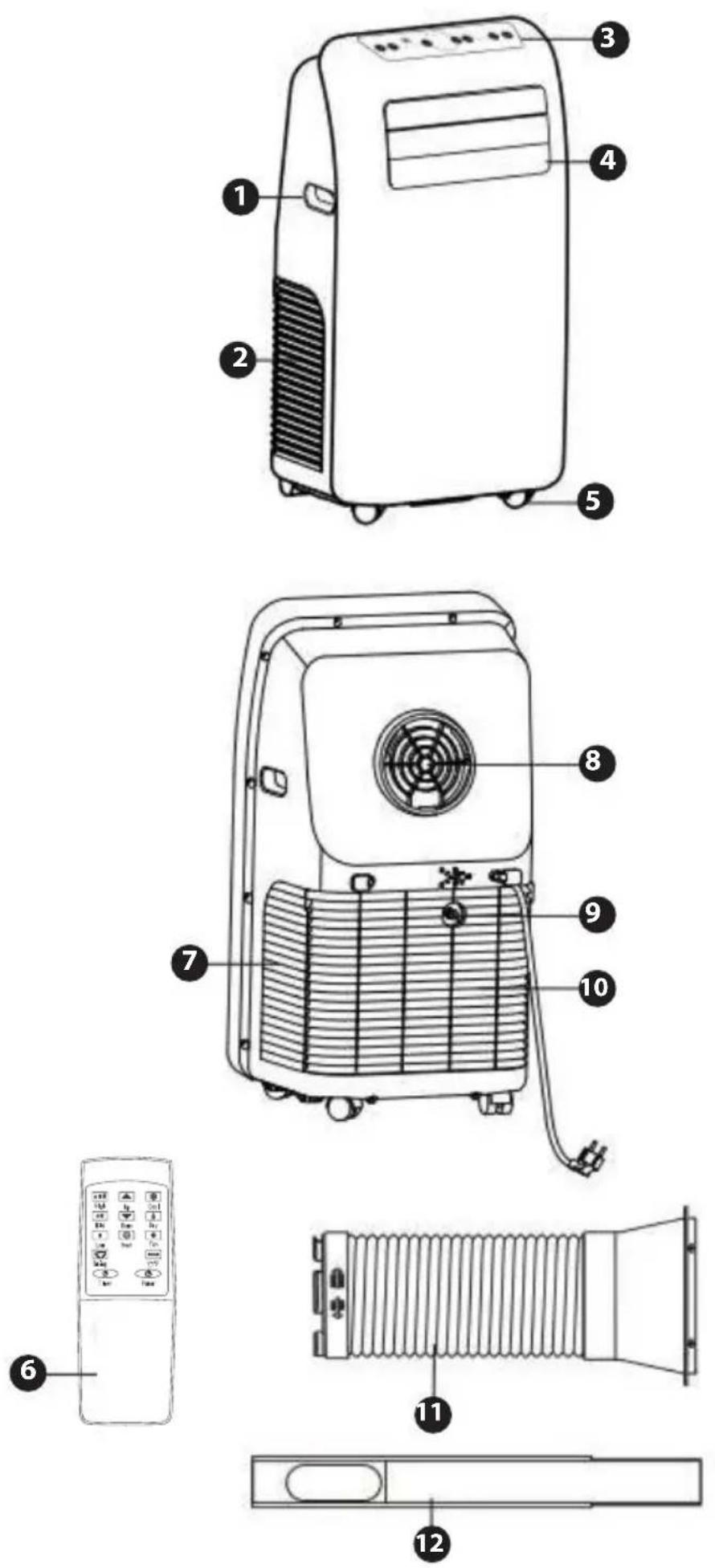

MAIN PARTS AND COMPONENTS

1. Handle
2. Air inlet (L)
3. Control panel
4. Wind guide vent
5. Caster
6. Remote controller
7. Air inlet (R)
8. Air outlet
9. Air inlet grille

10. Window sealing plate

11. Dehumidification drainage nozzle

12. Exhaust duct assembly

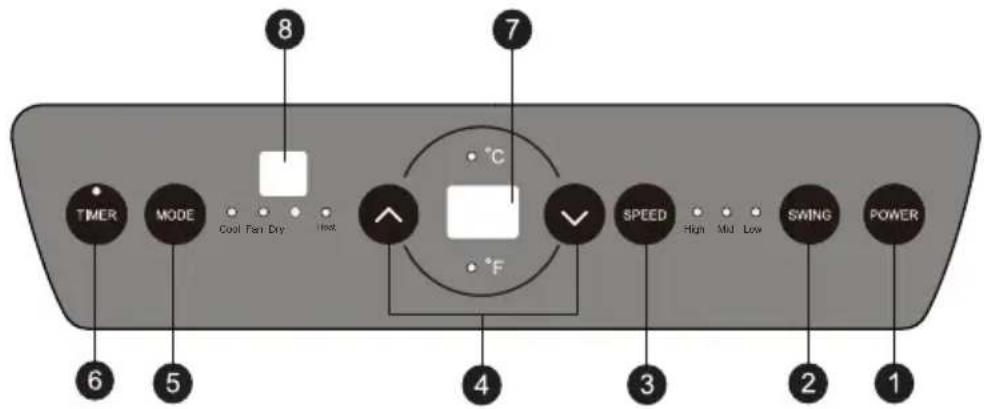

Control Panel and Remote Controller

8 7 TIMER MODE Cool Fan Dry Heat °C F SPEED High Mid Low SWING POWER 6 5 4 3 2 1

Cooling Model

1. Power key

Press the key to turn ON/OFF the A/C.

2. Swing key

Press the key at any time after turning on the A/C to swing the wind guide bar automatically.

3. Speed key

Press the key to choose high/middle /low gear wind speed.

4. Temperature/ Time Adjusting key

Press the key at cooling mode to increase /reduce the setting temperature; press it at timing mode to adjust timing ON/OFF time; press Up and Down keys simultaneously to switch Fahrenheit and Centigrade degree temperature.

5. Mode key

Press the key to choose cooling, fan, dehumidification.

6. Timer key

Press the key at standby mode to set ON time. Press this key at ON mode to set OFF time.

7. Temperature/ Time Display Window

This window displays the adjusted temperature and time.

8. Remote controller receiving window

This window is used to receive signal of the remote controller.

°C/°F switching key: Press the key to switch °C and °F.9.

4 High Up Cool Mid Down Dry Low Heat Fan Swing °C /°F Timer Power 1 2 3 5 9 6 SereneLife

Product Operation

Placement and Installation

Placement

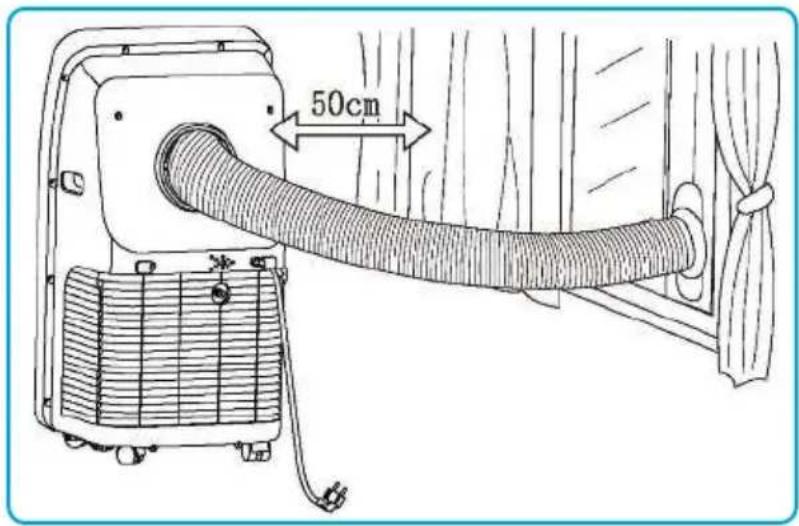

- Place it at even and dry place, and keep it at least 50cm. away from its surrounding object.

50cm

Installation

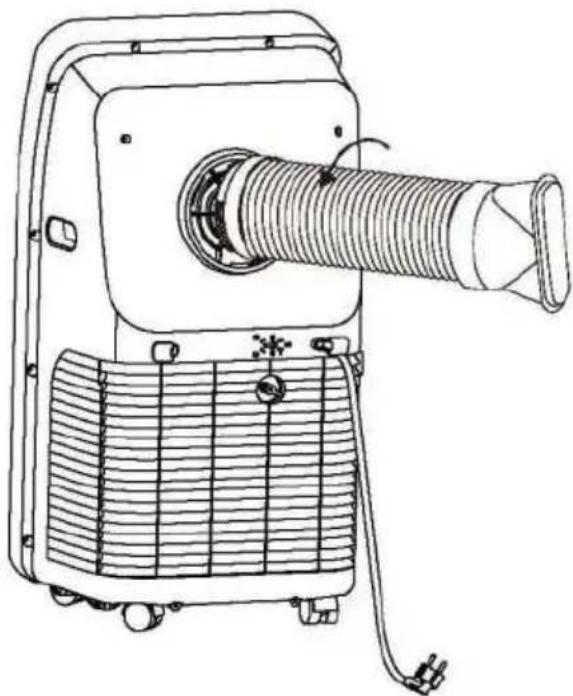

- Screw the exhaust duct assembly in the air outlet behind the panel (counterclockwise).

Technical line drawing of a mechanical device with coiled tubing and ventilation grilles (no text or symbols)

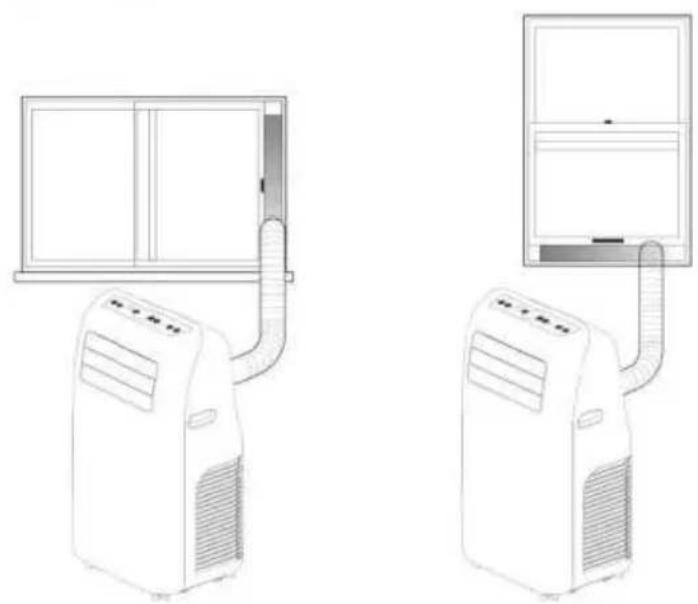

- Insert the air exhaust hose into the window sealing plate, adjust opening width of window so that the window can match with the sealing plate properly; length of the sealing plate is adjustable.

Line drawing of two household air purifiers connected by tubing, one with a window and the other with a door (no text or symbols)

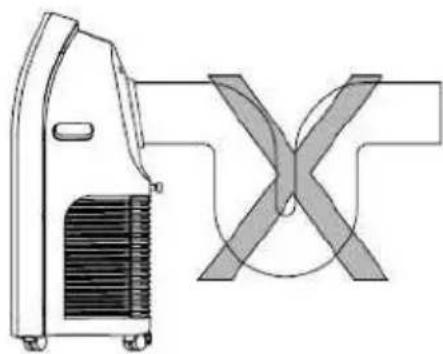

Incorrect Installation

• It's important to keep the exhaust duct smooth. Incorrect installation will affect work of the A/C.
  • Prevent the exhaust duct from sharp bending.
• Ensure air can flow smoothly in the duct.

Warning:

The exhaust duct is designed especially for this model. Don't replace or lengthen it; otherwise, it will result in failure.

Notice:

Max. developed length of the exhaust duct is 1,500mm. It's better to shorten it while in use and keep it horizontal while installation.

Technical line drawing of a mechanical device with a grid base and X-shaped component (no text or symbols)

OPERATION METHOD

Plug in the unit and in standby mode, the ambient temperature will shows on the display screen, you can choose the working mode (Cool or Heat) and the desired temperature according to the ambient temperature. Also, the ambient temperature will shows on the display under Fan Mode and the Dehumidification Mode, and temperature setting is not available in those two modes.

Cooling Mode

• When the A/C enters cooling mode automatically or cooling mode is selected after power ON, the cooling indicator lamp lights up.
• Press Up/Down key to adjust setting temperature (16°C\~30°C)(60°F\~86°F).
• Press Speed key to choose High/Mid/Low speed.

Fan Mode

• When pressing mode key or choosing Fan mode by pressing the remote controller, the wind indicator lamp lights up.
• Press Speed key to choose High/Mid/Low speed.
  • Temperature can't be set.

Dehumidification Mode

• When pressing mode key or choosing dehumidification mode by pressing the remote controller, the dehumidification indicator lamp lights up.
• Remove the dehumidification water wedge, insert water manifold, place the other end of the water manifold into the water vessel or drainage passage, as shown in the right figure.
  • After entering the dehumidification mode, if room tempearture≥17°C (62°F), the compressor is ON. Then control as follows: when room temperature ≤15°C (59°F), the compressor is OFF; when temperature increases to room temperature≥17°C (62°F), the compressor will start again (in order to protect the compressor, it will be restarted 3min. later).
• In dehumidification mode, the fan is defaulted to run at low speed, and wind speed can't be adjusted.
• Temperature can't be set.

Timer Mode

• In standby state, press the Timer key to set ON time. Press Up and Down keys to set ON time (1\~24H), and the timer indicator lamp lights up.
• In ON state, pressure the timer key to set OFF time. Press Up and Down keys to set OFF time (1\~24H), and the timer indicator lamp lights up.

Clean and Maintenance

DRAINAGE METHOD

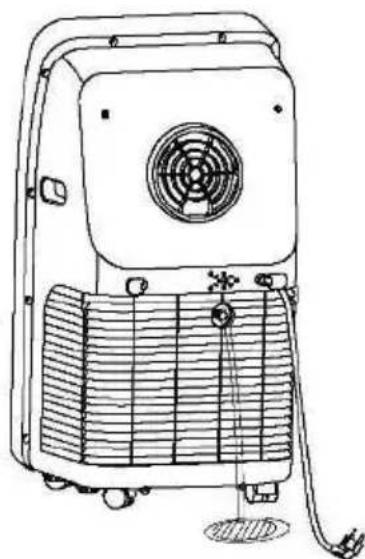

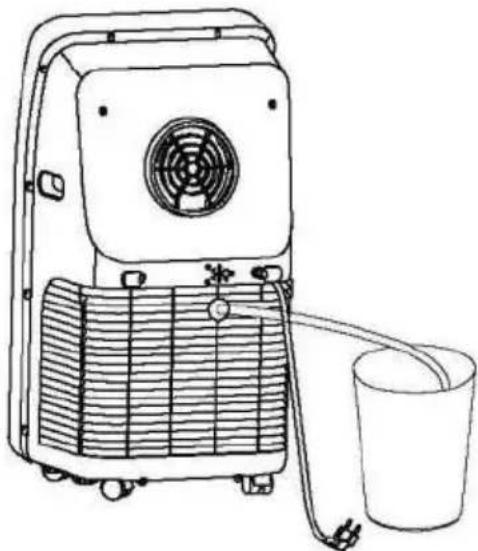

This product is equipped with automatic water vaporization system. The condenser is cooled with the circulating of condensing water, so as to improve cooling efficiency and save energy.

- If the internal vessel is full of water, the display screen will display "FL" and the compressor stops working automatically. After power off, unscrew the water cover, pull out the water plug to drain off water, and it will become normal after being restarted.

Line drawing of a portable air conditioner unit with a bucket and fan (no text or symbols)

Line drawing of a portable air conditioner unit with fan and ventilation grilles (no text or symbols)

MAINTENANCE

Notice: In order to avoid electric shock, please turn off the A/C and unplug before maintenance or repair.

CLEANING

• Unplug before cleaning.
- Wipe with soft semi-dry cloth. Don’t use chemical reagent, such as benzene, alcohol and gasoline etc; otherwise surface of the A/C and even the whole A/C will be damaged.
• Prevent water from spattering in the A/C.

FILTER SCREEN

• Vacuum the filter screen once every two weeks. If it is blocked by dust, efficiency of the A/C will be reduced.

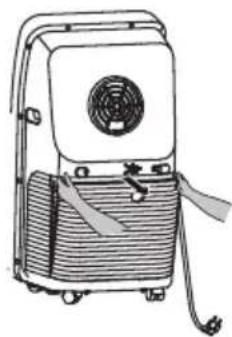

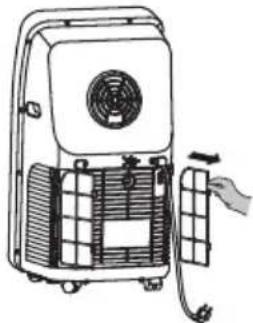

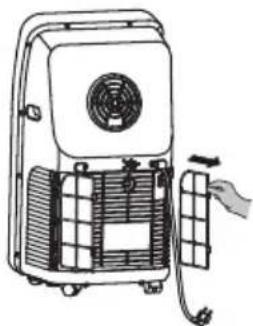

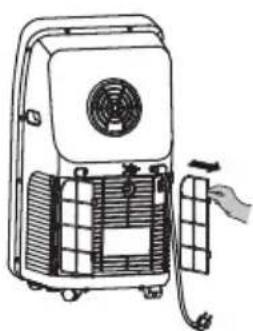

• Take out the air inlet grille and pull out the filter screen at both sides according to the direction shown in the following figures. Use vacuum to remove lint from filters.
- Put the filter screen into the warm water (about 40^ C or 104^ F ) added with neutral detergent, dry it at a shady place after cleaning.

Line drawing of a portable air conditioner unit with fan and control panel (no text or symbols)

Line drawing of a portable air conditioner unit with cooling fins and a hand inserting a fan (no text or symbols)

If filter is dirty, clean in 40°C (104°F) warm water or in water with neutral detergent.

Hand pouring liquid into a grid-patterned container (no text or symbols visible)

Illustration of a hand spraying a container onto a grid surface (no text or symbols)

Illustration of a hand spraying particles onto a grid-patterned surface (no text or symbols)

If filter is not that dirty, clean the dust with a vacuum cleaner.

SEASONAL CLEANING

If the A/C will not be used for a long time:

• Pull out the water plug to drain.
- Run the A/C in fan mode for 2H till the inside is dry.
- Turn off the A/C and unplug.
- Wash the filter screen and reassemble it.
• Dismantle the exhaust duct and keep it properly.
• Cover the A/C with a plastic bag and place it at a dry place.

Common Failures and Diagnosis

Intelligent Error Detection

Error-detecting code	Multi-functional defection
E1 Error of the	coil's temperature sensor
E2 Error of indoor	door temperature sensor
E4	Anti-freezing protection: temperature of the coil is too low and the whole A/C is off. When temperature exceeds 8°C or 46.4°F, the protection is released and previous working state is recovered.

FUSE PARAMETERS

• Voltage: 250VAC • Current: 3.15A

Troubleshooting

In case of any of the following trouble, please contact professional maintenance personnel in time.

TROUBLE CAUSE SOLUTION
The A/C doesn’t work	No display	Reset circuit breaker on AC cord
	The display panel displays “FL”	Restart the A/C after power off and draining, then it will become normal
	Time OFF function is started	The A/C can be restarted 3 minutes after being turning off.
The A/C starts frequently	Direct sunlight	Draw the curtain
	Doors and windows keep open; there are lots of people or heat source in room	Close doors and windows, remove heat source
	Filter screen is very dirty	Clean or replace it
	Air inlet or air outlet is blocked	Remove the stem
Big noise of the A/C	The A/C is placed unevenly	Place it at even and firm ground, avoid shaking
The compressor doesn’t work	Its delay protection is started	Wait for 3min., turn on after temperature decreases

Notice: When there is any abnormal to the A/C, turn it off and unplug, and then contact professional maintenance personnel.

The above technical parameters are subject to change without notice.

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities.

Contact you local government for information regarding the collection systems available.

If electrical appliances are disposed of in landylls or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. When replacing old appliances with new ones, the retailer is legally obligated to take back your old appliance for disposals at least free of charge.

SLPAC9EU

Portable Air Conditioner

Compact Home AC Cooling Unit with Built-in Dehumidifier & Fan Modes, Includes Window Mount Kit (9,000 BTU)

Features:

• Lightweight & Portable AC Unit
- Compact Freestanding Room Air Conditioner
• (3) Operation Modes: AC Cooling / Dehumidifier / Fan
• Hassle-Free, Quick Setup Cooling
• Simple Electric Plug-in Operation
- Convenient Wide-Area Climate Control Room AC Coverage
• Digital Touch Button Control Panel with LED Display
• Time, Temperature & Fan Speed Adjustment Settings
- Includes Universal Window Mount AC Exhaust Kit
- Removable & Washable Air Filter Screen
• Modern Style, Sleek Body Housing
• Energy Efficient: Low Power Consumption
- Low Noise Level Motor
- Rolling Wheels for Easy Portability
• Used for Home, Office, School & Business Rooms

What's in the Box:

• AC Unit
• Exhaust Hose
  • Window Installation Plate
  • Digital Remote Control

Technical Specs:

• Cooling Capacity (ASHRAE): 9,000 BTU
• Rated Power: 1000 Watt
• Coverage Area: Cools Rooms Up to 300'+ Square Feet
• Air Flow: 360 Cubic Meters / Hour
- Operating Modes: Cool / Fan / Dry (Dehumidifier)
- Moisture Removal / Dehumidifier : 0.9 Liters / Hour
• Operating Noise Level: 65 dB(A)
• Fan Speed Settings: Low/Medium/High
• Temperature Unit Selectable: °C / °F (Celsius / Fahrenheit)
- Adjustable Timer Settings: Up to 24 Hours
• Construction Material: Engineered ABS Housing
• Power Cable Length: 4.3' ft. - (131cm)
• Power Supply: 220V
- Dimensions (L x W x H):
17.4" x 13.4" x 32.1" -inches - (44.1 x 34 x 81.53 -cm)

- Battery Operated Remote Control, Requires (2) x 'AAA' Batteries, Included

This product can expose you to a chemical or group of chemicals, which may include "Acrylonitrile" which is known in the state of California to cause cancer, birth defects, or other reproductive harm. For more info, go to

WARNING: https://www.p65warnings.ca.gov/.

serenelife™

QR code image containing encoded data, no visible human-readable text

Questions or Comments

We are here to help!

Phone: [phone]

serenelifehome.com/contact us

serenelife™

White and black SereneLife air conditioner unit with ventilation slots (no visible text or symbols on body)

SLPAC9EU-SLPAC9UK

Portable Air Conditioner

Please read the Manual carefully before operating the machine:

Simple line drawing of an open book with no text or symbols visible

4 High Up Cool Mid Down Dry Low Heat Fan Swing °C /°F Timer Power 1 2 3 5 9 6 SereneLife

Technical line drawing of a mechanical device with coiled tubing and ventilation grilles (no text or symbols)

Line drawing of two household air purifiers connected by tubing, one with a window and the other with a door (no text or symbols)

Technical line drawing of a mechanical device with a grid base and X-shaped component (no text or symbols)

Line drawing of a portable electric heater with a bucket and fan, labeled 'ción la' (no other text or symbols)

Line drawing of a portable air conditioner unit with fan and ventilation grilles (no text or symbols)

MANTENIMIENTO

Line drawing of a portable air conditioner unit with fan and control panel (no text or symbols)

Line drawing of a portable air conditioner unit with cooling fins and a hand inserting a fan (no text or symbols)

Hand holding a tool over a grid-patterned surface (no text or symbols visible)

Illustration of a hand spraying a container onto a grid surface (no text or symbols)

Illustration of a hand spraying particles onto a grid-patterned surface (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

https://www.P65Warnings.ca.gov/.

serenelife™

QR code image containing encoded data, no visible human-readable text

We are here to help!

serenelifehome.com/contact us

serenelife™

White and black SereneLife air conditioner unit with ventilation slots (no visible text or symbols on body)

SLPAC9EU-SLPAC9UK

Climatisation portable

Simple line drawing of an open book with no text or symbols visible

L'INSTALLATION AVANT DE METTRE L'APPAREIL EN MARCHE.

Technical line drawing of a mechanical device with coiled tubing and ventilation slots (no text or symbols)

Line drawing of two household air purifiers connected by tubing, one with a window and the other with a door (no text or symbols)

Installation incorrecte

Technical line drawing of a mechanical device with a grid base and X-shaped component (no text or symbols)

Line drawing of a portable air conditioner unit with a bucket and cooling fan, no text or symbols present

Line drawing of a portable air conditioner unit with fan and ventilation grilles (no text or symbols)

ENTRETIEN

Line drawing of a portable air conditioner unit with fan and control panel (no text or symbols)

Diagram of a portable air conditioner unit with cooling fins and ventilation slots (no text or labels)

Illustration of a hand pouring liquid into a grid-patterned container (no text or symbols)

Illustration of a hand spraying water onto a grid-patterned surface (no text or symbols)

Illustration of a hand spraying particles onto a grid-patterned surface (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

QR code image containing encoded data, no visible human-readable text

serenelifehome.com/contact us
