USER MANUAL STM407 RYOBI

QR code image containing encoded data, no visible human-readable text

EN MEXICO:

Line drawing of a multi-level industrial cabinet or enclosure with structural supports and ventilation grilles (no text or symbols)

INCLUDES: Cabinet, Interior Shelf, Shelf Clips (4), Cord Cap, Bumpers (2), Mounting Screws (4), Operator's Manual

TABLE OF CONTENTS

************************

■ General Safety Warnings ......2
■ Symbols.... 2-3
■ Features....3
■ Assembly 3-4
■ Installation 4-5

■ Parts Ordering and Service....Back page

WARNING: To reduce the risk of injury, the user must read and understand the operator's manual before using this product.

SAVE THIS MANUAL FOR

FUTURE REFERENCE

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

READ ALL INSTRUCTIONS

- Know your product. Read operator's manual carefully. Learn its applications and limitations, as well as the specific potential hazards related to this product. Following this rule will reduce the risk of serious personal injury.

■ The maximum weight of all the items placed on this cabinet must not exceed 120 lbs. when mounted to the LINK wall rail and 200 lbs. when mounted directly to the wall studs. Evenly distribute the load when storing items.

■ Do not exceed the maximum weight capacity for the shelves.

This is a cabinet. Do not use for any other purpose than supporting tools or products. Do not use as a seat, ladder, or standing platform.

- Keep the area around the cabinet clean and well lit. Cluttered or dark areas invite accidents.

■ Mount the cabinet in a dry, indoor place protected from wet conditions.

- Keep cabinet dry, clean, and free from oil and grease.

- Do not use the cabinet if it is damaged or broken. A damaged or broken cabinet may not mount securely and/or it might not provide adequate support for the items stored on it.

■ When servicing this product, use only identical replacement parts. Use of unauthorized parts may create a risk of injury.

■ Mount the cabinets to sound structural supports. NEVER mount the cabinets to drywall or plaster without the mounting fastener going into a structural support. ALWAYS use concrete anchors when installing cabinets into concrete, brick, or other masonry. Failure to properly mount the cabinet could result in a falling hazard that can cause death or serious personal injury.

■ Mount the cabinet on smooth and flat surfaces capable of bearing the weight of cabinet and the items stored on it.

■ Use extra care when mounting the unit. Keep proper footing and balance at all times.

■ Ensure the cabinet is securely mounted. Make sure it does not rock, slide, or move before storing products or tools.

■ Always wear eye protection with side shields marked to comply with ANSI Z87.1 during installation. Following this rule will reduce the risk of serious personal injury.

■ Do not allow children or untrained individuals to use this cabinet.

■ Always get help when lifting, moving, and mounting the cabinet. When lifting, hold the cabinet close to your body. Bend your knees so you can lift with your legs, not your back.

■ SAVE THESE INSTRUCTIONS. Refer to them frequently and use them to instruct other users. If you loan someone this product, also loan these instructions.

SYMBOLS

The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING
	DANGER:	Indicates a hazardous situation, which, if not avoided, will result in death or serious injury.
	WARNING:	Indicates a hazardous situation, which, if not avoided, could result in death or serious injury.
	CAUTION:	Indicates a hazardous situation, that, if not avoided, may result in minor or moderate injury.
	NOTICE:	(Without Safety Alert Symbol) Indicates information considered important, but not related to a potential injury (e.g. messages relating to property damage).

SYMBOLS

Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME DESIGNATION/EXPLANATION
	Safety Alert Indicates	a potential personal injury hazard.
	Read Operator's Manual	To reduce the risk of injury, user must read and understand operator's manual before using this product.
	Eye Protection	Always wear eye protection with side shields marked to comply with ANSI Z87.1.

FEATURES

PRODUCT SPECIFICATIONS

See Figure 1.

Maximum Weight Capacity

LINK wall rail mounted configuration

Top shelf....40 lbs

Interior shelf....20 lbs

Bottom shelf....40 lbs

Tool holders....5 lbs

Stud mounted configuration

Top shelf....70 lbs

Interior shelf....40 lbs

Bottom shelf....70 lbs

Tool holders....5 lbs

ASSEMBLY

UNPACKING

This product requires assembly.

- Carefully remove the tool and any accessories from the box. Make sure all items listed in the Includes section must be included at the time of purchase.

WARNING:

Do not use this product if any parts on the Packing List are already assembled to your product when you unpack it. Parts on this list are not assembled to the product by the manufacturer and require customer installation. Use of a product that may have been improperly assembled could result in serious personal injury.

■ Inspect the product carefully to make sure no breakage or damage occurred during shipping.
■ Do not discard the packing material until you have carefully inspected and satisfactorily operated the product.
■ If any parts are damaged or missing, please call 1-800-525-2579 for assistance.

WARNING:

If any parts are damaged or missing do not operate this product until the parts are replaced. Use of this product with damaged or missing parts could result in serious personal injury.

ASSEMBLY

WARNING:

Do not attempt to modify this product or create accessories not recommended for use with this product. Any such alteration or modification is misuse and could result in a hazardous condition leading to possible serious personal injury.

ASSEMBLING THE INTERIOR SHELF

See Figures 2 - 3.

This cabinet comes pre-assembled except for the interior shelf.

■ This unit has six pre-determined shelving height positions. Select your preferred height position.
■ Insert the shelf clips (4) into the slots in the interior cabinet. Make sure the shelf clips are all on the same level.
■ Insert the interior shelf into the cabinet by tilting the shelf diagonally and placing onto the shelf clips.

■ If mounting onto a wall rail, insert the bumpers (2) into the round holes on the bottom back panel of the cabinet.

INSTALLATION

WARNING:

To reduce the risk of injury, do not attempt to use this product until you have read thoroughly and understand completely this operator's manual and the operator's manual for any power tools used.

TOOLS NEEDED (NOT INCLUDED)

For mounting onto wall studs or concrete:

Drill, Hammer, Level, Pencil, Phillips Screwdriver, Concrete Anchors (if mounting onto concrete)

MOUNTING THE CABINET ONTO LINK WALL RAIL

See Figure 4.

WARNING:

Only install screws into sound structural supports (such as studs and concrete) in areas where no electrical wires, utility cables, pipes, or other obstructions are located. Failure to follow these instructions can result in death, electrical shock, or other serious personal injury.

WARNING:

Do not lift the product without help. Hold it close to your body. Keep your knees bent and lift with your legs, not your back. Ignoring these precautions can result in back injury.

• Mount the wall rail as described in the rail’s Operator’s Manual.
  ■ Insert bumpers (2) into holes on the bottom back panel of the cabinet if not already installed.
  ■ With the help of at least one other person, carefully lift the cabinet and position the cabinet onto four of the raised octagonal patterns on the wall rail.
  NOTE: Cabinet cannot be installed over two parallel rails.
  ■ IMPORTANT! To ensure the cabinet is seated properly, check that the holes through the back wall of the cabinet are lined up with the corresponding holes in the LINK wall rail.
  NOTE: If extra support is needed, insert #10 screws into the holes at the back of the cabinet into the screw holes in the wall rail.

To unmount the cabinet:

■ Remove all of the items stored in the cabinet.
NOTE: Remove the #10 screws (if installed) from the cabinet.
■ With the help of at least one other person, carefully lift the cabinet away from the wall rail.

INSTALLATION

MOUNTING THE CABINET ONTO THE WALL STUDS OR CONCRETE

See Figures 5 - 8.

WARNING:

Only install screws and anchors into sound structural supports (such as studs and concrete) in areas where no electrical wires, utility cables, pipes, or other obstructions are located. Failure to follow these instructions can result in death, electrical shock, or other serious personal injury.

WARNING:

Do not lift the product without help. Hold it close to your body. Keep your knees bent and lift with your legs, not your back. Ignoring these precautions can result in back injury.

• Locate the wooden studs behind your wall.
  ■ Using a pencil and a level, mark four screw holes. The top two screw holes should be 16 in. apart on studs. The bottom screw holes should be 12 in. below the top screws.
  ■ Using a drill make four pilot holes slightly smaller than the screws.
  ■ Using a Phillips screwdriver install the screws through each of the pilot holes. Leave the head of the screw approximately 1/4 in. off the wall.

NOTE: Use screws and concrete anchors (not included) when installing the cabinet into concrete. Use your fingers to press the anchor into the pilot hole. Tap the head of the anchor lightly with the hammer until it is flush with the wall. Then install the screws.

■ With the help of at least one other person, carefully lift the cabinet and align the keyholes on the back with the screws in the walls.
■ Place the wide portion of each keyhole over the head of each screw.
■ To lock the cabinet in place, slide the cabinet down until the screws are inside the narrow portions of each keyhole.
■ Tighten screws until snug.

NOTE: Check cabinet installation by verifying it is level, plumb, and secure to the wall.

To unmount the cabinet:

■ Remove all of the items stored on the cabinet.
■ With the help of at least one other person, carefully lift the cabinet until the screws are inside the wide portions of each keyhole and remove the cabinet from the wall.

AVERTISSEMENTS DE SÉCURITÉ GÉNÉRALES

AVERTISSEMENT :

Panel inferior 18,1 kg (40 lbs)

Panel inferior 27.2 kg (70 lbs)

Technical diagram of a laboratory apparatus with labeled components including a chamber, panel, and control panel.

A - Top shelf (étagere supérieure, estante superior)
B - Bottom shelf (door closed) [étagere inférieure, (porte fermée), estante inferior (puerta cerrada)]
C - Cubicle (cabinet, cubículo)
D - Keyhole hanger (cintre en trou de serrure inférieur, e percha inferior con forma de ojo de cerradura)

E - Side wall (paroi latérale, pared lateral)
F - Interior shelf (étagere intérieure, estante interior)
G - Cord cap (fiche, tapa para cable paragolpes)

Fig. 1
LINK BRACKET MOUNTED MONTAGE SUR SUPPORT LINK LINK MONTADO EN SOPORTE

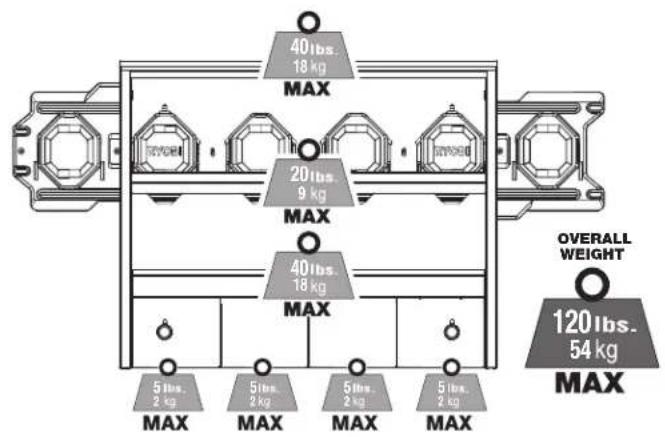

40 lbs. 18 kg MAX 20 lbs. 9 kg MAX 40 lbs. 18 kg MAX 5 lbs. 2 kg MAX 5 lbs. 2 kg MAX 5 lbs. 2 kg MAX 5 lbs. 2 kg OVERALL WEIGHT 120 lbs. 54 kg MAX

WALL (STUD) MOUNTED MOTAGE MURAL (SUR MONTANT) MONTADO EN PARED (CON PERNO)

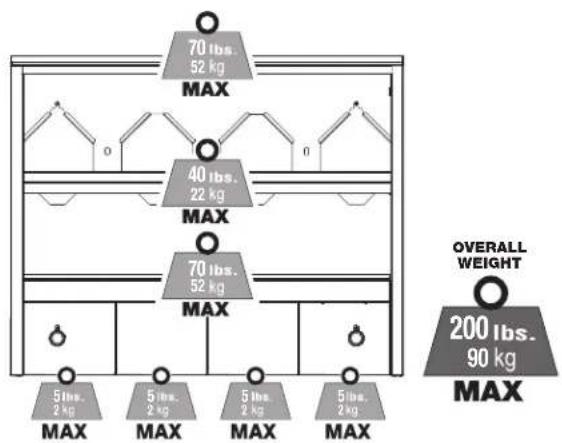

70 lbs. 52 kg MAX 40 lbs. 22 kg MAX 70 lbs. 52 kg MAX 5 lbs. 2 kg MAX 5 lbs. 2 kg MAX 5 lbs. 2 kg MAX 5 lbs. 2 kg OVERALL WEIGHT 200 lbs. 90 kg MAX

Fig. 2

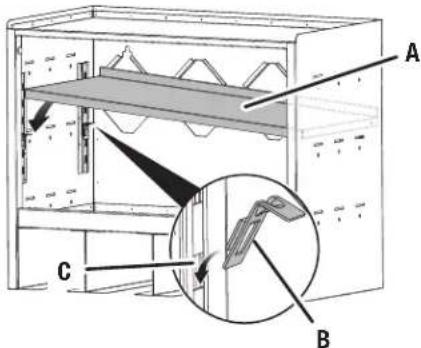

Technical diagram of a server rack with labeled components A, B, and C, showing internal structure and component insertion.

Diagram of a multi-level storage unit with labeled components A and B, showing internal structure and heating symbols.

A - Mounting screw (vis de montage, tornillo de montaje) B - Keyhole hanger (cintre en trou de serrure inférieur, e percha inferior con forma de ojo de cerradura)

OPERATOR'S MANUAL/LINK 3-SHELF TOOL ORGANIZER CABINET

MANUEL D'UTILISATION/ARMOIRE DE RANGEMENT D'OUTILS À 3 ÉTAGÈRES LINK

To request service, purchase replacement parts,

locate an Authorized Service Center or obtain Customer or Technical Support:

Visit www.ryobitools.com or call 1-800-525-2579

If any parts or accessories are damaged or missing, do not return this product to the store.

Call 1-800-525-2579 for immediate service.

Please obtain your model and serial number from the product data plate.

This product is covered under a Limited Lifetime Warranty. Proof of purchase is required.

MODEL NUMBER*

SERIAL NUMBER

*Model number on product may have additional letters at the end. These letters designate manufacturing information and should be provided when calling for service.

RYOBI is a trademark of Ryobi Limited and is used pursuant to a license granted by Ryobi Limited.
