USER MANUAL PWV201B RYOBI

Line drawing of a vacuum cleaner with attached tubing and control panel (no text or symbols)

INCLUDES: Wet/Dry Vac, Wet Use Filter, Flexible Hose, Crevice Tool, Floor Nozzle, Telescoping Wand with Storage Clip, Dust Brush, Dry Use Filter, Casters (4), Operator's Manual

TABLE OF CONTENTS

************************

■ Important Safety Instructions......2-3
■ Symbols......4
■ Assembly....5
■ Operation....6-7
■ Maintenance....7-8
■ Accessories....8
■ Illustrations ......9-11
■ Parts Ordering and Service ....Back page

WARNING: To reduce the risk of injury, the user must read and understand the operator's manual before using this product.

SAVE THIS MANUAL FOR

FUTURE REFERENCE

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:

WARNING!

READ AND UNDERSTAND ALL INSTRUCTIONS.

Failure to follow all instructions listed below, may result in electric shock, fire and/or serious personal injury.

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE

WARNING:

To reduce the risk of electric shock DO NOT expose to rain. Store indoors.

■ Use appliance only as described in this manual.
■ Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
■ Do not use without dust bag and/or filters in place.
■ Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep your hair, loose clothing, fingers, and all parts of the body and clothing, away from openings and moving parts. Loose clothes, jewelry, or long hair can be caught in internal moving parts.
■ Do not overreach. Keep proper footing and balance at all times. Proper footing and balance enables better control of the product in unexpected situations. Do not use on a ladder or unstable support.
■ Use safety equipment. Dust mask must be used for appropriate conditions.
- Do not allow children to operate the product or play with the product as a toy. Close attention is necessary when used by or near children.
■ Use this product ONLY for its intended use as described in this manual. Use only the attachments recommended in this manual.
■ If the product is not working properly, has been dropped, damaged, left outdoors, or dropped into water, return to your nearest service center.
■ Do not handle charger plug or product with wet hands.

■ Do not put any objects in ventilation openings. Do not use with any opening blocked. Keep openings free of dust, lint, hair, and anything that may reduce air flow.
■ NEVER vacuum materials that are burning or smoking, such as hot coals, cigarette butts, matches, burning or smoking ashes, etc.
■ DO NOT use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
■ Do not use for dry vaccuuming without dry use filter in place.
■ Do not use for wet vaccuuming without wet use filter in place.
■ Use extra care when using on stairs.
■ Do not incinerate this appliance even if it is severely damaged. The batteries can explode in a fire.
■ The product does not have to be plugged into an electrical outlet, therefore it is always in operating condition. Be aware of possible hazards when using the product or when changing accessories.
■ Remove battery when the vacuum is not in use and before servicing.
■ Use battery only with charger listed. For use with 18 V lithium-ion battery packs, see tool/appliance/battery pack/charger correlation supplement 987000-432. Do not use charger outdoors.
■ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
■ Use appliances only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
■ When battery pack is not in use, keep it away from other metal objects like: paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause sparks, burns, or a fire.
■ Always remove battery pack from your appliance when you are assembling parts, making adjustments, cleaning, or when not in use. Removing battery pack will prevent accidental starting that could cause serious personal injury.

IMPORTANT SAFETY INSTRUCTIONS

■ Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
■ Do not modify or attempt to repair the appliance or battery pack if it has been damaged.
■ To reduce the risk of serious personal injury, never use or expose battery pack or any cordless product in the presence of an open flame or temperature above 265°F. An exploded battery can propel debris and chemicals. If exposed, flush with water immediately.
■ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the product. Carrying battery products with your finger on the switch or energizing battery products that have the switch on invites accidents.
■ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
- Do not charge battery appliances in a damp or wet location. Do not use, store, or charge battery packs or products in locations where the temperature is less than 50°F or more than 100°F. Do not store outside or in vehicles.

■ Protect your lungs. Wear a face or dust mask if the operation is dusty. Following this rule will reduce the risk of serious personal injury.
- Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the product's operation. If damaged, have the product serviced before using. Many accidents are caused by poorly maintained products.
■ Use only accessories that are recommended by the manufacturer for your model. Accessories that may be suitable for one product may create a risk of injury when used on another product.
■ Do not let gasoline, oils, petroleum-based products, etc., come in contact with plastic parts. They contain chemicals that can damage, weaken, or destroy plastic.
■ Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.
■ Appliance is intended for household use only.
■ This product contains no serviceable parts.
■ Save these instructions. Refer to them frequently and use them to instruct others who may use this product. If you loan someone this product, loan them these instructions also.

SYMBOLS

The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING
	DANGER:	Indicates a hazardous situation, which, if not avoided, will result in death or serious injury.
	WARNING:	Indicates a hazardous situation, which, if not avoided, could result in death or serious injury.
	CAUTION:	Indicates a hazardous situation, that, if not avoided, may result in minor or moderate injury.
	NOTICE:	(Without Safety Alert Symbol) Indicates information considered important, but not related to a potential injury (e.g. messages relating to property damage).

Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME DESIGNATION/EXPLANATION
	Safety Alert Indicates a potential personal injury hazard.
	Read Operator's Manual	To reduce the risk of injury, user must read and understand operator's manual before using this product.
	Eye Protection	Always wear eye protection with side shields marked to comply with ANSI Z87.1.
	Wet Conditions Alert	Risk of fire and burns. Do not expose battery, battery compartment, or electronic components to rain, water, or liquids. Close cover during use.
	Long Hair Risk of long hair being drawn into air inlet.
	Motor head Do not run unit while motor head is unsecured.
	Recycle Symbol	This product uses lithium-ion (Li-ion) batteries. Local, state or federal laws may prohibit disposal of batteries in ordinary trash. Consult your local waste authority for information regarding available recycling and/or disposal options.
V Volts Voltage
min Minutes Time
---	Direct Current Type of a characteristic of current
n_0	No Load Speed Rotational speed, at no load
.../min Per Minute Revolutions, strokes, surface speed, orbits etc., per minute

ASSEMBLY

UNPACKING

This product requires assembly.

■ Carefully remove the appliance and any accessories from the box. All items listed in the Includes section must be included at the time of purchase.

WARNING:

Items in this Assembly section are not assembled to the product by the manufacturer and require customer installation. Use of a product that may have been improperly assembled could result in serious personal injury.

■ If any parts are damaged or missing, please call 1-800-525-2579 for assistance.

WARNING:

If any parts are damaged or missing do not operate this product until the parts are replaced. Use of this product with damaged or missing parts could result in serious personal injury.

WARNING:

Do not attempt to modify this product or create accessories or attachments not recommended for use with this product. Any such alteration or modification is misuse and could result in a hazardous condition leading to possible serious personal injury.

WET/DRY VAC ASSEMBLY

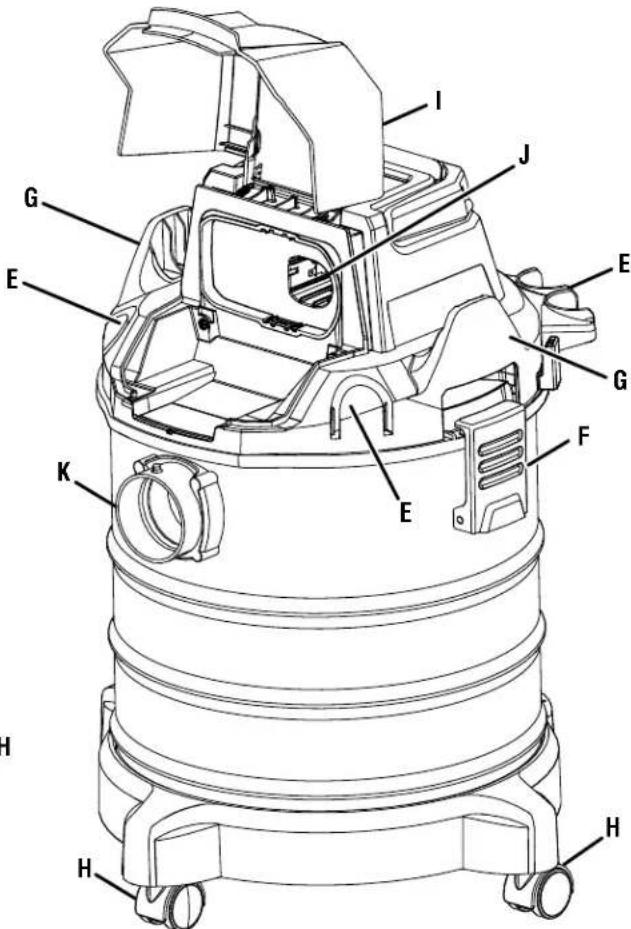

See Figure 1 - 8, pages 9 - 10.

The wet use filter, accessories, casters, and hose are packed inside the canister and must be installed before using the wet/dry vac.

■ Place the vacuum on a flat surface in the upright position.
■ Unlock the latches on the side of the canister and remove them from the slots in the motor head assembly.
■ Remove the motor head assembly and set it aside. NOTE: The dry use filter is preinstalled on the motor head.
■ Remove the wet use filter, flexible hose, crevice tool, floor nozzle, casters, and dust brush from the canister.
■ Carefully turn the canister upside down.
■ Push casters into the grommets located at the base of the canister until they snap into place.
■ Make sure the casters are secure, and then return the canister to the upright position.

■ Align the raised tab on vacuum port to the slot on the flexible hose; slide together and tighten securely by twisting until the tube snaps into the locked position. Check tightness after initial use and retighten if needed.

NOTICE:

When correctly assembled, the hose is difficult to separate. If it can easily be twisted apart, the hose is not locked. Continue twisting together until the hose snaps into the locked position. If the hose is not in the locked position, it can separate during operation.

■ Connect telescoping wand and/or accessories as needed. Refer to Installing/Removing Attachments later in the manual.
■ To remove the hose, rotate the hose counterclockwise and remove from the vacuum port.

To assemble the appliance for dry vacuuming:

■ Ensure the dry use filter is flush against the power head and turn the filter cover clockwise to make sure it is tightened securely.
NOTE: The dry use filter is preinstalled on the motor head.

■ Place the motor head assembly inside the canister and secure in place using the locking latches.

To assemble the appliance for wet vacuuming:

■ Remove the motor head assembly from the canister.
■ Turn the motor head assembly upside down with the dry use filter facing up.
■ Rotate the filter cover counterclockwise to loosen.
■ Remove the filter cover and dry use filter from the motor head.
■ Slide the wet use filter onto the motor head and pull it down until it completely covers the filter cage.
■ Place the filter cover over the filter and turn it clockwise to tighten and secure.
■ Place the motor head assembly inside the canister and secure in place using the locking latches.

NOTE: To reassemble the appliance for dry vacuuming, remove the motor head and turn it upside down. Remove the filter cover and wet use filter from the filter cage. Slide the dry use filter over the filter cage and secure in place using the filter cover. Place the motor head assembly inside the canister and secure in place using the locking latches.

OPERATION

WARNING:

Do not allow familiarity with this product to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury.

WARNING:

Always remove battery pack from the appliance when you are assembling parts, making adjustments, cleaning, or when not in use. Removing battery pack will prevent accidental starting that could cause serious personal injury.

WARNING:

Always wear eye protection with side shields marked to comply with ANSI Z87.1. Failure to do so could result in objects being thrown into your eyes and other possible serious injuries.

WARNING:

Do not use any attachments or accessories not recommended by the manufacturer of this product. The use of attachments or accessories not recommended can result in serious personal injury.

APPLICATIONS

You may use this product for the following purpose:

■ Light-duty vacuuming of wet or dry surfaces
■ Blowing hard surfaces such as driveways and walkways

INSTALLING/REMOVING BATTERY PACK

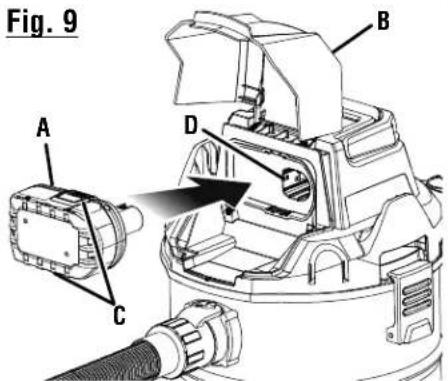

See Figure 9, page 11.

■ Set the ON/OFF switch to the OFF position.
■ Raise the battery cover.
■ Insert the battery pack into the product as shown.
■ Make sure the latches on each side of the battery pack snap into place and that battery pack is secured in the product before beginning operation.
■ Depress the latches to remove the battery pack.
■ Lower the battery cover and make sure it is securely closed.

For complete charging instructions, see the operator's manuals for your battery pack and charger.

STARTING/STOPPING THE WET/DRY VAC

See Figure 10, page 11.

WARNING:

To reduce the risk of fire or explosion, do not leave the product running while unattended. Immediately stop the unit if it shows signs of abnormal operation such as loss of suction, liquid or debris in the exhaust, or any abnormal motor noises.

■ To start the wet/dry vac: press the ON/OFF switch to the ON position.
■ To stop the wet/dry vac: press the ON/OFF switch to the OFF position.

INSTALLING/REMOVING ATTACHMENTS

See Figure 11, page 11.

Vacuuming can be performed with only the flexible hose or the hose with vacuum attachments.

■ Turn off the wet/dry vac.
■ Connect flexible hose to the vacuum port as described earlier.
■ Attach the tapered end of the flexible hose to the telescoping wand. Connect additional accessories as needed.
■ To remove, hold the attachment or telescoping wand and pull from hose.
■ To extend the telescoping wand, press the button and extend wand to desired length.

DRY VACUUMING

See Figure 12, page 11.

Assemble the appliance for dry vacuuming as described earlier in the manual.

Vacuum only items small enough to fit through the hose or the attachment. When vacuuming, make sure that the dry use filter stays in place. The performance of the wet/dry vac will decrease with a full canister. When emptying the canister, check to see if the dry use filter needs replacing.

CAUTION:

In low relative humidity conditions, vacuuming fine debris with the wet/dry vac can cause a static charge resulting in static shock. To reduce static shock while using, add moisture to the air with a humidifier.

OPERATION

WET VACUUMING

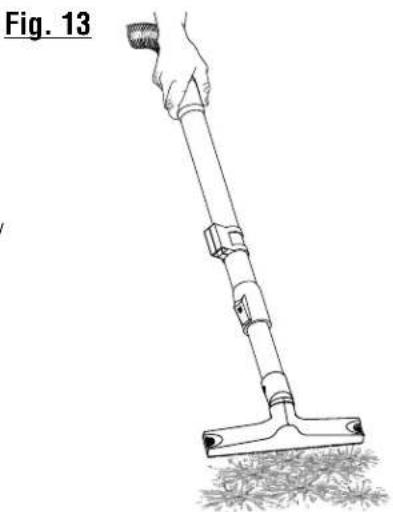

See Figure 13, page 11.

Assemble the appliance for wet vacuuming as described earlier in the manual.

When wet vacuuming, be aware that your wet/dry vac is equipped with a safety plug inside the filter unit housing. This safety plug is designed to shut the suction off when the canister reaches full wet capacity. When the canister is full, turn the wet/dry vac OFF and empty the canister as shown in Maintenance.

WARNING:

When vacuuming liquid, make sure the vacuum does not get submerged or doused in liquid, which could cause shock, vacuum failure, or personal injury.

BLOWING

See Figures 14 - 15, page 11.

To assemble the appliance for blowing:

■ Remove the battery pack.
■ Remove the flexible hose from the vacuum port and install it into the blower port on the motor housing.
■ Connect telescoping wand and/or accessories as needed.

When blowing, keep from scattering debris by blowing around the outer edges of a debris pile. Never blow directly into the center of a pile. Watch out for children, pets, open windows, or freshly washed cars, and blow debris safely away.

MAINTENANCE

WARNING:

When servicing, use only identical replacement parts. Use of any other part could create a hazard or cause product damage.

GENERAL MAINTENANCE

Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and can be damaged by their use. Use clean cloths to remove dirt, dust, oil, grease, etc.

WARNING:

Do not at any time let brake fluids, gasoline, petroleum-based products, penetrating oils, etc., come in contact with plastic parts. Chemicals can damage, weaken or destroy plastic which could result in serious personal injury.

REMOVING WASTE FROM THE CANISTER

The canister should be checked, emptied, and cleaned periodically to obtain maximum efficiency.

Dry waste:

■ Remove the battery pack.
■ Unlock the locking latches and remove the motor head assembly.
■ Remove the filter cover and dry use filter.
■ Inspect filter, lightly shake any dust or dirt from the filter, or replace as necessary.
■ Empty the canister; wash out if necessary.
■ Replace dry use filter and filter cover.
■ Before replacing the motor head assembly, make sure all pieces are completely dry.
■ Replace motor head assembly and lock securely.

MAINTENANCE

Liquid waste:

■ Remove the battery pack.
■ Unlock the locking latches and remove the motor head assembly.
■ Remove the filter cover.
■ Remove and clean the wet use filter. Allow the filter to completely dry before reattaching.

NOTE: Replace the filter if it is worn or damaged.

■ Empty the canister; wash out if necessary. Before replacing the motor head assembly, make sure all pieces are completely dry.
■ Replace motor head assembly and lock securely.

CAUTION:

Do not allow liquid pick up to remain in the canister for extended periods of time. Moisture can develop in the motor compartment and shorten the life of the motor.

CAUTION:

Do not turn unit upside down, as liquid may enter the motor unit.

STORAGE

See Figures 16 - 17, page 11.

■ Clean all foreign material from the wet/dry vac.
■ Clean the outside of the canister with warm water and mild soap.
■ Empty and clean the canister, flexible hose, telescoping wand, and attachments with warm water and mild soap and allow to completely dry before storage.
■ Store flexible hose and attachments inside the canister or in the storage areas located on the motor head and canister.

NOTE: To attach the telescoping wand with clip to the canister, place the wand onto the clip holder and slide it down to secure it in place.

■ The canister should be disinfected as needed and before prolonged storage.
■ Store indoors in a place that is inaccessible to children. Keep away from corrosive agents such as garden chemicals and de-icing salts.

ACCESSORIES

Look for these accessories where you purchased this product or call 1-800-525-2579:

■ Dry Use Filter 019071004011
■ Wet Use Filter 019071004010

NOTE: ILLUSTRATIONS START ON PAGE 9 AFTER FRENCH AND SPANISH LANGUAGE SECTIONS.

INSTRUCTIONS IMPORTANTES

CONCERNANT LA SÉCURITÉ

CONSERVER CES INSTRUCTIONS

Technical diagram of a vacuum cleaner with labeled parts from A to H

I J G E E G F K E H H H

A - Carrying handle (poignée de transport, mango de acarreo)
B - ON/OFF switch (Commutateur MARCHE/ARRÊT, interruptor de ENCENDIDO/APAGADO)
C - Blower port (orifice de soufflante, abertura de la sopladora)
D - Clip holder (support de clip, soporte del sujetador)

E - Accessory storage area (rangement pour accessoires, almacenamiento de accesorios)
F - Locking latches (loquets de verrouillage, fijaciones de bloqueo)
G - Hose wrap (enrouleur de flexible, enrollar el manguera)
H - Casters (rolettes, ruedas)

Technical diagram of various mechanical components with labeled parts A through H

E θ C G F B D

Technical line drawing of a mechanical component with labeled section A (no text or symbols beyond label)

E θ C G F B D

Technical line drawing of a mechanical device with labeled component A (no text or symbols beyond label)

Technical line drawing of a cylindrical device with labeled component B (no text or symbols beyond label)

A - Motor head assembly (ensemble du moteur para de tête, conjunto del motor de cabeza)
B - Canister (boîte, receptáculo)

Fig. 9 A B C D

Line drawing of a hand using a vacuum cleaner to clean debris (no text or symbols)

piles,

DRY VACUMMING ASPIRATION À SEC ASPIRADO EN SECO

Line drawing of a hand cleaning a broom with a handle, showing material and texture (no text or symbols)

Line drawing of a vacuum cleaner with handle and wheels (no text or symbols)

STORAGE POSITION POSITION DE RANGEMENT POSICION DEL ALMACENAMIENTO

NOTES / NOTAS

NOTES / NOTAS

To request service, purchase replacement parts,

locate an Authorized Service Center or obtain Customer or Technical Support:

Visit www.ryobitools.com or call 1-800-525-2579

If any parts or accessories are damaged or missing, do not return this product to the store.

Call 1-800-525-2579 for immediate service.

Please obtain your model and serial number from the product data plate.

This product is covered under a 3-year limited Warranty. Proof of purchase is required.

MODEL NUMBER* ____ SERIAL NUMBER ____

*Model number on product may have additional letters at the end. These letters designate manufacturing information and should be provided when calling for service.

RYOBI is a trademark of Ryobi Limited and is used pursuant to a license granted by Ryobi Limited.
