OPLADELIG SLAGBOREMASKINE/ SKRUETRÆKKER DW927/DW928/DW929/ DW956/DW957

Tillykke!

You have chosen a DEWALT power tool. Years of experience, thorough product development and innovation make DEWALT one of the most reliable partners for professional power tool users.

Technical data

	DW927 DW928 DW929 DW956 DW957
Voltage V 12 14.4 18 12 14.4
No load speed
1st gear min	-1	0-400	0-400	0-400	0-400
2nd gear min	-1	0-1,400	0-1,400	0-1,400	0-1,400
Max. torque Nm 32 35 40 35 40
Chuck capacity (K2 models) mm 10 10 10 13 13
Maximum drilling capacity in steel/wood (K2 models) mm 10/25 10/32 10/38 13/28 13/35
Chuck capacity (K2H models)	mm 10 10 -		13 13
Maximum drilling capacity in steel/wood (K2H models)	mm 10/25 10/32 -		13/28 13/35
Weight	kg 1.6	1.7	1.9	1.9	2.1

NiCd battery pack		DE9074	DE9094	DE9098
Voltage	V	12	14.4	18
Capacity	Ah	1.3	1.3	1.3
Weight	kg	0.55	0.6	0.87

NiCd battery pack		DE9071	DE9091
Voltage	V	12	14.4
Capacity	Ah	2.0 2.0
Weight	kg	0.65	0.7

NiMH battery pack		DE9086	DE9087
Voltage	V	12	14.4
Capacity	Ah	2.0 2.0
Weight	kg	0.65	0.7

The following symbols are used throughout this manual:

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.

Denotes risk of electric shock.

Charger	DE9107 DE9116 DE9118
	DE9108
Mains voltage	V_AC 230	230	230
Approx. charging time	min 60	60	60
Weight	kg 0.4 0.4 0.4

Fuses:
Europe	230 V tools 10 Amperes, mains
U.K. & Ireland	230 V tools 3 Amperes, in plugs

EC-Declaration of conformity CE

DW927/DW928/DW929/DW956/DW957

DEWALT declares that these power tools have been designed in compliance with: 98/37/EEC, 89/336/EEC, 73/23/EEC, EN 50144, EN 55014-2, EN 55014, EN 50260, EN 60335, EN 61000-3-2 & EN 61000-3-3.

For more information, please contact DeWALT at the address below, or refer to the back of the manual.

	DW927 DW928 DW929
	DW956 DW957
L_pA (sound pressure) dB(A)* 79 79.6 80.1
L_wA (acoustic power) dB(A) 92 92.6 93.1
Weighted RMS
acceleration value m/s	< 2.5 < 2.5 < 2.5

* at the operator's ear

Director Engineering and Product Development Horst Großmann

X. fopman

When using Power Tools, always observe the safety regulations applicable in your country to reduce the risk of fire, electric shock and personal injury.

Read the following safety instructions before attempting to operate this product.

Keep these instructions in a safe place!

General

1 Keep work area clean

Cluttered areas and benches can cause accidents.

2 Consider work area environment

Do not expose Power Tools to humidity. Keep work area well lit. Do not use Power Tools in the presence of flammable liquids or gases.

3 Guard against electric shock

Prevent body contact with earthed surfaces (e.g. pipes, radiators, cookers and refrigerators). For use under extreme conditions (e.g. high humidity, when metal swarf is being produced, etc.) electric safety can be improved by inserting an isolating transformer or a (FI) earth-leakage circuit-breaker.

4 Keep children away

Do not let children come into contact with the tool or extension cord. Supervision is required for those under 16 years of age.

5 Store idle tools

When not in use, Power Tools must be stored in a dry place and locked up securely, out of reach of children.

6 Dress properly

Do not wear loose clothing or jewellery. They can be caught in moving parts. Preferably wear rubber gloves and non-slip footwear when working outdoors. Wear protective hair covering to keep long hair out of the way.

7 Wear safety goggles

Also use a face or dust mask in case the operations produce dust or flying particles.

8 Beware of sound pressure

Take appropriate measures for the protection of hearing.

9 Secure workpiece

Use clamps or a vice to hold the workpiece. It is safer and it frees both hands to operate the tool.

10 Do not overreach

Keep proper footing and balance at all times.

11 Stay alert

Watch what you are doing. Use common sense. Do not operate the tool when you are tired.

12 Remove adjusting keys and wrenches

Always check that adjusting keys and wrenches are removed from the tool before operating the tool.

13 Use appropriate tool

The intended use is described in this instruction manual. Do not force small tools or attachments to do the job of a heavy-duty tool. The tool will do the job better and safer at the rate for which it was intended.

Warning! The use of any accessory or attachment or performance of any operation with this tool, other than those recommended in this instruction manual may present a risk of personal injury.

14 Maintain tools with care

Keep the tools in good condition and clean for better and safer performance.

Follow the instructions for maintenance and changing accessories. Inspect the tool cords at regular intervals and, if damaged, have them repaired by an authorized DEWALT repair agent. Keep all controls dry, clean and free from oil and grease.

15 Check for damaged parts

Before using the tool, carefully check it for damage to ensure that it will operate properly and perform its intended function. Check for misalignment and seizure of moving parts, breakage of parts and any other conditions that may affect its operation. Have damaged guards or other defective parts repaired or replaced as instructed. Do not use the tool if the switch is defective. Have the switch replaced by an authorized DEWALT repair agent.

16 Remove the battery pack

Remove the battery pack when not in use, before servicing and when changing accessories.

17 Have your tool repaired by an authorized DEWALT repair agent

This Power Tool is in accordance with the relevant safety regulations. To avoid danger, electric appliances must only be repaired by qualified technicians.

Additional safety instructions for battery packs

Fire hazard! Avoid metal short circuiting the contacts of a detached battery pack (e.g. keys carried in the same pocket as a battery pack).

- The battery fluid, a 25 - 30% solution of potassium hydroxide, can be harmful. In case of skin contact, flush immediately with water. Neutralize with a mild acid such as lemon juice or vinegar. In case of eye contact, rinse abundantly with clean water for at least 10 minutes. Consult a physician.

- Never attempt to open a battery pack for any reason.

- Use only chargers labelled «NiMH» or «NiMH + NiCd» to charge DeWALT NiMH battery packs.

Labels on charger and battery pack

In addition to the pictographs used in this manual, the labels on the charger and the battery pack show the following pictographs:

Battery charging

Battery charged

Battery defective

Do not probe with conductive objects

Do not charge damaged battery packs

Read instruction manual before use

Use only with DeWALT battery packs, others may burst, causing personal injury and damage

Do not expose to water

Have defective cords replaced immediately

Charge only between 4 °C and 40 °C

Discard the battery pack with due care for the environment

Do not incinerate the battery pack

Package contents

The package contains:

1 Cordless midhandle drill/driver
1 Battery charger
2 Battery packs
1 Screwdriver bit
1 Kitbox
1 Instruction manual

- Check for damage to the tool, parts or accessories which may have occurred during transport.

• Take the time to thoroughly read and understand this manual prior to operation.

Description (fig. A)

Your cordless drill/driver DW927/DW928/DW929/DW956/DW957 has been designed for professional drilling and screwdriving applications.

1 Variable speed switch

2 Forward/reverse slider

3 Two gear selector

4 Mode selector/torque adjustment collar

5 Collar settings

6 Keyless chuck

7 Bit holder

8 Grip

9 Battery pack

Charger

Your DE9107 charger accepts DEWALT NiCd battery packs ranging from 7.2 V to 14.4 V. Your DE9108/DE9118 charger accepts DEWALT NiCd battery packs ranging from 7.2 V to 18 V. Your DE9116 charger accepts DEWALT NiCd and NiMH battery packs ranging from 7.2 V to 18 V.

9 Battery pack

10 Release buttons

11 Charger

12 Charging indicator (red)

Electrical safety

The electric motor has been designed for one voltage only. Always check that the battery pack voltage corresponds to the voltage on the rating plate. Also make sure that the voltage of your charger corresponds to that of your mains.

Your DEWALT charger is double insulated in accordance with EN 60335.

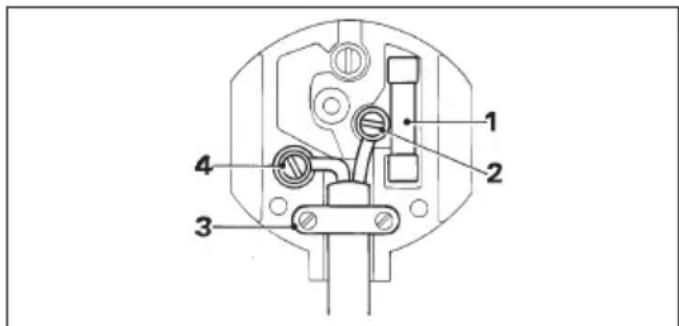

Mains plug replacement (U.K. & Ireland only)

- Should your mains plug need replacing and you are competent to do this, proceed as instructed below. If you are in doubt, contact an authorized DEWALT repair agent or a qualified electrician.

- Disconnect the plug from the supply.

- Cut off the plug and dispose of it safely; a plug with bared copper conductors is dangerous if engaged in a live socket outlet.

- Only fit 13 Amperes BS1363A approved plugs fitted with the correctly rated fuse (1).

- The cable wire colours, or a letter, will be marked at the connection points of most good quality plugs. Attach the wires to their respective points in the plug (see below). Brown is for Live (L) (2) and Blue is for Neutral (N) (4).

- Before replacing the top cover of the mains plug ensure that the cable restraint (3) is holding the outer sheath of the cable firmly and that the two leads are correctly fixed at the terminal screws.

1 2 3 4

Never use a light socket. Never connect the live (L) or neutral (N) wires to the earth pin marked E or 12

Using an extension cable

An extension cord should not be used unless absolutely necessary. Use an approved extension cable suitable for the power input of your charger (see technical data). The minimum conductor size is 1 mm^2 ; the maximum length is 30 m.

Assembly and adjustment

- Prior to assembly and adjustment, always remove the battery pack.

- Always switch off the tool before inserting or removing the battery pack.

- Use only DEWALT battery packs and chargers.

Battery pack (fig. A)

Charging the battery pack

- To charge the battery pack (9), insert it into the charger (11) as shown and plug in the charger. Be sure that the battery pack is fully seated in the charger, but do not force it.

The red charging indicator (12) will blink. After approx. 1 hour, it will stop blinking and remain on. The battery pack is now fully charged and the charger automatically switches to equalisation mode.

After approx. 4 hours, it will switch to maintenance charge mode. The battery pack can be removed at any time or left in the connected charger indefinitely.

• The red charging indicator flashes rapidly to indicate a charging problem. Reinsert the battery pack or try a new one. If the new pack also refuses to charge, have your charger tested by an authorised DEWALT repair agent.
• When plugged into power sources such as generators or sources that convert DC to AC, the red charging indicator may blink twice, switch off and repeat. This indicates a temporary problem of the power source. The charger will automatically switch back to normal operation.

Do not charge the battery pack at ambient temperatures < 4 °C or > 40 °C. Recommended charging temperature: approx. 24 °C.

Inserting and removing the battery pack

• Insert the battery pack into the grip (8) until it clicks in place.
• To remove the battery pack, press the two release buttons (10) simultaneously and pull the pack out of the grip (8).

Equalisation mode

The equalisation mode helps to maintain the optimum capacity of the battery pack. It is therefore recommended to use the equalisation mode weekly or every 10 charge/discharge cycles.

• Charge the battery pack as described above.
• When the charging indicator stops blinking, leave the battery in the charger for approx. 4 hours.

DE9108/DE9116 - Hot Pack Delay

When the charger detects a battery that is hot, it automatically starts a Hot Pack Delay, suspending charging until the battery has cooled. After the battery has cooled, the charger automatically switches to the pack charging mode. This feature ensures maximum battery life. The red indicator (12) blinks long, then short while in the Hot Pack Delay mode.

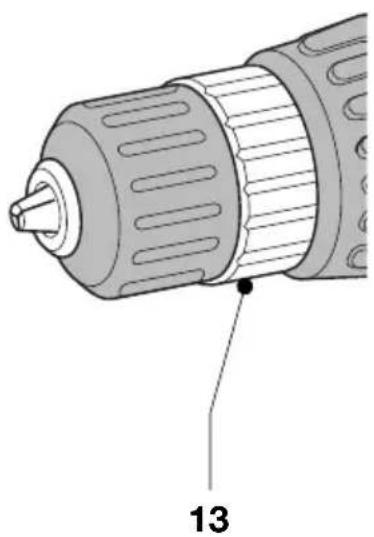

Inserting and removing bits (fig. A & B)

- Open the chuck by turning the sleeve (13) counterclockwise and insert the bit shank.

• Place the bit in the chuck as far as it will go and lift slightly before tightening.
• Tighten firmly by turning the sleeve clockwise.
• To remove the bit, proceed in reverse order.

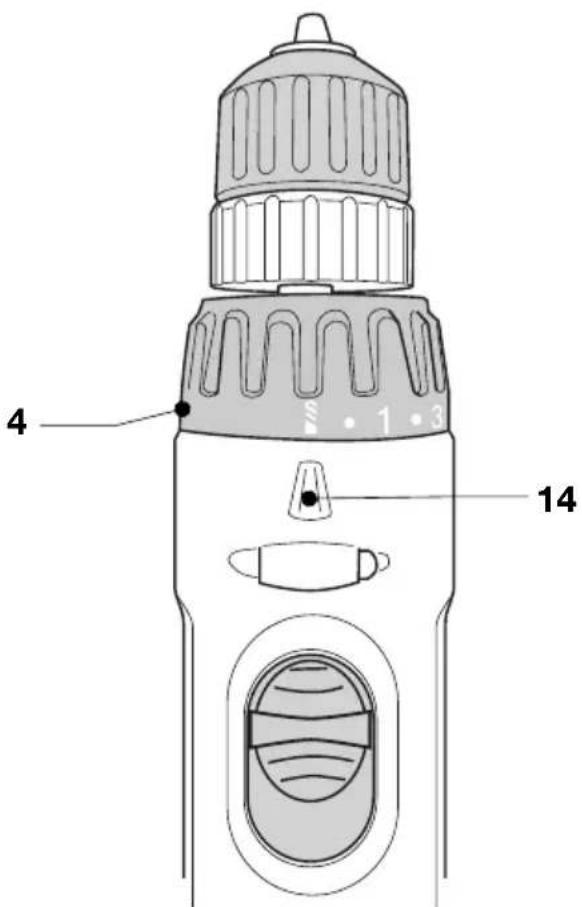

Selecting the operating mode or adjusting the torque (fig. C)

The collar of this tool has 17 positions for the adjustment of the torque to suit the size of the screw and the workpiece material. For torque adjustment, refer to the section «Screwdriving».

- Select the drilling mode or torque by aligning the symbol or number on the collar (4) with the indicator (14) on the housing.

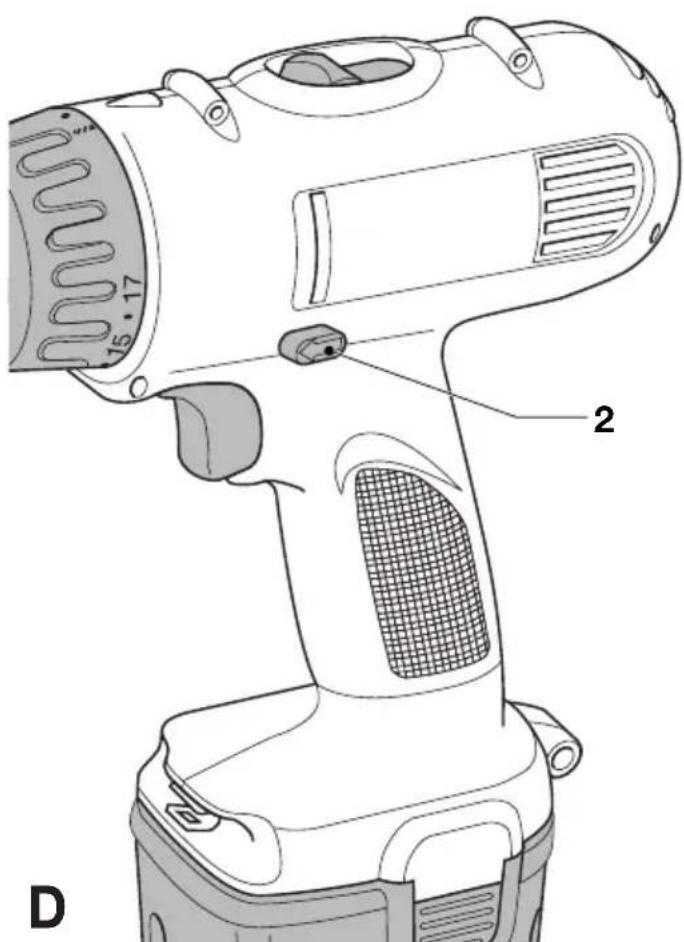

Forward/reverse slider (fig. D)

- To select forward or reverse rotation, use the forward/reverse slider (2) as shown (see arrows on tool).

Always wait until the motor has come to a complete standstill before changing the direction of rotation.

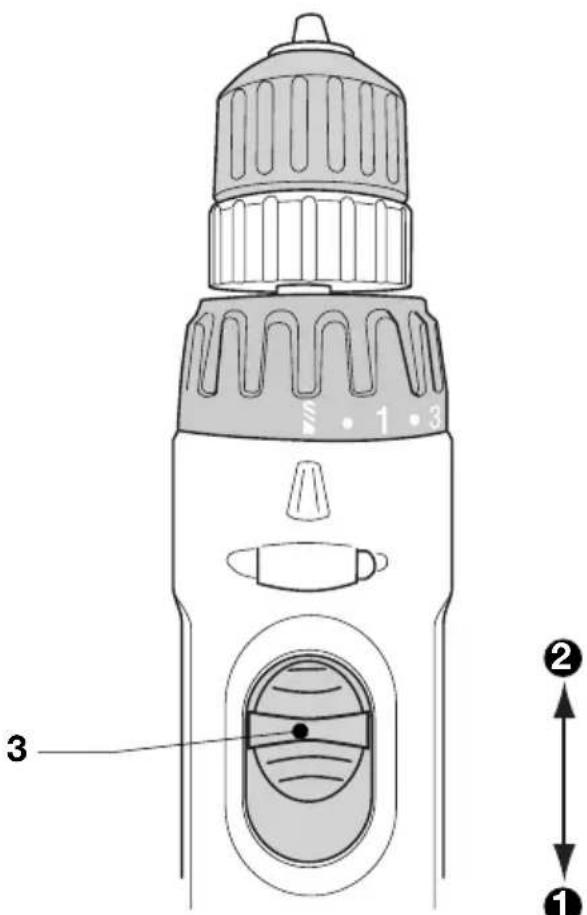

Two gear selector (fig. E)

Your tool is fitted with a two gear selector (3) to vary the speed/torque ratio.

1 low speed/high torque (drilling large holes, driving screws)
2 high speed/low torque (drilling smaller holes)

For speed rates, refer to the technical data.

Always push the two gear selector completely forward or backward.

- Do not change gears at full speed or during use.

Instructions for use

• Always observe the safety instructions and applicable regulations.
- Be aware of the location of pipework and wiring.
- Apply only a gentle pressure to the tool.

Switching on and off (fig. A & D)

• To run the tool, press the variable speed switch (1). The pressure exerted on the variable speed switch determines the tool speed.
• To stop the tool, release the switch.
• To lock the tool in the off position, move the forward/reverse slider (2) to the central position.

The drill is equipped with a brake to stop the tool as soon as the variable speed switch is fully released.

Screwdriving (fig. A)

• Select forward or reverse rotation using the slider (2).
• Set the collar (4) to position 1 and begin screwdriving (low torque).
• If the clutch ratchets too soon, adjust the collar to increase the torque as required.

Drilling (fig. A)

• Select the drilling mode using the collar (4).
• Select forward rotation.

Drilling in metal

• Use a cutting lubricant when drilling metals. The exceptions are cast iron and brass which should be drilled dry.

Drilling in wood

- Use the appropriate type of drill bit.

Consult your dealer for further information on the appropriate accessories.

Maintenance

Your DEWALT Power Tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

Lubrication

Your power tool requires no additional lubrication.

Cleaning

• Unplug the charger before cleaning the housing with a soft cloth.
• Remove the battery pack before cleaning your power tool.
• Keep the ventilation slots clear and regularly clean the housing with a soft cloth.

Environment

Rechargeable battery pack

This long life battery pack must be recharged when it fails to produce sufficient power on jobs which were easily done before. At the end of its technical life, discard it with due care for our environment:

• Run the battery pack down completely, then remove it from the tool.
• NiCd and NiMH cells are recyclable. Take them to your dealer or a local recycling station.
  The collected battery packs will be recycled or disposed of properly.

Unwanted tools

Take your tool to an authorised DEWALT repair agent where it will be disposed of in an environmentally safe way.

GUARANTEE

• 30 DAY NO RISK SATISFACTION GUARANTEE •

If you are not completely satisfied with the performance of your DEWALT tool, simply return it within 30 days, complete as purchased, to the point of purchase, for a full refund or exchange. Proof of purchase must be produced.

• ONE YEAR FREE SERVICE CONTRACT •

If you need maintenance or service for your DeWALT tool, in the 12 months following purchase, it will be undertaken free of charge at an authorized DeWALT repair agent. Proof of purchase must be produced. Includes labour and spare parts for Power Tools. Excludes accessories.

• ONE YEAR FULL WARRANTY •

If your DEWALT product becomes defective due to faulty materials or workmanship within 12 months from the date of purchase, we guarantee to replace all defective parts free of charge or, at our discretion, replace the unit free of charge provided that:

• The product has not been misused.
• Repairs have not been attempted by unauthorized persons.
- Proof of purchase date is produced. This guarantee is offered as an extra benefit and is additional to consumers statutory rights.

For the location of your nearest authorized DEWALT repair agent, please use the appropriate telephone number on the back of this manual. Alternatively, a list of authorized DEWALT repair agents and full details on our after-sales service are available on the Internet at

www.2helpU.com.

TALADRO ATORNILLADOR/PERCUTOR SIN CABLE DW927/DW928/DW929/DW956/DW957

¡Enhorabuena!

Director Engineering and Product Development Horst Großmann

X. fopman

Pack-batteries chargé

L'emballage contient:

(Isolation double) -outils

Pack-batteries (fig. A)

Packs-batteries rechargeables

Director Engineering and Product Development Horst Groflmann

X. Jopman

DeWALT, Richard-Klinger-Strafle 40, D-65510, Idstein, Duitsland

Director Engineering and Product Development Horst Großmann

X. fopman

DEWALT, Richard-Klinger-Straße 40, D-65510, Idstein, Tyskland

Sikkerhetsforskrifter

1 Bryter for variabelt turtall

2 Forover/bakover-skyvebryter

3 To-gear velger

4 Slagvelger/justeringskrage for dreiemoment

5 Krave-stillinger

6 Selvspennende chuck

7 Bitsholder

8 Håndtak

9 Batteripakke

Lader

Director Engineering and Product Development Horst Großmann

X. fopman

DeWALT, Richard-Klinger-Straße 40, D-65510, Idstein, Alemanha

Director Engineering and Product Development Horst Großmann

X. fopman

Director Engineering and Product Development Horst Großmann

X. fopman

DeWALT, Richard-Klinger-Straße 40, D-65510, Idstein, Tyskland

Säkerhetsinstruktioner

Kapasitesi Ah 2,0 2,0

Ağırlık kg 0,65 0,7

NiMH akü DE9037 DE9038

Voltaj V 12 14,4

Kapasitesi Ah 2,0 2,0

Ağırlık kg 0,65 0,7

Calpe House Rock Hill

Black Rock, Co. Dublin

Tel: [phone]

Fax: [phone]

Italia

DeWALT

Viale Elvezia 2

20052 Monza (Mi)

Tel: [phone]

Fax: [phone]

Nederland

DeWALT

Florijnstraat 10

4879 AH Etten-Leur

Tel: [phone]

Fax: [phone]

www.dewalt.benelux.com

Norge

DEWALT Tel: [phone]

Strømsveien 344

1011 Oslo

Fax: [phone]

www.dewalt-nordic.com

Österreich

DEWALT Tel: 01 - 66116 - 0
