Product type	Telescopic laser pole (accessory)
Brand and model	DeWALT DE0842
Minimum height	240 cm
Maximum height (extended)	340 cm
Weight	1.1 kg
Number of tubes	5 (complete assembly)
Table capacity	For mounting DeWALT lasers DW082K/DW084K/DW087K
Power supply	None (mechanical accessory)
Main functions	Telescopic support for laser, height adjustment, leveling
Usage	Indoor only (do not use outdoors)
Maintenance and cleaning	Clean with a dry cloth; regular inspection of fastenings
Safety	Do not climb on the pole; keep children away; use only on stable ground
Spare parts and repairability	Contact an authorized DeWALT repairer; parts available via after-sales service
Package contents	Pole, instruction manual, carrying bag
Warranty	1 year (manufacturing defects); 30 days satisfaction

Frequently Asked Questions - DE0842 DEWALT

How to assemble the DE0842 pole?

Hold tube (1) with one hand and insert additional tubes into the threaded end (8). Place the number of tubes suited to the desired height. Loosen the clamping handle (5), slide the table (2) onto the pole, then lock it by pushing the handle downwards.

Which lasers are compatible with this pole?

The DE0842 pole is designed for DeWALT lasers DW082K, DW084K and DW087K. The table is equipped with a threaded pin (3) for these models.

How to adjust the table height?

Loosen the height adjustment handle (5), move the table (2) to the desired height, then push the handle downwards to lock it in place.

Can the pole be used outdoors?

No, the manual clearly states: Never attempt to use this accessory for outdoor applications. Indoor use only.

How to transport the pole?

The pole comes with a carrying bag for convenient storage and transport. Disassemble the tubes and store them in the bag.

What is the maximum weight supported by the table?

The maximum weight is not specified, but the pole is designed to support compatible DeWALT lasers, which weigh about 0.5 to 1 kg. Do not overload.

How to ensure the pole is level?

After setting up the pole, check the level using the mounted laser or a spirit level. The table can be adjusted in height and the pole can be slightly tilted via the folding feet.

Are the pole feet foldable?

Yes, the feet (7) fold for easy storage and transport. Loosen the collar (9), fold the feet, then slide the accessory into the raised position.

How to clean the pole?

Clean the pole with a dry cloth to remove dust. Do not use harsh chemicals. Regularly check that all fastenings are tight.

What to do in case of manufacturing defect?

Under 1 year warranty, return the product with proof of purchase to an authorized DeWALT repairer. They will replace defective parts or the entire unit at their discretion.

USER MANUAL DE0842 DEWALT

A

B

E

STOK DE0842

Tillykke!

You have chosen a DEWALT product. Years of experience, thorough product development and innovation make DEWALT one of the most reliable partners for professional users.

Technical data

	DE0842
Height cm 240
Height (extended) cm 340
Weight kg 1.1

The following symbols are used throughout this manual:

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.

Manufacturer's declaration

DE0842

DeWALT declares that this unit has been designed in compliance with 98/37/EEC & 86/336/EEC.

This unit must not be put into service until it was established that the Power Tool to be used with this unit is in compliance with 98/37/EEC (identified by the CE-marking on the Power Tool).

Director Engineering and Product Development Horst Großmann

Always observe the safety regulations applicable in your country to reduce the risk of fire, electric shock and personal injury.

Read all of this manual carefully before operating the attachment. Also refer to the manual of any power tool that will be used with this attachment.

Save this manual for future reference.

General

1 Keep work area clean

Cluttered areas and benches can cause accidents.

2 Keep children away

Do not let children come into contact with the tool or extension cord. Supervision is required for those under 16 years of age.

3 Use appropriate tool

The intended use is described in this instruction manual. Do not force small tools or attachments to do the job of a heavy-duty tool. The tool will do the job better and safer at the rate for which it was intended.

Warning! The use of any accessory or attachment or performance of any operation with this tool, other than those recommended in this instruction manual may present a risk of personal injury.

Additional safety instructions for laser poles

• Never attempt to use this attachment in outdoor applications.
• Do not climb onto the pole.

Package contents

The package contains:

5 Tubes
1 Table
1 End piece
1 Foot
1 Carrying bag
1 Instruction manual
- Take the time to thoroughly read and understand this manual prior to operation.

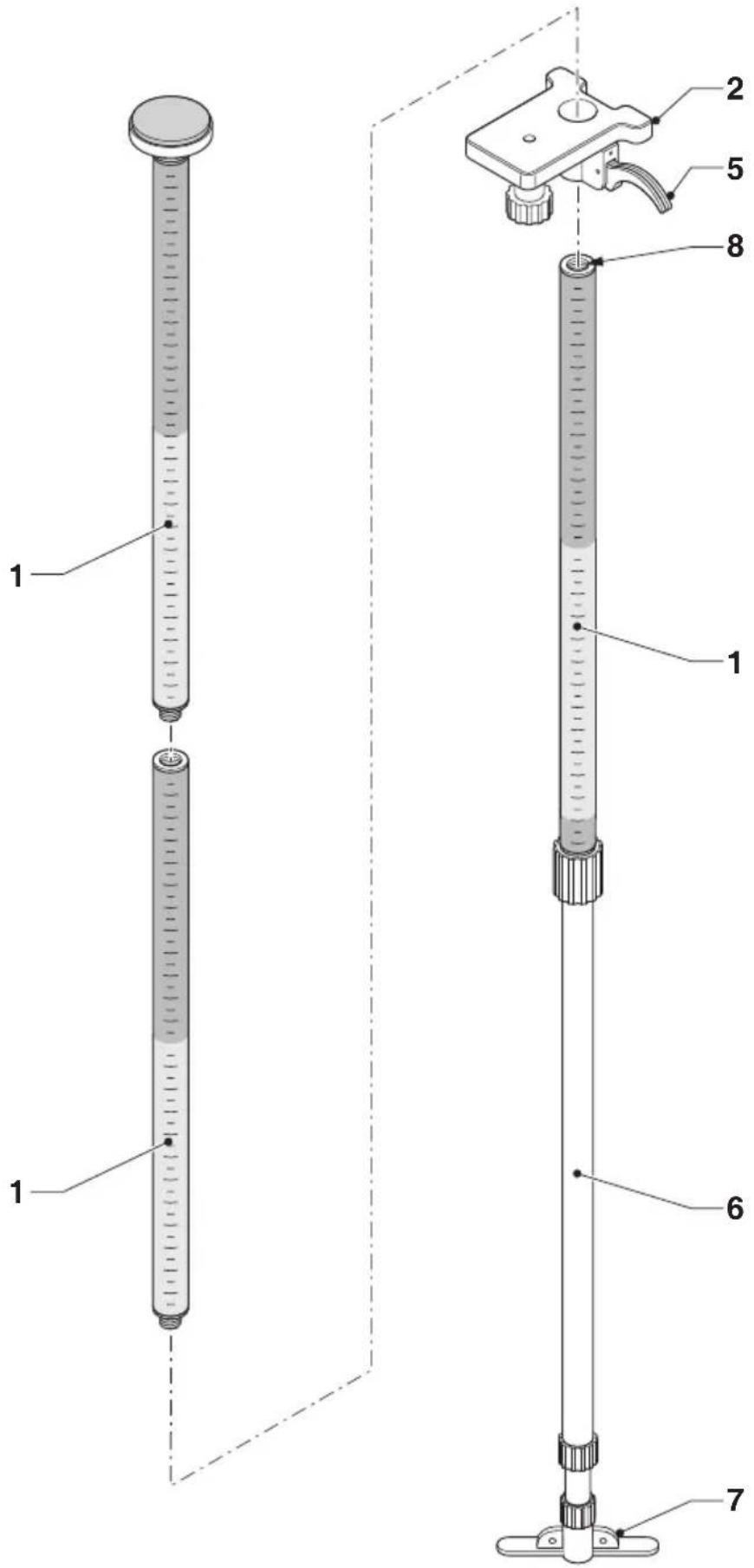

Description (fig. A)

Your DE0842 pole has been designed to extend the capabilities of your DEWALT DW082K/DW084K/DW087K laser.

1 Tube
2 Table
3 Tool mounting hole
4 End piece
5 Table clamp handle
6 Telescopic shaft
7 Foot

Assembly and adjustment

Also refer to the manual of the tool to be used with this attachment.

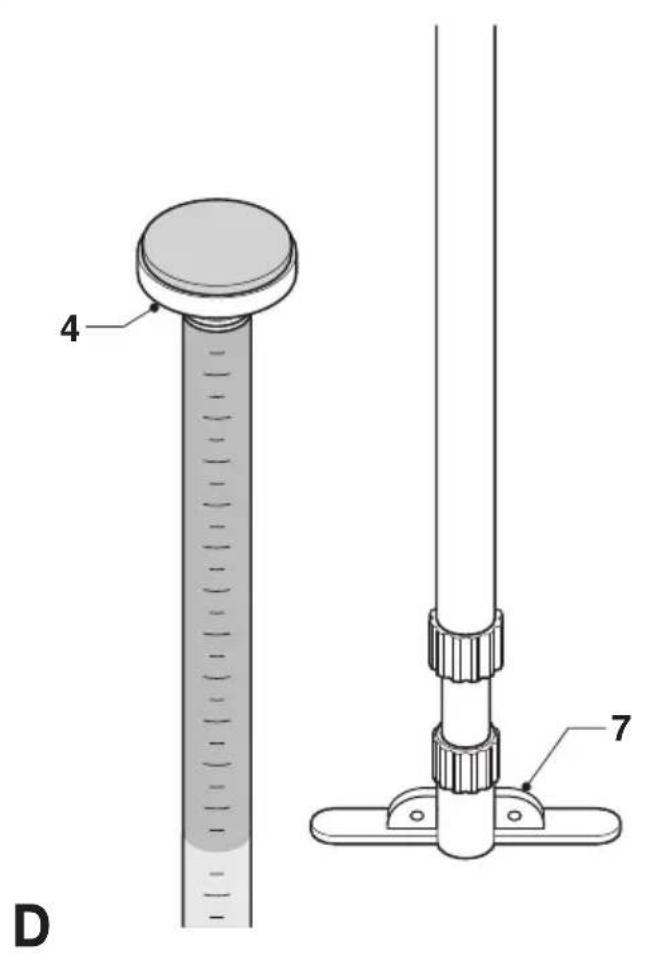

Installing the attachment (fig. B - D)

Fully assembled, the pole consists of 5 tubes.

• Hold the tube (1) with the telescopic shaft (6) with one hand and with the other fit a tube into the threaded end (8).
• Fit as many tubes as required to approach the desired height.
• Loosen the clamp handle (5).
• Slide the table (2) onto the pole.
• Push the handle (5) down to lock the table in position.
• Fit the tube with the end piece (4).
• Clamp the attachment in position.
  • Fit the tool onto the table (2).

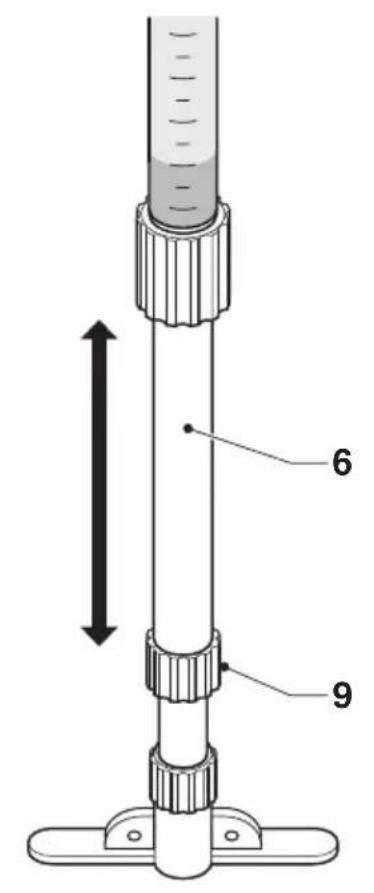

Clamping the attachment in position (fig. E)

The telescopic shaft (6) allows you to adjust the attachment to the required clamping height.

• Loosen the collar (9).
• Fold out the feet (7).
• Carefully slide the attachment in upright position with the feet placed on the floor.
• Slide out the shaft as required.
• Tighten the shaft to lock it into place.
• Make sure the attachment is securely clamped.
• Check if the attachment is level.

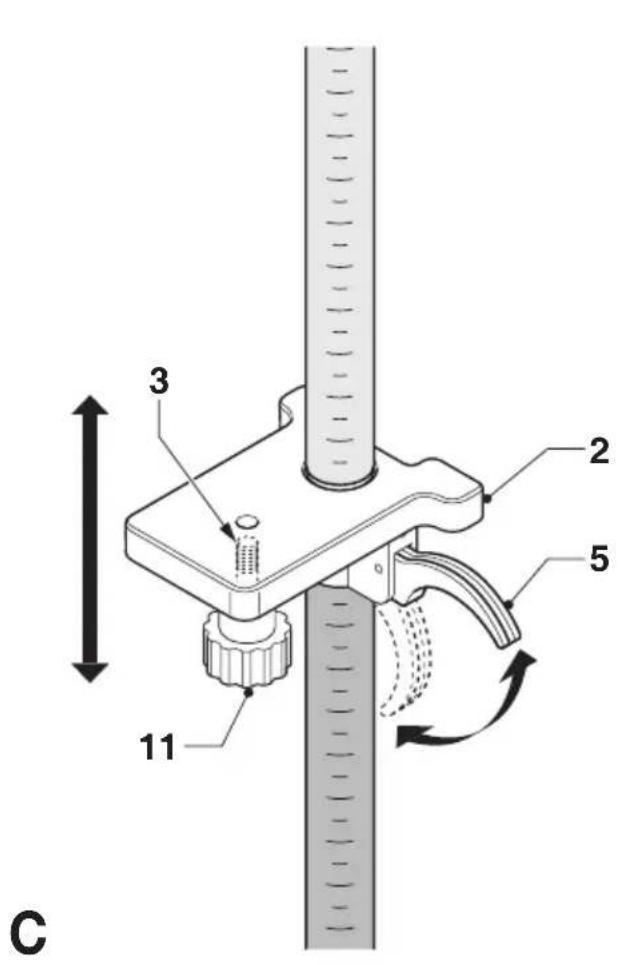

Mounting the tool to the attachment (fig. C)

The table (2) has been equipped with a threaded pin (3) for mounting of the DW082K/DW084K/DW087K laser.

• Install the attachment on a relatively smooth and level location.
• Fit the tool to the table by inserting the threaded pin (3) into the receptacle in the tool and tightening the knob (11).
• Adjust the table height as necessary.

Before mounting the tool to the attachment check that the attachment is firmly set and is wobble free.

Adjusting the table height (fig. C)

• Loosen the height adjustment handle (5).
• Move the table (2) as necessary.
• Push the handle (5) down to lock the table in position.

Transport and storage

In order to conveniently transport and store the attachment, a carrying bag is included.

Consult your dealer for further information on the appropriate accessories.

Maintenance

Your attachment has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

Protecting the environment

Separate collection. This product must not be disposed of with normal household waste.

Should you find one day that your DEWALT product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection.

Separate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials.

Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product.

DEWALT provides a facility for the collection and recycling of DEWALT products once they have reached the end of their working life. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.

You can check the location of your nearest authorised repair agent by contacting your local DEWALT office at the address indicated in this manual. Alternatively, a list of authorised DEWALT repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com

GUARANTEE

• 30 DAY NO RISK SATISFACTION GUARANTEE •

If you are not completely satisfied with the performance of your DEWALT tool, simply return it within 30 days, complete as purchased, to the point of purchase, for a full refund or exchange. Proof of purchase must be produced.

• ONE YEAR FREE SERVICE CONTRACT •

If you need maintenance or service for your DEWALT tool, in the 12 months following purchase, it will be undertaken free of charge at an authorized DEWALT repair agent. Proof of purchase must be produced. Includes labour and spare parts for the attachments. Excludes accessories.

• ONE YEAR FULL WARRANTY •

If your DEWALT product becomes defective due to faulty materials or workmanship within 12 months from the date of purchase, we guarantee to replace all defective parts free of charge or, at our discretion, replace the unit free of charge provided that:

• The product has not been misused.
• Repairs have not been attempted by unauthorized persons.
- Proof of purchase date is produced. This guarantee is offered as an extra benefit and is additional to consumers statutory rights.

For the location of your nearest authorized DeWALT repair agent, please use the appropriate telephone number on the back of this manual. Alternatively, a list of authorized DeWALT repair agents and full details on our after-sales service are available on the Internet at www.2helpU.com.
