VINKELSLIBER DW811/DW816

Tillykke!

You have chosen a DEWALT Power Tool. Years of experience, thorough product development and innovation make DEWALT one of the most reliable partners for professional Power Tool users.

Table of contents

Technical data en - 1

Declaration of conformity en - 1

Safety instructions en - 2

Package contents en - 3

Description en - 3

Electrical safety en - 3

Mains plug replacement (U.K. & Ireland only) en - 3

Using an extension cable en - 3

Assembly and adjustment en - 4

Instructions for use en - 5

Maintenance en - 5

Guarantee en - 6

Technical data

	DW811 DW816
Voltage V 230 230
(U.K. & Ireland only)	V 115 115
Power input	W 720 650
No load speed	min ^-1 12,000	12,000
Wheel diameter	mm 115 115
Spindle M14 M14
Weight	kg 1.8	1.7

Fuses:
Europe	230 V tools 10 Amperes, mains
U.K. & Ireland	240 V tools 13 Amperes, in plugs

The following symbols are used throughout this manual:

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.

Denotes risk of electric shock.

Declaration of conformity

DW811/DW816

DEWALT declares that these Power Tools have been designed in compliance with: 89/392/EEC, 89/336/EEC, 73/23/EEC, EN 50144, EN 55104, EN 55014, EN 61000-3-2 & EN 61000-3-3.

Level of sound pressure according to 86/188/EEC & 89/392/EEC, measured according to EN 50144:

			DW811	DW816
L_pA	(sound pressure)	dB(A)*	90.8	90.8
L_wA	(acoustic power)	dB(A)	98.8	98.8

* at the operator's ear

Take appropriate measures for the protection of hearing if the sound pressure of 85 dB(A) is exceeded.

Weighted root mean square acceleration value according to EN 50144:

	DW811	DW816
	2.58 m/s^2	2.58 m/s^2

Director Engineering and Product Development Horst Großmann

X. fopman

DEWALT, Idstein, Germany

Safety instructions

When using Power Tools, always observe the safety regulations applicable in your country to reduce the risk of fire, electric shock and personal injury. Read the following safety instructions before attempting to operate this product. Keep these instructions in a safe place!

General

1 Keep work area clean

Cluttered areas and benches can cause accidents.

2 Consider work area environment

Do not expose Power Tools to humidity. Keep work area well lit. Do not use Power Tools in the presence of inflammable liquids or gases.

3 Guard against electric shock

Prevent body contact with earthed surfaces (e.g. pipes, radiators, cookers and refrigerators). For use under extreme conditions (e.g. high humidity, when metal swarf is being produced, etc.) electric safety can be improved by inserting an isolating transformer or a (FI) earth-leakage circuit-breaker.

4 Keep children away

Do not let children come into contact with the tool or extension cord. Keep all people away from the work area.

5 Extension cords for outdoor use

When the tool is used outdoors, always use extension cords intended for outdoor use and marked accordingly.

6 Store idle tools

When not in use, Power Tools must be stored in a dry place and locked up securely, out of reach of children.

7 Dress properly

Do not wear loose clothing or jewellery. They can be caught in moving parts. Preferably wear rubber gloves and non-slip footwear when working outdoors. Wear protective hair covering to keep long hair out of the way.

8 Wear safety goggles

Also use a face or dust mask in case the operations produce dust or flying particles.

9 Beware of maximum sound pressure

Take appropriate measures for the protection of hearing if the sound pressure of 85 dB(A) is exceeded.

10 Secure workpiece

Use clamps or a vice to hold the workpiece. It is safer and it frees both hands to operate the tool.

11 Do not overreach

Keep proper footing and balance at all times.

12 Avoid unintentional starting

Do not carry the plugged-in tool with a finger on the switch. Be sure that the switch is released when plugging in.

13 Stay alert

Watch what you are doing. Use common sense. Do not operate the tool when you are tired.

14 Disconnect tool

Shut off power and wait for the tool to come to a complete standstill before leaving it unattended. Unplug the tool when not in use, before servicing or changing accessories.

15 Remove adjusting keys and wrenches

Always check that adjusting keys and wrenches are removed from the tool before operating the tool.

16 Use appropriate tool

The intended use is laid down in this instruction manual. Do not force small tools or attachments to do the job of a heavy-duty tool. The tool will do the job better and safer at the rate for which it was intended.

Warning! The use of any accessory or attachment or performance of any operation with this tool, other than those recommended in this instruction manual may present a risk of personal injury.

17 Do not abuse cord

Never carry the tool by its cord or pull it to disconnect from the socket. Keep the cord away from heat, oil and sharp edges.

18 Maintain tools with care

Keep the tools in good condition and clean for better and safer performance. Follow the instructions for maintenance and changing accessories. Inspect the tool cords at regular intervals and, if damaged, have them repaired by an authorized DEWALT repair agent. Inspect the extension cords periodically and replace them if damaged. Keep all controls dry, clean and free from oil and grease.

19 Check for damaged parts

Before using the tool, carefully check it for damage to ensure that it will operate properly and perform its intended function. Check for misalignment and seizure of moving parts,

breakage of parts and any other conditions that may affect its operation. Have damaged guards or other defective parts repaired or replaced as instructed. Do not use the tool if the switch is defective. Have the switch replaced by an authorized DEWALT repair agent.

20 Have your tool repaired by an authorized DEWALT repair agent

This Power Tool is in accordance with the relevant safety regulations. To avoid danger, electric appliances must only be repaired by qualified technicians.

Additional safety rules for grinding wheels and cutting disks

- Only use fiber-reinforced grinding wheels and cutting disks in conformity with ISO 2933-1974 with a diameter corresponding to the wheel diameter specified in the technical data.

Package contents

The package contains:

1 Angle Grinder
1 Guard
1 Side handle
1 Flange set
1 Two-pin spanner
1 Wrench (DW816)
1 Instruction manual
1 Exploded drawing
1 Registration card
- Check for damage to the tool, parts or accessories which may have occurred during transport.
• Take the time to thoroughly read and understand this manual prior to operation.

Description (fig. A)

Your Angle Grinder has been designed for professional grinding and cutting applications. Sanding requires a special rubber backing pad available as an option.

1 ON/OFF-switch
2 Lock-on button
3 Guard
4 Side handle
5 Spindle lock (DW811)

Electrical safety

The electric motor has been designed for one voltage only. Always check that the power supply corresponds to the voltage on the rating plate.

Your DEWALT tool is double insulated in accordance with EN 50144; therefore no earth wire is required.

Mains plug replacement (U.K. & Ireland only)

• Should your mains plug need replacing and you are competent to do this, proceed as instructed below. If you are in doubt, contact an authorized DeWALT repair agent or a qualified electrician.
• Disconnect the plug from the supply.
• Cut off the plug and dispose of it safely; a plug with bared copper conductors is dangerous if engaged in a live socket outlet.
• Only fit 13 Amperes BS1363A approved plugs fitted with the correctly rated fuse (1).
• The cable wire colours, or a letter, will be marked at the connection points of most good quality plugs. Attach the wires to their respective points in the plug (see below). Brown is for Live (L) (2) and Blue is for Neutral (N) (4).
• Before replacing the top cover of the mains plug ensure that the cable restraint (3) is holding the outer sheath of the cable firmly and that the two leads are correctly fixed at the terminal screws.

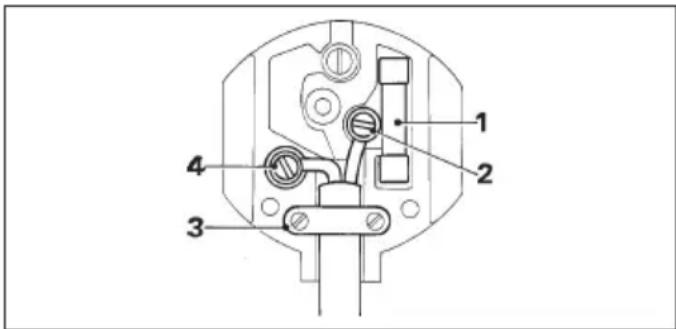

1 2 3 4

Never use a light socket. Never connect the live (L) or neutral (N) wires to the earth pin marked E or 12

For 115 V units with a power rating exceeding 1500 W, we recommend to fit a plug to BS4343 standard.

Using an extension cable

If an extension cable is required, use an approved triple-core extension cable suitable for the power

input of this tool (see technical data). The minimum conductor size is 1.5 mm ^2 .

When using a cable reel, always unwind the cable completely.

Also refer to the table below.

Conductor size (mm2) Cable rating (Amperes)
0.75 6
1.00 10
1.50 15
2.50 20
4.00 25
Cable length (m)
7.5 15 25 30 45 60
Voltage Amperes Cable rating (Amperes)
1	1	5	0	-	2	.	0	6	6
		2.1 -	3.4	6	6	6	6	15	15
		3.5 -	5.0	6	6	10	15	20	20
		5.1 -	7.0	10	10	15	20	20	25
		7.1 -	12.0	15	15	20	25	25	-
		12.1 -	20.0	20	20	25	-	-	-
220/240	0 -	2.0	6	6	6	6	6	6	6
	2.1 -	3.4	6	6	6	6	6	6	6
	3.5 -	5.0	6	6	6	6	6	10	15
	5.1 -	7.0	10	10	10	10	15	15
	7.1 -	12.0	15	15	15	15	20	20
	12.1 -	20.0	20	20	20	20	20	25	-

Assembly and adjustment

Prior to assembly and adjustment always unplug the tool.

Connecting the cable to the tool (fig. B)

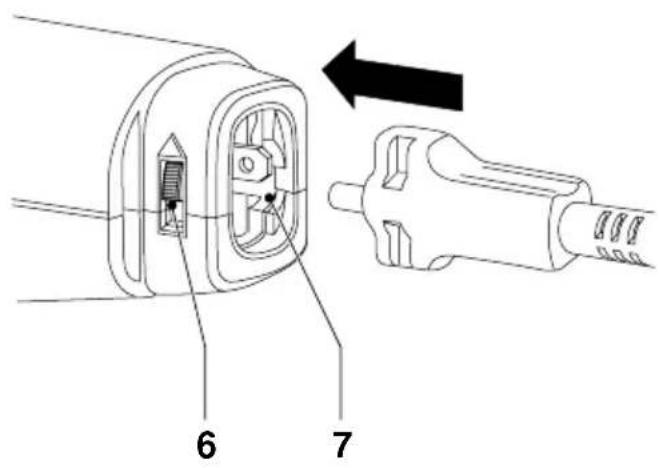

• Move the slider (6) completely in the direction of the arrow on the tool.
• Push the cable connector firmly into the socket (7).
• Move the slider (6) completely back to secure the cable.

Mounting and removing the guard (fig. C & D) Mounting

• Place the Angle Grinder on a table, spindle up.

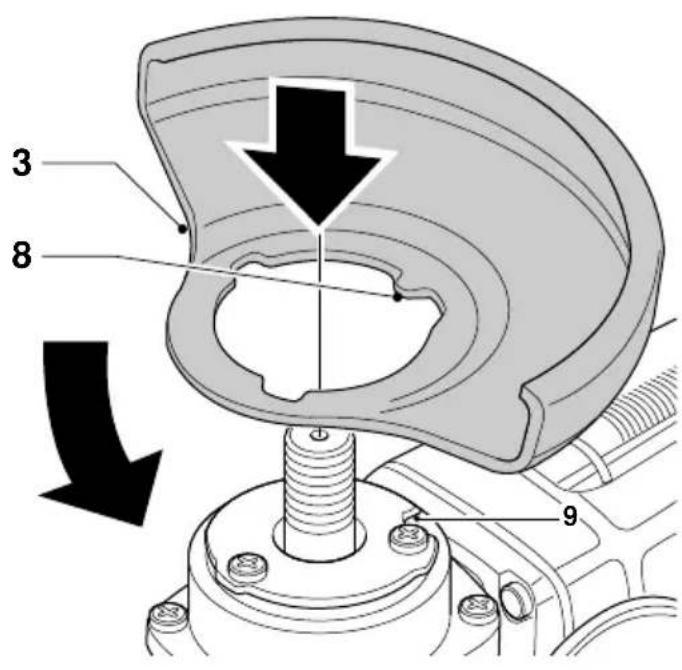

• Align the lug (8) with the slot (9) in the bracket.
• Press the guard (3) down and turn it in the direction of the arrow (fig. C).

The guard locking pin (10) prevents the guard from coming loose.

Removing

• Hold the tool in your hand.
• Rotate the guard (3) in the direction of the arrows (fig. D).

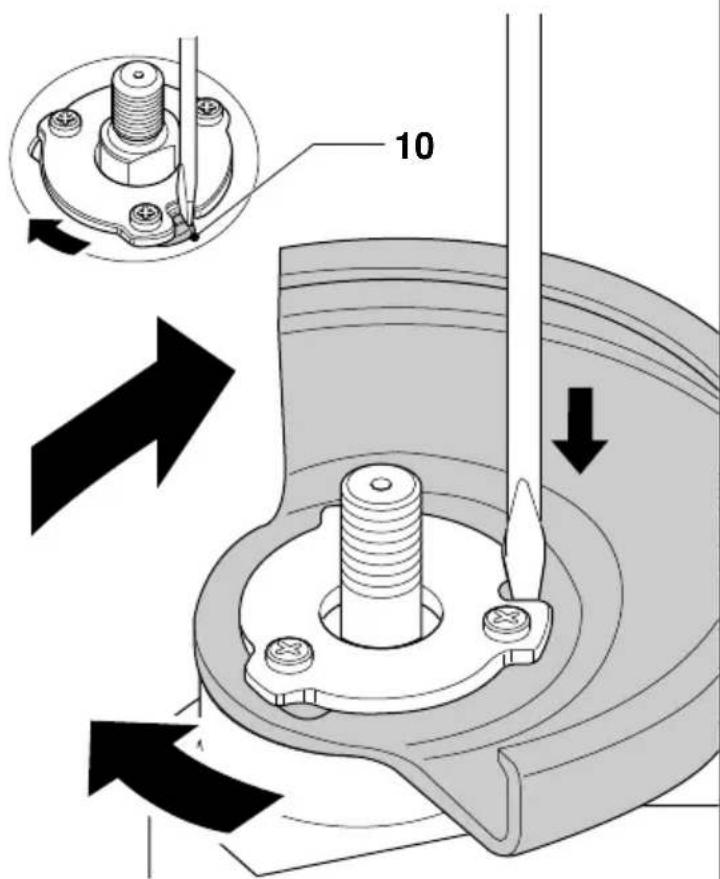

• Use a screwdriver to press the locking pin (10) in the slot.
• Release the guard.

Mounting and removing a grinding wheel or cutting disk (fig. E & F)

DW811

• Place the tool on a table, guard up.

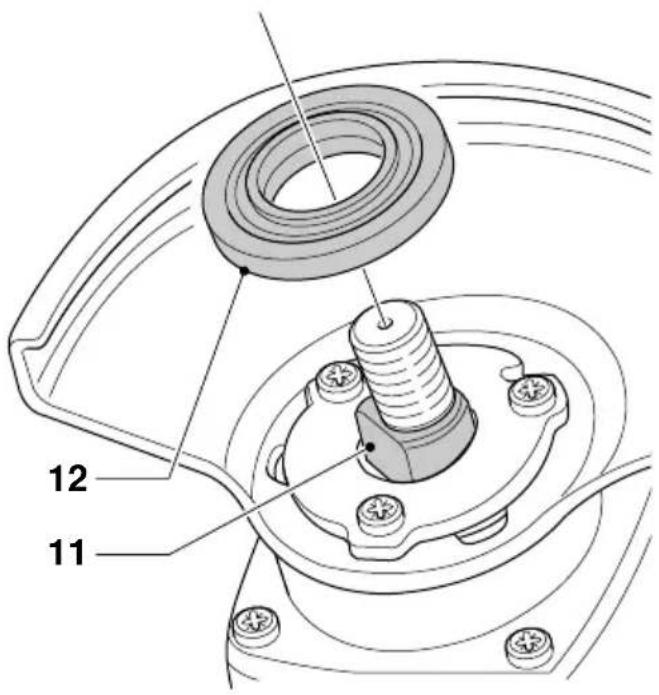

  • Fit the spacer (12) correctly onto the spindle (11).
• Place the grinding wheel or cutting disk on the spacer.

6• Screw the threaded flange (13) onto the spindle (11).

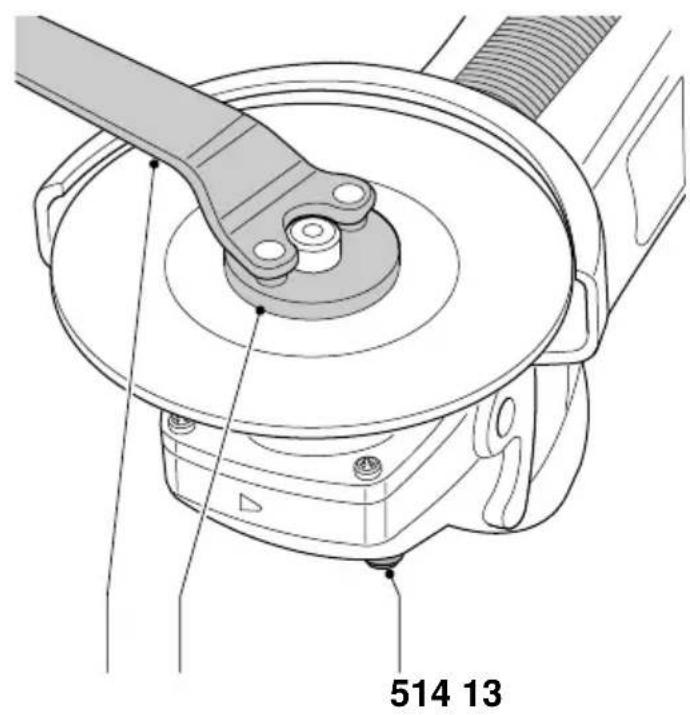

- Press the spindle lock (5) and rotate the grinding wheel or cutting disk until it locks in position.

- Tighten the threaded flange using the two-pin spanner (14) supplied.

- Release the spindle lock.

- To remove the grinding wheel or cutting disk, loosen the threaded flange using the two-pin spanner.

DW816

• Place the tool on a table, guard up.
  • Fit the spacer (12) correctly onto the spindle (11).
• Place the grinding wheel or cutting disk on the spacer.
• Screw the threaded flange (13) onto the spindle (11).
• Place a #14 wrench on the flat sides of the spindle and tighten the threaded flange using the two-pin spanner (14) supplied.
• To remove the grinding wheel or cutting disk, loosen the threaded flange using the two-pin spanner.

Fitting a wire cup brush

- Screw the wire cup brush directly onto the spindle without using the spacer and threaded flange.

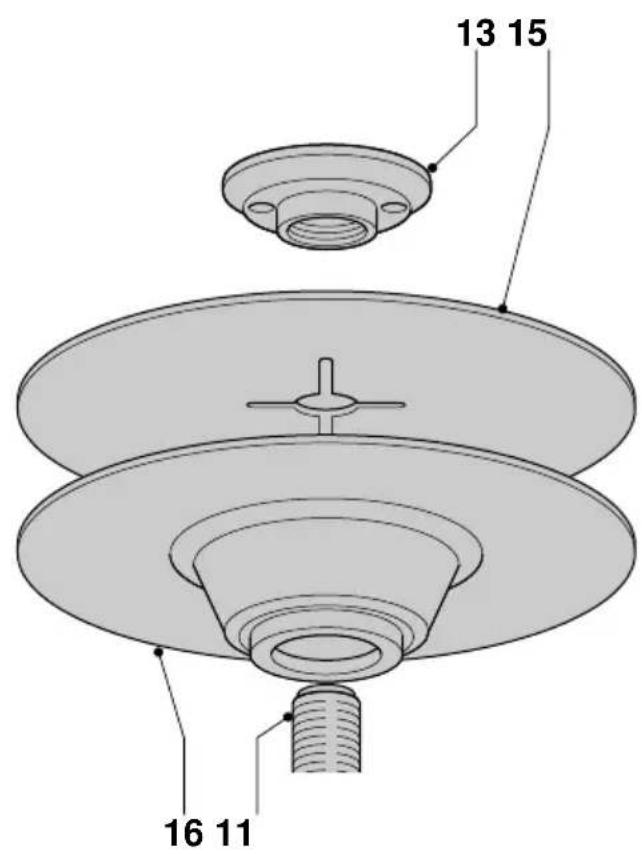

Mounting and removing the rubber backing pad (fig. G)

The rubber backing pad is available as an option.

DW811

• Remove the guard from the tool.
• Press the backing pad (16) onto the spindle (11).

The spacer is not needed.

• Position the abrasive disk (15) on the pad.
• Screw the threaded flange (13) onto the spindle (11).
• Press the spindle lock (5) and rotate the pad until it locks in position.
• Tighten the threaded flange using the two-pin spanner supplied.
• Release the spindle lock.
• To remove the pad, loosen the threaded flange using the two-pin spanner.

DW816

• Remove the guard from the tool.
• Press the backing pad (16) onto the spindle (11). The spacer is not needed.
• Position the abrasive disk (15) on the pad.
• Screw the threaded flange (13) onto the spindle (11).
• Place a #14 wrench on the flat sides of the spindle and tighten the threaded flange using the two-pin spanner supplied.
• To remove the pad, loosen the threaded flange using the two-pin spanner.

Mounting the side handle (fig. H)

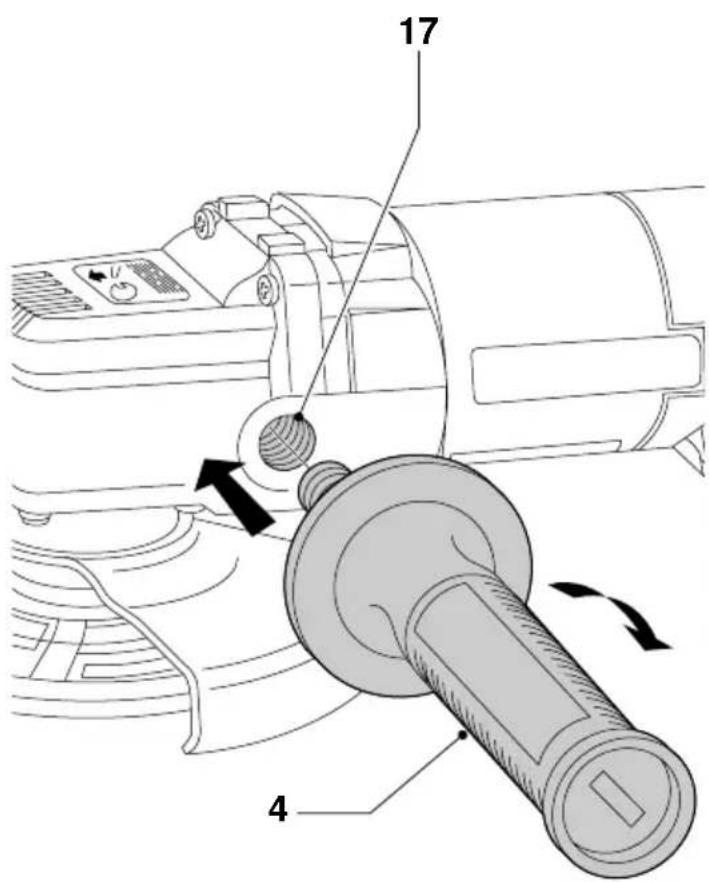

- Screw the side handle (4) tightly into one of the holes (17) on either side of the gear case.

Instructions for use

• Always observe the safety instructions and applicable regulations.
- Ensure all materials to be ground or cut are secured in place.
- Apply only a gentle pressure to the tool. Do not exert side pressure on the grinding wheel or cutting disk.
- Avoid overloading. Should the tool become hot, let it run a few minutes under no load condition.

Prior to operation:

• Install the appropriate guard and disk or wheel. Do not use excessively worn disks or wheels.
• Be sure the spacer and threaded flange are mounted correctly.
• Make sure the disk or wheel rotates in the direction of the arrows on the accessory and the tool.

Switching ON and OFF (fig. I)

• To run the tool, press the ON/OFF-switch (1).

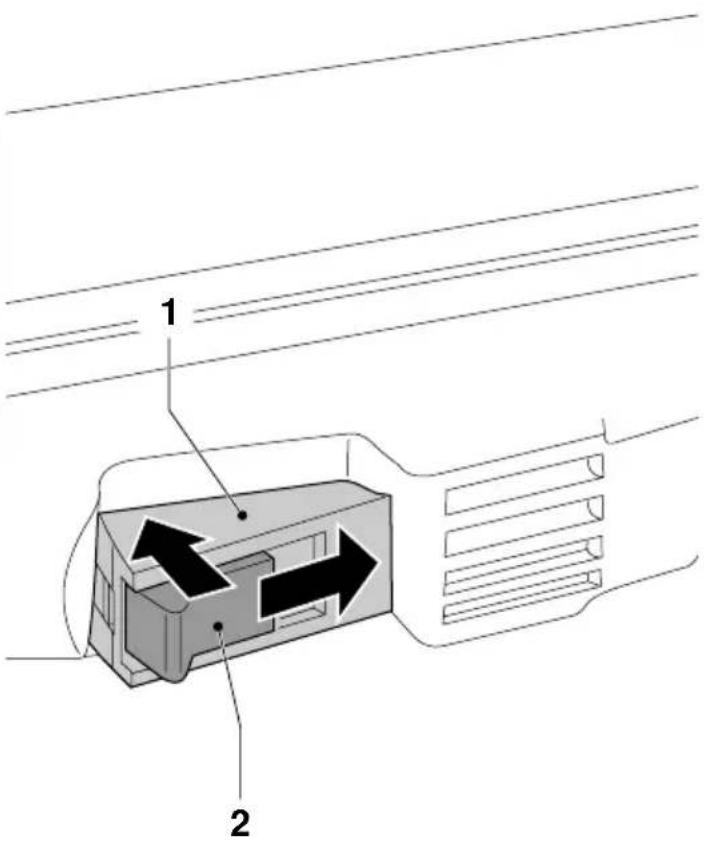

• For continuous operation, slide the lock-on button (2) to the back of the tool and release the ON/OFF-switch.
• To stop the tool, release the ON/OFF-switch. To stop the tool in continuous operation, press the ON/OFF-switch once more.

Do not switch the tool ON or OFF when under load.

Sanding with the backing pad (option)

• Mount the backing pad with abrasive disk as described above.
• Only a segment of the disk should contact the workpiece when sanding.
• Do not exert excessive pressure on the abrasive disk.

Consult your dealer for further information on the appropriate accessories.

Maintenance

Your DEWALT Power Tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

Lubrication

Your Power Tool requires no additional lubrication.

Cleaning

Keep the ventilation slots clear and regularly clean the housing with a soft cloth.

Unwanted tools and the environment

Take your tool to an authorized DeWALT repair agent where it will be disposed of in an environmentally safe way.

GUARANTEE

• 30 DAY NO RISK SATISFACTION GUARANTEE •

If you are not completely satisfied with the performance of your DEWALT tool, simply return it within 30 days, complete as purchased, to a participating Dealer, or an authorized DEWALT repair agent, for a full refund or exchange. Proof of purchase must be produced.

• ONE YEAR FREE SERVICE CONTRACT •

If you need maintenance or service for your DEWALT tool, in the 12 months following purchase, it will be undertaken free of charge at an authorized DEWALT repair agent. Proof of purchase must be produced. Includes labour and spare parts for Power Tools. Excludes accessories.

• ONE YEAR FULL WARRANTY •

If your DEWALT product becomes defective due to faulty materials or workmanship within 12 months from the date of purchase, we guarantee to replace all defective parts free of charge or, at our discretion, replace the unit free of charge provided that:

• The product has not been misused.
• Repairs have not been attempted by unauthorized persons.
- Proof of purchase date is produced. This guarantee is offered as an extra benefit and is additional to consumers statutory rights.

For the location of your nearest authorized DEWALT repair agent, please use the appropriate telephone number on the back of this manual.

AMOLADORA ANGULAR DW811/DW816

¡Enhorabuena!

Director Engineering and Product Development Horst Großmann

X. fopman

L'emballage contient:

Director Engineering and Product Development Horst Großmann

X. Jopman

Director Engineering and Product Development Horst Großmann

X. Jopman

DEWALT, Idstein, Tyskland

Sikkerhetsforskrifter

Director Engineering and Product Development Horst Großmann

X. Jopman

15 Tire as chaves de aperto

Director Engineering and Product Development Horst Großmann

X. Jopman

Director Engineering and Product Development Horst Großmann

X. fopman

DeWALT, Idstein, Tyskland

Säkerhetsinstruktioner
