USER MANUAL W0I D741A S WHIRLPOOL

Before using the appliance carefully read the Safety Instruction

PLEASE SCAN THE QR CODE ON YOUR APPLIANCE IN ORDER TO HAVE MORE DETAILED INFORMATION

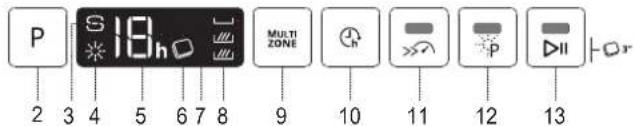

CONTROL PANEL

1. ON-OFF/Reset button with indicator light
2. Program selection button
3. Salt refill indicator light
4. Rinse Aid refill indicator light
5. Program number and delay time indicator
6. Tablet indicator light

7. Display

8. Multizone indicator lights

9. Multizone button
10. Delay button
11. Turbo button with indicator light
12. Power Clean® button with indicator light
13. START/Pause button with indicator light/Tab

FIRSTTIMEUSE

FILLING THE SALT RESERVOIR

The use of salt prevents the formation of LIMESCALE on the dishes and on the machine's functional components.

It is mandatory that the salt reservoir never be empty.

It is important to set the water hardness.

The salt reservoir is located in the lower part of the dishwasher and must be filled when the SALT REFILL indicator light in the control panel is lit.

1. Remove the lower rack and unscrew the reservoir cap (anticlockwise).
2. Only the first time you do this: fill the salt reservoir with water.

3. Position the funnel (see figure) and fill the salt reservoir right up to its edge (approximately 1kg ); it is not unusual for a little water to leak out.

4. Remove the funnel and wipe any salt residue away from the opening. Make sure the cap is screwed on tightly, so that no detergent can get into the container during the wash program (this could damage the water softener beyond repair).

Whenever you need to add salt, it is mandatory to complete the procedure before the beginning of the washing cycle to avoid corrosion.

FILLING THE RINSE AID DISPENSER

Rinse aid makes dish DRYING easier. The rinse aid dispenser A should be filled when the RINSE AID REFILL indicator light in the control panel is lit. NEVER pour the rinse aid directly into the appliance tub.

FILLING THE DETERGENT DISPENSER

To open the detergent dispenser use the opening device C. Introduce the detergent into the dry dispenser D only. Place the amount of detergent for pre-washing directly inside the tub.

If all-in-one detergents are used, we recommend using the TABLET button, because it adjusts the program so that the best washing and drying results are always achieved.

Usage of detergent not designed for dishwashers may cause malfunction or damage to the appliance.

WATER SOFTENING SYSTEM

Water softener automatically reduces water hardness, consequently preventing scale buildup on heater, contributing also to better cleaning efficiency. This system regenerates itself with salt, therefore it is required to refill salt container when empty.

Frequency of regeneration depends on water hardness level setting - regeneration takes place once per 6 Eco cycles with water hardness level set to 3. Regeneration process starts in final rinse and finishes in drying phase, before cycle ends.

• Single regeneration consumes: 3.5L of water;
• Takes up to 5 additional minutes for the cycle;
  Consumes below 0.005kWh of energy.

PROGRAMSTABLE

Pro-gram	Programs description	Drying phase	Natu-ralDry	Available options*	Duration of wash program (h:min)**	Water consumption (litres/cycle)	Energy consumption (kWh/cycle)
1. Eco	Eco 50°- Program is suitable to clean normally soiled tableware, that for this use, it is the most efficient programme in terms of its combined energy and water consumption, and that it is used to assess compliance with the EU Ecodesign legislation.	✓	✓	∅h	3:10 9.5	0.75
2. sense	6thSense® 50°- 60°- For normally soiled dishes with dried food residues. Senses the level of soiling on the dishes and adjusts the program accordingly.	✓	✓	MULTI ZONE h>> p	1:25 - 3:00	7.0 - 14.0 0.90	1.40
3.	Intensive 65°- Program recommended for heavily soiled crockery, especially suitable for pans and saucepans.	✓	✓	MULTI ZONE h>> p	2:50 16.0	1.60
4.	Mixed 60°- Mixed soil. For normally soiled dishes with dried food residues.	✓	✓	MULTI ZONE h>> p	2:30 16.0	1.30
5.	Fast Wash&Dry 50°- Normally soiled crockery. Everyday cycle, that ensures optimal cleaning and drying performance in shorter time.	✓	✓	MULTI ZONE h	1:25 11.5	1.10
6.	Crystals 45°- Program for delicate items, which are more sensitive to high temperatures, for example glasses and cups.	✓	✓	MULTI ZONE h	1:40 11.5	1.20
7.	Rapid 30' 50°- Program to be used for half load of lightly-soiled dishes with no dried food residues. Without drying.	-	-	MULTI ZONE h	0:30 9.0	0.50
8.	Silent 50°- Suitable for night-time operation of the appliance. With the lowest noise.	✓	✓	∅h	3:30 15.0	1.15
9.	Sanitizing 65°- Normally or heavily soiled crockery, with addition- al antibacterial wash. Can be used to perform maintenance of the dishwasher.	✓	-	∅h	1:40 10.0	1.30
10.	Pre-Wash - Use to refresh crockery planned to be washed later. No detergent to be used with this program.	-	-	MULTI ZONE h	0:12 4.5	0.01
11.	Self-Clean 65° - Program to be used to perform maintenance of the dishwasher, to be carried out only when the dishwasher is EMP-TY using specific detergents designed for dishwasher maintenance.	-	-	h	0:50 8.0	0.85

ECO program data is measured under laboratory conditions according to European Standard EN 60436:2020.

Note for Test Laboratories: For information on comparative EN testing conditions, please send an email to the following address: [e-mail] Pre-treatment of the dishes is not needed before any of the programs.

*) Not all options can be used simultaneously.

**) Values given for programs other than the program Eco are indicative only. The actual time may vary depending on many factors such as temperature and pressure of the incoming water, room temperature, amount of detergent, quantity and type of load, load balancing, additional selected options and sensor calibration. The sensor calibration can increase program duration up to 20 min.

OPTIONS AND FUNCTIONS

Please scan the QR code on your product in order to have more detailed information.

OPTIONS can be selected directly by pressing the corresponding button (see CONTROL PANEL). If an option is not compatible with the selected program (see PROGRAMS TABLE), the corresponding LED flashes rapidly 3 times and beeps will sound. The option will not be enabled.

MULTI MULTIZONE - If there are not many dishes to be washed, a half loading may be used in order to save water, electricity and detergent. By default the appliance washes dishes in all racks.

DELAY - The start time of the program may be delayed for a period of time between 1 and 12 hours.

The DELAY function cannot be set once a wash cycle has been started.

TURBO - This option can be used to reduce the duration of the main programs while maintaining the same washing and drying performance levels.

POWER CLEAN® - Thanks to the additional power jets this option provides a more intensive and powerful wash in the lower rack, in the specific area. This option is recommended for washing pots and casseroles.

TABLET (Tab)- If you use powder or liquid detergent, this option should be off.

OPERATION INDICATOR - A LED light projected on the floor indicates that the dishwasher is working.

One of the following operating modes can be selected:

a) Disabled function.
b) When the cycle starts the light goes on for few seconds, stays off during the cycle and flashes at the end of the cycle.
c) The light stays on during the cycle and flashes at the end of the cycle (default mode).

NaturalDry is a convection drying system which automatically opens the door during/after drying phase to ensure exceptional drying performance every day. Door opens at the temperature that is safe to your kitchen furniture, thus door will not be opened when the option of TURBO is on.

LOADING THE RACKS

CAPACITY: 14 standard place-settings

CUTLERY RACK

(loading example for the cutlery rack) The third rack was designed to ho-use the cutlery. Arrange the cutlery as shown in the figure.

UPPER RACK

-loading example for the upper rack)

Load delicate and light dishes: glasses, cups, saucers, low salad bowls.

FOLDABLE FLAPS WITH ADJUSTABLE POSITION

LOWER RACK
(loading example for the lower rack)

For pots, lids, plates, salad bowls, cutlery etc. Large plates and lids should ideally be placed at the sides to avoid interferences with the spray arm.

The lower rack has tip-up supports which can be used in a vertical position when arranging plates or in a horizontal position (lower)

to load pans and salad bowls easily.

POWER CLEAN

Power Clean uses the special water jets in the rear of cavity to wash more intensively the high dirty items. The lower rack has a Space Zone, a special pull-out support in the rear of the rack that can be used to support frying pans or baking pans in upright position, thus taking up less space.

Placing the pots/casseroles faced to the Power Clean® component please activate the POWER CLEAN® on the panel.

CLEANING AND MAINTENANCE

More information in the Daily Reference Guide on website.

CLEANING THE FILTER ASSEMBLY CLEANING THE SPRAY ARMS

In case you find foreign objects (such as broken glass, porcelain, bones, fruit seeds etc.) please remove them carefully.

NEVER REMOVE the wash-cycle pump protection (black detail) (Fig 4).

To remove the upper spray arm, turn the plastic locking ring in a clockwise direction.

The lower spray arm may be removed by pulling it upwards.

TROUBLESHOOTING

Please scan the QR code on your product in order to have more detailed information.

In case your dishwasher doesn't work properly, check if the problem can be solved by going through the following list. For other errors or issues please contact authorized After-sales Service which contact details can be found in the warranty booklet. Spare parts will be available for a period of either up to 7 or up to 10 years, according to the specific Regulation requirements.

PROBLEMS POSSIBLE CAUSES SOLUTIONS
The dishwasher does not fill the water Display shows: H, 6 and On/Off LED is blinking rapidly	No water in the water supply or the tap is closed. Make sure there is water in the water supply or the tap running.
	The inlet hose is bent. Make sure the inlet hose is not bent (see INSTALLATION) reprogram the dishwasher and reboot.
	The sieve in the water inlet hose is clogged; it is necessary to clean it After having carried out the verification and cleaning, turn off and turn on the dishwasher and restart a new program.
Dishwasher finishes the cycle prematurely. Display shows: 15 and On/Off LED is blinking rapidly	Drain hose positioned too low or siphoning into home sewage system. Check if end of drain hose is placed at correct height (see INSTALLATION).Check for siphoning into home sewage system, install air admittance valve if necessary.
	Air in water supply. Check water supply for leaks or other issues letting air inside.

Policies, standard documentation, ordering of spare parts and additional product information can be found by:

• Using QR code on your product.
• Visiting our website docs.whirlpool.eu and parts-selfservice.whirlpool.com
• Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product's identification plate.

The model information can be retrieved using the QR-Code indicated on the energy label. The label also includes the model identifier that can be used to consult the https://eprel.ec.europa.eu database portal.

OPTIONS ET FONCTIONS

YHCTEHE HA CKIIONOT HA ΦNITEPOT YHCTEHE HA IPNCKAJIKITE

Bo cnyaj da hajnde tyfn npedmetn (kako ckpuheo ctakn, nopueaH, kockn,cemKn oOBOwje nTH.) Be monme BHmaterHo OTcpaHete rn.

HMKORAHI HE OTCTPAHYBAJTE ja 3aHTnTata Ha nymnata 3a uKlyc ha nepehe (uPrH etan) (Cnuka 4).

3a da ja n3BaJnte rOpHata pauKa 3a npcKaHe, CBpTeTe ro PnactHmNOT nPCTeH 3aKJIyUbaHe BO HAcoka Ha CTpeKInte Ha YacOBHNKOT.

Dolnata paKa 3a npckaHe MoKe Da Ce OCTpaHn CO BneueHe HaRope.

PEWABAHbE HA IPOBJIEMN

Be MoIIMe CKeHnpajTe ro QR-KoOToT Ha BaUInOT pOn3BOD 3a Da IMaTe NOpTaHn HOpMaUN.

Bo cnuyaj Baaata MauHn 3a Mnehe caoBn da He paobTu npabuHNO, npOBepTe dAn np6bemot moxE da ce peun co Oebe Hn cneHaba nmta. 3a Dpyr rpeuK u nn np6bem, Be MOJume KOHTaTnpajte Co OBaCTeh cepBuc 3a NOCTPdoaX6a, Koj Detanite 3a KOHTAK MoxE da Hn Hajde Bo ra- paTHata KNska. Pe3epBNITE denOBn Ke 6nDat DOctanHn 3a nepnoD do 7nn Do 10 roDnH, BO cornachoCT CO cneuPhiHnTE bapaHa ha perynatNBata.

ПОНБЛЕМ NOЖИ	ПОНЧИН PEШЕНJA
Машина за мінөе садови He ja поли вора.T.EkраанOT по��ьуBa:H,6иВкluунe/Искluунe LED 6рзТрелка.	Hema BOda BO DoBOdOT 3a BOda nii Славинота e 3aTbOpeHa.	П探测ete дали有很大 BOda BO doBOdOT 3a BOda nii BOdoBOnaHa tcIaBnHa.
	ДовODHOT upeBO e CBNTkaHO.	П探测ete дали DoBOdHOT upeBO He e CBNTkaHO (eudeme INHCTALAUJIJA)penporpamipajte ja Maшинata 3a Mmeиbe caDobu n peCTapTnpajte ja.
	СитOTO BO upeBOTo 3a DoBOd HA BOda e 3aTHaTO;Notpe6No e da ce IcNtCTn	Отkaо ке ja ИЗвршteПроберкATA ичstte№To,ИСКlu�еTe ja И Вкlu�еTe jaMaшинata 3a Mmeиbe caDobu n peCTapTnpajte HOBA nporpaMa.
Машина за мінөе садови р�除врeme Го завршу BAцлүсOT.EkраанOT по��ьуBa:15иВкluунe/Искluунe LED 6рзТрелка.	UpeBOTo 3a OdBODHyBa№ e NocTaBeNOпремногу НИСКо nii CE BIneBA BOДмашната kaHailnizuaJa.	П探测ete дали Кра joТ Ha OdBODHOT upeBO e NocTaBeHа правлиhaВисиHa (eudeme INHCTALAUJIJA).
	Воздух Bo снabdvyBa№To co BOda.	П探测ete Го DoBOdOT Ha BOda 3a П proTeKуВа№ e nii Дуги п探测ими StTo Го пушtaat BOZdYxOT BHaTpe.

TOnHnK, cTaHapdHa dokymeHTaunJa, HapaKa Ha pe3epBHN DeNoBN IdoonHHTENH NfOpmaun 3a npOn3BOoT MoKe da ce HajdaT co:

KopncTeHe Ha QR-KoI
- NoceteTe ja haata Ba6-cTpaHnca docs.whirlpool.eu u parts-selfservice.whirlpool.com
AnTepHaTnBHO, KOHTaKTpajTe ja Hauata cnJx6a 3a nocTpnoaX6a (Bnu TneJefoHcN 6poj Bo rapaHTHaTa KnUka).

Kora ja KOHTaKTPaTe Haata Cnyk6a 3a noCTnpoJax6a, Be monime Habepe Te n uHnTnFkaCkata

Ta6nUka Ha BaIINOT npOn3BOD.

HOpMaunTe 3a MoJeIOT MoKe Da ce BpaTaT co KopncTeHe Ha QR-KoOIT npJabEn BO eHepreTcKaTa etKeTa.

EtkeTata ro BknyBa nndeHTnphiKATopoT ha MoJeNt 7to MoKe Da ce KopnCTn 3a da CE KOHCynTpna nopTaIOT Ha perntapot Ha https://eprel.ec.europa.eu.

DOLNY KOSZ
(loading example for the lower rack)

INFORMATIONET MÉ TÉ DETAJUARA

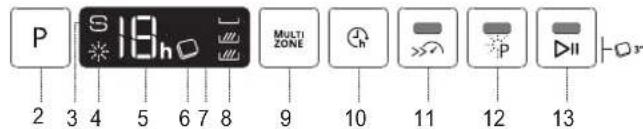

PANELI KONTROLLIT
