USER MANUAL WM 6812 ONE FOR ALL

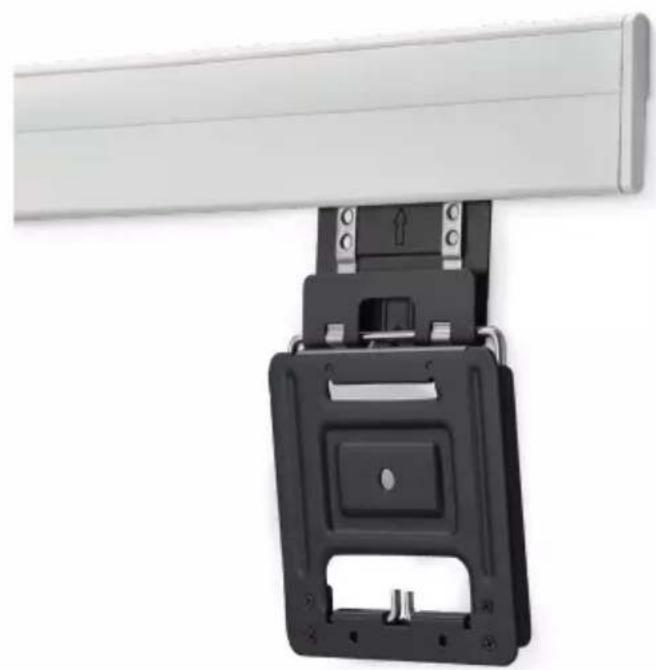

UNIVERSAL FLAT WALL MOUNT

QUICK INSTALLATION GUIDE

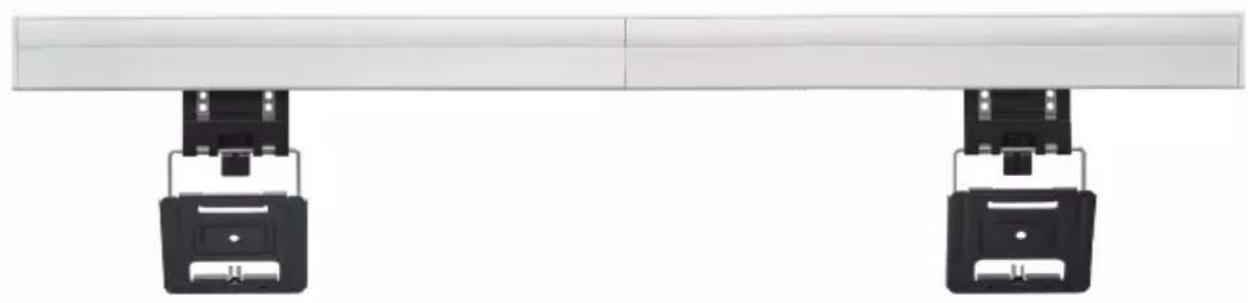

WM6812

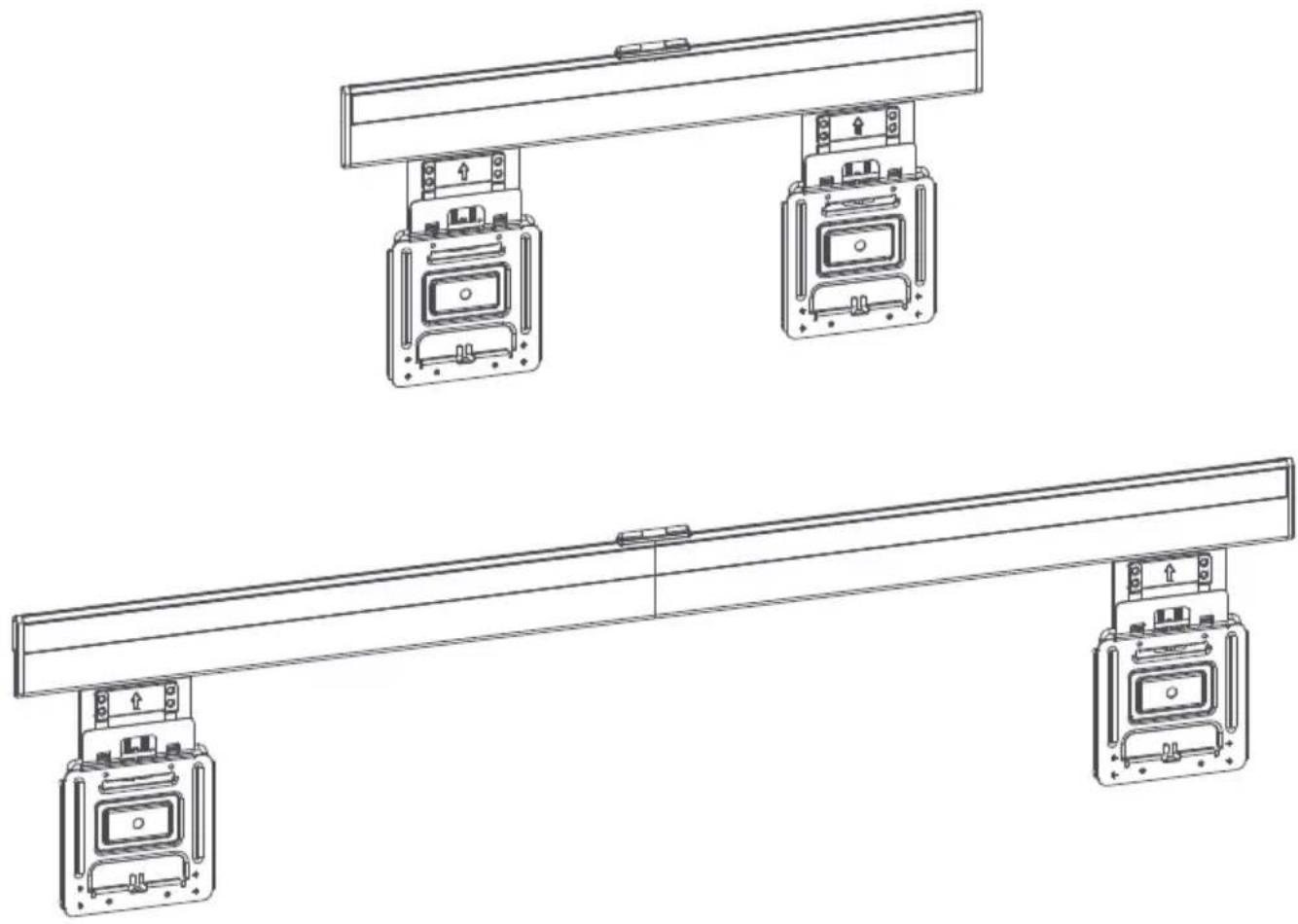

Pure diagram of two identical black mechanical components mounted on a horizontal beam, no text or symbols present.

Close-up of a black plastic door lock mechanism with a white rail bar (no text or symbols visible)

ONE FOR ALL

ASSISTANT APP

QR code image containing encoded data, no visible human-readable text

75 kg 165lbs max

max 110"

VESA

Universal 200 × 200 | 300 × 200 | 400×200 300 × 300 | 400 × 300 | 400×400 600 × 400 | 800 × 400 | 800 × 600 900 × 600

Technical line drawing of a mechanical assembly with two views (top and side), no text or symbols present.

Simple line drawing of a rectangular electronic device with no visible text or symbols

A

B

... - - - ... - - - - ... ↓ ↓

C

D 2x

E 2x

F

G

H

I J

K

L 4x

M 4x

6回

M5×5

0
3mm

Package M

M-A 4 x M5x14mm

M-B 4 x M6x14mm

M-C 4 x M6x30mm

M-D 4 x M8x12mm

M-E 4 x M8x30mm

M-F 4 x M8x50mm

M-G 4 x D6mm

M-H 8 x ø15xø8x5mm

M-I 8 x ø15xø8x15mm

Package W

W-A 4 x ST6.3x55mm

W-B 4 x Φ10x50mm

W-C 4 x D6mm

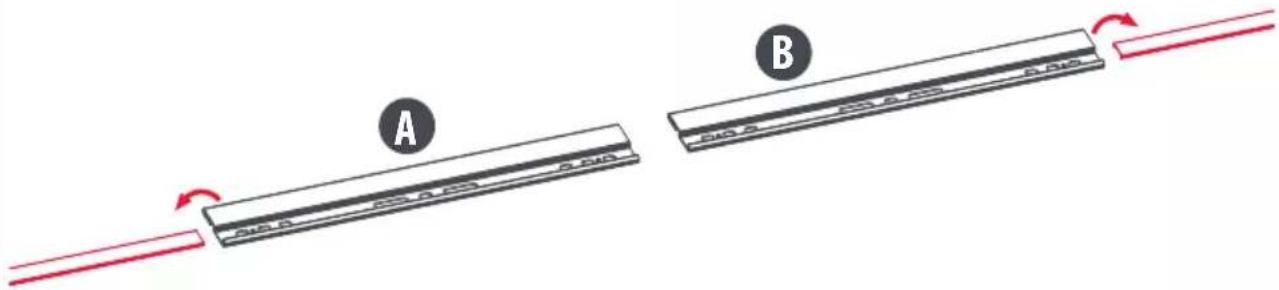

START

1a-1

A B

Diagram showing a device being processed into a server, with a red arrow and label 'G' indicating process direction.

Diagram of a sewing machine needle and base with no visible text or symbols

N F

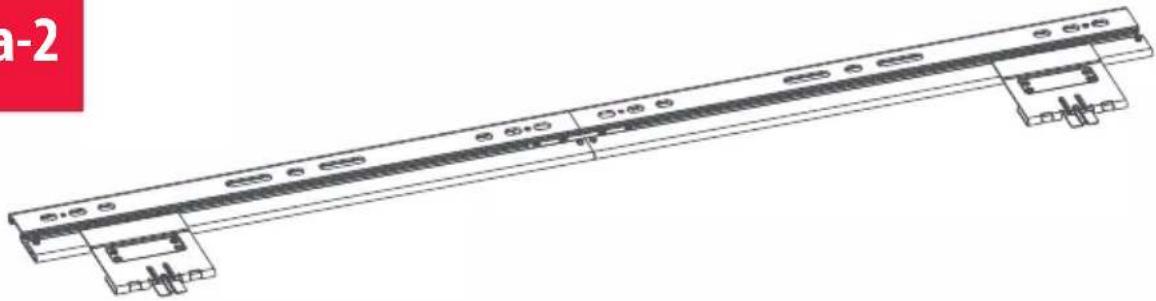

1a-2

Technical line drawing of a mechanical or electronic component assembly (no text or symbols visible)

0

Diagram of a mechanical assembly with a red tool and circular motion arrow (no text or symbols)

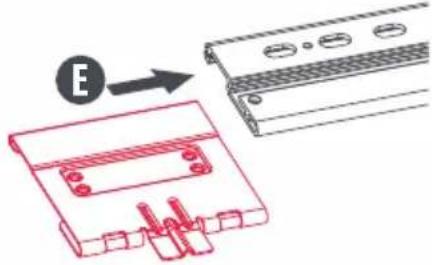

Diagram showing a mechanical assembly with a red outline and an arrow pointing to a component labeled 'E' (no text or symbols on the diagram itself)

Technical line drawing of a mechanical assembly with a red tool and circular component (no text or symbols)

1a-3

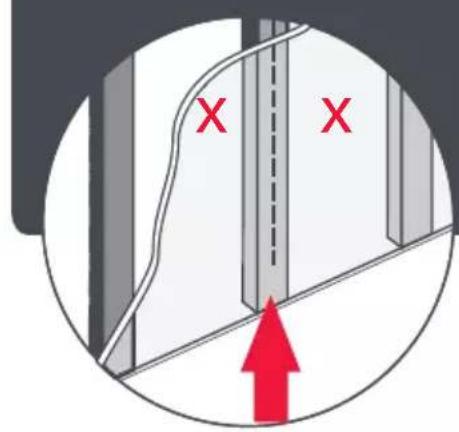

X X

WARNING

Please verify that the supporting surface will safely support the combined weight of the equipment and all attached hardware and components

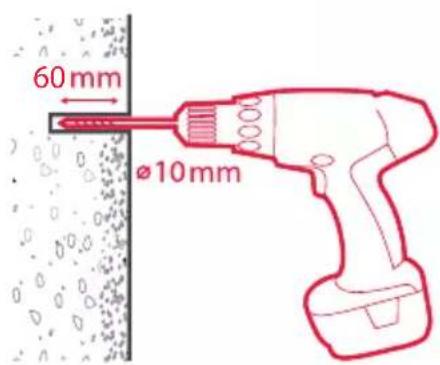

60 mm 10 mm

W-B

W-A

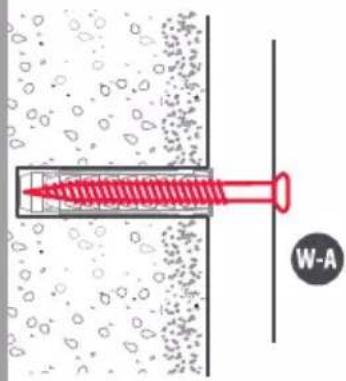

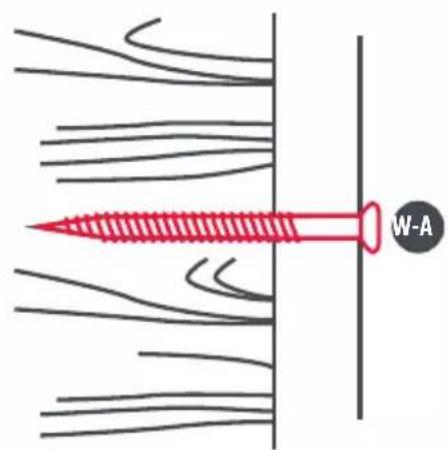

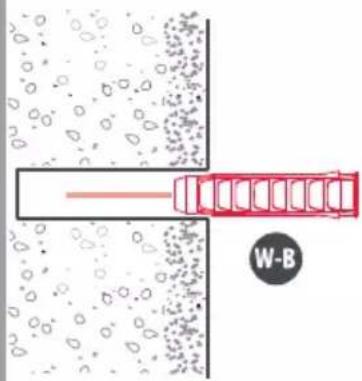

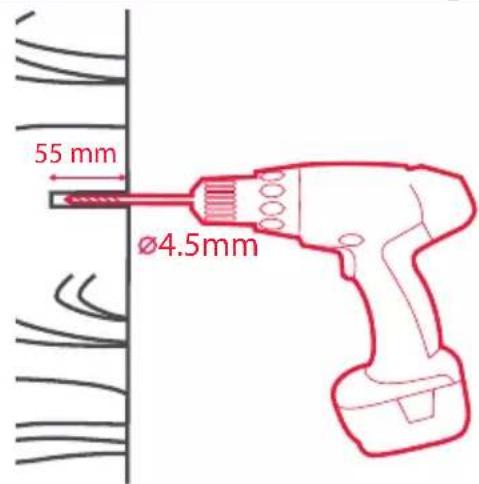

55 mm Ø4.5mm

W-A

1a-4

Illustration of a hand using a tool to adjust a component on a rectangular object, with no visible text or symbols.

Note: Keep the drill guide level.

1a-5

K

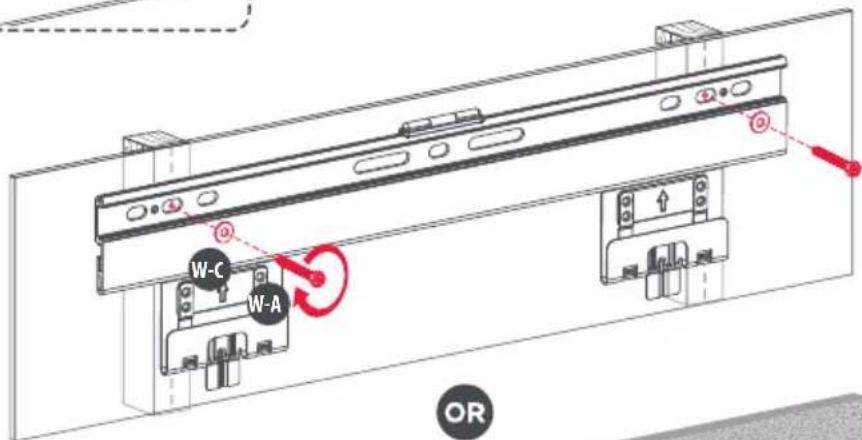

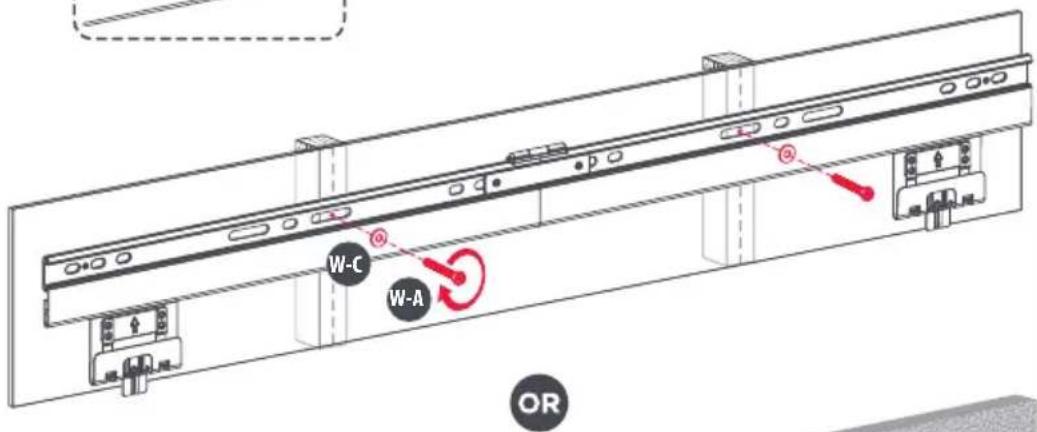

W-C W-A OR

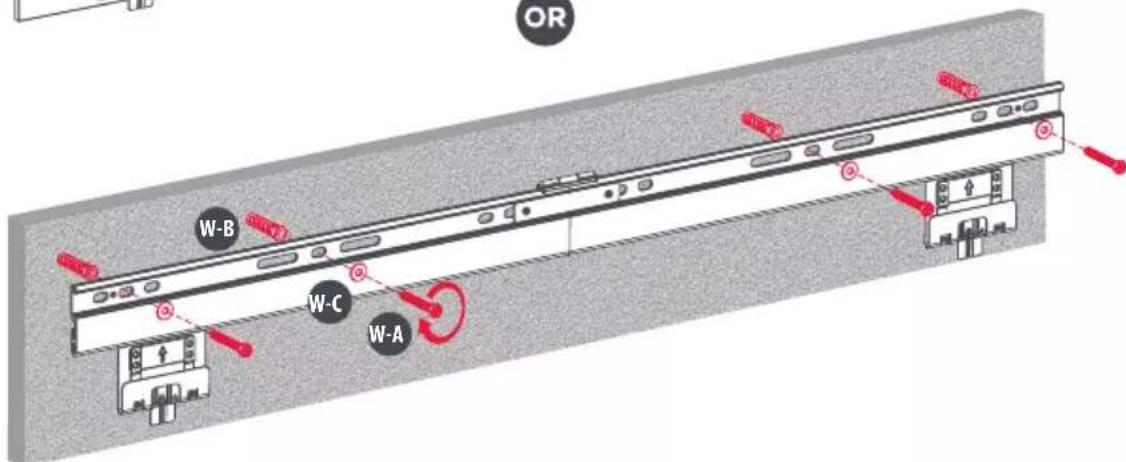

W-B W-C W-A OR

1a-6

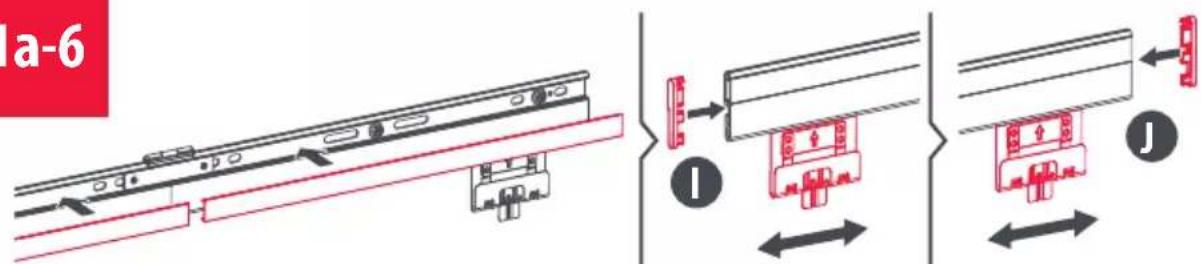

a-6 I J

1b- 1

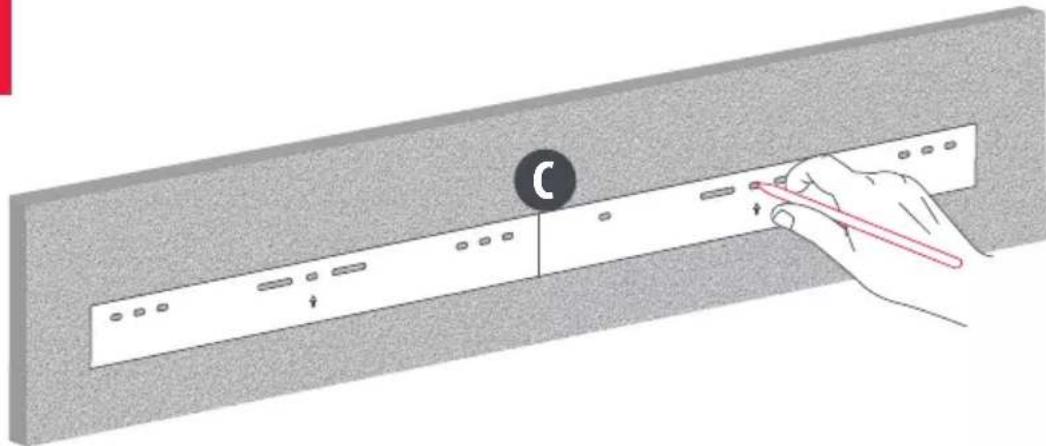

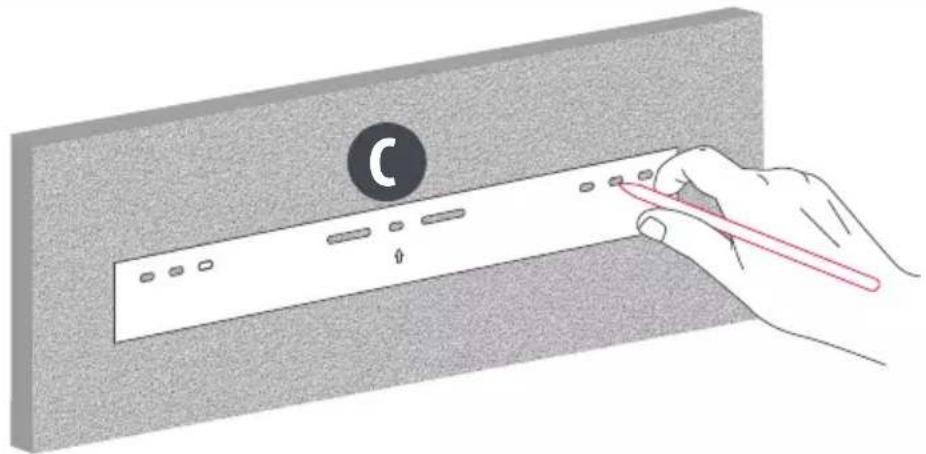

Illustration of a hand using a pen to mark a component with a circular logo and letter C, no text or symbols present.

Note: Keep the drill guide level.

1b-2

K

W-C W-A OR

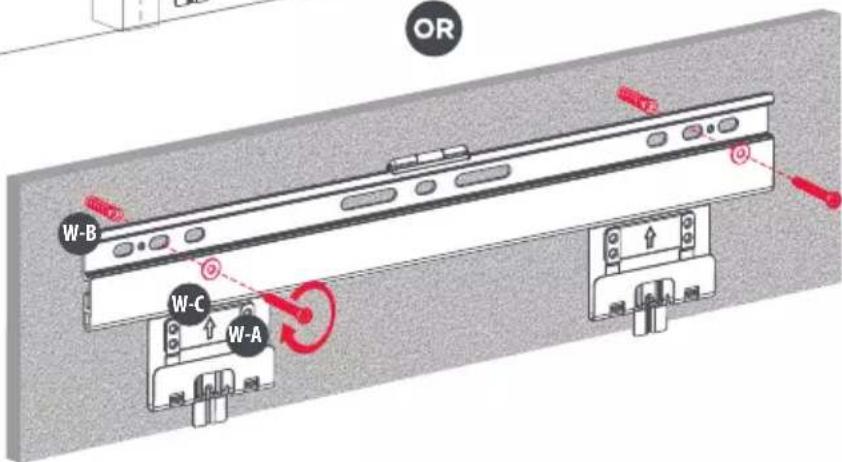

W-B W-C W-A OR

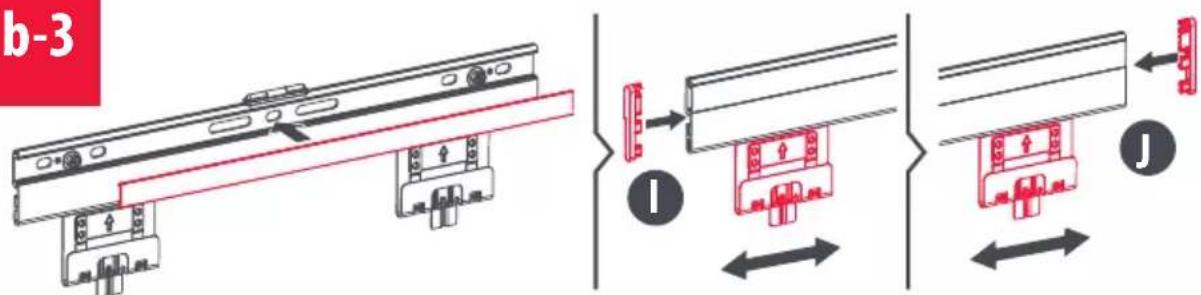

1b-3

b-3 I J

2 D H TOP

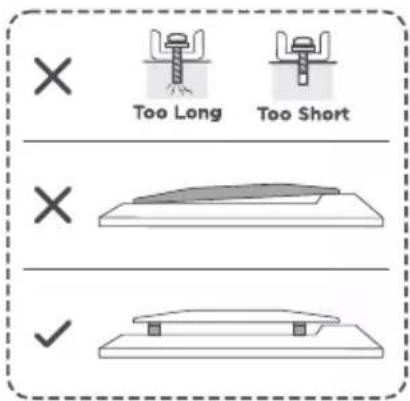

× Too Long Too Short ×

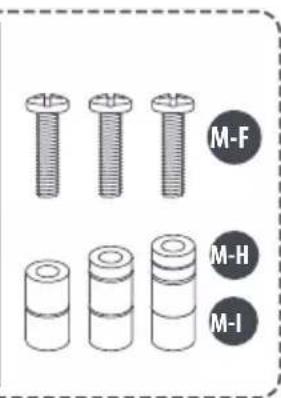

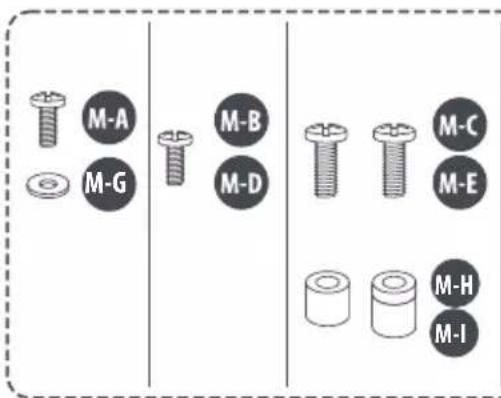

M-A M-G M-B M-D M-C M-E M-H M-I

M-F M-H M-I

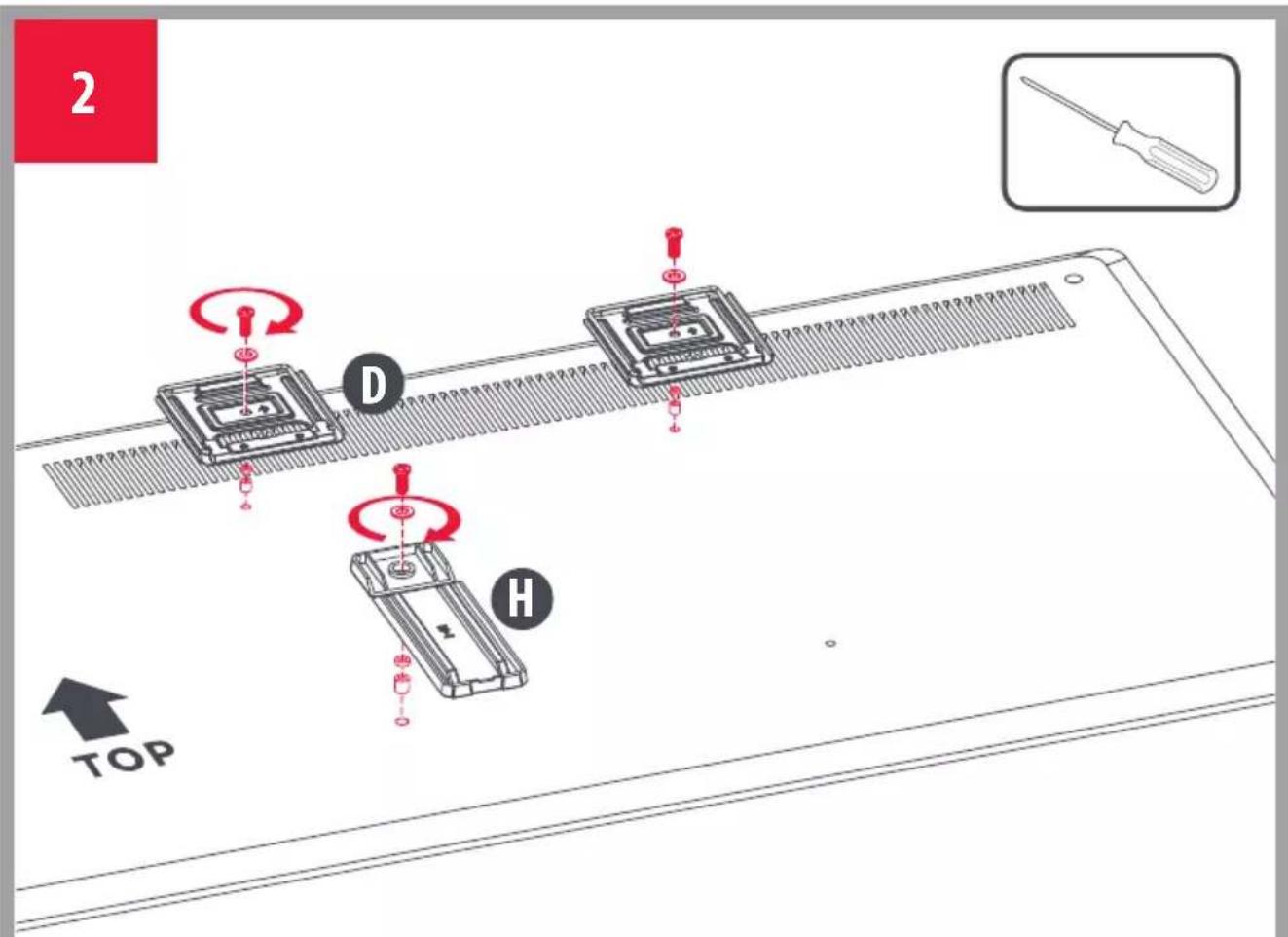

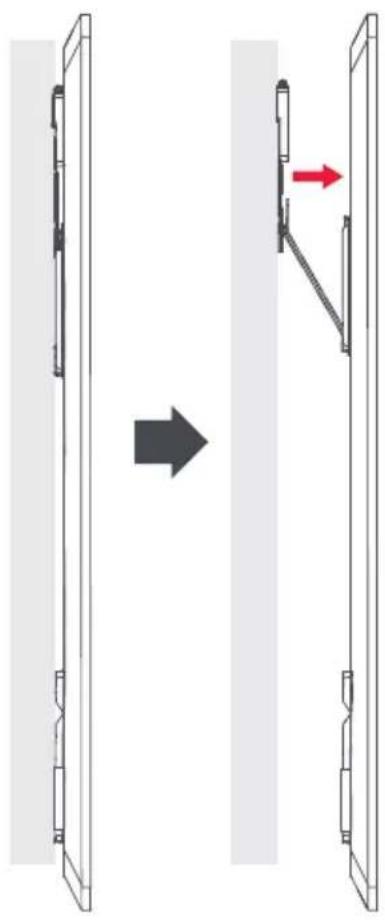

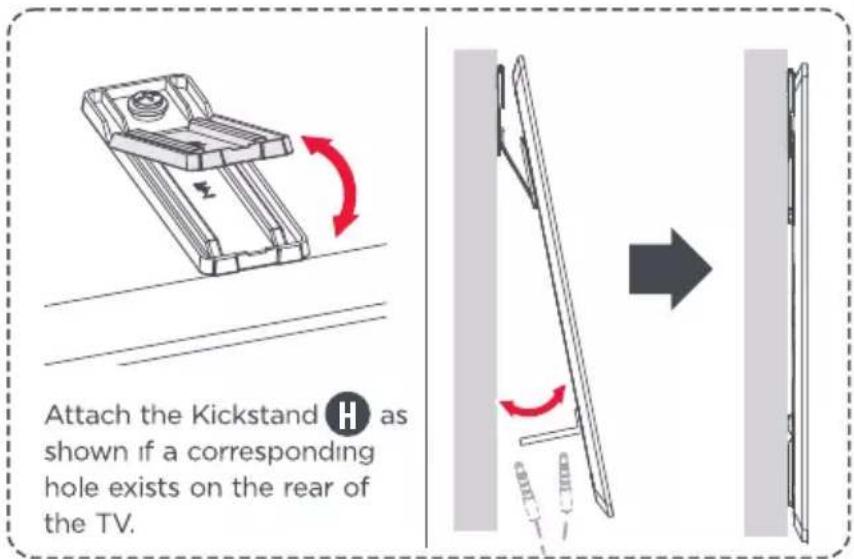

Attach the Kickstand H as shown if a corresponding hole exists on the rear of the TV.

3

4

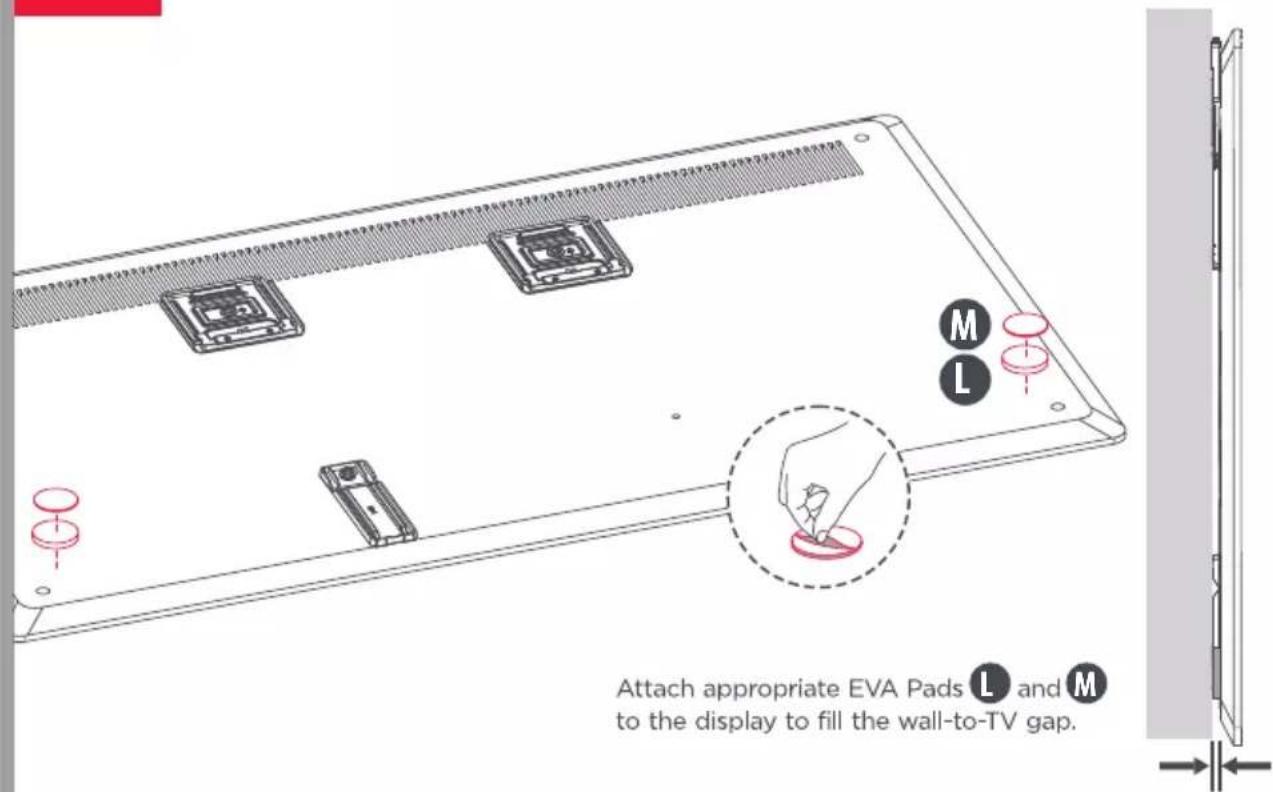

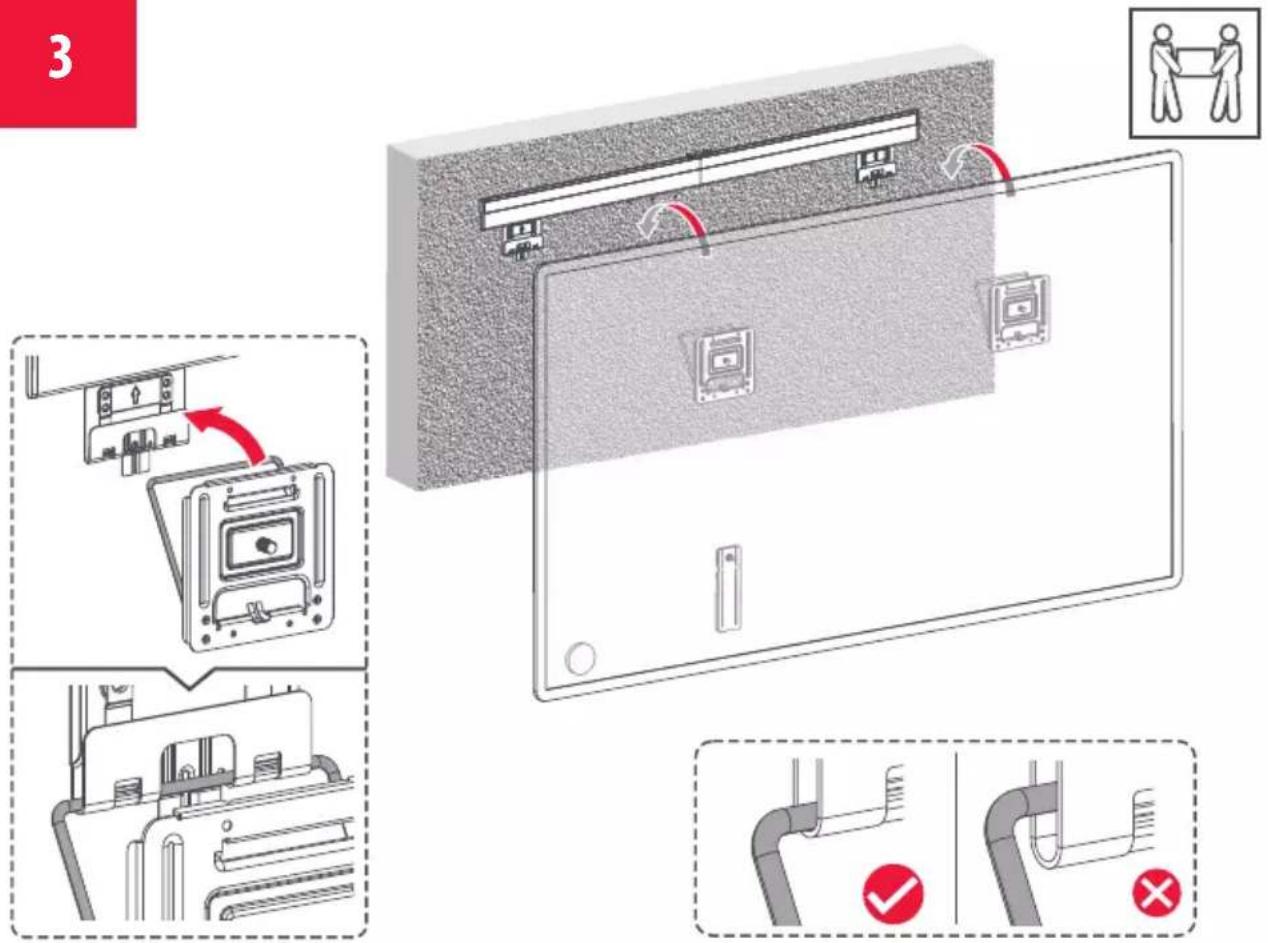

Attach appropriate EVA Pads L and M to the display to fill the wall-to-TV gap.

5

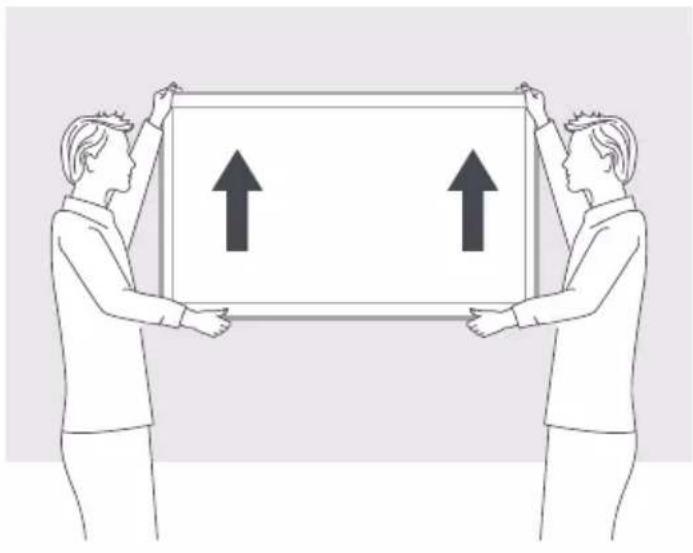

Diagram showing a mechanical assembly or lifting process with an arrow indicating direction (no text or symbols present)

Two people holding up a blank whiteboard with two black arrows pointing upward (no text or symbols)

Diagram showing a person pointing at a blank board with an upward arrow and a red 'X' symbol below, indicating incorrect behavior or status.

Illustration showing a person pointing at a whiteboard with an upward arrow and a red 'X' symbol below, indicating incorrect behavior or error.

Diagram showing a person standing at the front of a blank board with an upward arrow and a red 'X' symbol below, indicating a blocked or invalid condition.

FINISH

GUARANTEE TERMS AND CONDITIONS

ENGLISH

Thank you for purchasing this ONE FOR ALL product! The product you now have in your possession is made of durable materials and is based on a design, every detail of which has been meticulously thought out. That is why ONE FOR ALL gives you a Life Time guarantee for defects in materials or manufacturing.

GUARANTEE TERMS AND CONDITIONS

1. ONE FOR ALL guarantees that if during the guarantee period of a product, faults arise due to defects in manufacturing and/or materials, it will, at its discretion, repair or if necessary replace the product, free of cost. A guarantee for normal wear and tear is hereby expressly excluded.
2. If the guarantee is invoked, the product should be sent to ONE FOR ALL together with the original purchase document (invoice, sales slip or cash receipt). The purchase document should clearly show the name of the supplier and the date of purchase.
3. ONE FOR ALL guarantee shall lapse in the following cases: - If the product has not been drilled, installed and used in accordance with the Instructions for Use; - If the product has been altered or repaired by a party other than ONE FOR ALL; - If a fault arises due to external causes (outside the product) such as for example lightning, water nuisance, fire, scuffing, exposure to extreme temperatures, weather conditions, solvents or acids, wrong use or negligence; - If the product is used for different equipment than is mentioned on or in the packing.

UNIVERSAL ELECTRONICS BV, COLOSSEUM 2, 7521 PT ENSCHEDE, THE NETHERLANDS

WARNING

Correct installation is extremely essential, and falls outside the scope of responsibility of ONE FOR ALL. The fastening material provided is exclusively intended for installation on walls made of solid wood, bricks, concrete or solid-wood columns with a maximum of 3 mm wall finishing. For walls made of other materials, for example hollow bricks, please consult your installer and/or specialist supplier. During installation, please also follow the instructions for installation and use of the apparatus to be installed/fixed (for example the LCD/LED/plasma screen).
