USER MANUAL WM 7611 ONE FOR ALL

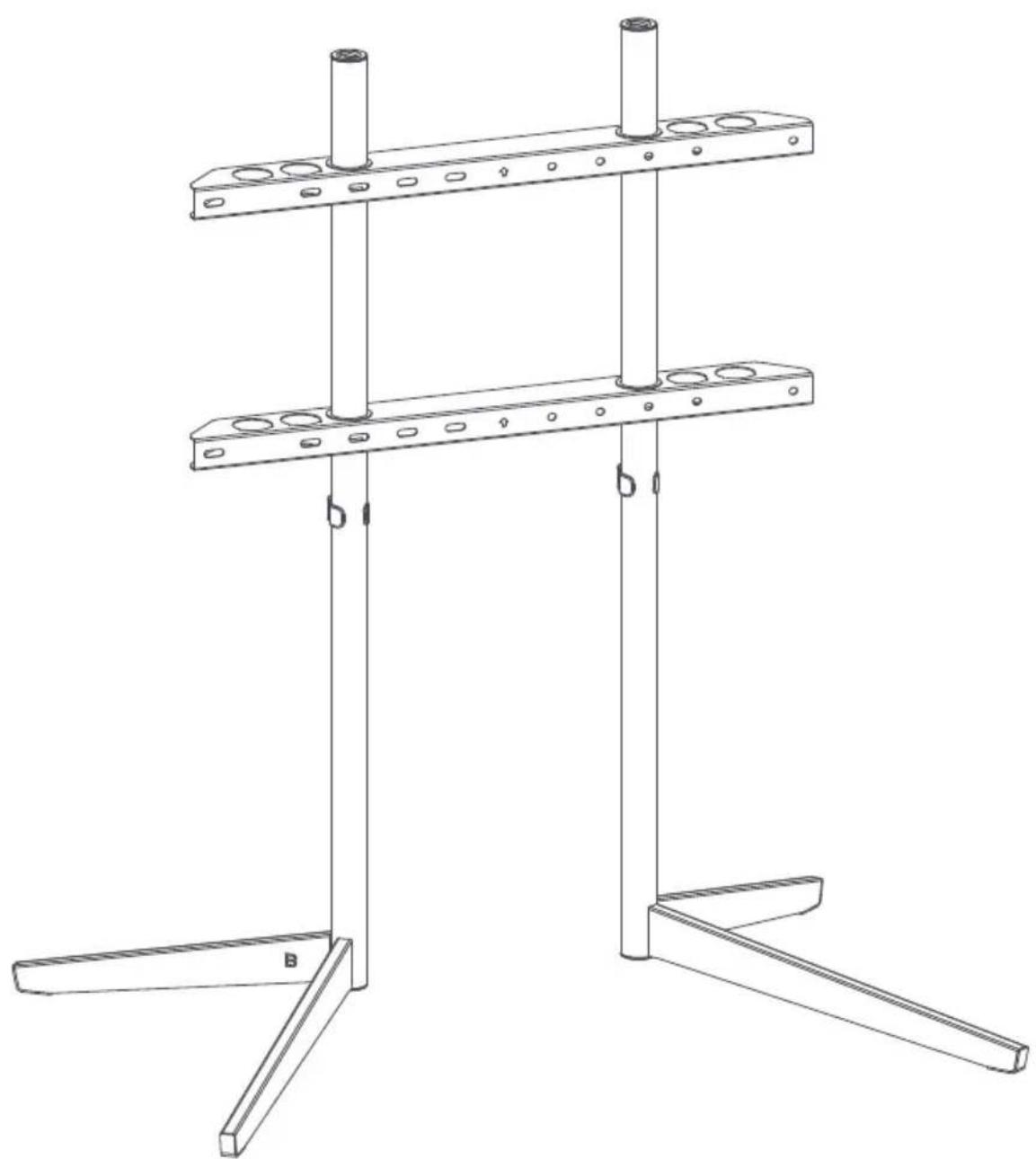

3D rendering of a metal shelving unit with three vertical posts and two horizontal supports (no text or symbols visible)

ONE FOR ALL

ASSISTANT APP

QR code image containing encoded data, no visible human-readable text

40 kg 88lbs max

max 65"

VESA

Universal

100×100 | 200×200 | 300×200

400×200 | 300×300 | 400×300

400×400 | 600×400

Technical line drawing of a three-tier metal frame structure with mounting feet and support legs (no text or symbols)

A B C 2 x D 2 x E 2 x F 4 x G 2 x H 2 x I 2 x J 2 x K 4 x M6x10 L 4 x M6x10 M 4mm 5mm

Package M

M-A 4 x M5x14mm

M-B 4 x M6x14mm

M-C 4 x M6x30mm

M-D 4 x M8x12mm

M-E 4 x M8x30mm

M-F 4 x M8x50mm

M-G 4x

M-H 8 x ø15xø8x5mm

M-I 8 x ø15xø8x15mm

Package W

P-AP

P-B 2x

P-D 2x

ST4.8×38

∅7×35

P-G 2x

D5

START

1

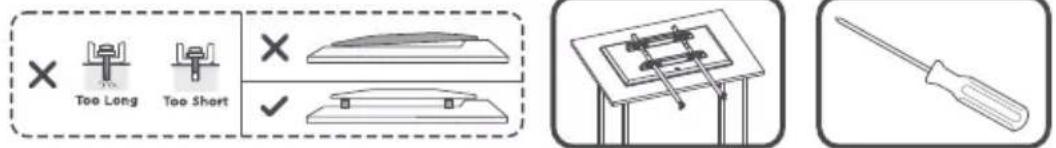

Too Long Too Short

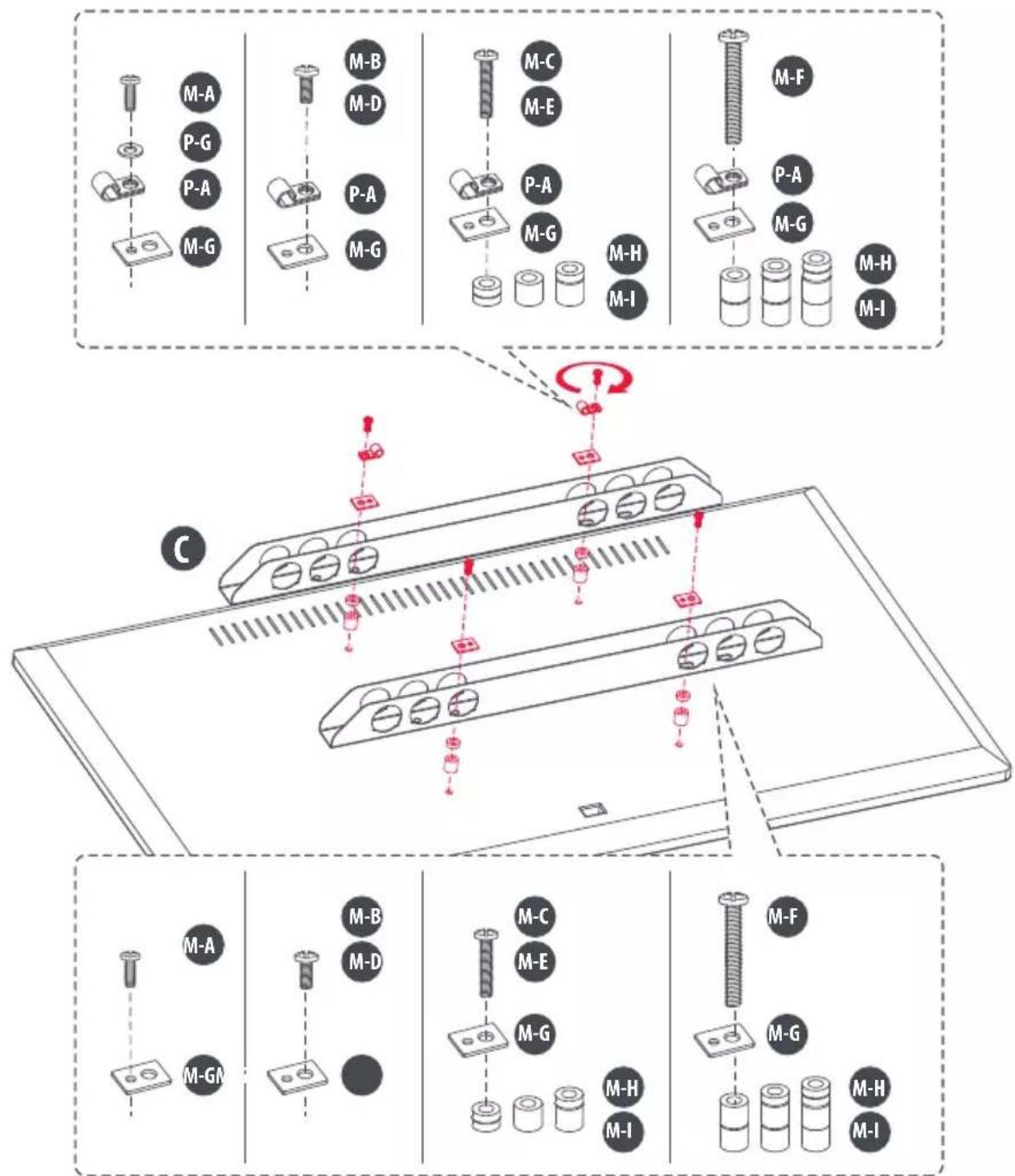

M-A P-G P-A M-G M-B M-D P-A M-G M-C M-E P-A M-G M-H M-I M-F P-A M-G M-H M-I C M-A M-GM M-B M-D M-C M-E M-G M-H M-I M-F M-G M-H M-I

2

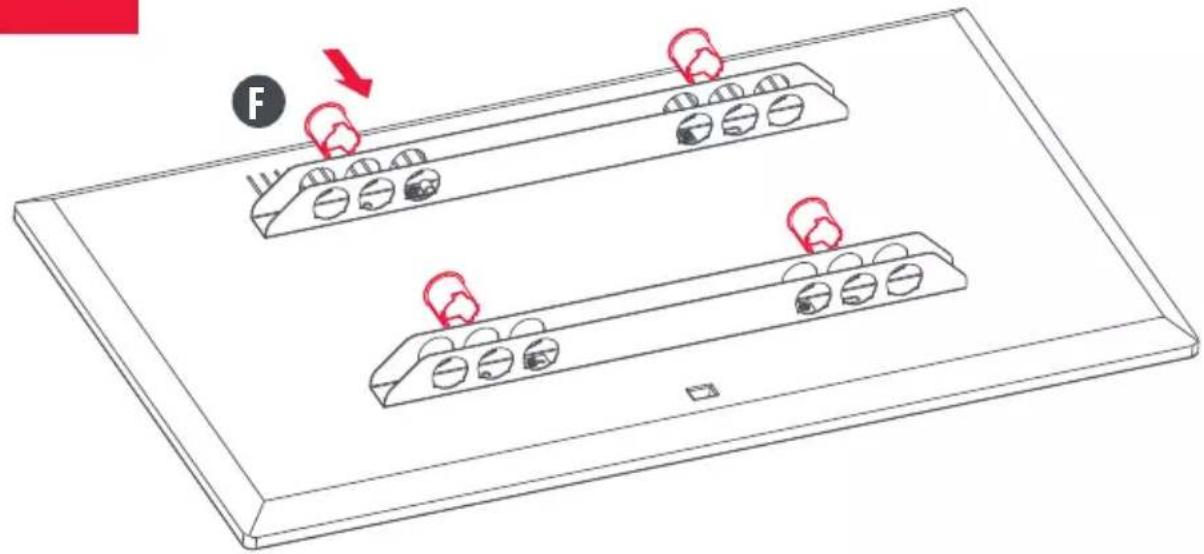

Insert the bushings to the proper mounting holes.

F

3a

Insert the poles to the holes with bushings, rotate the poles to make the outer side screw holes parallel with the notches of the bushings as shown.

Free standing A B

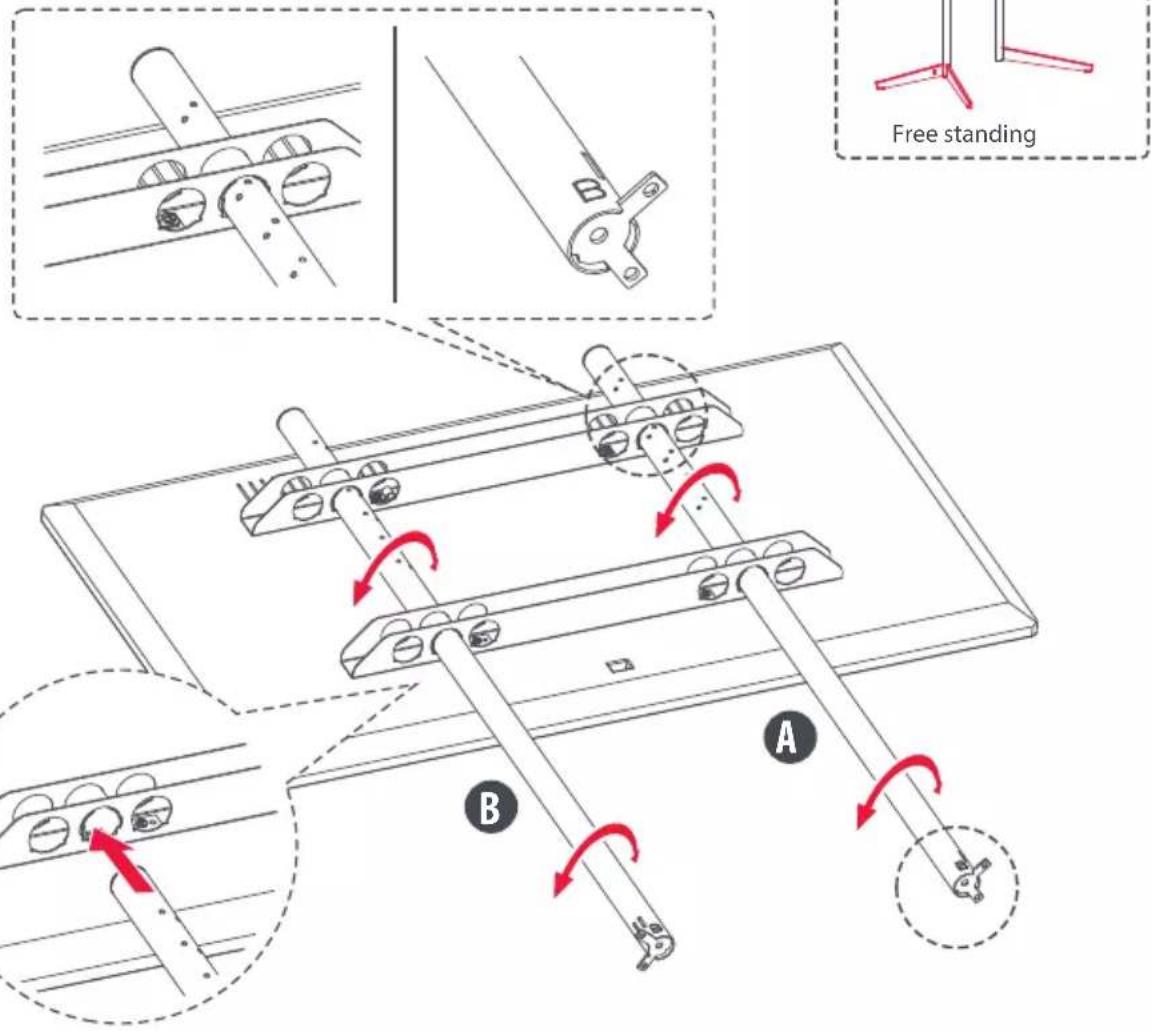

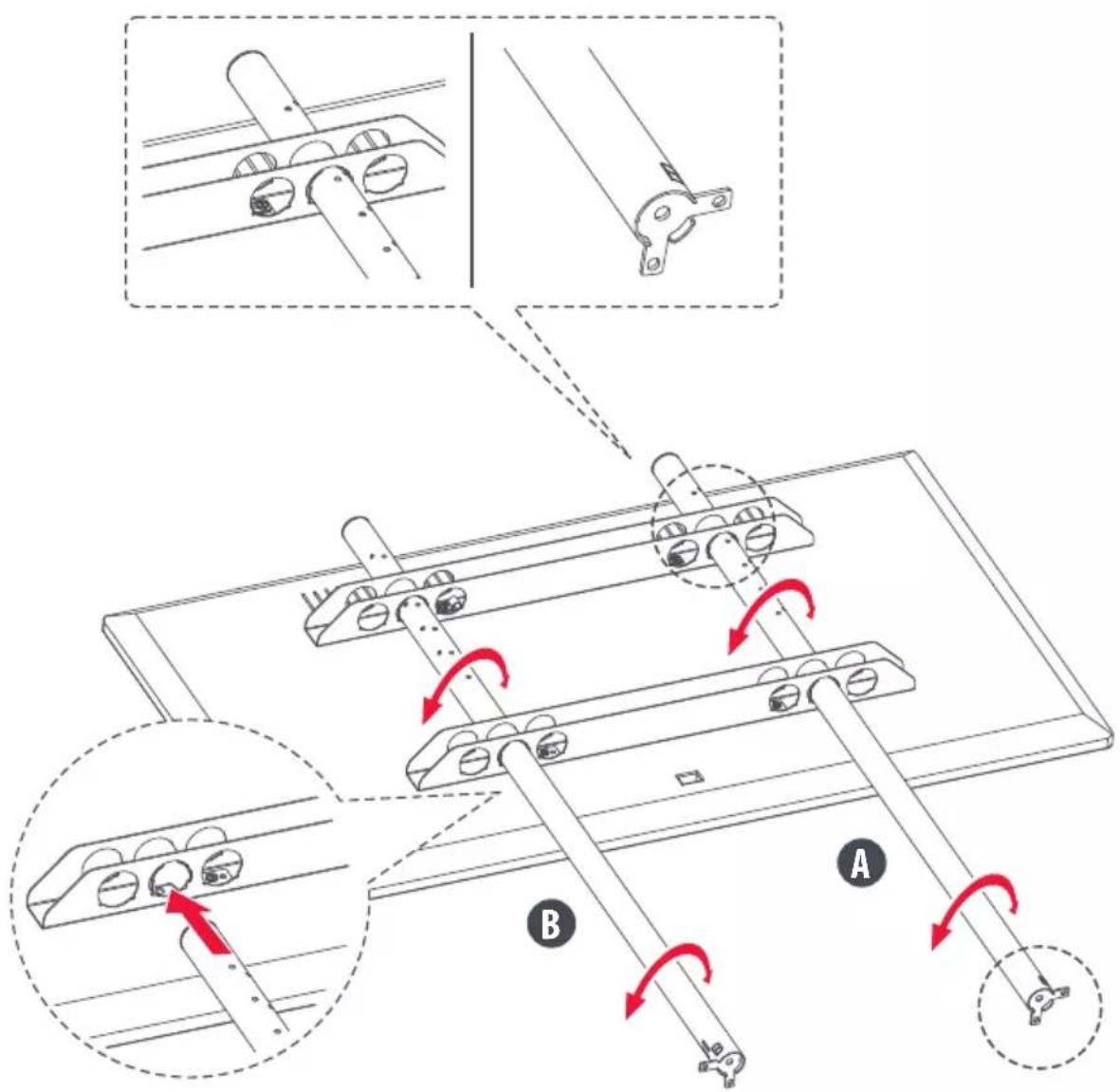

3b

Insert the poles to the holes with bushings, rotate the poles to make the inner side screw holes parallel with the notches of the bushings as shown.

Against wall

Technical diagram illustrating mechanical assembly steps with labeled components A and B, showing progressive assembly with red arrows indicating motion.

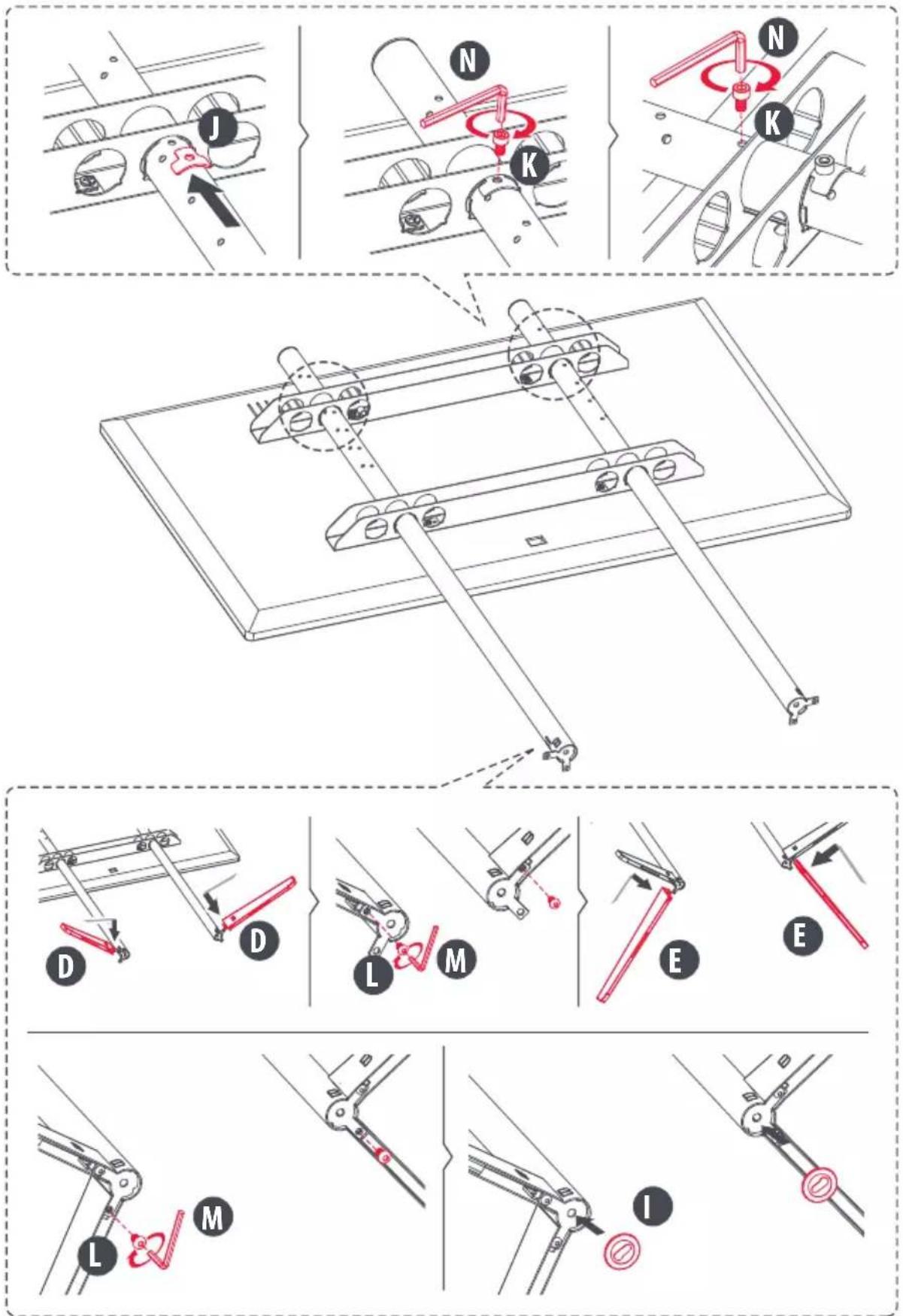

4

Technical diagram illustrating mechanical assembly steps with labeled components (N, K, L, M) and directional arrows indicating motion or movement.

5

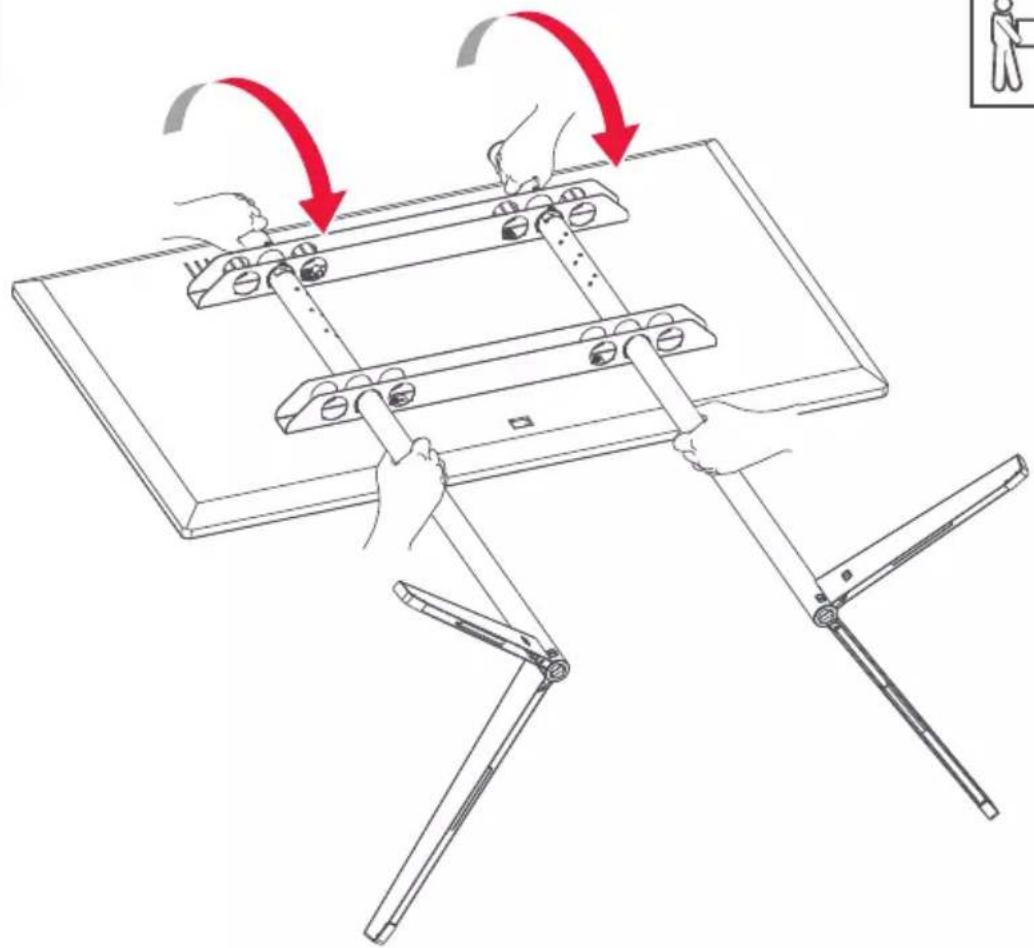

Illustration of a mechanical assembly with hands holding rods and brackets, showing motion direction (no text or symbols)

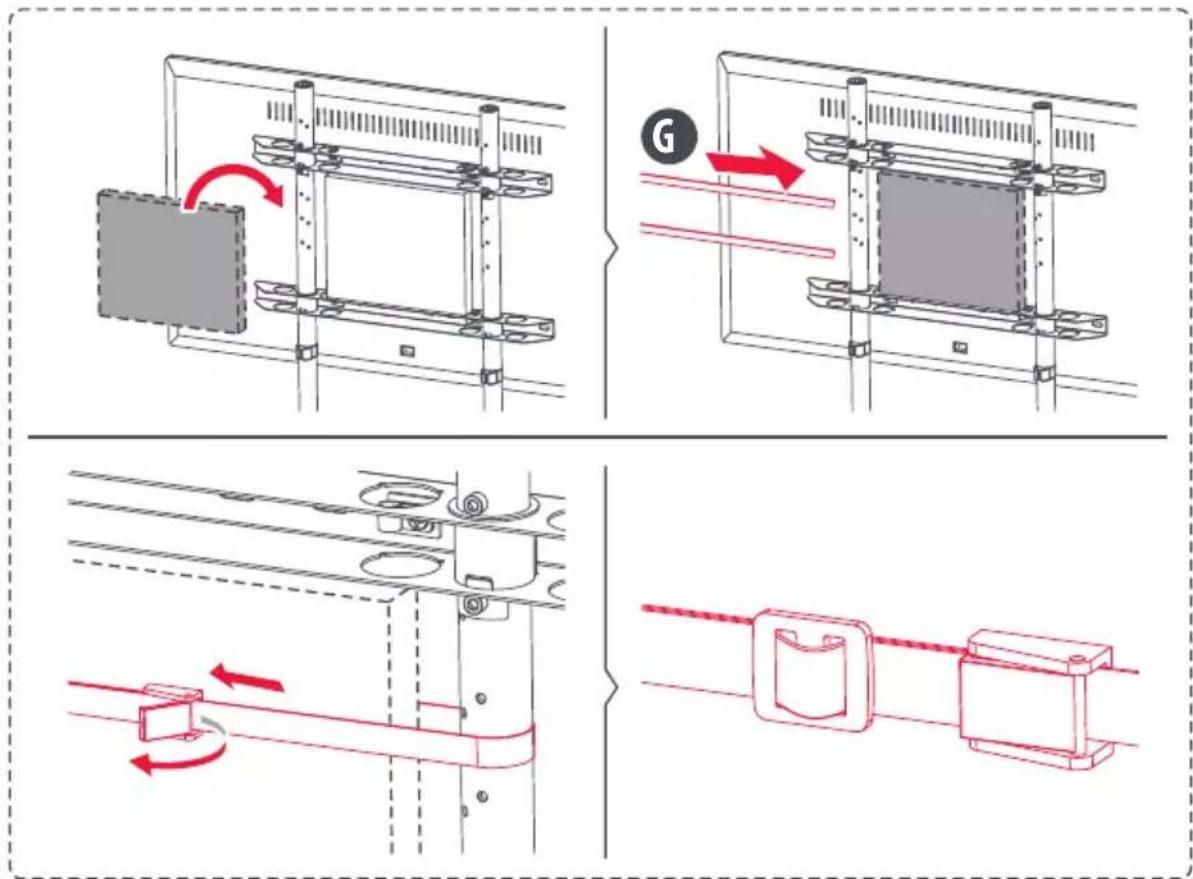

6

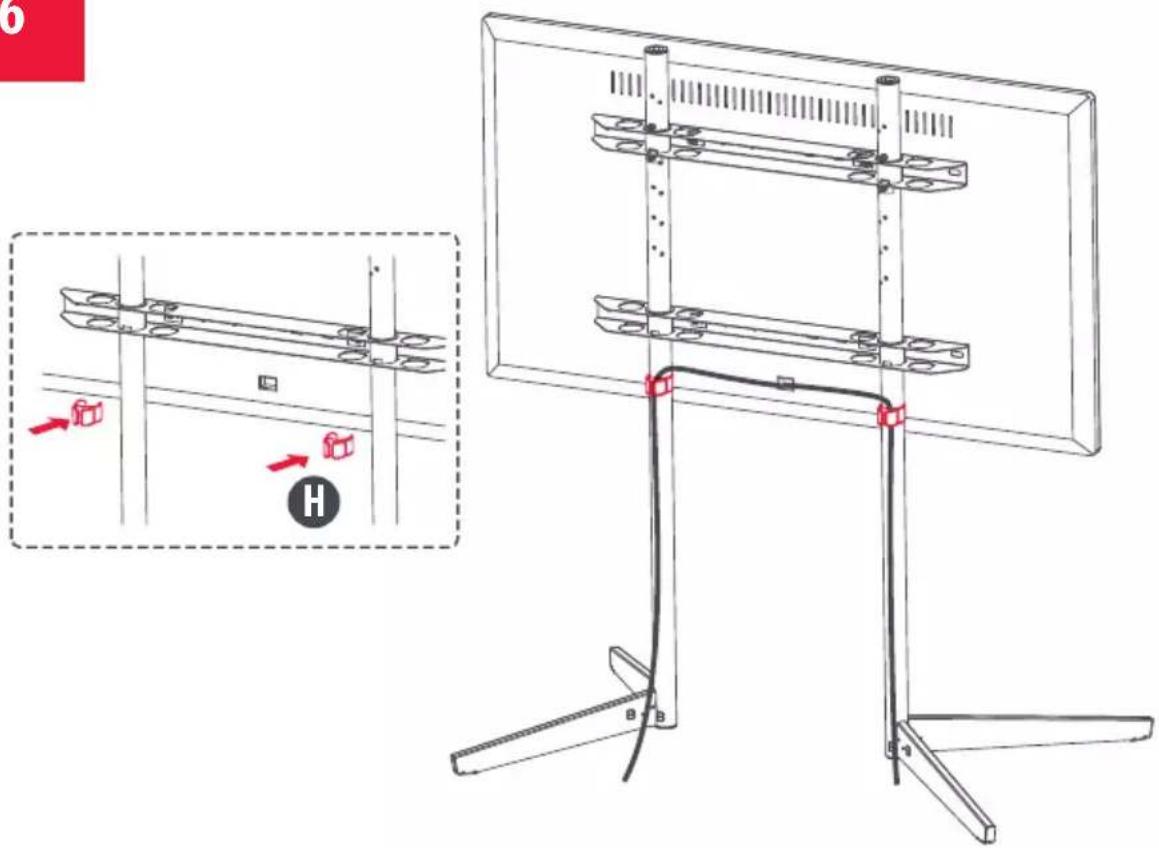

Technical diagram showing a monitor mounted on a stand with red arrows indicating assembly or connection points, including a magnified inset of the device's side view.

7

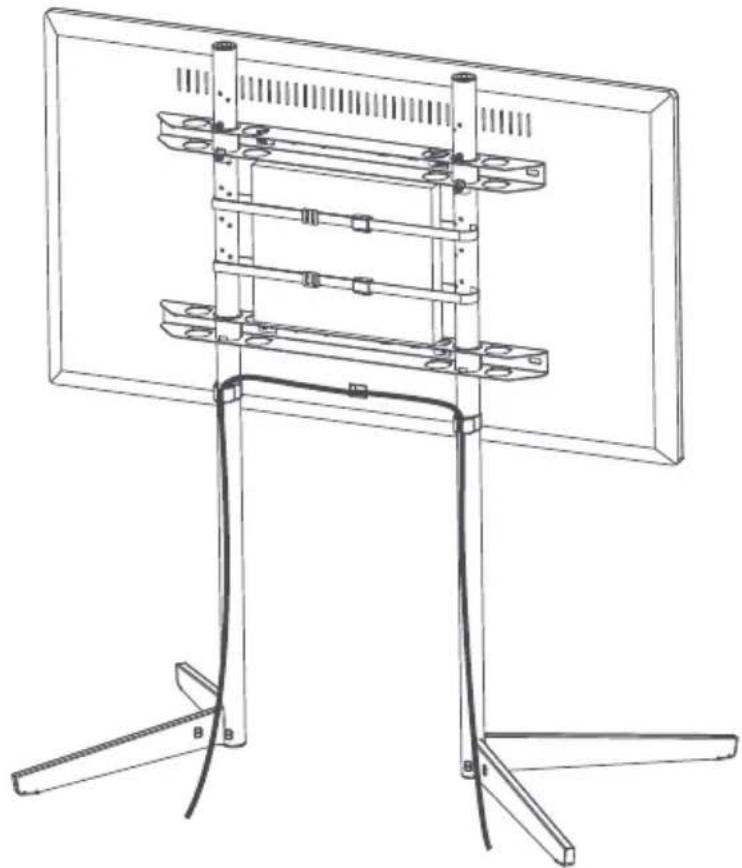

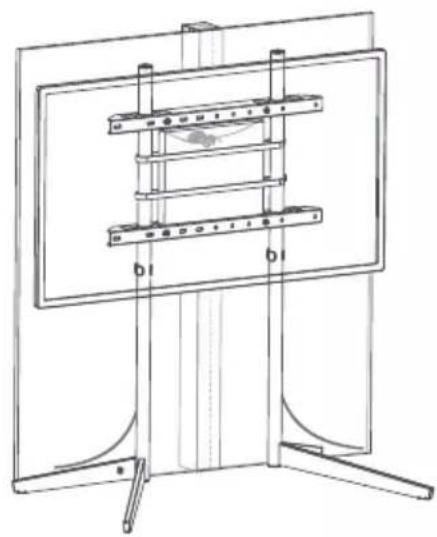

Technical line drawing of a monitor mounted on a stand, showing structural components and wiring (no text or symbols)

Technical diagram illustrating mechanical assembly steps with labeled components and directional arrows

8a

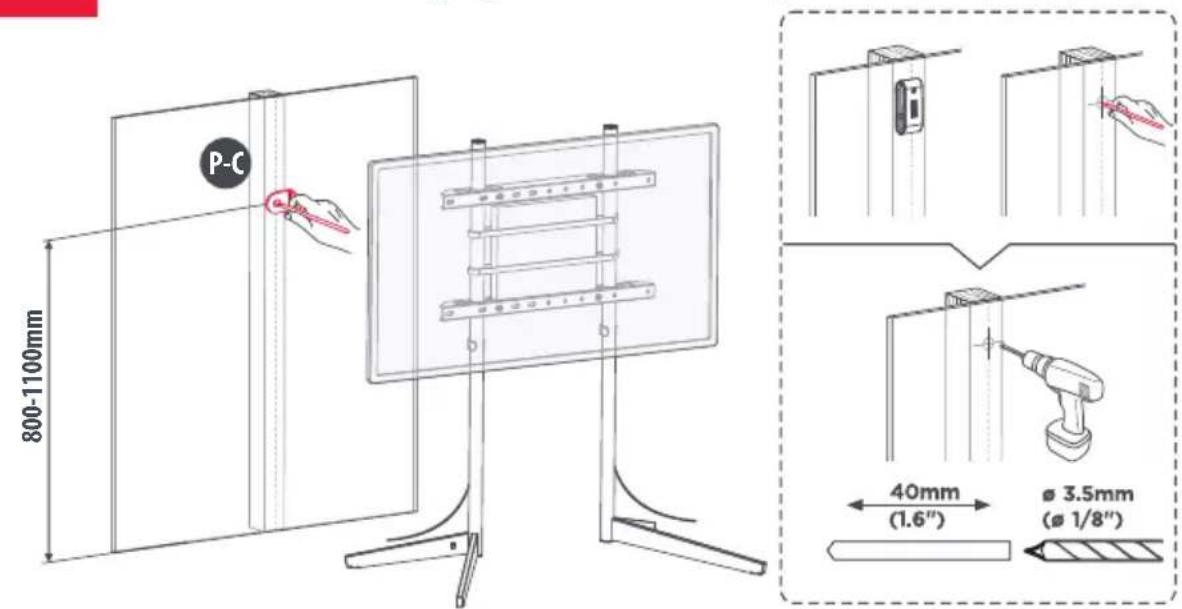

To avoid the mount tipping over, install the safety kit.

P-C 800-1100mm 40mm (1.6") Ø 3.5mm (Ø 1/8")

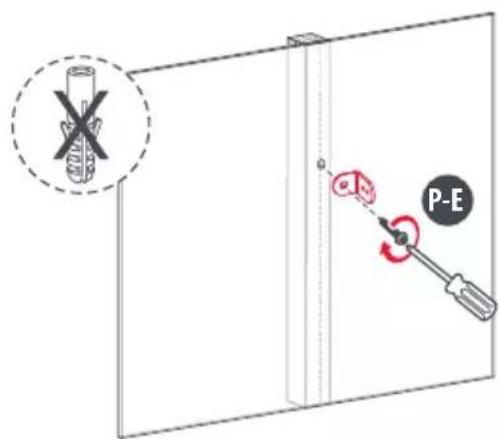

Diagram showing a mechanical assembly with a crosshair and labeled component 'P-E' indicating a turning tool or probe.

Simple line drawing of a mechanical component with a cross-shaped opening and circular features (no text or symbols)

Technical line drawing of a mechanical assembly with labeled components (no text or symbols)

P-A P-B P-D

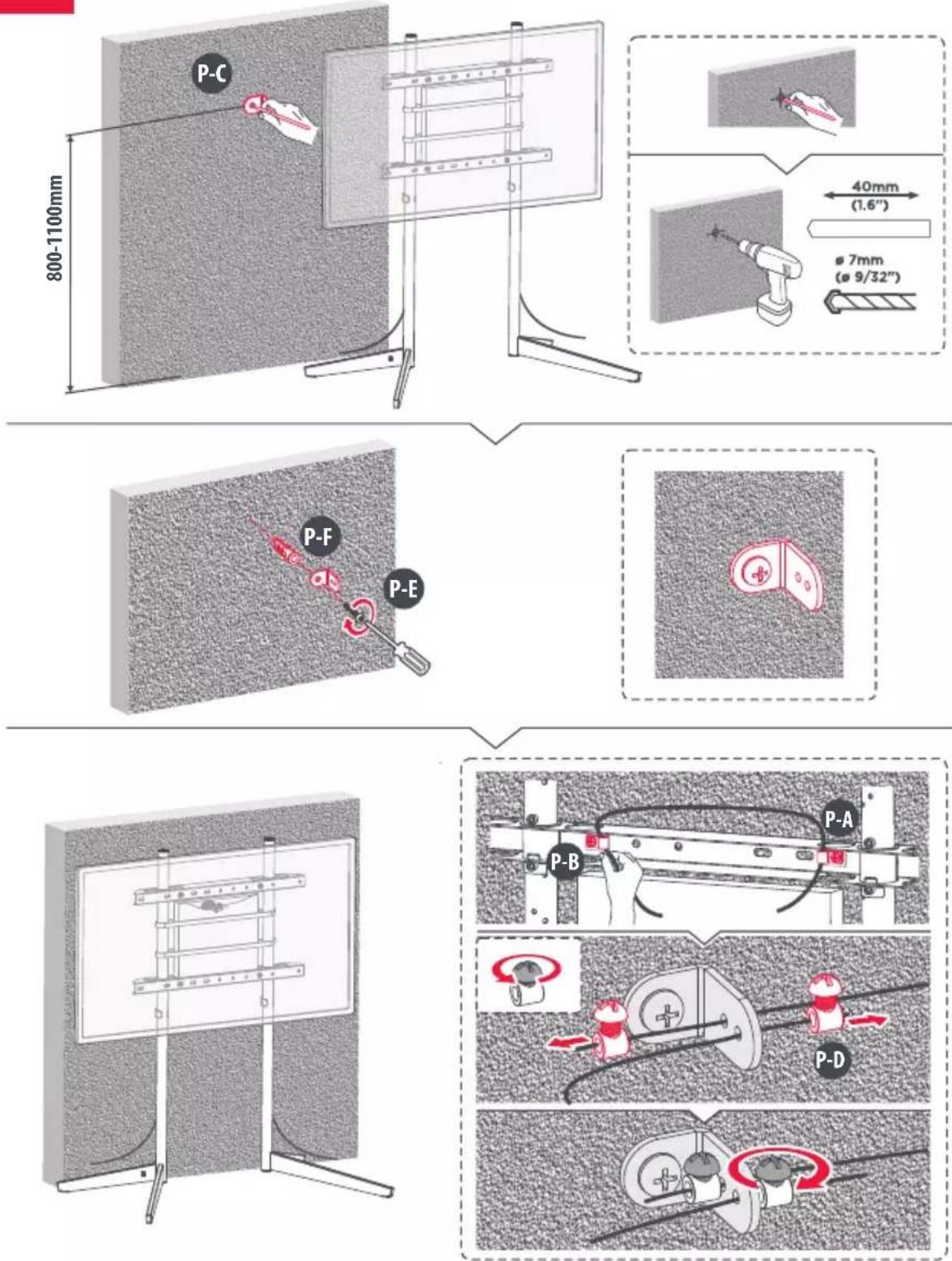

8b
To avoid the mount tipping over, install the safety kit.

800-1100mm P-C 40mm (1.6") 7mm (9/32") P-F P-E P-B P-A P-D

FINISH

GUARANTEE TERMS AND CONDITIONS

ENGLISH

Thank you for purchasing this ONE FOR ALL product! The product you now have in your possession is made of durable materials and is based on a design, every detail of which has been meticulously thought out. That is why ONE FOR ALL gives you a Life Time guarantee for defects in materials or manufacturing.

GUARANTEE TERMS AND CONDITIONS

1. ONE FOR ALL guarantees that if during the guarantee period of a product, faults arise due to defects in manufacturing and/or materials, it will, at its discretion, repair or if necessary replace the product, free of cost. A guarantee for normal wear and tear is hereby expressly excluded.
2. If the guarantee is invoked, the product should be sent to ONE FOR ALL together with the original purchase document (invoice, sales slip or cash receipt). The purchase document should clearly show the name of the supplier and the date of purchase.
3. ONE FOR ALL guarantee shall lapse in the following cases: - If the product has not been drilled, installed and used in accordance with the Instructions for Use; - If the product has been altered or repaired by a party other than ONE FOR ALL; - If a fault arises due to external causes (outside the product) such as for example lightning, water nuisance, fire, scuffing, exposure to extreme temperatures, weather conditions, solvents or acids, wrong use or negligence; - If the product is used for different equipment than is mentioned on or in the packing.

UNIVERSAL ELECTRONICS BV, COLOSSEUM 2, 7521 PT ENSCHEDE, THE NETHERLANDS

WARNING

Correct installation is extremely essential, and falls outside the scope of responsibility of ONE FOR ALL. The fastening material provided is exclusively intended for installation on walls made of solid wood, bricks, concrete or solid-wood columns with a maximum of 3 mm wall finishing. For walls made of other materials, for example hollow bricks, please consult your installer and/or specialist supplier. During installation, please also follow the instructions for installation and use of the apparatus to be installed/fixed (for example the LCD/LED/plasma screen).
