OPERATION

1. Important Instructions 2

1.1 Document information 2
1.2 Safety information 2
1.3 Other symbols in this document 3

1. Safety 3
   2.1 Intended use 3
   2.2 Safety information 3
   2.3 Licences / certificates 4
   2.4 Test symbols 4
2. Register your product 4

3. Appliance description 4
   4.1 Control with external room temp. controller 4

4. Operation CK 15 E / CK 20 E
   5.1 Starting heating 4
   5.2 Stopping heating / frost protection 4

5. Operation CKT 15 E / CKT 20 E

6.1 Starting heating 5
6.2 Adjusting the time switch 5
6.3 Stopping heating / frost protection 5

1. Cleaning, care and maintenance 5
2. Storage 5
3. Troubleshooting 5

INSTALLATION

1. Safety 5
   10.1 General safety information 5
   10.2 Instructions, standards and regulations 5
2. Appliance description 5
   11.1 Standard delivery 5
3. Installation 5
4. Electrical connection 6
   13.1 Removing the front cover 6
   13.2 Routing wire to the terminal block 6
   13.3 Terminal block 6
5. Appliance handover 6
6. Specification 7
   15.1 Dimensions 7
   15.2 Minimum clearances to hard surfaces 7
   15.3 Specification table 8

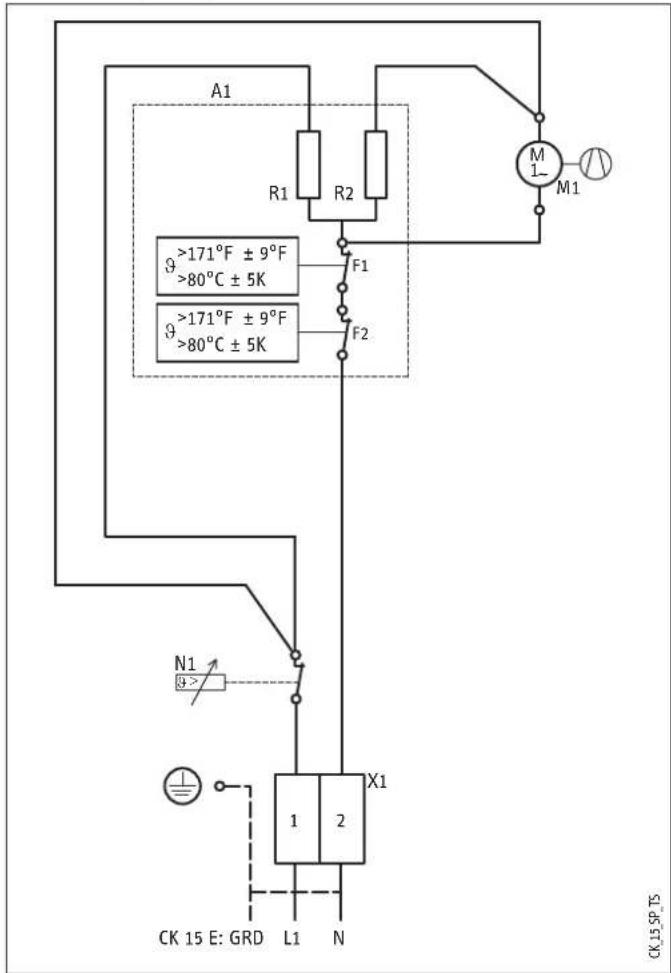

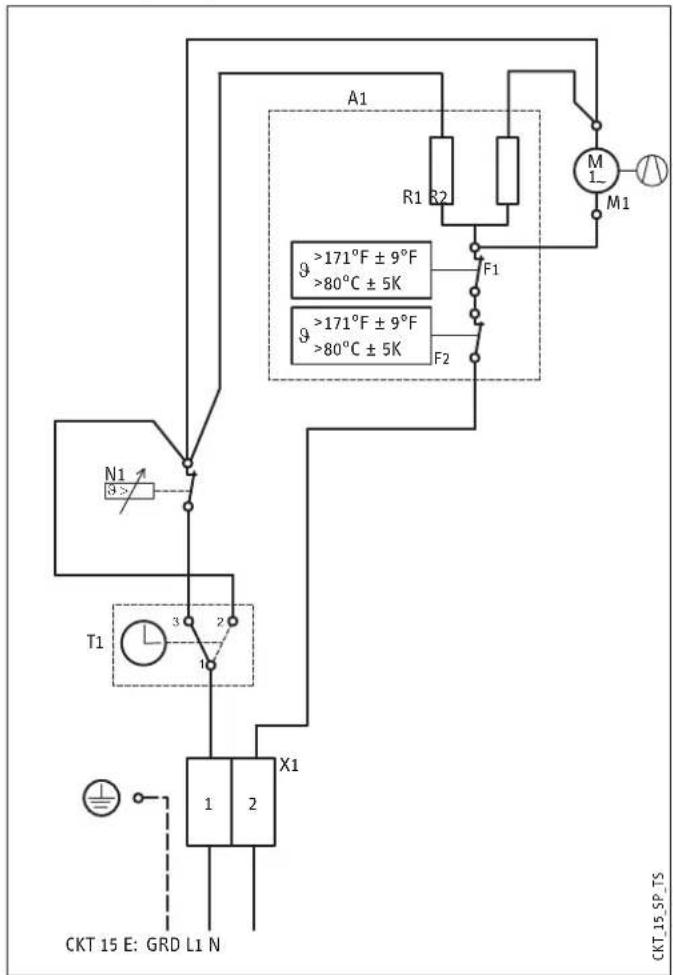

   15.4 Wiring diagram CK 15 E 8
   15.5 Wiring diagram CKT 15 E 9

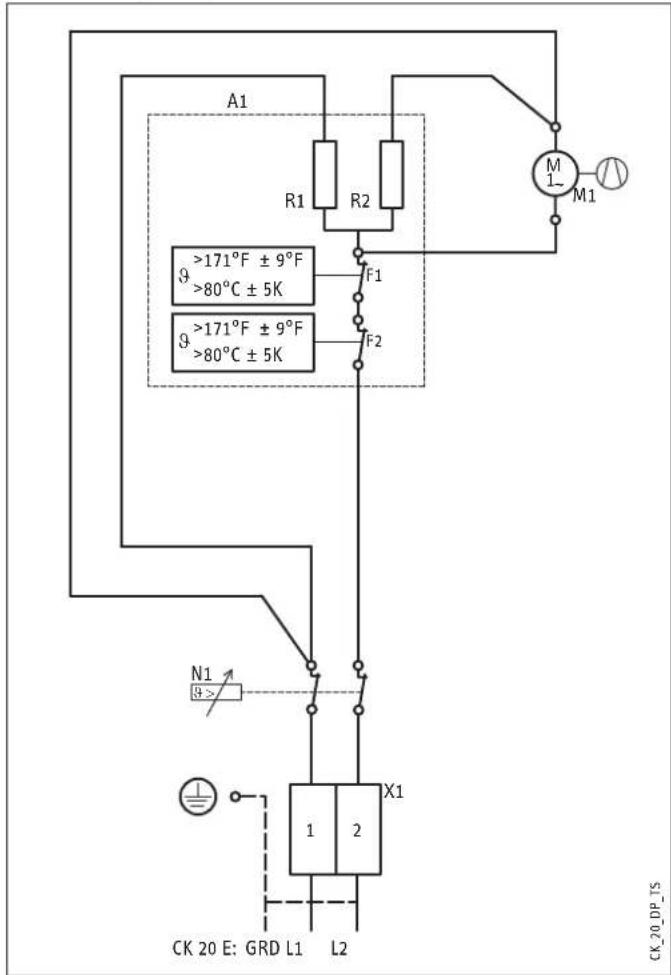

   15.6 Wiring diagram CK 20 E 9

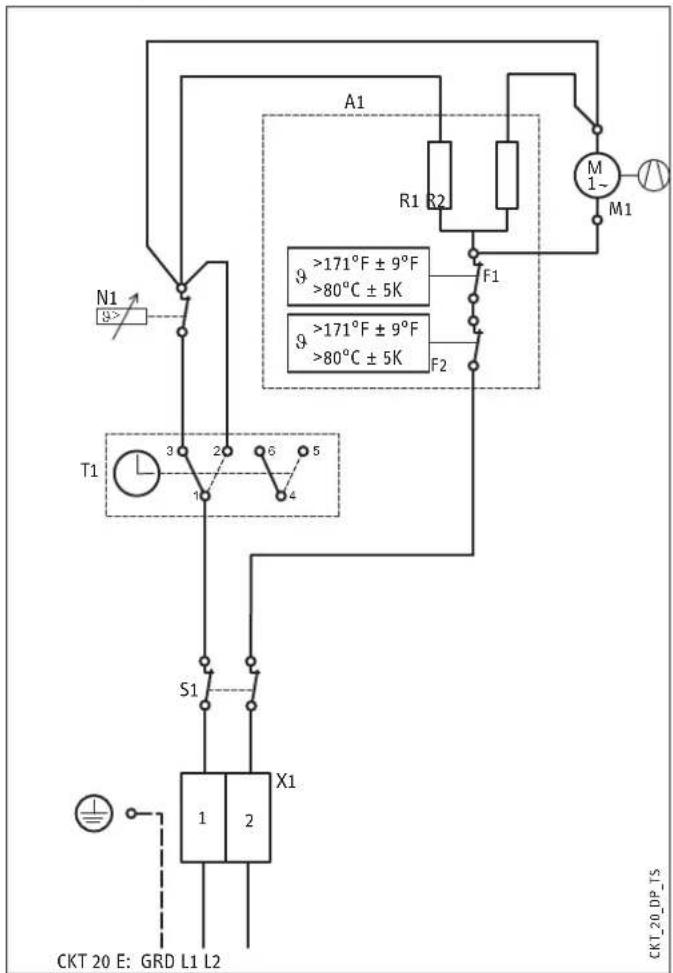

   15.7 Wiring diagram CKT 20 E 10
7. Warranty 11

OPERATION

1. Important Instructions

SAVE THESE INSTRUCTIONS

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

1. Read all instructions before installing or using this heater.
2. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, etc. and curtains at least 3 feet (1 m) from the front of the heater and keep them at least 3 feet (1 m) away from the sides and rear.
3. Extreme caution is necessary when any heater is used by or near children or invalids and whenever the heater is left operating and unattended.
4. Do not operate any heater after it malfunctions. Disconnect power at service panel and have heater inspected by a reputable electrician before reusing.

1.1 Document information

The chapter Operation is intended for users and heating contractors.

The chapter Installation is intended for heating contractors.

Note

Read these instructions carefully before using the appliance and familiarize yourself with its functions. Keep these instructions safe. Pass on the instructions to a new user if required.

1.2 Safety information

1.2.1 Structure of safety information

KEYWORD Type of risk

Here, possible consequences are listed that may result from not observing the safety information.

Steps to prevent the risk are listed.

1.2.2 Symbols, type of risk

Symbol Type of risk

Injury

Electrocution

Burns or scalding

Fire

1.2.3 Keywords

KEYWORD Description

DANGER If this information is not observed, it will result in serious injury or death.

WARNING If this information is not observed, it can result in serious injury or death.

CAUTION If this information is not observed, it can lead to medium or minor injury.

1.3 Other symbols in this document

Note

Notes are bordered by horizontal lines above and below the text. General information is identified by the symbol shown on the left.

Read these notes carefully.

Symbol

Damage to the appliance and environment

Appliance disposal

Never cover the appliance

This symbol indicates that you have to do something. The action you need to take is described step by step.

2. Safety

Observe the following safety information and regulations.

Operate the appliance only when fully installed and with all safety equipment fitted.

2.1 Intended use

This appliance is designed to heat living areas.

Any other use beyond that described shall be deemed inappropriate. Observation of these instructions is also part of the correct use of this appliance. Any modifications or conversions to the appliance void all warranty rights.

2.2 Safety information

Operate the appliance only when fully installed and with all safety equipment fitted.

The heater must be properly installed before it is used.

DANGER Electrocution

Before cleaning, make sure the power has been turned off at the circuit breaker panel and that the heating element of the heater is cool.

DANGER Fire

Never operate this appliance ...

• if the minimum clearances to adjacent object surfaces are not maintained, for example to furniture, net curtains, curtains, textiles or other flammable materials (for minimum clearances, see "specification/dimensions and minimum clearances").
• in rooms where the appliance is at risk from fire or explosion as a result of chemicals, dust, gases or vapors.
• in the direct proximity of pipes or containers that carry or contain flammable or explosive materials.
• if work such as laying cables, grinding or sealing is carried out in the installation room.
• if sprays, floor polish or similar products containing gasoline are used. Vent the room sufficiently before heating.
• if an appliance component is damaged, the appliance has fallen over or already had a fault.
  outdoors.

DANGER Fire

Never place any flammable, combustible or insulating objects or materials, such as laundry, blankets, magazines, containers with floor polish or gasoline, spray cans or similar on the appliance or in direct proximity to it.

WARNING Fire

Ensure that no foreign bodies enter the ventilation air and extract air apertures. This could result in electric shock or fire or in damage to the appliance.

WARNING Fire

To prevent fires ensure that the air inlets and outlets are never blocked. Never position the appliance on soft surfaces, such as a bed, as this could result in the apertures becoming blocked.

DANGER Overheating

The appliance could continue to heat the room unchecked if it is operated on a time switch. Ensure constant supervision if the appliance is used in a small room and the persons within that room cannot leave the room on their own.

WARNING Injury

Where children or persons with limited physical, sensory or mental capabilities are to be allowed to control this appliance, ensure that this will only happen under supervision or after appropriate instructions by a person responsible for their safety. Children should be supervised to ensure that they never play with the appliance.

CAUTION Burns

The casing surfaces of the appliance and the expelled air become hot during use (above 90^ (194^) ). To prevent burns ensure that the hot surfaces never come into contact with bare skin.

Damage to the appliance and the environment

• Never cover this appliance.
• Never step on the appliance.

2.3 Licences / certificates

-UL (U.S.A) Std.2021
- CSA (Canada) Std. 22.2 No. 46

2.4 Test symbols

See type plate on the appliance.

3. Register your product

You must register this product within 90 days of purchase on our web site in order to activate the standard warranty or to be eligible for the extended warranty. Go to our web site at www.stiebel-eltron-usa.com and click on register your product.

Before beginning the registration process, we suggest that you gather the necessary information which will be as follows:

Type, Example: CK 15 E (from the white label that is on the right side of the unit)

Number listed after "Nr."

Place of Purchase

Purchase Date

First & Last Name

Email address

Physical Address

Phone Number

IF YOU HAVE ANY QUESTIONS CONCERNING THE REGISTRATION PROCESS OR WARRANTY OPTIONS, PLEASE CONTACT STIEBEL ELTRON USA DIRECTLY AT (800)-582-8423.

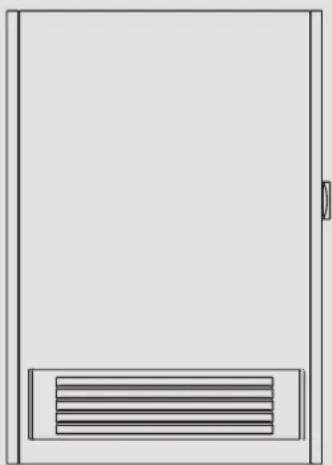

4. Appliance description

This appliance is wall mounted and is particularly suitable for work rooms, kitchens, bathrooms, wash rooms and similar.

The external casing of the appliance is made from stove enameled sheet steel. The sides are made out of plastic. The controls are located on the right side panel.

The quiet fan draws in the ambient air that is heated by a bare wire heater element. The air then exits evenly through the hot air channel and the air outlet grille set into the bottom of the appliance.

The appliance heats up the ambient air inside the room and maintains it at the selected temperature.

4.1 Control with external room temp. controller

(Only applicable for: CK)

In rooms larger than 215ft^2 (20m^2) you can operate the appliance with a conventional wall mounted room thermostat.

To do so, turn the temperature selector fully clockwise.
Control the temperature by using the wall thermostat.

5. Operation CK 15 E / CK 20 E

1 Temperature selector

5.1 Starting heating

The temperature is infinitely adjustable. The appliance stops heating as soon as the selected room temperature has been reached.

• Turn the temperature selector clockwise to the required setting.

5.2 Stopping heating / frost protection

To ensure frost protection, the power switch must be in the on position.

Turn the temperature selector fully counter clockwise.

This position ensures frost protection. The heater starts automatically if the room temperature drops below the frost protection temperature.

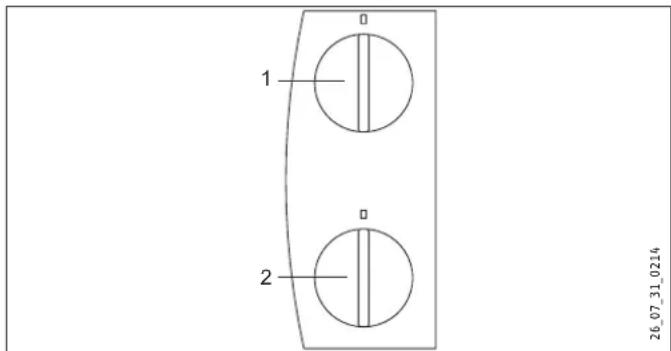

6. Operation CKT 15 E / CKT 20 E

1 Temperature selector
2 Timer

6.1 Starting heating

The temperature is infinitely adjustable. The appliance stops heating as soon as the selected room temperature has been reached.

Turn the temperature selector clockwise to the required setting.

6.2 Adjusting the time switch

With the time switch, the appliance heats with full output and without temperature control.

• Turn the Timer clockwise to set any number of minutes to count down from 0 - 60 minutes.

6.3 Stopping heating / frost protection

This position ensures frost protection. The heater starts automatically if the room temperature drops below the frost protection temperature.

Turn the temperature selector fully counter clockwise and ensure that the time switch is set to "0".

7. Cleaning, care and maintenance

The appliance contains no user serviceable parts.

Clean the appliance when cold with ordinary cleaning products. Avoid abrasive or corrosive cleaning products.

If a pale brownish discoloration appears on the appliance casing, wipe this off as soon as possible with a damp cloth.

Damage to the appliance and the environment Never spray cleaning spray into the air slot.

8. Storage

When not in use, keep the appliance in a dry place.

9. Troubleshooting

If the appliance does not heat, check the temperature set at the appliance and the circuit breacker.

The appliance has a safety high limit that shuts the appliance down if it overheats. After the cause has been removed (for example air outlet or inlet apertures covered) and the appliance has cooled down for a few minutes, operation starts again.

If you cannot remedy the fault, notify the contractor who installed the appliance. To facilitate and speed up your enquiry, please provide the serial number from the type plate (000000-0000-000000).

INSTALLATION

10. Safety

Only licensed electricians should carry out the maintenance and repair of this appliance.

10.1 General safety information

We guarantee trouble-free operation and operational reliability only if the original accessories and spare parts intended for the appliance are used.

10.2 Instructions, standards and regulations

Note

Observe all applicable national and local regulations and instructions.

11. Appliance description

This appliance is a wall mounted electric heater. It is particularly suitable for heating rooms, such as work rooms, kitchens, bathrooms, wash rooms etc.

11.1 Standard delivery

• Wall mount bracket
• Bottom bracket

12. Installation

DANGER Electrocution

If installing the appliance in rooms with a bath and/or shower, take the relevant safety zone into account in accordance with the information on the appliance type plate.
Install the appliance in such a way that switching and control equipment cannot be touched by a person in the bath or shower.

DANGER Fire

Only fit the appliance to a vertical wall that is heat-resistant to at least 194^ (90^)
- Maintain minimum clearances to adjacent surfaces.
- Never install the appliance directly below a wall socket.

• Check the hole distances for the wall mounting bracket in the dimensioned drawing.
• Secure the wall mounting bracket with suitable fasteners.

The horizontal and vertical slots in the wall mounting bracket enable alignment if drilled holes are not completely accurate.
- Hook in the appliance so that both top protrusions are inserted into the slots in the wall mounting bracket.

• Secure the appliance with the bottom bracket and one screw

against unintentional unhooking. To do so, hook the bottom bracket from the back into the rear panel.

13. Electrical connection

DANGER Electrocution

Carry out all electrical connection and installation work in accordance with relevant regulations.

Damage to the appliance and the environment

Observe the type plate. The specified voltage must match the mains voltage.

Never install the appliance directly below an outlet.

In case of ROMEX wire, install 1/2 ROMEX connector in knockout. In case of Greenfield, please use 1/2 Greenfield connector.

13.1 Removing the front cover

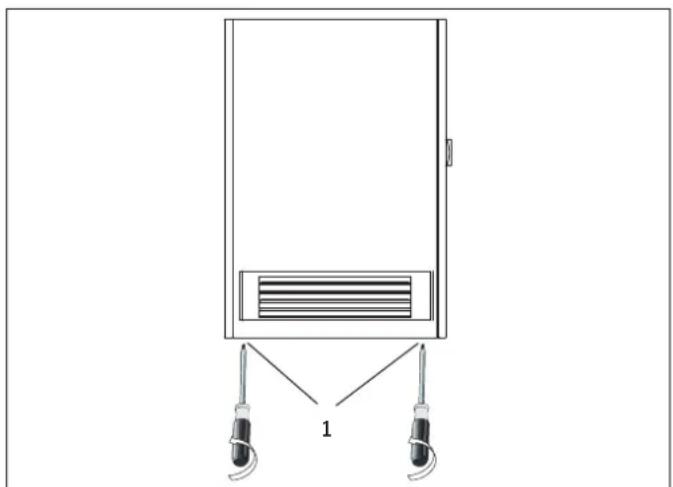

Remove the two screws at the bottom of the unit. Once removed, the front face can be removed by pulling it towards you.

1 Screw locations for removing cover

13.2 Routing wire to the terminal block

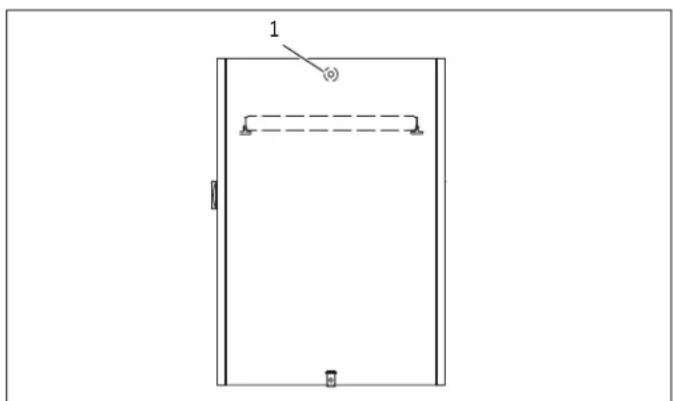

There is a hole for cable entry in the back of the unit. Install a cable clamp to prevent the power cable from being pulled out of the terminal block during operation.

1 Cable entry

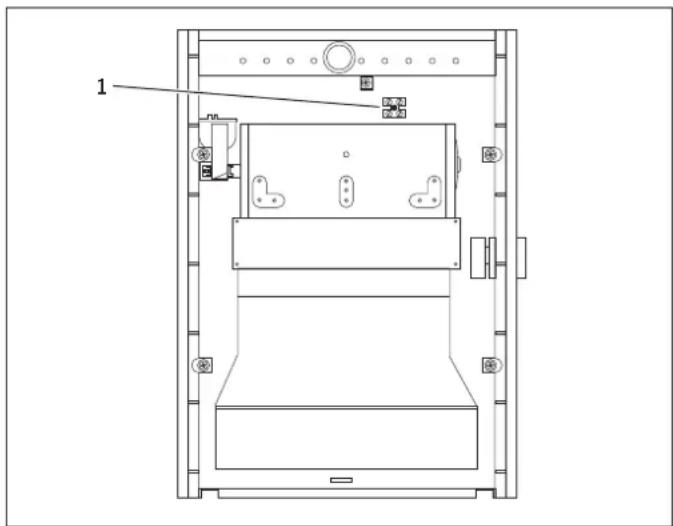

13.3 Terminal block

Route the power cable through the cable entry hole and into the terminal block. The ground wire screw is located above the terminal block.

1 Terminal block

Consult the chart below for the recommended torque amounts on the terminal block screws.

Screw Size (mm) Min. Torque (N·cm)		Min. Torque (lbf·in)
M3.5	60-80	5.31-7.08

Using the proper torque specifications to secure wire to the wiring block helps to avoid personal loss or property damage.

14. Appliance handover

Explain the functions of the appliance to the user. Draw special attention to the safety information. Hand the operating and installation instructions to the user.

15. Specification

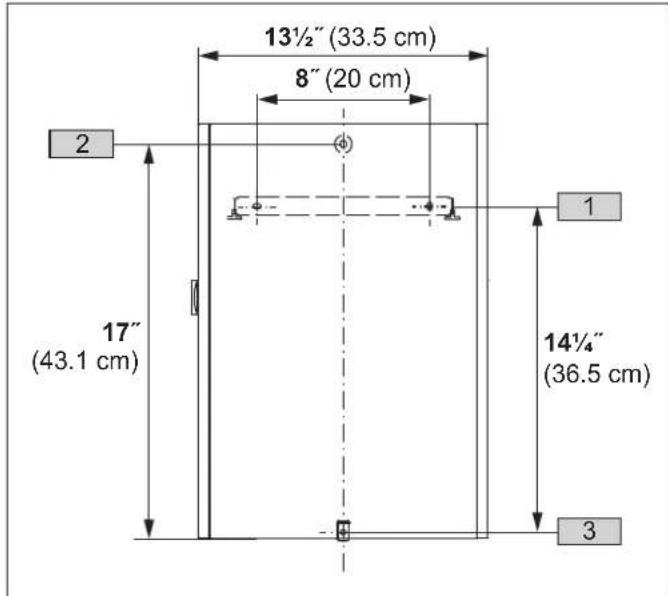

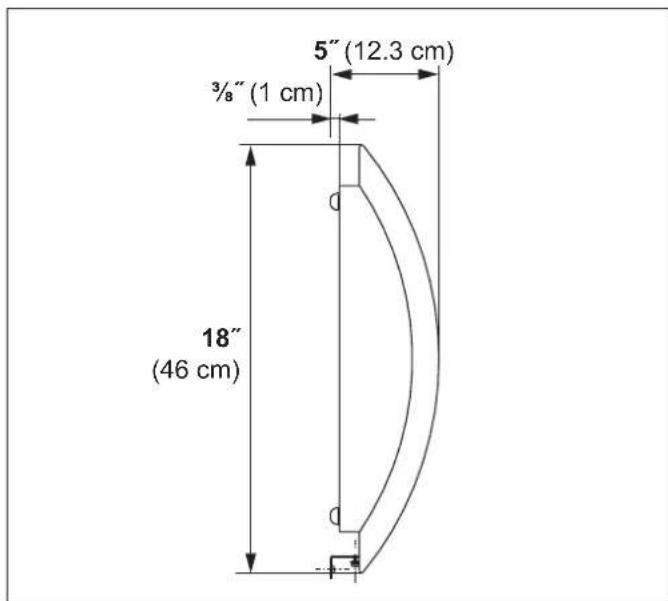

15.1 Dimensions

1 Wall mounting bracket
2 Cable entry
3 Bottom bracket

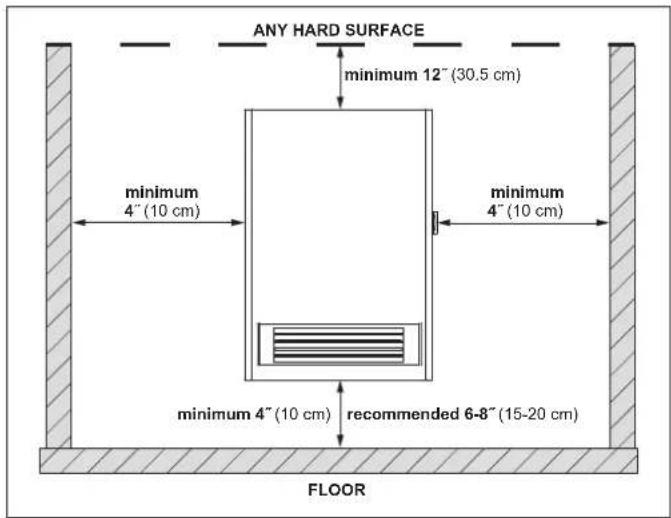

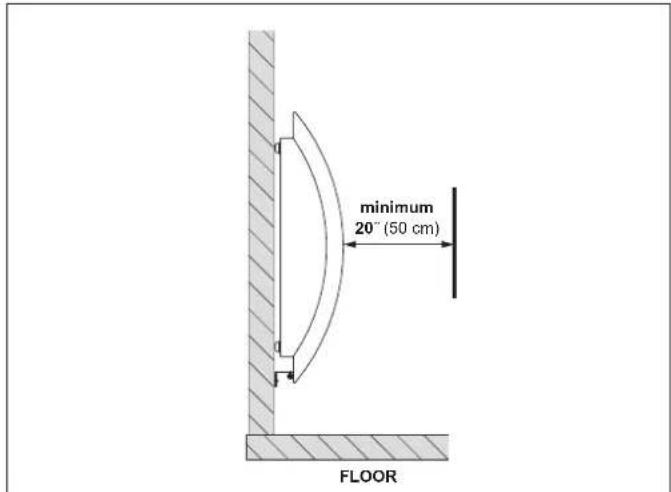

15.2 Minimum clearances to hard surfaces

The images above show minimum allowed clearances between the installed appliance and any hard surfaces.
We recommend installing the appliance 6 - 8^ off the floor.

WARNING Fire

Combustible materials such as furniture, papers, clothes and curtains must be kept at least 3 feet (0.9m) from the heater.

Never place any flammable, combustible or insulating objects or materials, such as laundry, blankets, magazines, containers with floor polish or gasoline, spray cans or similar on the appliance or in direct proximity to it.

15.3 Specification table

CK 15 E CK 20 E
Part number 074058 074057
Power supply single phase single phase
Voltage 120 V 240 V	208 V
Wattage	1500 W	2000 W	1500 W
Amperage	12.5 A	8.3 A	7.5 A
Required circuit breaker size	15 A	15 A	15 A
Required wire size	14 AWG	14 AWG	14 AWG
Temperature range	41°F - 86°F / 5°C - 30°C
Frost protection setting	44.6°F / 7°C
Operating noise	49.7 dB(A)
Height	18.1" / 46 cm
Width	13.2" / 33.5 cm
Depth	4.8" / 12.3 cm
Weight	8.0 lb / 4.4 kg

CKT 15 E CKT 20 E
Part number 230345 230346
Power supply single phase single phase
Voltage 120 V 240 V	208 V
Wattage	1500 W	2000 W	1500 W
Amperage	12.5 A	8.3 A	7.5 A
Required circuit breaker size	15 A	15 A	15 A
Required wire size	14 AWG	14 AWG	14 AWG
Temperature range	41°F - 86°F / 5°C - 30°C
Frost protection setting	44.6°F / 7°C
Operating noise	49.7 dB(A)
Height	18.1" / 46 cm
Width	13.2" / 33.5 cm
Depth	4.8" / 12.3 cm
Weight	8.0 lb / 4.4 kg

15.4 Wiring diagram CK 15 E

A1 Electric heating element assembly
F1 Temperature high limit
M1 Fan
N1 Thermostat
R1 Heating resistor
R2 Heating resistor
X1 Wiring block

15.5 Wiring diagram CKT 15 E

A1 Electric heating element assembly
F1 Temperature high limit
M1 Fan
N1 Thermostat
R1 Heating resistor
R2 Heating resistor
T1 60 minute timer
X1 Wiring block

15.6 Wiring diagram CK 20 E

A1 Electric heating element assembly
F1 Temperature high Limit

M1 Fan
N1 Thermostat
R1 Heating resistor
R2 Heating resistor
X1 Wiring block

15.7 Wiring diagram CKT 20 E

A1 Electric heating element assembly
F1 Temperature high Limit
M1 Fan
N1 Thermostat
R1 Heating resistor
R2 Heating resistor
S1 Dual-pole on/off switch
T1 60 minute timer
X1 Wiring block

16. Warranty

LIMITED WARRANTY

Subject to the terms and conditions set forth in this limited warranty, Stiebel Eltron, Inc. (the "Manufacturer") hereby warrants to the original purchaser (the "Owner") that each Electric Space Heater (the "Heater") shall be free of defects in the Manufacturer's materials or workmanship for a period of three (3) years from the date of purchase. As Owner's sole and exclusive remedy for breach of the above warranty, Manufacturer shall, at the Manufacturer's discretion, send replacement parts for local repair; retrieve the unit for factory repair, or replace the defective Heater with a replacement unit with comparable operating features. Manufacturer's maximum liability under all circumstances shall be limited to the Owner's purchase price for the Heater.

This limited warranty shall be the exclusive warranty made by the Manufacturer and is made in lieu of all other warranties, express or implied, whether written or oral, including, but not limited to warranties of merchantability and fitness for a particular purpose. Manufacturer shall not be liable for incidental, consequential or contingent damages or expenses arising directly or indirectly from any defect in the Heater or the use of the Heater. Manufacturer shall not be liable for any damage to property of Owner arising, directly or indirectly, from any defect in the Heater or the use of the Heater. Manufacturer alone is authorized to make all warranties on Manufacturer's behalf and no statement, warranty or guarantee made by any other party shall be binding on Manufacturer.

Manufacturer shall not be liable for any damage whatsoever relating to or caused by:

1. any misuse or neglect of the Heater, any accident to the Heater, any alteration of the Heater, or any other unintended use;

2. acts of God and circumstances over which Manufacturer has no control;

3. installation of the Heater other than as directed by Manufacturer and other than in accordance with applicable building codes;

4. failure to maintain the Heater or to operate the Heater in accordance with the Manufacturer's specifications;
5. improper installation and/or improper materials used by any installer and not relating to defects in parts or workmanship of Manufacturer;
6. moving the Heater from its original place of installation
7. use on improper voltage or current;
8. disassembly, repair, or alteration by anyone other than the manufacturer.

Should owner wish to return the Heater to manufacturer for repair or replacement under this warranty, Owner must first secure written authorization from Manufacturer. Owner shall demonstrate proof of purchase, including a purchase date, and shall be responsible for all removal and transportation costs. If Owner cannot demonstrate a purchase date this warranty shall be limited to the period beginning from the date of manufacture stamped on the Heater. Manufacturer reserves the right to deny warranty coverage upon Manufacturer's examination of Heater. This warranty is restricted to the Owner and cannot be assigned.

Some States and Provinces do not allow the exclusion or limitation of certain warranties. In such cases, the limitations set forth herein may not apply to the Owner. In such cases this warranty shall be limited to the shortest period and lowest damage amounts allowed by law. This warranty gives you specific legal rights and you may also have other rights which vary from State to State or Province to Province.

Owner shall be responsible for all labor and other charges incurred in the removal or repair of the Heater in the fi eld.

The installation, electrical connection and first operation of this appliance should be carried out by a qualified installer.

The company does not accept liability for failure of any goods supplied which have not been installed and operated in accordance with the manufacturer's instructions.

Environment and recycling

Please help us to protect the environment by disposing of the packaging in accordance with the national regulations for waste processing.

This Warranty is valid for U.S.A. & Canada only. Warranties may vary by country. Please consult your local Stiebel Eltron Representative for the Warranty for your country.

OPERACION

North, Central and South America United States of America

STIEBEL ELTRON, Inc.

17 West Street | West Hatfield MA 01088

Tel. [phone] | Fax [phone]

[e-mail]

www.stiebel-eltron-usa.com
