VENTILADOR DE TECHO CON WIFI- MANUAL DE INSTRUCCIONES CEILING FAN WITH WIFI - INSTRUCTION MANUAL VENTILATEUR DE PLAFOND AVEC WIFI - MANUEL D'INSTRUCTIONS VENTILADOR DE TETO COM WIFI - MANUAL DE INSTRUÇÉS

CPW 01120

Sonifer, S.A. Avenida de Santiago, 86 30007 Murcia, España. E-mail: [e-mail] / www.orbegozo.com
MADE IN P.R.C.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Scan this QR code in order to access to more information about this ceiling fan, including installation details. Or enter www.orbegozo.com and look for the model number in the website.

Dear Customer, If you follow the recommendations contained in this Instruction Manual, our appliance will give you constant high performance and will remain efficient for many years to come. Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

General Safety Instructions

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not play with the appliance.

3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.

4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
   5.If the supply cord is damaged it must be repaired by the Authorized Service Agent.
   6.Never pull on the cord when unplugging.
5. Do not use the unit with a damaged cord or plug, or if it is not working properly.
   8.Do not handle the appliance with wet hands.
   9.Never immerse the appliance in water or any other liquid.
6. Make sure the appliance has been unplugged before cleaning.
7. This appliance must be installed following the national regulations for electrical installations.
8. This appliance is for household use only.
9. In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com
10. WARNING: In case of misuse, there is a risk of possible injury.

Other specific safeguards

1.Make sure that when the fan is fitted in the chosen position, there is no possibility of the rotating blades coming into contact with any object. Blades should be at least 2.30m from floor when fan is hung.
2. If you are installing more than one ceiling fan make sure that you do not mix fan blade sets, even though they are from the same ceiling fan model.
3.Before beginning, disconnect power by removing fuse or turning off circuit breaker.
4.Once fan installation is completed make sure that all connections are secure to prevent fan from falling.
5.Fan must be turned off and stopped before reversing fan direction.
6. Check that the means of fitting the fan to the ceiling is capable of supporting the weight of the fan when in operation. (Minimum 50Kg.).

FAN INSTALLATION

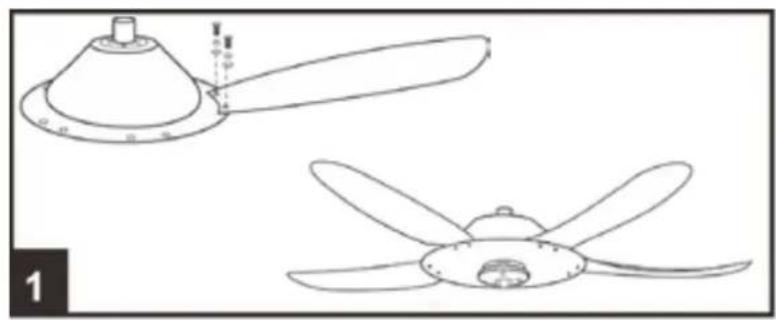

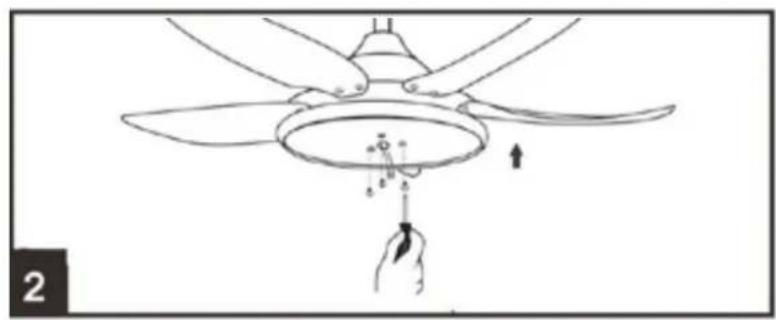

1. Align the holes in the blade with those in the motor. Fix the blades by tightening the screws and washers. 2. Pass the light cables through the hole in the middle of the light kit. Attach the set of lights to the plate by tightening the screws

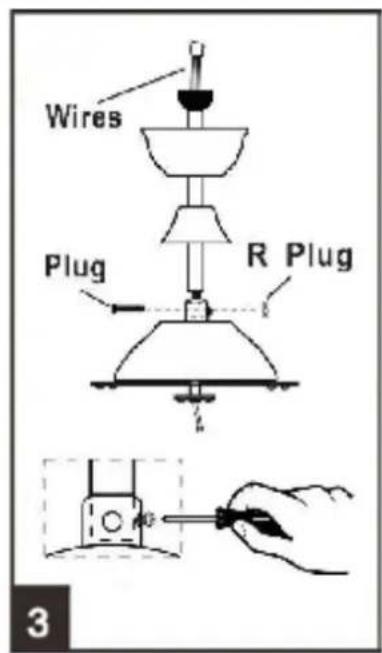

2. Slide the rod down through the pin and insert the wires through the tube.

3. Mount the ceiling support using 2 screws and washers.
4. Make sure that the hook on the base fits correctly with the groove of the dial.
5. Insert the receiver of the remote control as shown in the image.
6. Connect the power supply cables to the ceiling support strip, respecting its corresponding polarity: phase-phase, neutral-neutral, earth-ground.
7. Attach the bowl to the ceiling support, aligning the side holes and secure it by tightening the screws
8. Insert the connectors securely. Place the LED board in the light kit and it will stick magnetically.

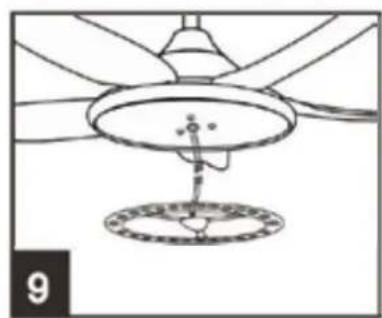

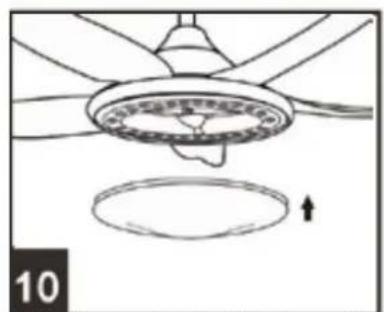

9. Install the ceiling light on the lamp by turning it clockwise.

OPERATING THE FAN

Turns off the ceiling fan.

Turns on/off the light.

Changes the rotation.

Breeze mode.

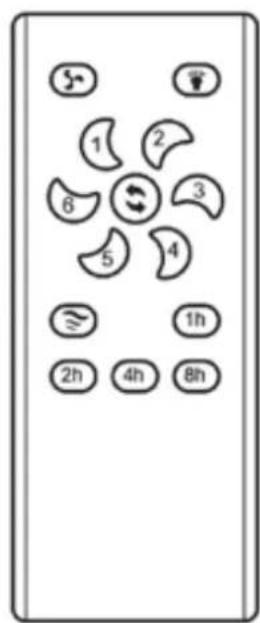

Button 1/2/3/4/5/6: The remote controller can be used to control de speed of the fan by selectiong speeds from 1 to 6. Being 1 the lowest one and 6, the fastest.

1H: The fan will turn off in 1 hour.
2H: The fan will turn off in 2 hours.
4H: The fan will turn off in 4 hours.
8H: The fan will turn off in 8 hours.

The motor housing switch varies the direction of rotation of the blades and thus controls the direction of air movement.

Caution: Before using this direction of rotation switch, turn off the fan and make sure the fan stops rotating to avoid injury and damage to the motor.

When it's cold: Press the "UP" switch and the blades will direct warm air trapped near the fan down the entire room.

When it's hot: press the "DOWN" switch and the propeller blades will create a breeze that will spread throughout the room

MAINTENANCE

TO CHANGE THE LIGHT PLATE

1. Switch the appliance off (it is advisable to also switch off the circuit-breaker or breaker).
2. Remove the plug and remove the LED board.
3. Take a new LED board. Insert the connectors securely. Place the LED plate in the light kit.
4. Reset the power supply and turn on the lamp.

CLEANING

Clean with a soft, dry cloth. Never use scouring pads not abrasive or chemical cleaners. Do not allow condensation to come in contact with the electrical components.

Disposal of old electrical appliances.

The European directive 2012/19/UE on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

WIFI CONTROL:

The Orbegozo CPW series can be controlled via Wifi through our ORBEGOZO APP, available for download on Google Play and in the App Store. With it, you can access all the functions of your device from your mobile phone in a simple and intuitive way.

DISPONIBLE EN Google Play

To review all the features of this and any other Orbegozo device, as well as to access an explanatory video about the ceiling fan configuration with our APP, go to www.orbegozo.com and search for your model or scan the following QR code:

Information on how to use the application

This device allows you to use the device through your home WIFI network. A prerequisite is a permanent WIFI connection to your router and the free "Orbegozo APP" application.

Commissioning through the app

1. Install the "Orbegozo APP" application. Create a user account.
2. Activate the WIFI function on your mobile and connect to the wireless network.
3. Press and hold the fan activation button on the remote until you hear the beep.
4. Enter the application and select "Add device".
5. Select the device from the list or let the app detect the fan on its own.
6. The application will be linked to the device and you can control it from your phone.

CONSEILS DE SECURITE

DECLARATION DE CONFORMITE:

We hereby certify that the equipment stated in this Guarantee Card has gone through strict quality control checks and bears a full Guarantee of 24 months, which shall come in force from the date of purchase.

During the 24 -month guarantee period, the present certificate covers repairs, workmanship and spare-parts for all manufacturing defects, however this guarantee does not cover those defects that have been caused due to the following: defects of installation, blows, bad use, breakage of plastic parts and external causes not related to the equipment. This guarantee does not include installation and maintenance.

This certificate of guarantee is cancelled on those accessories and components which are worn due to continuous use. Those which are perishable, such as plastic components, glass, lamps, filters, rubber or enamelworks which get worn due to wrongful use or reaction to outside agents such as heating, water or chemical products.

The present certificate of guarantee shall be nullified if the equipment is handled by any unauthorised personnel.

Customer's rights:

The seller should be responsible over the customer in the event of lack of conformity when the product is purchased. It is recognised the right of the customer to get the product repaired, substituted, decreased its price or the resolution of the contract.

The present certificate is only valid if it is accompanied by the receipt or invoice of purchase.
