Product Type	Power strip with USB ports and wireless charging
Brand	Orbegozo
Model	EN 4500
Mains power	230 V ~ 50/60 Hz, 16 A max, 3680 W max
Mains sockets	3 sockets 230 V
USB Type-A ports	2 x 5 V / 2.4 A (12 W max each)
USB Type-C ports	2 x 5 V / 2.4 A (12 W max each)
Combined USB charging	Type A + C: 5 V / 3.4 A (17 W max)
Wireless charging	Qi standard, 5 V / 2 A (10 W max)
Switch	Backlit, cuts all outputs (sockets and USB)
Operating temperature	0 °C to 40 °C, indoor use only
USB average active efficiency	83.60 %
USB low load efficiency	72.20 %
USB no-load consumption	0.09 W
Estimated dimensions	Approximately 20 x 10 x 5 cm
Estimated weight	Approximately 300 g
Cleaning	Unplug then wipe with a dry cloth
Safety instructions	Do not cover, do not use near water, do not open
Standards	Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU
Warranty	Consult the manufacturer (www.orbegozo.com)

Frequently Asked Questions - EN 4500 Orbegozo

What is the maximum power supported by the power strip?

It supports a total power of 3680 W (16 A at 230 V). Do not exceed this limit.

Can I plug multiple devices into the USB ports at the same time?

Yes, the 4 USB ports (2 Type-A + 2 Type-C) can be used simultaneously. The maximum total current is 3.4 A intelligently distributed.

How to use the wireless charger?

Place your Qi-compatible smartphone on the charging area marked with the Qi logo, horizontally. Turn on the power switch. Remove any thick case if necessary.

What to do if the wireless charging does not work?

Check that your device supports the Qi standard. Remove thick protective cases. Make sure the phone is centered on the charging area. Try again after turning the switch off/on.

Does the backlit switch cut all sockets?

Yes, the switch simultaneously cuts the power to the 3 mains sockets and the USB ports (including the wireless charger).

Is this power strip suitable for outdoor use?

No, it is designed only for indoor use in a dry environment, between 0 and 40°C.

How to clean the power strip?

First unplug it from the mains. Use a dry cloth to wipe the surface. Never use liquid or abrasive products.

Can children use this power strip?

Yes, under adult supervision. The device can be used by children 8 years and older if they have received safety instructions. Children should not play with the device.

What to do if the power cord is damaged?

Do not use the device. Contact Orbegozo customer service or a qualified professional for replacement. Do not attempt to repair yourself.

Where to find the full manual or a translation?

The original manual is available for download on www.orbegozo.com or on sites like notice-facile.com. You can request a translation by email via the manufacturer's website.

USER MANUAL EN 4500 Orbegozo

White spherical electronic device with ports and indicator lights, no visible text or symbols on the body.

EN 4500

Sonifer, S.A.

Please read the following instructions carefully before connecting the appliance.

Security instructions

1. Only for indoor using and dry environment 0-40°C.
2. Do not plug two or more appliances at the same time in a power strip.
3. Do not open or repair this product by yourself.
4. Ensure that timer socket is totally insert in mains plug for correct working.
5. Plug appliances to timer with correct supported power (3680W).
6. Before cleaning appliance, unplug it from mains and clean with dry cloth.
7. Do not cover during operation.
8. Only use in shock-proof plugs.
9. Unplug the time switch when not in use.
10. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction

concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

1. Children should be supervised to ensure that they do not play with the appliance.
2. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
3. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
4. Do not use the unit with a damaged cord or plug, or if it is not working properly.
5. Do not handle the appliance with wet hands.
6. Never immerse the appliance in water or any other liquid.
7. Make sure the appliance has been unplugged before cleaning.

8. This appliance must be installed following the national regulations for electrical installations.

9. In case that you need a copy of the instruction manual, you can ask find it in our website: www.orbegozo.com

10. WARNING: In case of misuse, there is a risk of possible injury.

Network supply

1. 3 230V AC sockets, current load and total power consumption max. 16A / max. 3680W.
2. The backlit switch controls the power to all the outputs at the same time, turns off the 230V and the USB sockets.

USB charging outputs

A. 2x Type A: 2.4 A / 5.0 VDC maximum load current, max. 12.0W.
B. 2x Type-C: Maximum charging current 2.4A / 5.0V DC, max. 12.0W.
C. Type A + C: Combined use. Maximum charge current 3.4A / 5.0V DC, max. 17.0W.
D. When two devices are connected to the same type of USB ports (Type-A or Type-C) at the same time, the smart circuit detects their batteries, adjusts the charging current and changes the charging speed depending on their capacity and status. loading. The maximum charge current is determined by the type of USB port, see the specifications above.
E. When two or more devices are connected to different types of USB ports at the same time, the charging system works similarly. The maximum charging current of 3.4 A is divided between up to 4 active USB ports.
F. The charging time will depend on the number of connected devices, the capacity and the state of charge of their batteries.

Wireless charging dock

1. The wireless device is the induction charger based on the Qi standard. Make sure the device you want to charge supports this standard. It will not work with another wireless charging standard. Some protective covers prevent wireless charging, so remove the cover if charging doesn't work.

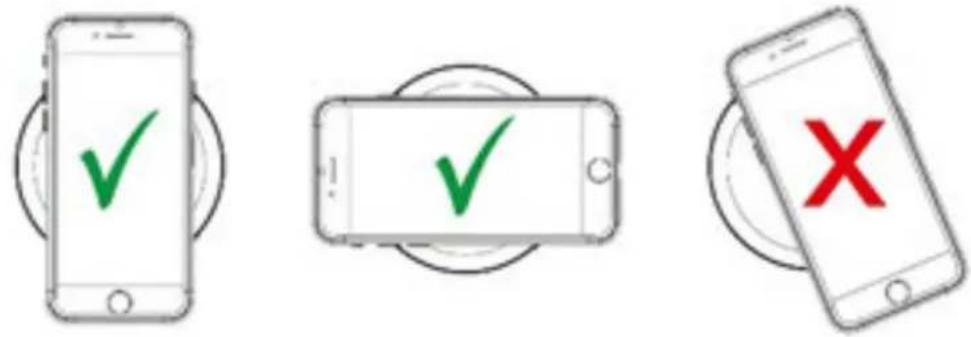

2. The wireless charging pad must be horizontal so that the phone does not slip on its surface. Put it on the charging pad marked with the Qi logo, turn on the power switch. Please note the correct position according to the following picture.

1. Monitor the battery charge status on the device that is charging. You can interrupt the charging process at any time by removing the phone from the charging area, turning off the power switch, or unplugging the power cord.

2. Charging current: DC 5.0V - 2.0A, max. 10.0W.

USB charging efficiency
Average active efficiency	83,60%
Low load efficiency (10%)	72,20%
No load power consumption	0,09W

Disposal of old electrical appliances.

The European directive 2012/19/UE on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY: This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.
