TO 45705 - Toaster KALORIK - Free user manual and instructions

Product Type	Toaster
Brand	Kalorik
Model	TO 45705
Housing Material	Stainless steel
Power	1350 W
Voltage / Frequency	120 V ~ 60 Hz
Number of Slots	2
Display	Digital Screen
Browning Levels	6 (1 to 6)
Functions	Toast, Bagel, Defrost, Cancel
Lift Lever	With lift function
Crumb Tray	Removable, washable
Cord Storage	Under the appliance
Plug Type	Polarized
Use	Household only
Cleaning	Damp cloth, mild detergent; removable tray
Safety	Stop with Cancel button; do not immerse
Warranty	1 year (United States and Canada)

Frequently Asked Questions - TO 45705 KALORIK

How to use the Bagel function?

Cut the bagel in half. Place each half in a slot, cut side facing out. Select the browning level, lower the lever, then press the Bagel button until it clicks.

What to do if the appliance does not heat up?

Check that the plug is properly inserted and the wall outlet is powered. If the problem persists, the appliance may be defective: unplug it and contact customer service.

How to clean the toaster?

Unplug the appliance and let it cool down. Clean the exterior with a damp cloth and mild detergent. Remove the crumb tray, empty it and wash it in soapy water. Never immerse the appliance.

Can you toast frozen foods?

Yes, use the Defrost function. Place the frozen food in the slots, select the browning level, lower the lever and press the Defrost button. You can combine with the Bagel function if needed.

Why does the appliance produce odor or smoke the first time?

This is normal: production residues burn off. Run the appliance empty twice at the maximum setting in a well-ventilated room until the odor disappears.

How to adjust the browning level?

Turn the control knob to select a level between 1 (light) and 6 (dark) according to your preference. For pastries, always use the lowest level.

What to do if the toasts get stuck in the slots?

Unplug the appliance and let it cool down. Gently remove the food with non-metallic utensils (e.g. wooden or silicone tongs). Never use a knife or metal object.

How to use the Defrost function?

Place the frozen slices of bread or bagels in the slots. Select the browning level, lower the lever and press the Defrost button until it clicks. The cycle defrosts then toasts.

Does the appliance turn off automatically?

The toaster stops automatically at the end of the cycle (the lever pops up). You can also interrupt at any time by pressing the Cancel button. Remember to unplug after use.

Where to find the Kalorik customer service number?

For assistance in the United States, call +1 888-521-TEAM or +1 888-KALORIK. You can also visit www.KALORIK.com. Keep the proof of purchase for warranty.

USER MANUAL TO 45705 KALORIK

KALORIK KALORIK toaster with a digital display showing its golden-brown baked bread, no visible text or symbols on the device itself.

EN......3

ES......14

FR.....26

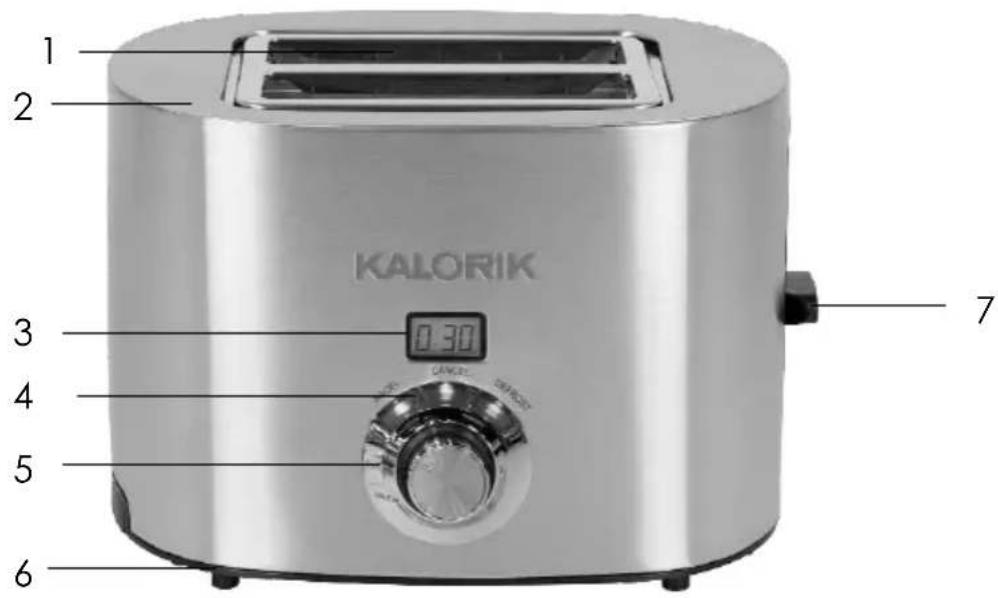

PARTS DESCRIPTION / DESCRIPTION DES ÉLÉMENTS

1 2 KALORIK 0.30 7 3 4 5 6

ENGLISH:

1. Bread slot
2. Stainless steel housing
3. Digital display

4. Bagel, Cancel, and Defrost functions

5. Selector knob

6. Crumb tray
7. Lever

ESPAÑOL

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions before use.
2. Do not touch hot surfaces. Use handles or knobs.

3. WARNING:

4. to protect against electric shock, fire and personal injury:

5. do not immerse cord, plug or appliance in water or other liquids;
6. do not immerse the appliance or any electrical components in water or any other liquids;

7. always switch off and unplug the appliance before cleaning.

8. Close supervision is necessary when any appliance is used by or near children.

9. Unplug from wall outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
10. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Call our toll-free customer assistance number for information on examination, repair, or adjustment.
11. The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock or injuries to persons.
12. Do not use outdoors or in a damp area.
13. Do not let power cord hang over edge of table or counter, or touch hot surfaces.

14. Do not place on or near a hot gas or electric burner or in a heated oven.

15. To turn off and disconnect, press the CANCEL button, then remove plug from wall outlet.

16. Do not use appliance for other than intended use.
17. Oversized foods, metal foil packages, or metal utensils must not be inserted in the appliance as they may create a fire or risk of electric shock.
18. A fire may occur if the appliance is covered or touches flammable material, including curtains, draperies, walls, and the like, when in operation. Do not store any item on top of the appliance when in operation.
19. Do not attempt to dislodge food while the appliance is plugged in.
20. Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts involving a risk of electric shock.
21. Do not place any object made of the following materials in the appliance: paper, cardboard, plastic, metal.
22. Do not use metal utensils to remove lodged food, as this may result in personal injuries or damages.
23. When heating toaster pastries, always use the lightest toast color setting.
24. Never leave the appliance unattended during operation.

WARNING:

• DO NOT toast pastries with runny fillings or frosting.
• DO NOT toast torn slices of bread.
• DO NOT place buttered bread or wrapped food into the toaster.
• DO NOT toast small-sized bread, mini-baguettes, breadsticks, etc.

SAVE THESE INSTRUCTIONS HOUSEHOLD USE ONLY

POLARIZED PLUG INSTRUCTIONS

This appliance is equipped with a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug will fit into the polarized outlet only one way. If the plug does not properly fit into the

outlet at first, reverse it. If it still does not fit, contact a competent qualified electrician. Do not attempt to modify the plug in any way.

SHORT CORD INSTRUCTIONS

A short power supply cord is provided to reduce the hazards resulting from becoming entangled in or tripping over a longer cord. Extension cords may be used if care is exercised in their use.

• The electrical rating of the extension cord should be at least that of the appliance. If the electrical rating of the extension cord is too low, it could overheat and burn.
• The resulting extended cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over.

BEFORE THE FIRST USE

• Remove all packaging materials.
• Check package content to verify it is complete and undamaged. Do not operate the appliance if the content is incomplete or appears damaged.

DANGER OF SUFFOCATION: Packaging materials are not toys. Always keep plastic bags, foils and foam parts away from babies and children. Packaging material could block airways and prevent breathing.

NOTE:

• The appliance may produce an odor and/or emit smoke when switched on for the first time, as residues from the production process are eliminated. This is normal and does not indicate a defect or hazard.
• Always use the appliance with the crumb tray.

- When using the appliance for the first time, it is recommended to operate it for at least twice on its highest temperature setting (see Operating Instructions), until no odor or smoke is present. During use, ensure ample ventilation.

• Let the appliance cool completely.
• Clean the appliance (see Cleaning and Maintenance).

This appliance can be used to toast plain fresh or frozen toast/bagels. Do not use for any other foods. Never place any objects in the toasting slots.

NOTE:

- The appliance has a rated power of 1350W. Before plugging it into the wall outlet, ensure that the electrical circuit is not overloaded with other appliances. This appliance should always be operated on a separate 120V \~ 60Hz wall outlet.

- Do not connect the appliance to a wall outlet unless it is fully assembled.

• Make sure no food or other objects are inside the toasting slots.
• Place the appliance on a clean, flat and heat resistant surface.
• When using the appliance on wooden furniture, use a heat resistant mat to protect the wood from damages. Ensure a minimum distance around the appliance of at least 4 inches to other objects, cupboards and walls

WARNING:

• Only use accessories recommended by the manufacturer. Do not use any other accessories with the appliance.
• Do not cover or insert any objects into the air vents.
• Never let the power cord come in contact with the housing of the appliance during use.

• Do not toast torn or large/thick toasts/bagels, as it may become lodged in the toasting slots.

• Make sure the crumb tray is free of food residues and inserted properly. Never use the appliance without the crumb tray.

• Insert the plug into a wall outlet.
• Remove any protective wrappings from toasts/bagels before placing them in the toasting slots.
• Rotate the control knob to adjust the browning level. Choose between levels 1 to 6, according to your preferences.
• Press the toasting lever down, until it locks in place to switch the heating elements on and then select the desired function.

NOTE:

- The toasting lever will not remain in the downward position, unless the appliance is connected to an energized wall outlet.

- To stop or interrupt any cycle, press the CANCEL button. The toasting lever and contents of the toasting slots will pop up and the CANCEL button will turn off.

- Do not force the toasting lever up. Always use the CANCEL button to switch the appliance off.

DANGER OF BURNS:

- Always pay special attention when placing or removing accessories from the appliance and/or the contents of the toasting slots.

- Toasted food and toasting slots get hot, pay attention when removing toasted food. Use suitable non-metal utensils if required.

- Once the toasting cycle is completed, the toasting lever and contents of the toasting slots will pop up and the CANCEL button will turn off.

NOTE: This appliance is equipped with a lift-up function to assist in removing toasted food from the toasting slots). Pull the toasting lever upwards to lift the toasted food slightly higher for easier removal.

- Once you have finished using the appliance, remove the plug (4) from the wall outlet

TOASTING FUNCTION

- Place the bread slices into the toasting slots. Select the required browning level with the control knob.

- Press the toasting lever down, until it locks in place, beginning the toasting cycle.

- Once the toasting cycle is completed, the toasting lever and contents of the toasting slots will pop up.

BAGEL FUNCTION

NOTE:

• Bagels must be cut into half. Do not force them into the toasting slots.

• When using the bagel function, place the inside of the bagel facing the outer sides of the appliance. Pay attention to the respective position of each bagel half in regards to each toasting slot.

• Place the bagel halves into the toasting slots. Select the required browning level with the control knob.

• Press the toasting lever down and then press the BAGEL button, until it locks in place.
• Once the bagel cycle is completed, the toasting lever and contents of the toasting slots will pop up.

DEFROST FUNCTION

Use the defrost function to defrost plain frozen toasts/bagels. For bagels, please also refer to Bagel Function section.

• Place the bread slices into the toasting slots. Select the required browning level with the control knob.
• Press the toasting lever down and then press the DEFROST button until it locks in place.
• Once the defrost cycle is completed, the toasting lever and contents of the toasting slots will pop up.

NOTE: The bagel and defrost functions can be combined by pressing the BAGEL button before or after the DEFROST button.

GET MORE OUT OF YOUR PRODUCT

Browse Chef-created recipes specifically made for your Kalorik product. Visit our website www.kalorik.com to see our extensive recipe library and start cooking. Sign up for the Kalorik email mailing list to receive special offers and recipes, and connect with us on social media for daily inspiration.

It is recommended to clean the appliance after every use. The appliance contains no user serviceable parts and requires little maintenance. Leave any servicing or repairs to qualified personnel.

CAUTION: Always ensure the appliance is switched off. Disconnect the plug from the wall outlet before cleaning. Allow all parts of the appliance to cool down completely.

NOTE:

• Do not immerse the power cord with plug or appliance into water or any other liquids.

• Do not use abrasive cleaners, steel wool or scouring pads. Dry all parts thoroughly after cleaning, before using or storing the appliance. Ensure that no water enters the appliance housing.

• Clean the surface of the appliance with a damp cloth or sponge and a mild detergent.

• Do not use metal utensils to remove lodged food, as this may result in personal injuries or damages.
• To clean the crumb tray, remove it from the appliance completely. Dispose of any crumbs. Rinse the crumb tray with water and a little detergent. Dry thoroughly with a soft cloth. Reinsert the crumb tray carefully.

NOTE: Do not immerse the power cord with plug or appliance into water or any other liquids.

STORAGE

• Before storage, always make sure the appliance is completely cool, clean and dry.
• The power cord can be stored in the cord storage underneath the appliance.
• It is recommended to store the appliance in a dry place.
• Store the appliance on a stable shelf or in a cupboard. To avoid accidents, ensure that both the appliance and its power cord are beyond reach of children or pets.

Problem	Cause	Solution
The appliance is not working	Appliance not plugged in	Insert the plug into the wall outlet
	Wall outlet not energized	Check fuses and circuit breaker
The appliance heats up but the button(s) do not light up	Damaged indicator(s)	Disconnect the appliance from the wall outlet and contact qualified personnel to check and repair the appliance
The appliance heats up but the toasting lever is not pressed down	Malfunctioning appliance	Disconnect the appliance from the wall outlet and contact qualified personnel to check and repair the appliance
The toasting lever is pressed down but the appliance does not heat up	Malfunctioning appliance	Disconnect the appliance from the wall outlet and contact qualified personnel to check and repair the appliance
Toasts/bagels are ejected very quickly	Toasting lever not locked in place	Press the toasting lever down until it locks in place. Ensure the appliance is connected to an energized wall outlet
Toasts/bagels are not ejected once the function cycle is completed	Damaged toasting lever	Disconnect the appliance from the wall outlet and contact qualified personnel to check and repair the appliance
	Toasts/bagels stuck in the toasting slots (torn/too thick/too large)	Disconnect the appliance from the wall outlet and allow it to cool down. Remove toasts/bagels with non-metal utensils
The appliance produces an odor	Residues from the production process	Operate the appliance for at least
and/or emits smoke	are eliminated during first use	twice on its highest setting, with no food, until no odor or smoke is present
	Food type not suitable for toasting	Press the CANCEL button to stop the cycle and remove the food from the toasting slots, using suitable non-metal utensils
	Browning level too high	Press the CANCEL button to stop the cycle and remove the toasts/ bagels from the toasting slots, using suitable non-metal utensils. Reduce the browning level for the next set
	Malfunctioning appliance	Disconnect the appliance from the wall outlet and contact qualified personnel to check and repair the appliance

We suggest that you complete and return the enclosed Product Registration Card promptly to facilitate verification of the date of original purchase. However, return of the Product Registration Card is not a condition of these warranties. You can also fill out this warranty card online, at the following address: www.KALORIK.com

This KALORIK product is warranted in the U.S.A. and Canada for 1 year from the date of purchase against defects in material and workmanship. This warranty is not transferable. Keep the original sales receipt. Proof of purchase is required to obtain warranty performance.

During this period, if the KALORIK product, upon inspection by KALORIK, is proven defective, it will be repaired or replaced, at Kalorik's option, without charge to the customer. If a replacement product is sent, it will carry the remaining warranty of the original product.

This warranty does not apply to any defect arising from a buyer's or user's misuse of the product, negligence, failure to follow KALORIK instructions noted in the user's manual, use on current or voltage other than that stamped on the product, wear and tear, alteration or repair not authorized by KALORIK, or use for commercial purposes. There is no warranty for glass parts, glass containers, filter basket, blades and agitators, and accessories in general. There is also no warranty for parts lost by the user.

ANY WARRANTY OF MERCHANTABILITY OR FITNESS WITH RESPECT TO THIS PRODUCT IS ALSO LIMITED TO THE ONE YEAR LIMITED WARRANTY PERIOD.

Some states do not allow limitation on how long an implied warranty lasts or do not allow the exclusion of incidental or consequential damages, so the above limitations may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

If the appliance should become defective within the warranty period and more than 30 days after date of purchase, do not return the

appliance to the store: often, our Customer Service Representatives can help solve the problem without having the product serviced. If servicing is needed, a Representative can confirm whether the product is under warranty and direct you to the nearest service location.

If this is the case, bring the product, or send it, postage prepaid by the user (all Kalorik customers are responsible for the initial shipment back to the warranty center), along with proof of purchase and a return authorization number indicated on the outer package, given by our Customer Service Representatives. Send to the authorized KALORIK Service Center (please visit our website at www.KALORIK.com or call our Customer Service Department for the address of our authorized KALORIK Service Center).

When sending the product, please include a letter explaining the nature of the claimed defect.

If you have additional questions, please call our Customer Service Department (please see below for complete contact information), Monday through Thursday from 9:00am - 5:00pm (EST) and Friday from 9:00am - 4:00pm (EST). Please note hours are subject to change.

If you would like to write, please send your letter to:

KALORIK Customer Service Department

Team International Group of America Inc.

16175 NW 49 ^th Avenue

Miami Gardens, FL 33014 USA

Or call:

Toll Free: +1 888-521-TEAM / +1 888-KALORIK

Only letters can be accepted at this address above. Shipments and packages that do not have a return authorization number will be refused.

OBTENGA MÁS DE SU PRODUCTO

Team International Group of America Inc.

16175 NW 49th Ave

Miami Gardens, FL 33014 USA

O llame gratuitamente (U.S.A.) al +1 888-521-TEAM / +1 888-KALORIK

Team International Group of America Inc.

16175 NW 49 ^th Avenue

Miami Gardens, FL 33014 USA

For questions please contact:

Team International Group of America Inc.

16175 NW 49th Avenue

Miami Gardens, FL 33014 USA

User manual content and recipes courtesy of Team International Group – Do not reproduce without consent of the authors - All rights reserved.
