1.1 Information about the instruction manual

This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide.

Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device.

In addition to the information given here, you should comply with any local Health and safety Controls and generally applicable safety regulations.

The instruction manual forms part of the product and should be kept near the device and easily accessible for anyone carrying out the installation, servicing, maintenance or cleaning.

1.2 Key to symbols

In this manual, symbols are used to highlight important safety instructions and any advice relating to the device. The instructions should be followed very carefully to avoid any risk of accident, personal injury or material damage.

WARNING!

This symbol highlights hazards, which could lead to injury.

Please follow the instructions very carefully and proceed with particular attention in these cases.

WARNING! Electrical hazard!

This symbol draws attention to potential electrical hazards. If you do not follow the safety instructions, you may risk injury or death.

CAUTION!

This symbol highlights instructions, which should be followed to avoid any risk of damage, malfunctioning and/or breakdown of the device.

NOTE!

This symbol highlights tips and information, which have to be followed for an efficient and trouble-free operation of the device.

WARNING! Hot external surface!

This symbol is a warning that the device surface is hot when in use. Ignoring this warning may result in burns!

1.3 Liability and Warrantees

All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years.

The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. The German version of this instruction manual is definitive.

If the delivery consists of a special model, the actual scope of delivery may differ from the descriptions and illustrations in this manual. This is also the case for special orders or when the device has been modified in line with new technology. If you have any questions, you should contact the manufacturer.

NOTE!

Read the instruction manual carefully before using the device. The manufacturer does not accept liability for any damage or malfunction resulting from not following the instructions for use.

The instruction manual should be kept near the device, easily accessible for anyone wishing to work with or using it. We reserve the right to make technical changes for purposes of developing and improving the useful properties.

1.4 Copyright protection

The instruction manual including any texts, drawings, images or other illustrations is copyright. No part of this publication may be reproduced, transmitted or used in any form or by any means without permission in writing from the manufacturer. Any person who commits any unauthorized act in relation to this publication shall be liable to claims for damages. All rights reserved.

NOTE!

The contents, texts, drawings, pictures and any other illustrations are copyright and subject to other protection rights. Any person unlawfully using this publication is liable to criminal prosecution.

1.5 Declaration of conformity

The device complies with the current standards and directives of the EU.

We certify this in the EC declaration of conformity.

If required we will be glad to send you the according declaration of conformity.

2. Safety

This section provides an overview of all important safety aspects.

In addition every chapter provides precise safety advice for the prevention of dangers which are highlighted by the use of the above mentioned symbols.

Furthermore, attention should be paid to all pictograms, markers and labels on the device, which must be kept in a permanent state of legibility.

By following all the important safety advice you gain an optimal protection against all hazards as well as the assurance of a safe and trouble-free operation.

2.1 General Information

This device is designed in accordance with the presently applicable technological standards. However, the device can pose a danger if handled improperly and inappropriately.

Knowing the contents of the instruction manual as well as avoiding mistakes and thus operating this device safely and in a fault-free manner is very essential to protect yourselves from the hazards.

To prevent hazards and to ensure optimum efficiency, no modifications or alterations to the device that are not explicitly approved by the manufacturer may be undertaken.

This device may only be operated in technically proper and safe condition.

2.2 Safety instructions for use of the device

The specifications regarding the industrial safety are based on the Regulations of the European Union applicable at the time of manufacturing the device.

If the device is used commercially, the user is obliged to ensure that the said industrial safety measures concur with the state of the rules and regulations applicable at the time in question for the entire period of use of the device and to comply with the new specifications.

Outside the European Union, the industrial safety laws applicable at the place of installation of the device and the regional territorial provisions must be complied with.

Besides the industrial safety instructions in the instruction manual, the general safety and accident prevention regulations as well as environment protection regulations applicable for area of application of the device must be followed and complied with.

CAUTION!

The device is not intended for use by individuals (including children) with physical or mental disabilities, insufficient experience, and/or insufficient knowledge unless such persons are under the care of a person responsible for their safety or have received instructions regarding appropriate use of the device.
Children should be observed to ensure that they are not playing with the device.
o Preserve this manual safely. When passing on/selling the device to a third party, the manuals must be handed over along with the device.
○ Every person using the device must act in accordance to the manuals and under consideration of the safety advice.
The device is to be used indoors only.

2.3 Intended use

Safe operation is only guaranteed when using the device for its intended purpose.

Any technical interventions, as well as assembly and maintenance are to be made by a qualified customer service only.

The hot display case is intended only for heating food products and keeping food products hot.

CAUTION!

Any use going beyond the intended purpose and/or any different use of the device is forbidden and is not considered as conventional.

Any claims against the manufacturer or his authorized representative as a consequence of experiencing damages resulting from unconventional use are impossible.

The operator is liable for all damages resulting from inappropriate use.

3. Transport, packaging and storage

3.1 Delivery check

Please check the delivery upon completeness and transport damage immediately after receipt.

In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier's bill of delivery. Trigger off the complaint.

Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints.

3.2 Packaging

Please do not throw away the covering carton of your device as it might be useful for storage purposes, when moving or, in case of damages, when the device must be sent back to a repair center. The outer and inner packing material should be removed completely from the device before installation.

NOTE!

If you liked to dispose the packing, consider the regulations applicable in your country. Supply re-usable packing materials to the recycling.

Please inspect the device upon completeness. In case any part is missing please contact our customer service center immediately.

3.3 Storage

Keep the package closed until installation and under consideration of the outside indicated positioning- and storage markings.

Packages should be stored under consideration of the following:

• Do not store outdoors.
• Keep it dry and dust-free.
• Do not expose it to aggressive media.
• Do not expose it to direct sunlight.
• Avoid mechanical shocks and vibration.
• In case of longer storage ( >3 months) make sure you check the state of the packaging and the parts regularly. If required refresh or renew.

3.4 Scope of delivery

The device is sold with the following parts and subassemblies (see also diagrams on p. 24, 25):

306.057

1 base device
2 shelves
1 water tray
1 transparent sliding display cover
1 water can
1 shelf for deep-frozen poached eggs

Please check that the device and all equipment is present. If something is missing, please contact our customer service centre.

4. Technical data

4.1 Technical specification

Name Hot Display Case „Deli Compact“
Article no.:	306.057
Construction:	external: sheet steel, painted black; internal: stainless steel base, upper section painted
Temperature range:	+30°C - +110 °C
Power: 230 V ~ 50 Hz 1200 W
Dimensions: W 380 x D 465 x H 658 mm
Shelf size (2): W 285 x D 295/265 mm
Rear opening: W 310 x H 418 mm
Weight: 22.0 kg

We reserve the right to make technical changes!

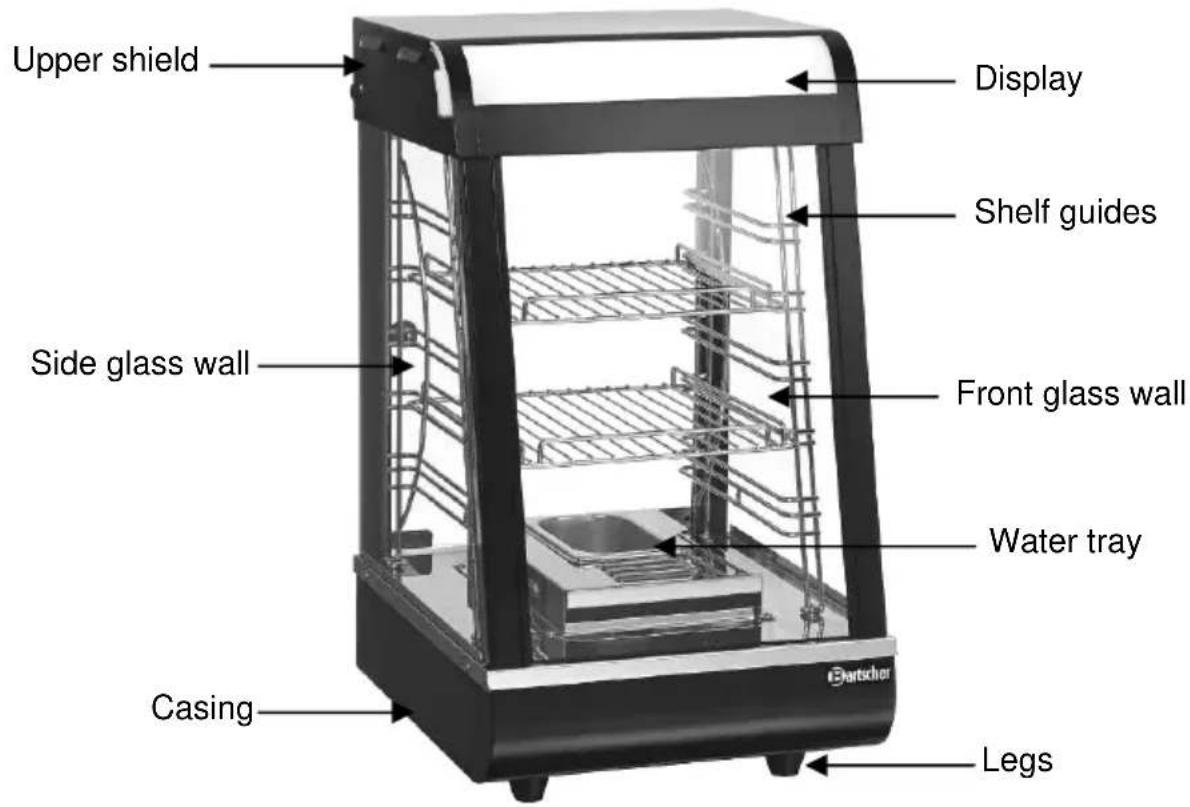

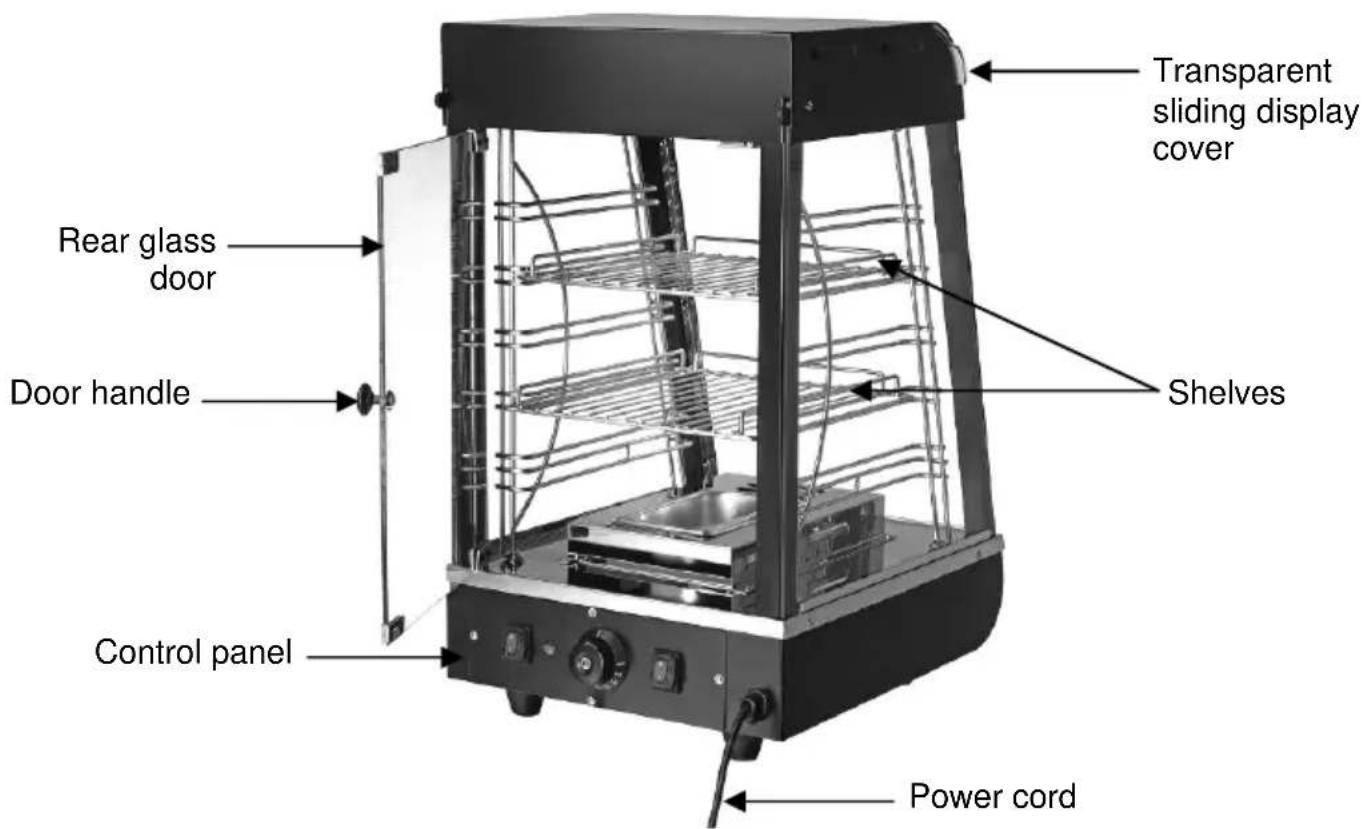

4.2 Overview of parts

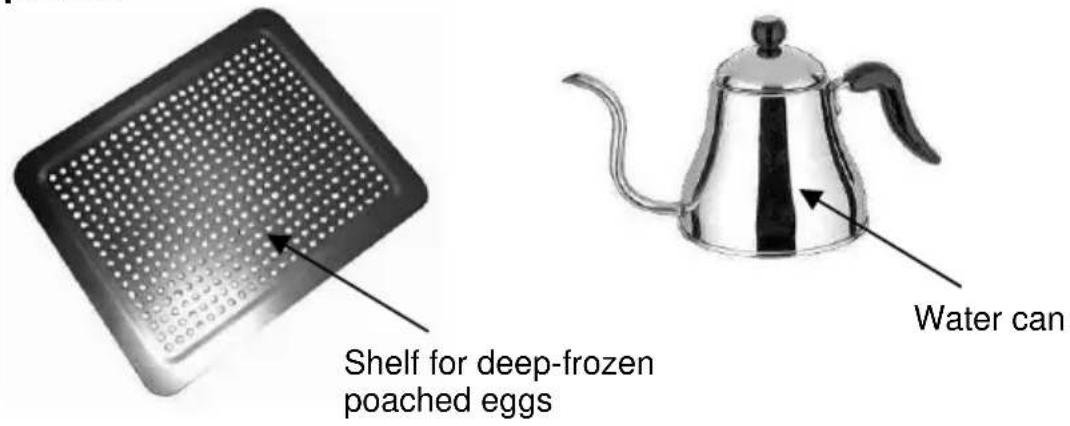

Equipment

5. Installation and operation

5.1 Safety instructions

WARNING! Electrical hazard!

The device must only be connected to a properly installed single socket with protective contact.

Never yank cord to disconnect from outlet.

Cable must not touch any hot parts.

See that the cable does not touch any heat sources or sharp edges. Do not let the cable dangle over the counter edge.

WARNING! Hot external surface!

During operation some elements of the device very become hot. To avoid burns, do not touch hot elements!

• Do not use the device in case it does not function properly, has been damaged or dropped.

• Do not use any accessory or spare parts that have not been recommended by the manufacturer. These can be dangerous for the user or lead to damages of the device or personal injury, and further, the warranty expires.

• Do not lay the cable over carpets or heat insulations. Do not cover the cable. Keep away the cable from operating range and do not dunk it into water.

• Do not move or tilt the device when in operation.

WARNING! Hazard via electrical current!

The device can cause injuries due to improper installation!

Before installation the local power grid specification should be compared with that of the device (see type label).

Connect the device only in case of compliance!

Take note of the security advice!

5.2 Installation and connection

• Discard the complete packing material after unpacking the device.
• Place the device on top of an even and safe surface which supports the weight of the device and is not heat sensitive.
• Not at any time should you place the device on an inflammable surface (such as: table cloth, carpet, etc.).
• You must not position the device near open fireplaces, electric ovens/arc furnaces, furnaces/electric heaters or other heat sources.
• Keep a minimum of 20~cm from flammable walls and other objects.
• The electrical circuit in the socket must be secured to at least 16A. Only connect the device directly to the wall socket; do not use any extension cords or power strips.
• Place the device so that the plug is easily accessible and can be quickly removed from its socket in case of necessity.

5.3 Operating

Before first use

ATTENTION!

The device should only be used by properly trained personnel.

• Remove the shelf, water tray, water can and shelf for deep-frozen poached eggs, then wash everything thoroughly in warm water and a mild cleaning agent. Dry the clean elements thoroughly.
• Wash the inside and outside of the hot display case with a soft, moist cloth and milo cleaning agent. Wipe down with clean water. Dry the device thoroughly with a soft cloth.

Preparing the device and heating food products

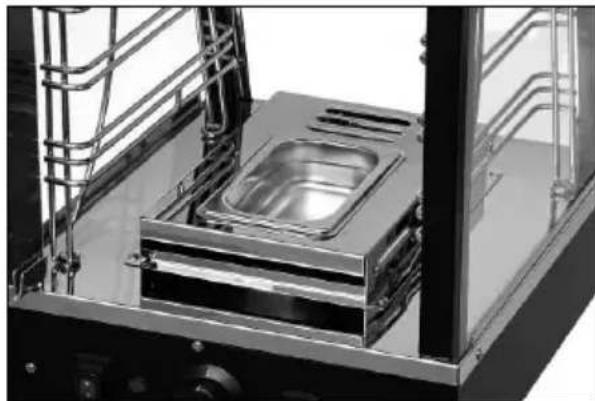

• Insert the shelves into the guides. Put the water tray in its proper place. The water tray is intended to create humidity inside the hot display case to prevent food products from drying out too quickly.
• Fill the water tray using the included water can.

NOTE!

Only pour enough water so that it does not overflow.

NOTE!

Observe the water level in the tray. If necessary, add water using the water can.

• Put food products in proper containers on the shelves of the hot display case. Close the rear glass door.
• Connect the power cord to a grounded single outlet.

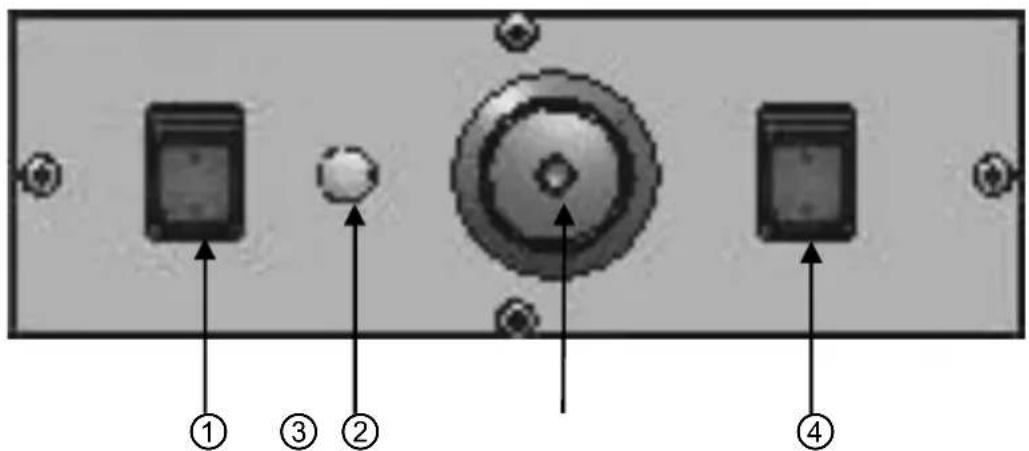

• Turn the device on using the main switch ④ . The green control light on the main switch will come on ④ .
• As needed, turn on the internal lighting using the switch ①. The green control light on the switch will come on ①.
• Set the temperature dial to ③ 110^ C .
• The orange heating light will come on ② . When the set temperature has been reached the light will go off, and will come on again if the device begins to heat again.
• Check the food product's internal temperature using the thermometer with needle gauge (for pate, roasts, etc.).
• When the internal temperature reaches approx. 65^-70^ turn the temperature dial (3) to 70^ .
  Food products will be kept at this temperature.

WARNING! Hot external surface!

When in use, the device gets very hot. When opening the rear glass door, wear protective gloves or use pot holders.

• Remove food products from the hot display case as needed.
• Disconnect the device using the main switch and unplug it if the device is to remain unused.

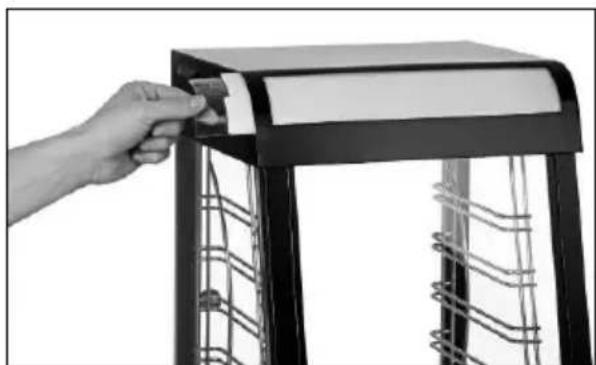

Transparent sliding display cover

• At the top of a device there is a lighted display with a transparent sliding cover. This can be used to display the name of the dish inside or other information.

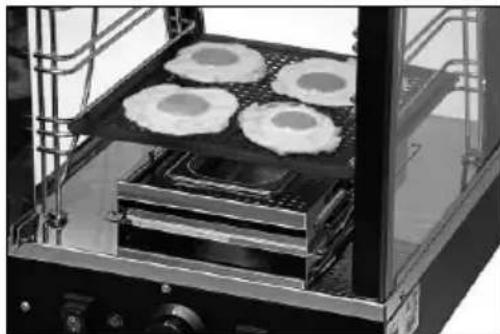

Shelf for deep-frozen poached eggs

• The special shelf allows heating of deep-frozen poached eggs.
• Set the temperature according to instructions on the packaging.

6. Cleaning and maintenance

6.1 Safety advice

Before beginning with repair or cleaning works make sure the device has been disconnected from power socket (pull the power plug!!!) and has cooled down.
Do not use any acid agents and make sure no water ingresses the device.
To protect yourself from electric shock, never immerse the device, its cables and the plug in water or other liquids.

CAUTION!

The device is not suited for direct washing via water jets. Therefore, you must not use any kind of pressure water jet for cleaning the device!

6.2 Cleaning

Regularly wash the device at the end of the day or if it will not be used for longer periods.
o Remove the device's plug from its socket and leave to cool before washing.

Cleaning the equipment

Remove the shelf, water tray and shelf for deep-frozen poached eggs, then wash everything thoroughly in warm water and a mild cleaning agent. Rinse with clean water and dry the clean elements thoroughly.
Wash the water can regularly with warm water and a mild cleaning agent.
The additional equipment is also dishwasher safe.
Use commercially available products for removing calcium deposits from the water tray.

Washing the side glass walls

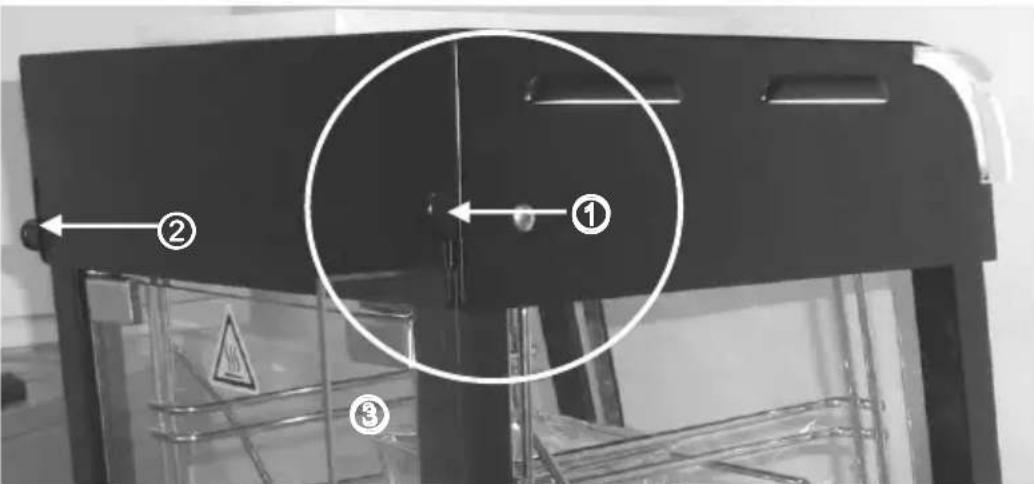

As necessary, remove the side glass walls ③ (never when the device is in use!).

Press up on the latches at the right ① and left ② sides. Next, remove the side glass walls ③ and wash thoroughly in warm water with a mild cleaning agent.

Next steps:

Front fixed glass wall, shelf guides, rear glass door and lower shelf of hot display case

Wash thoroughly with a soft cloth and cleaning agent that does not scratch the surface. Wipe with clean water to remove remains of cleaning agent.

WARNING!

Ensure that water does not get in the place for the water tray.

o After washing the inside of the hot display case, replace the side glass walls ③ in the guides and press down on the latches at the right ① and left sides ②
Use only a soft cloth, never use harsh scrapers that may scratch the surface.
Use a soft, dry cloth to dry and polish the device.

6.3 Safety instructions for maintenance

Check the mains connection cable for damage from time to time. Never operate the device when the cable is damaged. A damaged cable must immediately be replaced by customer service or a qualified electrician to avoid dangers.
In case of damage or malfunction, please contact your stockist or our customer service centre.
- Only a qualified technician and using original spare parts and accessories should carry out repairs and maintenance of the device. Do not attempt to repair the device yourself.

7. Waste disposal

Discarding old devices

At the end of its service life the discarded device has to be disposed in accordance with the national regulations. It is advisable to contact a company which is specialized in waste disposal, or just contact the local disposal service in your community.

WARNING!

To exclude any abuse and the dangers involved make the waste device unfit for use before disposal. For that purpose disconnect device from mains supply and remove mains connection cable from the device.

NOTE!

For the disposal of the device please consider and act according to the national and local rules and regulations.
