WBS1400 I3HR - Warming drawers and cabinets BARTSCHER - Free user manual and instructions

Product type	Heated drawer and cabinet
Brand	Bartscher
Model	WBS1400 I3HR
Supply voltage	220-240 V ~ 1N
Frequency	50-60 Hz
Maximum power consumption	800 W
Maximum current draw	3.5 A
Protection rating	IPX4
Power cable	H05RN-F 3x1.5 mm²
Cable type	3 conductors, 1.5 mm²
Main function	Keeping food warm
Heating area	Heated shelves
Control	On/Off button (I/O)
Emergency stop	Upstream switch mandatory
Maintenance and cleaning	Hot water and mild detergent, soft sponge
Safety precautions	Earthing mandatory, do not handle without protection
Spare parts	Refer to the "+E" marking on the device
Repairability	Repair by qualified technicians only
General information	User manual and instruction manual free of charge (14 pages)
Country of manufacture	Made in Italy

Frequently Asked Questions - WBS1400 I3HR BARTSCHER

How to install the appliance?

Before commissioning, remove the packaging and protective film. Check that the supply voltage matches your mains voltage (220-240 V ~). The appliance must be connected to an effective earth connection. For direct connection, provide a suitable disconnection device.

What to do if the appliance does not heat up?

Ensure the appliance is plugged in and the upstream switch is on. Press button 'A' to position 'I'. If the indicator light comes on, the appliance is powered. If the problem persists, contact a qualified electrician.

What type of detergent to use for cleaning?

Use hot water and, if necessary, a mild detergent. Apply with a soft brush or sponge. Rinse all surfaces with a damp cloth. Never clean the appliance while plugged in.

Can I use the appliance to reheat food?

No, this appliance is designed only to keep warm already cooked food. Any other use is considered improper and may be dangerous.

How to stop the appliance safely?

To stop heating, press the handle to position '9'. To cut off power completely, use the upstream switch or unplug the power cord.

What to do in case of visible damage?

Do not use the appliance. Contact a qualified technician for inspection. Any unauthorized modification or repair voids the warranty.

How to proceed with disposal?

At the end of its life, dismantle the appliance in accordance with the standards in force in your country. Do not dispose of electrical components with household waste.

Can I place plates directly on the shelves?

Yes, but avoid stacking them. Place them under the heating lamps. Ensure not to obstruct the heat circulation.

Why should the appliance not be used unattended?

The appliance heats to a high temperature. Unattended use may cause burns or fire. It is recommended to stay nearby during operation.

Where to find the serial number?

The serial number is on the rating plate located at the top right of the heating panel. It starts with 'S/N:' followed by year, week and sequential number.

USER MANUAL WBS1400 I3HR BARTSCHER

2
2

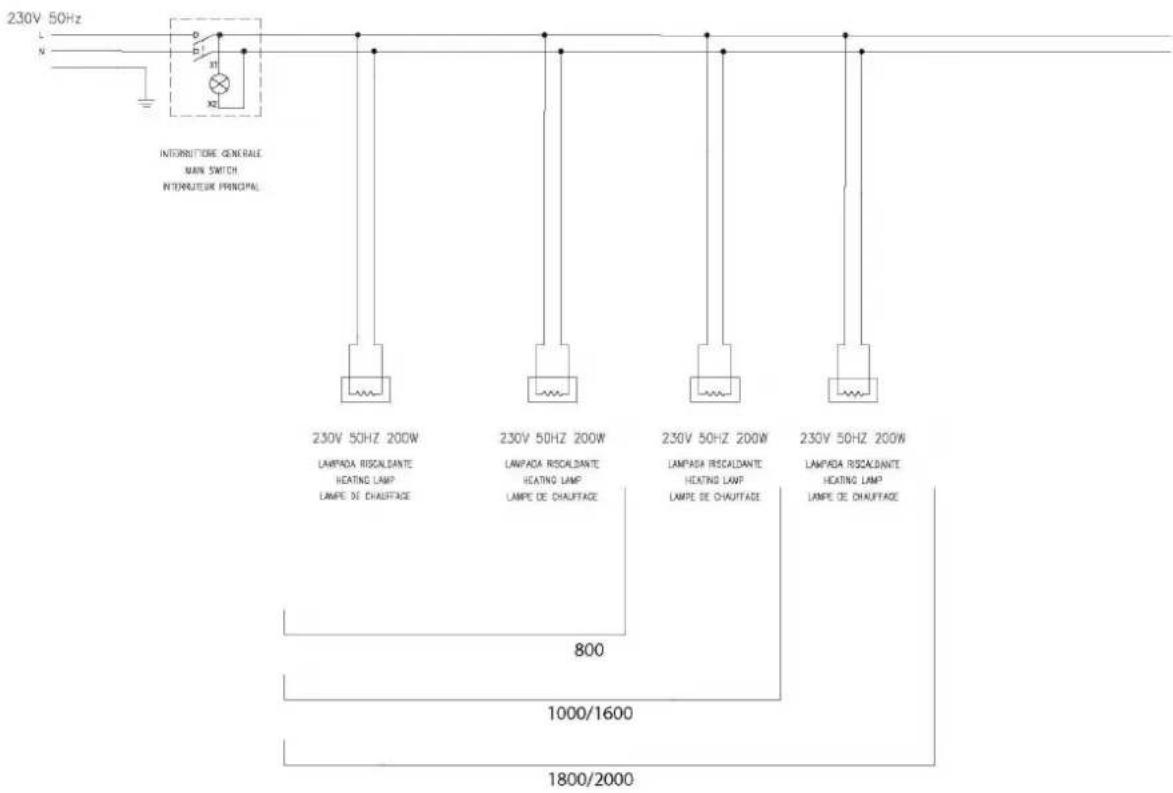

SCHEMA2ELETTRICO2
WIRING2DIAGRAM2
SCHALTPLAN2
CABLAGE2
2

1. PRE7ESSE
2. %ATI TE+NI+I
3. INSTALLAZI9NE E 7ESSA IN SERVIZI9
4. N9R7E GENERALI
5. UTILIZZ9 %ELL'APPARE++HIATURA
6. S7ALTI7ENT9

1.2222PREMESSE2

This section shows the symbols and provides information about the model of the appliance, the various responsibilities and the copyright. It concerns heated middle shelf.

For further information refer to paragraph "Technical data" (2).

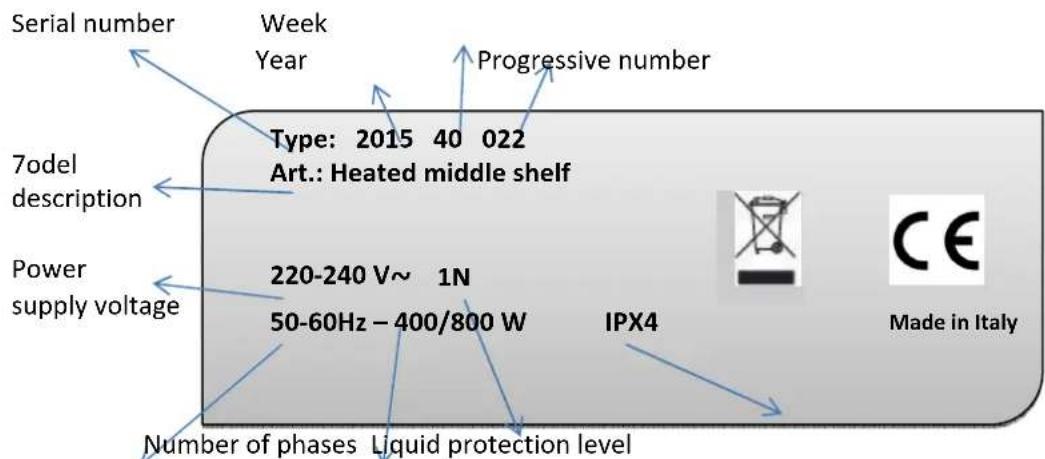

DATA2PLATE2

Power supply frequency 7ax. power input

The data plate shows the identification and technical data of the product.
The data plate is inside the appliance on the right upper part of the heating panel.

WARNING!

%o not remove, tamper with or erase the "+E" mark of the appliance.
Refer to the data on the "+E" plate of the appliance in all communication with the 7 manufacturer (for example: when asking for spare parts, etc..)
The “+E” plate has to be destroyed while scraping the appliance..

The present handbook is intended solely for consultation by the operator. Its content could be modified without notice. The 7 manufacturer reserves the right to stop the manufacturing of any model and/or introducing product changes but is not obliged to change products delivered before the modification and declines all responsibilities for any inaccuracy may appear on this handbook related to printing or translation mistakes.

The company cannot assume liability for damage and faulty operation due to:

• Failure to obey the instructions of this handbook;
• 7odification or appliance alteration;
• 7aintenance by unspecialized technicians ;
• Insufficient maintenance;

• Improper use of the appliance;
  • Exceptional and unforeseeable events;
  • Unrespect to domestic legislation on health, hygiene and safety at the workplace;
  • The employer is responsible for the periodic training of the operators about the correct use, safety rules and fire prevention.

2.

TECHNICAL DATA

RANGE OF HEATED MIDDLE SHELVES

2L

3L

4L

Supply voltage

Max. current requirement

A 1,8

2,6

3,5

Power cord

Mmq-H05RN-F

3×1,5

3×1,5

3×1,5

Max. supply Voltage variation

+/- 10%

+/- 10%

+/- 10%

Max. Frequency variation

continuous

+/-1%

+/-1%

+/-1%

Max. Frequency variation

Short period

+/- 2%

+/- 2%

+/- 2%

WARNING!

The electric power system and the rooms where the appliance is placed have to respect domestic legislation on safety, accident prevention and fire regulations. On the contrary the Manufacturer won't assume liability for direct and indirect damages to people or things.

3.

INSTALLATION AND COMMISSIONING

WARNING!

Intervention on the electric power system must be solely performed by specialized electricians.

Proceed according to the following instruction before connecting the appliance:

Remove the packaging and then the protective film taking care not to scratch the surface;
Make sure the power supply of the appliance shown on the data plate is compatible with the grid voltage;
➢ Check the power supply of the system is set up and able to take the current load, and meets the legal requirements and domestic standards;
The appliance must be earthed;
Plug the appliance. In case of direct connection to the electricity grid (without plug), it's necessary providing for a wall switch, which grants the complete disconnection according to overvoltage III rate and accordingly to installation rules;
Have the system tested by a qualified electrician, if operation of the equipotential earth connection or the safety of the electrical system is in doubt, the symbol below identifies the equipotential connection:

The Manufacturer declines all responsibilities in case of connection made by the user or unspecialized staff

WARNING!

After installation dispose of the packaging according to current regulations.

This appliance is designed and optimized to ensure high performance and efficiency. The sole use of this appliance is keeping food heated.

WARNING!

+ontact with hot tableware can cause burns.
Use always suitable safety equipment while handling objects.f

4. MAIN RULES

The Manufacturer does not assume responsibility for faults or damage due to tampering the appliance. This appliance must be used by skilled persons that must be periodically trained for its correct use and according to the safety regulations and prevention of accidents. +contact with hot tableware in the appliance can cause health risks. In order to prevent them use safety equipment and act with suitable caution.

f

WARNING!

Intervention on the electric power system must be solely performed by specialized electricians.f

5. USE OF THE APPLIANCE

Press the main switch on the supply panel that powers the appliance.

Switch on the button "A" to position "I". When the button "A" is switched on, it is lighted up and the appliance is under power and starts operating.

To stop heating turn the switch to "9" position. The heating is so disconnected but the appliance is under power.

Avoid amassing plates and place them under the lights.

Switch off finally the main power supply line ahead of the appliance or plug the appliance off.

9only when the appliance is disconnected, clean the stainless steel surfaces with warm water and a neutral soap, rinse thoroughly and dry carefully. In case of long period of inactivity, store the appliance in a dry place.

6. DISPOSAL AND RECYCLING

%ispose of the appliance responsibly and respect the environment at the end of its useful life. Proceed with its disposal in accordance with domestic regulation.
