USER MANUAL Mini II A165112 BARTSCHER

Close-up of a stainless steel kitchen filter with a side dish filled with food, no visible text or symbols.

A165110

„MINI III“

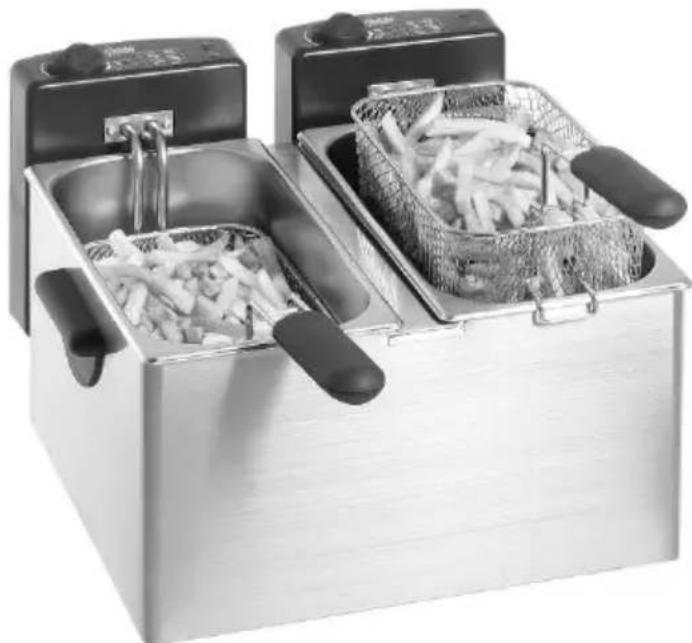

Two stainless steel kitchen fritos with cutlamps filled with fried food, no visible text or labels

A165112

Bedienungsanleitung

Elektro-Fritteuse

Seite 1 bis 16

D/A/CH

Instruction manual

Electric deep fryer

from page 17 to 32

GB/UK

Mode d'emploi

Friteuse électrique

Close-up of a metallic mechanical component with a circular opening and internal channel (no visible text or symbols)

RESET-Taste

of the original instruction manual

Read these instructions before using and keep them available at all times!

1. General information.... 18

1.1 Information about the instruction manual 18
1.2 Key to symbols.... 18
1.3 Liability and Warrantees.... 19
1.4 Copyright protection 19
1.5 Declaration of conformity.... 19

2.Safety 20

2.1 General information.... 20
2.2 Safety instructions for use of the device 20
2.3 Intended use 21

3. Transport, packaging and storage.... 22

3.1 Delivery check.... 22
3.2 Packaging 22
3.3 Storage.... 22

4. Technical data 23

4.1 Overview of parts 23
4.2 Technical specification 24

5. Installation and operation.... 24

5.1 Safety instructions....24
5.2 Installation and connection.... 25
5.3 Operation 26

6. Cleaning and maintenance.... 30

6.1 Safety advice.... 30
6.2 Cleaning 30
6.3 Safety instructions for maintenance 31

7. Possible Malfunctions .... 31

8. Waste disposal 32

Bartscher GmbH

1.1 Information about the instruction manual

This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide.

Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device.

In addition to the information given here, you should comply with any local Health and safety Controls and generally applicable safety regulations.

The instruction manual forms part of the product and should be kept near the device and easily accessible for anyone carrying out the installation, servicing, maintenance or cleaning.

1.2 Key to symbols

In this manual, symbols are used to highlight important safety instructions and any advice relating to the device. The instructions should be followed very carefully to avoid any risk of accident, personal injury or material damage.

WARNING!

This symbol highlights hazards, which could lead to injury.

Please follow the instructions very carefully and proceed with particular attention in these cases.

WARNING! Electrical hazard!

This symbol draws attention to potential electrical hazards. If you do not follow the safety instructions, you may risk injury or death.

CAUTION!

This symbol highlights instructions, which should be followed to avoid any risk of damage, malfunctioning and/or breakdown of the device.

NOTE!

This symbol highlights tips and information, which have to be followed for an efficient and trouble-free operation of the device.

WARNING! Hot surface!

This symbol is a warning that the device surface is hot when in use. Ignoring this warning may result in burns!

1.3 Liability and Warrantees

All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years.

The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. The German version of this instruction manual is definitive.

If the delivery consists of a special model, the actual scope of delivery may differ from the descriptions and illustrations in this manual. This is also the case for special orders or when the device has been modified in line with new technology.

NOTE!

Read this manual carefully and thoroughly before any operation of the device, and especially before turning it on!

Manufacturer is not liable for any damages or faults caused by:

• violation of advice concerning operation and cleaning;
• use other than designed;
• alterations made by user;
• use of inadequate spare parts.

We reserve the right to make technical changes for purposes of developing and improving the useful properties.

1.4 Copyright protection

The instruction manual including any texts, drawings, images or other illustrations is copyright. No part of this publication may be reproduced, transmitted or used in any form or by any means without permission in writing from the manufacturer. Any person who commits any unauthorized act in relation to this publication shall be liable to claims for damages. All rights reserved.

NOTE!

The contents, texts, drawings, pictures and any other illustrations are copyright and subject to other protection rights. Any person unlawfully using this publication is liable to criminal prosecution.

1.5 Declaration of conformity

The device complies with the current standards and directives of the EU. We certify this in the EC declaration of conformity. If required we will be glad to send you the according declaration of conformity.

2.Safety

This section provides an overview of all important safety aspects.

In addition every chapter provides precise safety advice for the prevention of dangers which are highlighted by the use of the above mentioned symbols.

Furthermore, attention should be paid to all pictograms, markers and labels on the device, which must be kept in a permanent state of legibility.

By following all the important safety advice you gain an optimal protection against all hazards as well as the assurance of a safe and trouble-free operation.

2.1 General information

This device is designed in accordance with the presently applicable technological standards. However, the device can pose a danger if handled improperly and inappropriately.

Knowing the contents of the instruction manual as well as avoiding mistakes and thus operating this device safely and in a fault-free manner is very essential to protect yourselves from the hazards.

To prevent hazards and to ensure optimum efficiency, no modifications or alterations to the device that are not explicitly approved by the manufacturer may be undertaken.

This device may only be operated in technically proper and safe condition.

2.2 Safety instructions for use of the device

The specifications regarding the industrial safety are based on the Regulations of the European Union applicable at the time of manufacturing the device.

The user is obliged to ensure that the said industrial safety measures concur with the state of the rules and regulations applicable at the time in question for the entire period of use of the device and to comply with the new specifications.

Outside the European Union, the industrial safety laws applicable at the place of installation of the device and the regional territorial provisions must be complied with.

Besides the industrial safety instructions in the instruction manual, the general safety and accident prevention regulations as well as environment protection regulations applicable for area of application of the device must be followed and complied with.

! CAUTION!

The device can be used by children 8 years and up, as well as by people with disabilities and those with limited experience/knowledge as long as they are under supervision or have been instructed on proper use of the device and its possible dangers.

○ Children should not play with the device.

○ Cleaning and maintenance cannot be performed by children younger than 8 years old and must be done under supervision.
Children under the age of 8 years old must be kept away from the device and its power cord.
- Please keep these instructions and give them to future owners of the device.
- All people using the device should follow the instructions and tips contained in these instructions.
○ Only use the device indoors.

2.3 Intended use

Safe operation is only guaranteed when using the device for its intended purpose.

Any technical interventions, as well as assembly and maintenance are to be made by a qualified customer service only.

The unit is not designed for commercial or industrial use.

The device is not adapted for use with an external timer or remote control.

The device is intended for home use or in similar places such as:

→ in kitchens for store or office employees or in other service locations;
→ in suburban properties;
→ by guests of hotels, motels and other places of accommodation;
→ in Bed & Breakfasts.

The deep fat fryer is designed for the frying of appropriate foods only.

You may not use the deep fat fryer for the following:

- Heating of foods and liquids (fluids).

CAUTION!

Any use going beyond the intended purpose and/or any different use of the device is forbidden and is not considered as conventional.

Any claims against the manufacturer or his authorized representative as a consequence of experiencing damages resulting from unconventional use are impossible.

The operator is liable for all damages resulting from inappropriate use.

3. Transport, packaging and storage

3.1 Delivery check

Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only.

Note the extent of damage on the carrier's bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints.

3.2 Packaging

Please do not throw away the covering carton of your device as it might be useful for storage purposes, when moving or, in case of damages, when the device must be sent back to a repair center. The outer and inner packing material should be removed completely from the device before installation.

NOTE!

If you liked to dispose the packing, consider the regulations applicable in your country. Supply re-usable packing materials to the recycling.

Please inspect the device upon completeness. In case any part is missing please contact our customer service centre immediately.

3.3 Storage

Keep the package closed until installation and under consideration of the outside indicated positioning- and storage markings.

Packages should be stored under consideration of the following:

• Do not store outdoors.
• Keep it dry and dust-free.
• Do not expose it to aggressive media.
• Do not expose it to direct sunlight.
• Avoid mechanical shocks and vibration.
• In case of longer storage (> 3 months) make sure you check the state of the packaging and the parts regularly. If required refresh or renew.

4. Technical data

4.1 Overview of parts

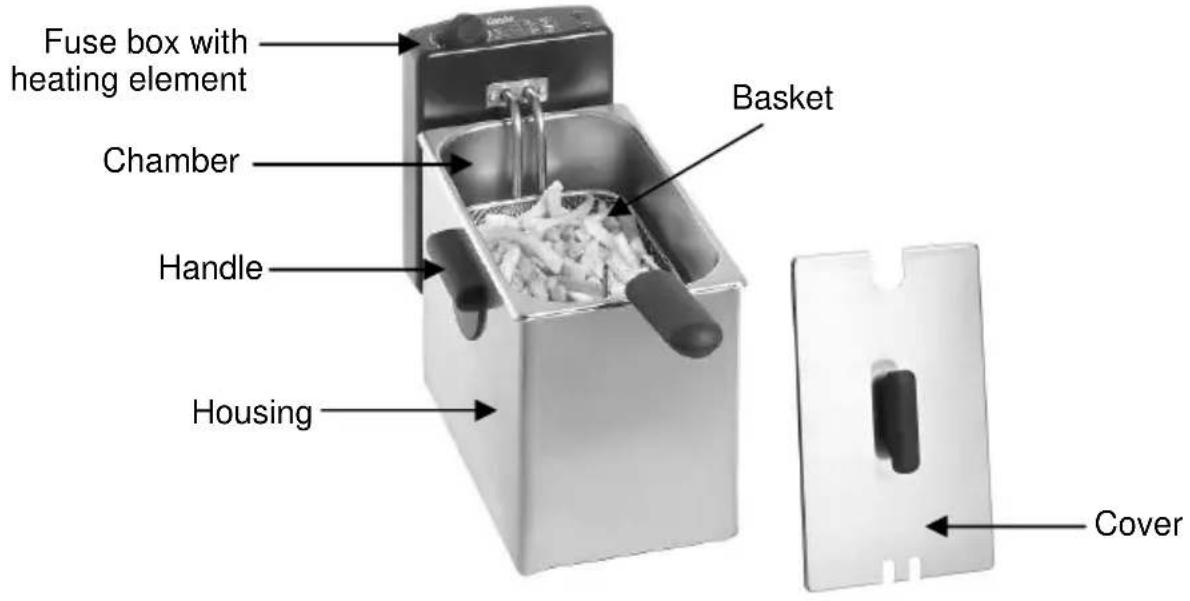

A165110

Fuse box with heating element Chamber Handle Housing Basket Cover

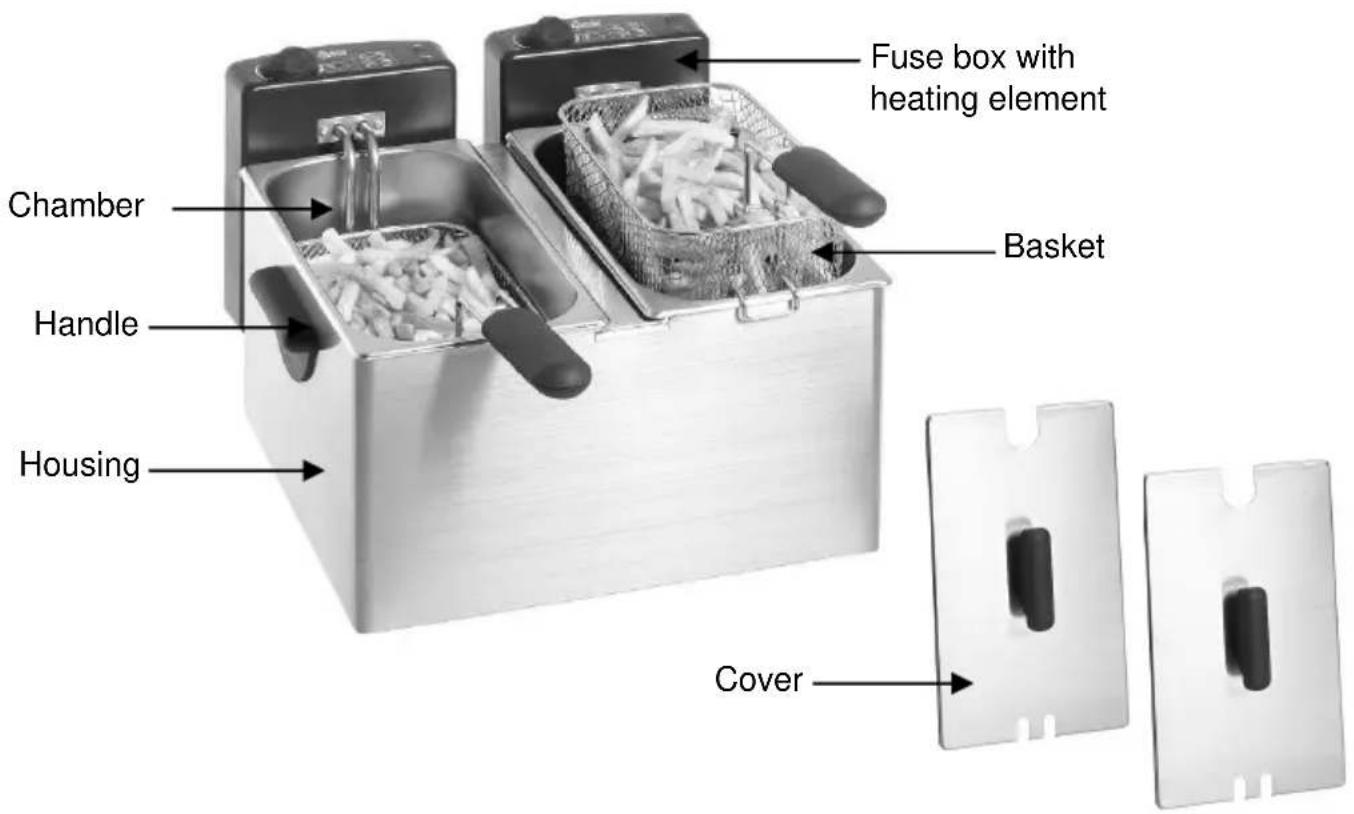

A165112

Fuse box with heating element Chamber Handle Basket Housing Cover

4.2 Technical specification

Name	Single electric deep fryer	Double electric deep fryer
Model:	„MINI II“ „MINI III“
Code-No.:	A165110 A165112
Material:	housing and cover: stainless steel; fuse box: plastic
Power supply: 230 V~ 50 Hz
Power: 2200 W 2 x 2200 W
Number of oil chambers: 1	2
Capacity of oil chambers:	4 litres	2 x 4 litres
Number of baskets: 1 2
Oil temperature range: 60 °C - 190 °C
Dimensions:	W 200 x D 400 x H 280 mm	W 400 x D 400 x H 280 mm
Weight:	3.3 kg	6.5 kg

We reserve the right to make technical changes!

5. Installation and operation

5.1 Safety instructions

WARNING! Risk of electric shock!

The device must only be connected to a properly installed single socket with protective contact.

Never remove the power cable by pulling the cable itself; always grab the plug housing.

• Never allow the power cable to come into contact with heat sources or sharp edges. The power cable should not hang over the side of the working surface. Ensure that no one can step on or trip over the cable.

• The power cable must not be folded, bent or tangled, and must always remain fully unrolled.
  • Never place the device or other objects on the power cable.

• Do not lay the cable over carpets or heat insulations. Do not cover the cable. Keep away the cable from operating range and do not dunk it into water.

• Do not use the device in case it does not function properly, has been damaged or dropped.
• Do not use any accessory or spare parts that have not been recommended by the manufacturer. These can be dangerous for the user or lead to damages of the device or personal injury, and further, the warranty expires.
• Do not move or tilt the device when in operation.
• During operation of the unit your hands, the mains plug and the switch must be dry.
• Do not leave the unit unattended during operation since there might occur malfunctions which could result in overheating of the oil (fat). In case of high temperatures oil (fat) might ignite.
• You may not use moisten frying goods. Always remove the extra ice from deep frozen goods first. Even the smallest water drops may cause oil splashes or lead to explosions during frying.

NOTE!

Overly wet foodstuffs or too large a quantity of food causes excessive foaming of oil during frying.

• Do not leave any frying goods in the basket hanging over the container with the hot oil.
• The fryer may not be moved or repositioned as long as the oil is hot. The oil must cool down first. Risk of injury! Hot oil splashes and fat explosions respectively may cause burns at hands and face!

5.2 Installation and connection

• Discard the complete packing material after unpacking the device.
• Put the device in a safe place that can support its weight and is not heat sensitive.
  • Not at any time you should place the device on top of an inflammable surface.
• You must not position the device near open fireplaces, electric ovens/arc furnaces, furnaces/electric heaters or other heat sources.
• Never place the device at the edge of a table to avoid accidents.
• Never put the device in a moist or wet area.

WARNING! Hazard via electrical current!

The device can cause injuries due to improper installation!

Before installation the local power grid specification should be compared with that of the device (see type label).

Connect the device only in case of compliance! Take note of the security advice!

• Two separate sockets are necessary for the dual fryer.
  • Each electrical circuit in the socket must be secured to at least 16A. Only connect the unit directly to the wall socket; do not use any extension cords or power strips.
• Place the device so that the plug is easily accessible and can be quickly removed from its socket in case of necessity.

5.3 Operation

Before use

• Remove the cover, then remove the basket, oil chamber and remaining equipment from the device.
  • Fix the handles to the fryer housing with use of supplied screws.

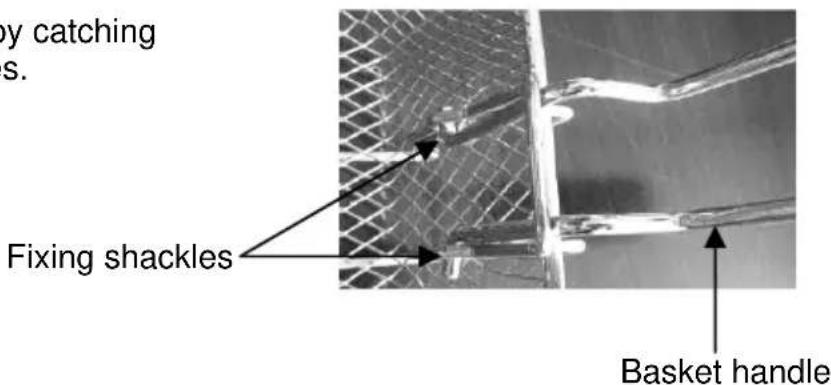

• Fix the basket handle by catching it to the fixing shackles.

by catching s. Fixing shackles Basket handle

- Remove the fuse box from the device by raising it until a „click“ sound is heard.

- Grab the oil chamber with both hands and carefully remove from the device.

- Wash the cover, oil chamber, basket and casing with a mild washing-up liquid. Rinse in clean water and dry.

- Wipe the housing with moist soft cloth, taking care to ensure no water gets into the fuse box and electrical systems.

Start-up

CAUTION!

The deep fryer can only be used by individuals who have been instructed in the proper use of the device and dangers that may arise during the frying process.

- Insert the oil chamber. Carefully mount the fuse box with heating element to the rear of the device by carefully sliding it into the guides until a „click“ sound is heard. This sound means the fuse box has been properly assembled.

Hint: For safety reasons, the device only operates when the fuse box is properly mounted to it, so that the micro fuses enable the device to function.

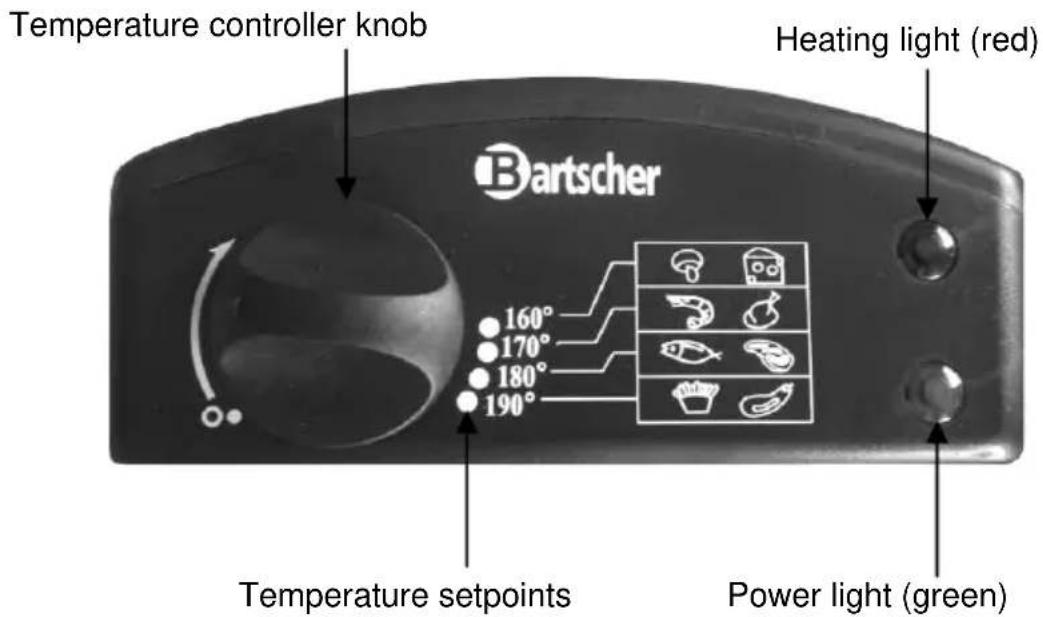

Temperature controller knob Heating light (red) 160° 170° 180° 190° Temperature setpoints Power light (green)

• Make sure that the device is turned off (set the temperature adjustment knob in „O“ position).
• Before pouring oil into the chamber, check that there is no water inside. The chamber must be clean and dry.

CAUTION!

Use only liquid oil for frying. Solid grease must be dissolved into liquid form before frying!

- Carefully fill the chamber with frying oil until the required level is reached. The oil level must always be between the „MIN“- and „MAX“ markings. If the level of oil is above MAX, hot oil may spill out.

WARNING!

Fire hazard! If the oil level is below MIN, there is an increased risk of oil catching fire.

Burn hazard! If the level of oil is above MAX, hot oil may spill out.

- Never turn the device on without oil in the chamber.

WARNING! Burn hazard!

Do not reuse oil, as its lower combustion point means that it may catch fire. Moreover old oil may easily foam. There is also an increased risk of smoke and unpleasant odours occurring.

- Regularly change frying oil. After used oil has cooled, carefully pour it into a retention tank and dispose of in accordance with environmental protection regulations.

Frying

• Connect the device to the single grounded socket.
  • The green power indicator will come on.
• Set the temperature dial by turning it clockwise to the desired temperature (60°C – 190°C). Follow the temperature suggestions located on the control panel.
• While heating up the red control light comes on, going off when the set temperature has been reached. The deep fryer is equipped with the thermostat. When the oil temperature drops the red light comes on again and the device heats again.
• For best results, wait until the device has reached the desired temperature and then place the food product in to be fried.

• The basket is for frying small food products. It is equipped with folding handle and hook.

• Slowly lower the basket into the oil and start frying.

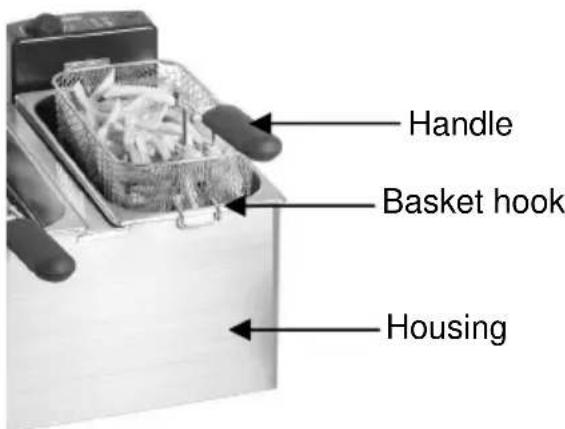

  • After frying, carefully pick up the basket and hand it on the hook at the front of the chamber and allow the oil to drip.

Handle Basket hook Housing

WARNING! Burn hazard!

When in use, the device and oil in the chamber are very hot and the oil is at risk of catching fire.

Do not allow the device to function for long periods of time!

When finished using the unit, turn the temperature dial counterclockwise to the „O“ position and remove the plug from its socket.

WARNING! Burn hazard!

Do not use the deep fryer with its cover on! The cover serves only as protection against dust, and for keeping the oil hot between fryings. Prior to placing the cover on, ensure that it is dry. If water gets into the oil chamber, this may cause oil to splatter.

• If the deep fryer has been accidentally turned on with too little or no oil in the chamber, it will automatically turn itself off at approx. 230 °C, to protect against overheating. If this occurs, disconnect the device by removing its plug from the socket and leave it to cool.
• If the device has turned off to prevent overheating, it can be turned back on after pressing the button marked RESET. This button is located at the rear of the device and can be pressed using a long, thin object such as a wire (see figure).

Close-up of a metallic cylindrical component with a circular opening and internal structure, possibly a fan or vent (no visible text or symbols)

RESET button

• Cool the device to temperature below 170 °C and switch the RESET button up.
- Next, insert the plug into a socket and turn the device on.

6. Cleaning and maintenance

6.1 Safety advice

Before beginning with repair or cleaning works make sure the device has been disconnected from power supply and has cooled down.
- Do not use any acid agents and make sure no water ingresses the device.
To protect yourself from electric shock, never immerse the device, its cables and the plug in water or other liquids.

CAUTION!

The device is not suited for direct washing via water jets. Therefore, you must not use any kind of pressure water jet for cleaning the device!

6.2 Cleaning

• Wash the device regularly.
  Before washing, remove the device's plug from its socket and wait for the device to cool down.
• The heater may be easily removed from the oil chamber by lifting and removing the fuse box. Then the heater and the oil chamber may be easily cleaned.

CAUTION!

Do not wash the fuse box (control panel) with excess amounts of water and do not submerge. Water must not get inside as it may cause the occurrence of dangerous stray currents and disturb the device operation.

Thoroughly dry all elements of the device before remounting them!

• When the oil is cold pour it carefully into the container.
  Ensure the container is secure and stable.
  ○ Wipe the control panel, external surface of the device and the power cord with a moist cloth and mild cleaning agent.
• Do not use harsh chemicals or scouring agents when cleaning, as they may damage the deep fryer. Stubborn dirt may be spot soaked in order to remove.
  o Dry all elements thoroughly and reassemble the device.
  ○ If the device is not to be used for a long period of time, store it in a dry place. Protect it from harsh fumes and gases.

6.3 Safety instructions for maintenance

• Inspect the power cable regularly for damage. Never use the device if the cable is damaged. If the power cable is damaged, have an authorised service center or qualified electrician replace it.
• In case of damage or malfunction, please contact your stockist or our customer service centre. Pay attention to the troubleshooting tips in pt. 7.
  ○ Only a qualified technician and using original spare parts and accessories should carry out repairs and maintenance of the device. Do not attempt to repair the device yourself.

7. Possible Malfunctions

Problem Cause	Solution
Device connected to power source, red standby light does not come on, and the device does not heat up.	Plug improperly inserted into socketSafety fuse disconnectedFuse box improperly mountedMicro fuse contact malfunction	Remove plug and insert properly into socketCheck fuse, connect device to another socketCheck that fuse box is properly mountedContact a sales agent
Green control light comes on but temperature does not rise although the temperature is set.	Damaged temperature controllerNo contact with the heaterDamaged heater	Contact a sales agent
Heating element does not heat after a short time.	Safety thermostat activated	Press RESET button on the back of the device (see page 29)

The above problems only serve for orientation and as examples. Should these or similar problems occur, turn the device off immediately and discontinue using it. Contact qualified technicians or the manufacturer for inspection and repair.

8. Waste disposal

Discarding old devices

At the end of its service life the discarded device has to be disposed in accordance with the national regulations. It is advisable to contact a company which is specialized in waste disposal, or just contact the local disposal service in your community.

WARNING!

To exclude any abuse and the dangers involved make the waste device unfit for use before disposal. For that purpose disconnect device from mains supply and remove mains connection cable from the device.

NOTE!

For the disposal of the device please consider and act according to the national and local rules and regulations.

Stale oil

Please remove used frying oil in accordance with all applicable environmental protection regulations.

Bartscher GmbH

4.2 Indications techniques

Close-up of a metallic panel with a circular opening and internal cable, no visible text or symbols

Touche RESET

Close-up of a metal mesh structure with arrows pointing to specific components (no text or symbols visible)

Close-up of a mechanical component with a circular opening and internal structure, no visible text or symbols

RESET-knop

Close-up of a metallic mechanical component with a circular opening and internal structure, showing no visible text or symbols.

Przycisk RESET
