USER MANUAL KB-BTRGB-01 Gembird

• Slimline Bluetooth keyboard
• Scissor type key structure for more comfortable typing
• Practical RGB backlight: light breathing mode and colorful mode
• Works with most mobile phones, tablets, PC's or compatible TV's and media boxes
• Long life: non-stop working up to 70 hours

Specifications

• Interface: Bluetooth v.3.0
- Keys: 78 pcs
• Working distance: up to 10 m
- Battery: rechargeable Li-ON battery, 400 mAh
• Power consumption: 3.1...4.2 V DC up to 3 mA
• Standby time: 30 days
• Working time: up to 70 hours
• Dimensions: 285 x 125 x 17 m
- Net weight: 200 g

- Operating temperature: -10^ 55^ (Humidity: 20% 90% )

gembird®

KB-BTRGB-01

BLUETOOTH RGB-BACKLIGHT KEYBOARD

1

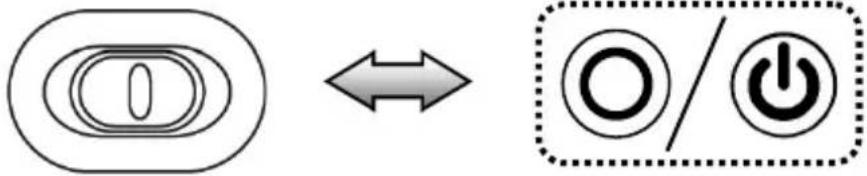

OFF/ON


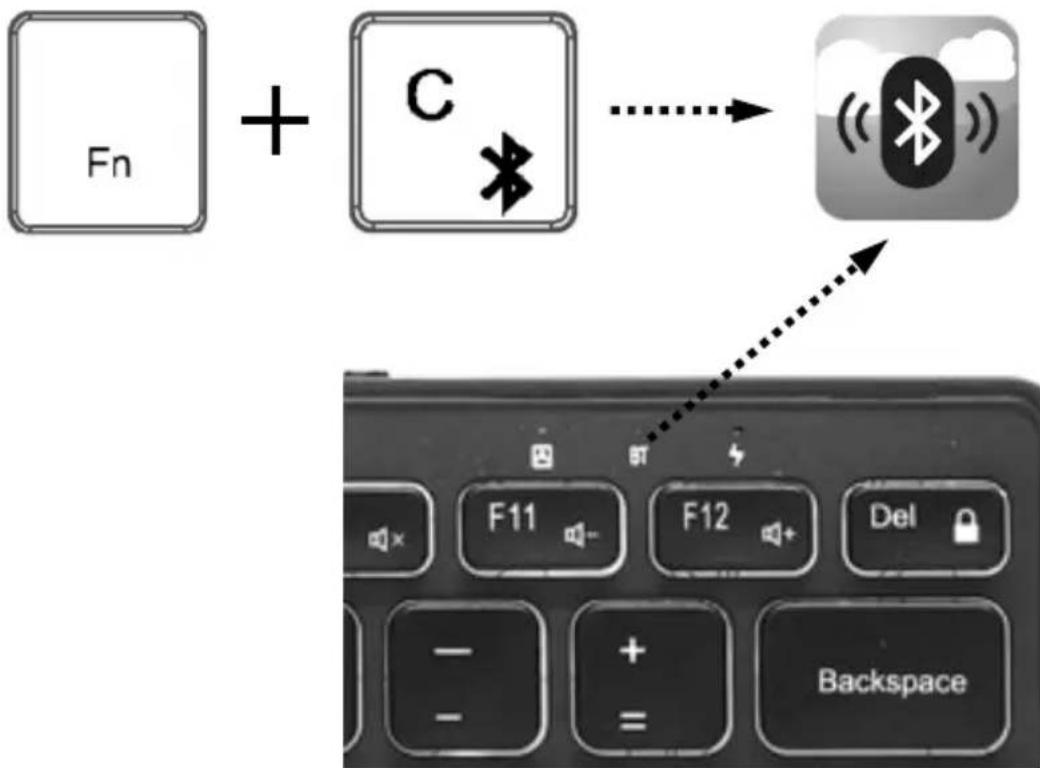

Fn + C → (<< Bluetooth) Backspace

gembird®

KB-BTRGB-01

BLUETOOTH RGB-BACKLIGHT KEYBOARD

2

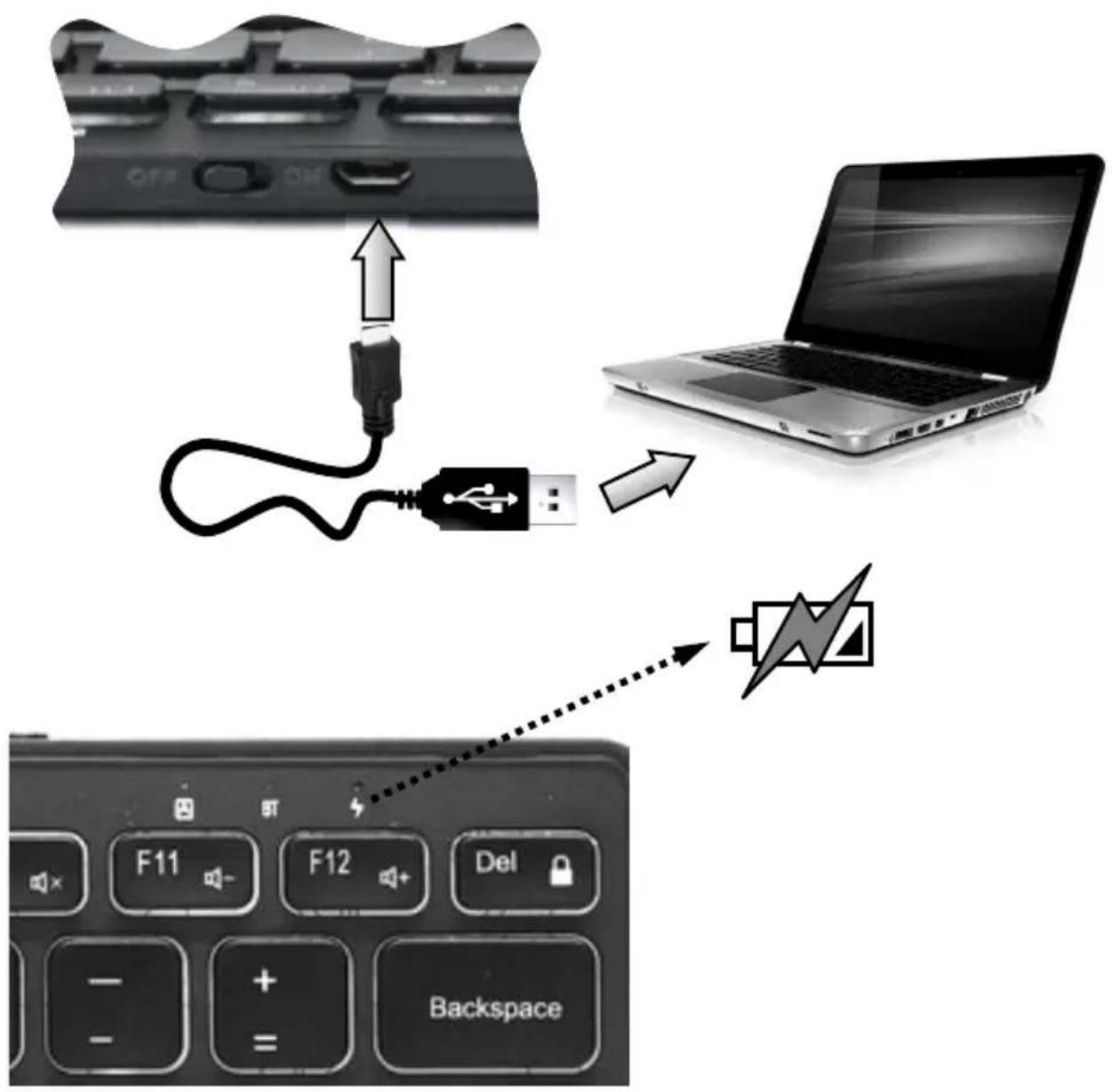


gembird®

KB-BTRGB-01

BLUETOOTH RGB-BACKLIGHT KEYBOARD

3

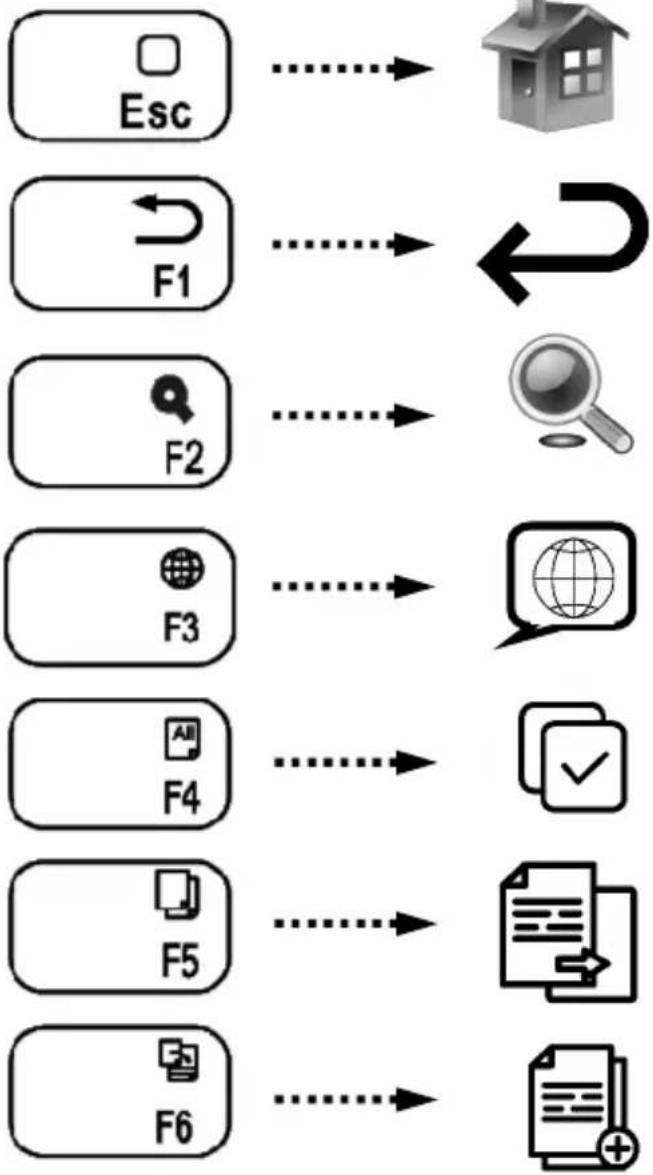

Fn

gembird®

KB-BTRGB-01

BLUETOOTH RGB-BACKLIGHT KEYBOARD

4

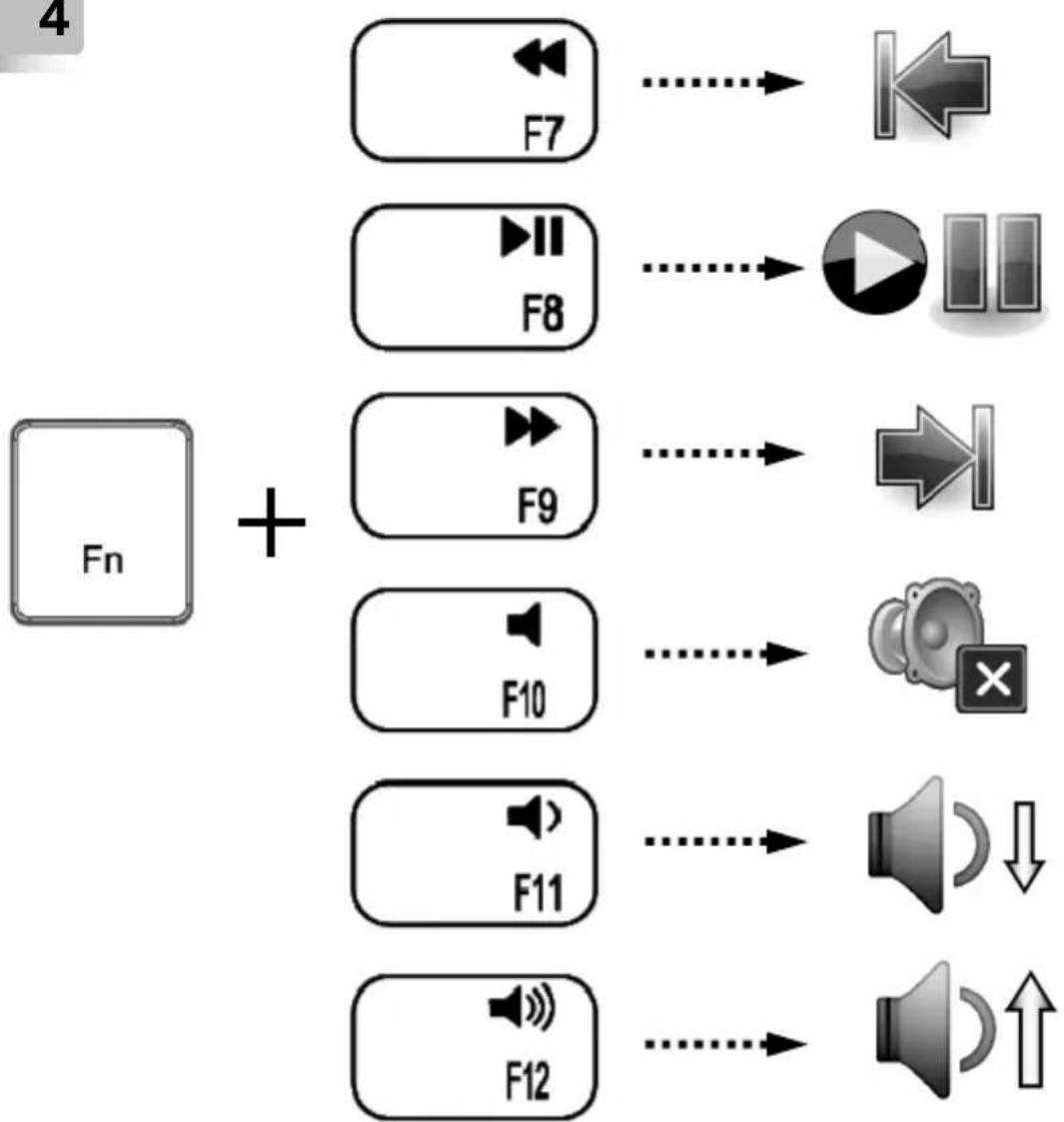


gembird®

KB-BTRGB-01

BLUETOOTH RGB-BACKLIGHT KEYBOARD

5

gembird®

KB-BTRGB-01

BLUETOOTH RGB-BACKLIGHT KEYBOARD

(ENG) Declaration of conformityThis product is tested and complies with the essential requirements of the laws of member states concerning RED (2014/53/EU). The CE declaration can be found underwww.gembird.eu	(NL/BE) Verklaring van overeenstemmingDit product is getest en voldoet aan alle geldende nationale en Europese richtlijnen en regelgeving met betrekking tot RED (2014/53/EU). Dit product heeft een CE-markering en de bijbehorende CE-verklaring van overeenstemming is beschikbaar op onze website: www.gembird.eu
(FR/BE) Déclaration de conformitéLe produit est contrôlé et rempli les exigences des directives nationales et de la directive RED (2014/53/EU). La conformité CE a été démontrée et les déclarations correspondantes sont déposées chez le fabricant a: www.gembird.eu	(DE) KonformitätserklärungDieses Produkt wurde getestet und stimmt mit den grundlegenden Anforderungen der Richtlinie RED (2014/53/EU) überein. Die Konformitätserklärung kann auf unserer Webseite www.gembird.eu heruntergeladen werden.
Deklaracja zgodnościTen produkt został przetestowany i jest zgodny z zasadniczymi wymaganiami przepisów ustawowych państw członkowskich dotyczących RED (2014/53/EU). Deklaracja CE znajduje się pod adresem www.gembird.eu

Four-panel cartoon showing handwashing, sun heating, screwdriver cleaning, and fire safety with crossed-out signs.

gembird®

KB-BTRGB-01

BLUETOOTH RGB-BACKLIGHT KEYBOARD

Waste disposal:

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.
