KBS-WCH-03 - Keyboard Gembird - Free user manual and instructions

Product type	2.4 GHz Wireless Keyboard
Brand	Gembird
Model	KBS-WCH-03
Dimensions (L x W x H)	440 x 140 x 25 mm
Weight	500 g (with batteries)
Power supply	2 AAA batteries (not included)
Battery life	Approximately 6 months depending on usage
Connectivity	2.4 GHz wireless USB, range up to 10 m
Key layout	AZERTY, 104 keys
Multimedia keys	12 function keys (volume, playback, etc.)
Material	ABS plastic
Color	Black
Compatibility	Windows, macOS, Linux
Box contents	Keyboard, USB receiver, user manual
Warranty	24 months
Care and cleaning	Clean with a soft, dry cloth. Do not use solvents.
Safety	Do not expose to moisture or liquids. Unplug when cleaning.
General information	Home and office use. Recycle according to local regulations.

Frequently Asked Questions - KBS-WCH-03 Gembird

How do I connect the KBS-WCH-03 keyboard to my computer?

Insert the batteries into the keyboard. Plug the USB receiver into an available port on your computer. The keyboard connects automatically. If not, press the connection button located under the keyboard.

What should I do if the keyboard does not respond?

Check the battery orientation, charge level, and that the USB receiver is properly connected. Try moving the keyboard closer to the receiver. If the problem persists, restart the computer.

How do I clean my Gembird KBS-WCH-03 keyboard?

Unplug the USB receiver and remove the batteries. Use a slightly damp (not wet) soft cloth to clean the keys. Never pour liquid directly on the keyboard. Avoid abrasive products.

What is the battery life?

Battery life depends on usage. On average, batteries last about 6 months. Use high-quality batteries for better performance.

Can I use this keyboard with a tablet or smartphone?

No, this keyboard requires a USB port and is not compatible with mobile devices without an OTG adapter (not included).

What should I do if a key gets stuck?

Gently remove the key using a flat tool (like a screwdriver) and clean the mechanism with compressed air. If the problem persists, contact customer service.

How do I recycle this product at end of life?

Do not dispose of the device in household waste. Take it to a collection point for electronic waste according to local regulations. Used batteries should be placed in the designated containers.

What does the Gembird warranty cover for this keyboard?

The 24-month warranty covers manufacturing defects. It does not cover damage due to misuse, drop, water infiltration, or normal wear (batteries). Keep the receipt.

How do I make a warranty claim?

Contact Gembird customer service at [e-mail] or via www.gembird.nl/service. Attach a copy of the receipt and describe the defect. You may need to return the product at your own expense.

Can I get a manual in French?

The manual is available in French at notice-facile.com. You can download it for free in PDF format. If you can't find it, request a translation via our contact form.

USER MANUAL KBS-WCH-03 Gembird

WIRELESS 2.4 GHZ KEYBOARD AND MOUSE SET

DRAHTLOSES TASTATUR UND MAUS SET

2.4 GHZ DRAADLOZE DESKTOP SET

CLAVIER SANS FIL 2.4 GHZ SOURIS ET

БЕСПОНДНОН HABOPИЗ KLABNATYPБI MblSi, ДИАРА3OHA

YACTOT 2.4ΓΓ

БЕЗДРОВОЙ HÁБИР 3 КЛABIATYPИ MИШI, ДΙАПАЗHYЧАТOT

2.4ΓU

BEZPRZEWODOWY ZESTAW KLAWIATURY Z MYSZKA

Features

2.4 GHz wireless full size keyboard and mouse
4-button wireless optical mouse

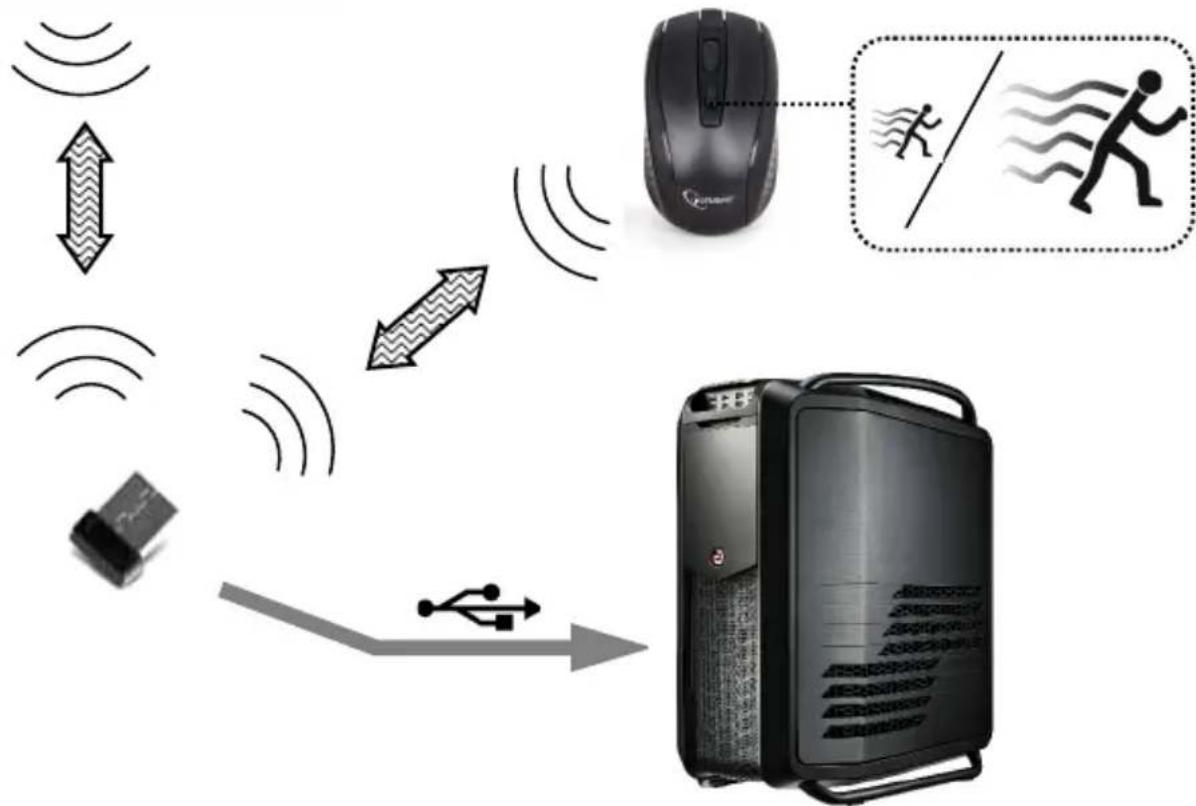

- Single USB nano-receiver for both keyboard and mouse
- Battery lifetime of 100 working hours for the mouse and 150 working hours for the keyboard

Specifications

• Keyboard dimensions 420 × 130 × 28 mm ,weight 390 g
• Mouse: 3 buttons, 1000 dpi resolution; dimensions 99 × 62 × 35 ~mm , weight 55 ~g
• Working distance: up to 10m

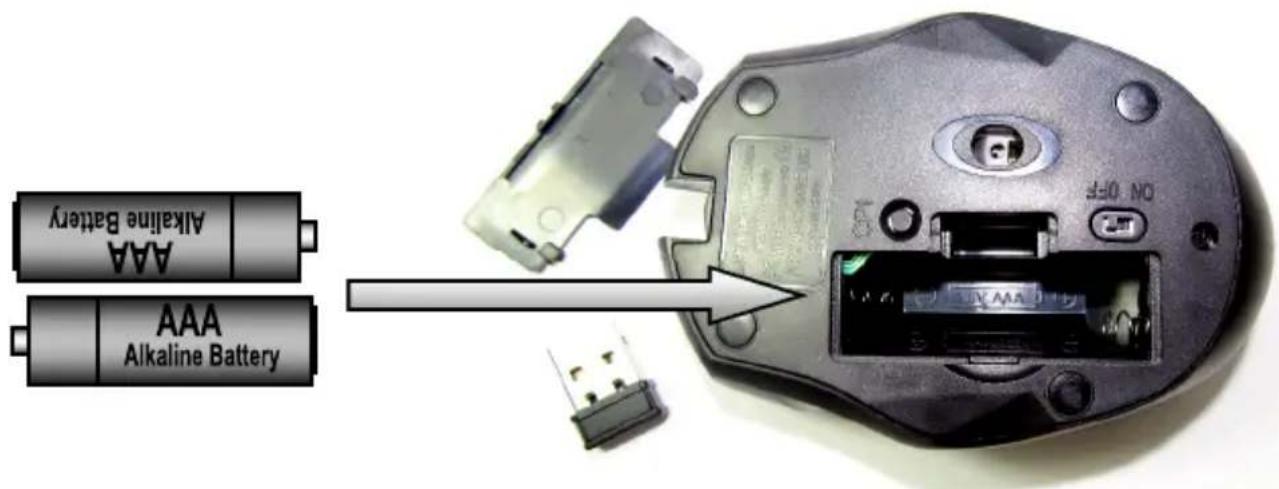

• Mouse batteries: 2 x AAA battery, 3 VDC up to 6.6 mA current consumption

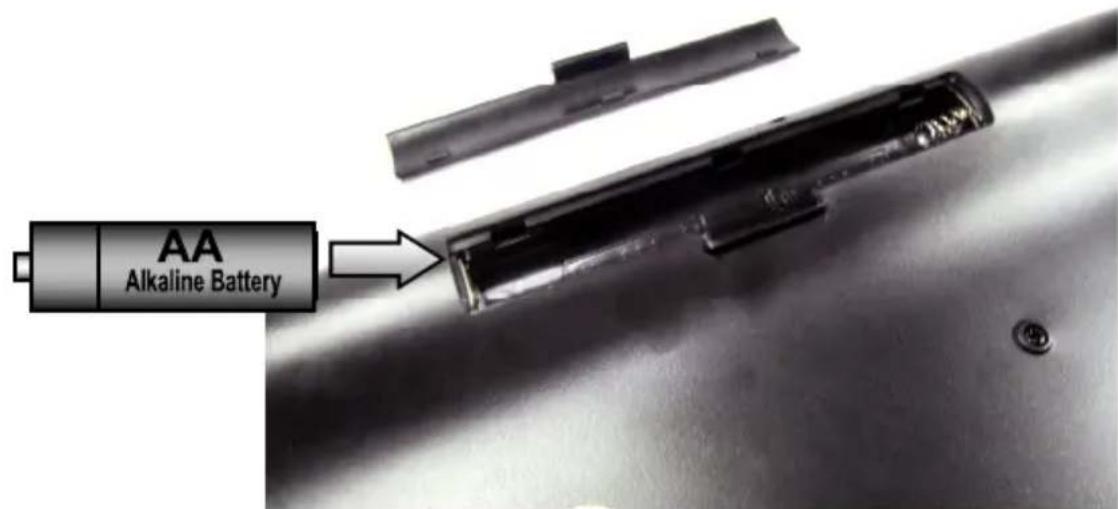

• Keyboard batteries: 1 x AA battery, 1.5 VDC up to 8 mA current consumption
• USB nano receiver: 18 × 14 × 7 mm ,weight 1.4 g

1

(ENG) Declaration of conformity This product is tested and complies with the essential requirements of the laws of member states concerning R&TTE(1999/5/EC). The CE declaration can be found under www.gembird.eu	(NL/BE) Verklaring van overeenstemming Dit product is getest en voldoet aan alle geldende nationale en Europese richtlijnen en regelgeving met betrekking tot R&TTE (1999/5/EC). Dit product heeft een CE-markering en de bijbehorende CE-verklaring van overeenstemming is beschikbaar op unsere website: www.gembird.eu
(FR/BE) Déclaration de conformité Le produit est contrôle et rempli les exigences des directives nationales et de la directive R&TTE (1999/5/EC). La conformité CE a été démontrée et les déclarations correspondantes sont déposées chez le fabricant a: www.gembird.eu	(DE) Konformitätserklärung Dieses Produkt wurde getestet und stimmt mit den grundlegenden Anforderungen der Richtlinie R&TTE (1999/5/EC) überein. Die Konformitätserklärung kann auf unserer Webseite www.gembird.eu heruntergeladen werden.
Deklaracja zgodność Ten produkt zostawPTRzetestowy i jest zgodny z zasadniczymi wymaganiani mi przyepsów ustawowych państwoczłonskovich dotyczących R&TTE (199/5/EC). Deklaracja CE znejduje są pod adresem www.gembird.eu

Waste disposal:

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.
