USER MANUAL Reflect Aero TWS JBL

Tap to pair. Device will be tied to

Your Google Account

DUAL CONNECT + SYNC

L

R

STEREO MODE

L/R

MONO MODE

MULTI-POINT CONNECTION

12 =

TAP×1HOLD[5s]

[MAXIMUM 2 DEVICES]

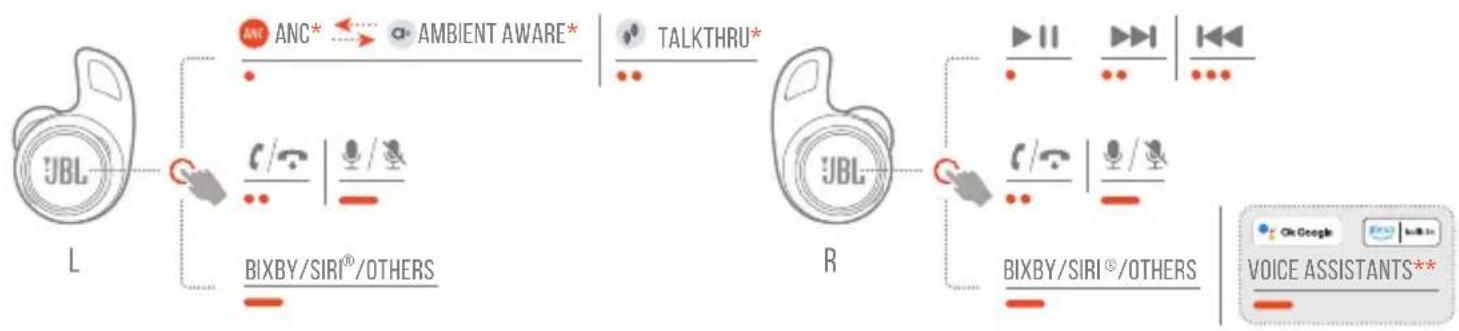

CONTROLS

TAP×1

TAP×2

TAP×3

HOLD(2s)

* ENABLE ADVANCE CONTROLS BY CONNECTING YOUR JBL REFLECT AERO TO JBL HEADPHONES APP ** ENABLE YOUR VOICE ASSISTANT THROUGH JBL HEADPHONES APP AND ASSIGN IT TO YOUR PREFERRED EARBUD (L/R).

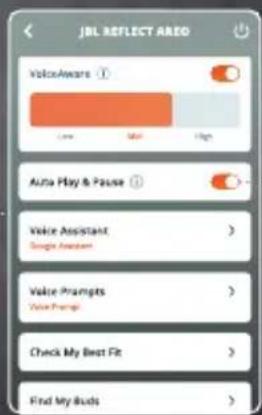

AUTO PLAY/PAUSE

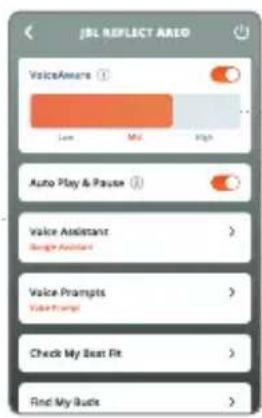

VOICEWAREVOICEWARE

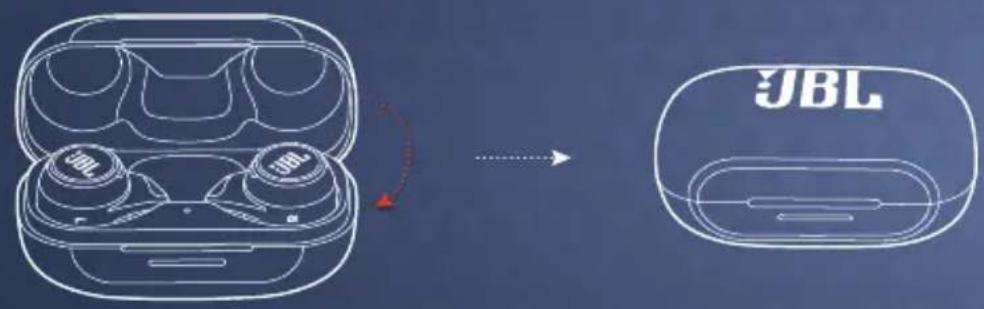

POWER OFF

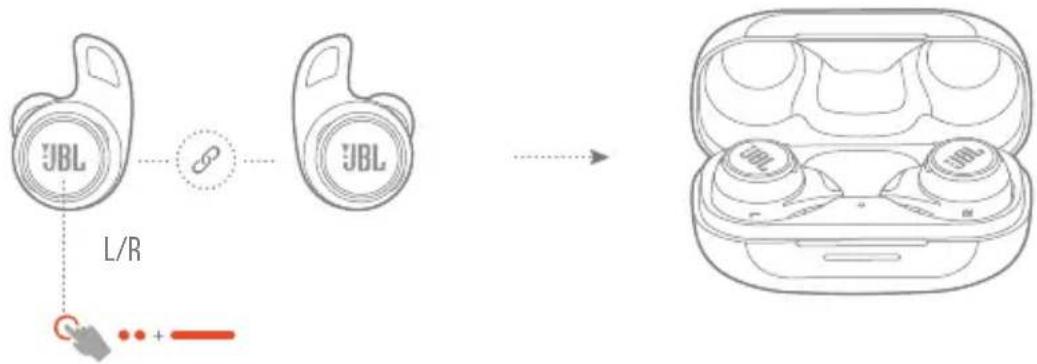

FACTORY RESET

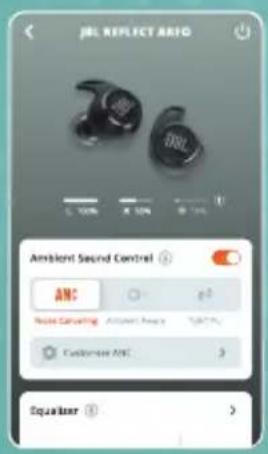

DO MORE WITH THE APP

HANDS-FREE VOICE CONTROL

GET MORE DONE ON THE GO. SAY "OK GOOGLE" TO GET STARTED.

"Play my Workout playlist"

"Turn on noise cancellation"

"Turn off ambient mode"

"What's my schedule today?"

"Set an alarm for 7 AM"

NOTE: ONLY AVAILABLE ONAndroidTM

Ok Google

HANDS-FREE VOICE CONTROL

ASK ALEXA TO PLAY MUSIC, ANSWER QUESTIONS, PLAY THE NEWS, CHECK THE WEATHER, SET ALARMS, CONTROL COMPATIBLE SMART HOME DEVICES, AND MORE.

"Alexa, play today's hits"

"Alexa, volume up."

"Alexa, skip this song."

"Alexa, what's the weather?"

"Alexa, turn off the TV."

"Alexa, start my commute"

Alexa

built-in

NOTE:Android ^TM 6.0 OR HIGHER IS REQUIRED FOR FULL ACCESS TO ALEXA FEATURES WHEN USING THIS DEVICE.ALEXA ISN'T AVAILABLE IN ALL LOCATIONS

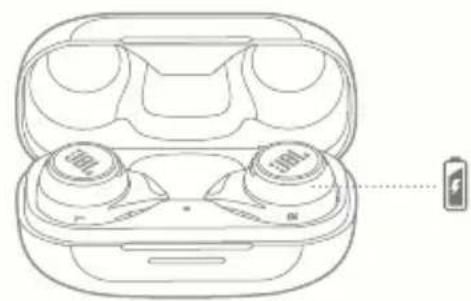

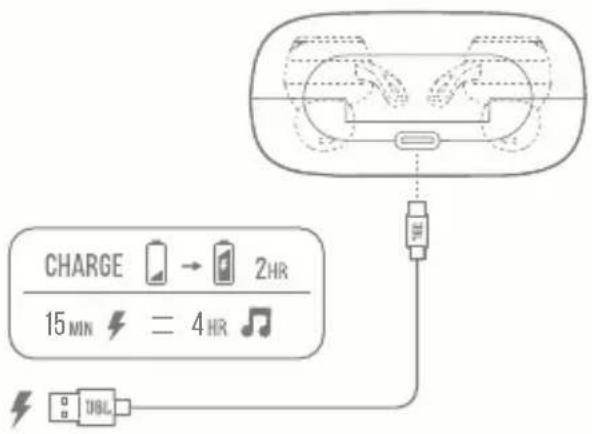

CHARGING

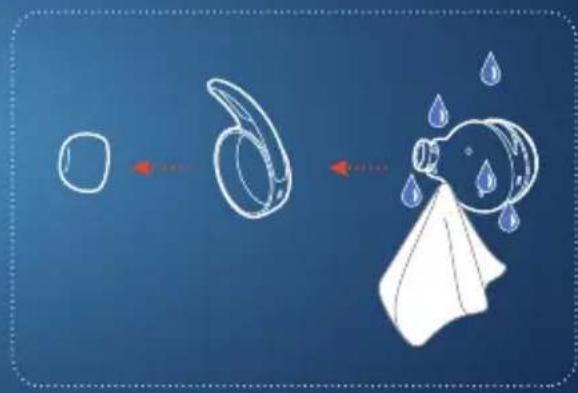

WATERPROOF & DUSTPROOF IP68

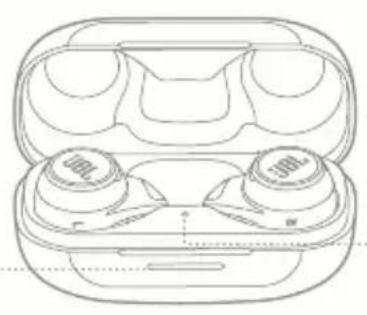

LED BEHAVIORS

TECH SPEC

Model: REFLECT AERO

Driver size: 6.8mm / 0.268'' Dynamic Driver

Power supply: 5V

1A

Earbud: 6.65 g per pc (13 g combined)/

0.0147 lbs per pc (0.029 lbs combined)

Charging case: 45g / 0.099 lbs

Earbud battery type: Lithium-ion polymer (65 mAh/ 3.85 V)

Charging case battery type: Lithium-ion polymer (400 mAh/ 3.85 V)

Charging time: < 2 hrs from empty

Talk time with ANC on: up to 3.5 hrs

Talk time with ANC off: up to 4.5 hrs

Music playtime with BT on and ANC off: up to 8 hrs

Music playtime with BT on and ANC on: up to 7 hrs

Frequency response: 20Hz - 20kHz

Impedance: 16 ohm

Sensitivity: 105 dB SPL@1 kHz

Maximum SPL: 94 dB

Microphone sensitivity: -38 dBV/Pa@1 kHz

Bluetooth version: 5.2

Bluetooth profile version: A2DPV1.3,AVRCPV1.6,HFPV1.8

Bluetooth transmitter

frequency range: 2.400 GHz - 2.4835 GHz

Bluetooth transmitter

power: < 10 dBm

Bluetooth transmitter modulation:

Maximum operation

temperature: 45^
