CFR2144 - Storage furniture SANUS - Free user manual and instructions

Product Type	Audio/video equipment rack
Brand	Sanus
Model	CFR2144
Maximum Load Capacity	453.6 kg (1000 lb)
Maximum Load per Shelf (2U)	22.6 kg (50 lb)
Maximum Load per Shelf (1U)	13.6 kg (30 lb)
Maximum Load per Shelf (3U optional)	36.2 kg (80 lb)
Estimated Height	Approximately 1800 mm (44U)
Estimated Depth	Approximately 800 mm
Estimated Width	Approximately 600 mm
Estimated Product Weight	Approximately 70 kg
Main Material	Steel
Color	Black
Door Type	Glass or metal (depending on version), reversible
Door Lock	Optional (sold separately)
Cable Management	Removable rear panels with cable passages
Ventilation	Optional ventilated panel, fan support
Leveling Feet	Yes, adjustable
Casters	Yes, integrated
Pairing Capability	Yes, with included pairing clamps
Maintenance	Clean with a soft, dry cloth, avoid abrasive products
Safety	Do not exceed load limits, secure equipment with straps, do not sit or climb

Frequently Asked Questions - CFR2144 SANUS

What is the total weight capacity of the Sanus CFR2144 rack?

The total capacity is 453.6 kg (1000 lb). Never exceed this limit to avoid tipping risks.

How to install equipment in the rack?

Start with the heaviest components at the bottom. Install 50% of the weight in the lower third. Secure each device with the provided stops and straps.

Can I reverse the door opening direction?

Yes, the door is reversible. Follow the instructions on pages 12-14 of the manual: remove the door, reverse the handle, and reinstall the door on the opposite side.

How to level the rack?

Use the adjustable leveling feet under the base. Adjust the height of each foot so the rack is perfectly level, then tighten the lock nuts.

Is the rack delivered with casters?

Yes, the rack is equipped with casters. To move it, push slowly and do not pull. Make sure the equipment is securely fastened before moving it.

How to install a lock on the door?

Remove the cover from the right side panel, then insert the lock (sold separately) into the designated hole. Secure it with the provided screws.

What type of cleaning is recommended for the rack?

Use a soft, dry cloth to dust. Avoid abrasive or liquid cleaners that could damage the paint or components.

Can I pair two CFR2144 racks?

Yes, remove the side panels from the sides to be joined, align the racks at the same level, and install the provided pairing clamps into the chassis slots.

Does the rack require special ventilation?

It is recommended to install a fan (sold separately) to prevent overheating. The internal temperature should not exceed 40°C (104°F).

How to secure equipment to prevent it from moving?

Use the stops at the back: insert them into the slots and turn 90°. Additionally, pass the straps over the equipment and tighten.

USER MANUAL CFR2144 SANUS

CFR2115, CFR2127, CFR2136, CFR2144

Instruction Manual

We'll Make It Stress-Free

If you have any questions along the way, just give us a call.

1-800-359-5520. We're ready to help!

IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS

PLEASE READ ENTIRE MANUAL PRIOR TO USE

Thank you for choosing a Sanus Component Series Rack. The CFR2100 series is designed to support audio/video equipment.

The total weight capacity for the CFR2100 series:

CFR2115 226.8 kg (500 lb)

CFR2127 340.2 kg (750 lb)

CFR2136 385.5 kg (850 lb)

CFR2144 453.6 kg (1,000 lb)

Each 2U shelf supports up to 22.6 kg (50 lb), and each 1U shelf supports up to 13.6 kg (30 lb).

Each optional 3U shelf supports up to 36.2 kg (80 lb).

CAUTION: Avoid potential personal injuries and property damage!

- Do not exceed the stated weight capacities.

• Do not shake, tilt, rock, sit, stand, or climb on your Component Series Rack. Tipping may cause injury or death.
• Do not move large racks by yourself; due to weight and height, assistance is required.
• To avoid instability do not pull out more than one optional drawer or slide out equipment at a time.
• Before moving, make sure all optional drawers and slide out equipment are secured and door is closed and secured.
• Use extreme caution when moving a loaded rack! Push, DO NOT pull, loaded rack slowly over a short, smooth, level distance. Avoid sudden starts and stops to minimize the strain placed on casters.
• Do not use this product for any purpose not explicitly specified by manufacturer.
• If you do not understand these instructions, or have doubts about the safety of the installation, assembly or use of this product, contact manufacturer Customer Service or call a qualified contractor.
  • Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.

NOTE: Due to continuous product improvement, images shown in this manual may vary from actual product.

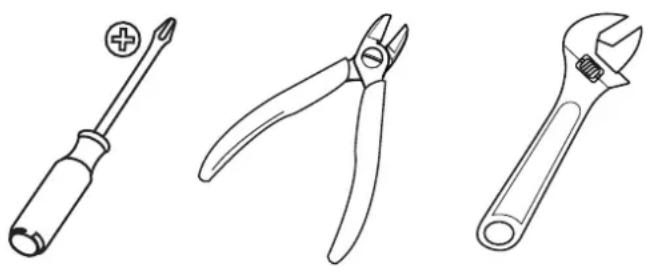

Do you have all of the tools needed?

Line drawings of three different tools: screwdriver, pliers, and adjustable wrench (no text or symbols present)

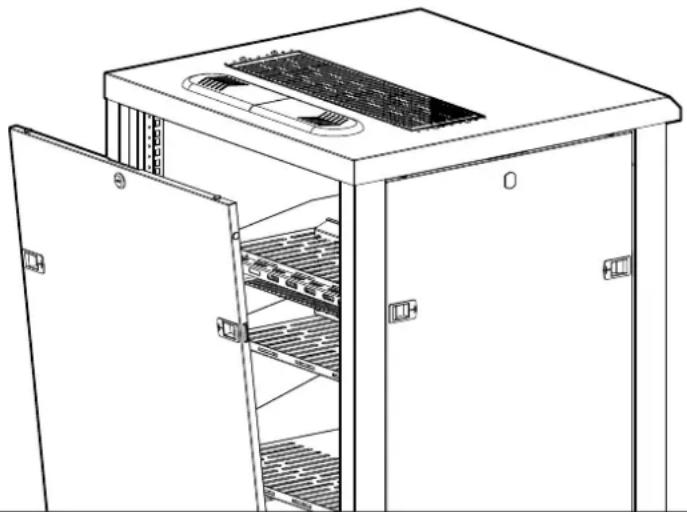

Unpacking

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts!

Supplied parts are located inside of the rack. To access the parts, remove the back panel.

Line drawing of a server rack cabinet with open doors and internal shelves (no text or symbols)

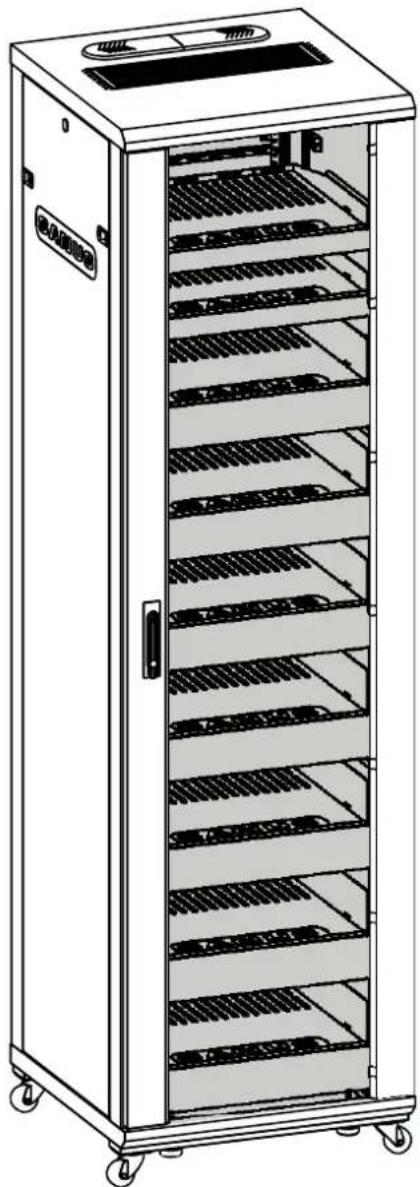

Parts and Hardware

Line drawing of a multi-tiered industrial storage cabinet with shelves and top panel (no text or symbols)

01x1

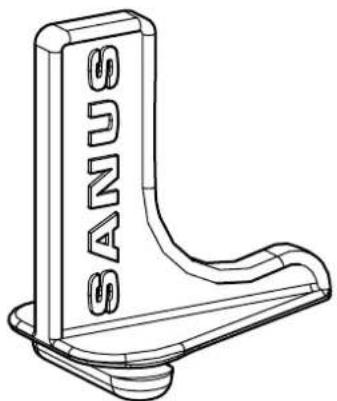

Technical line drawing of a mechanical bracket with no visible text or symbols

03

CFR2115 8

CFR2127 12

CFR2136 16

CFR2144 18

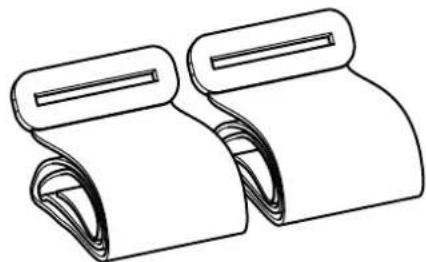

Line drawing of two rolled-up paper sheets with scroll handles (no text or symbols)

04

CFR2115 4

CFR2127 6

CFR2136 8

CFR2144 9

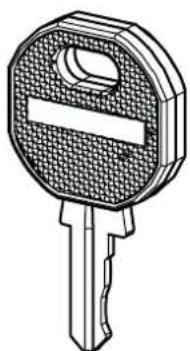

Technical line drawing of a key with a handle and spout (no text or symbols)

02x2

M5 x 10 mm 10-32 x 3/4 in.

05

CFR2115 8

CFR2127 8

CFR2136 8

CFR2144 8

06

CFR2115 4

CFR2127 8

CFR2136 12

CFR2144 16

Load Your Components

▲ CAUTION: Failure to follow loading requirements could lead to instability causing personal injury and/or property damage:

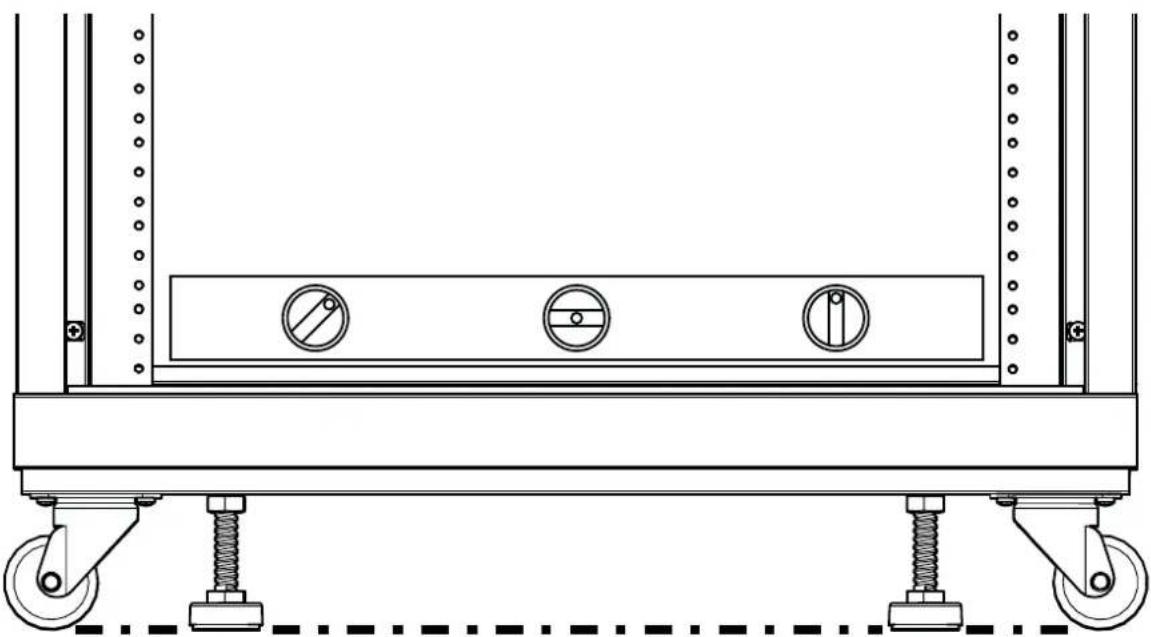

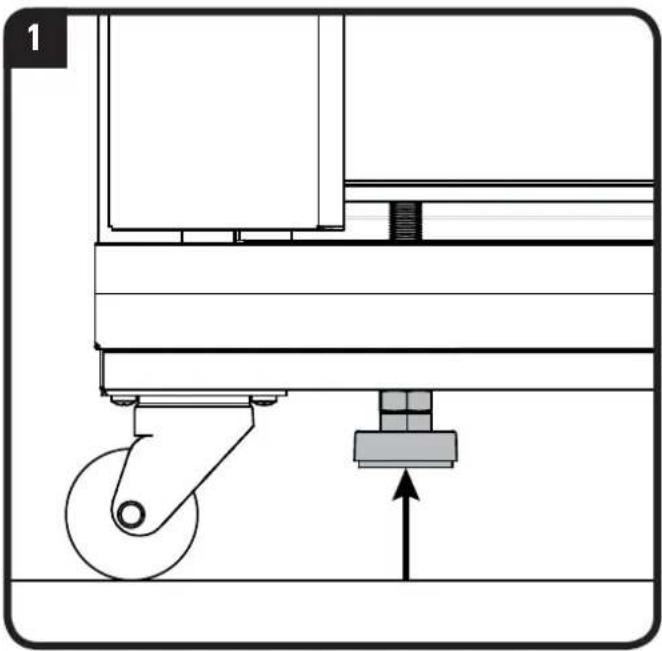

To prevent instability:

• Always load the rack from the bottom up and load the heaviest item first.
- 50% of the total weight should be mounted in the lower 1/3 of the rack.

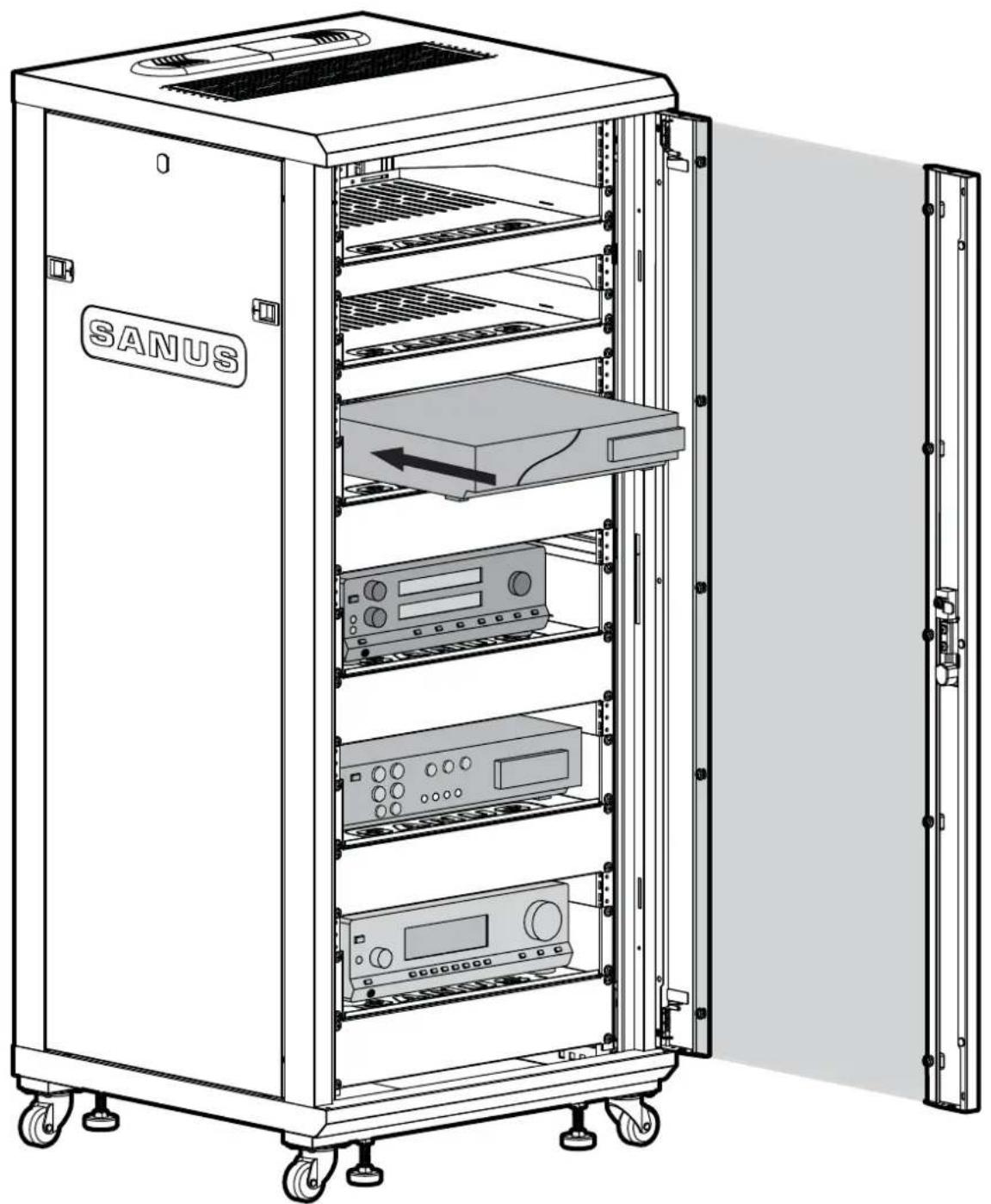

Line drawing of a SANUS server rack cabinet with open door, showing internal components and ventilation slots (no text or symbols on main structure)

Load Your Components

▲ CAUTION: Failure to follow loading requirements could lead to instability causing personal injury and/or property damage:

To prevent instability:

• Always load the rack from the bottom up and load the heaviest item first.
- 50% of the total weight should be mounted in the lower 1/3 of the rack.

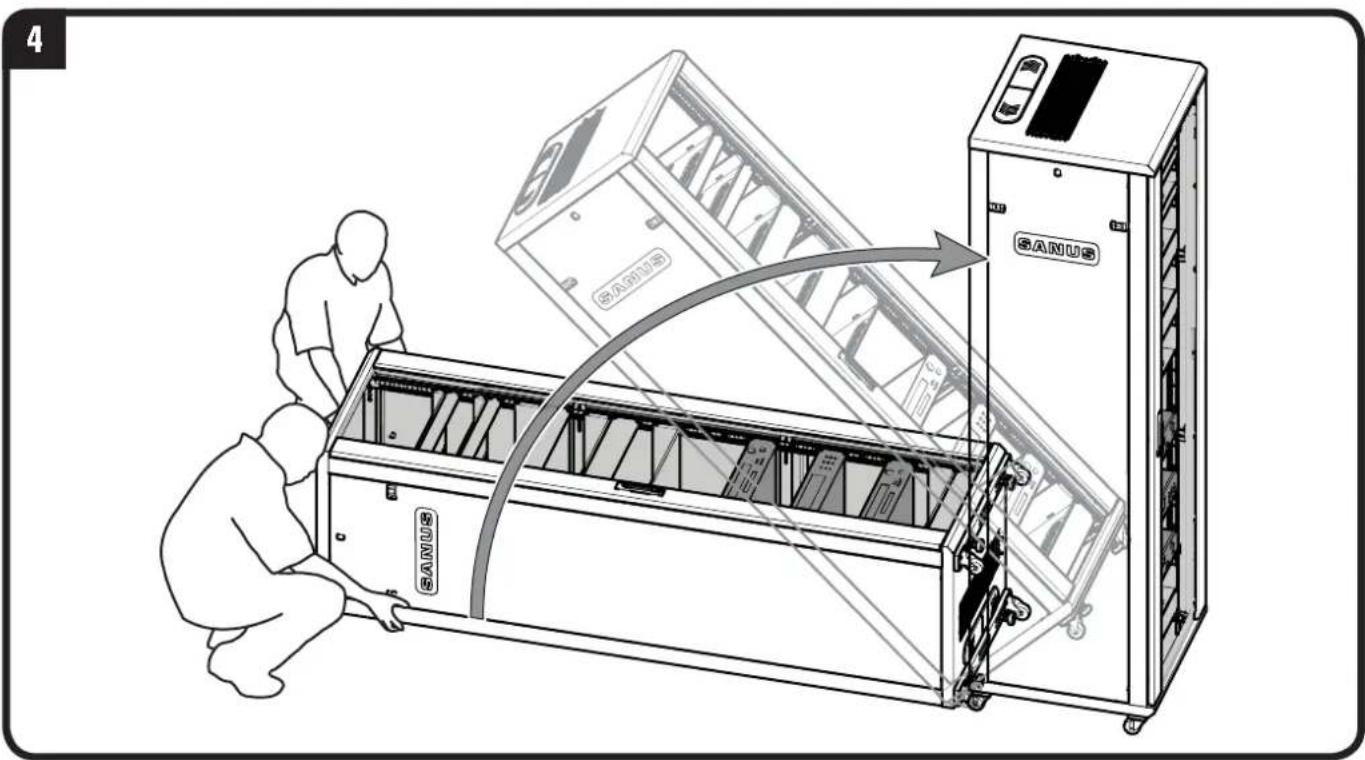

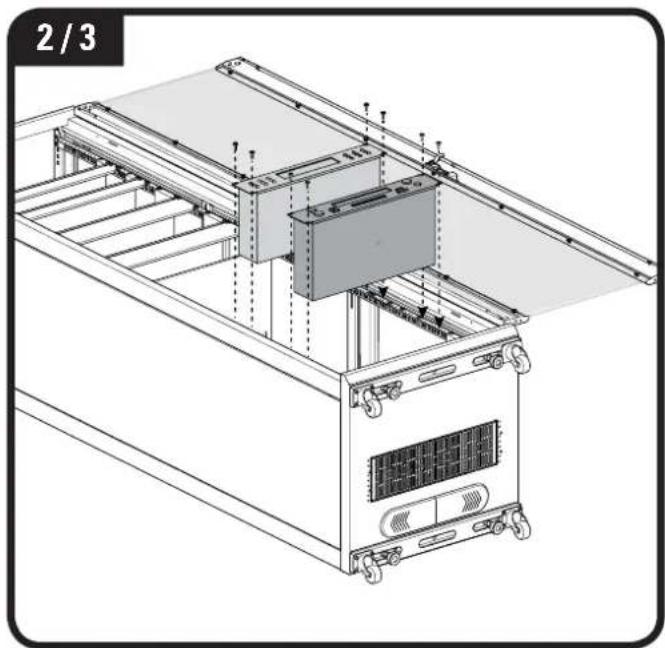

- Follow these additional requirements when loading rack on its back and then lifting rack to an upright position:

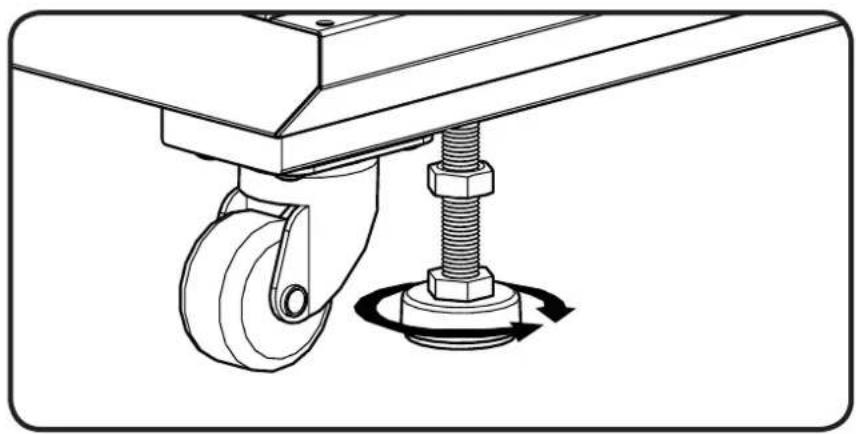

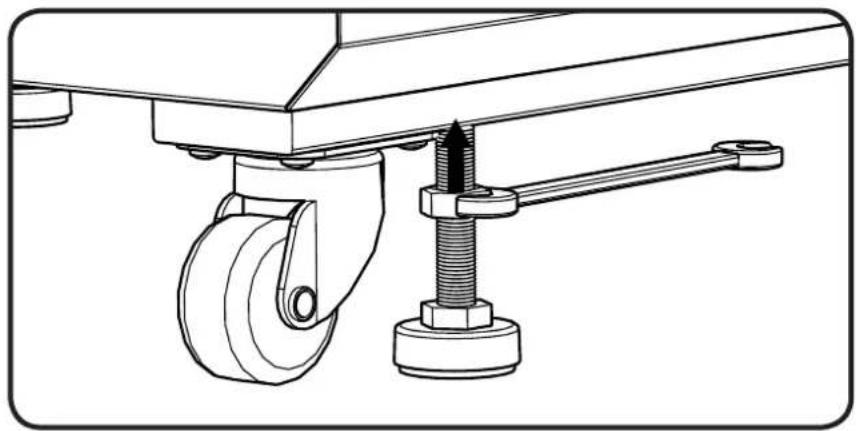

1. Leveling feet, if installed, need to be adjusted all the way in.
2. You must not load more than 20% of the total rated load prior to lifting rack to upright position.
3. All equipment should be securely fastened to the rack.
4. Use caution when lifting rack to upright position as casters may roll. Assistance is required.

Mechanical device diagram showing a wheel and base with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a server rack unit with mounting hardware and ventilation system (no text or symbols)

Using Backstops and Component Straps

Rack Shelf Backstops

NOTE: rear view with back panels removed.

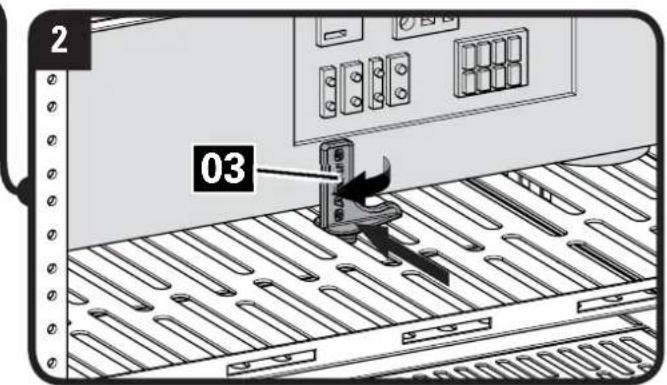

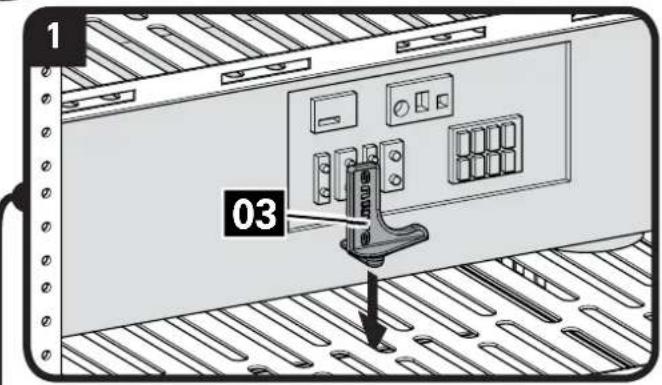

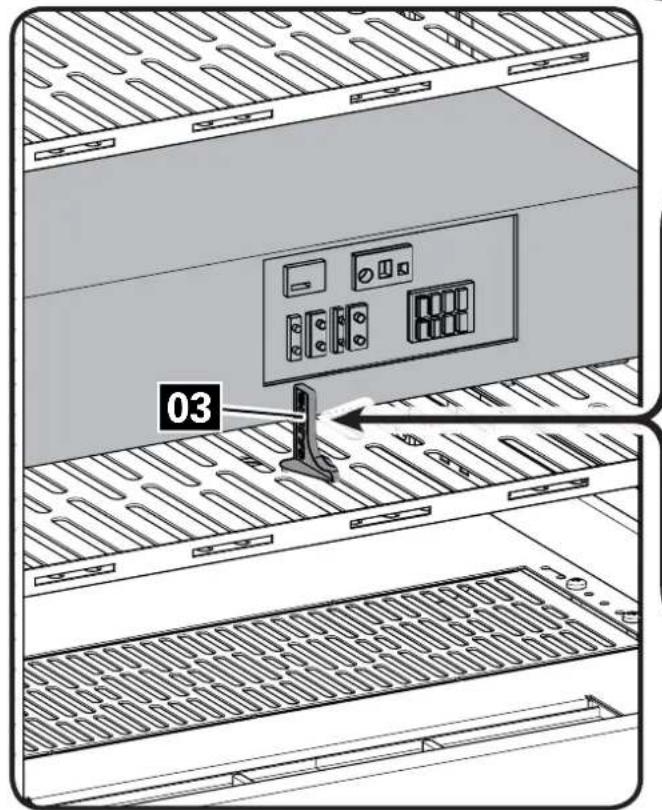

1. Insert backstop 03 into slot behind component.
2. Slide backstop 03 forward until firmly against component and twist 90 degrees.

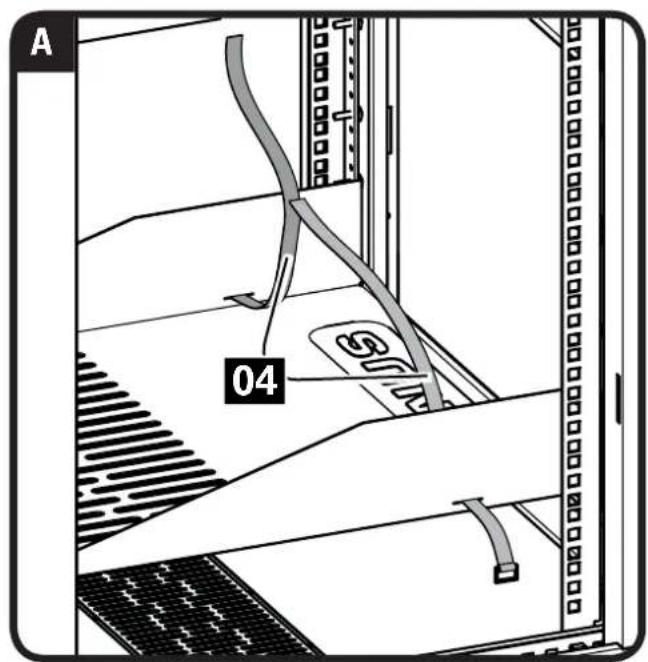

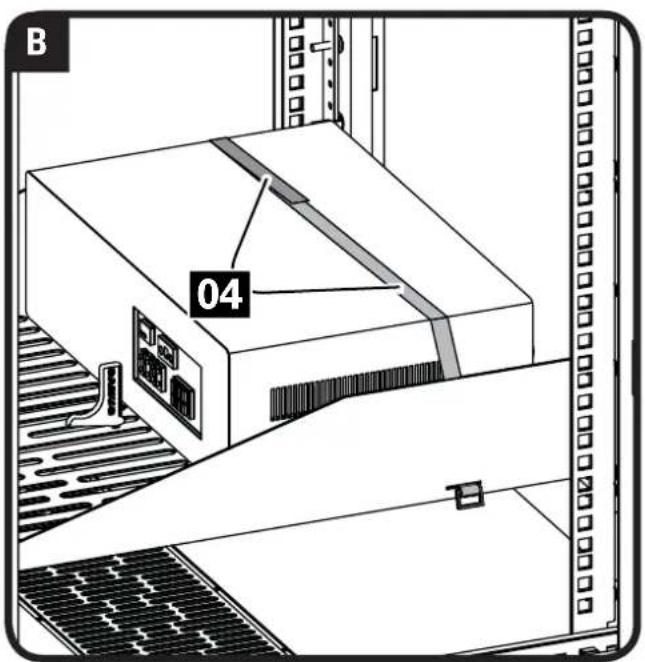

Component Straps

NOTE: side view with panels removed.

A. Slide straps 04 through slots in sides of shelves.
B. Wrap straps 04 over component to secure.

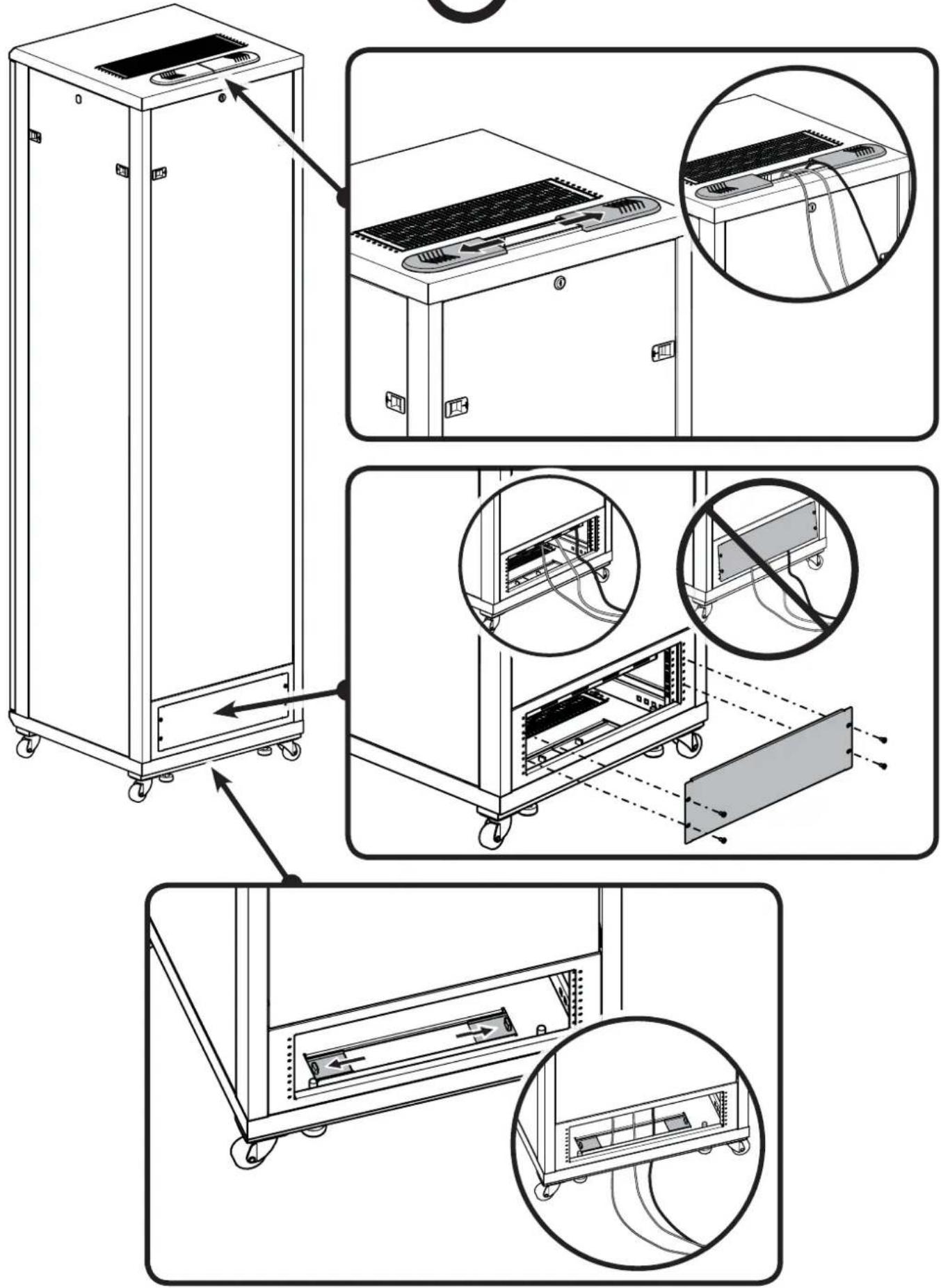

Access Panels for Cable Management

Install Fan for Additional Ventilation (Top or Bottom)

CAUTION: Avoid damage to your components due to overheating. Make sure that there is adequate space between each unit for proper airflow. Operating temperature inside the rack must not exceed 104°F (40°C).

To install fan:

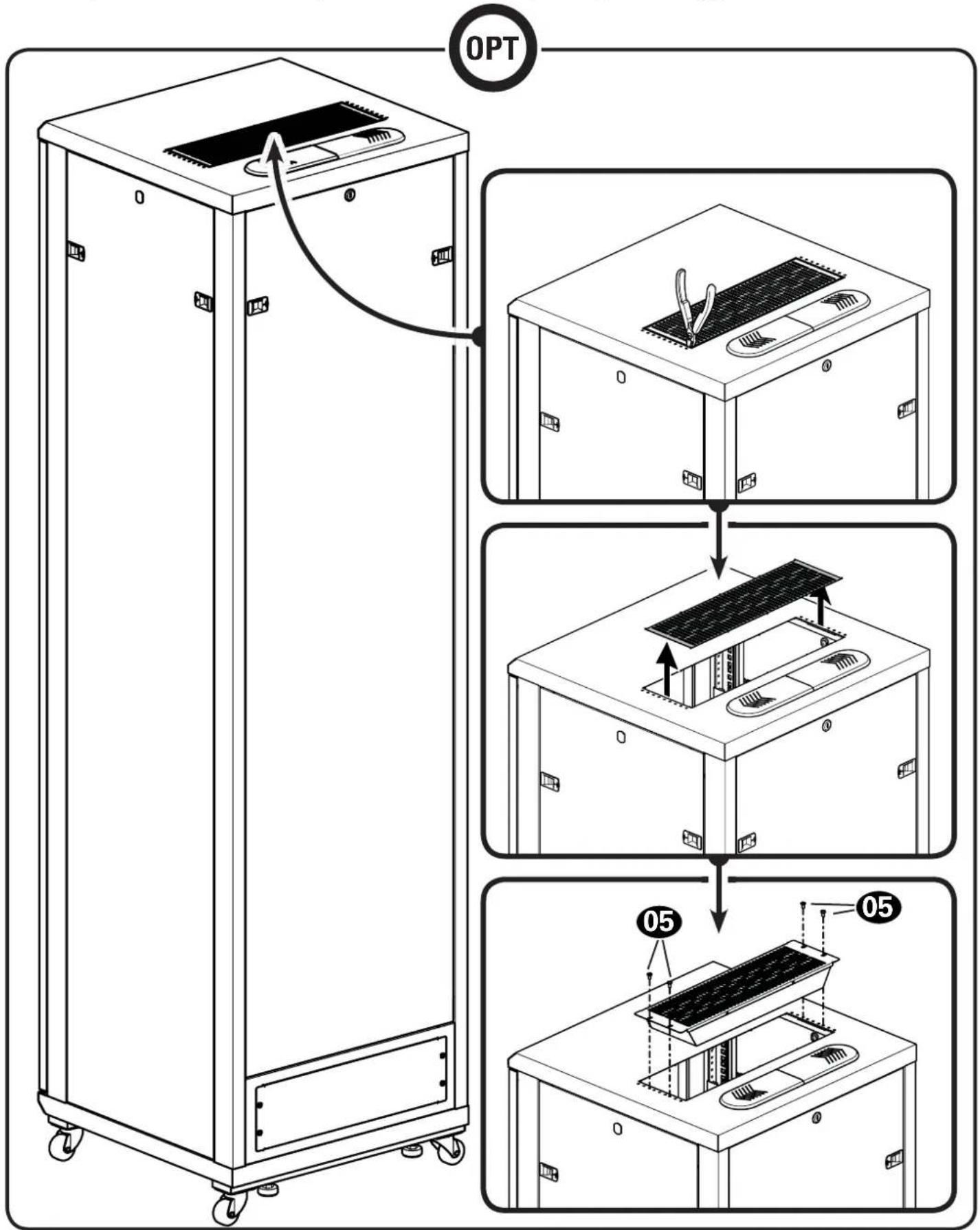

Remove the vented panel. ▲ CAUTION: Cut edges may be sharp.

Remove any metal burrs that remain in the panel frame. Mount the cooling fan using the screws 05 included.

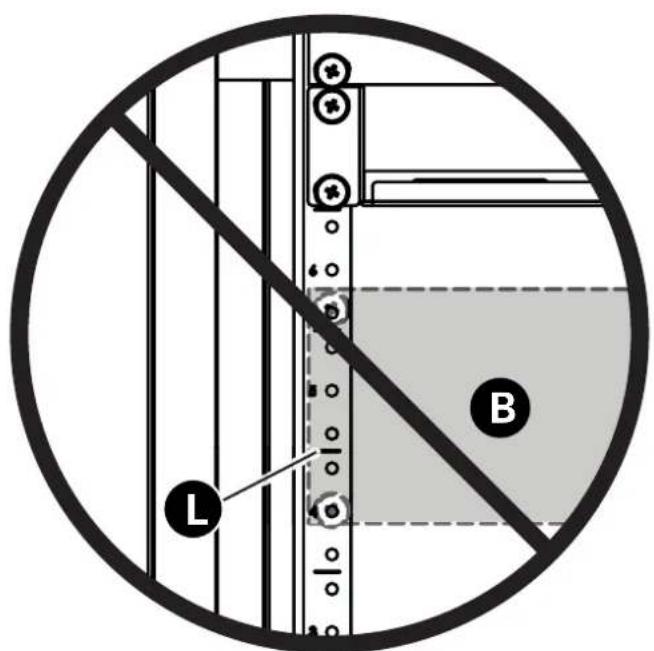

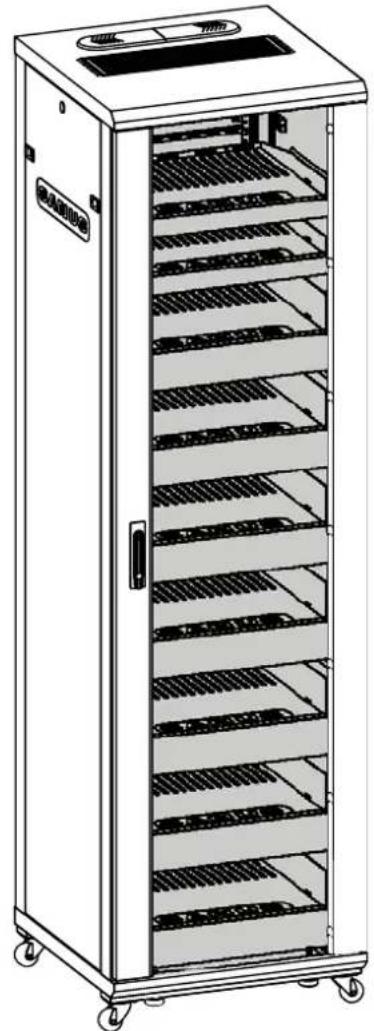

Adjust Shelves and Blanking Panels

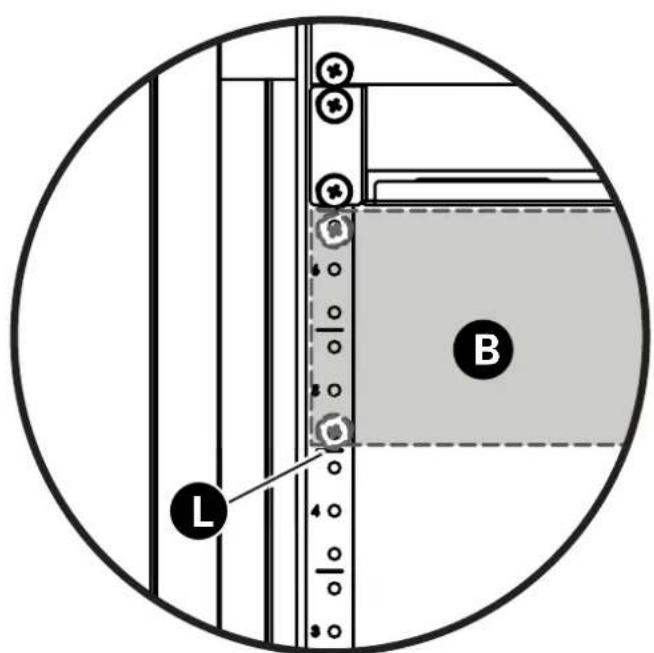

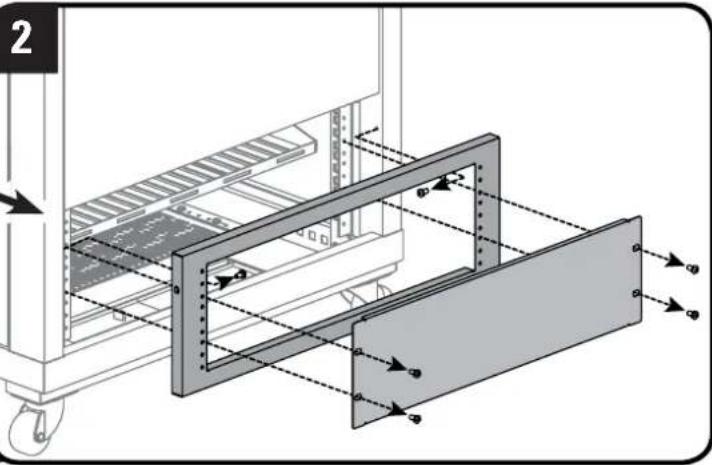

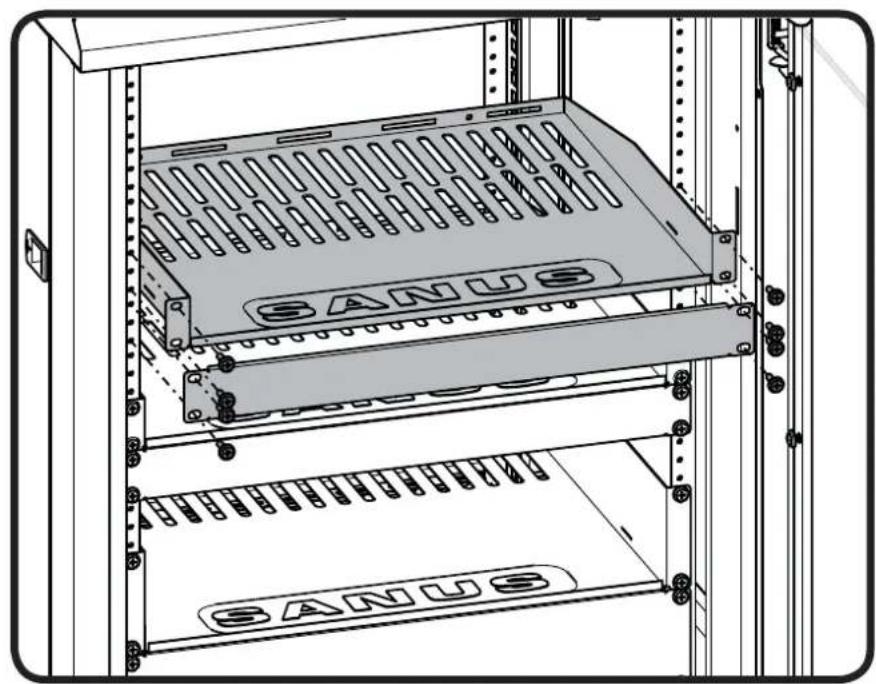

NOTE: Align the bottom of the shelf or blanking panel B with the lines L on the rack rail.

Line drawing of a multi-tiered stainless steel kitchen cabinet with shelves and wheels (no text or symbols)

Technical line drawing of a server rack with labeled 'SANUS' panels and mounting holes (no text or symbols beyond branding)

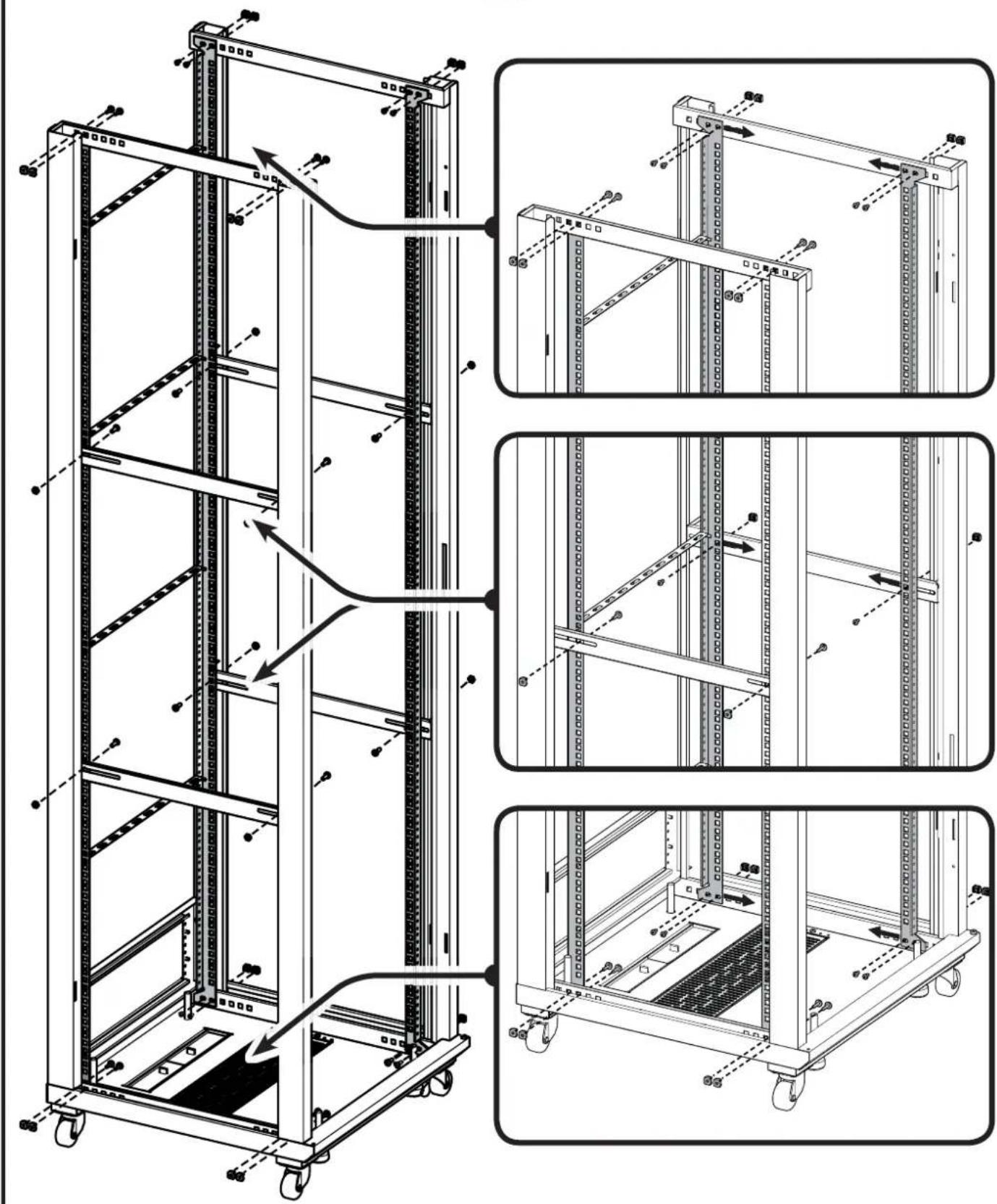

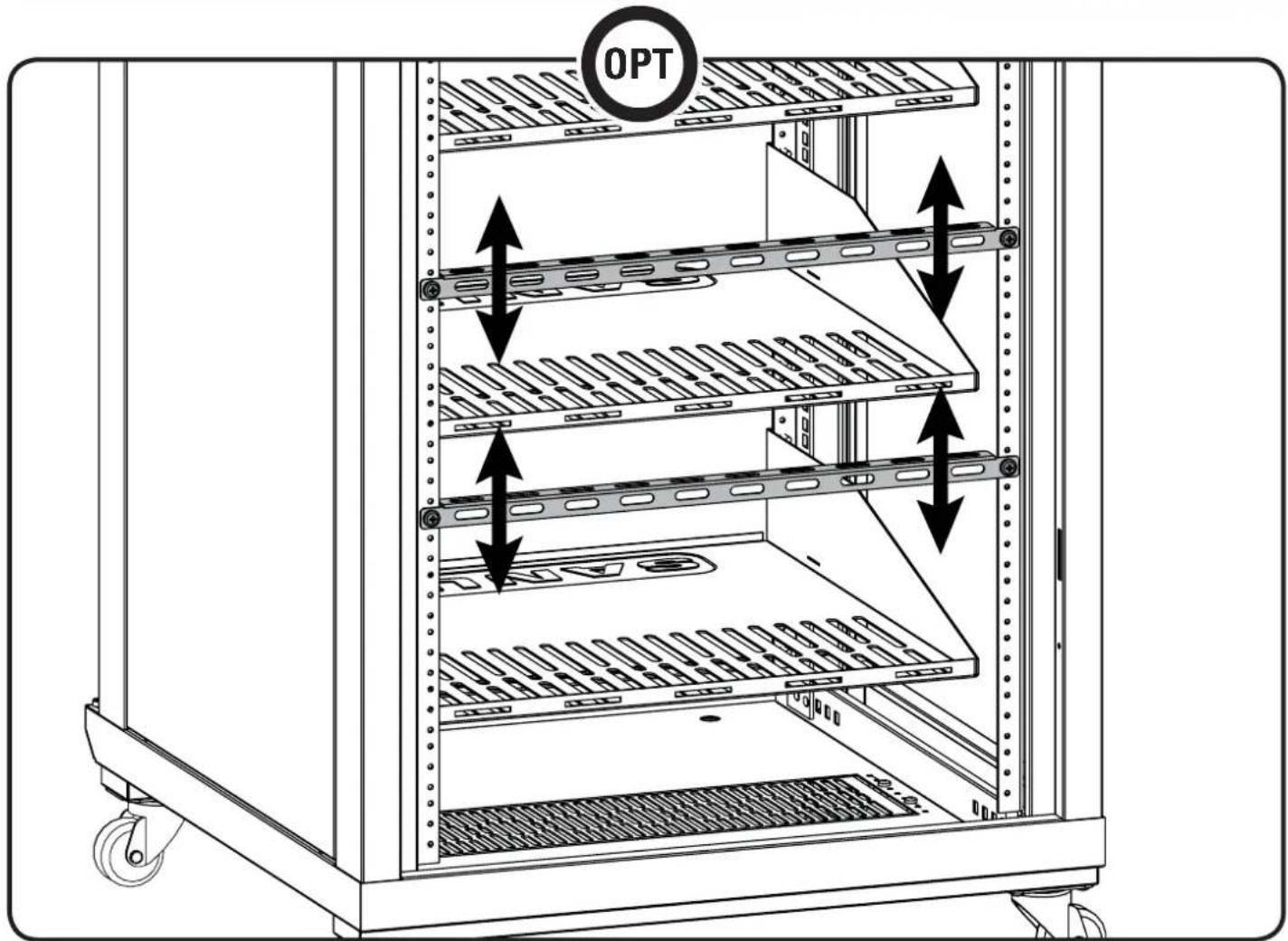

Adjust Rack Rails

Remove the shelves and blanking panels before adjusting the rails. Adjust the right and left rails evenly.

NOTE: For clarity, the front door, top, and side panels are not shown.

OPT

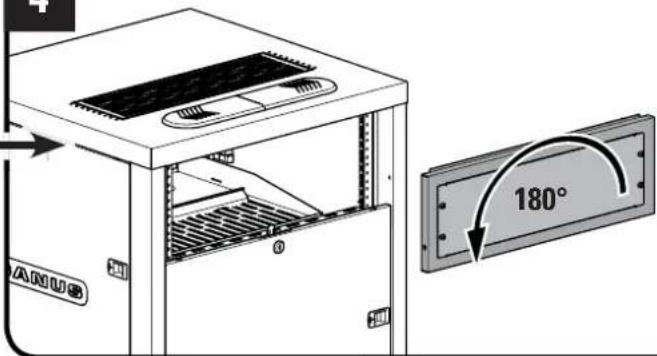

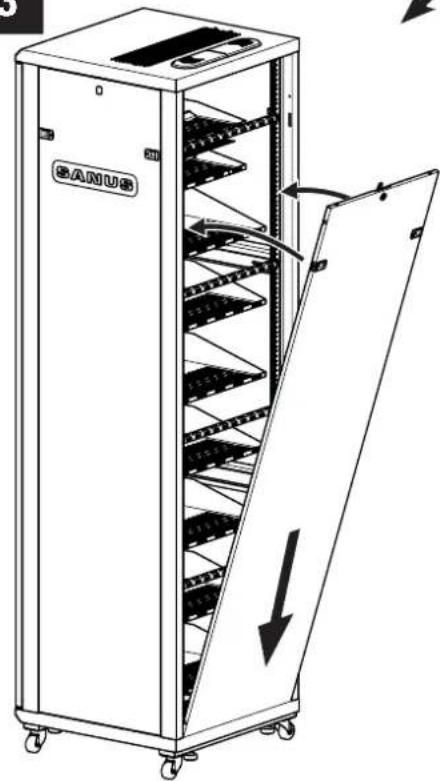

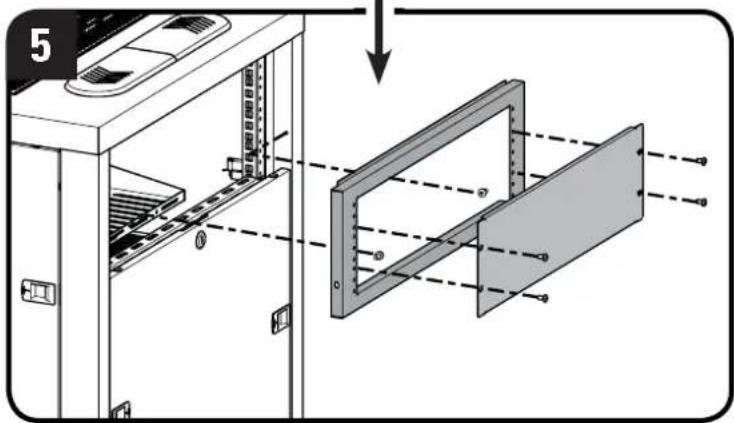

1. Remove large upper panel.
2. Remove small lower panel and frame.
3. Fit bottom of large panel into rack frame and angle the panel up until sliding locks snap in place.
4. Flip small panel 180 degrees.
5. Screw panel frame into rack frame and replace small panel.

Technical diagram of a mechanical assembly with labeled components and directional arrows (no text or symbols present)

3

Line drawing of a BANUS industrial machine with internal rack structure and open door (no text or symbols)

4

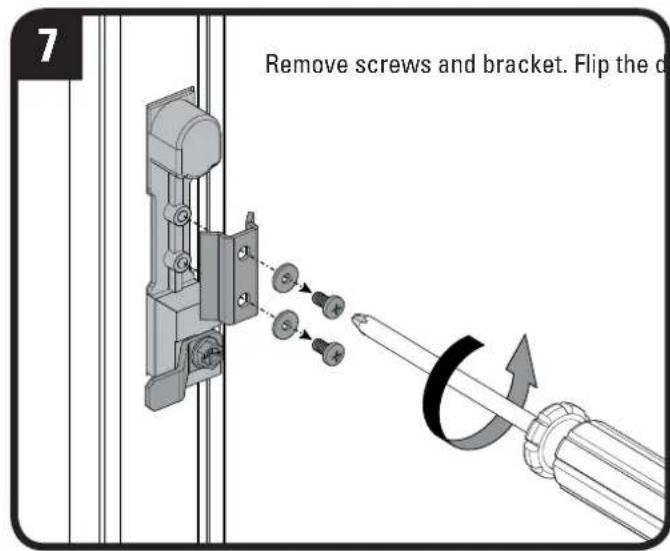

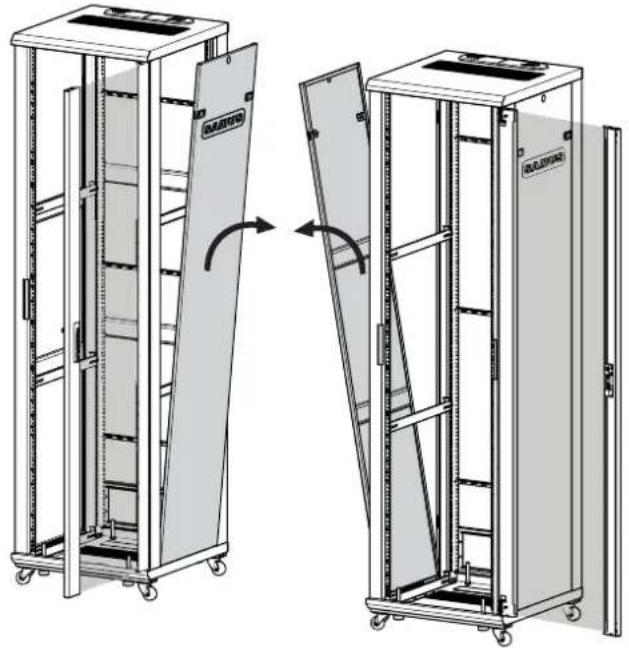

Reverse the Front Door

Remove the door

OPT

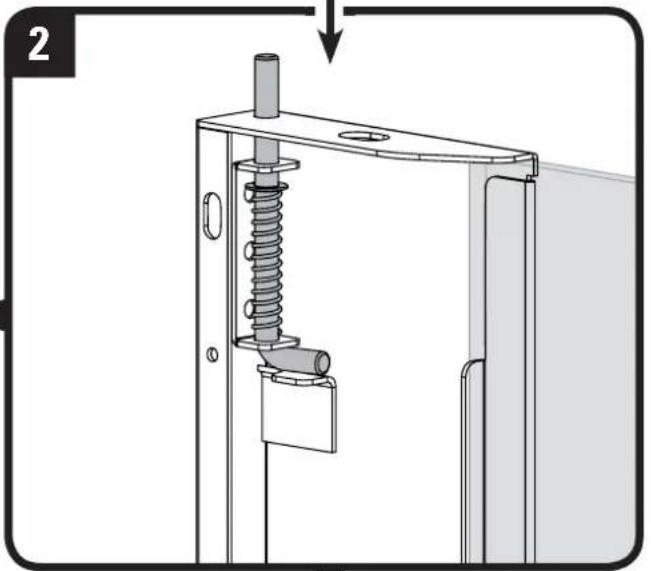

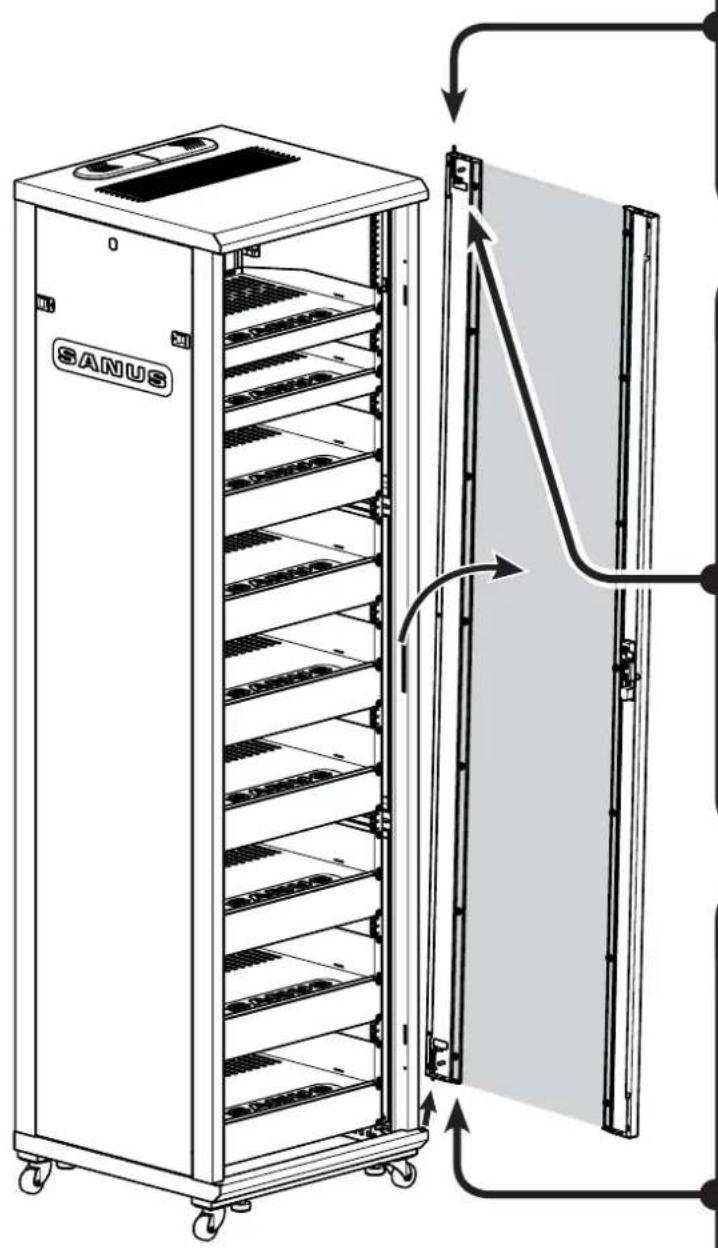

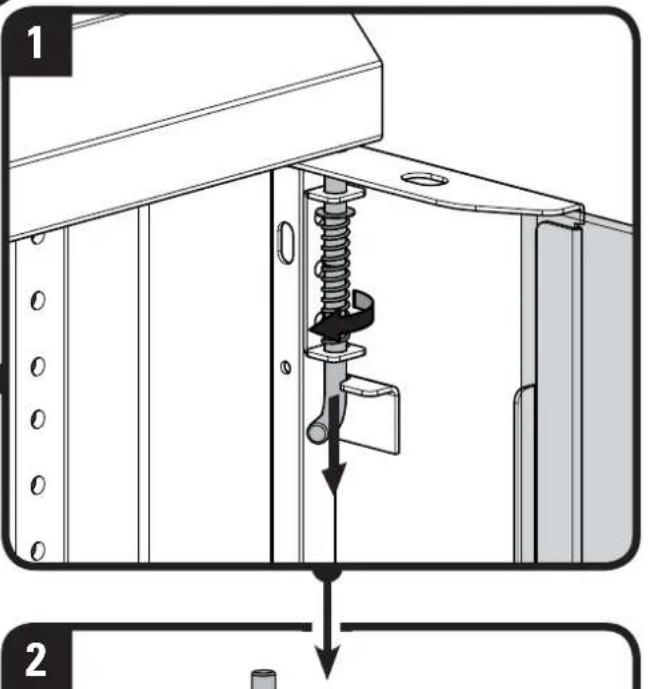

1. Turn upper door pin to release from locking tab and pull down to release door from rack and lift door from rack frame.
2. Release upper pin and turn it back to secure it with the locking tab.

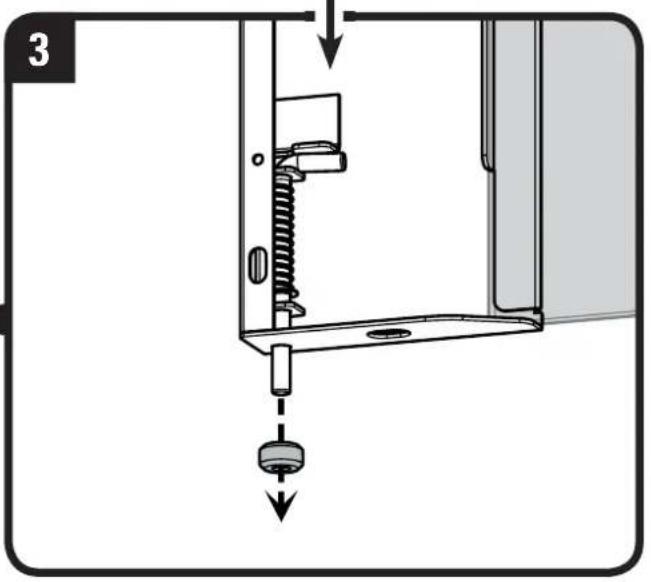

3. Remove spacer from bottom door pin.

NOTE: Spacer must be used with pin on bottom of door.

Mechanical assembly diagram showing a spring-loaded mechanism with a cylindrical component inserted into a frame (no text or symbols)

Reverse the Front Door - continued

Flip the door

    G["4: Spring assembly with spring"] --> H["5: Lock assembly with spring"]
    H --> I["6: Lock assembly with spring"]

    J["4: Spring assembly with spring"] --> K["5: Lock assembly with spring"]
    K --> L["6: Lock assembly with spring"]

    M["4: Spring assembly with spring"] --> N["5: Lock assembly with spring"]
    N --> O["6: Lock assembly with spring"]

    P["4: Spring assembly with spring"] --> Q["5: Lock assembly with spring"]
    Q --> R["6: Lock assembly with spring"]

    S["4: Spring assembly with spring"] --> T["5: Lock assembly with spring"]
    T --> U["6: Lock assembly with spring"]

    V["4: Spring assembly with spring"] --> W["5: Lock assembly with spring"]
    W --> X["6: Lock assembly with spring"]

    Y["4: Spring assembly with spring"] --> Z["5: Lock assembly with spring"]
    Z --> AA["6: Lock assembly with spring"]

    AB["4: Spring assembly with spring"] --> AC["5: Lock assembly with spring"]
    AC --> AD["6: Lock assembly with spring"]

    AE["4: Spring assembly with spring"] --> AF["5: Lock assembly with spring"]
    AF --> AG["6: Lock assembly with spring"]

    AH["4: Spring assembly with spring"] --> AI["5: Lock assembly with spring"]
    AI --> AJ["6: Lock assembly with spring"]

    AK["4: Spring assembly with spring"] --> AL["5: Lock assembly with spring"]
    AL --> AM["6: Lock assembly with spring"]

    AN["4: Spring assembly with spring"] --> AO["5: Lock assembly with spring"]
    AO --> AP["6: Lock assembly with spring"]

    AQ["4: Spring assembly with spring"] --> AR["5: Lock assembly with spring"]
    AR --> AS["6: Lock assembly with spring"]

    AT["4: Spring assembly with spring"] --> AU["5: Lock assembly with spring"]
    AU --> AV["6: Lock assembly with spring"]

    AW["4: Spring assembly with spring"] --> AX["5: Lock assembly with spring"]
    AX --> AY["6: Lock assembly with spring"]

    AZ["4: Spring assembly with spring"] --> BA["5: Lock assembly with spring"]
    BA --> BB["6: Lock assembly with spring"]

    BC["4: Spring assembly with spring"] --> BD["5: Lock assembly with spring"]
    BD --> BE["6: Lock assembly with spring"]

    BF["4: Spring assembly with spring"] --> BG["5: Lock assembly with spring"]
    BG --> BH["6: Lock assembly with spring"]

    BI["4: Spring assembly with spring"] --> BJ["5: Lock assembly with spring"]
    BJ --> BK["6: Lock assembly with spring"]

    BL["4: Spring assembly with spring"] --> BM["5: Lock assembly with spring"]
    BM --> BN["6: Lock assembly with spring"]

    BO["4: Spring assembly with spring"] --> BP["5: Lock assembly with spring"]
    BP --> BQ["6: Lock assembly with spring"]

    BR["4: Spring assembly with spring"] --> BS["5: Lock assembly with spring"]
    BS --> BT["6: Lock assembly with spring"]

    BU["4: Spring assembly with spring"] --> BV["5: Lock assembly with spring"]
    BV --> BW["6: Lock assembly with spring"]

    BX["4: Spring assembly with spring"] --> BY["5: Lock assembly with spring"]
    BY --> BZ["6: Lock assembly with spring"]

    CA["4: Spring assembly with spring"] --> CB["5: Lock assembly with spring"]
    CB --> CC["6: Lock assembly with spring"]

    DA["4: Spring assembly with spring"] --> DB["5: Lock assembly with spring"]
    DB --> DC["6: Lock assembly with spring"]

    DD["4: Spring assembly with spring"] --> DE["5: Lock assembly with spring"]
    DE --> DF["6: Lock assembly with spring"]

    DG["4: Spring assembly with spring"] --> DH["5: Lock assembly with spring"]
    DH --> DI["6: Lock assembly with spring"]

    DJ["4: Spring assembly with spring"] --> DE
    DJ --> DV
    DV --> DW

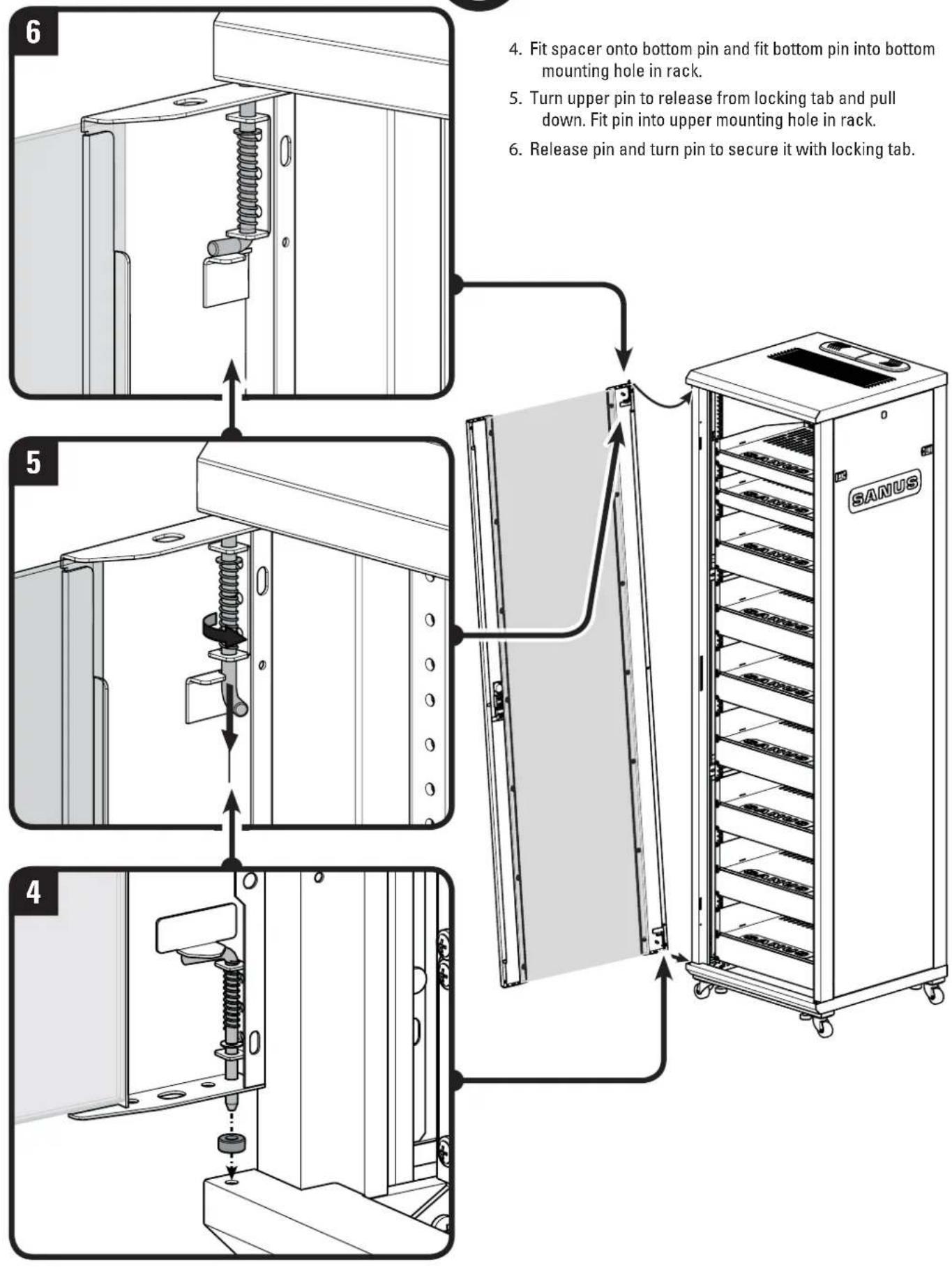

1. Fit spacer onto bottom pin and fit bottom pin into bottom mounting hole in rack.
2. Turn upper pin to release from locking tab and pull down. Fit pin into upper mounting hole in rack.
3. Release pin and turn pin to secure it with locking tab.

Reverse the Front Door - continued

Flip the door

OPT

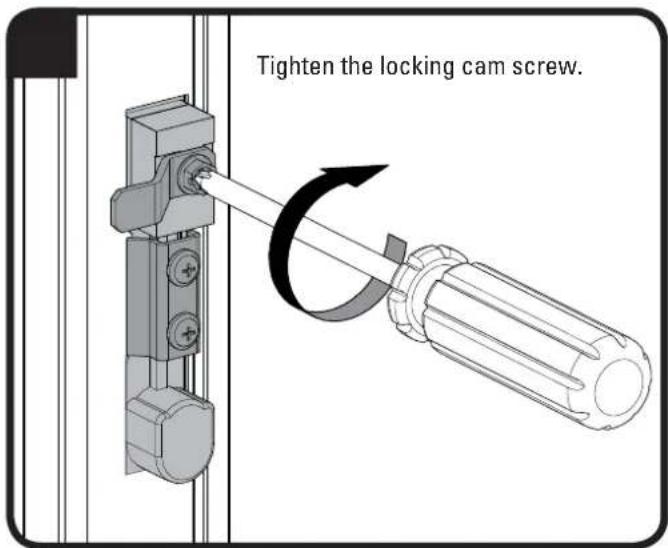

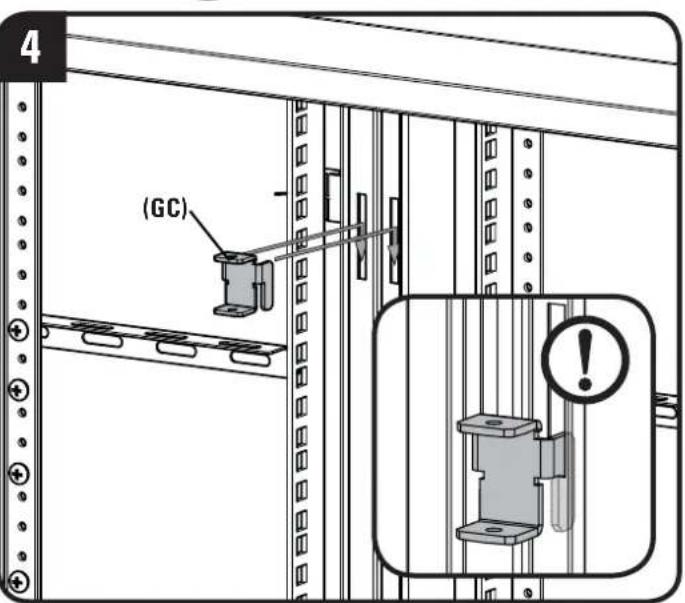

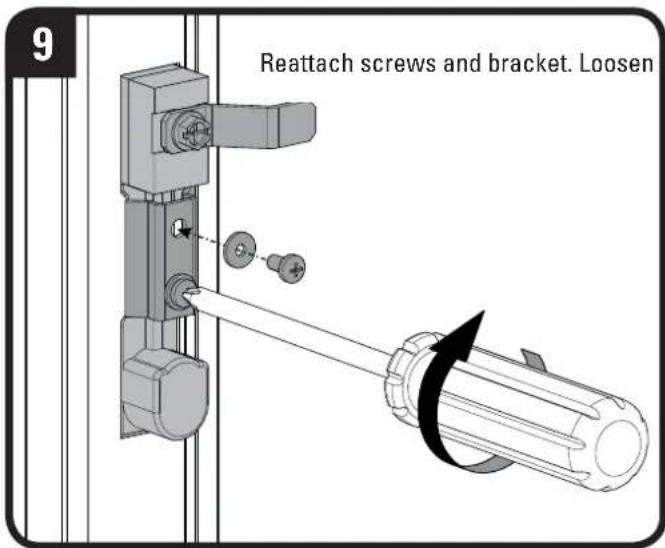

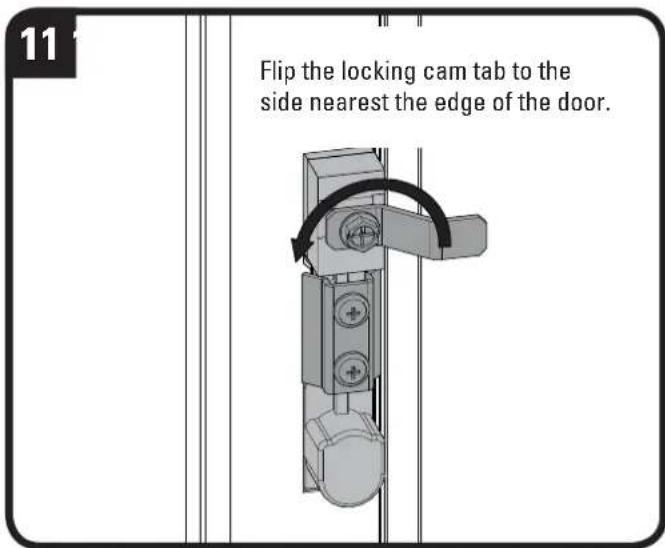

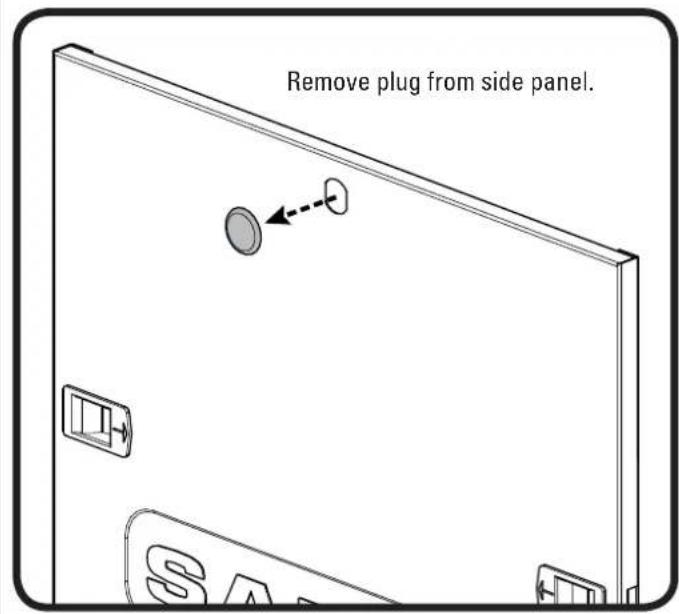

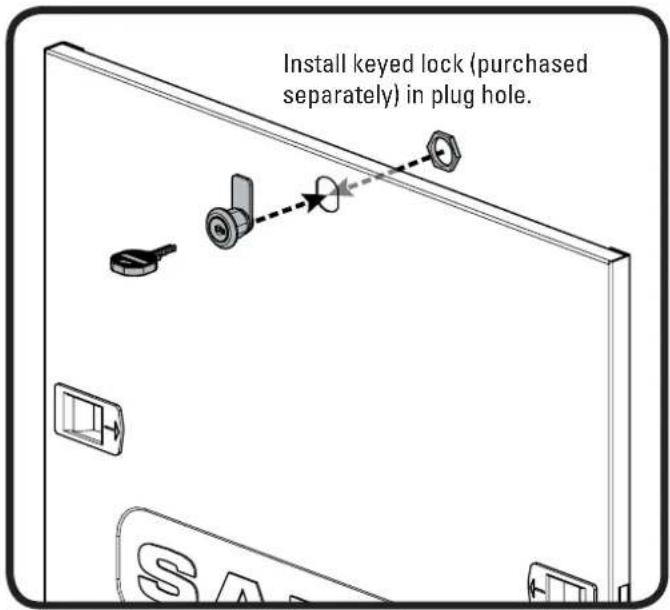

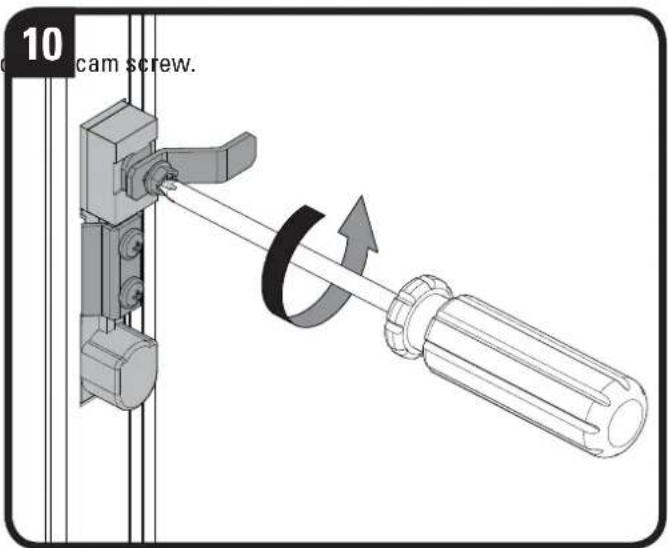

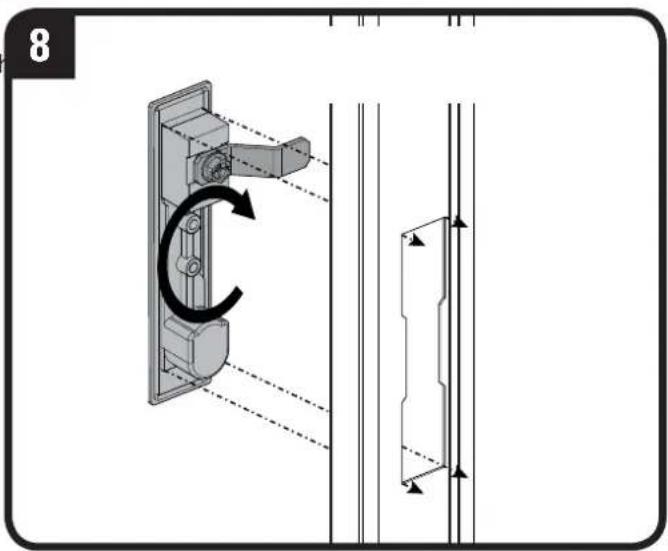

Add Keyed Lock to Door (Sold Separately)

OPT

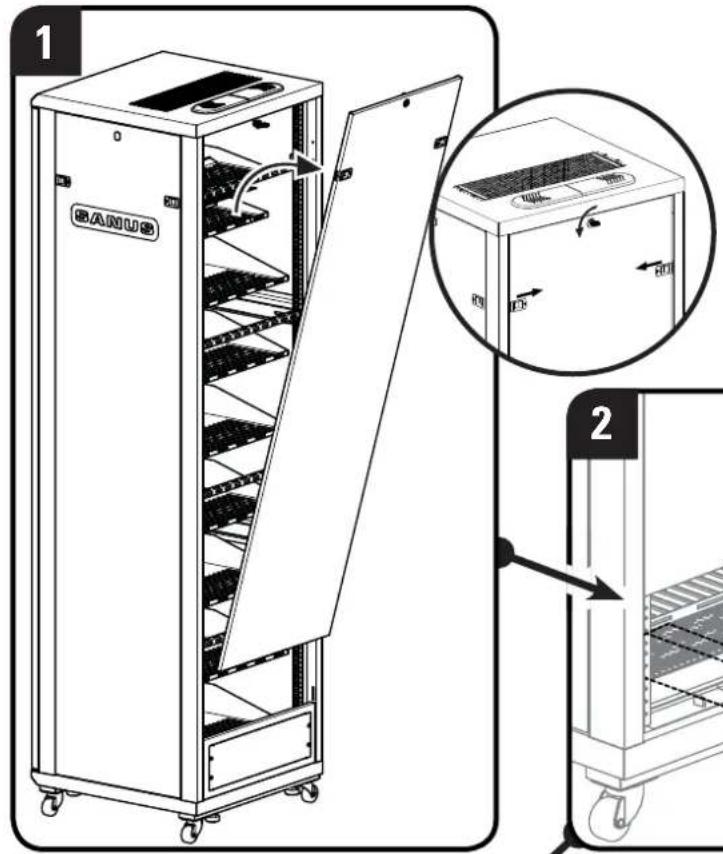

Manage Cables

OPT

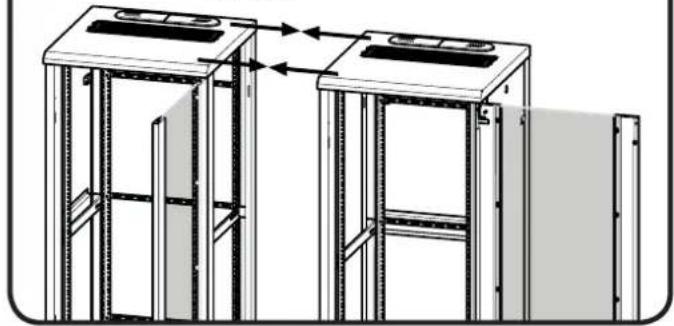

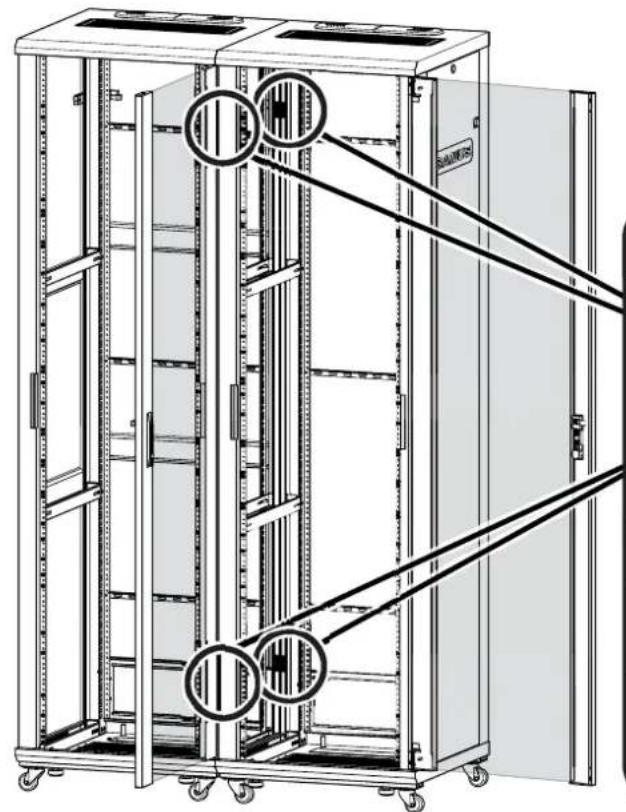

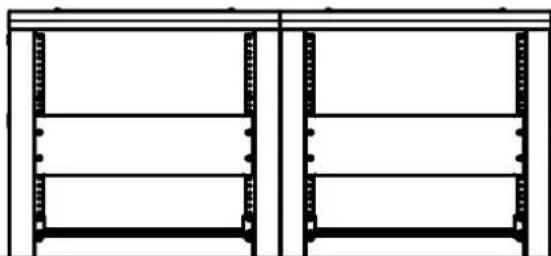

Ganging Racks (Ganging Kit Sold Separately)

OPT

1
Remove side panels on sides to be connected.

Technical line drawing of two modular server racks with doors open, showing structural changes (no text or symbols)

2
Move racks together until sides are touching.

Technical line drawing of two identical mechanical or architectural frame structures with vertical supports and horizontal beams, no text or symbols present.

3

IMPORTANT

Make sure both racks are level with each other.

Pure architectural line drawing of two identical rectangular metal frame structures without any text, labels, or symbols.

Technical line drawing of a multi-level server rack cabinet with mounting holes and diagonal railings (no text or symbols)

Fit four ganging clips (GC) into frame slots. Press down on clips to secure.
IMPORTANT

Make sure all four ganging clips are fully engaged.

OPT

Adjust the feet to level the rack. Tighten nuts until they are flush with the bottom of the rack.

CAUTION: To avoid potential injury or property damage, always ensure that your rack is level.

Technical line drawing of a mechanical lift with a spring and bolt, showing rotational motion (no text or symbols)

Technical line drawing of a mechanical assembly with wheels and a bolted joint (no text or symbols)

Technical line drawing of a mechanical support frame with wheels, springs, and three circular components (no text or symbols)

Ajustar as prateleiras e os painéis cegos

ver página 9

Ajustar as calhas do bastidor

ver página 10

Thank you for choosing Sanus! Please take a moment to let us know how we did:

Call us: 1-800-359-5520

UK: 0800 056 2853

Email us: [e-mail]

Leave a review: sanus.com

Milestone AV Technologies and its affiliated corporations and subsidiaries (collectively, "Milestone"), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions, or variations. Nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.

©2014 Milestone AV Technologies. All rights reserved. Sanus is a division of Milestone.

All other brand names or marks are used for identification purposes and are trademarks of their respective owners.
