USER MANUAL CADENZA53 SANUS

Cadenza 53 Audio Tower Instruction Manual We’ll Make It Stress-Free If you have any questions along the way, just give us a call. 1-800-359-5520. We’re ready to help!2 IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE Weight Limits Cautions and Care CARE INSTRUCTIONS For wood with a natural fi nish, dust regularly with a soft dry cloth. When needed, wipe with a clean, damp, cloth and wipe dry. CAUTION: Avoid potential personal injuries and property damage! Serious or fatal crushing injuries can occur from furniture failure. To prevent failure:

• This product is designed to support audio/video equipment.

• Do not exceed rated weight limits.

• Do not shake, tilt, rock, sit, stand, or climb on the cabinet. Tipping may cause injury or death.

• Do not move unit by yourself: due to weight and height, assistance is required.

• Do not place TV or equipment on the top of the unit.

• Place heaviest items in the lowest shelves.

• To prevent tipping, always load the rack from the bottom up, and load the heaviest items in the rack fi rst.

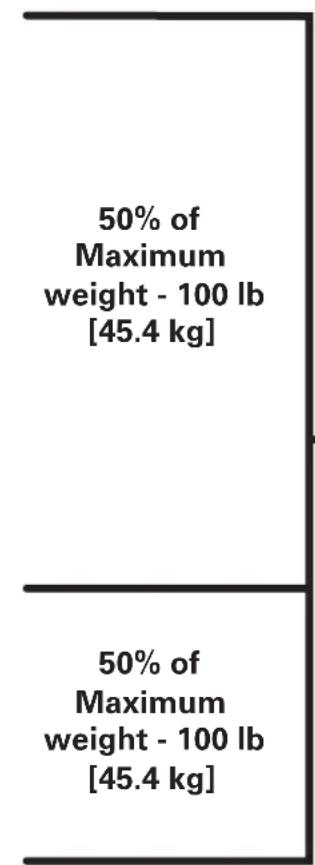

• 50% of the total weight should be mounted in the lower 1/3 of the unit.

• Never allow children to climb or hang on shelves or doors.

• Always unload furniture before moving.

• Use of anti-tip restraints may only reduce, but not eliminate, the risk of failure.

• Do not use this product for any purpose not explicitly specifi ed by manufacturer.

• If you do not understand these instructions, or have doubts about the safety of the installation, assembly or use of this product, contact Customer Service or call a qualifi ed contractor.

• Manufacturer is not responsible for damage or injury caused by incorrect assembly or use. 50% of Maximum weight - 100 lb [45.4 kg] 50% of Maximum weight - 100 lb [45.4 kg] Total Weight 200 lb

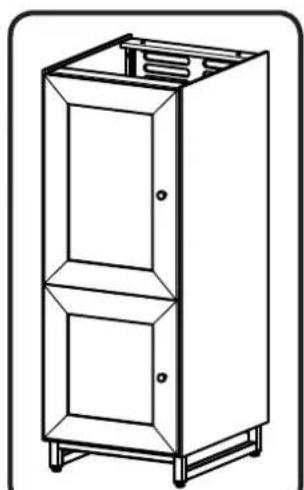

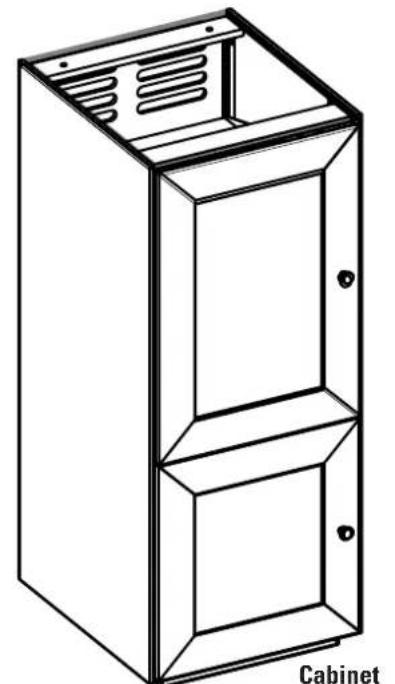

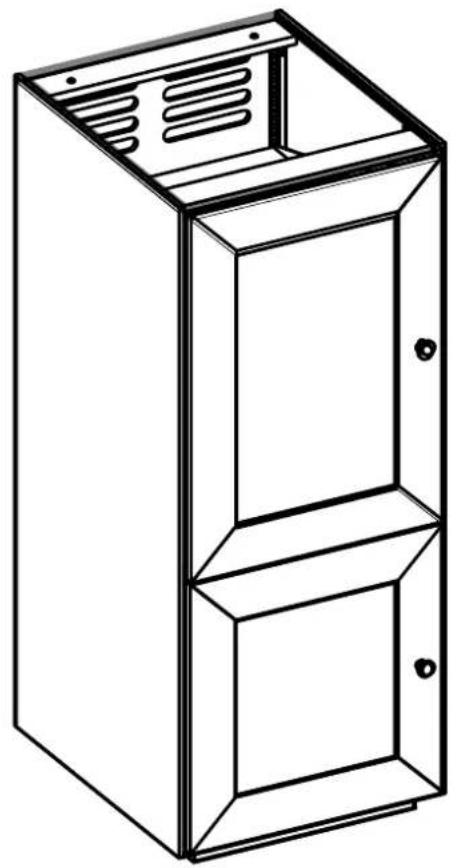

Required Tools Supplied Parts and Hardware

WARNING: This product contains small items that could be a choking hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts!

Screen Panel #8 x 3/4 in. #8 x 1½ in.

• WARNING: This product contains a magnet. If an implanted medical device such as a pacemaker or implantable cardioverter defi brillator (ICD) is in use, magnetic fi elds may a ect the operation of those devices, resulting in serious injury or death. If you have an implanted medical device, keep at least 13 cm (5 in.) between your device and the magnet. Please consult with your physician or medical professional prior to using this product. CAUTION: Avoid potential personal injuries and property damage!

• Tempered glass has been chosen for this product because of its strength and safety characteristics. However, tempered glass should still be handled with care to avoid possible property damage or personal injury.

• Mishandling during shipping, assembly, or use may result in damage that can weaken the tempered glass.

• Periodically check the glass to look for chips, cracks, or deep scratches.

• If chips, cracks, or deep scratches are found, discontinue use and contact customer service. M6 x 10mm

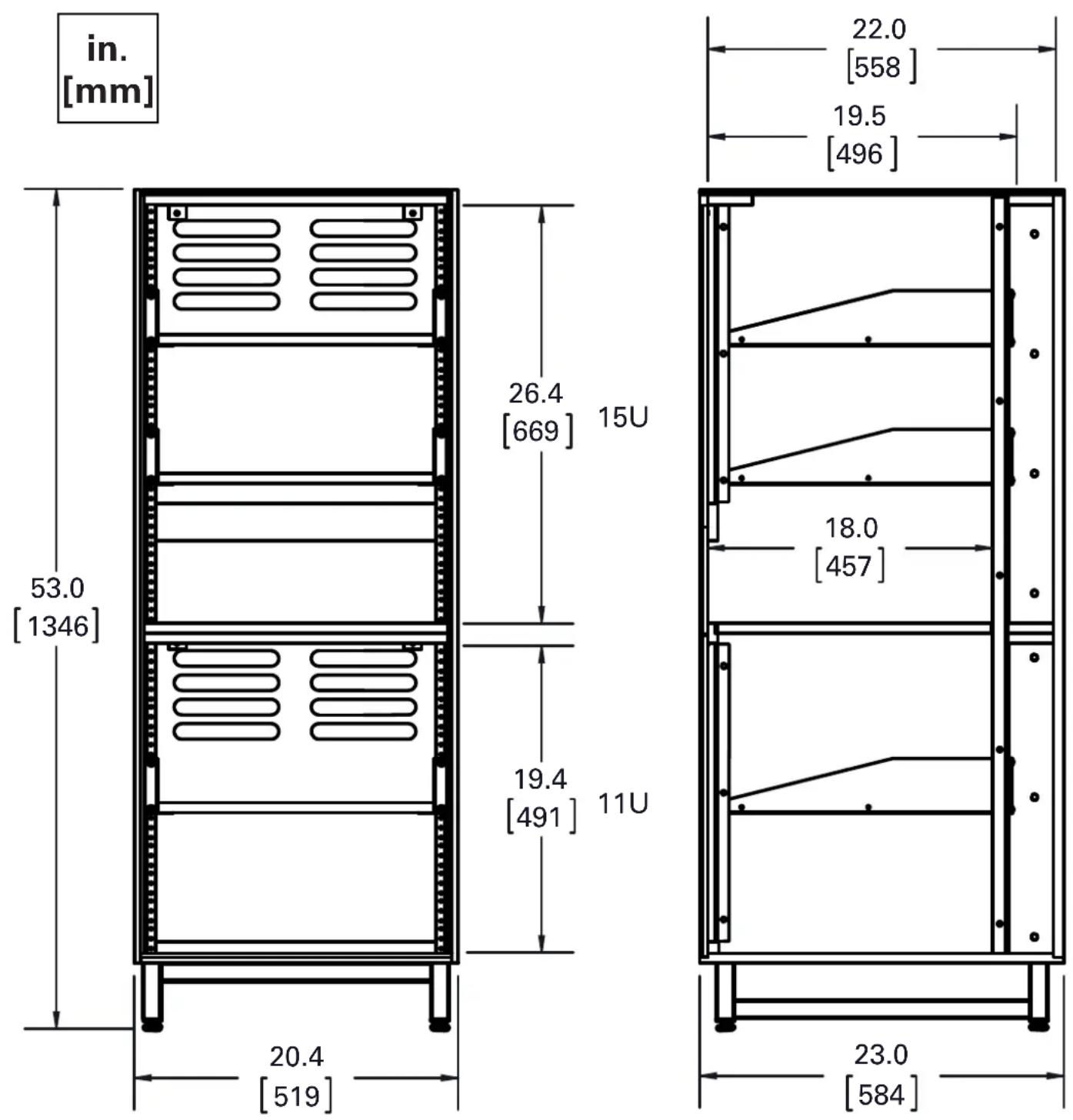

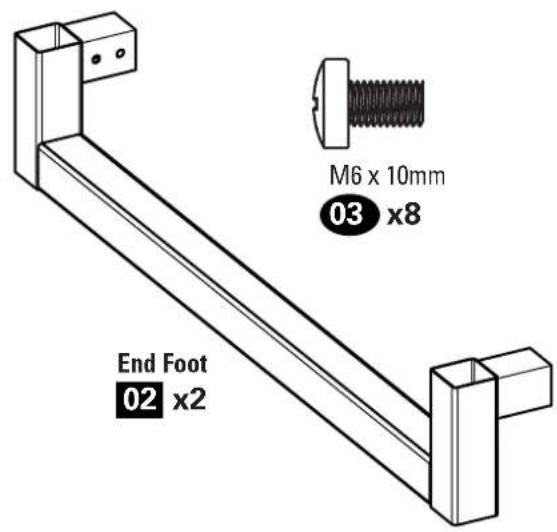

in. [mm]5 Parts and Hardware for STEP 1 Option 1 1 Feet M6 x 10mm

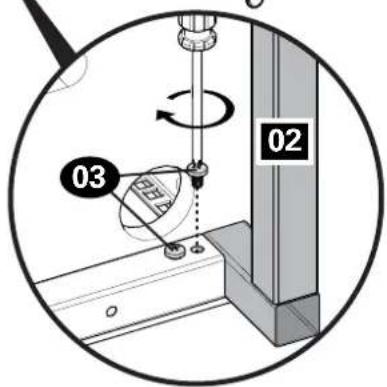

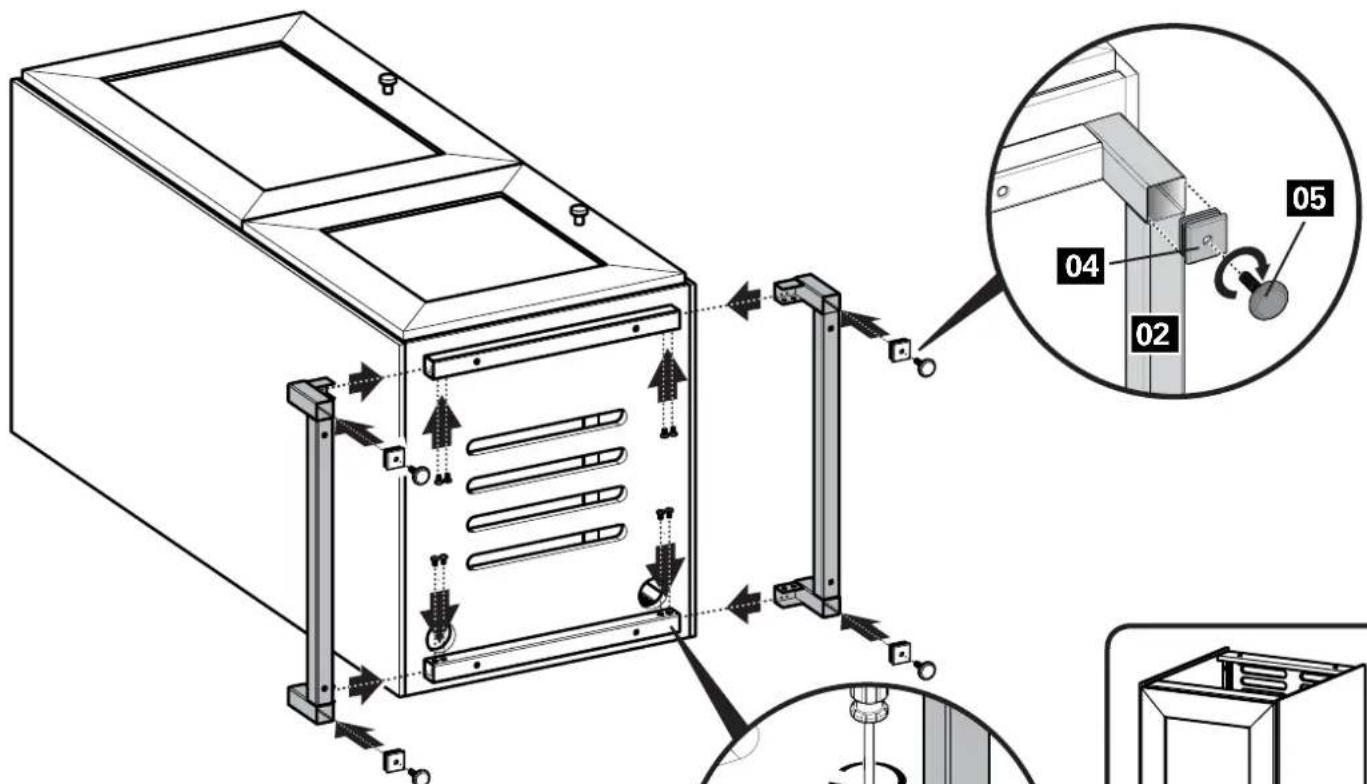

Carefully lift the tower and lay it on its back onto a protective surface.Slide the end feet into the square tubing and secure using eight end foot screws

Press the end caps into the end feet

Screw adjustable feet into caps

Carefully lift and set the tower

upright on its feet. Make sure tower is level.

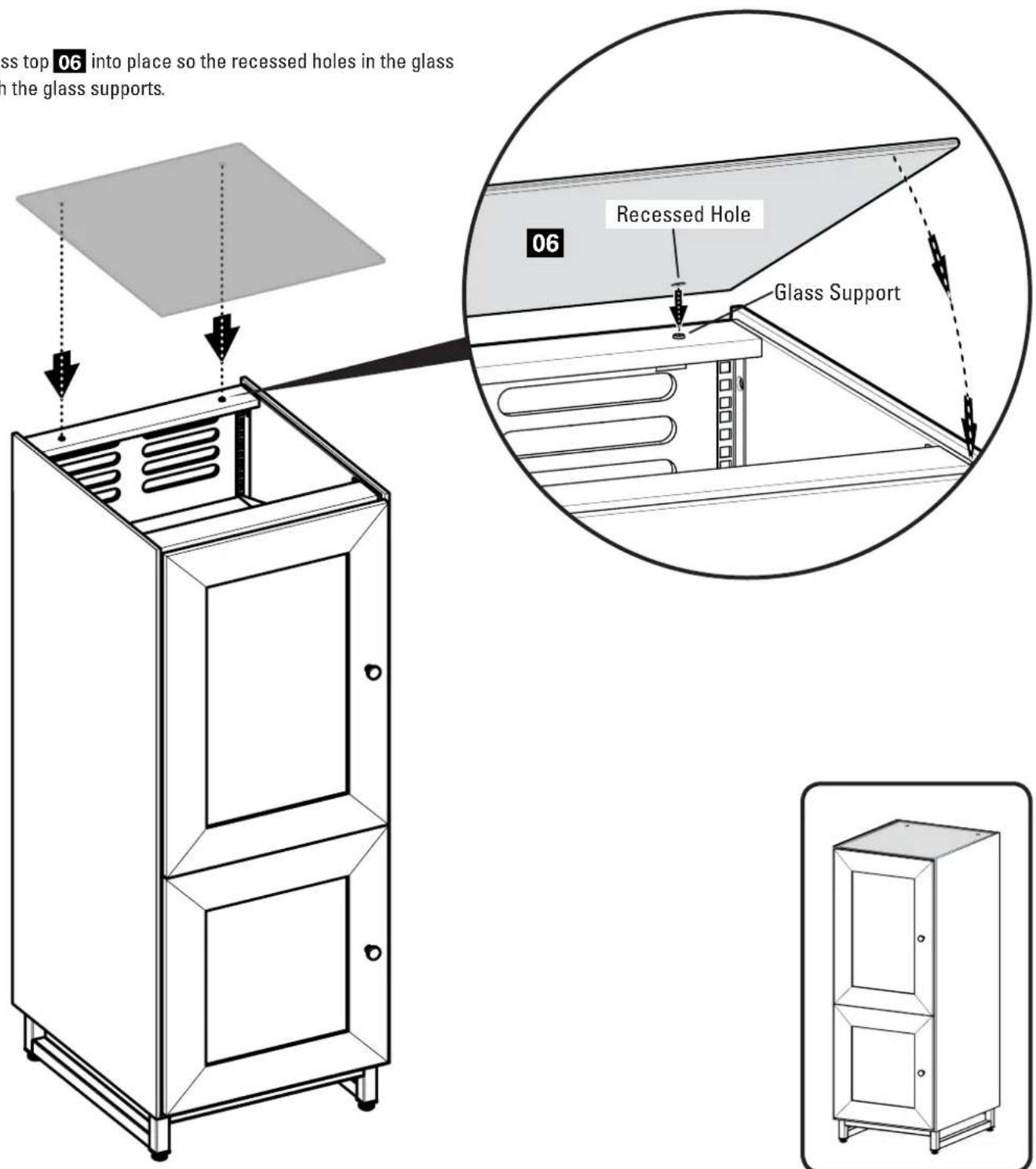

into place so the recessed holes in the glass line up with the glass supports

Recessed Hole Glass Support

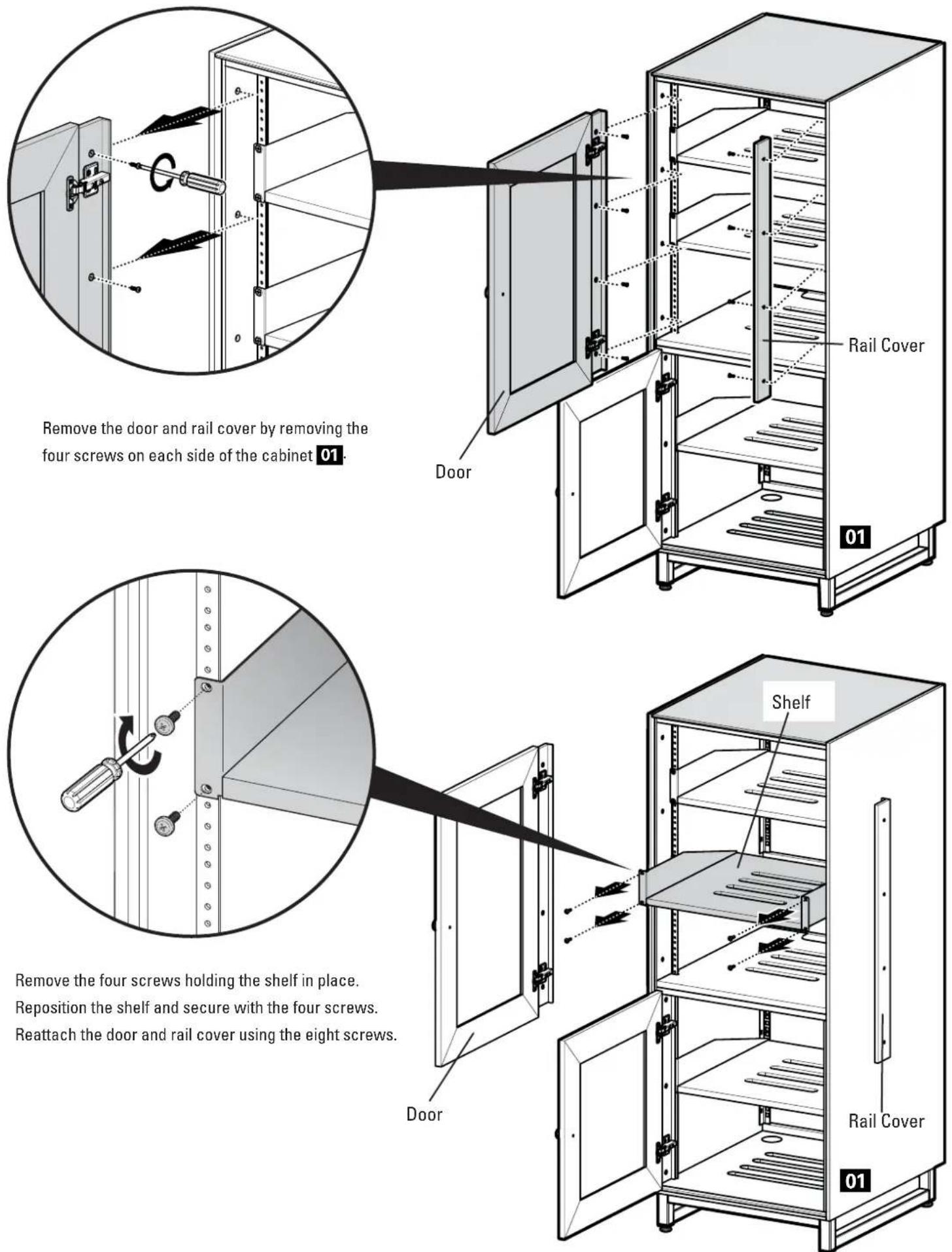

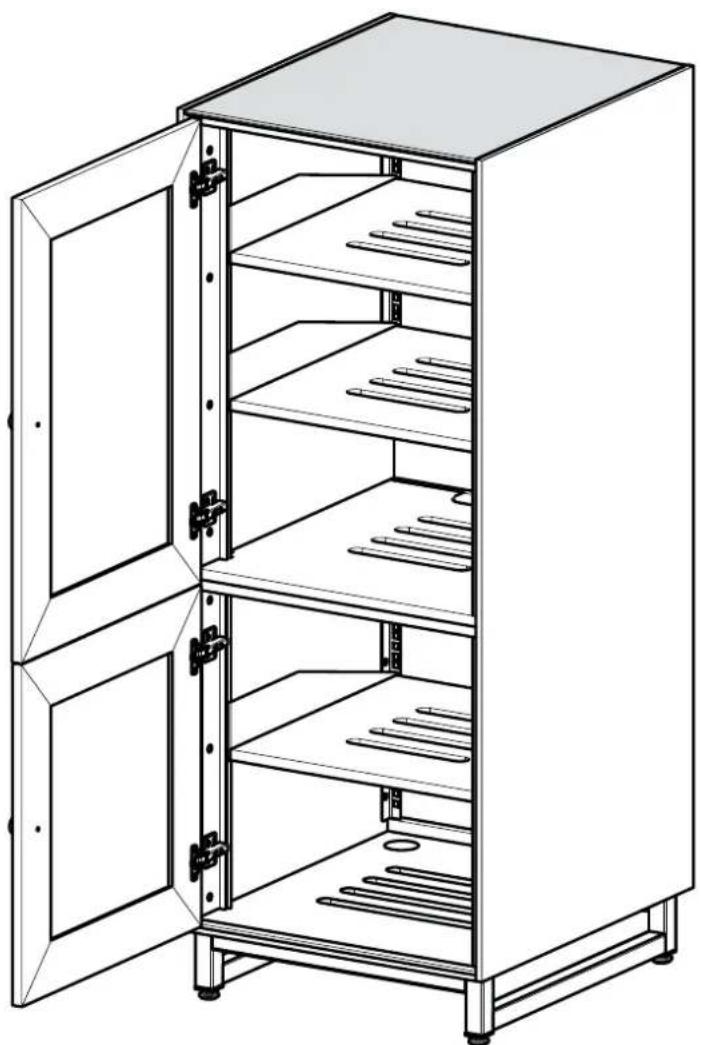

Remove the door and rail cover by removing the four screws on each side of the cabinet

Remove the four screws holding the shelf in place.Reposition the shelf and secure with the four screws.Reattach the door and rail cover using the eight screws. Rail Cover Rail Cover Door Door Shelf8 4 Door Screens (optional) Parts for STEP 4

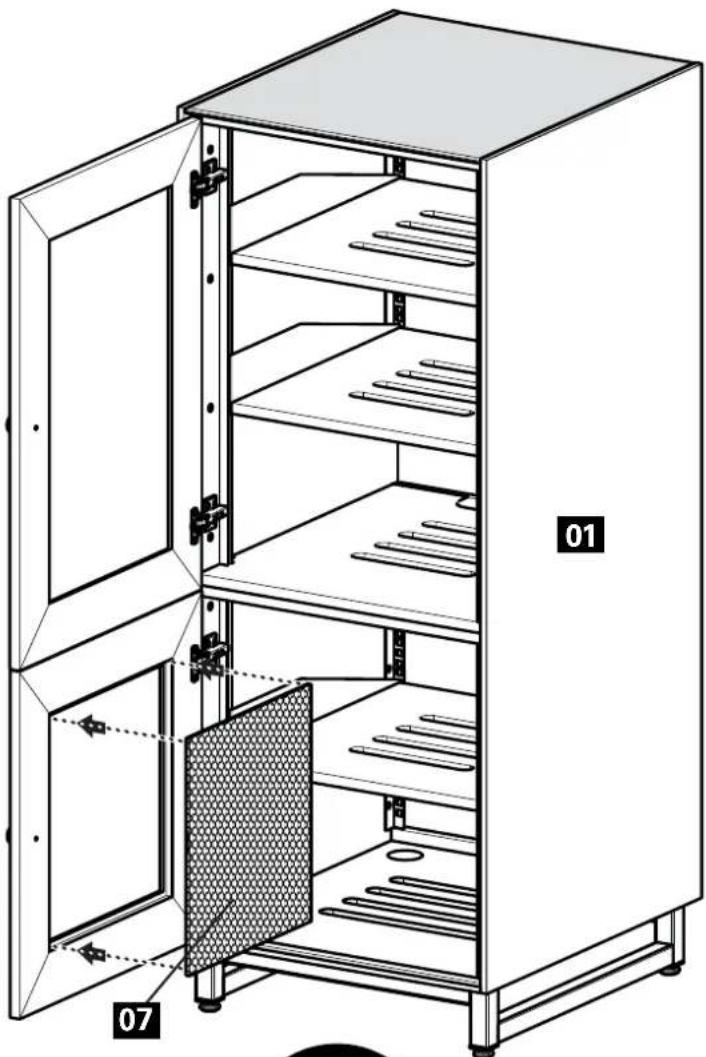

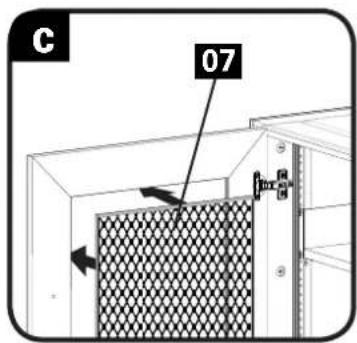

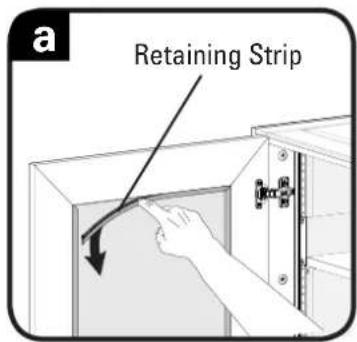

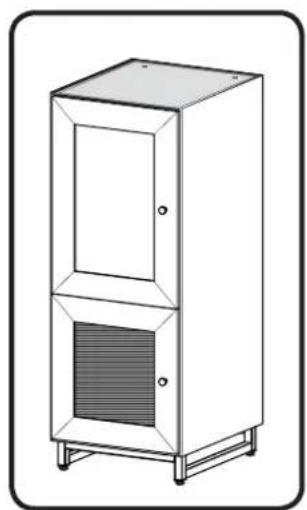

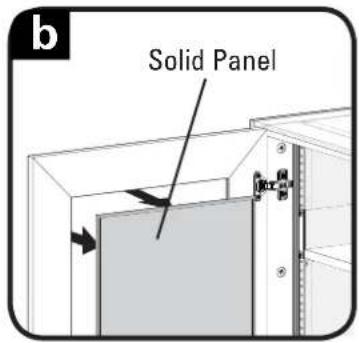

Screen PanelTo utilize speakers behind the doors, inside the cabinet:a. Pull the 4 retaining strips from the back of the door frame.b. Remove the solid panel.c. Install the screen panel

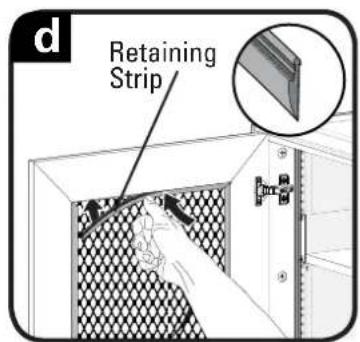

into the door.d. Replace the 4 retaining strips to secure the screen in place.

OPT Retaining Strip Solid Panel

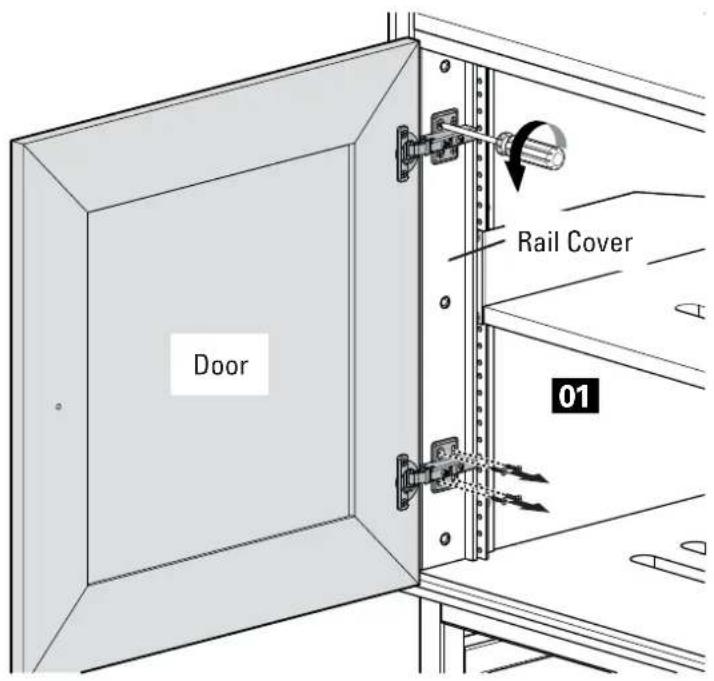

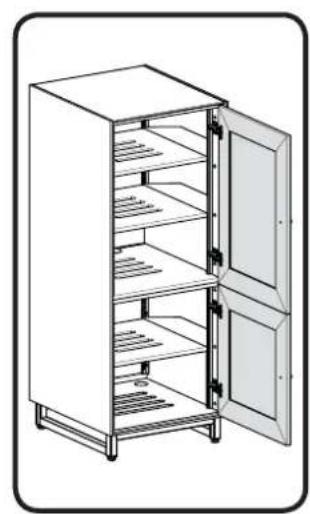

5 Reverse Doors (optional) Remove the upper and lower doors of cabinet

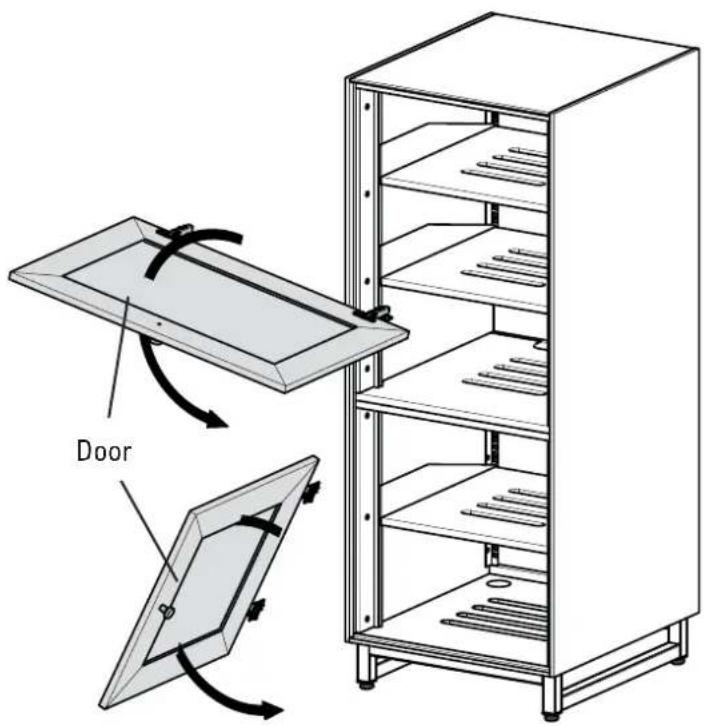

unscrewing the door hinges from the rail covers.Replace the upper and lower doors on the other side of the cabinet

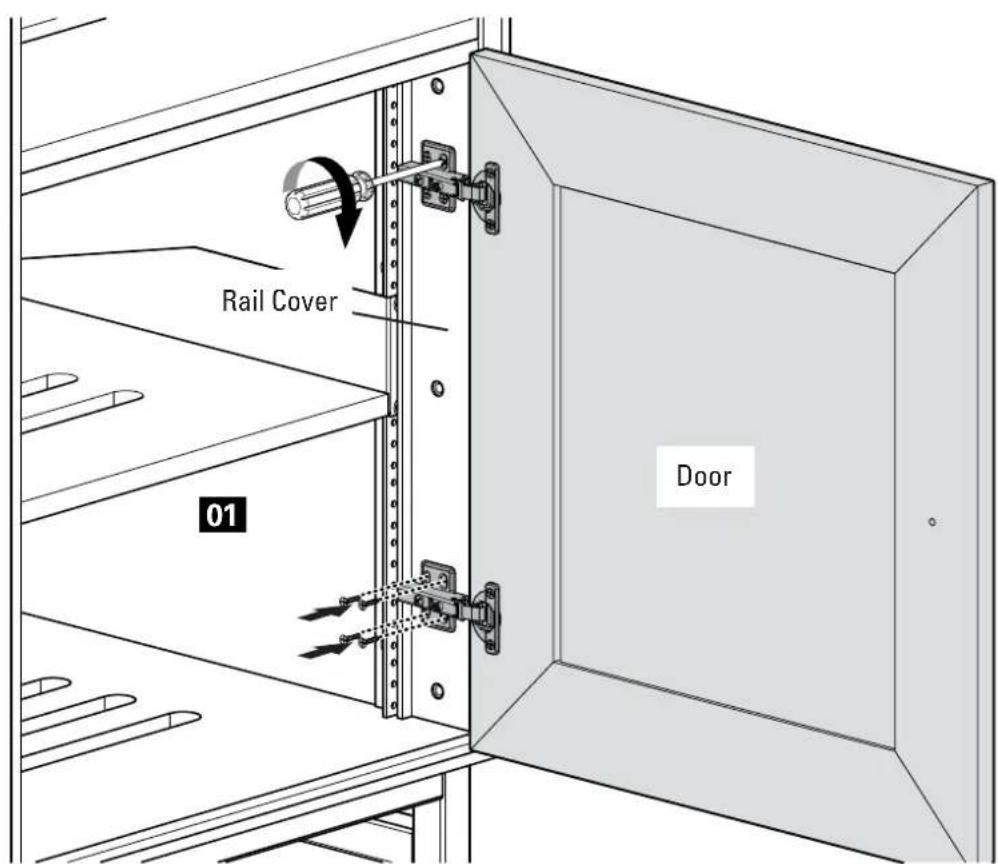

by screwing the door hinges into the rail covers.Rotate the doors 180º

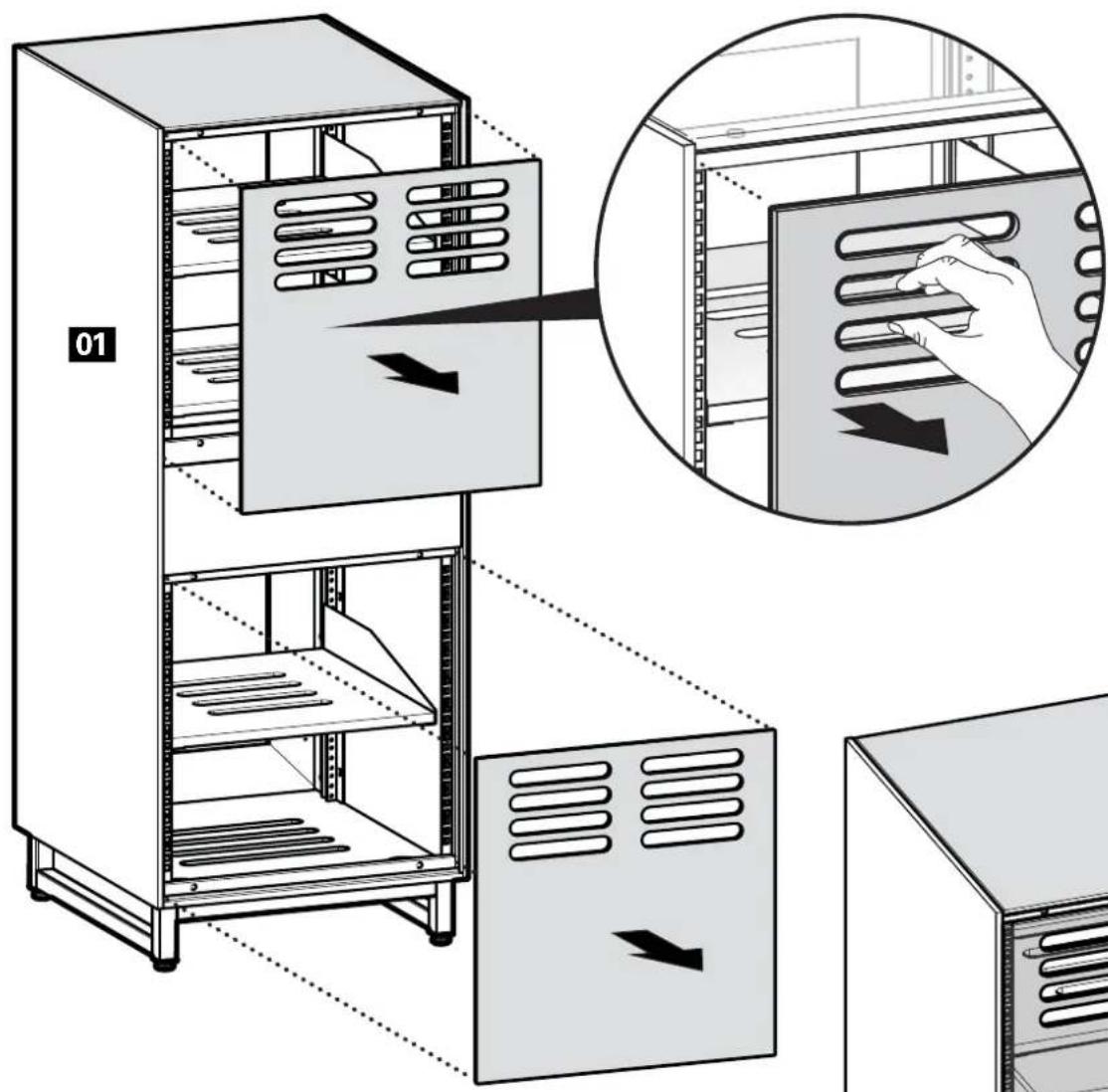

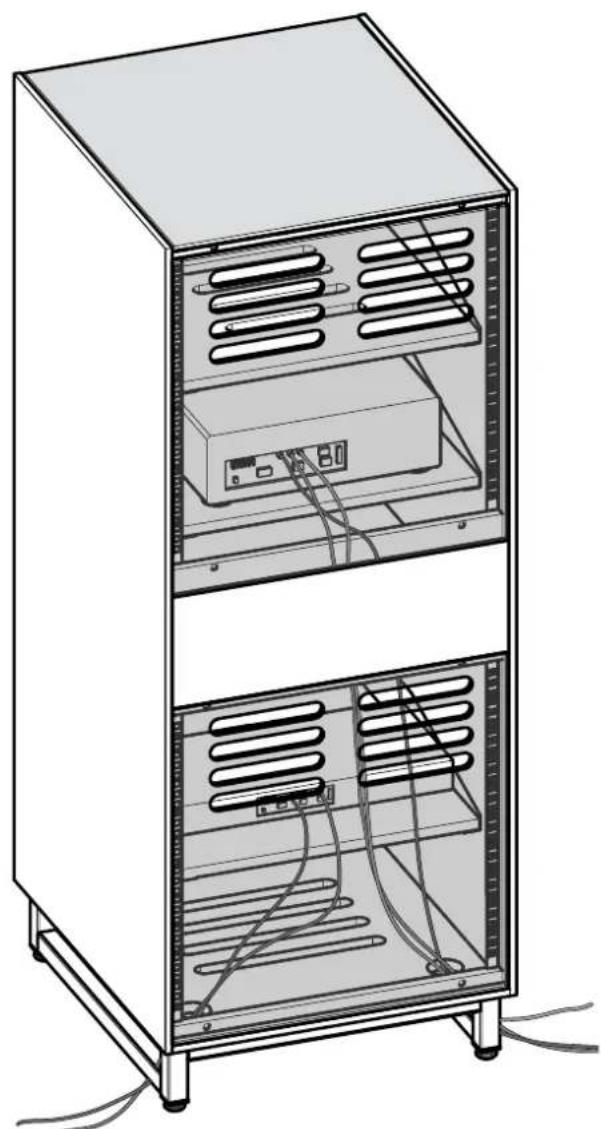

Rail Cover Door Door Door Rail Cover10 6 Operation REMOVING THE BACK PANELSRemove the magnetic back panels of cabinet

by pulling away from the cabinet.Replace by lining up the panels and allowing the magnets to catch the cabinet

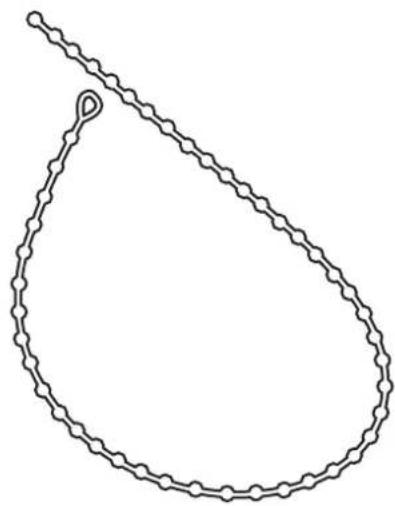

#8 x 3/4 in. #8 x 1½ in. Parts for STEP 7 Anti-tip Kit Instruction Manual 7 Anti-Tip Kit (optional)

7 La Courroie Antibasculement (facultatif) Voir à la page 1116 6901-002277 00 Milestone AV Technologies and its a liated corporations and subsidiaries (collectively, “Milestone”), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions, or variations. Nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or su ciency of the information contained in this document. ©2013 Milestone AV Technologies, a Duchossois Group Company. All rights reserved. Sanus is a division of Milestone. All other brand names or marks are used for identifi cation purposes and are trademarks of their respective owners. Thank you for choosing Sanus! Please take a moment to let us know how we did: SANUS • 6436 City West Parkway • Eden Prairie, MN 55344 USA Thank you for choosing Sanus! Please take a moment to let us know how we did: Call us: 800-359-5520 Email us: [e-mail] Find us on Facebook: SANUS Follow us on Twitter @sanussystems Leave a review: sanus.com
