Product Type	USB Condenser Microphone
Brand	Lorgar
Model	LRG-CMT521 (Voicer-521)
Dimensions	49 x 154,6 x 56,1 mm
Frequency Response	50 Hz – 18 kHz
Sensitivity	-40 dB ± 3 dB
Signal-to-Noise Ratio	70 dB (A-weighted)
Polar Pattern	Cardioid
Power Supply	USB (75 ± 5 mA)
Connectivity	USB (Plug and Play), 3,5 mm headphone jack
Compatibility	Mac, Windows, Android, PlayStation
Supported Software	Discord, OBS, FL Studio, Skype, etc.
Controls	Volume (knob), mute (button with LED)
LED Indicator	Green (operating), red (mute activated)
Rotation and Tilt	360° rotation, 180° tilt
Included Accessories	Universal scissor arm adapter 3/8" to 5/8"
Maintenance and Cleaning	Clean with a dry cloth only
Safety	Do not expose to moisture, heat, or dust; do not disassemble
Repairability	Not user serviceable; any opening voids the warranty
Warranty	2 years from the date of purchase

Frequently Asked Questions - LRG-CMT521 Lorgar

How to install the LRG-CMT521 microphone?

Simply plug the USB cable into a port on your computer. The microphone is Plug and Play: the computer automatically recognizes the device and installs the necessary driver.

Why is my microphone not producing any sound?

Check that the volume is not at minimum and that system audio is not muted. Make sure the microphone is selected as the default input device in your system's audio settings.

How to activate mute?

Press the mute button on the microphone. The LED indicator turns red to confirm mute is activated. Press again to deactivate.

How to adjust the microphone volume?

Turn the volume knob: clockwise to increase volume, counterclockwise to decrease. Always start at a low volume when connecting the microphone.

Is the microphone compatible with PlayStation?

Yes, the LRG-CMT521 is compatible with PlayStation (as well as Mac, Windows, and Android). Plug it into a free USB port on the console.

Can I use this microphone with software like Discord or OBS?

Absolutely. The microphone supports most communication and recording applications such as Discord, OBS, FL Studio, Skype, etc.

How to adjust the microphone angle?

Screw the mount to adjust vertical tilt up to 180°. Screw the metal ring for horizontal rotation up to 360°.

What to do if the computer does not detect the microphone?

Restart the computer and try a different USB port. If the problem persists, check the drivers in the Device Manager.

How to clean the microphone?

Use a dry, soft cloth to clean the surface. Do not use liquid or abrasive products. Avoid exposure to moisture and dust.

What does the warranty cover and how to activate it?

The warranty is 2 years from the date of purchase. It covers manufacturing defects. Keep your proof of purchase and contact the seller for any claims. More information at https://lorgar.eu/warranty-terms/

USER MANUAL LRG-CMT521 Lorgar

Thank you for choosing our products.

www.lorgar.eu

Abstract red circular logo with stylized face and geometric shapes (no text or symbols)

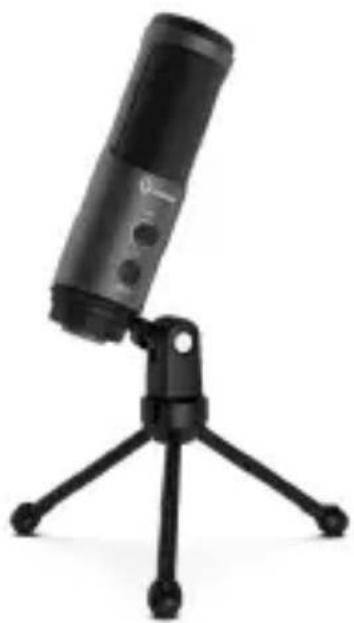

FEATURES:

• Frequency Response: 50Hz—18kHz
- Sensitivity: -40dB±3dB
• S/N Ratio: 70dB (A-weighted)
• Recording format: 16bit
• Electrical Current: 75±5mA
- Nickel-plated diaphragm
- Plug and Play system
- Cardioid polar pattern
• Volume knob
- Mute button with LED indicator
- 360^ Rotation & 180^ Tilt
• 3,5 mm headphone jack
- Dimensions: 49 × 154.6 × 56.1 ~mm .
- Compatible with Mac, Windows, Android and Sony PlayStation
• Supports Discord, OBS, FL Studio, Skype etc

Black studio microphone on a tripod stand (no text or symbols visible)

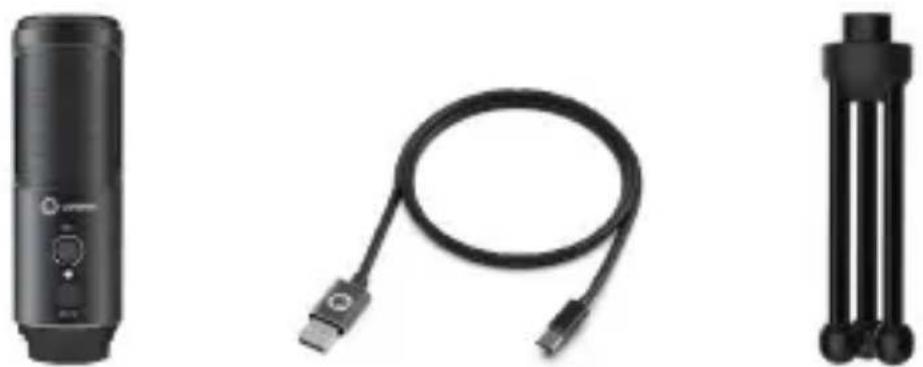

PACKAGE CONTENT

Black studio microphone with control buttons and speaker grille (no visible text or symbols)

Coiled black cable with two connectors (no text or symbols visible)

Pure black mechanical component with three vertical rods and a cylindrical top (no text or symbols)

Microphone USB type C cable, 2 m Tripod

Black plastic object with a handle and spout, no visible text or symbols

Pivot Mount

3/8" to 5/8" universal pantograph adapter

INTRODUCTION

This device is operating on the principle "Plug and Play". Please connect or insert necessary device with correct port.

Please turn the volume down when plugging the microphone into the USB port, and gradually increase the volume to an ideal level.

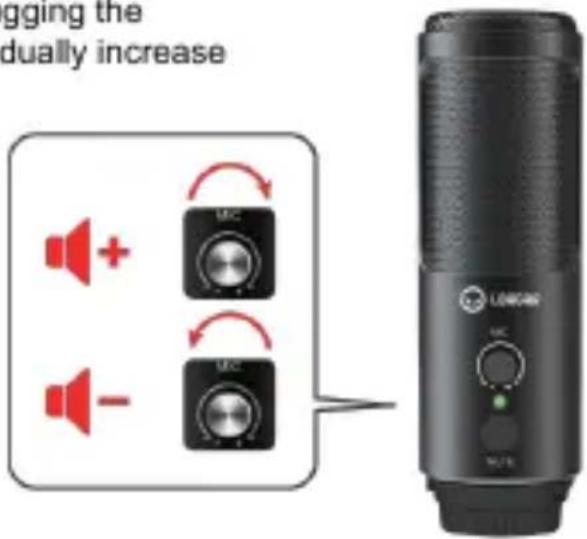

Volume up:

Clockwise (Turn right)

Volume down:

Counter-clockwise (Turn left)

The indicator will be green after plugging to the computer.

Hand pointing at a black LVMG device with control knob (no visible text or symbols)

Press the mute button to turn the mute option on. The indicator will turn red.

Side profile of a woman's face with a circular icon and a black device, no visible text or symbols

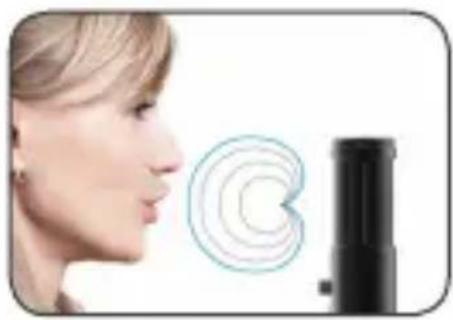

Make sure the front of the microphone points towards your mouth.

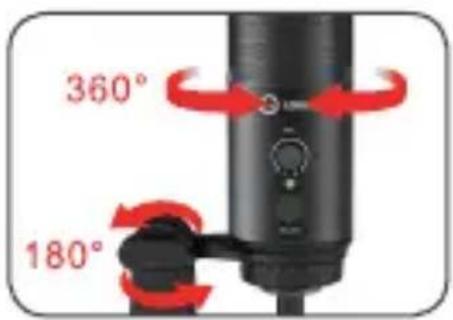

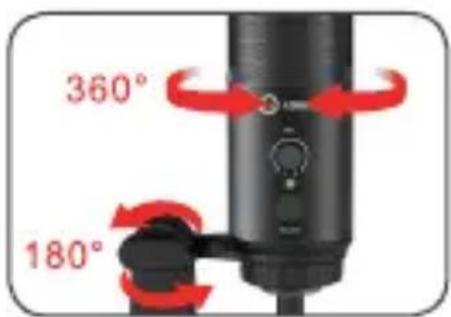

Screw the mount to adjust the shock mount angle 180^ vertically and screw the metal ring to adjust the microphone angle 360^ horizontally.

Close-up of a black audio recording device with headphones on top, next to a laptop (no visible text or symbols)

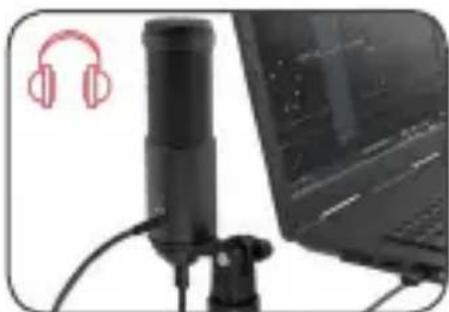

Lorgar Voicer-521 includes a standard 1/8" (3.5mm) headphone jack for monitoring and playback

PLUG & PLAY

Plug the USB cable into the USB port of your computer. Your computer will automatically recognize the USB device and install a driver. The driver will be installed automatically. If the microphone is not picking up sound, please follow the instructions below:

Problem Solution
A computer couldn't identify the USB devices	Please restart a computer and connect the microphone to another USB port.
The microphone is detected but no output of the sound	Make sure that System Sound isn't mute and you haven't set a microphone volume to minimum.
The microphone is detected but no output of the sound after updating Windows 10	To let apps access the microphone, please select Settings>Privacy>Microphone, then turn on Allow apps to access your microphone.

SAFETY INSTRUCTIONS

Read carefully and follow all instructions before using this product.

1. Do not expose the device to excessive moisture, water or dust. Do not install in rooms with high humidity and dust level.

2. Do not expose the device to heat: do not place it close to heating appliances, and do not expose it to direct sun rays.

3. Clean the device with dry cloth only.

WARNING

It is forbidden to dismantle the device. Attempt to repair this device is not recommended and leads to warranty waste.

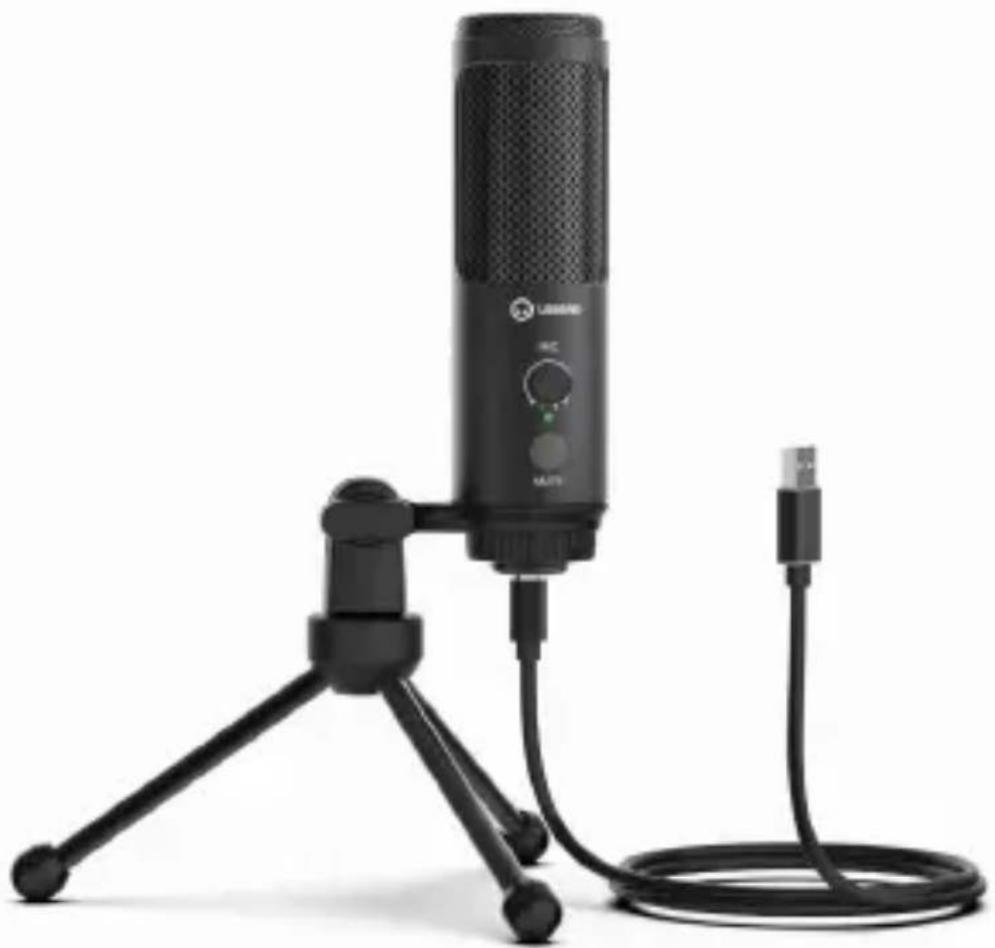

WARRANTY

The warranty period starts from the day of the product purchase from Lorgar authorized Seller. The date of purchase is the date specified on your sales receipt or on the waybill. During the warranty period, repair, replacement or refund for the purchase shall be performed at the discretion of Lorgar. In order to obtain warranty service, the goods must be returned to the Seller at the place of purchase together with proof of purchase (receipt or bill of lading). 2 years warranty from the date of purchase by the consumer. The service life is 2 years. Additional information about the use and warranty is available at https://lorgar.eu/warranty-terms/

Manufacturer: Asbisc Enterprises PLC, 43, Kolonakiou Street, Diamond Court 4103 Ayios Athanasios

Black studio microphone on tripod stand connected to USB cable (no visible text or symbols)

KARAKTERISTIKE:

• Frekvencija: 50Hz—18kHz
- Osjetljivost: -40dB±3dB
- Omjer S/N: 70dB (A-weighted)
- Format snimanja: 16bit
- Struja: 75 ± 5 ~mA
• Niklovana membrana
- Plug and Play sistem
• Kardiodni Polarni uzorak
• Dugme za jačinu zvuka
- Isključivanje zvuka sa LED indicatorom
• Rotacija 360° & Nagib 180°
- Priključak za slušalice 3,5 mm
- Dimenzije: 49 x154.6 x 56.1 mm
• Kompaktibilan sa Mac, Windows, Android i Sony PlayStation
- Podržava Discord, OBS, FL Studio, Skype itd

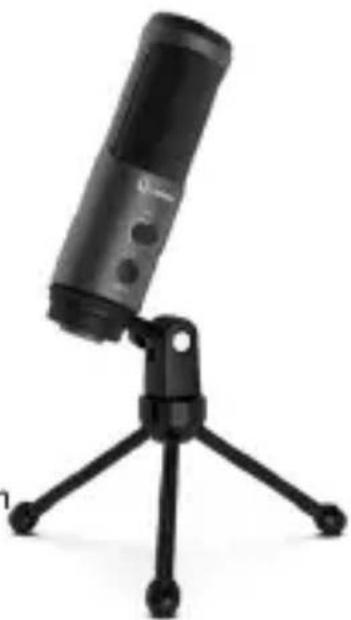

Black studio microphone on tripod stand (no text or symbols visible)

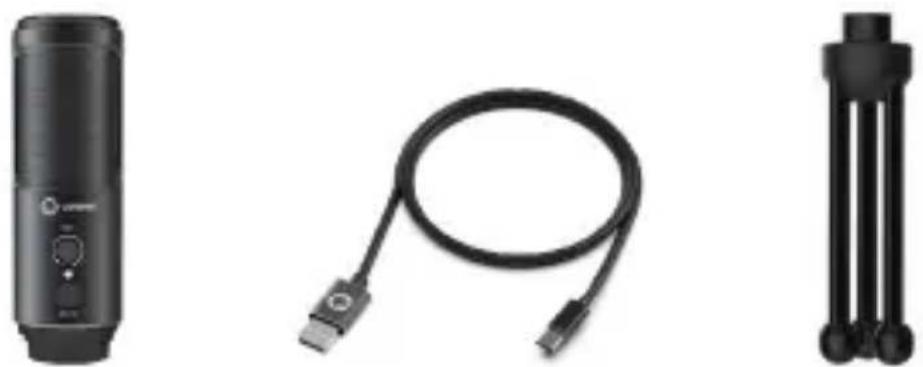

SADRŽAJ PAKOVANJA

Mikrofon USB kabal tip C, 2 m Tripod

Black plastic mechanical component with handle and base (no text or symbols visible)

Okretni nosač

3/8" to 5/8" univerzalni adapter za pantograf

UVOD

Hand pointing at a black LEOA device with control knob (no visible text or symbols)

Side profile of a person's face with a circular icon and a black device, no visible text or symbols

Close-up of a desktop microphone next to a laptop with headphones icon (no visible text or symbols)

Lorgar Voicer-521, priključak za slušalice uključuje standard 1/8" (3.5mm) za nadzor i reprodukciju.

PLUG & PLAY

Black studio microphone with tripod and USB cable, no visible text or symbols on device body

ХАРАКТЕРИСТИКИ

Black studio microphone on a tripod stand (no text or symbols visible)

СЪДЪРЖАНИЕ НА ПАКЕТА

Микрофон USB кабел type C, 2 м Триножник

Black plastic object with a handle and spout, no visible text or symbols

Стойка за монтаж

Hand pointing at a black L3GMS brand brush (no visible text or symbols on device)

Side profile of a woman's face with a circular icon and a black device, no visible text or symbols

Studio setup featuring a black studio microphone on a tripod with a laptop displaying audio (no visible text or symbols)

LORGAR Voicer-521 включа стандартен 1/8"(3.5mm) жак за слушалки, за мониторинг и плейбек

PLUG & PLAY

Black studio microphone with tripod and USB cable, no visible text or symbols on device body

VLASTNOSTI:

Black studio microphone on tripod stand (no text or symbols visible)

OBSAH BALENÍ

Black plastic tool with handle and spout (no text or symbols visible)

Otočná montáž

Hand pointing at a black LXXX brand blender with control panel (no visible text or symbols)

Side profile of a woman's face with a circular icon and a black device, no visible text or symbols

Close-up of a desktop microphone next to a laptop with headphones icon (no text or symbols on device)

https://lorgar.eu/warranty-terms/

Výrobce: Asbisc Enterprises PLC, 43, Kolonakiou Street, Diamond Soud 4103 Ayios Athanasios

Black studio microphone with tripod and cable, no visible text or symbols on device body

PRODUKTMERKMALE:

Black studio microphone on tripod stand (no text or symbols visible)

PAKETINHALT

Black plastic object with a handle and spout, no visible text or symbols

Schwenkstück

Universal-

Hand pointing at a black device with a red indicator button (no visible text or symbols)

Side profile of a person's face with a circular icon and a black device, no visible text or symbols

Close-up of a desktop microphone next to a laptop with headphones icon (no visible text or symbols)

Black studio microphone with tripod and USB cable, no visible text or symbols on device body

FEATURES:

Black studio microphone on a tripod stand (no text or symbols visible)

PACKAGE CONTENTENT

Black plastic object with a handle and spout, no visible text or symbols

Pivot Mount

3/8" kuni 5/8" universaalne pantograafi adapter

INTRODUCTION

Hand pointing at a black L300M printer with control knob (no visible text or symbols)

Side profile of a woman's face with a circular icon and concentric rings, next to a black device (no text or symbols visible)

Close-up of a black audio recording device with headphones on top, next to a laptop (no visible text or symbols)

Black studio microphone with tripod and cable, no visible text or symbols on device body

CARACTERÍSTICAS:

Black studio microphone on tripod stand (no text or symbols visible)

Black plastic object with a handle and spout, no visible text or symbols

Montura pivotante

Hand pointing at a black LiDome brand brush (no visible text or symbols on device)

Side profile of a woman with facial features, next to a black device emitting concentric circular patterns (no text or symbols visible)

Close-up of a black audio recording device with headphones on top, next to a laptop (no visible text or symbols)

Black studio microphone with tripod and USB cable, no visible text or symbols on device body

CARACTÉRISTIQUES:

Black desktop microphone on a tripod stand, no visible text or symbols

CONTENU DE L'EMBALLAGE

Black studio microphone with control buttons and speaker grille (no visible text or symbols)

Coiled black cable with two USB ports, no text or symbols visible

Pure black cylindrical object with three vertical rods and a small protruding rod (no text or symbols)

Microphone Câble USB type C, 2 m Trépied

Black plastic mechanical component with handle and base (no text or symbols visible)

Support pivotant

Hand pointing at a black LXXX brand brush (no visible text or symbols on device)

Side profile of a person's face with a circular icon and sound wave symbol, next to a black device (no text or symbols present)

Close-up of a desktop microphone next to a laptop with headphones icon (no visible text or symbols)

Fabricant: Asbisc Enterprises PLC, 43, Kolonakiou Street, Diamond Court 4103 Ayios Athanasios

Black studio microphone with tripod and USB cable, no visible text or symbols on device body

TERMÉKJELLEMZÖK:

Black studio microphone on a tripod stand (no text or symbols visible)

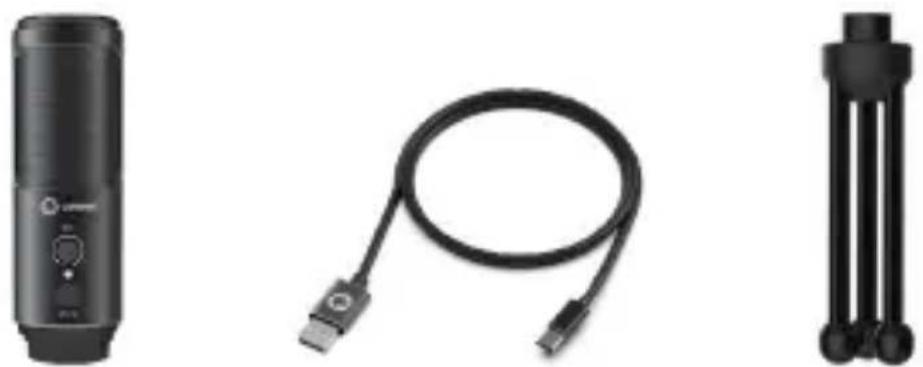

A CSOMAG TARTALMA

Mikrofon USB type C kábel, 2m Tripod

Black plastic object with a handle and spout, no visible text or symbols

Hand pointing at a black LXXX brand brush (no visible text or symbols on device)

Side profile of a person's face with a device emitting sound waves (no text or symbols visible)

Close-up of a black audio workstation microphone next to a laptop displaying audio recordings (no visible text or symbols)

https://lorgar.eu/warranty-terms/

Gyártó: Asbisc Enterprises PLC, 43, Kolonakiou Street, Diamond Court 4103 Ayios Athanasios

Black studio microphone with tripod and USB cable, no visible text or symbols on device body

FEATURES:

Black studio microphone on a tripod stand (no text or symbols visible)

PACKAGE CONTENT

Mikrofonas C tipo USB kabelis, 2 m Trikojis

Black plastic object with a handle and spout, no visible text or symbols

Hand pointing at a black LVMG brand brush (no visible text or symbols on device)

Side profile of a woman's face with a circular icon and a black device, no visible text or symbols

Close-up of a black studio microphone on a tripod with a laptop displaying audio data (no visible text or symbols)

https://lorgar.eu/warranty-terms/

Gamintojas: Asbisc Enterprises PLC, 43, Kolonakiou Street, Diamond Court 4103 Ayios Athanasios

Black studio microphone with tripod and cable, no visible text or symbols on device body

5

FEATURES:

Black studio microphone on a tripod stand (no text or symbols visible)

PACKAGE CONTENT

Mikrofons USB C tipa kabelis, 2 m Statīvs

Black plastic object with a handle and spout, no visible text or symbols

Pivot stiprinājums

3/8" uz 5/8" universālais pantogrāfa adapteris

INTRODUCTION

Hand pointing at a black L3008 brand hairdryer with control knob (no visible text or symbols)

Side profile of a woman's face with a circular icon and sound wave symbol, next to a black device (no text or symbols present)

Close-up of a black audio recording device with headphones on top, next to a laptop (no visible text or symbols)

Black studio microphone on tripod stand connected to USB cable (no visible text or symbols)

CARACTERISTICI:

• Raspuns frecventa: 50Hz—18kHz
- Sensibilitate: -40dB±3dB
• S/N Ratio: 70dB (A-ponderat)
- Format inregistrare: 16biti
- Curent electric: 75 ± 5 ~mA
• Diafragma nichelata
- Plug and Play sistem
- Model polar cardioid
- Buton volum
- Buton Mute cu indicator LED
• 360° Rotatie & 180° inclinare
- 3,5 mm mufa casti
- Dimensiuni: 49 x154.6 x 56.1 mm.
- Compatibil cu Mac, Windows, Android si Sony PlayStation
- Suporta Discord, OBS, FL Studio, Skype etc

Black studio microphone on a tripod stand (no text or symbols visible)

PACKAGE CONTENT

Microfon cablu USB tip C, 2 m Tripod

Black plastic object with a handle and spout, no visible text or symbols

Suport pivot

Adaptor pantograf universal 3/8 "până la 5/8"

INTRODUCERE

Hand pointing at a black LXXX brand brush (no visible text or symbols on device)

Side profile of a person's face with a circular icon and a black device, no visible text or symbols

Close-up of a black audio recording device with headphones on top, next to a laptop (no visible text or symbols)

Producator: Asbisc Enterprises PLC, 43, Kolonakiou Street, Diamond Court 4103 Ayios Athanasios

Black studio microphone with tripod and cable, no visible text or symbols on device body

KARAKTERISTIKE:

• Frekvencijski odziv: 50Hz – 18kHz
• Osetljivost: -40dB ± 3dB
  • Odnos S / N: 70dB (A-ponderisano)
• Format snimanja: 16bit
  • Električna struja: 75 ± 5mA
• Poniklovana dijafragma
• Plug and Play sistem
  • Kardioidni polarni obrazac
  • Taster za jačinu zvuka
• Dugme za isključivanje zvuka sa LED indikatorom
  • Rotacija za 360° i nagib za 180°
  • 3,5 mm priključak za slušalice
• Dimenzije: 49 × 154,6 × 56,1 ~mm .
• Kompatibilnost sa Mac, Windows, Android i Sony PlayStation-om
• Podržava Discord, OBS, FL Studio, Skype itd.

Black studio microphone on tripod stand (no text or symbols visible)

ПАЦКАГЕ ЦОНТЕНТ

Mikrofon USB type C kabl, 2 m Tripod

Black plastic mechanical component with handle and base (no text or symbols visible)

Nosač

Univerzalni adapter za pantograf od 3/8 "do 5/8"

UVOD

Ovaj uređaj radi po principu "Plug and Play". Priključite ili umetnite neophodan uređaj na pravi port.

Hand pointing at a black LXXX brand brush (no visible text or symbols on device)

Side profile of a person's face with a circular icon and a device, no visible text or symbols

Obavezno usmerite prednji deo mikrofona prema ustima.

Zavrnite nosač da biste podesili ugao nosača udarca za 180° vertikalno, a metalni prsten zavrtite za ugao mikrofona za 360° vodoravno.

Close-up of a black audio recording device with headphones on top, next to a laptop (no visible text or symbols)

Lorgar Voicer-521 uključuje standard 1/8" (3,5 mm) priključak za slušalice za nadgledanje i reprodukciju

PLUG & PLAY

Priključite USB kabl na USB port računara. Kompjuter će automatski prepoznati USB uređaj i instalirati drajvere. Drajver će biti instaliran automatski. Ukoliko mikrofon ne prima zvuk, sledite uputstva u nastavku:

Problem Rešenje
Računar nije mogao da identifikuje USB uređaje	Ponovo pokrenite računar i povežite mikrofon sa drugim USB portom.
Mikrofon je detektovan ali nema zvuka	Uverite se da sistemski zvuk nije isključen i da niste podesili jačinu zvuka mikrofona na minimum.
Mikrofon je detektovan, ali nema zvuka nakon ažuriranja sistema Windows 10	Da biste aplikacijama omogućili pristup mikrofonu, odaberite Postavke>Privatnost>Mikrofon, a zatim uključite Dozvoli aplikacijama pristup vašem mikrofonu.

BEZBEDONOSNE INSTRUKCIJE

https://lorgar.eu/warranty-terms/

Proizvođač: Asbisc Enterprises PLC, 43, Kolonakiou Street, Diamond Court 4103 Ayios Athanasios

Black studio microphone with tripod and USB cable, no visible text or symbols on device body

Black studio microphone on tripod stand, no visible text or symbols

КОМПЛЕКТАЦИЯ

Black plastic object with a handle and spout, no visible text or symbols

Hand pointing at a black L300M printer with control knob (no visible text or symbols)

Side profile of a woman's face with a circular icon and a black device, no visible text or symbols

Close-up of a black audio recording device with headphones on top, next to a laptop (no visible text or symbols)

Black studio microphone with tripod and USB cable, no visible text or symbols

PARAMETRE:

• Frekvenčný rozsah: 50 Hz – 18 kHz
  • Citlivost': -40 dB ±3 dB
• Odstup signál/šum: 70 dB (A-váhovanie)
  • Formát nahrávania: 16 bitov
  • Elektrický prúd: 75 ±5 mA
• Poniklovaná membrána
• Plug and Play
  • Kardioidná charakteristika
  • Ovládanie hlasitosti
  • Tlačidlo vypnutia zvuku s LED kontrollkou
• 360° rotácia a 180° naklonenie
  • 3,5 mm slúchadlový konektor
• Rozmery: 49 × 154,6 × 56,1 ~mm
• Podporuje Discord, OBS, FL Studio, Skype atd'.

- Kompatibilný so systémami Mac, Windows, Android a Sony PlayStation

Black studio microphone on a tripod stand (no text or symbols visible)

OBSAH BALENIA

Black plastic object with a handle and spout, no visible text or symbols

Otočný držiak

Univerzálny adaptér z 3/8" na 5/8"

ÚVOD

Hand pointing at a black LACOM brand brush (no visible text or symbols on device)

Side profile of a woman with facial features, next to a black device emitting concentric circular patterns (no text or symbols visible)

Close-up of a black audio recording device with headphones on top, next to a laptop (no visible text or symbols)

Black studio microphone with tripod and cable, no visible text or symbols on device body

Black studio microphone on tripod stand, no visible text or symbols

КОМПЛЕКТАЦІЯ

Black plastic tool with handle and lever (no text or symbols visible)

Поворотне кріплення

Hand pointing at a black LACOM brand brush (no visible text or symbols on device)

Side profile of a woman's face with a circular icon and a black device, no visible text or symbols

Close-up of a black audio recording device with headphones icon, next to a laptop (no visible text or symbols)

Black studio microphone with tripod and USB cable, no visible text or symbols
