Product type	Electric hot plate
Brand	Severin
Model	910010
Power supply	230 V ~ 50/60 Hz
Power	1500 W
Dimensions (approx.)	30 x 20 x 5 cm
Weight (approx.)	1.5 kg
Number of plates	1
Plate material	Metal
Temperature setting	Graduated thermostat from 1 to MAX (preheating, cooking, simmering, keep warm)
Indicator light	Indicates heating (turns off when temperature reached)
Recommended pan type	Flat bottom, diameter at least equal to that of the plate
Safety	Mandatory grounding; hot surfaces (warning symbol)
Maintenance	Clean with damp cloth after cooling; do not immerse; avoid abrasive products
Warranty	2 years against material and manufacturing defects (excluding normal wear)
After-sales service	Contact customer service for repairs (address in appendix)
Spare parts	Available from after-sales service
Intended use	Domestic and similar (offices, hotels, etc.)
Disposal	Do not dispose of with household waste; recycle via appropriate channel

Frequently Asked Questions - 910010 SEVERIN

How to clean the Severin 910010 hot plate?

After use, unplug the appliance and let it cool. Wipe spills with a damp cloth. Do not use abrasive products or strong detergents. Never immerse the appliance in water.

Can I use glass pans on this hot plate?

It is recommended to use flat-bottomed pans specifically designed for hot plates. Glass pans are not ideal as they may not provide good thermal contact and risk breaking.

Why does the indicator light turn on and off during cooking?

The indicator light shows that the plate is heating. It stays on until the selected temperature is reached, then turns off. It lights up again when the temperature drops, to maintain the set temperature.

What is the warranty period of the appliance?

The manufacturer offers a 2-year warranty from the date of purchase against any material and manufacturing defects. It does not cover normal wear or breakable parts (glass, bulbs) and requires proof of purchase.

Do I need to plug the hot plate into a grounded outlet?

Yes, the appliance must be plugged into a grounded outlet installed according to current standards to avoid any risk of electric shock.

Can I leave the appliance unattended while cooking?

No, it is not recommended to leave the appliance unattended. Overheated food can catch fire, especially fatty foods or those cooked in a lot of oil.

How to set the temperature for simmering?

For simmering, set the thermostat between positions 3 and 4. For keep warm, use positions 1-2. The MAX setting is for preheating and quick searing.

What to do if the plate does not heat anymore?

First check that the plug is properly connected and the outlet works. If the problem persists, contact Severin after-sales service for repair. Do not attempt to repair yourself.

Can I use the appliance outdoors?

The appliance is designed for indoor domestic use. Do not use outdoors or in humid environments as this increases the risk of electric shock and damage.

How to dispose of the hot plate at end of life?

Do not throw the appliance with household waste. Take it to a collection point for electrical and electronic appliances to allow recycling of valuable materials.

USER MANUAL 910010 SEVERIN

Exterior view of a modern stainless steel electrical stove with two dual burners (no text or symbols visible)

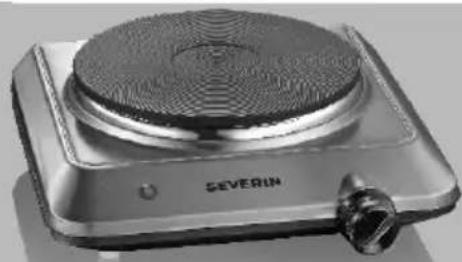

Exterior view of a modern SEVERIN electric stove with a circular top and heat sink (no text or symbols visible on the appliance itself)

Simple line drawing of a cooking pot with crossed panes and two handles, no text or symbols present

Simple line drawing of a cooking pot on a train (no text or symbols)

Simple line drawing of a cooking pot with a stove burner (no text or symbols)

Simple black checkmark symbol on white background (no text or additional symbols)

DE

Kochplatten

Before using the appliance, please read the following instructions carefully and keep this manual for future reference. The appliance must only be used by persons familiar with these instructions.

Connection to the mains supply

The appliance should only be connected to an earthed socket installed in accordance with the regulations.

Make sure that the supply voltage corresponds with the voltage marked on the rating label. This product complies with all binding CE labelling directives.

Important safety instructions

• In order to avoid hazards, repairs to this electrical appliance or its power cord must be carried out by our customer service. If repairs are needed, please send the appliance to our customer service department (see appendix).
• Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely.

• To avoid the risk of electric shock, do not clean the appliance with water and do not immerse it in water.

• Clean the cooking surfaces with a damp cloth after each use. For detailed information on cleaning the appliance, please refer to the section General care and cleaning.

• The appliance is not intended to be operated by means of an external timer or separate remote-control system
• This appliance may be used by children (at least 8 years of age) and by persons with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, provided they have been given supervision or instruction concerning the use of the appliance and fully understand all dangers and safety precautions involved.
  • Children must not be permitted to play with the appliance.
• Children must not be permitted to carry out any cleaning or maintenance work on the appliance unless they are supervised and at least 8 years of age.
  • The appliance and its power cord must be kept well away from children

under 8 at all times.

• Caution: Keep any packaging materials well away from children – such materials are a potential source of danger, e.g. of suffocation.
• Every time the appliance is used, the main body including the power cord as well as any attachment fitted should be checked thoroughly for any defects. Should the appliance, for instance, have been dropped onto a hard surface, or if excessive force has been used to pull the power cord, it must no longer be used: even invisible damage may have adverse effects on the operational safety of the appliance.
• Caution - hot surfaces: This symbol draws attention to the fact that the accessible housing surfaces – especially on and around the hot-plate - may become very hot during operation. Do not remove the warning sticker with this symbol.
• Do not leave the appliance unattended while in use.
• Caution:

When overheated, food may tend to ignite. However, the likelihood of this occurring is increased where food with a high fat or oil content is concerned.

• Do not position or operate the appliance close to or underneath any wall-cupboards or hanging objects such as curtains or any other infl ammable materials.
• During operation, the appliance must be placed on a heat-resistant surface, impervious to splashes, stains or hot steam.
• Always ensure that air is able to circulate freely underneath the unit. A minimum distance of 10 cm to any wall must also

be observed

• The ventilation slots underneath the unit must not be covered during use.

• Always remove the plug from the wall socket

• in case of any malfunction,

• after use, and also

• before cleaning the appliance.

• When removing the plug from the wall socket, never pull on the power cord; always grip the plug itself.

• Do not let the power cord hang free.
• Do not allow the power cord to touch any hot parts of the appliance.
• No responsibility will be accepted if damage results from improper use, or if these instructions are not complied with.

• This appliance is intended for domestic or similar applications, such as

• in shops, offi ces and other similar working environments,

• in agricultural areas,
• by customers in hotels, motels etc. and similar establishments,
• in bed-and breakfast type environments.

Start up

Before using the appliance for the first time, let it heat up for approximately 3 minutes at maximum power (but without using a pot or saucepan), while ensuring sufficient ventilation. During this process, a slight smell and a little smoke may be emitted. This is normal and will only last for a very short time. Ensure adequate ventilation by opening windows or balcony doors.

Clean the appliance afterwards as described in section General care and cleaning) below.

Operation

• Always place a pot / saucepan on the hot-plate before the appliance is switched

on.

• Ensure that the pot is clean and dry on the outside. Do not use stain covered pots / saucepans.

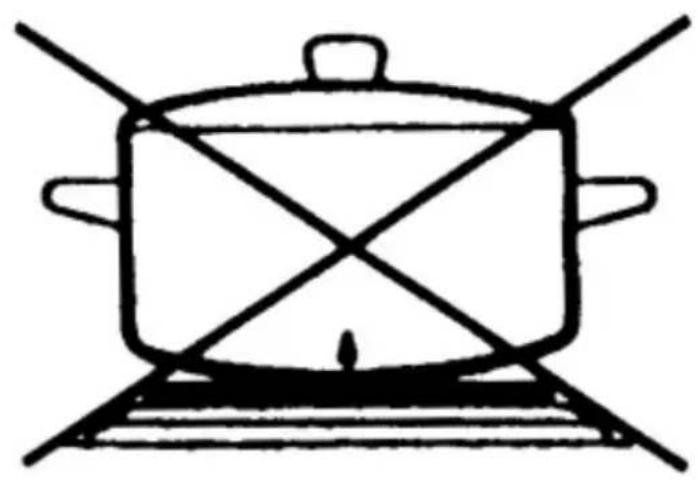

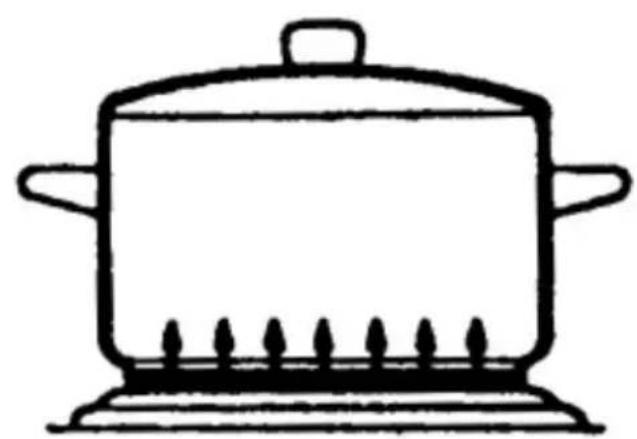

• To prevent damage to the hot-plate, only use pots / saucepans with fl at bottoms. Most suitable are pots specifi cally designed for use on electric plates (see picture I).
• Always make sure that the pot / saucepan used is of at least the same diameter as the plate; this minimises the loss of heat and prevents the plate from being damaged as a result of uneven heat distribution.

Thermostat setting

MAX : Pre-cooking and quick frying

4-5 : Regular cooking, frying
3-4 : Simmering
1-2 : Keeping warm

Set the thermostat knob to the 'MIN' position after use. Remove the plug from the wall socket afterwards to ensure that the appliance is completely disconnected from the mains.

Indicator light

The indicator light stays on while the hot-plate is heating up. It goes out once the pre-set temperature has been reached.

General care and cleaning

• Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely.
• To avoid the risk of electric shock, do not clean the appliance with water and do not immerse it in water.
• Do not use abrasives or harsh cleaning solutions.

• After use, a wet cloth may be used to remove any spills from the plates.
• A special cleaning agent should be used to treat the plate from time to time.

Disposal

Devices marked with this symbol must be disposed of separately from your household waste, as they contain valuable materials which can be recycled. Proper disposal protects the environment and human health. Your local authority or retailer can provide information on the matter.

Guarantee

This product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not been modified, repaired or interfered with by any unauthorised person, or damaged through misuse.

This guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. This guarantee does not affect your statutory rights, nor any legal rights you may have as a consumer under applicable national legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase.
