Brand	Severin
Model	910011
Type	Electric hot plate
Number of plates	1
Power supply voltage	220-240 V
Frequency	50/60 Hz
Temperature control	Rotary thermostat from MIN to MAX
Indicator light	Indicates that the plate is heating
Functions	Cooking, simmering, keeping warm
Surface material	Metal
Cleaning	Damp cloth, no abrasive products
Safety	Unplug after use; do not immerse; keep out of reach of children
Warranty	2 years
Use	Domestic and similar (offices, hotels, etc.)
Cord length	Approximately 1 m (estimate)
Weight	Approximately 1.5 kg (estimate)
Dimensions (L x D x H)	Approximately 25 x 25 x 8 cm (estimate)

Frequently Asked Questions - 910011 SEVERIN

How to use the hot plate for the first time?

Before first use, heat the empty plate at maximum power for about 3 minutes in a well-ventilated area. A slight odor and smoke may appear, this is normal. Allow to cool then clean with a damp cloth.

How to clean the hot plate?

Always unplug the appliance and let it cool. Clean the surface with a damp cloth. Do not use abrasive products or strong detergents. Never immerse the appliance in water.

Can I use pots with a wavy bottom?

No, use only flat-bottomed pots to avoid damaging the plate and ensure good heat distribution. Special pots for hot plates are recommended.

What does the indicator light mean?

The indicator light stays on while the plate is heating and turns off when the selected temperature is reached. It turns on again if the temperature drops.

How to adjust the temperature?

Turn the thermostat to the desired position: MAX for pre-cooking and quick roasting, 4-5 for regular cooking, 3-4 for simmering, 1-2 for keeping warm. After use, set back to MIN and unplug.

What are the important safety precautions?

Never leave the appliance unattended. Keep it out of reach of children. Do not use near flammable materials. Ensure adequate ventilation. Always unplug after use.

Can I leave the appliance unattended?

No, never operate the appliance unattended. Food can overheat and catch fire, especially with fats.

What to do if the plate does not heat?

Check that the plug is properly inserted and the socket works. Make sure the thermostat is not on MIN. If the problem persists, contact the authorized Severin after-sales service.

How to dispose of the appliance at end of life?

Do not dispose of the appliance with household waste. Take it to a collection point for recycling electrical appliances. Ask at your local council or retailer.

What is the warranty period and what does it cover?

The warranty is 2 years from the date of purchase. It covers material and manufacturing defects. It does not cover normal wear, breakable parts (glass, bulbs) or damage due to misuse. Keep your receipt.

USER MANUAL 910011 SEVERIN

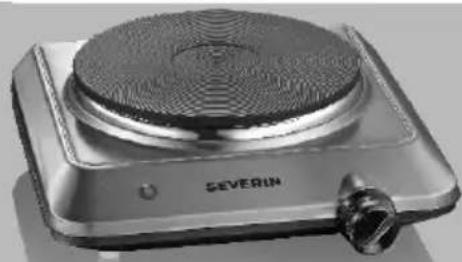

Exterior view of a modern stainless steel electrical stove with two circular burners (no text or symbols visible)

Exterior view of a modern SEVERIN electric stove with a circular top and heat sink (no text or symbols visible on the appliance itself)

Simple line drawing of a cooking pot with crossed panes and two handles, no text or symbols present

Simple line drawing of a cooking pot on a train (no text or symbols)

Simple line drawing of a cooking pot with a stove burner (no text or symbols)

Simple black checkmark symbol on white background (no text or additional symbols)

DE

Kochplatten

Before using the appliance, please read the following instructions carefully and keep this manual for future reference. The appliance must only be used by persons familiar with these instructions.

Connection to the mains supply

The appliance should only be connected to an earthed socket installed in accordance with the regulations.

Make sure that the supply voltage corresponds with the voltage marked on the rating label. This product complies with all binding CE labelling directives.

Important safety instructions

• In order to avoid hazards, repairs to this electrical appliance or its power cord must be carried out by our customer service. If repairs are needed, please send the appliance to our customer service department (see appendix).
• Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely.

• To avoid the risk of electric shock, do not clean the appliance with water and do not immerse it in water.

• Clean the cooking surfaces with a damp cloth after each use. For detailed information on cleaning the appliance, please refer to the section General care and cleaning.

• The appliance is not intended to be operated by means of an external timer or separate remote-control system
• This appliance may be used by children (at least 8 years of age) and by persons with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, provided they have been given supervision or instruction concerning the use of the appliance and fully understand all dangers and safety precautions involved.
  • Children must not be permitted to play with the appliance.
• Children must not be permitted to carry out any cleaning or maintenance work on the appliance unless they are supervised and at least 8 years of age.
  • The appliance and its power cord must be kept well away from children

under 8 at all times.

• Caution: Keep any packaging materials well away from children – such materials are a potential source of danger, e.g. of suffocation.
• Every time the appliance is used, the main body including the power cord as well as any attachment fitted should be checked thoroughly for any defects. Should the appliance, for instance, have been dropped onto a hard surface, or if excessive force has been used to pull the power cord, it must no longer be used: even invisible damage may have adverse effects on the operational safety of the appliance.
• Caution - hot surfaces: This symbol draws attention to the fact that the accessible housing surfaces – especially on and around the hot-plate - may become very hot during operation. Do not remove the warning sticker with this symbol.
• Do not leave the appliance unattended while in use.
• Caution:

When overheated, food may tend to ignite. However, the likelihood of this occurring is increased where food with a high fat or oil content is concerned.

• Do not position or operate the appliance close to or underneath any wall-cupboards or hanging objects such as curtains or any other infl ammable materials.
• During operation, the appliance must be placed on a heat-resistant surface, impervious to splashes, stains or hot steam.
• Always ensure that air is able to circulate freely underneath the unit. A minimum distance of 10 cm to any wall must also

be observed

• The ventilation slots underneath the unit must not be covered during use.

• Always remove the plug from the wall socket

• in case of any malfunction,

• after use, and also

• before cleaning the appliance.

• When removing the plug from the wall socket, never pull on the power cord; always grip the plug itself.

• Do not let the power cord hang free.
• Do not allow the power cord to touch any hot parts of the appliance.
• No responsibility will be accepted if damage results from improper use, or if these instructions are not complied with.

• This appliance is intended for domestic or similar applications, such as

• in shops, offi ces and other similar working environments,

• in agricultural areas,
• by customers in hotels, motels etc. and similar establishments,
• in bed-and breakfast type environments.

Start up

Before using the appliance for the first time, let it heat up for approximately 3 minutes at maximum power (but without using a pot or saucepan), while ensuring sufficient ventilation. During this process, a slight smell and a little smoke may be emitted. This is normal and will only last for a very short time. Ensure adequate ventilation by opening windows or balcony doors.

Clean the appliance afterwards as described in section General care and cleaning) below.

Operation

• Always place a pot / saucepan on the hot-plate before the appliance is switched

on.

• Ensure that the pot is clean and dry on the outside. Do not use stain covered pots / saucepans.

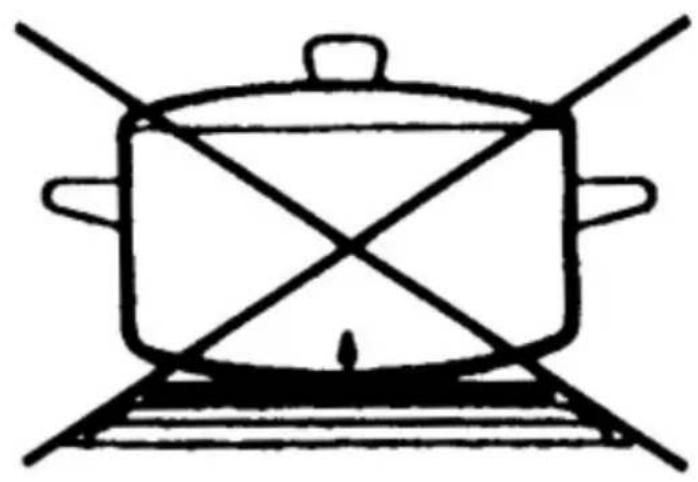

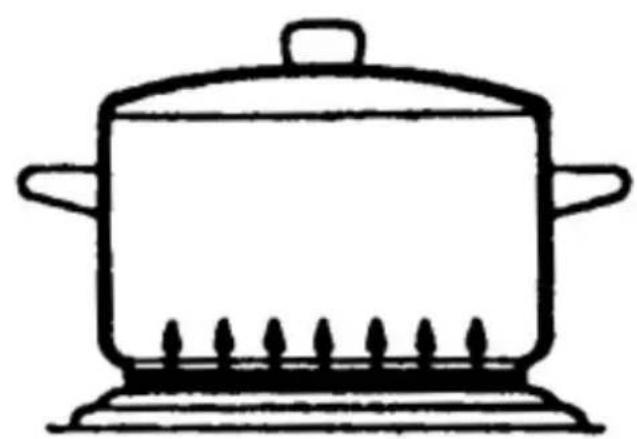

• To prevent damage to the hot-plate, only use pots / saucepans with fl at bottoms. Most suitable are pots specifi cally designed for use on electric plates (see picture I).
• Always make sure that the pot / saucepan used is of at least the same diameter as the plate; this minimises the loss of heat and prevents the plate from being damaged as a result of uneven heat distribution.

Thermostat setting

MAX : Pre-cooking and quick frying

4-5 : Regular cooking, frying
3-4 : Simmering
1-2 : Keeping warm

Set the thermostat knob to the 'MIN' position after use. Remove the plug from the wall socket afterwards to ensure that the appliance is completely disconnected from the mains.

Indicator light

The indicator light stays on while the hot-plate is heating up. It goes out once the pre-set temperature has been reached.

General care and cleaning

• Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely.
• To avoid the risk of electric shock, do not clean the appliance with water and do not immerse it in water.
• Do not use abrasives or harsh cleaning solutions.

• After use, a wet cloth may be used to remove any spills from the plates.
• A special cleaning agent should be used to treat the plate from time to time.

Disposal

Devices marked with this symbol must be disposed of separately from your household waste, as they contain valuable materials which can be recycled. Proper disposal protects the environment and human health. Your local authority or retailer can provide information on the matter.

Guarantee

This product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not been modified, repaired or interfered with by any unauthorised person, or damaged through misuse.

This guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. This guarantee does not affect your statutory rights, nor any legal rights you may have as a consumer under applicable national legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase.
