USER MANUAL CR-550 LENCO

Usage of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiaon exposure.

This unit should not be adjusted or repaired by anyone except qualified service personnel.

KEEP THESE INSTRUCTIONS IN MIND:

1. Do not use this device near water.
2. Clean only with a slightly damp cloth.
3. Do not cover or block any ventilaon openings. When placing the device on a shelf, leave 5cm (2") free space around the whole device.
4. Install in accordance with the supplied user manual.
5. Don't step on or pinch the power adaptor. Be very careful, particularly near the plugs and the cable's exit point. Do not place heavy items on the power adaptor, which may damage it. Keep the enre device out of children's reach! When playing with the power cable, they can seriously injure themselves.
6. Unplug this device during lightning storms or when unused for a long period.
7. Keep the device away from heat sources such as radiators, heaters, stoves, candles and other heat-generang products.
8. Avoid using the device near strong magnec fields.
9. Electrostatic discharge can disturb normal usage of this device. If so, simply reset and restart the device following the instrucon manual. During file transmission, please handle with care and operate in a stac-free environment.
10. Warning! Never insert an object into the product through the vents or openings. High voltage ows through the product and inserting an object can cause electric shock and/or short circuit internal parts. For the same reason, do not spill water or liquid on the product.
11. Do not use in wet or moist areas such as bathrooms, steamy kitchens or near swimming pools.
12. Do not use this device when condensaon may occur.
13. Although this device is manufactured with the utmost care and checked several mes before leaving the factory, it is still possible that problems may occur, as with all electrical appliances. If you nose smoke, an excessive build-up of heat or any other unexpected phenomena, you should disconnect the plug from the main power socket immediately.
14. This device must be well venlated at all me!
15. This device must operate on a power source as specified on the specificaon label. If you are not sure of the type of power supply used in your home, consult your dealer or local power company.
16. The socket outlet must be installed near the equipment and must be easily accessible.
17. Do not overload ac outlets or extension cords. Overloading can cause fire or electric shock.
18. Devices with class 1 construction should be connected to a main socket outlet with a protecve earthed connecn.
19. Devices with class 2 construcon do not require an earthed connecn.
20. Keep away from rodents. Rodents enjoy bing on power cords.
21. Always hold the plug when pulling it out of the main supply socket. Do not pull the power cord. This can cause a short circuit.
22. Avoid placing the device on any surfaces that may be subject to vibraons or shocks.
23. To protect the device during a thunderstorm, unplug the ac power adaptor.
24. When the device is not in use for long periods, unplug the ac power adaptor for safety reasons.
25. To clean the device, use a so dry cloth. Do not use solvents or petrol based uids. To remove severe stains, you may use a damp cloth with dilute detergent.
26. The supplier is not responsible for damage or lost data caused by malfuncon, misuse, modification of the device or baery replacement.

27. Do not interrupt the connection when the device is formatting or transferring files. Otherwise, data may be corrupted or lost.

28. The usb memory sck should be plugged into the unit directly. Don't use an usb extension cable because it can cause interference resulting in failing of data.

29. The apparatus shall not be exposed to dripping or splashing and make sure that no objects filled with liquids, such as vases, are placed on or near the apparatus.
30. To completely disconnect the power input, the mains plug of the apparatus shall be disconnected from the mains, as the disconnect device is the mains plug of apparatus.
31. The mains plug of the apparatus should not be obstructed or should be easily accessed during intended use.
32. Baery shall not be exposed to excessive heat such as sunshine, fire or the like.
33. Minimum distance of 10cm around the apparatus is needed for sufficient ventilations.
34. The venlation should not be impeded by covering the venlaon openings with items such as newspapers, table-cloths, curtains etc.
35. No naked ame sources such as lighted candles should be placed on the apparatus.
36. Aenon should be drawn to the environmental aspects of baery disposal.
37. The apparatus can only be used in moderate extremely cold or climates warm environments should be avoided.
38. The rang label has been marked on the boom panel of the apparatus.
39. This device is not intended for use by people (including children) with physical, sensory or mental disabilities, or a lack of experience and knowledge, unless they're under supervision or have received instrucons about the correct use of the device by the person who is responsible for their safety.
40. This product is intended for household use only and not for commercial or industrial use.
41. Make sure the unit is adjusted to a stable posion. Damage caused by using this product in an unstable posion or by failure to follow any other warning or precaun contained within this user manual will not be covered by warranty.
42. Never remove the casing of this apparatus.
43. Never place this apparatus on other electrical equipment.
44. Do not use or store this product in a place where it is subject to direct sunlight, heat, excessive dust or vibraon.
45. Do not clean this product with water or other liquids.
46. Do not block or cover the slots and holes in the product.
47. Do not push foreign objects into the slots or holes in the product.
48. Do not allow children access to plasc bags.
49. Please check that the voltage on the type plate of your appliance corresponds with your house electricity supply (type plate is located on the back of the unit).
50. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
51. Only use aachments/accessories specified by the manufacturer.
52. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as the power supply cord or the plug, when liquid has been spilled or objects have fallen into the apparatus, when the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
53. Do not use a damaged power cord or plug or a loose outlet. Doing so may result in fire or electric shock. Warning: prolonged exposure to loud sounds from personal music players may lead to temporary or permanent hearing loss.

INSTALLATION

• Unpack all parts and remove protective material.
• Do not connect the unit to the mains before checking the mains voltage and before all other connections have been made.
• Do not cover any vents and make sure that there is a space of several cenmeters around the unit for venlaon.

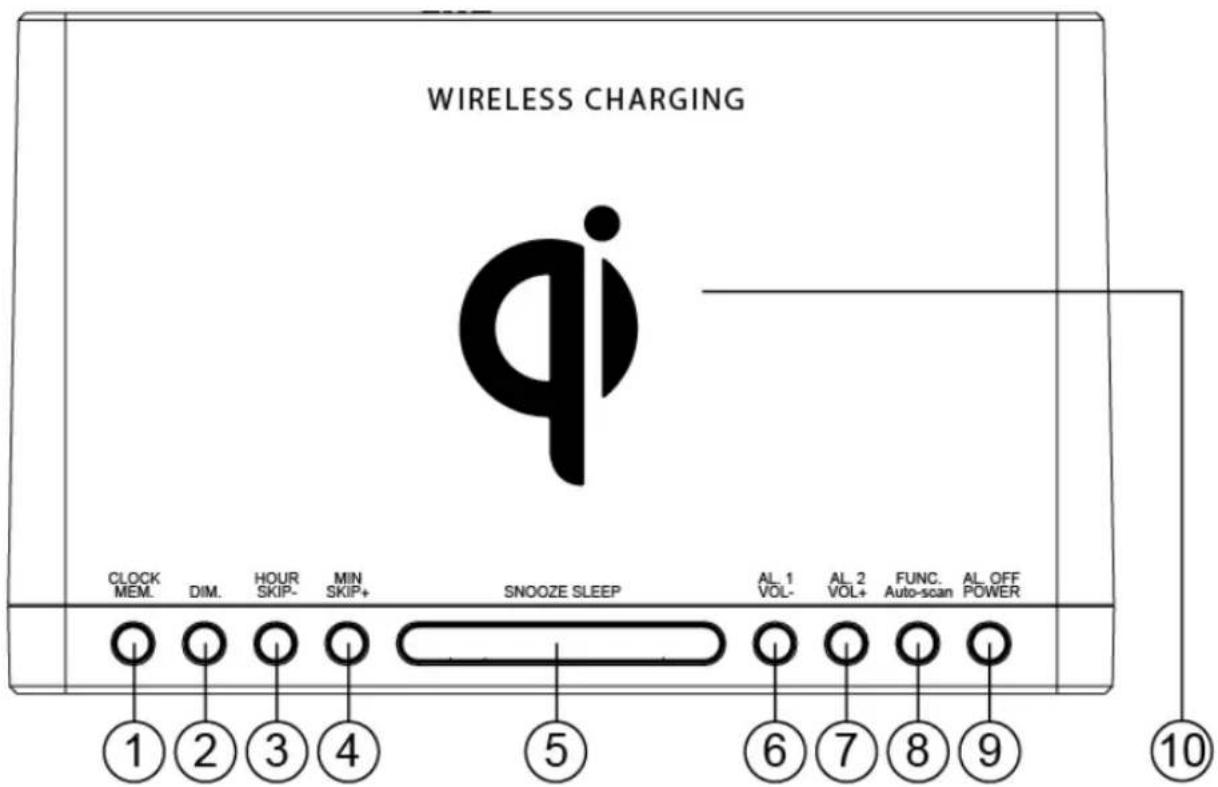

1. CLOCK/MEM Buon. Clock set/Memory
2. DIM Buon. Select the dimmer level(middle-low-high)
3. HOUR/SKIP-Buon. Hour set and Frequency-/Storage staons
4. MIN/Skip+ Buon.
   Minute set and Frequency +/Storage staons
5. SNOOZE SLEEP Buon.
6. AL1/VOL- Buon. Alarm 1 set/Volume down
7. AL2/VOL+ Buon. Alarm 2 set/Volume up.
8. FUNC AUTO-SCAN Buon.
9. AL.OFF POWER Buon.
10. QI

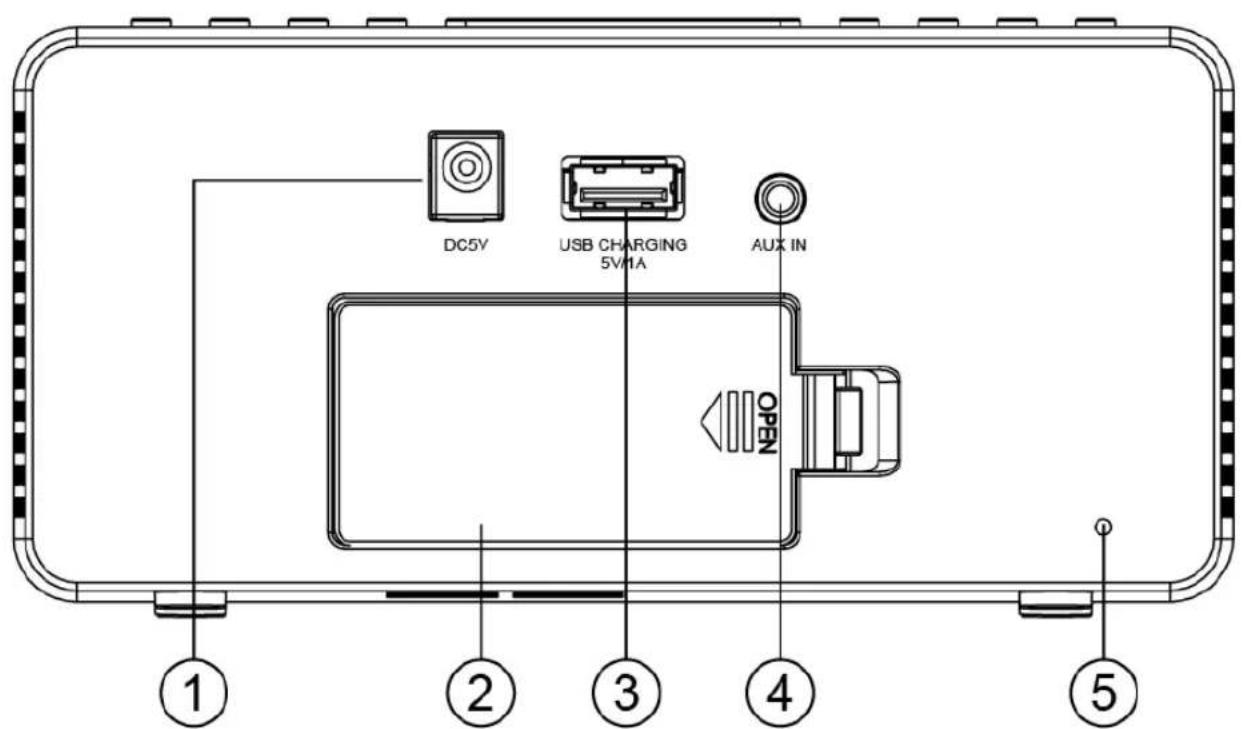

1. DC Jack.
2. Baery Door
3. USB charge port
4. AUX IN Jack
5. FM wire antenna

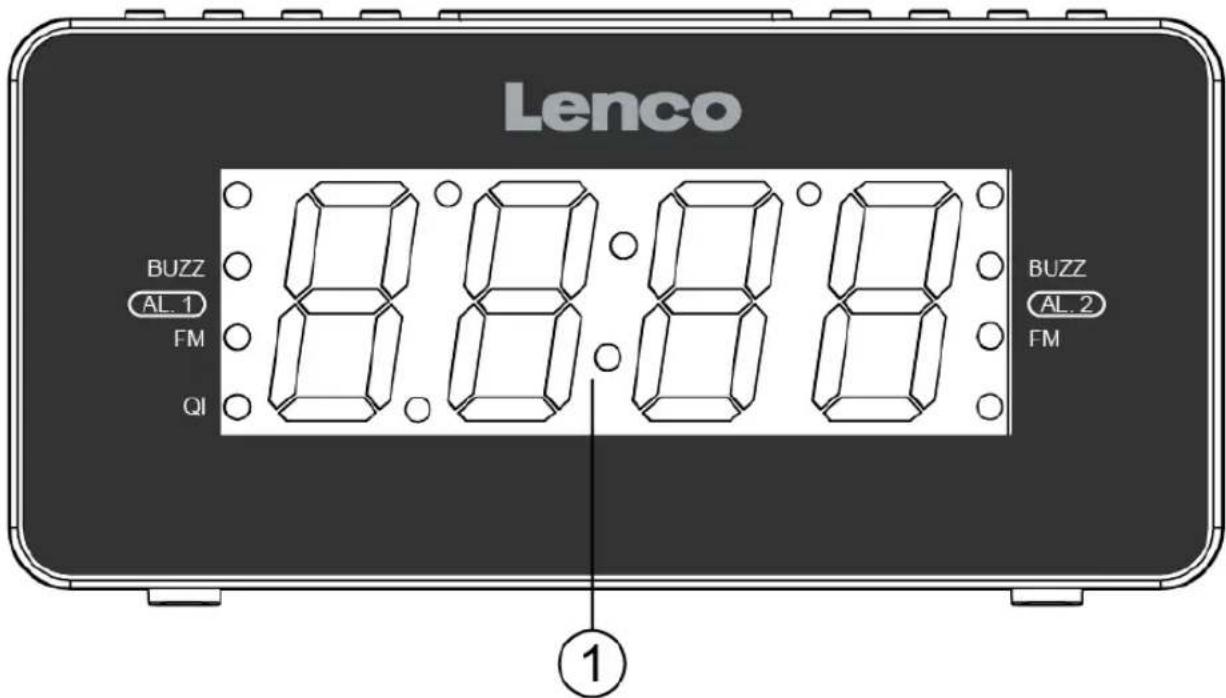

1 LED display.

SET TIME/YEAR/MONTH/DAY

1. Power on the unit, the display will blinking, now into the TIME SET mode, press [HOUR/SKIP-] buon to set the hour, press [MIN/SKIP+] buon to set the minutes, press [CLOCK/MEM.] buon confirm the me set then into the YEAR SET mode (year range: 2017-2099), press [HOUR/SKIP-] buon decrease the year, press MIN/SKIP+] buon increase the year, press [CLOCK/MEM.] buon confirm the year set then into the MONTH/DAY SET mode, press [HOUR/SKIP-] buon increase the month and press [MIN/SKIP+] buon increase the day, press [CLOCK/MEM.] buon confirm the month/day set then exit the me set mode. The unit will auto-exit the set mode if you not press any buons for 5 seconds
2. Under standby mode, press and hold [CLOCK/MEM.] buon for 2-3 seconds, the LED will start blinking, the unit enters me set mode. Seng method same as above

ALARM SET

1. Under standby mode, press and hold [AL.1/VOL-] buoy, the "AL.1-BUZZ" indicator and me will blinking, the default alarm me is 08:00AM, press [HOUR/SKIP-] buoy adjust the hour, press [MIN/SKIP+] buoy adjust the minute, press [AL.1/VOL-] buoy confirm the set then into the repeat date set, press [HOUR/SKIP-] buoy and [MIN/SKIP+] buoy can select "WEEK 1-7", "WEEK 1-5", "WEEK 6-7", press [AL.1/VOL-] buoy confirm the date set then into volume set, press [HOUR/SKIP-] buoy and [MIN/SKIP+] buoy can select "0-16" volume levels (the default volume is 10 level), press [AL.1/VOL-] buoy confirm the volume set then exit the set mode, the alarm will be acvated when me out.
   Remark: Can only have the volume set when alarm the radio, no volume set when alarm BUZZ, the volume can't gradually increase when alarm BUZZ, but volume can gradually increase from 0 level to the set volume level when alarm radio
2. Under standby mode, press [AL.1/VOL-] buon can select BUZZER RADIO ALM OFF. If you not press the [AL.1/VOL-] buon for 5 seconds, the unit will auto confirm the alarm and exit the set mode
3. When the alarm is acvated, if not press any buons, the alarm will auto-stop aer connued for 1 hour, press [AL. OFF/POWER] buon can turn off the alarm. The related indicator will blinking when the alarm is acvated
4. Alarm 2 set same as Alarm 1

SNOOZE FUNCTION

When alarm is acvated, press [SNOOZE/SLEEP] buon into snooze mode, the alarm will be acvated again aer 9 minutes, connued for 60 minutes, press [AL. OFF/POWER] buon to turn off the alarm

RADIO MODE

1. Press [AL. OFF/POWER] buon turn on the unit, the "FM" is the default mode
2. Manual searching: short press [HOUR/SKIP-] buon or [MIN/SKIP+] buon can manual adjust the FM staons
3. Auto-searching: press and hold the [HOUR/SKIP-] buon or [MIN/SKIP+] buon can auto adjust the FM staons
4. Memory obtain the staons: short press [CLOCK/MEM.] buon to callout the pre-set staon, the display will show "P01", press [CLOCK/MEM.] buon again can callout the next pre-set staon, also you can press [HOUR/SKIP-] buon or [MIN/SKIP+] buon select the pre-set staons. The display will show staon frequency 5 seconds later, will exit the me display if not press any buons for 5 seconds
5. Storage the stations: select the station which you need stored, press and hold [CLOCK/MEM.] buon for 2-3 seconds, "P01" on LED display will blinking, press [HOUR/SKIP-] buon or [MIN/SKIP+] buon to select the stored posion, press [CLOCK/MEM.] buon to confirm

AUTO POWER OFF (SLEEP MODE)

Under power on mode, press [SNOOZE/SLEEP] buon, LED will show "10", you can connued press [SNOOZE/SLEEP] buon to select sleep me from "10→20→30→40→50→60→70→80→90→OFF", 5 seconds aer you set the sleep me, will auto confirm the set and acvate the AUTO POWER OFF funcon. If you need power off midway, press the [AL. OFF/POWER] buon; check or change the auto power off me, aer acvate the auto power off funcon, press [SNOOZE/SLEEP] buon again, the LED will show the rest auto power off me, press [SNOOZE/SLEEP] buon again can select the next level auto power off me (Such as: if originally you set "30", aer 2 minutes, you check the LED will show the rest 28 minutes, if you press [SNOOZE/SLEEP] buon again, at this me, the auto power off me will become "40"). If you need turn off the auto power off funcon, repeat press [SNOOZE/SLEEP] buon, unl the LED show "OFF"

VOLUME CONTROL

Press [AL.1/VOL-] buon or [AL2/VOL+] buon adjust to your desired volume, the volume have total "0-16" levels, the default volume is 10 level

TIME BACKUP

Install 2pcs AAA 1, 5V batteries. In case of power failure the clock time will connue. If no backup baeries are inserted the me will recover to a blinking "12:00" or "0:00" after power failure.

AUX MODE

Press the 'func' buon to change to AUX mode. [FUNC.] buon into AUX mode, connect up the external sound, the unit will play music, you can press [VOL-] buon or [VOL+] buon to the desired volume

DIMMER FUNCTION

You can press the [DIM] buon to select the dimmer level from "middle-low-high" level, the default dimmer is high level

USB CHARGING FUNCTION

The USB port can only be used for charging, USB output: 5V, 1A maximum

WIRELESS CHARGING FUNCTION

When a QI compatible device is put on the QI logo on top of the clock radio, the indicator "CHARG" of the clock display will be lit. the indicator will be off when no device is charged.

AccessORIES
Instrucon Manual	1 pc
AC adaptor	1 pc
SPECIFICATION
Power Source	Adapter input 100-240, output 5V DC 2000mA
Power Consumpon	12W
Baery backup (baeries not included)	2 PCS UM4-AAA 1, 5V
Speaker output	2x1W
FM radio	87.5-108 MHz
Unit Size (W x D x H)	15.5 x 9.6 x 7.3 cm
Unit weight	0.45 kg
Working Temperature	10-40°C

The specificaon presents only as a reference. The value of weight and size are approximaon.
Our product is improved ceaselessly and the specificaon and funcon may be changed without prior noce.

Power supply adaptor (For EU only)

Manufacturer: SHENZHENSHI ENGINE ELECTRONIC CO.,LTD

Model number: EE-0502000DPE

Use only the power supply listed in the user instrucons

Guarantee

Lenco offers service and warranty in accordance to European law, which means that in case of repairs (both during and aer the warranty period) you should contact your local dealer.

Important note: It is not possible to send products that need repairs to Lenco directly.

Important note: If this unit is opened or accessed by a none official service center in any way, the warranty expires.

This device is not suitable for professional use. In case of professional use, all warranty obligaons of the manufacturer will be void.

Disclaimer

Updates to Firmware and/or hardware components are made regularly. Therefore some of the instruction, specifications and pictures in this documentation may differ slightly from your particular situation. All items described in this guide for illustraon purposes only and may not apply to a parcular situation. No legal right or entitlements may be obtained from the descripon made in this manual.

Disposal of the Old Device

This symbol indicates that the relevant electrical product or baery should not be disposed of as general household waste in Europe. To ensure the correct waste treatment of the product and baery, please dispose them in accordance to any applicable local laws of requirement for disposal of electrical equipment or baeries. In so doing, you will help to conserve natural resources and improve standards of environmental protecon in treatment and disposal of electrical waste (Waste Electrical and Electronic Equipment Direcve).

Service

For more informaon and helpdesk support, please visit www.lenco.com

Lenco Benelux BV, Thermiekstraat 1a, 6361 HB Nuth, The Netherlands
