USER MANUAL LuV250C LG

Model	LuV250C
Language	English/Spanish/French
Page	64	Color(cover/body)	1/1
	110g	)H*W(ez)	$9Dai260aM
Date	2011.01.28	Designer	Dufeng
	MFL66993601	noitpircs	MANUAN, TRAFERS

Chage Record

	.oN Change content	ECO No.	eta	Designer	Confirm
1
2
3
4
5
6
7
8
9

OWNER'S MANUAL

VACUUM CLEANER

Please read this manual carefully before operating your set and retain it for future reference.

LuV250C

CONTENTS

LG VACUUM CLEANER WARRANTY

3 LG VACUUM CLEANER WARRANTY

IMPORTANT SAFETY INFORMATION

4 IMPORTANT SAFETY INFORMATION

PARTS AND FEATURES

6 PARTS AND FEATURES

ASSEMBLY

7 Unpacking the Vacuum Cleaner
7 Assembly Parts
7 Attaching the Wand
8 Attaching the Hose
8 Accessory Storage
8 Cord Storage

OPERATION

9 Wand Release Operation
9 Body Release Operation
9 Adjusting for Carpet Pile Height
10 Accessories
10 Accessory Use Chart
11 Using the Wand
11 Installing Attachments
11 Tips and Tricks
12 Using the Pet Hair Turbine Tool
12 Stairways and Landings

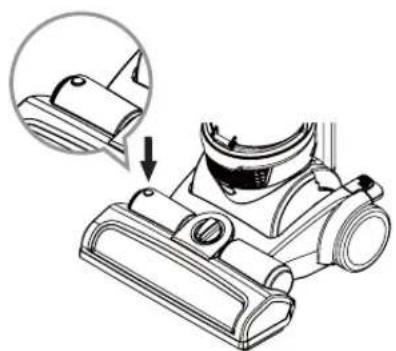

12 Agitator Motor Overload Protection
12 Thermal Overload Protection

CARE & CLEANING

13 Storing the Vacuum Cleaner

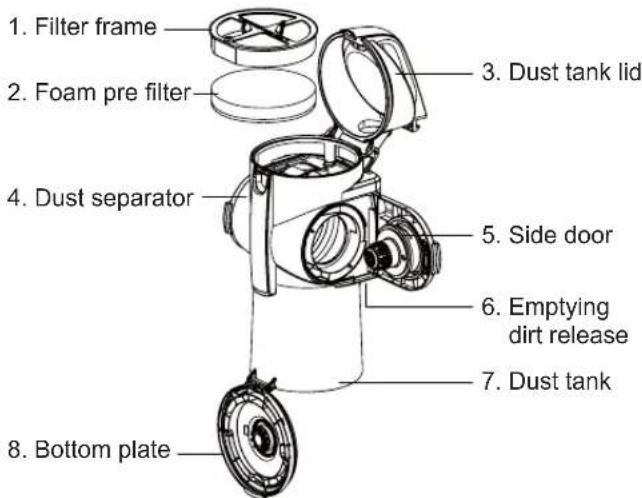

13 Dust Tank Components
14 Emptying the Dust Tank
14 Cleaning the Dust Tank
15 Cleaning the Foam Pre Filter
15 Cleaning the HEPA Filter

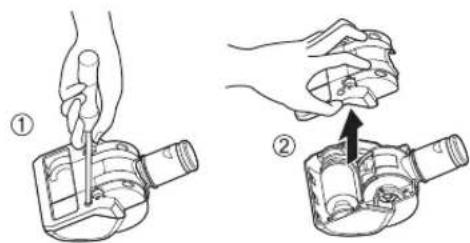

16 Pet Hair Turbine Tool

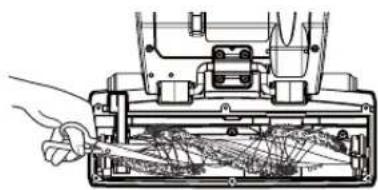

16 Agitator Maintenance

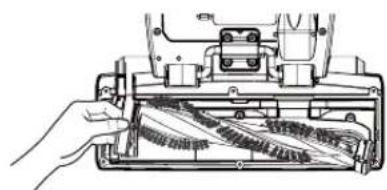

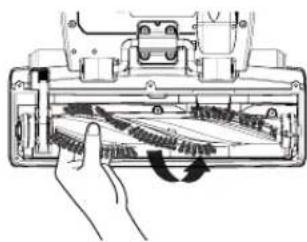

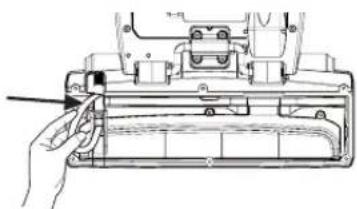

16 Replacing the Agitator Belt
17 Removing Clogs
18 Cleaning the Exterior of the Vacuum Cleaner

TROUBLESHOOTING

19 Troubleshooting

LG VACUUM CLEANER WARRANTY

LG Electronics Inc. will repair or replace your product, at LG's option, if it proves to be defective in material or workmanship under Personal household use, during the warranty period set forth below, effective from the date of original consumer purchase of the product. This limited warranty is good only to the original purchaser of the product and effective only when used in U.S.A and Canada.

WARRANTY PERIOD:	HOW SERVICE IS HANDLED:
Five Year From the date of the original purchase	Any part of the vacuum cleaner which fails due to a defect in materials or workmanship. During this full five-year warranty, LG will also provide, free of charge, all labor and shop service to replace the defective part.

THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTYES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS WARRANTY PERIOD ABOVE. LG WILL NOT BE LIABLE FOR ANY CONSEQUENTIAL, INDIRECT, OR INCIDENTAL DAMAGES OF ANY KIND, INCLUDING LOST REVENUES OR PROFITS, IN CONNECTION WITH THE PRODUCT. SOME STATES DO NOT ALLOW LIMITATION ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.

This warranty covers only defects in material and workmanship.

LGE will NOT pay for:

1. Expendable items that can wear out, including but not limited to filters, belts.
2. A service technician to instruct the user in correct product assembly, operation or maintenance.
3. A service technician to clean or maintain this product.
4. Damage to or failure of this product if it is not assembled, operated or maintained according to all instructions supplied with this product.
5. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended purpose.
6. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than those recommended in all instructions supplied with this product.
7. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.

This warranty is extended to the original purchaser for products purchased for home use within the USA. In Alaska, the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so this exclusion or limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from states to states. To know what your legal rights are, consult your local or state consumer affairs or your state's Attorney General.

CUSTOMER ASSISTANCE INFORMATION:

To Prove Warranty Coverage	Retain your Sales Receipt to prove date of purchase. A copy of your Sales Receipt must be submitted at the time warranty service is provided.
To Obtain Nearest Authorized Service Center or Sales Dealer, or to Obtain Product, Customer, or Service Assistance	Call 1-800-243-0000 (Phone answered 24 hours - 365 days a year) and choose the appropriate prompt from the menu; or visit our website at: http://www.lg.com. (In Canada- Call 1-888-542-2623, website http://www.lg.com)

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE

Read and follow all instructions before using your Vacuum cleaner to prevent the risk of fire, electric shock, personal injury, or damage when using the Vacuum cleaner. This guide does not cover all possible conditions that may occur. Always contact your service agent or manufacturer about problems that you do not understand.

This is the safety alert symbol. This symbol alerts you to potential hazards that can result in property damage and / or serious bodily harm or death.

All safety messages will follow the safety alert symbol and either the word WARNING or CAUTION.

WARNING

Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

WARNING

• Disconnect electrical supply before servicing or cleaning the vacuum cleaner or when the vacuum cleaner is not in use. Failure to do so could result in electrical shock or personal injury.
• Do not use the vacuum cleaner to pick up anything that is burning or smoking such as cigarettes, or hot ashes. Doing so could result in death, fire or electrical shock.
• Do not vacuum flammable or explosive substances such as gasoline, benzene, thinners, propane (liquids or gases).

The fumes from these substances can create a fire hazard or explosion. Doing so could result in death or personal injury.

• Do not handle the plug or vacuum cleaner with wet hands. Doing so could result in death or electrical shock.
• Do not unplug the vacuum cleaner by pulling on the cord. Doing so could result in product damage or electrical shock. To unplug, grasp the plug, not the cord.
• Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.

Failure to do so could result in electrical shock or personal injury.
- Do not pull or carry the vacuum cleaner by its cord, use the cord as a handle, close a door on the cord or pull the cord around sharp edges or corners.
- Do not run the vacuum cleaner over the cord. Keep the cord away from heated surfaces.

Failure to do so could result in electrical shock, personal injury, fire, or product damage.
The vacuum cleaner is not a toy and should not be operated by children. Pay close attention when operating the vacuum cleaner near children.

Personal injury or product damage could result.

• Do not use the vacuum cleaner if the power cord or plug is damaged or faulty.

Personal injury or product damage could result. In these cases, contact LG Electronics Service Agent to avoid hazard.

• Do not use vacuum cleaner if it has been under water. Personal injury or product damage could result. In these cases, contact LG Electronics Service Agent to avoid hazard.
• Do not continue to vacuum if any parts appear missing or damaged.

Personal injury or product damage could result. In these cases, contact LG Electronics Service Agent to avoid hazard

• Do not use an extension cord with this vacuum cleaner. Fire hazard or product damage could result.
• Use proper voltage.

Using improper voltage may result in damage to the motor and possible injury to the user. Proper voltage is listed on the bottom of vacuum cleaner.

• Turn off all controls before unplugging.
  Failure to do so could result in electrical shock or personal injury.
• Do not change the plug in any way.

Failure to do so could result in electrical shock, personal injury, product damage or death. If plug does not fit, contact a qualified electrician to install the proper outlet.

• Repairs to electrical appliances may only be performed by qualified service engineers. Improper repairs may lead to serious hazards for the user.
• Do not put fingers near the gear.

Failure to do so could result in personal injury.
- Do not use out doors or on wet surfaces.

Failure to do so could result in electrical shock or personal injury.

• Do not put anything between the vacuum cleaner body and agitator head space.
  Personal injury or product damage could result.
• This product contains chemicals known to the State of California to cause cancer and reproductive toxicity. Wash hands after handling.
• Use extra care when cleaning on stairs.

CAUTION

• Do not insert objects into vacuum openings.

Failure to follow this instruction could result in product damage.

• Do not use the vacuum if any of the openings are blocked. Keep vacuum openings free of dust, lint, hair and anything that may reduce air flow.

Failure to follow this instruction could result in product damage.

• Do not use the vacuum cleaner without the tank and / or filters properly installed.

Failure to follow this instruction could result in product damage.

• Always clean the dust tank and filters after vacuuming carpet cleaners or fresheners, powders and fine dust.

These products can clog the filters, reduce airflow and/or cause damage to the vacuum.

Failure to clean the dust tank and filters could cause permanent damage to the cleaner.

• Do not use the vacuum cleaner to pick up sharp or hard objects such as small toys, pins, paper clips, etc.

They may damage the cleaner or dust tank.

• Store the vacuum cleaner indoors.

Put the vacuum cleaner away after use to prevent tripping over it.

• The vacuum cleaner should not be operated by young children. Failure to follow this instruction could result in personal injury or product damage.

• Only use parts produced or recommended by Qualified Service Technicians.

Failure to do so could result in product damage.

• Follow all instructions in the owner's manual.

Only use LG recommended or approved attachments and accessories.

Failure to do so could result in personal injury or product damage.

Thermal protector :

This vacuum cleaner has a special thermostat that protects the vacuum cleaner in case of motor overheating. If the vacuum cleaner suddenly shuts off, turn off the switch and unplug the vacuum cleaner.

Check the vacuum cleaner for possible source of overheating such as a full dust tank, a blocked hose or clogged filter. If these conditions are found, fix them and wait at least 30 minutes before attempting to use the vacuum cleaner. After 30 minutes, plug the vacuum cleaner back in and turn on the switch. If the vacuum cleaner still does not run, contact a qualified electrician.

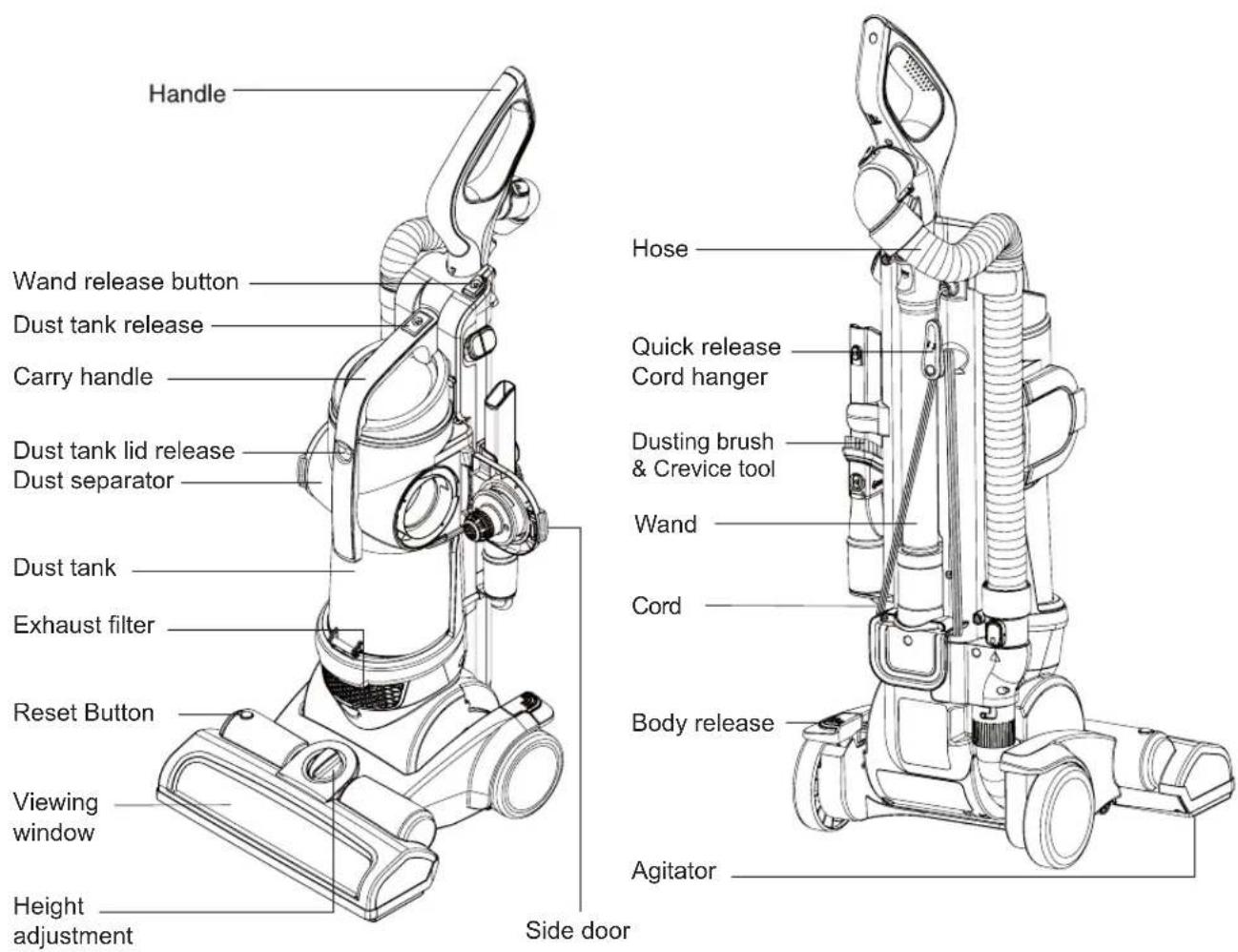

It is important to know your vacuum cleaner's parts and features to assure its proper and safe use. Review these before using your vacuum cleaner.

Common Replacement Parts

HEPA Filter		ADQ73233201
Foam Pre Filter	Filter Frame	MDQ62637901
MDQ62637901	Foam Filter	MDJ63006101
Agitator Belt		MAS37628302

Accessory Tools

Dusting brush & Crevice tool Pet hair turbine tool

To order these parts call

1-800-243-0000 (U.S.A)

1-888-542-2623 (Canada)

To reduce the risk of shipping damage, your vacuum cleaner is shipped partially unassembled.

Unpacking the Vacuum Cleaner

Carefully unpack the vacuum cleaner and make sure that you have all parts before discarding of any packaging.

Remove any tape, cardboard inserts and protective film before assembly.

Items that are packed in the box:

1. Vacuum Cleaner Body
2. Dusting Brush & Crevice Tool
3. Handle
4. Adjustable Wand
   5.Hose
5. Pet Hair Turbine Tool
6. Additional Foam Filter

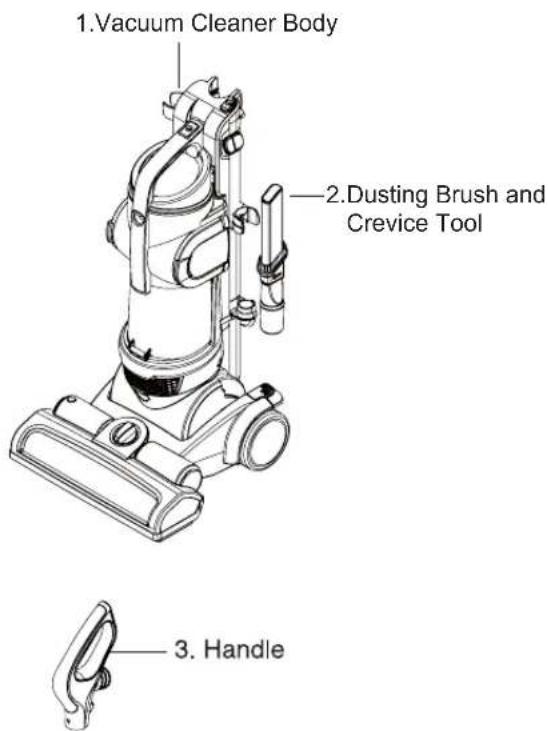

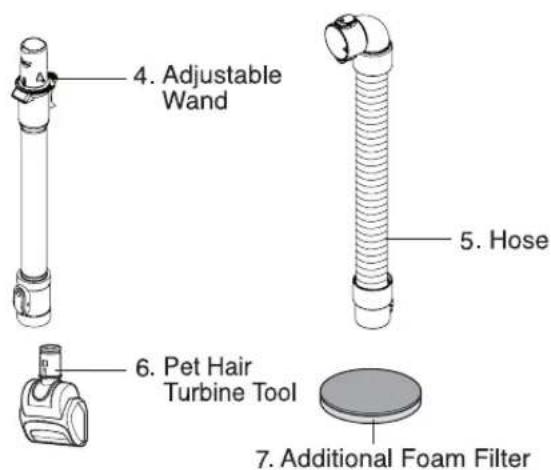

Assembly Parts

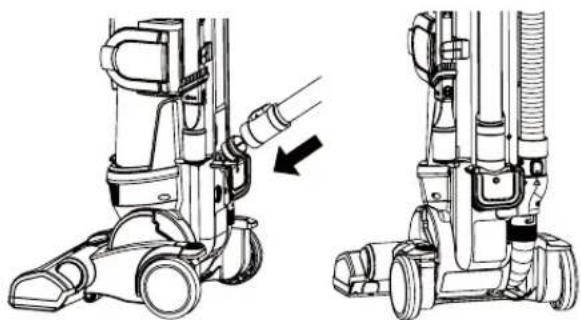

Attaching the Wand

1. Insert the wand into the handle.

1. Insert the wand into the main body of the vacuum cleaner.

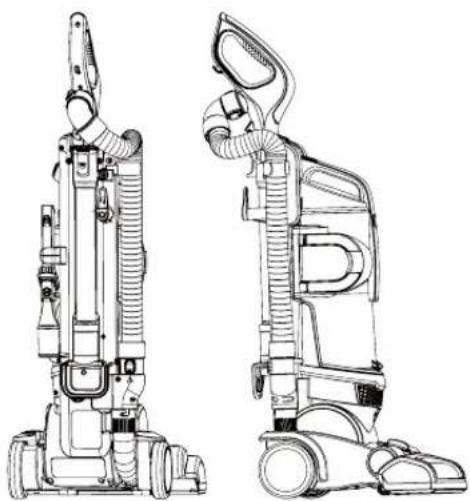

Attaching the Hose

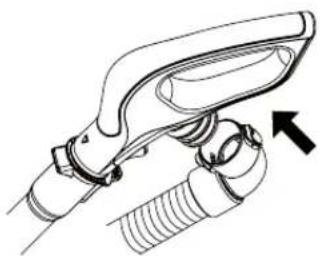

1. Attach the top side of the hose to the handle. The top side of the hose can be recognized by the two release clips.

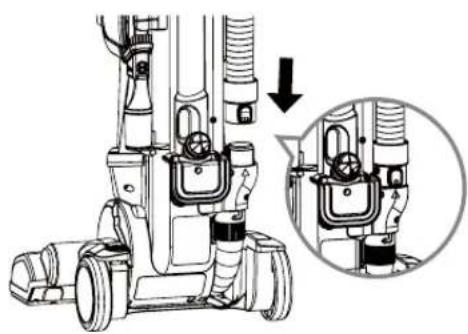

1. Insert the bottom side of the hose to the main body. The bottom side of the hose can be recognized by the single release clip.

1. Align the hose with the holder on the side of the vacuum.

WARNING

Personal Injury and Product Damage Hazard! DO NOT use outlets above counters. Not following this warning could result in damage to surrounding items.

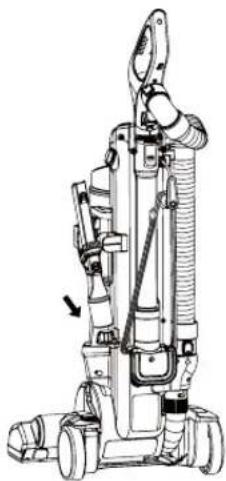

Accessory Storage

Your vacuum cleaner features convenient on-board storage for the Dusting brush & Crevice tool.

main body.

Cord Storage

To store the cord:

1. Make sure the cord hanger is in the UP position.
2. Wrap the cord around the cord hanger and hook into place.Clip the plug onto the cord.

NOTE: To reduce the risk of electric shock, this vacuum cleaner has a polarized plug; one blade is wider than the other. This plug will fit in a polarized outlet only one way.

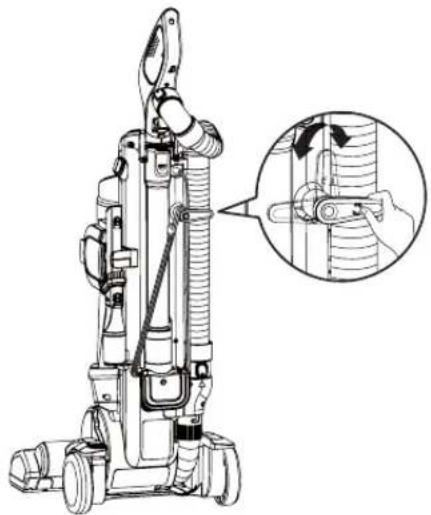

To release the cord:

1. Rotate the upper cord holder to the DOWN position.
2. Unclip the plug and extend the cord.

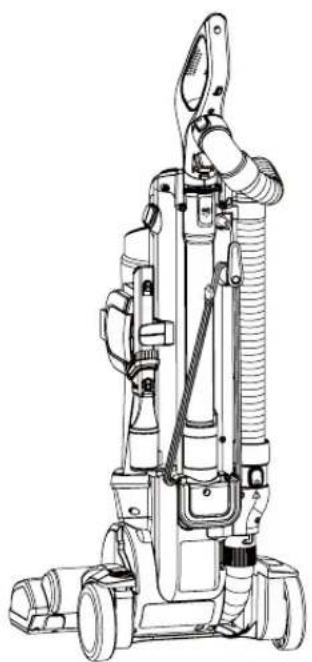

WARNING

Personal Injury Hazard

Do not set the vacuum cleaner on the stairs; always keep it on the floor.

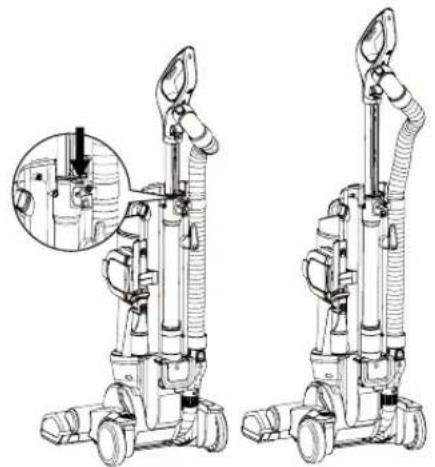

Wand Release Operation

Press the release button on the wand and pull out the wand handle.

Control Operation

1.Power On/Off:

To turn the vacuum on and off.

2.Carpet/Floor:

Press this button to turn the agitator on or off.

Note: The agitator will not spin when the vacuum is in the upright position.

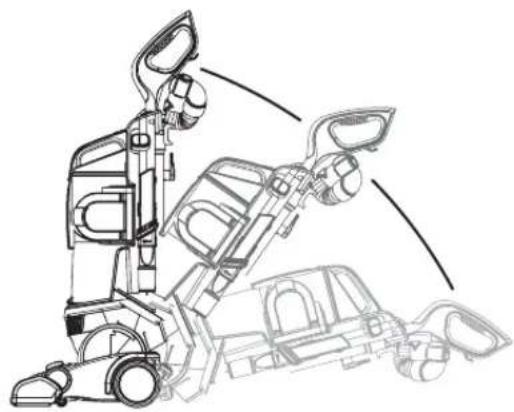

Body Release Operation

To begin vacuuming, press the pedal on the left side of the vacuum and pull the handle down.

NOTE: When the vacuum is in the upright position the agitator will not run.

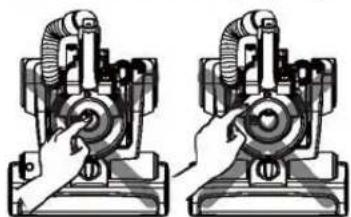

WARNING

• Do not place anything in the space between the body and agitator head.

Personal injury or product damage could result.

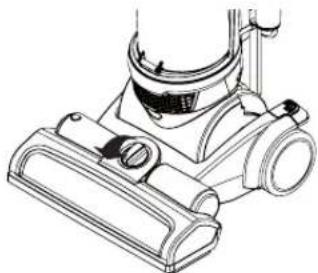

Adjusting the Vacuum Cleaner for Carpet Pile Height

Adjusting the height of the vacuum head.

When it is necessary to raise and lower the front of the vacuum for various carpet pile heights, turn the Control Knob. Each turn will raise the agitator one notch.

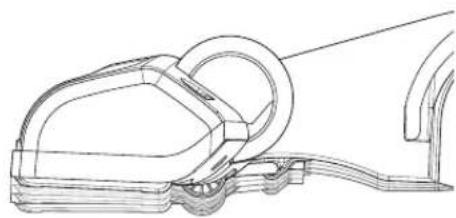

Suggested pile height settings:

You may need to raise the head of the vacuum cleaner to make vacuuming area rugs and longer pile rugs easier.

For maximum cleaning performance, the following carpet height settings are recommended:

• LOW- for standard carpet
• Higher settings—for very deep pile carpet where easier pushing effort is desired, while maintaining good cleaning performance.

NOTE: If the vacuum is difficult to push, turn the control knob to the next highest setting.

Attention: Special care is required when vacuuming certain types of carpet or flooring. Always check the carpet or floor covering manufacturer's recommended cleaning instructions before vacuuming.

Accessories

Pet Hair Turbine Tool

This air-turbine powered brush is great for stairs and interiors, as well as removing pet hair, lint, etc. from fabrics and carpets.

Do NOT use on pets.

Dusting brush

Use the dusting brush to clean furniture, walls, etc.

Crevice Tool

The crevice tool can be used for tight corners, between cushions and other hard to reach places.

Accessory Use Chart

Accessory	CLEANING AREA
	Between Cushions	Upholstered Surfaces*	Furniture and Hard Surfaces*	Drapes* (lower power level)	Stairs/ Cushions	Carpeted Floors/ Rugs	Walls
Pet Hair Turbine Tool	●	●			●
Dusting Brush	●	●	●	●		●	●
Crevice Tool	●

• Always make sure attachments are clean before using on fabrics.

Using the Wand

CAUTION

Never pull the vacuum cleaner by the hose.

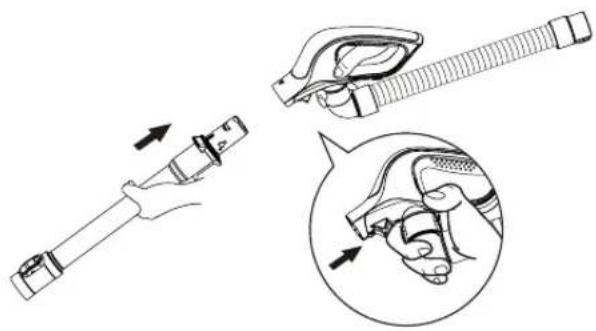

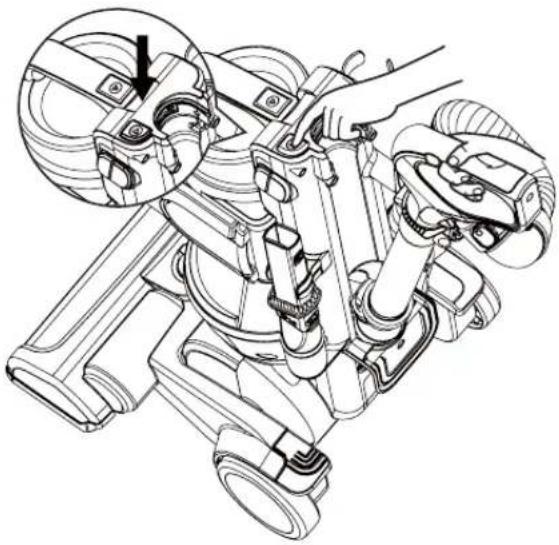

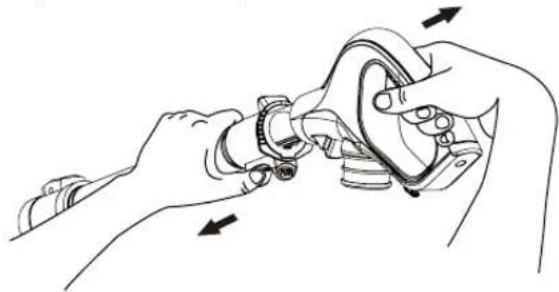

Release the wand and handle:

1. Make sure that the vacuum cleaner is locked in the upright position on a flat, stable surface.
2. Press the wand release button on the body and tilt the wand handle.
3. Lift the wand out and up.

1. Press the wand release button on the wand and pull the handle up.

1. To use the handle only, press the release button on the bottom of the handle and pull the wand straight out of the handle.

Installing Attachments

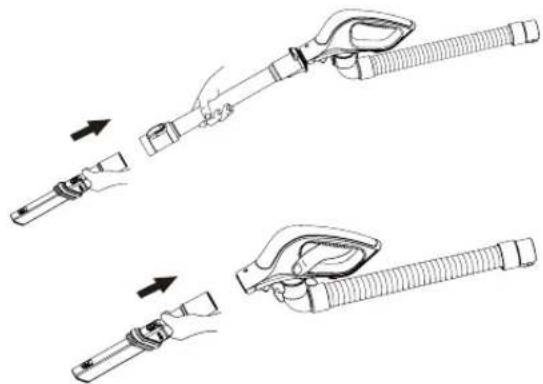

Using the Crevice Tool:

Slide the crevice tool over the end of the wand or fit it into the handle.

Using the Dusting Brush:

Press the brush release button on the crevice tool and slide the brush forward.

Dusting brush Crevice tool

Tips and Tricks

Carpet Edges and Corners:

For tight corners, carpet edges and along base boards, use the dusting brush.

For especially hard to reach areas, use the crevice tool.

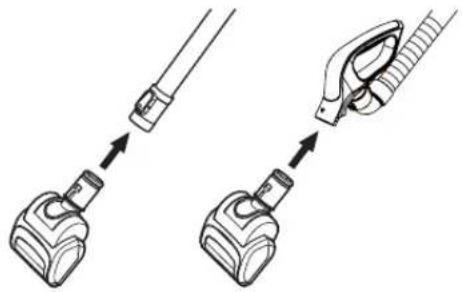

Using the Pet Hair Turbine Tool

The pet hair turbine tool attaches to the wand like the other attachments. It features a turbine-powered agitator to provide extra cleaning power on carpets and fabrics. It is great for cleaning stairs, cushions and vehicle upholstery.

When using the pet hair turbine tool, check the brush area frequently for buildup of hair, fibers, lint and other debris.

Excessive buildup can reduce performance and could damage the pet hair turbine tool. See the Care and Cleaning section for cleaning instructions.

Stairways and Landings

Use the dusting brush or pet hair turbine tool on stairs and landings. Make sure that the vacuum cleaner is placed so that it cannot tip or fall.

Agitator Motor Overload Protection

The agitator has a built-in protection against motor damage should the agitator jam. If the agitator slows down or stops, the agitator overload protector shuts off the agitator motor. The suction motor will remain on at this time.

To correct problem: Turn off and unplug the vacuum cleaner, remove the obstruction and press the reset button.

Thermal Overload Protection

This vacuum cleaner has a thermal overload protector which automatically activates to protect the vacuum cleaner from overheating. If a clog disturbs the normal flow of air to the motor, the thermal protector turns the motor off automatically to allow the motor to cool in order to prevent possible damage to the vacuum cleaner.

To correct the problem: Turn the vacuum cleaner off and unplug the power cord. Check for and remove clogs, if necessary. Also check and clean any dirty filters.

Wait approximately 30 minutes and plug the vacuum cleaner in and turn back on to see if the motor protector has reset. The thermal protector system will not reset until the vacuum cleaner has completely cooled down.

Always follow all safety precautions when cleaning and servicing the vacuum cleaner.

Storing the Vacuum Cleaner

When not in use, wrap the cord around the cord hanger as shown. Store the dusting brush/revice tool in its proper place on the left of the vacuum cleaner.

WARNING

Electrical shock and personal injury hazard. Take care when wrapping the cord. Wrapping the cord too tightly puts stress on the cord and can cause cord damage. Do not crisscross when wrapping the cord. A damaged cord causes an electrical shock hazard and could cause personal injury or damage.

Dust Tank Components

The dust tank consists of several key components. Always make sure that all parts are properly reinstalled after emptying the dust tank.
NEVER operate the vacuum cleaner without all filters in place.
NEVER operate the vacuum cleaner with wet filters or components.

Key components:

1-2. Filter frame and foam pre filter:

Captures medium to fine particles. It consists of Filter frame & Foam filter. These are washable.

1. Dust tank lid: Open to access the foam pre filter.
2. Dust separator: Separates dust from air coming in.
3. Side door: Open to remove dirt from dust separator.
4. Emptying dirt release: Press down to open the bottom plate.
5. Dust tank: Where dirt is collected.
6. Bottom plate: Open to empty the dust tank.

Emptying the Dust Tank

WARNING

Electrical shock and personal injury hazard.

Always unplug the power cord from the electrical outlet before servicing or performing maintenance on the vacuum cleaner.

Failure to do so could result in electrical shock or personal injury.

For maximum performance, always empty the dust tank when the dirt level reaches the MAX line.

TO REMOVE THE DUST TANK, press the dust tank release, tilt the dust tank back, then lift it out of the vacuum cleaner.

TO EMPTY DUST TANK, press the emptying dirt release and open the bottom plate, as shown.

TO REINSTALL THE DUST TANK, place it in the holder, then tilt forward until it clicks into place. Make sure the dust tank is properly seated!

Don't touch the inner gear and button.

Cleaning the Dust Tank

For optimal performance, clean the dust tank regularly.

To Clean the Dust Tank:

1. Remove the dust tank from the vacuum cleaner.
2. Press the emptying dirt release and open the bottom plate.
3. Wipe out the dust tank with a soft cloth or paper towel.

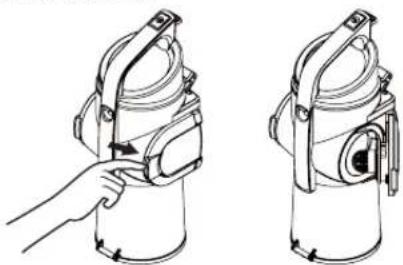

1. Release the latch on the side door on both the right and left sides.

1. Remove any hair, fibers or other debris from the dust separator.

Do not remove the cones attached to the side door for cleaning.

NEVER operate the vacuum cleaner with wet filters or components.

Cleaning the Foam Pre Filter

CAUTION

A wet filter can cause permanent damage to the vacuum cleaner. Be sure filters are completely dry before reinstalling.

For optimal performance, check the filters every month and clean when necessary. Don't close the dust tank lid without the foam pre filter.

To clean the foam pre filter:

1. Remove the dust tank from the vacuum cleaner.
2. Lift up on the dust tank lid release and open the lid.

1. Lift out the foam pre filter.

1. Separate the foam pre filter from the filter frame.

1. Shake out any excess dirt or debris and rinse the foam pre filter & filter frame with clean water. Squeeze out water from the foam pre filter.

1. Dry completely away from sunlight.

NEVER operate the vacuum cleaner with wet filters or components.

If you notice a loss of suction and cleaning the foam pre filter does not help, you may need to replace the foam pre filter. You can purchase additional foam filters from LG by calling: 1-800-243-0000(U.S.A), 1-888-542-2623 (Canada) and asking for parts on page 6.

Cleaning the HEPA Filter

For optimal performance, check the filter every 6 months and clean when necessary.

To Clean the HEPA Filter:

1. Remove the exhaust filter cover.

Exhaust filter cover

1. Draw out the filter from front cover.

1. Wash the filter thoroughly in flowing water.

1. Remove moisture.

1. Dry completely away from sunlight.

Pet hair turbine tool

To clean the pet hair turbine tool

1. Remove the four screws on the bottom of the pet hair turbine tool.
2. Lift off the cover.
3. Remove any debris.

To reassemble:

1. Carefully press cover onto tabs until they snap into place.
2. Insert and tighten the screws that were removed in step 1. Do NOT overtighten the screws.

Do Not use the pet hair turbine tool on animals.

Agitator Maintenance

WARNING

Electrical shock and personal injury hazard. Always unplug the vacuum cleaner before servicing. Failure to do so could result in electrical shock or personal injury.

Frequently check the agitator brush area for hair, string and lint buildup.

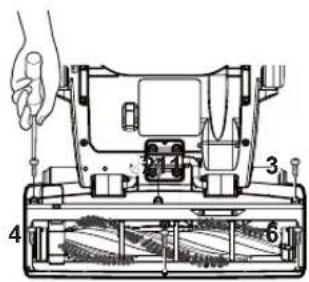

Remove the Agitator Brush Cover:

1. Unplug the vacuum cleaner. Press the left foot pedal to release the head. Lower the handle until the vacuum cleaner is lying flat on the floor.
2. Turn the vacuum cleaner over, so that the agitator is facing up.
3. Set the head on a cloth or a smooth surface. Remove the six screws on the bottom of the head and remove the cover.

1. Carefully remove any accumulated string, hair, etc. from the agitator and the agitator area.

To reinstall the cover, reverse the steps above.

Replacing the Agitator Belt

WARNING

Electrical shock and personal injury hazard. Always unplug the vacuum cleaner before servicing. Failure to do so could result in electrical shock or personal injury.

If the belt breaks, follow the steps below to replace the agitator belt.

To Replace the Belt:

1. Remove the agitator brush cover.
2. Lift the agitator straight out.

1. Unhook the old belt from the drive pulley. Make sure no pieces of the broken belt are trapped in the agitator or drive pulley area.

1. Hook the new belt over the drive pulley of agitator motor.

1. Fit the agitator through the belt, making sure the belt is aligned with the pulley section of the agitator.

1. Lower the agitator into place, making sure the oval shaped tabs fit into the indents on the head.

1. Reinstall the agitator brush cover as described above.

For a replacement belt, order LG service center belt part # MAS37628302.

Removing Clogs

WARNING

Electrical shock and personal injury hazard. Always unplug the vacuum cleaner before servicing. Failure to do so could result in electrical shock or personal injury.

If you notice a loss in suction, first check the filters as described on pages 13. If the filters are clean, there may be a clog. The arrows show areas where clogs are most likely to occur.

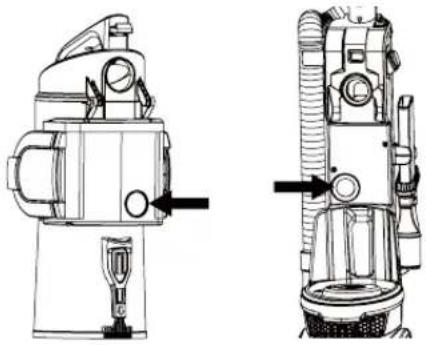

To check for clogs:

1. Check the hose where it connects to the handle by pressing the two release buttons on the top end of the hose.

1. Remove the dust tank and check the dust tank inlet and body inlet where it connects to the vacuum cleaner body.

Review this chart to find do-it-yourself solutions for minor performance problems.

Any service or repair needed, other than as described in this owner's manual, should be performed through your local LGE service center.

WARNING

Electrical shock and personal injury hazard.

Always unplug the vacuum cleaner before servicing. Failure to do so could result in electrical shock or personal injury.

PROBLEM	POSSIBLE CAUSE	POSSIBLE SOLUTION
Vacuum cleaner will not run	·Unplugged at wall outlet ·Agitator motor overload protection ·Thermal protector activated	·Make sure cord is plugged into a functioning outlet. ·Unplug the vacuum cleaner and check the agitator for obstructions and reset the unit. [See Pages 12&16] ·Allow the vacuum cleaner to cool down.
Poor dirt pickup	·Full or clogged dust tank ·Dust tank improperly installed ·Clogged hose or wand ·Belt broken/not installed properly ·Agitator motor overload protection activated ·Hole in hose ·Worn agitator	·Empty dust tank and clean filters. [See pages 14-15] ·Make sure all dust tank components and filters are installed correctly. ·Check for clogs. [See pages 17-18] ·Check belt and replace if needed. [See pages 16-17] ·Unplug the vacuum cleaner and check the agitator for obstructions. Press the reset button. [See page12] ·Inspect hose carefully. Replace if needed. ·Contact service.
Agitator does not turn	·Switch is off (unit is in bare floor mode) ·Cleaner is in upright position ·Agitator motor overload protection is tripped (brush is jammed) ·Belt is broken	·Turn on agitator power switch. [See page 9] ·Press the Body release and tilt unit back. [See page 9] ·Unplug the vacuum cleaner and check the agitator for obstructions and reset the unit. [See pages 12-16] ·Replace belt. [See pages 16-17]
Dust escapes the dust tank	·Dust tank improperly installed ·The dust tank lid not closed ·The bottom plate is not latched	·Make sure all dust tank components and filters are installed correctly. ·Check the dust tank lid. ·Make sure the bottom plate is closed and latched.
Cleaner picks up moveable rugs or is hard to push	·Wrong pile height setting	·Adjust pile height setting. [See pages 9-10]
Agitator on pet hair turbine tool will not run when attached	·Dirty agitator or agitator supports ·Obstruction in turbine air path ·Low suction from vacuum cleaner	·Clean the inside of the pet hair turbine tool. [See page 16] ·Clean the inside of the pet hair turbine tool. [See page 16] ·Check for clogs. [See pages 17-18]
Accessory has no suction when using with the handle	·Cleaner is not in upright position	·Keep the cleaner in upright position.
Dust tank feels loose when lifting by the carry handle.	·This is normal	·The vacuum is designed like this to prevent the tank from separating from the main body while carrying.

MANUAL DEL PROPIETARIO

ASPIRADORA

E. E. E. E. E. E. E. E. E. E. E. E. E. E. E. E. E. E. E. E. E. E. E. E. E. E. E. E. E. E. E. E. E. E. E. E. E. E. E. E. E. E. E. E. E. E. E. E. E. E. E.

(Canada) and asking for parts on page 6.

The model and serial number of the vacuum cleaner is located on the back of the vacuum cleaner.

Record it below should you ever need service.

MODEL

SERIAL

LG Electronics U.S. Ltd., LG House, 250 Bath Road, Slough, Berkshire SL1 4DX

LG Customer Information Center

1-800-243-0000 USA,Consumer User

1-888-865-3026 USA,Commercial User

1-888-542-2623 CANADA

Register your product Online!

www.lg.com
