USER MANUAL Ketlee Control Zeegma

Black ZEEGMA water heater with digital display and control buttons, placed on a table with a steaming cup nearby (no text or symbols on main subject)

EN | DE | PL | IT | FR | ES | NL | UA | LT | HR

User Manual | Bedienungsanleitung | Instrukcja obsługi | Manuale d'uso | Manuel de l'Utilisateur | Manual de usuario | Handleiding | Посібник користувача | Vartotojo vadovas | Korisnički priručnik

A

1 2 3 4 5 6 7 8 9 10 11 12 13 14 ZEEGMA Boiling Keep Warm Dechlorination

B

MAX

Introduction

Dear customer!

Thank you for placing trust in us and choosing Zeegma.

We provide you with a product perfect for everyday use thanks to the use of high-quality materials and modern solutions.

We are convinced that the product will satisfy your requirements as it has been designed with utmost care.

Before you use the product, please read this manual carefully.

Should you have any remarks or questions concerning the product, please do not hesitate to contact us:

[e-mail]

WARNINGS

Please read this instruction manual before operating the device, in order to familiarize yourself with its functions and use it as intended.

1. This device can be used by children aged 8 years and older, and persons with limited physical, sensory or mental abilities or without experience and knowledge, if they are supervised or instructed in the safe use of the device and understand the risks involved.

2. Cleaning and maintenance of the device must not be undertaken by children unless they are at least 8 years old and under the supervision of an adult. Keep the device and its cord out of the reach of children under 8 years of age.

3. Children must not play with the device.

4. The device is for domestic use only. Do not use it for other purposes incompatible with its intended use.

5. Do not operate the device when not filled with water.

6. Do not pour water above the maximum level indicator. This could damage the device, make it unstable, or cause boiling water to escape.

7. Be careful and avoid spilling water on the power base.

8. Only connect the device to a grounded outlet with the characteristics as indicated on the device label.

9. Do not open the lid when boiling water.

10. Do not add water to the device while boiling water or maintaining the temperature.

11. NOTE: The lid must be closed so that steam can escape through the spout, in the opposite direction to the handle.

12. The kettle may only be used on the supplied base.

13. Risk of burns: the device generates high temperatures. Do not touch hot parts of the device. The device may remain hot after use.

14. Do not immerse the device and its wires in water or any other liquid.

15. Always disconnect the device from the power source and allow it to cool down before cleaning and after use.

16. Do not use a damaged or malfunctioning device or a device with a damaged power cord or plug.

17. Do not repair or modify the device or the cable. This may only be undertaken by an authorized service center.

18. Use only original spare parts or those recommended by the manufacturer.

19. Do not pull or carry the device by the cable. Do not place any objects on it. Do not pull the cable over sharp edges of walls and furniture and do not allow it to come into contact with hot surfaces.

20. Store the device in a dry place, away from heat sources, high temperatures, hot surfaces, direct sunlight, sources of sparking, open flame.

21. Use the product placed horizontally on a flat and stable surface.

22. To ensure normal operation, clean the kettle regularly and remove any scale or sediment from the bottom.

NOTE! Hot surface - surfaces may become hot during use.

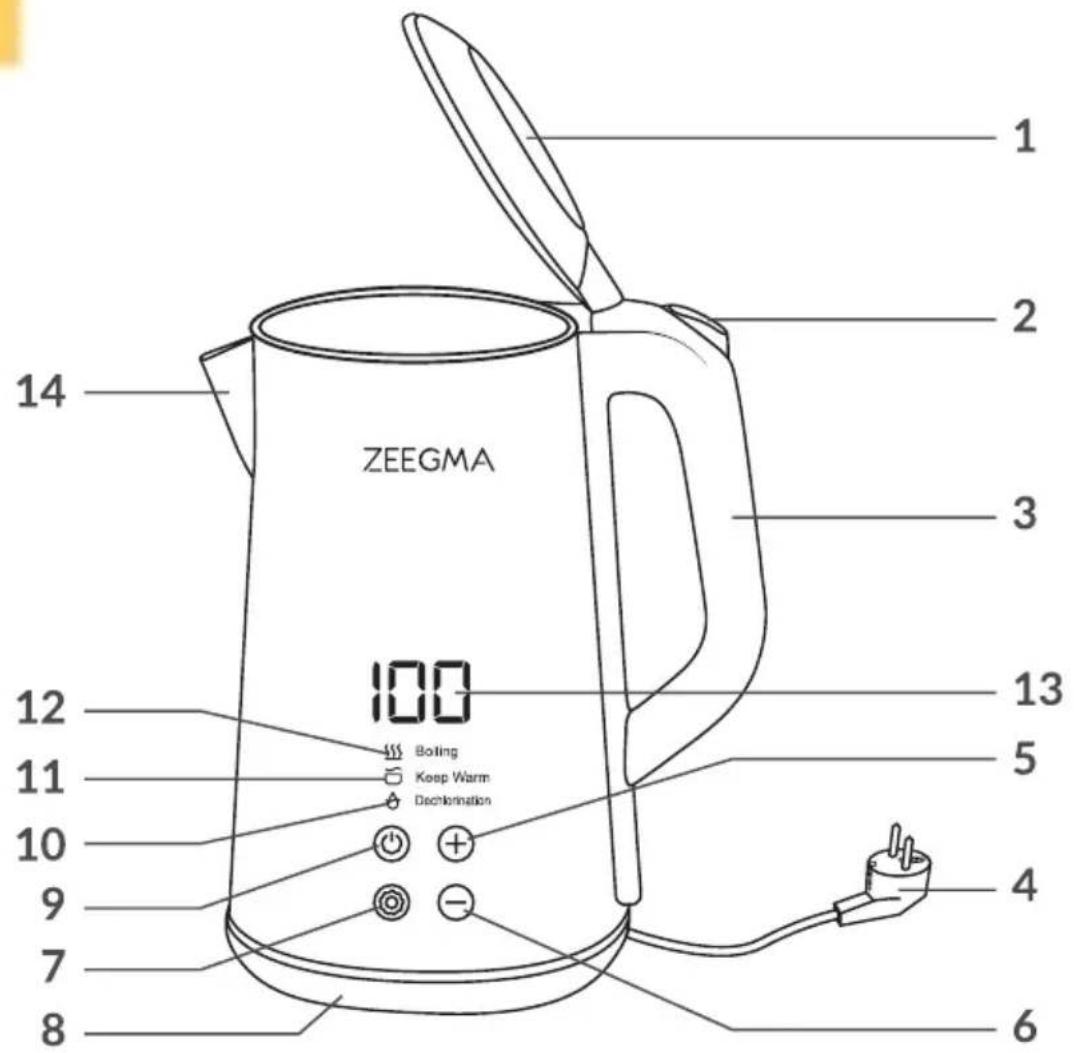

DESCRIPTION OF THE DEVICE (FIG. A)

1. Lid

2. Button for opening the lid

3. Handle

4. Cable with plug

5. Button to increase temperature

6. Button to decrease temperature

7. Settings

8. Power base

9. On/off switch

10. Water purification function

11. Temperature maintenance function

12. Boiling water

13. Temperature

14. Spout

FIRST USE

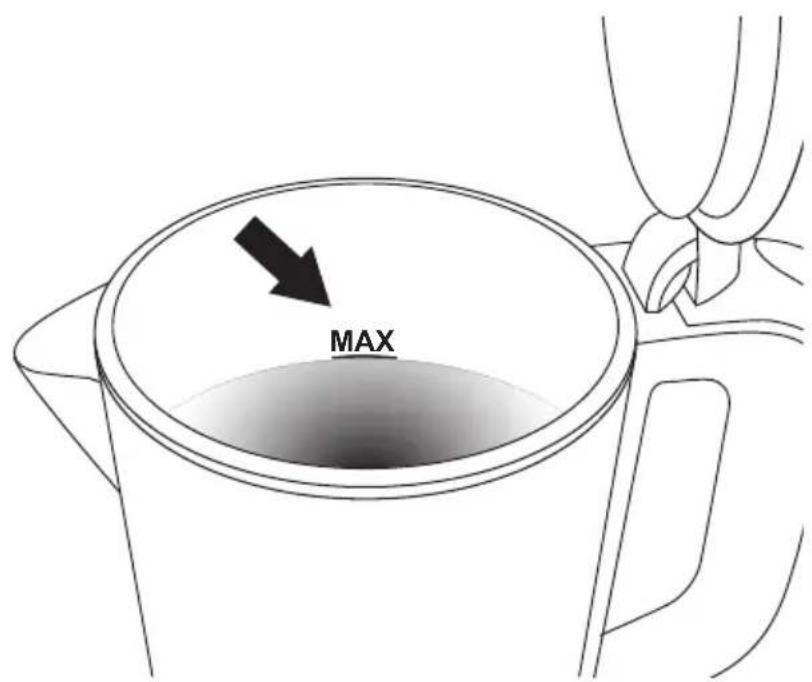

When using the device for the first time or for the first time after a long break, it is recommended to fill it with water up to the maximum allowed water level (fig. B) and to boil the water 1-2 times. Water boiled the first 1-2 times should be discarded.

USE AND FUNCTIONS

• Place the device on a flat and stable surface.
• Connect the device to a power source. The device will beep and the on/off switch icon (6, fig. A) will flash. The device is now in standby mode.
• Start the device by pressing the on/off switch icon (9, fig. A). Then select one of the available options - boiling water, maintaining temperature or purifying water.
• Press the on/off switch icon (9, fig. A) to switch the device off at any time during operation.

BOILING WATER

• Press the settings icon (7, fig. A) to select boiling water (12, fig. A).
• Use the plus and minus icons (5, 6, fig. A) to set the temperature you want the water to reach. The temperature can be increased or decreased in 5°C increments.
• After a few seconds the water will start to boil. The device will automatically switch off when the water boils.

MAINTAINING THE TEMPERATURE

• Press the settings icon twice (7, fig. A), then select temperature maintenance in the display (11, fig. A). The device will automatically enter the current water temperature maintenance mode.
• If you wish to increase the maintained temperature, use the plus button (5, fig. A). The water will then start to boil until the selected temperature is reached.
• If you wish to reduce the temperature maintained, use the minus button (6, fig. A).

WATER PURIFICATION - DECHLORINATION

• Fill the kettle with water to a maximum of 3/4 volume.
• Press the settings icon (7, fig. A) and then select water purification on the display (10, fig. A). The water will boil and then enter water purification mode for approximately 5 minutes.
• When the purification process is complete, the kettle enters temperature maintenance mode.

CLEANING AND MAINTENANCE

• To ensure normal operation, clean the kettle regularly and remove any scale or sediment from the bottom.
• Before cleaning the device, make sure it is disconnected from the power source. Allow the device to cool down.
• Wipe the outside of the kettle with a soft, damp cloth and allow to dry completely.

EN

• To remove scale, use a commercially available descaling product following the instructions on the packaging, or use white vinegar.
• Clean the tank using a 1:1 solution of vinegar and water. Fill the tank at least halfway and stir the solution to cover the entire inside. Leave the solution in the kettle for about 8 hours.
• Pour out the solution and fill the kettle with fresh water. Boil and pour the water 4-5 times.
  • Make sure all parts are completely dry.
• Never use abrasive cleaners or strong chemicals to clean the kettle.

Photos are for illustrative purposes only, the actual appearance of the products may differ from the photos.

Einführung

OMSCHRIJVING VAN HET APPARAAT (AFB. A)

EN: The product complies with requirements of EU directives.

Pursuant to the Directive 2012/19/EU, this product is subject to selective collection. The product must not be disposed of along with domestic waste as it may pose a threat to the environment and human health. The worn-out product must be handed over to the electrics and electronics recycling center.
