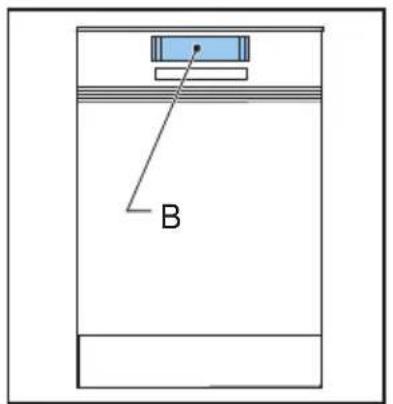

B

2 A B C JIHGE FD ≈14 30 eco save+ 50 8:88 reset 3 sec LN MOF

3 2

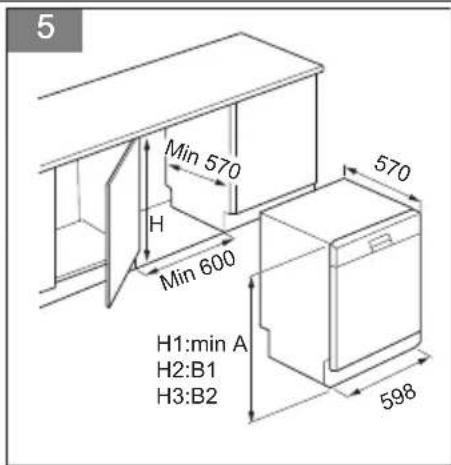

5 Min 570 H Min 600 570 H1:min A H2:B1 H3:B2 598

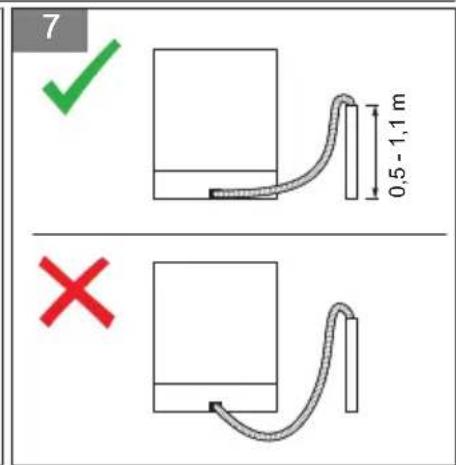

7 0,5-1,1 m ×

4

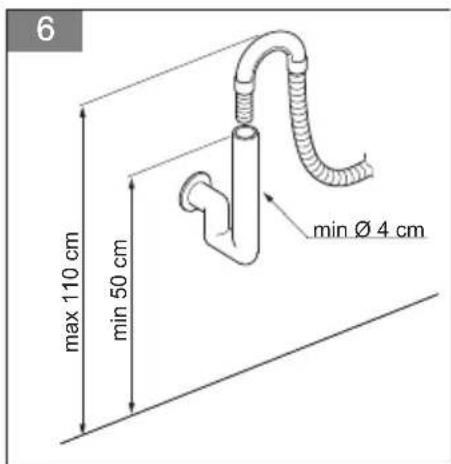

6 max 110 cm min 50 cm min Ø 4 cm

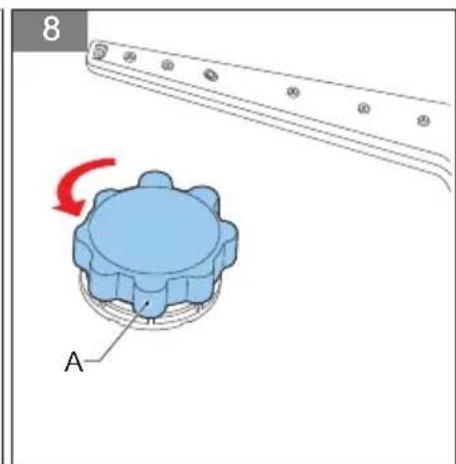

8 A

Diagram of a mechanical device with a central component and connecting wires (no text or symbols)

13 A

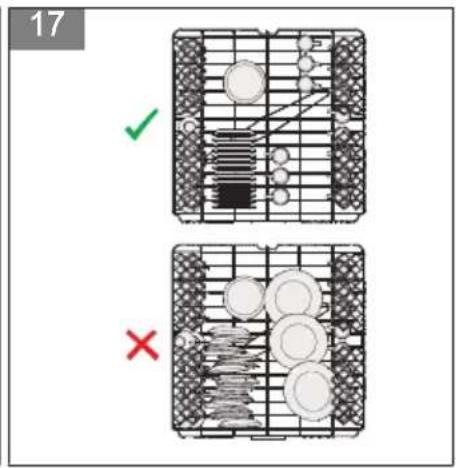

17 ✓ ×

Illustration of a funnel pouring liquid into a conical flask on a base, with no visible text or symbols.

14 B

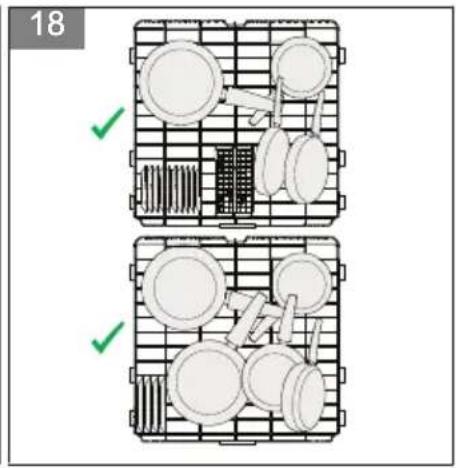

18 ✓ ✓

11 A

Isometric diagram of a mechanical or electrical component with a grid-patterned base and support structure (no text or symbols)

19 × ×

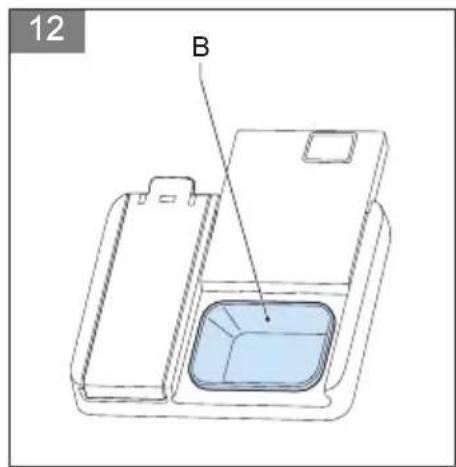

12 B

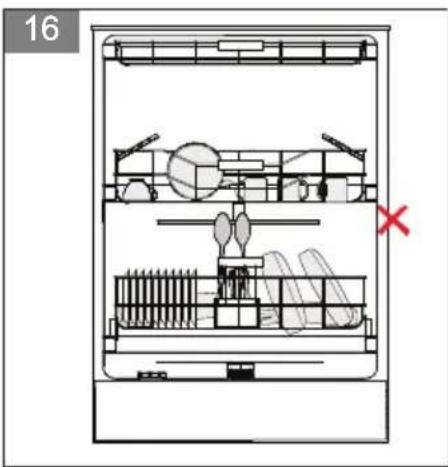

16 X

20 A

21 B A

25 A

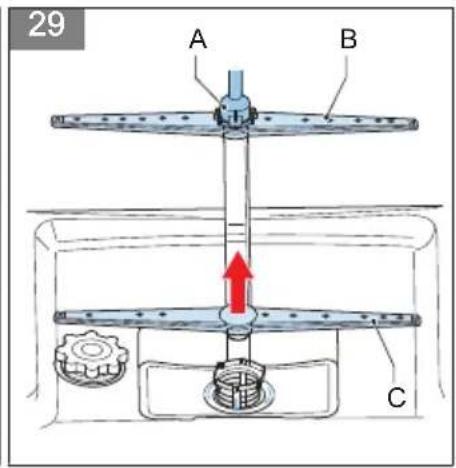

29 A B C

3D wireframe model of a shopping cart with red arrows indicating movement or flow (no text or symbols)

26 A B

30 A B C

3D wireframe diagram of a container with wheels and internal striped structure, marked with red curved arrows (no text or symbols)

Technical line drawing of a mechanical component with labeled parts (no text or symbols beyond label)

Mechanical component diagram showing a yellow and red directional arrows inside a circular housing (no text or symbols)

Two technical line drawings of a mechanical or electronic component with internal channels and mounting brackets (no text or symbols)

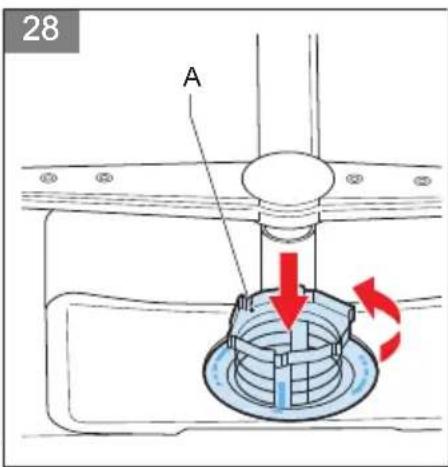

28 A

3D mechanical component diagram showing a yellow and red directional arrow labeled 'E' (no text or symbols beyond label)

Inhoudsopgave

HET APPARAAT PLAATSEN

HET APPARAAT STOPPEN

Opmerking:

1 Introduction....34
2 Safety....34
3 Technical data....40
4 Description....41
5 Installation....45
6 Operation....47
7 Cleaning and maintenance....54
8 Troubleshooting....55
9 General terms and conditions of service and warranty....58

1 Introduction

HOW TO USE THIS DOCUMENT

1. Read this document completely. Make sure that you know and understand all the instructions.
2. Obey the safety instructions to prevent injury and/or damage to the appliance and its surroundings.
3. Do the procedures completely and in the given sequence.
4. Keep this document in a safe area for future use. This document is a part of the appliance.

SYMBOLS USED IN THIS DOCUMENT

Safety symbol Function Description
	Warning	"Warning" means that injury or death is possible if you do not obey the instructions.
	Caution	"Caution" means that damage to the appliance is possible if you do not obey the instructions.
	Note	"Note" is used to give additional information.
	Risk of electric shock There is a risk of electric shock.
	Risk of fire	There is a risk of fire or flammable objects.

2 Safety

GENERAL SAFETY INSTRUCTIONS

• Fully read the instruction manual prior to using the appliance.
• Carefully store the instruction manual for future reference.

- Only use this appliance for the purposes described in the instruction manual. If the appliance is used for other purposes the full responsibility of any consequences lies with the user. Any damages to the appliance or other products are not covered by the warranty.

- If the safety instructions and warnings are not observed, the manufacturer cannot be held liable for any resulting damage.

- Make sure that the appliance is placed out of reach of children. Children are not always able to understand potential risks. Teach children how to handle electrical appliances in a responsible way.

• Caution: This appliance cannot be used by children from 0 to 8 years. This appliance can be used by children aged from 8 years and above and persons with reduced physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Keep the appliance and the mains cable out of reach of children younger than 8 years.

- Children are not allowed to perform cleaning and maintenance.

- Do not let children play with the appliance.

DELIVERY

- The packaging protects the appliance from damage that could occur during transport. The packaging is recyclable. The use of recycled material reduces the consumption of raw materials and decreases the production of waste.

• Caution: Do a check for damage to the packaging or the appliance that resulted during transportation. Do not use a damaged appliance. Contact your supplier.

- Dispose of the packaging materials according to local regulations.

- Warning: Keep the packaging material out of reach from children. Danger of suffocation.

INSTALLATION

- Caution: This appliance should be installed and repaired by an authorized service only. Installation done by another party is not covered by the warranty.

- Place and connect the appliance according to the installation regulations.

Caution:

- Risk of electric shock

- Make sure that the appliance is not plugged in during placement.

- Caution: Check whether the indoor electrical fuse system is connected according to the regulations.

- Caution: All electrical connections must match the values of the rating plate.

Caution:

- Risk of electric shock

- If the mains cable is damaged, it can only be replaced by the service organizations of the manufacturer or equivalent qualified persons.

Caution:

- Risk of electric shock

- Make sure that the appliance is not placed on the mains cable.

• A Caution:

- Risk of fire

- Do not use an extension cable or a multiple socket for the connection. The mains plug must be easily accessible after installing the appliance.

• Do not excessively bend the water inlet and drain hoses or the mains cable during installation. Make sure that the water inlet and drain hoses or the mains cable do not become stuck.
  • After installing the appliance, make sure that you run the appliance without dishes for the first time.

SAFETY INSTRUCTIONS FOR OPERATION

• This appliance is intended to use in a domestic environment. Using the appliance in a commercial environment is not covered by the warranty.
• For safety reasons, only use accessories and spare parts from the manufacturer that are suitable for your appliance.
• This appliance must be grounded, this prevents the risk of electric shock in the event of an error or fault. The appliance has a grounded mains cable and mains plug. Only connect the mains plug to a grounded mains socket that is installed according to local electrical regulations.
• Incorrectly connecting the mains cable can result in a life threatening situation. In case of doubt, contact a qualified electrician or service technician.
• Do not make changes to the mains plug. If the mains plug does not fit into the mains socket, contact a qualified electrician.
• Caution: Do not place heavy objects on the opened door of the appliance.
• Do not stand on the opened door of the appliance. The appliance can fall over which can result into damage to the appliance.
• Warning: Do not put any chemical dissolving agents such as solvents in the appliance. There is a risk of explosion.

• Do not clean unsuitable plastic dishes in the appliance. Only dishes that are heat-resistant can be cleaned in the appliance.

• Caution: Only use detergent, rinse aid and salt that is intended for dishwashers. The manufacturer will not be responsible for any damage resulting from using unsuitable products.

• Caution: Keep detergent and rinse aid out of reach of children.
• Caution: Keep children away from the appliance when the door is open. There can be cleaning agent present in the appliance. When cleaning agent is swallowed, immediately consult a doctor and take the packaging.
• Some dishwasher detergents are strongly alkaline and can be extremely dangerous if swallowed. Avoid contact with the skin and eyes. Keep children and pets away from the appliance when the door is open. Check that the detergent reservoir is empty after completion of the wash cycle.
  • Caution: Keep the door closed. You can fall.
• Avoid contact between the cleaning agent and your skin and eyes.
• Make sure that all loose components in the appliance are fitted correctly.
• Caution: Do not open the door of the appliance during operation. Hot water can come out.
• Do not use the appliance for any other purpose than washing dishes.
• Only use the appliance in a frost free room.
• Remove the door or deactivate the lock when disposing of the appliance. Make sure that children cannot lock themselves in an old appliance.
• Make sure that the detergent reservoir is empty at the end of a wash cycle.

• Make sure that you fill the salt and rinse aid reservoir before first use and when the indicators are on.

• Make sure that you set the salt consumption before use.

• Caution:

• Risk of electric shock
• Make sure that you disconnect the appliance and switch off the water tap before cleaning or performing repairs. Remove the mains plug from the mains socket. Always pull the mains plug when you disconnect the appliance. Do not pull the mains cable.

• Caution: Make sure that knives and other sharp items of cutlery are placed facing down in the cutlery basket or are placed horizontally in the upper basket or the cutlery drawer.
- Caution: Do not put any items in the appliance that are not suitable for dishwashing:

• Cigarette ashes, candle leftovers, polish, paint, chemical substances, iron-alloy materials;
• Forks, spoons and knives with a wooden, bone, ivory or nacre-coated handle, glued items, or items soiled with abrasive, acidic or base chemicals;
• Temperature-sensitive plastic, copper or tin-coated containers;
• Aluminium or silver items;
• Delicate glasses, ornamental printed porcelain, crystal items, adhered cutlery, lead crystal glasses, cutting boards or synthetic fibred items;

• Absorbent items, such as sponges or kitchen rugs.

• Make sure that you purchase dishwasher-safe kitchenware.

• Do not fill a basket above the capacity. The manufacturer will not be responsible for damage to the appliance caused by movement of a basket.

• Caution: Do not drink the water from the appliance. The water is not suitable for consumption.

• Caution: Malfunctions of the appliance must be repaired by a qualified service technician. Repairs that are performed by other persons are not covered by the warranty.
  • i Note: Do not operate the appliance at a low voltage. This can cause a declined performance.

• Caution: Disconnect the mains plug and close the water tap when you do not use the appliance.
• When you do not use the appliance, leave the door slightly open to prevent odours. You can select a program with a drying option to remove water droplets inside the appliance.
• When the appliance is located in a room where it might freeze, make sure that you close the tap, disconnect the water inlet hose and drain the water inside the appliance.

3 Technical data

GENERAL SPECIFICATIONS

Item Specification
Freestanding Yes
Color of control panel Black
Number of spray arms 3
Upper basket height adjustable Yes
Maximum amount of place settings 14
Half-load option Yes
Energy save option Yes
Extra hygiene option Yes
Extra silent option Yes
Timer [hours] 1-24
Type of display LED display
Aquastop Yes
Type of drying system	Turbo

DIMENSIONS AND WEIGHT

Item Specification
Dimensions (W x D x H) [mm] 598 x 598 x 850
Net weight [kg] 46,2
Gross weight [kg] 47,8

TECHNICAL SPECIFICATIONS

Item Specification
Total power consumption [W] 1900
Heating power [W] 1800
Pump power [W] 100
Drain pump power [W] 30
Rated voltage [V] / frequency [Hz] 220-240 / 50
Water supply pressure [MPa] 0.03 (0.3 bar) - 1 (10 bar)
Current [A] 10
Length of mains cable [m] 1.65
Type of mains plug EU/TR
Type of supply hose connection 3/4 inch, inner thread
Position of supply hose Right rear
Length of supply hose [m] 1.70
Position of outlet hose Right rear
Length of outlet hose [m]	1.80

4 Description

INTENDED USE

The appliance is intended to wash dishes.

Do not use the appliance for any other purpose than described in this document.

FREESTANDING DISHWASHER
(Figure 1)

A	Nozzle of the cutlery drawer	G	Detergent and rinse aid reservoir
B	Control panel	H	Cutlery basket
C	Cutlery drawer	I	Salt reservoir
D	Upper basket	J	Filters
E	Lower basket	K	Lower spray arm
F	Rating plate	L	Upper spray arm

Item Function
Nozzle of the cutlery drawer	To clean the dishes in the cutlery drawer.
Control panel	Refer to section Control panel.
Cutlery drawer	Refer to section Loading the appliance.
Upper basket	Refer to section Loading the appliance.
Lower basket Refer to section	Loading the appliance.
Rating label To show the specifications of the appliance.
Detergent and rinse aid reservoir To hold the detergent and rinse aid.
Cutlery basket Refer to section	Loading the appliance.
Salt reservoir To hold the salt.
Filters To keep the appliance free from contamination.
Lower spray arm To clean the dishes in the lower basket.
Upper spray arm To clean the dishes in the upper basket.

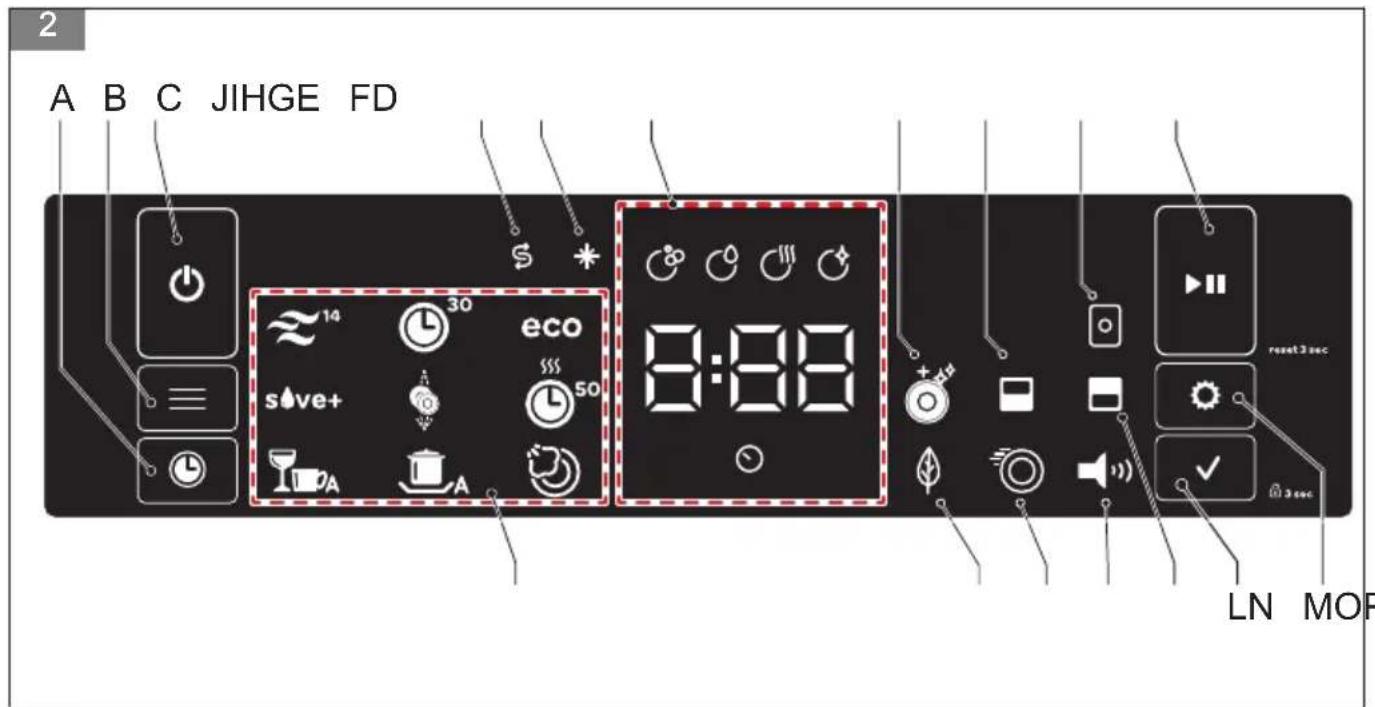

CONTROL PANEL

(Figure 2)

A Timer button	J Start/pause button
B Program selector button	K Options button
C On/off button	L Select button
D Salt indicator	M Half-load indicator, lower basket
E Rinse aid indicator	N Extra silent indicator
F Display	O Extra fast indicator
G Hygienic wash indicator	P Energy save indicator
H Half-load indicator, upper basket	Q Programs
I Tablet detergent indicator

Item	Function
Timer button	To delay the start of a program.
Program selector button	To select a program.
On/off button	To start or stop the appliance.
Salt indicator	To show that the level of salt is low.The indicator is on when the salt reservoir is almost empty.
Rinse aid indicator	To show that the level of rinse aid is low.The indicator is on when the rinse aid reservoir is almost empty.
Display	To show the remaining time of the selected program and the timer.
Hygienic wash indicator	To show that the hygienic wash option is selected.
Half-load indicator, upper basket	To show that the upper basket is selected as a dishwashing area.
Tablet detergent indicator	To show that a combined detergent that includes salt and rinse aid is used.
Start/pause button	To start or pause a program.
Item Function
Options button	To browse through the following options:Energy save: Select the energy save option to decrease the energy consumption and let the door open automatically when finished.Hygienic wash: Select the hygienic wash option to wash with a higher temperature and for a longer period to ensure a more hygienic wash cycle.Extra silent: Select the extra silent option to decrease the noise level of the appliance.Extra fast: Select the extra fast option to decrease the duration of the program and use lessd water.Half load options: you can select the half load options in three different ways:The upper indicator is on, when the upper basket is selected as a dishwashing area.The lower indicator is on, when the lower basket is selected as a dishwashing area.Both indicators are on, when both the upper and the lower basket are selected as dishwashing areas.
Select button	To activate/deactivate an option or to activate/deactivate the child lock.
Half-load indicator, lower basket	To show that the lower basket is selected as a dishwashing area.
Extra silent indicator	To show that the extra-silent option is selected. The appliance has a reduced noise level of 39 dB.
Extra fast indicator To show that the extra fast option is selected.
Energy save indicator To show that the energy save option is selected.
Programs	To show an overview of the available programs. Refer to section Programs.

Program-step indicator Description
	Washing: the appliance is washing.
	Rinsing: the appliance is rinsing.
	Drying: the appliance is drying.
	End: the appliance is ready.

PROGRAMS

Icon Name Description			Time [min.]
	P1 - Quick rinse	Fastest program for lightly soiled and recently used dishes. The program is suitable for 4 place settings.	14
	P2 - Quick '30	Short program for lightly soiled dishes, such as cups and glasses.	30
eco	P3 - Eco	Daily program for normally soiled dishes. The program takes longer, but uses less water and slowly heats for lower energy consumption.	240
	P4 - Water save	Program for normally soiled dishes with the least water consumption.	177
	P5 - Duo wash	Program for both lightly soiled, delicate glassware and heavily soiled dishes at the same time.	113
	P6 - Quick '50 Short	program for normally soiled dishes. 50
	P7 - Smart delicate	Automatic program for normally soiled, delicate dishes. 72-91
	P8 - Smart intensive	Automatic program for heavily soiled dishes. 109-179
	P9 - Steam wash	Program for heavily soiled dishes that need a hygienic cleaning.	127

Note:

For the programs "Smart intensive" and "Smart delicate", the appliance automatically adjusts the washing time, the temperature and the amount of water based on the soil level of the dishes.

• The program duration can change based on the amount of dishes, the water temperature, the ambient temperature and selected additional functions.
• The eco program is suitable to clean normally soiled dishes. It is the most efficient program because of the combined energy and water consumption and it complies with the EU ecodesign legislation.

Note:

The energy consumption values of the eco program can differ according to regulations 10/16/2010 and 1059/2010. The table complies with regulations 2019/2022 and 2017/2022.

- When the appliance is used according to the instructions of the manufacturer, washing dishes in a household dishwasher usually consumes less energy and water during the use phase compared to hand-washing dishes.

• Short programs do not include drying.
• Only use powder detergent when you choose a short program.
  • To assist drying, we recommend setting the option energy save.

5 Installation

POSITIONING THE APPLIANCE

• Read the warning texts on the packaging before removing the packaging and positioning the appliance.
• Leave some space around the appliance for easy cleaning.
• Do not place the appliance on the mains cable.
• When determining the place of the appliance, make sure that you choose a place where you can easily load and unload it.
• Do not place the appliance in a location where the room temperature can be below 0^ .
• Place the appliance close to a water tap or drain and mains socket. Keep in mind that the connections will not be changed when they are made.
• Do not hold the appliance at the door or control panel to move it.

• Caution: Make sure that the water inlet and outlet hoses do not get stuck while placing the appliance.

• Place the appliance in a safe and level location.
• Do not place the appliance close to a refrigerator.
• Make sure that the appliance is level and balanced by adjusting the feet. When the appliance is placed correctly the door opens and closes easily.

WATER CONNECTION

• Make sure that the indoor plumbing is suitable for installing the appliance.
• Install a filter at the water supply to avoid damage to the appliance due to contamination from the water (sand, clay, rust, etc.).

• Warning: Use the new water inlet hose supplied with the appliance.

• Warning: Before making the connection, run water through the hose.

- The appliance must be connected to the water mains using the newly supplied hose sets. Do not reuse old hose sets.

- Warning: Make sure that you connect the water inlet hose directly to the water tap. The pressure of the water tap must be a minimum of 0,03 MPa and a maximum of 1 MPa. Install a pressure relief valve if the pressure is more than 1 MPa.

- Caution: After connecting the appliance, open the water tap completely and do a check for leaks.

- Caution: The appliance is supplied with a double-walled aquastop. The system automatically cuts off the water supply if the water inlet hose is leaking and the space between the walls is filled with water. Do not cut into the aquastop and make sure that the aquastop does not get twisted or stuck.

• Note: Do not use a drain hose that is longer than 4 meter. As a result, dishes can remain dirty. The manufacturer will not accept responsibility.

- Keep the mark on the appliance in mind. If the appliance is marked '25', it means that the water temperature of the cold water can be maximum 25^ C.

ELECTRICAL CONNECTION

• Warning: Make sure that the mains plug of the appliance is connected to a grounded mains socket. The manufacturer is not responsible for damage resulting from using the appliance with a mains socket that is not grounded. Only an authorized electrician can install a grounded mains socket, if not available.
• Make sure that the voltage and the frequency values for the current correspond to the values of the rating plate.
• Warning: The electrical system in your home must be supplied with a 10-16 Amp fuse. The appliance is designed for connecting to 220-240 V \~50Hz.

- Do not connect the appliance during placement.

• Caution: Use the provided mains plug.

- The mains cable of the appliance must only be replaced by an authorized service or an authorized electrician. Failure to do so can lead to accidents.

- Caution: For safety reasons, make sure that you disconnect the mains plug when a program has finished. Do not disconnect the mains plug when your hands are wet. This can result in electric shock.

• Caution: Always pull the mains plug when you disconnect the appliance. Do not pull the mains cable.

- Warning: The appliance is set to operate at 220-240V. Connect a 110/220V and 3000W transformer between the electrical connection if the mains supply is 110V.

INSTALLING THE APPLIANCE UNDER A WORKTOP

Warning:

The worktop must be stable.

Caution:

Make sure that the wiring and plumbing is suitable for installing the appliance under a worktop.

Caution:

Make sure that there is enough space under the worktop to install the appliance.

Preparing the appliance

In order to install the appliance under a worktop, the top panel must be removed.

1. Remove the screws at the rear of the top panel.
2. Push the panel rearwards for approximately 1 cm.
3. Lift the panel to remove it.

Installing the appliance

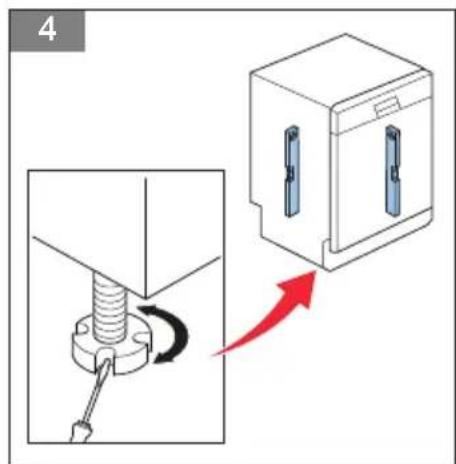

1. Adjust the feet to align the appliance with the worktop.

Make sure that the appliance is level.

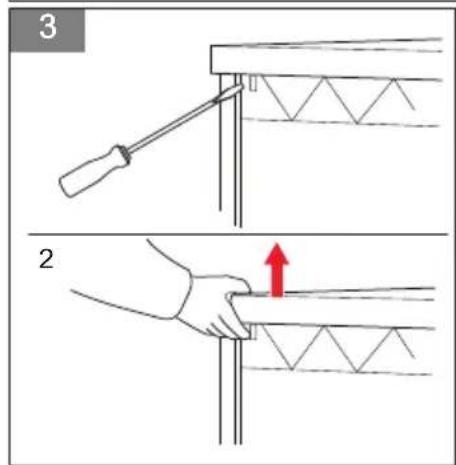

(Figure 3)

(Figure 4)

1. Push the appliance in the correct position. Refer to the dimensions in the figure.

(Figure 5)

Caution:

Be careful not to crush or bend the hoses during positioning of the appliance.

Note:

The minimum height A (820 mm) is suitable for appliances that do not have a felt layer on top.

The minimum height B1 (830 mm) is suitable for appliances that have a felt layer on top and have a second basket.

The minimum height B2 (835 mm) is suitable for appliances that have a felt layer on top and have a cutlery drawer.

CONNECTING THE APPLIANCE

1. Connect the drain hose directly to the drain hole or to the siphon. The connection must have a minimum height of 50 cm and a maximum height of 110 cm. Refer to the figure.

(Figure 6)

1. Do not let the drain hose hang lower than the appliance. Refer to the figure.

(Figure 7)

6 Operation

PREPARING FOR OPERATION

1. Do a check if the electricity and the water supply connections of the appliance match the values indicated in the installation instructions.
2. Remove all packaging material inside the appliance.
3. Fill the salt reservoir. Refer to section Filling the salt reservoir.
4. Fill the rinse aid reservoir. Refer to section Filling the rinse aid reservoir.

FILLING THE SALT RESERVOIR

For a good result the appliance needs soft (less calcareous) water. Salt is used to soften the water and it prevents white lime residues on your dishes and the interior of the appliance.

Caution:

Only use salt that is suitable for a dishwasher. Do not use table salt.

Note:

Fill the salt reservoir when the salt indicator on the control panel is on.

1. Remove the lower basket.
2. Turn the cap (A) of the salt reservoir counter-clockwise to remove it. (Figure 8)

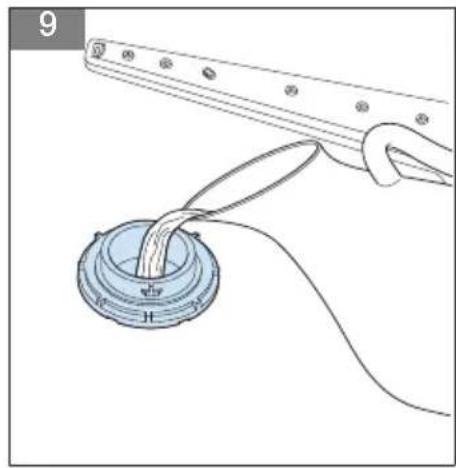

3. Fill the salt reservoir with water. (Figure 9)

Note:

You only have to fill the salt reservoir with water before first use of the appliance.

1. Put a funnel in the opening of the salt reservoir.

2. Fill the reservoir with salt until the overflow level.

3. Install the cap of the salt reservoir.

Caution:

Remove any spilled salt immediately and run a full program to prevent corrosion of the appliance.

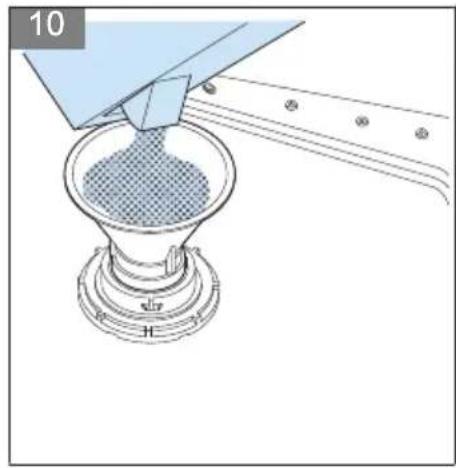

(Figure 10)

SETTING THE LEVEL OF SALT CONSUMPTION

The salt consumption of the appliance depends on the level of water hardness.

Set the level of salt consumption according to the information in section Water hardness level settings (salt consumption).

Note:

Contact your local water company to verify the level of water hardness in your area.

Note:

As a default, the level of water hardness of the appliance is set to level L3.

1. Switch on the appliance. Refer to section Starting the appliance.
2. Push and hold the program selector button as soon as the appliance is on.
3. Hold the program selector button until the display briefly shows SL.
4. The display shows the latest set level of water hardness.
5. Push the program selector button again to change the level of water hardness.
6. Push the on/off button to confirm the setting.

WATER HARDNESS LEVEL SETTINGS (SALT CONSUMPTION)

Level	German hardness [dH] French hardness [dF]	British hardness [dE] Display indicator
1	0-5 0-9 0-6 L1
2 6-11 10-20 7-14 L2
3 12-17 21-30 15-21 L3
4 18-22 31-40 22-28 L4
5 23-31 41-55 29-39 L5
6 32-50 56-90 40-63 L6

FILLING THE DETERGENT RESERVOIR

Warning:

Store detergent out of reach of children in a cool and dry place.

Caution:

Only use detergent that is suitable for dishwashers.

Caution:

Do not put a detergent tablet in the cutlery basket, only use the detergent reservoir.

Note:

Detergent is available in powder, gel and tablets and is also available as a combined product (with salt and/or rinse aid). When using a combined detergent, set your water hardness level and rinse aid consumption to the lowest setting.

We advise not to use a combined detergent in short programmes, powder detergents are better. If you encounter problems when using combined detergents, please contact the manufacturer of the detergent.

Observe the instructions of the packaging.

Consider using half a tablet when washing half a load.

When you stop using combined detergents, make sure the water hardness and rinse aid setting are set to the correct level.

1. Make sure that you fill the detergent reservoir before you start the appliance.
2. Push the latch (A) to open the detergent reservoir. (Figure 11)
3. Fill the reservoir (B) with detergent: (Figure 12)

a. Use 25 grams of detergent for heavily soiled dishes.

b. Use 15 grams of detergent for lightly soiled dishes.

Caution:

The detergent reservoir has a capacity of 40 grams. Do not overfill the detergent reservoir. This can result in poorly dissolving detergent and damage to your glassware.

1. Close the detergent reservoir.
2. Select a program.
3. Close the door.

FILLING THE RINSE AID RESERVOIR

Rinse aid is used to prevent traces of water droplets on clean dishes and increases drying performance.

Caution:

Only use rinse aid that is suitable for dishwashers.

Note:

Fill the rinse aid reservoir when the rinse aid indicator on the control panel is on.

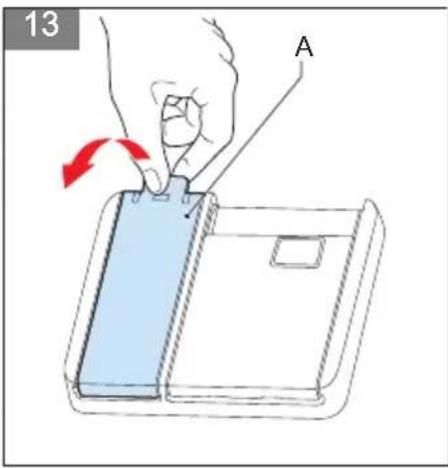

1. Open the rinse aid reservoir (A). (Figure 13)

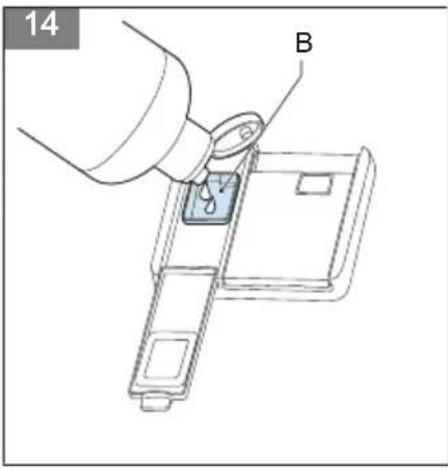

2. Fill the reservoir (B) with rinse aid until the MAX level. (Figure 14)

Caution:

Remove any spilled rinse aid immediately. Spilled rinse aid can form extreme foam which can cause leaks.

SETTING THE LEVEL OF RINSE AID CONSUMPTION

When water stains form on your dishes after a wash cycle, you have to increase the level of rinse aid consumption. When blue stains form on your dishes after a wash cycle, you have to decrease the level of rinse aid consumption. Set the level of rinse aid consumption according to the information in section Rinse aid consumption settings.

Note:

As a default, the level of rinse aid consumption of the appliance is set to level 4.

1. Start the appliance. Refer to section Starting the appliance
2. Push and hold the program selector button for at least 5 seconds.
3. Release the program selector button when the display briefly shows rA.

4. The display shows the latest setting of the rinse aid consumption.

5. Push the program selector button again to change the level of rinse aid consumption.

6. Push the on/off button to switch off the appliance and to confirm the setting.

RINSE AID CONSUMPTION SETTINGS

Level Number of rinse	aid doses that is dispensed Display indicator
1 Rinse aid not dispensed r1
2 1 dose r2
3 2 doses r3
4 3 doses r4
5 4 doses r5

LOADING THE APPLIANCE

Correctly placing dishes into the appliance has a positive effect on the energy consumption and the washing and drying performance of your appliance.

You can place dishes in the cutlery drawer or basket, the upper basket and the lower basket.

Caution:

Make sure that you load the appliance in such a way that the dishes do not block the upper and lower spray arm. If the spray arms are blocked they cannot spin during washing.

Caution:

Make sure that you load the appliance in such a way that the dishes do not block the latch of the detergent reservoir. If the detergent reservoir is blocked, it cannot open during washing.

Note:

Make sure that you rinse the dishes before loading the appliance.

Note:

Do not overload the baskets or load dishes in the wrong basket.

Loading the cutlery drawer

The cutlery drawer is designed for loading cutlery. You can remove the cutlery drawer for easy loading.

1. If necessary, remove the cutlery drawer from the appliance. Refer to section Removing the cutlery drawer.

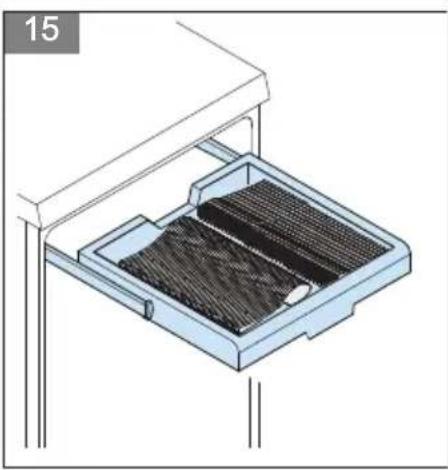

2. Place the cutlery items in the drawer. (Figure 15)

Loading the cutlery basket

The cutlery basket is designed for loading cutlery.

Warning:

Place sharp items of cutlery, such as knives and forks, face down in the cutlery basket to prevent injury.

Caution:

Make sure that there are no items of cutlery sticking out of the bottom of the basket.

1. Place the cutlery piece by piece in a compartment of the cutlery basket to make sure that the spray arms can reach all items.

(Figure 16)

Loading the upper basket

The upper basket is designed for loading cups and saucers, small bowls and glasses. You can adjust the height of the upper basket and the height of the racks of the upper basket to create more space. You can also fold the racks of the upper basket to create more space for larger items.

1. If necessary, adjust the height of the racks of the upper basket. Refer to section Adjusting the height of the racks of the upper basket
2. If necessary, adjust the height of the upper basket. Refer to section Adjusting the height of the upper basket.
3. If necessary, fold the racks of the upper basket. Refer to section Folding the racks of the upper basket.
4. Place the dishes in the upper basket. (Figure 17)
5. Make sure that you place wine glasses and long-stem glasses against the edge of the basket, rack or glass supporter wire.

Caution:

Do not place wine glasses and long-stem glasses against other items to prevent damage to the glasses.

1. Place long, small cooking utensils, such as wooden spoons, in the middle of the upper basket.

Loading the lower basket

The lower basket is designed for loading pots with long handles, pans, lids, plates and salad bowls. The lower basket also has space for the cutlery basket. You can fold the racks of the lower basket to create more space for larger items.

1. If necessary, fold the racks of the lower basket. Refer to section Folding the racks of the lower basket (Figure 18)

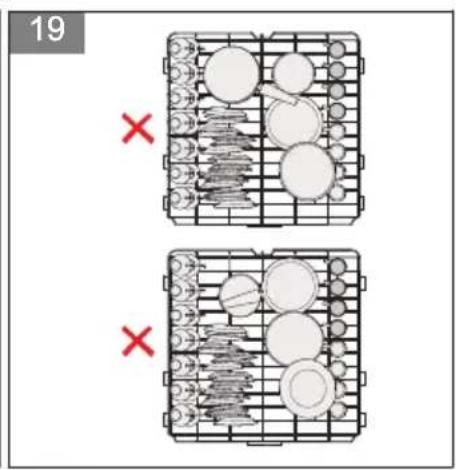

2. Place the dishes in the lower basket. (Figure 19)

ADJUSTING THE HEIGHT OF THE RACKS OF THE UPPER BASKET

The racks can be moved up to create more space in the upper basket, for example to place different-sized glasses under the racks or to place cutlery items on the racks.

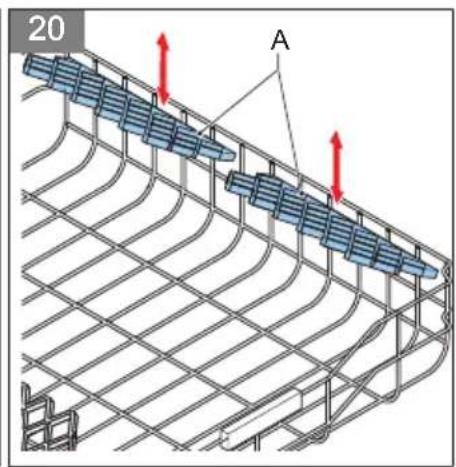

1. Move the racks (A) up or down. (Figure 20)

ADJUSTING THE HEIGHT OF THE UPPER BASKET

The complete upper basket can be moved to create more space in the upper basket or in the lower basket. When the upper basket is in the upper position, you can place large items, such as pots and large plates, in the lower basket. When the upper basket is in the lower position, you can place large plates in the upper basket.

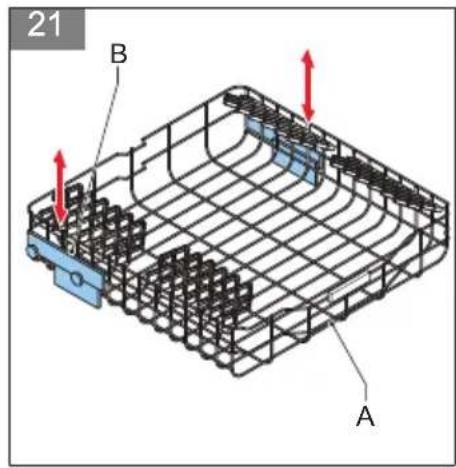

1. Move the upper basket (A) up or down. Use the handles (B) on each side of the basket. (Figure 21)

FOLDING THE RACKS OF THE UPPER BASKET

The racks can be folded down to create more space in the upper basket, for example to place large items (pots, pans, etc.) in the basket. The racks can be folded separately or all together.

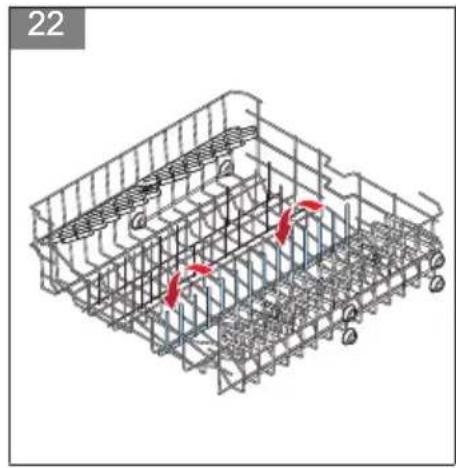

1. Push the racks (A) to fold them down. (Figure 22)
2. Pull the racks upwards to put them in the up position.

FOLDING THE RACKS OF THE LOWER BASKET

The racks can be folded down to create more space in the lower basket, for example to place large items (pots, pans, etc.) in the basket. The racks can be folded separately or all together.

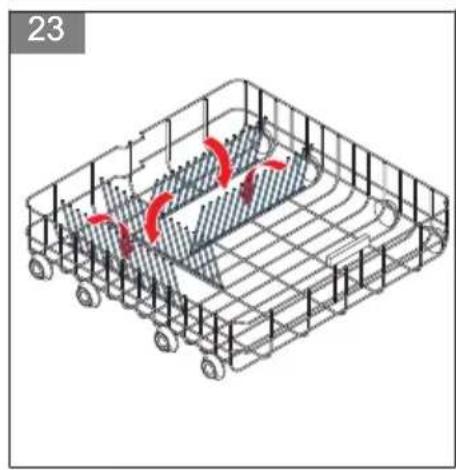

1. Push the racks (A) to fold them down. (Figure 23)

2. Pull the racks upwards to put them in the up position.

REMOVING THE CUTLERY DRAWER

The cutlery drawer can be removed partly to create more space in the upper basket or it can be removed completely for easy loading.

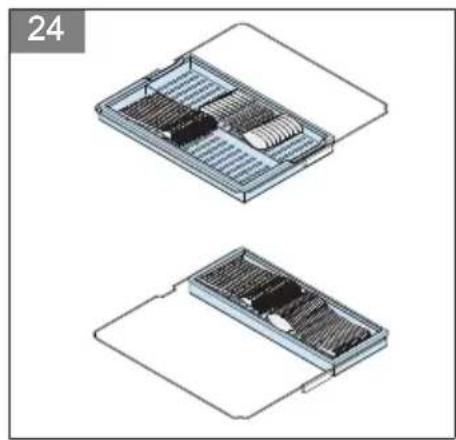

1. Remove (part of) the cutlery drawer from the appliance.

(Figure 24)

STARTING THE APPLIANCE

1. Push the on/off button to start the appliance. The indicator on the on/off button goes on.

CHOOSING A PROGRAM

Note:

For an overview of the programs, refer to section Programs.

Note:

If you used an extra option with the previous program, this option will remain activate for the new program.

1. Use the program selector button to choose a program. The display shows the selected program and the duration.
2. Use the timer button to delay the start time of the program. Refer to section Delaying the program.
3. Use the options button to browse through the options.
4. Use the select button to add an option to the selected program.

Note:

If an option is not compatible with the selected program, a buzzer sounds.

1. If necessary, cancel a selected option by pushing the select button again until the corresponding indicator goes off.
2. Push the start/pause button to start the program.

CHANGING THE PROGRAM

You can change the program while the appliance is running.

1. Push the start/pause button.
2. Wait until the program stops.
3. Use the program selector button to choose another program.
4. Push the start/pause button.

The newly selected program will resume the course of the previously selected program.

DELAYING THE PROGRAM

Note:

The start time of a program can be delayed for a maximum of 24 hours.

1. Push the timer button to delay the start time of a program.

2. Push the start/pause button.

3. Push the timer button to increase the time by 1 hour.

4. Push the start/pause button to activate the timer.

Note:

Set the time to 0 to cancel the timer.

The program will start when the timer has finished.

RESETTING THE PROGRAM

You can reset the program while the appliance is running.

1. Push and hold the start/pause button for 3 seconds. The program-step indicator for End flashes.

The water inside the appliance drains in about 30 seconds.

1. Wait until the program-step for End comes on.
2. Push the on/off button to cancel the program.

ACTIVATING AND DEACTIVATING THE CHILD LOCK

Activating the child lock

1. Push the select button for 3 seconds to activate the child lock. All indicators flash and the display shows CL.

Deactivating the child lock

1. Push the select button for 3 seconds to deactivate the child lock. All indicators and CL on the display flashes twice.

STOPPING THE APPLIANCE

Note:

The appliance is silent for 40 to 45 minutes during the drying process.

1. Wait until the program has finished and the program-step indicator End comes on.
2. Push the on/off button to switch off the appliance.

You can slightly open the door of the appliance after you switch it off in order to decrease the drying time.

1. Wait a few minutes before you unload the appliance. The dishes are very hot and can break.

To change the sound level of the buzzer, follow the below steps:

1. Push and hold the Options and Selection button simultaneously for 3 seconds.
2. When the sound setting is recognized, the buzzer gives a long sound and the display shows the last set level, from S0 to S3.

Note: the factory setting is S3.

1. To decrease the sound level, push the Selection button. To increase the sound level, push the Options button.

Note: level S0 means all sounds are off and level S3 is the loudest.

1. Push the on/off button to confirm the setting.

7 Cleaning and maintenance

CLEANING THE APPLIANCE

Caution:

Make sure that the appliance is off.

Note:

If you clean the appliance regularly, it will improve the service life.

1. Clean the outside of the appliance. Use a damp cloth.
2. Clean the seals of the door. Use a soft cloth.
3. Clean the inside of the appliance in case of high contamination:

a. Fill the detergent reservoir with a special cleaning agent for dishwashers.
b. Select a program with a high temperature.
c. Start the program.

CLEANING THE FILTERS

The filter system of the appliance consists of three components: the main filter, the micro filter and the sieve. Clean the filters weekly.

Warning:

Do not use the appliance without the filter system.

Note:

Clean filters make sure that your appliance functions correctly.

1. Remove the lower basket.

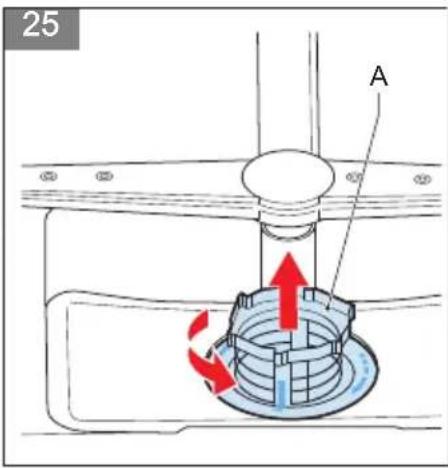

2. Turn the main filter (A) counter-clockwise to remove it. (Figure 25)

Note:

The micro filter is attached to the main filter.

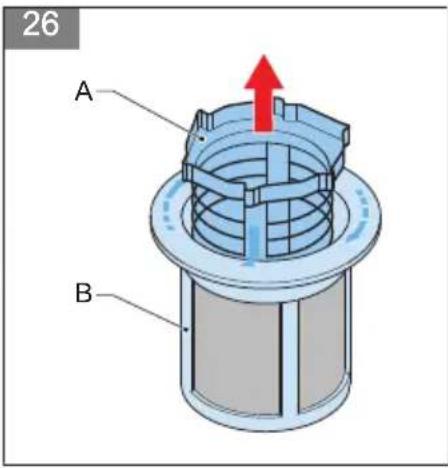

1. Remove the main filter (A) from the micro filter (B). (Figure 26)

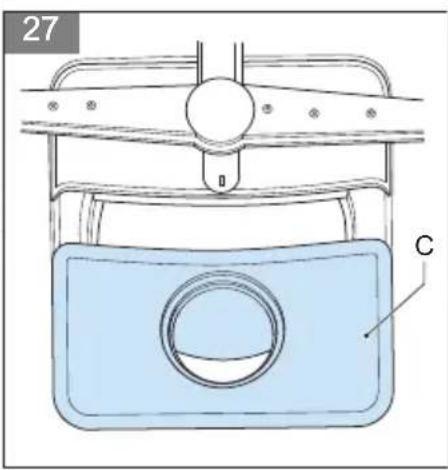

2. Remove the sieve (C). (Figure 27)
3. Clean the main filter, the micro filter and the sieve. Use warm water and a dishwasing brush.
4. Install the sieve.
5. Install the main filter into the micro filter. Make sure that the markers are aligned.
6. Install the main filter into the sieve.
7. Turn the main filter clockwise to fasten it. (Figure 28)

Caution:

Make sure that the filters are placed correctly. Incorrect placement of the filters affects the maximum performance of the appliance.

CLEANING THE SPRAY ARMS

1. Remove the upper and lower basket.

2. Remove the nut (A). (Figure 29)

3. Remove the upper spray arm (B).

4. Pull the lower spray arm (C) upwards to remove it.
5. Clean the spray arms. Use warm water.
6. Install the lower spray arm (C).
7. Install the upper spray arm (B).
8. Tighten the nut (A).

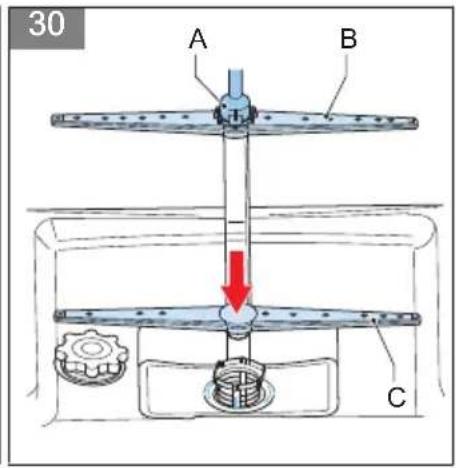

(Figure 30)

CLEANING THE PUMP

Food residue or foreign objects that were not captured by the filters can cause the waste water pump to block. The rinsing water level will be above the filter. Clean the pump to remove the blockage.

Warning:

Broken glass or sharp objects can cause injuries.

1. Make sure that the appliance is disconnected.
2. Remove the lower basket.
3. Remove the filters. Refer to section Cleaning the filters.
4. Remove the excess water. Use a sponge or cloth.

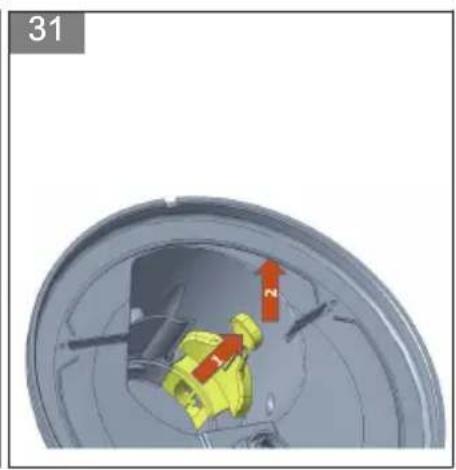

5. Push down the cover of the drainage pump in direction 1. (Figure 31)
6. Lift the cover of the drainage pump upwards in direction 2.
7. Remove the blockage and check the impeller of the drainage pump.

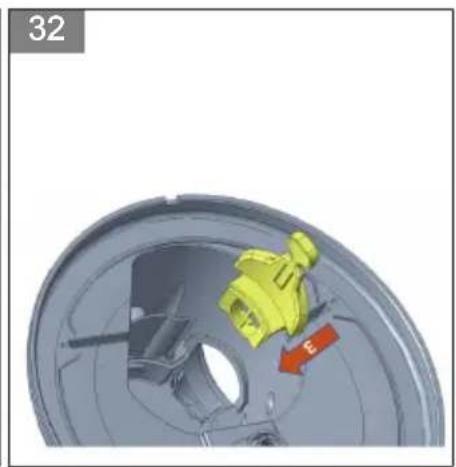

8. Push the cover of the drainage pump in direction 3 until you hear a click. Make sure that the cover fits into the channels. (Figure 32)
9. Install the filters.
10. Install the baskets.

8 Troubleshooting

GENERAL TROUBLESHOOTING PROCEDURE

1. Try to find a solution for the problem with the help of the troubleshooting table and the fault codes.
2. If you cannot find a solution for the problem, reset the appliance. Refer to section Resetting the program.
3. If the fault code keeps re-occurring, contact the Inventum-servicedienst.

TROUBLESHOOTING TABLE

Problem	Possible cause Possible solution
The program does not start.	The mains plug is not connected. Connect the mains plug.
	There is a problem with the fuse. Do a check on the fuse box.
	There is no water supply. Open the water tap.
	The door of the appliance is open. Close the door.
	The appliance is switched off.	Start the appliance. Refer to section Starting the appliance.
	The water inlet hose and filters are clogged.	Make sure that the water inlet hose and the filters are not clogged.
The detergent reservoir contains detergent residues.	The detergent reservoir is filled while the reservoir was still damp.	Make sure that you fill the detergent reservoir when it is dry.
The appliance contains water when the program is finished.	The drain hose is clogged or twisted.	Make sure that the drain hose is not clogged.Make sure that the drain hose is not twisted.
Problem Possible cause Possible solution
	The filters are clogged.	Clean the filters. Refer to section Cleaning the filters.
	The program has not finished.	Wait until the program is finished. A buzzer sounds five times and the ready indicator is on when a program is finished.
The appliance stops during a program.	There is a power failure. Make sure that there is power.
	There is a water inlet failure.	Make sure that there is water inlet supply.
The appliance makes unusual sounds during a program.	One of the spray arms hits the dishes.	Make sure that you load the appliance correctly. Refer to section Loading the appliance.
There is food waste left on the dishes.	The appliance is not loaded correctly and the spray arms cannot reach all the dishes.	Make sure that you load the appliance correctly. Refer to section Loading the appliance.
	The appliance is not loaded correctly.	Make sure that you load the appliance correctly. Refer to section Loading the appliance.
	The amount of detergent is insufficient.	Make sure that you fill the detergent reservoir with a sufficient amount of detergent. Refer to section Filling the detergent reservoir.
	The selected program is not suitable for the loaded dishes.	Choose a suitable program. Refer to section Programs.
	One of the spray arms is clogged.	Clean the spray arms. Refer to section Cleaning the spray arms.
	The filters are clogged.	Clean the filters. Refer to section Cleaning the filters.
	The filters are not placed correctly.	Make sure that you correctly place the filters.
	The water drain pump is clogged.	Make sure that the water drain pump is not clogged.
There are white stains on the dishes.	The amount of detergent is insufficient.	Make sure that you fill the detergent reservoir with a sufficient amount of detergent. Refer to section Filling the detergent reservoir.
	The level of rinse aid consumption is set too low.	Adjust the level of rinse aid consumption. Refer to section Setting the level of rinse aid consumption.
	There is a high level of water hardness and no salt is used.	Fill the salt reservoir. Refer to section Filling the salt reservoir.
	The cap of the salt reservoir is not closed correctly.	Make sure that the cap of the salt reservoir is closed firmly.
The dishes are not dry.	The selected program does not include drying.The level of rinse aid consumption is set too low.	Choose a program that includes drying. Refer to section Programs.Adjust the level of rinse aid consumption. Refer to section Setting the level of rinse aid consumption.
There are rust stains on the dishes.	The stainless steel quality of the dishes is insufficient.	Make sure that you only clean dishwasher-safe dishes in the appliance.
	There is a high level of salt in the water.	Adjust the level of salt consumption. Refer to section Setting the level of salt consumption.
	The cap of the salt reservoir is not closed correctly.	Make sure that the cap of the salt reservoir is closed firmly.
	Any spilled salt during filling of the salt reservoir was not cleaned immediately.	Make sure that you clean any spilled salt immediately and run a full program to prevent corrosion.
	There is a problem with the grounding of the mains supply.	Contact an authorized electrician.

FAULT CODES

The fault codes are shown on the display of the control panel.

Fault code Possible cause Possible solution
FF There is insufficient water supply.		Make sure that the water tap is fully open and that the water supply is not blocked.Close the water tap, remove the water inlet hose and do a check if the hose is clogged.Start the appliance again.Contact the Inventum-servicedienst if the fault code keeps re-occurring.
F5 There is a failure in the pressure system.		Contact the Inventum-servicedienst.
F3 The water supply does not stop.		Close the water tap.Contact the Inventum-servicedienst.
F2	The waste water in the appliance cannot be discharged.	Do a check if the drain hose is clogged.Do a check if the filters are clogged.Switch the appliance off and reset the program. Refer to section Resetting the program.Contact the Inventum-servicedienst if the fault code keeps re-occurring.
F8 The heater has an error. Contact the Inventum-servicedienst.
F1	The safety for water overflow is activated.	Contact the Inventum-servicedienst.
F7	The temperature of the appliance is too high.	Contact the Inventum-servicedienst.
F9	The position of the distributor has an error.	Contact the Inventum-servicedienst.
F6 The heat sensor has an error. Contact the Inventum-servicedienst.

9 General terms and conditions of service and warranty

5-year Inventum warranty!

1. Customers enjoy a 5-year full manufacturer's warranty on all Inventum products.
2. Within this period, a defective product or part, which makes normal functioning of the product or part impossible, will always be repaired free of charge or, if repair is not possible and/or does not provide a solution, replaced (by the same or equivalent products). The assessment of this lies with Inventum.
3. In order to make a claim under the 5-year Inventum warranty, you must, within two months after discovering the fault or defect, either return the product to the shop where you bought it, or contact the Inventum customer service department by using the form at 'https://www.inventum.eu/service'.
4. The warranty period starts from the date stated on the product's original sales receipt.
5. To invoke the warranty, you must always send a copy of the original proof of purchase with the service request and present the original proof of purchase to the service technician.
6. The 5-year warranty applies only to normal domestic use of Inventum products within the Netherlands.

Warranty exclusions

1. The 5-year Inventum guarantee does not apply in case of: normal wear and tear, consumables, improper use, insufficient or incorrect maintenance, incorrect and/or inexpert assembly and installation of the appliance, repairs by unauthorized third parties, business or commercial use, missing serial number, damage caused by an external cause. This enumeration is not exhaustive.
2. B-choice products and products that have been built-in in a showroom are not covered by the 5-year Inventum warranty. All optical damage such as dents, scratches and slight traces of use are excluded from any warranty.

Reporting malfunctions on Inventum products

1. Faults or defects on Inventum products can be reported by using the service request form on the website 'https://www.inventum.eu/service'or through the seller of the product.
2. A copy of the original proof of purchase must be included with the request.
3. Inventum's service department determines whether the product will be repaired or replaced, based on the request and the sales receipt.

Important to know

• Products sent without prior notification will not be accepted. Further to the notification, you will be informed by Inventum whether a warranty applies and whether you must return the product.
• The replacement or repair of a defective product, or a part thereof, does not lead to an extension of the original warranty period.
• Products eligible for replacement or repair must be emptied and clean.

For a detailed explanation of the warranty conditions and items excluded from them, please visit Inventum's website 'https://www.inventum.eu/algemene-voorwaarden'

These general warranty and service conditions apply to Inventum brand products purchased after 27th of April 2022 and intended for use within the Netherlands.

For Inventum products used outside the Netherlands, but within a EU Member State, the warranty rules of that country apply. Inventum provides warranty and service by a white goods technician only in the Netherlands.

As a consumer, you are entitled by law to a properly working product. Does the product break down sooner than you might expect? This means that the product is not in conformity. In that case, the law offers you, the buyer, with a number of legal remedies for your protection. This legal protection is not affected by the above commercial warranty given by Inventum on Inventum products used within the Netherlands.

Modifications and errors reserved

facebook.com/inventum1908

pinterest.com/inventum1908

youtube.com/inventum1908

instagram.com/inventum1908
