Product Type	Rechargeable lithium-ion battery
Brand	Powerworks
Model	P60B6
Nominal Voltage	54 V
Maximum Voltage	60 V
Available Capacities	2.0 Ah (108 Wh), 2.5 Ah (135 Wh), 3.0 Ah (162 Wh), 4.0 Ah (216 Wh), 6.0 Ah (324 Wh)
Number of Cells	15 (for 2.0/2.5/3.0 Ah) or 30 (for 4.0/6.0 Ah)
Cell Voltage	3.6 V
Compatible Charger Type	60V Charger 2900313 (2A) or 2904813 (4A)
Charging Time (2.0 Ah)	60 min with charger 2900313, 30 min with charger 2904813
Charging Time (2.5 Ah)	75 min with charger 2900313, 37.5 min with charger 2904813
Charging Time (3.0 Ah)	90 min with charger 2900313, 45 min with charger 2904813
Charging Time (4.0 Ah)	120 min with charger 2900313, 60 min with charger 2904813
Charging Time (6.0 Ah)	180 min with charger 2900313, 90 min with charger 2904813
Charge Level Indicator	BCI button with 4 green LEDs (from 0 to 100%)
Maintenance	Wipe with a dry cloth; do not immerse in water
Safety	Protection against short circuits, overheating, leakage; do not disassemble
Storage	Cool, dry place away from sunlight; recharge every 2 months if unused
Disposal	Do not dispose of in household waste; recycle at an approved facility
Warranty	2 years for domestic use (DIY)

Frequently Asked Questions - P60B6 Powerworks

How to recharge the Powerworks P60B6 battery?

To recharge the battery, plug the charger into a mains socket, then insert the battery into the charger. The flashing green LED indicates charging. Once solid green, the battery is fully charged. Use only chargers 2900313 or 2904813.

Which chargers are compatible with the P60B6 battery?

Compatible chargers are the 60V charger 2900313 (input 220-240V, output 60V 2A) and the charger 2904813 (output 60V 4A). Do not use other chargers.

How to check the battery charge level?

Press the charge indicator button (BCI) on the battery. The green LEDs light up: 4 LEDs = >80%, 3 = 60-80%, 2 = 40-60%, 1 = 20-40%, none = less than 20% (recharge immediately).

What to do if the battery does not charge?

Check the mains socket, charger contacts, ambient temperature (7-40°C). If the flashing red LED appears, remove the battery for 1 minute and try again. If it persists, the battery may be defective and must be replaced.

How to store the battery when not in use?

Store the battery in a cool (room temperature), dry place away from sunlight. If unused for a long time, recharge it every 2 months for 2 hours to prevent deep discharge.

What to do in case of battery leakage?

In case of leakage, avoid contact with skin or eyes. If contact, rinse thoroughly with water for 15 minutes and consult a doctor. The battery is corrosive and toxic. Dispose of it immediately.

Can I use the battery with other Powerworks tools?

The Powerworks P60B6 battery is designed for Powerworks 60V tools. Ensure compatibility with your tool. Do not use it with other brands.

How to clean the battery?

Clean the outside of the battery with a dry, soft cloth. Do not use water, detergent, or a damp cloth. Always remove the battery from the tool before cleaning.

What is the battery lifespan?

Lifespan depends on usage and maintenance. Generally, Li-ion batteries support about 500 charge cycles. Good maintenance (moderate temperature, no complete discharge) extends life.

How to recycle the battery at end of life?

Do not throw the battery in household waste. Take it to a recycling center or an approved recycling facility for Li-ion batteries. Cover the terminals with tape to prevent short circuits.

USER MANUAL P60B6 Powerworks

2900413/2900913/2904613/2900513/2904713/2900313/2904813

EN 60V LITHIUM-ION RECHARGEABLE BATTERY&CHARGER 2

DE 60V LITHIUM-IONEN WIEDERAUFLADBAR AKKU UND LADEGERÄT 8

ES 60V ION LITIO BATTERY*CHARGER RECARGABLE 14

IT BATTERIA RICARICABILE DA 60V AGLI IONI DI LITIO E CARICATORE 20

FR BATTERIE RECHARGEABLE 60V LITHIUM-ION& CHARGEUR 26

PT BATERIA LÍTIO-IÃO DE 60V RECARREGÁVEL E CARREGADOR 32

NL 60V LITHIUM-ION HERLAADBARE ACCU & OPLADER 38

English (Original Instructions)

BATTERY

SPECIFICATIONS

2900413

Battery: 54V =2.0Ah, 108Wh, 60V MAX

Voltage per cell: 3.6V ; Number of cells: 15

Charge time: 60 min. (use 2900313 Charger)

Charge time: 30 min. (use 2904813 Charger)

2900913

Battery: 54V =2.5Ah, 135Wh, 60V MAX

Voltage per cell: 3.6V ; Number of cells: 15

Charge time: 75 min. (use 2900313 Charger)

Charge time: 37.5 min. (use 2904813 Charger)

2904613

Battery: 54V =3.0Ah, 162Wh, 60V MAX

Voltage per cell: 3.6V ; Number of cells: 15

Charge time: 90 min. (use 2900313 Charger)

Charge time: 45 min. (use 2904813 Charger)

2900513

Battery: 54V = 4.0Ah, 216Wh, 60V MAX

Voltage per cell: 3.6V ; Number of cells: 30

Charge time: 120 min. (use 2900313 Charger)

Charge time: 60 min. (use 2904813 Charger)

2904713

Battery: 54V =6.0Ah, 324Wh, 60V MAX

Voltage per cell: 3.6V ; Number of cells: 30

Charge time: 180 min. (use 2900313 Charger)

Charge time: 90 min. (use 2904813 Charger)

For the proper use, maintenance and storage of this battery, it is crucially important that you read and understand the instructions given in this manual.

To avoid serious injury, risk of fire, explosion and danger of electric shock or electrocution:

■ If the battery pack case is cracked or damaged, DO NOT insert into the charger. Replace with a new battery pack.

■ DO NOT charge these battery packs with

any other type of charger.

■ DO NOT try to short circuit any terminals of battery pack.

WARNING

If the battery fluid gets in your eyes, rinse immediately with clean water for at least 15 minutes. Get immediate medical attention. Do not charge the battery pack in rain or in wet conditions. Do not immerse the tool, battery pack, or charger in water or other liquid.

■ Do not allow the battery pack or charger to overheat. If they are warm, allow them to cool down. Recharge only at room temperature.

■ Do not place the battery pack in the sun or in a warm environment. Keep at normal room temperature.

- Keep in shady, cool and dry condition, if the battery is not charged for a long time; charge the battery for 2 hours every 2 months.

■ The battery pack cells may develop a small leak under extreme usage or temperature conditions. If the outer seal is broken and the leakage gets on your skin:

- Use soap and water to wash immediately.

- Neutralize with lemon juice, vinegar, or other mild acid.

■ If leakage gets in your eyes, follow instructions above and seek medical attention.

■ Please check prior use, if output voltage and current of the battery charger is suitable for the charging battery pack.

CHECKING BATTERY CAPACITY

Press the battery capacity indicator (BCI) button. The lights will illuminate according to the batteries capacity level. See chart below:

English (Original Instructions)

BATTERY CAPACITY INDICATOR (BCI) BUTTON

Lights	Capacity
4 Green Lights he	Battery is above 80% capacity
3 Green Lights he	Battery is between 80% and 60% capacity
2 Green Lights he	Battery is between 60% and 40% capacity
1 Green Light The	battery is between 40% and 20% capacity
Lights go out	The battery is less than 20% capacity and requires charging immediately

SAFETY NOTES AND PRECAUTIONS

1. Do not disassemble the battery.
2. Keep away from the children.
3. Do not expose the battery to water or salt water, battery should be stored in a cool and dry location and should place the battery in cool and dry environment.
4. Do not place the battery in high-temperature locations, such as near a fire, heater, etc.
5. Do not reverse the positive terminal and the negative terminal of the battery.
6. Do not connect the positive terminal and the negative terminal of the battery to each other with any metal objects.
7. Do not knock, strike or step on the battery.
8. Do not solder directly onto the battery and pierce the battery with nails or other edge tools.
9. In the event that the battery leaks and the fluid gets into one's eye, do not rub the eye. Rinse well with water. Immediately discontinue use of the battery, if, while using the battery emits an unusual smell, feels hot, changes color, changes shape, or appears abnormal in any other way.

BATTERY CHARGER

SPECIFICATIONS

60V Charger: 2900313

Input: 220-240V \~50/60Hz 1A

Output: 60V=2A

60V Charger: 2904813

Input: 220-240V \~50/60Hz 2A

Output: 60V=4A

■ DO NOT probe the charger with conductive materials.
■ DO NOT allow liquid inside the charger.
■ DO NOT try to use the charger for any other purpose than what is presented in this manual.
■ Unplug the charger before cleaning and when there is no battery pack in the charger.
■ Do not try to connect two chargers together.
■ Do not use the charger in the circumstances that the output Polarity does not match the load polarity.
■ For indoor use only.
■ The cover may under no circumstances be opened. If the cover is damaged, then the charger may no longer be used.
■ Do not recharge non-rechargeable batteries.

WARNING

To avoid risk of fire, electric shock, or electrocution:

• Do not use a damp cloth or detergent on the battery or battery charger.
• Always remove the battery pack before cleaning, inspecting, or performing any maintenance on the tool.

CLEANING

Wipe the outside of the charger with a dry, soft cloth. Do not hose down or wash with water.

	Class II
	For indoor use only

English (Original Instructions)

	Before charging, read the instructions
	Fuse (2900313)
	Fuse (2904813)

WARNING

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Children shall not play with the appliance.

- Cleaning and user maintenance should not be made by children without supervision.

- If the supply cord is damaged, it must be replaced by manufacturer, its service agent or similarly qualified persons in order to aviod a hazard.

- Do not cover the ventilation slots on the top of the charger. Do not set the charger on a soft surface i.e. blanket, pillow. Keep the ventilation slots of the charger clear.

- Do not allow small metal items or material such as steel wool, aluminum foil, or other foreign particles into the charger cavity.

- Use only 2900413/2900913/2904613/2900513/2904713 rechargeable Li-ion batteries.

ENVIRONMENTALLY SAFE BATTERY DISPOSAL

WARNING

All toxic materials must be disposed of in a specified manner to prevent contamination of the environment. Before disposing of damaged or worn out Lithium-ion battery packs, contact your local waste disposal agency, or the local Environmental Protection Agency for information and specific instructions. Take the batteries to a local recycling and/or disposal centre, certified for Li-ion disposal.

WARNING

If the battery pack cracks or breaks, with or without leaks, do not recharge it and do not use. Dispose of it and replace with a new battery pack. DO NOT ATTEMPT TO REPAIR IT!

To avoid injury and risk of fire, explosion, or electric shock, and to avoid damage to the environment:

- Cover the battery's terminals with heavy-duty adhesive tape.

- DO NOT attempt to remove or destroy any of the battery pack components.

- DO NOT attempt to open the battery pack.

WARNING

- If a leak develops, the released electrolytes are corrosive and toxic. DO NOT get the solution in the eyes or on skin, and do not swallow it.

- DO NOT place these batteries in your regular household trash.

- DO NOT incinerate.

- DO NOT place them where they will become part of any waste landfill or municipal solid waste stream.

- Take them to a certified recycling or disposal centre.

English (Original Instructions)

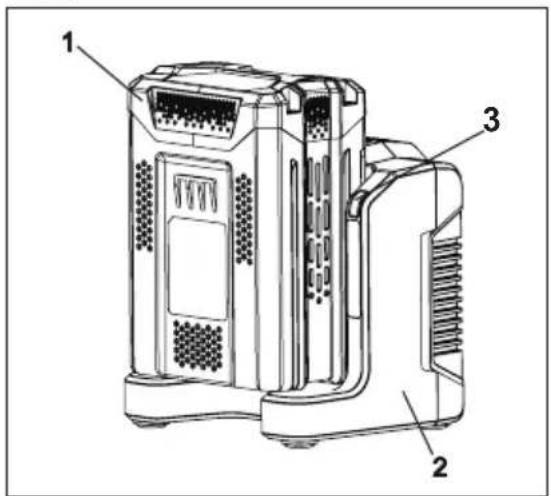

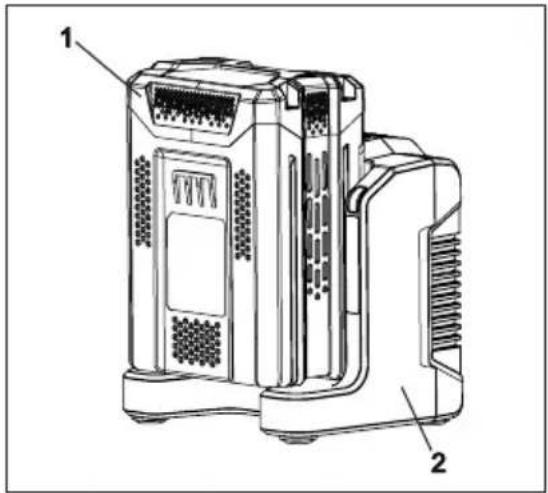

CHARGING PROCEDURE

NOTE: The battery is not shipped fully charged. It is recommended to fully charge before use to ensure that maximum run time can be achieved. This lithium-ion battery will not develop a memory and may be charged at any time.

2900313

1. Plug the charger into an AC power outlet.
2. Insert the battery pack (1) into the charger (2).

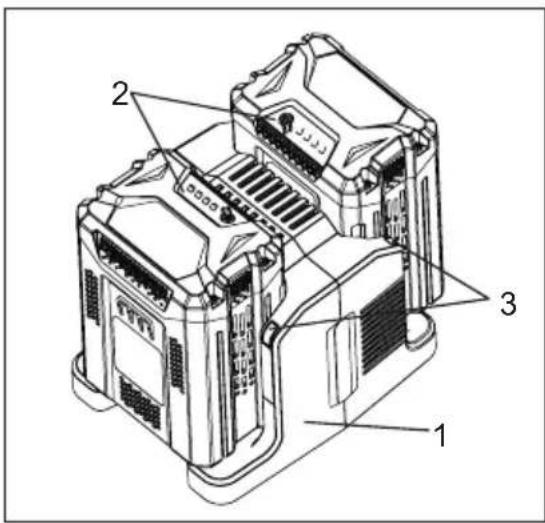

2904813

1. Charge one battery:

-Plug the charger (1) into an AC power outlet.

-Insert the battery pack (2) into the charger (1).

1. Charger two batteries:

-Plug the charger (1) into an AC power outlet.

-Insert two battery packs (2) into the charger (1).

Note: When charging two battery packs, the two batteries are charged separately. The charger will charge one battery first. After one battery is fully charged, it will charge the other battery.

This is a diagnostic charger. The Charger LED Light (3) will illuminate in specific order to communicate the current battery status. They are as follows:

LED STATUS DESCRIPTION
Blinking Green Charging
Solid Green Fully Charged
Solid Red	Over Temperature
Blinking Red	Charging Fault

False Defect Note:

When the battery is inserted into the charger, and the status LED flashes, remove the battery from the charger for 1 minute, then reinsert. If the status LED indicates normal than the battery pack is good. If the status LED is still blinking, remove the battery pack and unplug the charger. Wait 1 minute and plug the charger back in and reinsert the battery pack. If the status LED indicates normal than the battery pack is good. If the status LED is still blinking then the battery pack is defective and needs to be replaced.

NOTE: When the red indicator flickers, pull out the battery from the charger and insert again within 2 hours. If the indicator shows charging, that means the battery is good. After 2 hours, please pull out the battery and also pull out the AC power plug of the charger for 1 minute, and then insert the AC power plug and the battery again. If the indicator shows

English (Original Instructions)

charging, that means the battery is good. If not, the battery needs to be changed.

CHECKING THE CHARGER

If the battery pack does not charge properly:

• Check the current at the power outlet with another tool. Make sure that the outlet is not turned off.
• Check that the charger contacts have not been shorted by debris or foreign material.
• If the surrounding air temperature is not normal room temperature, move the charger and battery pack to a location where the temperature is between 7 °C and 40°C.

WARNING

If the battery is inserted into the charger when warm or hot, the CHARGING LED indicator light on the charger may switch on and illuminate RED. If this occurs allow the battery to cool outside of the charger for approximately 30 minutes.

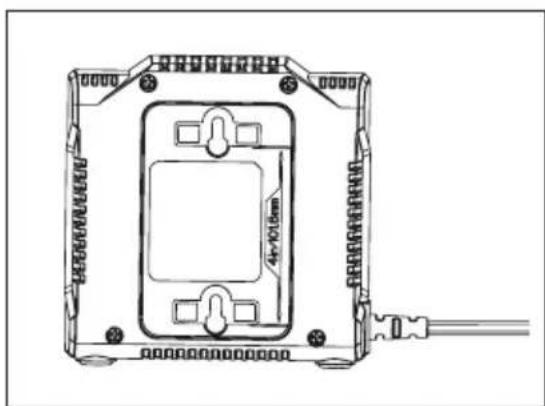

CHARGER MOUNTING

1. This charger can be installed hanging on a wall using two #8 screws (not supplied).
2. Locate the placement for the charger to be wall mounted.
3. If fastening to wood studs use 2 wood screws (not included).
4. Drill two holes on center 101.6mm apart ensuring that they are vertically aligned.
5. If fastening to drywall use wall anchors (not included) and screws to secure the charger to the wall.

NOTE: If the battery and the charger won't be used for a long time, please remove the

battery from the charger and pull out the AC power plug.

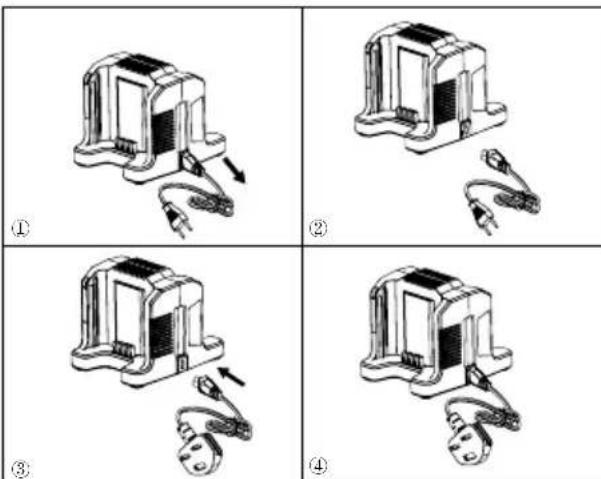

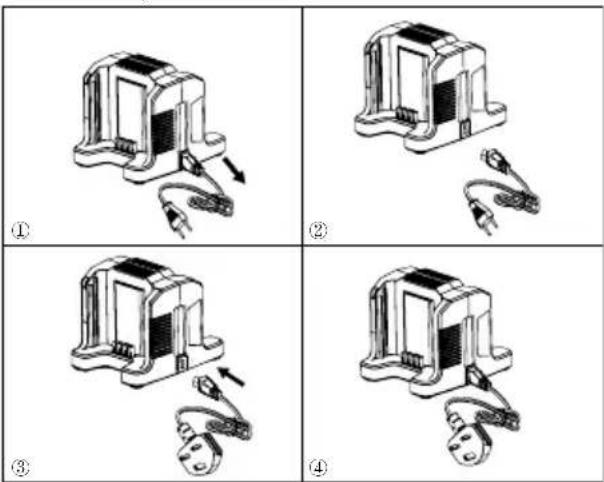

DETACHABLE POWER CORD

The power cords of the charger are detachable. They can be removed from the charger and used interchangeably. (See the figure below)

IMPORTANT SAFETY INSTRUCTIONS

1. SAVE THESE INSTRUCTIONS - DANGER: TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK CAREFULLY FOLLOW THESE INSTRUCTIONS.
2. Confirm the voltage available at each country location before using the charger.
3. If the shape of the plug does not fit the power outlet, use an attachment plug adaptor of the proper configuration for the power outlet.

CORRECT DISPOSAL OF THIS PRODUCT:

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the

English (Original Instructions)

product was purchased. They can take this product for environmental safe recycling.

REMOVAL OF WASTE BATTERIES AND ACCUMULATORS

Li-ion

Member States shall ensure that manufacturers design appliances in such a way that waste batteries and accumulators can be readily removed. Where they cannot be readily removed by the end-user. Member States shall ensure that manufacturers design appliances in such a way that waste batteries and accumulators can be readily removed by qualified professionals that are independent of the manufacturer. Appliances in which batteries and accumulators are incorporated shall be accompanied by instructions on how those batteries and accumulators can be safely removed by either the end-user or by independent qualified professionals. Where appropriate, the instructions shall also inform the end-user of the types of battery or accumulator incorporated into the appliance.

2904813

2904813

1. Cargar una batería:

2904813

2904813

CORDON D'ALIMENTATION AMOVIBLE

MISE AU REBUT CORRECTE DE CE PRODUIT :

2904813

INSTRUÇÕES IMPORTANTES DE SEGURANÇA

2904813

1. Charger two batteries:

CORRECTE AFVOER VAN DIT PRODUCT:

2904813

2904813

2904813

VIKTIGA SÄKERHETSFÖRESKRIFTER

Akumulator: 54V = 2.5AH, 135Wh, 60V maks.

2904813

1. Lad ett batteri:

-Sett inn laderen (1) i et strømuttak.
-Sett batteripakken (2) inn i laderen (1).

1. Lad to batterier:

-Sett inn laderen (1) i et strømuttak.
-Sett inn to batteripakker (2) i laderen (1).

2904813

Akumulator: 54V = 2.0Ah, 108Wh, 60V maks.

Akumulator: 54V = 2.5Ah, 135Wh, 60V maks.

Akumulator: 54V = 3.0Ah, 162Wh, 60V maks.

2904813

WAŻNE INSTRUKCJE DOTYCZĄCE BEZPIECZENSTWA

2904813

TLAČIDLO INDIKÁTORA NABITIA AKUMULÁTORA (ICB)

2904813

1. Nabíjanie jednej batérie:

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY

1. UCHOVAJTE SI TIETO POKYNY NEBEZPEČIE: PRE ZNÍŽENIE RIZIKA POŽIARU ALEBO ELEKTRICKÝCH VÝBOJOVJE POTREBNÉDODRŽIAVAŤ NASLEDUJÚCE POKYNYI.
2. Pred použitím dobíjačky preverte aké napätie je dostupné v danej krajine.
3. Ak tvar zástrčky nesedí do elektrickej

Akumulator: 54V =2.0Ah, 108Wh, 60V MAX

Akumulator: 54V=2.5Ah, 135Wh, 60V MAX

Akumulator: 54V=3.0Ah, 162Wh, 60V MAX

Akumulator: 54V = 4.0Ah, 216Wh, 60V MAX

Akumulator: 54V = 6.0Ah, 324Wh, 60V MAX

2904813

TIPKA INDIKATOR MJERENJE NAPUNJENOSTI BATERIJE (INB)

Svjetla	Stanje napunjenosti
4 zelena svjetla	Napunjenost baterije je veća od 80%
3 zelena svjetla	Napunjenost baterije je između 80% i 60%
2 zelena svjetla	Napunjenost baterije je između 60% i 40%
1 zeleno svjetlo	Napunjenost baterije je između 40% i 20%
Svjetla se gase	Napunjenost baterije je manja od 20%Bateriju treba odmah napuniti.

SIGURNOSNE NAPOMENE I MJERE OPREZA

1. NE rastavljajte bateriju.
2. Držite izvan dohvata djece.
3. Bateriju NE izlažite slanoj ili slatkoj vodi, pohranite je na hladnom i suhom mjestu.
4. Bateriju NE stavljajte blizu suviše toplih mjesta na primjer u blizini vatre ili radijatora.
5. NE mjenjajte pozitivni i negativni pol baterije.
6. NE povezujte polove baterije, negativni i pozitivni, s metalnim predmetima.
7. Bateriju NEMOJTE udarati niti gaziti nogama.
8. Na bateriji NEMOJTE obavljati zavarivanje, NEMOJTE je bušiti čavlima ili drugim oštrim predmetima.
9. Ako iz baterije curi tekućina i ako ona dođe u kontakt s očima, nemojte ih

trljati i temeljno ih isperite vodom. Prekinite uporabu baterije ako ona ima neuobičajen miris, ako se pregrijava, menja boju/oblik i ako ima neuobičajen izlged.

PUNJAČ ZA BATERIJE

KARAKTERISTIKE

Punjač od 60V: 2900313

Ulaz: 220-240V \~50/60Hz 1A

Izlaz: 60V=2A

Punjač od 60V: 2904813

Ulaz: 220-240V \~50/60Hz 2A

Izlaz: 60V =4A

■ NE ispitujte punjač provodljivim materijalima.
■ NE dopustite da tekućina prodre unutar punjača.
■ NE koristite punjač u svrhe koje nisu navedene u ovom priručniku.
■ Isključite punjač prije čišćenja i kada nema baterije u punjaču.
■ Nemojte pokušavati spojiti dva punjača zajedno.
■ Nemojte koristiti u slučaju da izlazni polaritet ne odgovara polaritetu opterećenja.
■ Samo za korištenje u zatvorenom.
■ Pokrov ni pod kojim uvjetima ne smije biti otvoren. Ako je pokrov oštećen, punjač se ne smije više koristiti.
■ Nemojte ponovno puniti nepunjive baterije.

POZOR

Kako bi se izbjegla opasnost od požara ili strujnog udara:

• Bateriju i punjač ne perite vlažnim krpama ili deterdžentom.
• Prije čišćenja, kontrole i obavljanja održavanja uređaja, uvijek iz njega izvadite bateriju.

2904813

1. Punjenje jedne baterije:

-Útaknite punjač (1) u odgovarajuću električnu zidnu utičnicu.

-Umetnite bateriju (2) u punjač (1).

NAPOMENA: Ako punjač i bateriju ne koristite duže vrijeme, izvadite bateriju iz punjača i punjač iskopčajte iz strujne utičnice.

ODSPOJIVI KABEL ZA NAPAJANJE

Kabeli za napajanje punjača se mogu odspojiti. Mogu se ukloniti s punjača i koristiti samostalno. (pogledajte sliku u nastavku)

VAŽNI SIGURNOSNI UPUTI

1. SAČUVAJTE OVE UPUTE OPASNOST: KAKO BI SE SMANJIO RIZIK OD POŽARA ILI STRUJNOG UDARA, VAŽNO JE PAŽLJIVO SLIJEDITI OVE UPUTE.
2. Prije uporabe punjača provjerite napon dostupan u svakoj zemlji korištenja.
3. Ako oblik utikača ne odgovara utičnici za napajanje, koristite prkiljučak adaptera za utičnicu za pravilnu konfiguraciju utičnice za napajanje.

ÉRÉS

AKKUMULÁTORTÖLTÓM JELZŐ GOMB (ICB)

2904813

FONTOS BIZTONSÁGI UTASÍTÁSOK

TASTĂ PENTRU ÎNCĂRCĂTOR (ICB)

2904813

БУТОН ИНДИКАТОР

ЗАРЯДНО
УСТРОЙСТВО (ICB)

2904813

مخرج: 60select 4Ambyer

2904813

تعليمات أمنية هامة:

PİL ŞARJ GÖSTERGESİ LÇÜM (PŞG) TUŞU

2904813

.הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָה

(תַעָרִי הַעָרִי)

2904813

תָרִשְׁת בַרְשָׁה

AKUMULIATORIAUS M ATAVIMAS KROVIKLIO INDIKATORIUS (ICB)

2904813

If the battery is inserted into the charger when warm or hot, the CHARGING LED indicator light on the charger may switch on and illuminate RED. If this occurs allow the battery to cool outside of the charger from approximately 30 minutes.

JKROVIKLIO MONTAVIMAS

SVARBÜS SAUGUMO NURODYMAI

CORRECT DISPOSAL OF THIS PRODUCT:

AKUMULATORA UZLÃDES LÎMENA INDIKATORA (ICB) TAUSTINŠ
MÉRÎJUMS

2904813

AKULAETUVUSE KONTROLLNUPP (ICB)
MÕÖTMINE

2904813

All new Powerworks Tools machinery is supplied with a 2 year parts and labour warranty from original date of purchase. A 30 day warranty is available for machines used professionally as Powerworks Tools are designed primarily to be used by DIY consumers. This warranty is non-transferable.

LIMITATIONS

This warranty applies only to defective parts/components and does not cover repairs due to:

1. Normal wear and tear.
2. Routine tune up or adjustment.
3. Damage caused by improper handling/abuse/misuse or neglect.
4. Overheating due to lack of maintenance.
5. Damage due to fittings/fasteners becoming loose/detached through lack of maintenance.
6. Damage caused by cleaning with water.
7. Machines serviced or repaired by non-authorised Powerworks Tools service centres.
8. Machines incorrectly assembled or adjusted.
9. Damage caused by improper use of the machine.
10. Damage caused by improper winterisation (pressure washers)

11. Items considered as consumable parts are not normally covered by the warranty, including but not limited to:

12. Batteries

13. Electric cables
14. Blade and blade assemblies
15. Belts

16. Filters
    • Chucks and tool holders

17. Certain products may contain components such as engines, transmissions from an alternative manufacturer, these items will be subject to the appropriate manufacturer's warranty policy except where Greenworks Tools Europe GmbH agrees to underwrite any claims outside the said manufacturer's warranty period.

18. Second hand goods are not covered under this warranty policy.
19. The fitting of spares, replacements or extra components which are not supplied or approved by Greenworks Tools Europe GmbH.

Warranty

To claim a warranty on any product under this policy a proof of original purchase is required. Credit card statement do not qualify as sufficient proof of purchase. In the first instance of a warranty event occurring the consumer should return the product to the original place of purchase with their proof of purchase. The machine will be sent to our central service facility and an inspection made. If the machine be found to be at fault it will be repaired and sent back to the address of the consumer free of charge. Machines that retail for less than €100 euros including sales taxes will generally be replaced.

If the central service facility finds that machine is not found to be at fault then the consumer will be advised they will need to pay for the cost of the repair.

This warranty policy is subject to change from time to time to accommodate the needs of new products. A copy of the latest warranty policy will be available at www.greenworkstools.eu.

12 Greenworks and Software Tools Europe GmbH

.תָּרְשָׁה בַעֹרִי

EC DECLARATION OF CONFORMITY

Manufacturer: Changzhou Globe Co., Ltd.

Address: No.65 Xinggang Road Zhonglou Zone Changzhou, Jiangsu 213000 P.R.China

Name and address of the person authorised to compile the technical file:

Name: Peter Söderström

Address: Hjortronvägen 3, 555 93 Jönköping, Sweden

Herewith we declare that the product

Category: 60V battery charger

Model: 2900313/2904813

Serial number: See product rating label

Year of Construction: See product rating label

■ is in conformit with the relevant provisions of the Low Voltage Directive 2014/35/EU

■ is in conformit with the provi ions of the following other EMC directive (2014/30/EU).

And furthermore, we declare that

the following (parts/clauses of) European harmonised standards have been used

EN 60335-2-29, EN 60335-1, EN 62233, EN 55014-1,

EN 55014-2, EN 61000-3-2, EN 61000-3-3

Place, date: Changzhou, 26/10/2017

Signature: Ted Qu Haichao

Quality Director

Ted Qu

DÉCLARATION DE CONFORMITÉ CE

Fabricant: Changzhou Globe Co., Ltd.

Adresse : No.65 Xinggang Road Zhonglou Zone Changzhou, Jiangsu 213000 R. P. de Chine

Endereço: No.65 Xinggang Road Zhonglou Zone Changzhou, Jiangsu 213000 China

DEKLARACJA ZGODNOŚCI WE

Producent: Changzhou Globe Co., Ltd.

Adres: Nr 65 Xinggang Road Zhonglou Zone Changzhou, Jiangsu 213000, ChRL

Naslov: No. 65 Xinggang Rd., Zhonglou Zone, Changzhou, Jiangsu, Kitajska

Adresa: No.65 Xinggang Road Zhonglou Zone Changzhou, Jiangsu 213000, Republica Populară Chineză

Changzhou Globe Co., Ltd :triangle pinkish

No.65 Xinggang Road Zhonglou Zone Changzhou, Jiangsu : العنوان

.213000 P.R.China

Adrese: No.65 Xinggang Road Zhonglou Zone Changzhou, Jiangsu 213000 P.R.China
