X-POWER STATION - Battery charger CROSSCALL - Free user manual and instructions

Product type	Battery charger
Brand	CROSSCALL
Model	X-POWER STATION
Power supply	Mains
Input voltage	100-240 V~, 2 A max, 50/60 Hz
Input power	120 W
Output voltage (charger)	19 V
Output current (charger)	6.3 A
Output voltage (ports)	5 V
Output current per port	2.1 A
Number of ports	10 (X-LINK)
Connection technology	X-LINK (cableless)
Mains cable length	2.5 m
Housing material	PC (polycarbonate)
Operating temperature	0 °C to +40 °C
Operating humidity	5% to 90%
Protection	Against extreme temperatures, shocks, disassembly
Maintenance	Disconnect, clean with soft dry cloth
Safety	Do not use outdoors in stormy weather, avoid humidity
Compliance	Directive 2014/53/EU
Manufacturing	Assembled in China
Importer	CROSSCALL, 245 rue Paul Langevin, 13290 Aix-en-Provence, France

Frequently Asked Questions - X-POWER STATION CROSSCALL

How many smartphones can I charge simultaneously with the X-POWER STATION?

You can charge up to 10 smartphones at the same time thanks to X-LINK technology.

Do I need to use cables to connect my smartphones?

No, the X-POWER STATION uses X-LINK technology which allows cableless attachment. Simply clip your smartphone onto the charger.

What is the charging speed per smartphone?

Each port delivers a current of 2.1 A at 5 V, providing efficient charging for most smartphones.

Can I use this charger with devices from other brands?

Yes, as long as your devices are compatible with the X-LINK system. For others, you can use standard USB ports if available.

Is it safe to leave the charger plugged in permanently?

It is recommended to set the charger to OFF when no smartphone is being charged to save energy and prolong lifespan.

What should I do if the device overheats?

Immediately stop using the device and let it cool down. Avoid exposing it to extreme temperatures (0°C to +40°C).

How to clean the X-POWER STATION?

First unplug the charger from the outlet. Use a soft dry cloth. Do not use aggressive products like alcohol or gasoline.

What is the required input voltage?

The input voltage is 100-240 V~ (50/60 Hz), allowing use in most countries.

What to do with batteries at end of life?

Do not dispose of the device with household waste. Take it to a selective collection point in accordance with WEEE regulations.

Where can I find the declaration of conformity?

The CE declaration of conformity is available on the Crosscall website: https://crosscall.com/docs/legal/ce-international_declaration_of_conformity-x-power-station.pdf.

USER MANUAL X-POWER STATION CROSSCALL

Technical line drawing of a rectangular electronic component with six circular holes and a small labeled component (no text or symbols)

Line drawing of a rectangular electronic device with an inset showing a labeled component (no text or symbols present)

Pure decorative knot line drawing without any text, numbers, or symbols

1.5 mm

The instruction manual will help you familiarise yourself with your new device and make it easier for you to get started using it.

BENEFITS OF USE

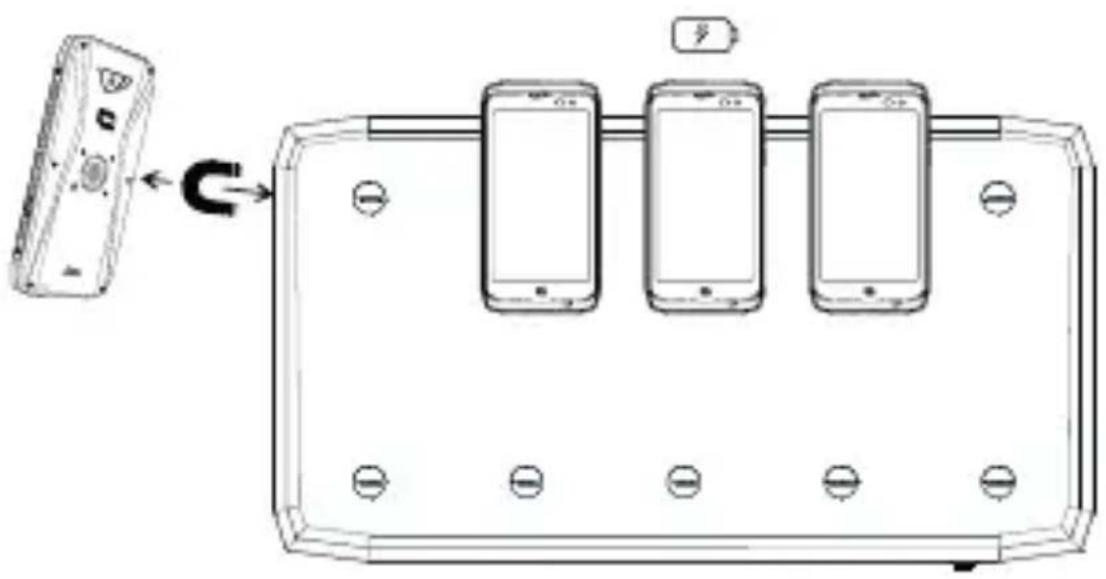

1. Recharge 10 devices simultaneously using X-LINK and just 1 socket
2. X-LINK: no need for cables, attach in one touch
3. Efficient: 2.1A charge per smartphone
4. Robust: withstands working conditions

GUIDELINE FOR USE

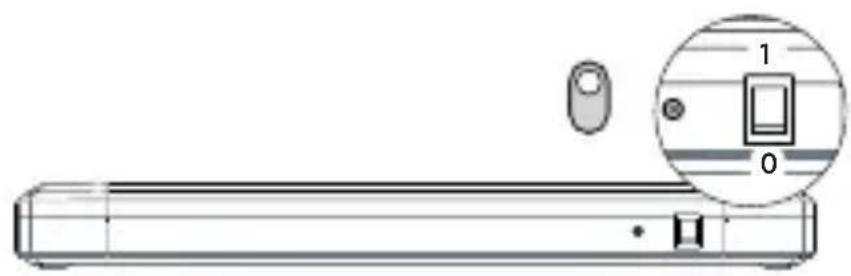

It is preferable to switch your X-POWER STATION to OFF when no smartphone is being recharged.

IMPORTANT

• Small parts may cause choking.
• Avoid extreme temperatures.
• Do not keep your device in extremely hot or cold places. (-10°C / +60°C)
• Do not attempt to disassemble or modify this product or any of its components.
• Avoid impacts or damage to your Charger.
• Avoid using the connector to perform several actions and ensure that the terminals of the battery do not touch any conductive elements, such as metal or liquid.

• Stop using your device if any of its parts are cracked, broken, or if it overheats.

• Do not allow your children or pets to chew or lick the device.

• Do not press your device against your eyes, ears or any other part of your body, and do not put it in your mouth.
• Do not use your device outside during a thunderstorm.
• Do not place the unit near water or a source of moisture, such as a bathtub, sink, kitchen sink, pool, damp basement or other damp locations. In general, do not use in case of inclement weather or thunderstorms.
• Use only original accessories with this charger and do not use the battery on another accessory.
• Before cleaning your device, unplug it from its power supply. Clean the appliance with a soft, dry cloth. Do not use aggressive cleaning agents or solvents such as petrol or alcohol: these risk damaging the device
• This device is not intended for use by persons (including children) with reduced physical, sensory or mental capacities, or persons without experience or knowledge, unless they are supervised by a person responsible for their safety or have received prior instructions from them concerning the use of the device. Children should be supervised to ensure that they do not play with the device.

ENVIRONMENTAL PROTECTION:

This symbol affixed on the product means that it is a device whose treatment as waste is subject to Waste Electrical and Electronic Equipment (WEEE) regulations.

Please observe the local regulations on the charger's package concerning the battery and the disposal of used chargers, by depositing them in the selective collection points so that they can be properly recycled. Do not dispose of chargers or used batteries in ordinary rubbish bins. Please dispose of used lithium batteries that you do not want to keep in a designated place for this purpose. Do not dispose of them with household waste.

COMPLIANCE

• CROSSCALL confirms that this device complies with the basic recommendations and other relevant measures in the 2014/53/EU directive. The latest applicable version of the declaration of conformity can be found at https://crosscall.com/docs/legal/ce-international_declaration_of_conformity-x-power-station.pdf
• Restrictions regarding the 2.4 GHz band: Norway: This sub-paragraph is not applicable to the geographical area located within a 20km radius from the centre of Ny-Ålesund.

CHARACTERISTICS:

X-LINK	from 1 to 10 smartphones
Materials PC
Transformer	Input voltage: 100/240V ~ 2A max, 50/60 Hz - 120W
Output voltage/current 19V 6.3A	---
Cable length 2.5m
Acceptable operating temperatures	0°C - 40°C
Acceptable operating humidity 5% - 90%
Output voltage 5V/2.1 (x10)

X-POWER STATION

Assembled in China Imported by: CROSSCALL 245 rue Paul Langevin 13290 Aix-en-Pce - France www.crosscall.com

Check out the whole range of X-LINK accessories on www.crosscall.com
