USER MANUAL HAF1350DR HISENSE

Black square electric cooktop with digital display and 'Hisense' branding (no readable text beyond branding)

HAF1350DR

SI Navodila za uporabo ....2
HR, BIH Upute za uporabu 10
SRB - MNE Uputstva za upotrebu 18
MK Упатства за употреба 27
GB Instruction manual ....36
RO Manual de instructiuni 44
HU Használati útmutató ....52
BG Инструкции за употреба 60
UA Інструкція з експлуатації 69
SK Návod na obsluhu....77
CZ Návod k obsluze 85
PL Instrukcja obsługi....93
RU Руководство по эксплуатации .....102
SQ Udhëzime për përdorim ....111
FR Notice d'utilisation....119
ES Manual de instrucciones....127
PT Manual de instruções....135
IT Manuale di istruzioni....144
DK Brugsanvisning....153
SV Brugsanvisning....161
NO Brugsanvisning....169
FI Käyttöohje 177
DE Gebrauchsanleitung .....185

Line drawings of various kitchen appliances including a rice cooker, air purifier, and fan-shaped dish (no text or labels)

Line drawings of various kitchen appliances including a rice cooker, open oven, and multi-tiered dish (no text or labels)

Oprez: Ne dodirujte posudu tijekom ili neposredno nakon uporabe, jer bude jako vruća. Držite posudu samo za ručku.

Posuda i sastojci su vrući. Ovisno o vrsti sastojaka u fritezi, iz posude može izaći para.

Upute za upravljačku ploču

800 min Meat Fish Chicken Pizza Cake Peanut Fries Shrimp Veggies Ribs 7 5 6 4 3 2 < | | > ≡ ∞ ▶□ 1

Line drawings of various kitchen appliances including a rice cooker, air purifier, and fan base (no text or labels)

Oprez: Ne dodirujte posudu tokom ili odmah nakon upotrebe, jer postane veoma vruća. Držite posudu samo za ručku.

Posuda i hrana su vrući. U zavisnosti od vrste sastojaka u fritezi, iz posude može da izlazi para.

Uputstvo za kontrolnu tablu

880 min Meat Fish Chicken Pizza Cake Peanut Fries Shrimp Veggies Ribs 7 5 6 4 3 2 < | | > ≡ ∞ ▶ □ 1

Technical line drawings of four different kitchen appliances with open and closed views (no text or symbols)

Note1: Add 3 minutes to the preparation time when you start frying with the air fryer still cold. The appliance may emit some smoke and odour during first use, which is a normal occurrence.

Чистење

Important safety instructions

Carefully read the instructions for use before using the appliance.

1. Save the instructions, certificate of warranty, proof of payment, and preferably the appliance packaging.
2. Do not immerse the housing with electric components and heating elements in liquid and do not rinse it under running water.
3. Prevent any ingress of water or other liquid into the appliance as this may cause electric shock.
4. Always place the food to be fried in the basket in order to avoid contact with the heating elements.
5. Do not cover the air inlets and outlets during appliance operation.
6. Do not fill the pan with oil as this may result in a risk of fire.
7. Do not touch any part of the appliance interior during operation.
8. Before connecting the appliance to the power mains, make sure the voltage indicated on the appliance matches the power mains voltage in your home.
9. Do not use the appliance if the plug, power cord, or any other component is damaged.
10. If the power cord is damaged, it may only be replaced by Hisense, Hisense authorized service and repair centre, or an adequately trained professional.
11. This appliance may be used by children aged 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, if they are supervised during the use of the appliance or if they have been provided relevant instructions regarding the use of the appliance in a safe way and if they understand the hazards involved. Keep children under supervision while they use the appliance and make sure they do not play with it. Children should not perform any cleaning or maintenance tasks on the appliance, unless they are older than 8 years and do so under supervision.
12. Keep the power cord away from hot surfaces.
13. Do not plug the power cord to the power outlet, and do not use the appliance control panel if your hands are wet.
14. Only connect the appliance to a grounded power outlet. Make sure the power plug is inserted correctly into the power outlet.
15. This appliance cannot be controlled using an external timer or a separate remote control system.

16. Do not place the appliance on or close to a flammable material such as a tablecloth or curtains.

17. Do not place the appliance next to a wall or on top of other appliances. Make sure there is at least 10 cm of clearance behind, next to, and above the appliance. Do not place any objects on the appliance.

18. Only use the appliance for the purposes described in this manual.
19. Do not leave the appliance to operate unattended.
20. During hot air frying, hot steam is released through the air outlet vents. Take care not to come too close to the air outlet vents with your hands and face. Also be careful not to be scalded by steam when removing the pan from the appliance.
21. During operation, accessible surfaces of the appliance may become hot.
22. If there is dark smoke coming out of the appliance, immediately switch it off. Before removing the tray from the appliance, wait for the smoke to subside.
23. Place the appliance on a level flat and stable surface.
24. The appliance is intended solely for normal household use. It is not intended for use in environments such as kitchenettes at stores, offices, farms, or other working environments. It is also not intended to be used by guests in hotel rooms, motels, bed and breakfast establishments, and other establishments offering accommodation.
25. If the appliance is not used correctly or if it is used for professional or semi-professional purposes or in a way not in compliance with these instructions, the warranty shall be void and Hisense shall not be responsible for any resulting damage.
26. For inspection or repair of the appliance, contact an authorized Hisense service centre.
27. Do not attempt to repair the appliance yourself as this will void the warranty.
28. Always disconnect the appliance from the power mains after use.
29. Before holding or cleaning the appliance, wait for it to cool down for approximately 30 minutes.
30. Make sure the food cooked in the appliance is a golden colour, rather than dark or brown. Remove any residue of burnt food. Do not fry raw potatoes at a temperature above 180 °C (to reduce the formation of acrylamides).

This equipment is labelled in compliance with the European Directive 2012/19/EC on waste electric and electronic equipment – WEEE. The Directive specifies the requirements for collection and management of waste electric and electronic equipment effective in the entire European Union.

Automatic switch off

This appliance is fitted with a timer. When the time runs out, the appliance will beep and automatically switch off.

Before using the appliance for the first time

Remove all packaging material. If there are any labels or stickers on the appliance, remove them. Rinse the basket and the pan with hot water. Do not use abrasive or aggressive cleaners. Use a damp cloth to clean the interior and exterior of the appliance. Do not wash the pan and the basket in the dishwasher.

The appliance uses hot air for frying. Therefore, do not fill the pan with frying oil or grease!

Electrical connection:

The appliance may only be connected to a correctly fitted 220-240 V \~ 50-60 Hz power outlet.

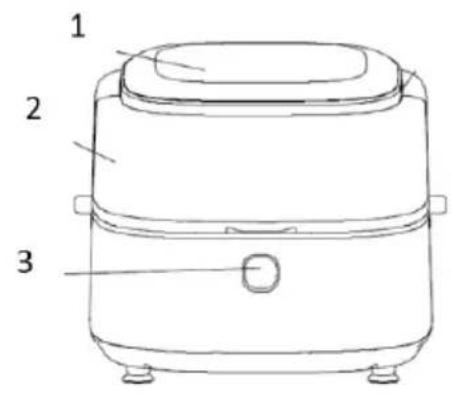

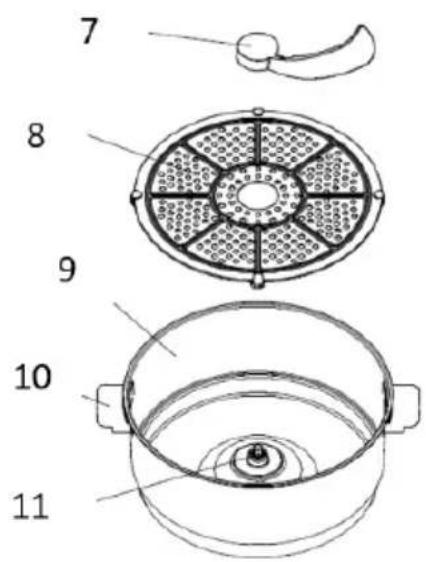

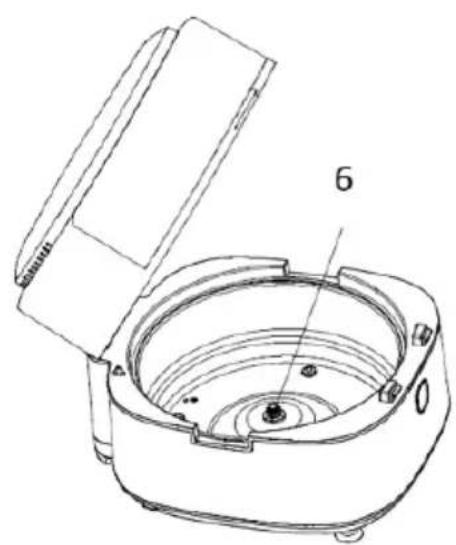

General description (Picture1)

1. Control panel
2. Window
3. Button
4. Air inlet
5. Air outlet

6. Stirring shaft

7. Mixing blade

8. Griddle
9. Pot
10. Handle
11. Axis of rotation

1 2 3

4 5

6 0

7 8 9 10 11

Before first use

1. Remove all packaging materials.
2. Remove any stickers or labels from the appliance.
3. Thoroughly clean the shelf and pot with hot water, some washing-up liquid, and a non-abrasive sponge.
4. Wipe the inside and outside of the appliance with a moist cloth.
   This is an oil-free fryer that works on hot air. Do not fill the pot with oil or frying fat directly.

Notice: When your air fryer is heated for the first time, it may emit slight smoke or odour. This is normal with many heating appliances. This does not affect the safety of your appliance.

Preparing the appliance for use

1. Place the appliance on a stable, horizontal and even surface.
   Do not place the appliance on non-heat-resistant surface.
2. Place the frying rack in the pot

Do not fill the pot with oil or any other liquid.

Do not put anything on top of the appliance as this could obstruct the airflow and affect the hot air frying result.

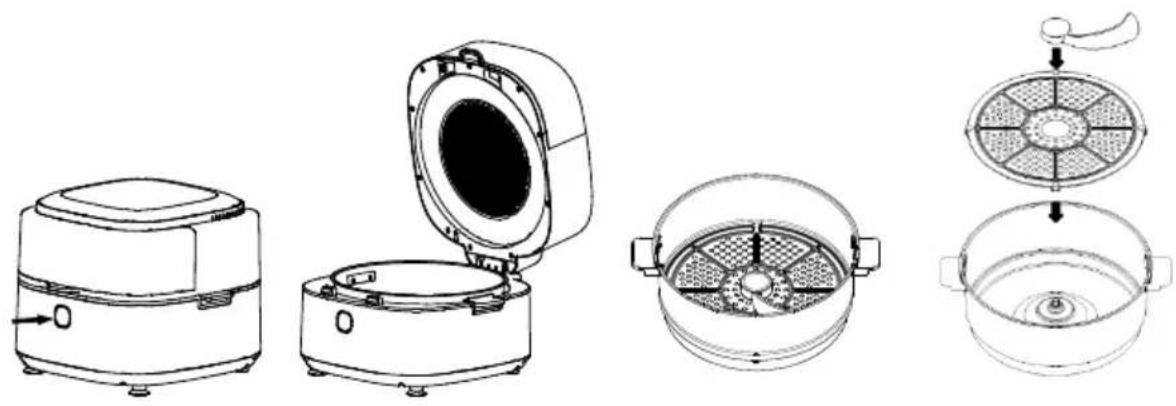

Using the appliance

1. Connect the mains plug into an earthed wall socket.
2. Press the button and open the top lid.
3. Assemble the griddle and the mixing blade inside the air fryer.
4. Put the ingredients in the pot, then close the top lid and select the cooking menu.

Line drawings of various kitchen appliances including a rice cooker, oven, and fan (no text or labels)

Caution: Do not touch the pot during or immediately after use, as it gets very hot. Only hold the pot by the handle.

The pot and the ingredients are hot. Depending on the type of the ingredients in the air fryer, steam may escape from the pot.

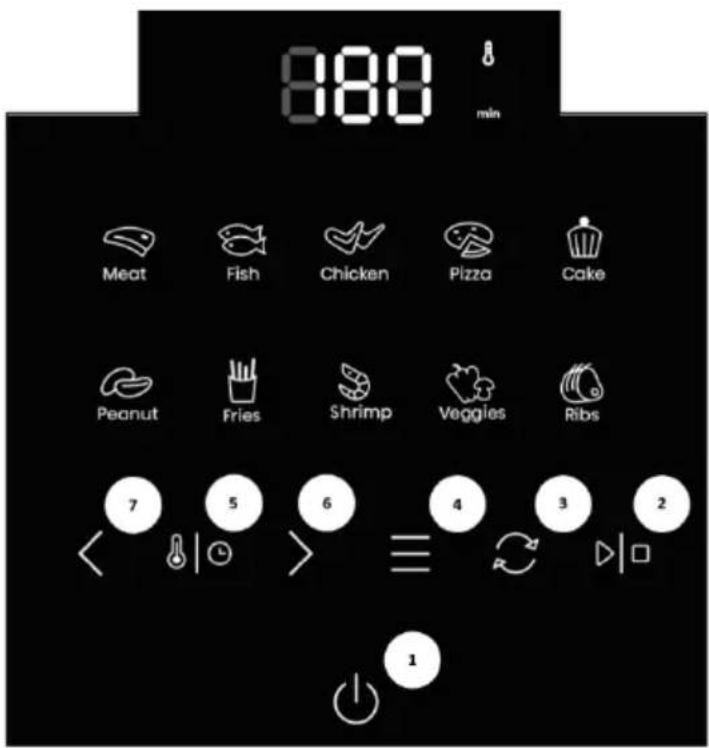

Control panel instruction

880 min Meat Fish Chicken Pizza Cake Peanut Fries Shrimp Veggies Ribs 7 5 6 4 3 2 < | | > ≡ ∞ ▶□ 1

Key 1 Power key

Press the power key for 2 seconds to switch the appliance into standby mode.

Key 2 Use/start key

Press the pause/start key for 0.5 seconds to fully stop the appliance during cooking. All the lights will go out and the fan will stop working.

Key 3 Rotation key

The rotation function is preset for some menus, like for example Peanuts/fries/shrimp/veggie, but you can also manually activate or cancel it by pressing the rotation key.

Key 4 Reset key

Selecting the preset key enables you to scroll through 10 popular food choices. Once selected, the appliance will be set at the predetermined cooking time and temperature.

Key 5 Temperature/time selection key

By pressing the temperature/time selection key you can adjust the displayed temperature/time.

Key 6 Key 7 - Temperature and time control keys

Keys 6 and 7 enable you to increase or decrease the cooking temperature in 5 °C-increments.

Temperature control range: 80 °C – 200 °C. You can also use these keys to increase or decrease cooking time. Time control range: 1 min – 60 min.

Settings

The table below will help you select the basic settings for the ingredients.

Note: Keep in mind that these settings are indicative only. As ingredients differ in origin, size, shape, and brand, we cannot guarantee the best settings for your ingredients.

Because the rapid air technology instantly reheats the air inside the appliance, briefly pulling the pot out of the appliance during hot air frying will barely disturb the process.

Tips:

1. Smaller ingredients usually require a slightly shorter preparation time than larger ingredients.
2. A larger amount of ingredients only requires a slightly longer preparation time, a smaller amount of ingredients only requires a slightly shorter preparation time.
3. Shaking smaller ingredients halfway through the preparation time optimizes the final result and can help prevent unevenly fried ingredients.
4. Add some oil to fresh potatoes for a crispy result. Fry your ingredients in the air fryer within a few minutes after you have added the oil.
5. Do not prepare extremely greasy ingredients such as sausages in the air fryer.
6. Snacks that can be prepared in an oven can also be prepared in the air fryer.
7. The optimal amount for preparing crispy fries is 500 grams.
8. Use pre-made dough to prepare filled snacks quickly and easily. Pre-made dough also requires a shorter preparation time than home-made dough.
9. Place a baking tin or oven dish in the air fryer pot if you want to bake a cake or quiche or if you want to fry delicate ingredients or dishes with filling or stuffing.

Menu	Reference weight (g)	Default temperature (°C)	Time (min)	Rotation
Meat	300-800	200	13	No
Fish	300-800	150	15	No
Chicken	300-800	200	18	No
Pizza		160	12	No
Cake		145	45	No
Peanuts	300-800	180	15	Yes
Fries	300-800	200	22	Yes
Shrimp	300-800	200	12	Yes
Veggies	300-800	180	20	Yes
Ribs	300-800	200	15	No

Note1: Add 3 minutes to the preparation time when you start frying with the air fryer still cold. The appliance may emit some smoke and odour during first use, which is a normal occurrence.

Cleaning

Clean the appliance after every use.

Do not use metal kitchen utensils or abrasive cleaning materials to clean the pot and the frying rack as this may damage the non-stick coating.

1. Remove the mains plug from the wall socket and let the appliance cool down.

Note: Remove the pot to let the air fryer cool down more quickly.

1. Wipe the outside of the appliance with a moist cloth.

2. Clean the pots with hot water, some washing-up liquid, and a non-abrasive sponge.

You can use degreasing liquid to remove any remaining dirt.

Tip: If dirt is stuck to the shelf (rack) or the bottom of the pot, fill the pot with hot water and some washing-up liquid. Put the frying rack in the pot and let the pot and the frying rack soak for approximately 10 minutes.

1. Clean the inside of the appliance with hot water and a non-abrasive sponge.
2. Clean the heating element with a cleaning brush to remove any food residues.

Troubleshooting

Problem	Possible cause	Solution
The appliance does not operate.	The appliance is not connected to the power mains.	Connect the power cord plug to a grounded power outlet.
The ingredients fried with the air fryer are not done.	Excessive amount of ingredients or ingredients are too large.	Fill the pot with suggested amount of ingredients (of recommended size).
	The temperature is too low.	Adjust the temperature accordingly.
	The appliance was not pre-heated.	Set the time to required preparation time .
The ingredients are fried unevenly.	Certain types of ingredients need to be shaken halfway when cooking.	Ingredients that lie on top of or across each other (e.g., fries) need to be shaken halfway through the preparation time.
Fried snacks are not crispy when they come out of the air fryer.	Used the type of snacks intended for preparation in a traditional deep fryer.	Use oven snacks or lightly brush some oil onto the snacks for a crispier result.
Cannot slide the pan into the appliance properly.	Too much ingredients in the pot.	Do not fill the pan beyond the MAX indication.
	The pot is not placed in the pot correctly.	Push the pot down into the appliance until you hear a click.
White smoke comes out of the appliance.	Cooking greasy ingredients.	When cooking greasy ingredients, a large amount of oil will leak into the pot. The oil produces white smoke, and the pot may heat up more than usual. This does not affect the appliance or the final result.
	The pot was not cleaned after the last cooking.	White smoke is caused by grease heating up in the pan. Make sure you clean the pan properly after each use.
Fresh fries are fried unevenly.	Did not use the right potato type.	Use fresh potatoes and make sure they stay firm during cooking.
	Did not rinse the potato sticks properly before cooking.	Rinse the potato sticks properly to remove starch from the outside of thesticks.
Fresh fries are not crispy.	The crispiness of the fries depends on the amount of oil and water in the fries.	Make sure you dry the potato sticks properly.
		Cut the potato sticks smaller for a crispier result.
		Brush some oil for a crispier result.

ENVIRONMENT

At the end of the appliance's useful life, do not discard it with common household waste. Take is to an authorized recycling centre. This will help preserve the environment.

WARRANTY AND REPAIR

For more information or in case of problems, please contact Hisense Call Centre in your country (phone number listed in the International Warranty Sheet). If there is no such centre in your country, please contact the local Hisense dealer or Hisense small domestic appliance department. For personal use only!

Hisense

WISHES YOU A LOT OF PLEASURE IN USING YOUR APPLIANCE.

We reserve the right to modifications.

Line drawings of various kitchen appliances including a rice cooker, air fryer, and a pot with a fan (no text or labels)

8:00 min Meat Fish Chicken Pizza Cake Peanut Fries Shrimp Veggies Ribs 7 5 6 4 3 2 < | | > ≡ ∞ ▶ □ 1

Tasta 1 Tasta de alimentare

Line drawings of various kitchen appliances including a rice cooker, air purifier, and fan base (no text or labels)

Line drawings of various kitchen appliances including a rice cooker, air fryer, and a multi-tiered pot (no text or labels)

880 min Meat Fish Chicken Pizza Cake Peanut Fries Shrimp Veggies Ribs 7 5 6 4 3 2 < | | > ≡ ∞ ▶□ 1

Бутон 1 Бутон за захранване

Technical line drawings of four different kitchen appliances with open and closed views (no text or symbols)

8:00 min Meat Fish Chicken Pizza Cake Peanut Fries Shrimp Veggies Ribs 7 5 6 4 3 2 < | | > ≡ ∨ ▶ □ 1

Line drawings of various kitchen appliances including a rice cooker, air fryer, and a multi-tiered pot (no text or labels)

800 min Meat Fish Chicken Pizza Cake Peanut Fries Shrimp Veggies Ribs 7 5 6 4 3 2 < | | > ≡ ∨ ▶□ 1

Tlačidlo 1 Vypínač

Line drawings of various kitchen appliances including a rice cooker, oven, and fan (no text or labels)

880 min Meat Fish Chicken Pizza Cake Peanut Fries Shrimp Veggies Ribs 7 5 6 4 3 2 < | | > ≡ ∨ ▶□ 1

Tlačítko 1 Vypínač

Line drawings of various kitchen appliances including a rice cooker, air oven, and fan (no text or labels)

8:00 min Meat Fish Chicken Pizza Cake Peanut Fries Shrimp Veggies Ribs 7 5 6 4 3 2 < | | > ≡ ∞ ▶□ 1

Przycisk 1 Przycisk zasilania

Technical line drawing of a kitchen air fryer with labeled parts (no text or symbols beyond part number)

7 8 9 10 11

Line drawings of various household appliances including a rice cooker, oven, and fan (no text or labels)

880 min Meat Fish Chicken Pizza Cake Peanut Fries Shrimp Veggies Ribs 7 5 6 4 3 2 < | | > ≡ ∨ ▶ □ 1

Line drawings of various kitchen appliances including a rice cooker, air fryer, and a pot with a fan (no text or labels)

8:00 min Meat Fish Chicken Pizza Cake Peanut Fries Shrimp Veggies Ribs 7 5 6 4 3 2 < | | > ≡ ∞ ▶□ 1

Line drawings of various kitchen appliances including a rice cooker, air fryer, and a pot with lid (no text or symbols)

8:00 min Meat Fish Chicken Pizza Cake Peanut Fries Shrimp Veggies Ribs 7 5 6 4 3 2 < | | > ≡ ∞ ▶□ 1

Line drawings of various kitchen appliances including a rice cooker, oven, and fan (no text or labels)

Line drawings of various kitchen appliances including a rice cooker, air purifier, and fan base (no text or labels)

Technical line drawing of a portable air fryer with labeled parts (no text or symbols beyond part number)

7 8 9 10 11

Line drawings of various kitchen appliances including a rice cooker, air fryer, and a pot with lid (no text or symbols)

Line drawings of various kitchen appliances including a rice cooker, oven, and fan (no text or labels)

8:00 min Meat Fish Chicken Pizza Cake Peanut Fries Shrimp Veggies Ribs 7 5 6 4 3 2 < | | > ≡ ∞ ▶ □ 1

Knap 1 Tænd/sluk

Technical line drawing of a portable air fryer with lid open, showing internal components and mounting base (no text or symbols)

7 8 9 10 11

Line drawings of various kitchen appliances including a rice cooker, air fryer, and a pot with lid (no text or symbols)

8:00 min Meat Fish Checken Pizza Cake Peanut Fries Shrimp Veggies Ribs 7 5 6 4 3 2 < 1 => ≡ → □ 1

Knapp 1 strömbrytare

Knapp 3 Stationsknapp

Technical line drawings of four different kitchen appliances with internal compartments and heat sinks (no text or symbols)

880 min Meat Fish Chicken Pizza Cake Peanut Fries Shrimp Veggies Ribs 7 5 6 4 3 2 < | | > ≡ ∞ ▶□ 1

Knapp 1 strømbryter

Technical line drawings of four different kitchen appliances with internal compartments and heat sinks (no text or symbols)

8:00 min Meat Fish Chicken Pizza Cake Peanut Fries Shrimp Veggies Ribs 7 5 6 4 3 2 < | | > ≡ ∞ ▶ □ 1

Painike 1 Virtapainike

Painike 3 yörityspainike

Painike 4 Equivalintapainike

Line drawings of various kitchen appliances including a rice cooker, air fryer, and a pot with lid (no text or symbols)

880 min Meat Fish Chicken Pizza Cake Peanut Fries Shrimp Veggies Ribs 7 5 6 4 3 2 < | | > ≡ ∞ ▶□ 1
