USER MANUAL CompQ 42CWQ104 KICKER

Owner's Manual | English

Variable Cross Section Elastomeric Surrounds (Increased Excursion)

Stilched Surround & Conc for Maximum Bond Strength

Mounting Hardware Covers

for a Clear, Finished Installation

Blue-Lace ^™ Spider for Improved Control & Duracity

Laser-Etched Polymer Components for Improved Bond

See pages 24–25 for wiring instructions and diagrams

FFA Optimized Motor Structures for Increased Power Handling

US Patent - www.kicker.com

KKICKER®

COMPQ SUBWOOFER OWNER'S MANUAL

Models:

CWQ10 | CWQ12 | CWQ15

Authorized KICKER Dealer:

Purchase Date:

Speaker Model Number:

Speaker Serial Number:

Note: All specifications and performance figures are subject to change. Please visit

www.kicker.com for the most current information. To get the best performance from your new KICKER Subwoofer, we recommend using genuine KICKER Accessories and Wiring. Please allow two weeks of break-in time for the subwoofer to reach optimum performance.

Sound Check: Poor bass response? Check the system phasing by reversing the positive and negative speaker connections on the subwoofer. If the bass improves, then the subwoofer was out of phase in reference to the rest of the audio system.

SPECIFICATIONS

Model CWQ10		CWQ12	CWQ15
Rated Impedance [Ω] 2 or 4 2 or 4 2 or 4
Fs	[Hz]		38	37
Sensitivity [1W, 1m] 85.7 86.2 88.8
Qis		0.437	0.546	0.472
Qms		6.916	8.876	9.672
Qos		0.46		0.582
Re	[0]		6.52	5.94
Vas [ I^3 , L] .59, 16.75		.91, .26	2.5, 70.747
Continuous Power Handling [Watts RMS] 700			650	1100
Outer Frame Dimension [in, cm]			10-11/16, 27.2	12-1/2, 31.8
Mounting Depth [in, cm]			8-3/8, 16.2	7-1/8, 18.1
Mounting Output [in, cm]			9-3/16, 23.4	11-1/16, 28.1
Frequency Response [Hz]			24 - 100	20 - 100

SEALED ENCLOSURE APPLICATIONS

These sealed enclosure designs give the smoothest response with increased energy at the lowest frequencies, 20Hz–30Hz. These designs deliver massive amounts of highly accurate bass and can be driven with punishing levels of amplifier power. The high performance suspension system can operate in a larger sealed enclosure. This maximum enclosure volume application is ideal for ultra sound quality installations. The maximum enclosure generates a very flat response curve and superbly extends the sub-bass response.

CompQ woofers perform well in any size sealed enclosure between the minimum and maximum volume recommendations. These systems will exhibit benefits of both designs: Minimum produces high impact bass, and maximum generates low bass frequency protection. Overall, the system will sound more like the recommended enclosure design it is closest to in enclosure volume. These enclosure recommendations have been calculated with the airspace inside the enclosure and include the displacement of the woofer. All sealed-enclosure airspace should be filled to 50% loose poly-fill (polyester fiberfill) sluffing. Do not make the airspace greater than the maximum enclosure volume recommendation.

Minimum Sealed

Model	Volume ^-2 (L)	Flower	Handling
CWQ10	.66 (18.7)	700 RMS
CWQ12	.88 (24.92)	850 RMS
CWQ15	1.5 (42.5)	1100 RMS

Maximum Sealed

Model	Volume ft ^3 (L)	Power Handling
CWQ10	1.25 (35.4)	700 RMS
CWQ12	2 (56.64)	850 RMS
CWQ15	6 (169.9)	1100 RMS

Panel Dimensions for Minimum Sealed Enclosures using 3/4" (1.9cm) thick MDF

Model	Box Volume [ft3, L]	Panel A [in, cm]	Panel B [in, cm]	Panel C [in, cm]
CWQ10	.66 (18.7)	12x12, 30.5x30.5	12x10.5, 30.5x26.7	10.5x10.5, 26.7x26.7
CWQ12	.88 (24.92)	13.5x13.5, 34.3x34.3	13.5x10.5, 34.3x26.7	12x10.5, 30.5x26.7
CWQ15	1.5 (42.5)	16.5x16.5, 41.9x41.9	16.5x11.5, 41.9x29.2	15x11.5, 38.1x29.2

Simple line drawing of a cube with labeled faces A, B, and C, containing a circular hole (no text or symbols beyond labels)

VENTED ENCLOSURE APPLICATIONS

These boxes are the enclosure of choice for outrageous bass, so if space is not a problem and you want to get the most from your CompQ, try one of these vented designs. CompQ subwooters will handle massive amounts of power in any of the recommended enclosures, minimum or maximum. The smaller enclosures are best for use in limited space applications. The larger recommended enclosures will yield slightly more bass at the lowest frequencies.

The vented minimum design increases bass efficiency and fits in many space-limited applications. Although it is the smallest recommended vented enclosure, the output from 30Hz–80Hz will be considerably higher than that of a sealed box. The maximum vented design has even more output in this frequency band. The maximum vented enclosure is the largest and most efficient design.

Vented Minimum CWQ10		CWQ12	CWQ15
Box Volume ft3, Li 1.25, 35.4 1.75, 49.6 3.0, 85
Port Opening [in x in, cm x cm] 2.5x11.25, 6.4x29 2.5x13.25, 6.4x34 2.5x16.25, 6.4x41
Port Length [in, cm] 19.75, 50 22.5, 57 19.5, 50
Power Handling [Watts RMS] 700 850 1100
Vented Maximum CWQ10		CWQ12	CWQ15
Box Volume ft3, Li 2.25, 63.7 3.25, 92 6.0, 170
Port Opening [in x in, cm x cm] 3x11.25, 7.6x29 3x13.25, 7.6x34 3.5x16.25, 8.9x41
Port Length [in, cm] 18, 46		14.5, 37 13.75, 35
Power Handling [Watts RMS] 700 850 1100

BOX BUILDING NOTES

Use 3/4" (1.9cm) or thicker MDF (medium density fiberboard) and seal the joints with silicone. Use the "template" inside your CompQ's shipping carton to mark the mounting hole, then cut directly on the line. See Figure 1.

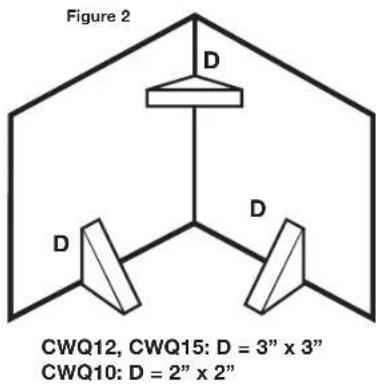

These designs need internal bracing. Add triangular bracing between each of the larger unsupported panels. See Figure 2.

Figure 2 D D D CWQ12, CWQ15: D = 3" x 3" CWQ10: D = 2" x 2"

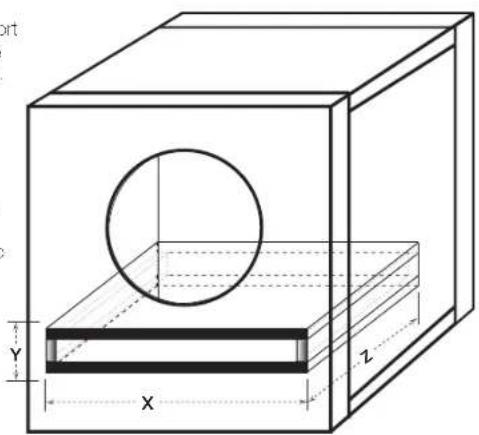

All the cubic feet (I) measurements in this manual include the displacement of the woster. For the vented enclosures, the displacement of the port must be calculated and added to the internal volume of the flial design. Use the outer dimensions of the vent and multiply "X x Y x Z", and convert to cubic feet, for example the CWQ'2 Vented Minimum design's external vent dimensions are, using 3/4" (1.9cm) MDF:

[(13.25" + 1.5" total MDF wall thickness) x (2.5" + 1.5" total MDF wall thickness) x 22.5"] x (1 ft³ / 1728 in³) = .77 ft³

Add this number to the internal volume of the enclosure. The CWQ12 is:

1.75 ft ^3 + .77 ft ^3 = 2.52 ft ^3

Due to the necessary length of these vents, you may want to fold the vent along the bottom and back walls. It will be impractical to use round vents for these designs. Do not install a vent opening against a solid surface, such as an internal brace, back-panel or trunk wall, seat or interior panel of your vehicle. The vent opening must remain unobstructed. Use the smallest dimension of the rectangular vent as the minimum amount of space between the vent opening and any solid surface to insure unrestricted airflow.

If you prefer an ultra-smooth bass response, you should loosely fill your CompQ enclosure with poly fi I stuffing. Vented designs will require covering the end of the port (located inside the box) with grill cloth, chicken wire, or expanded metal to prevent the poly-fi I from exiting the port. The use of poly-1 I will slightly decrease eff clency, but will deepen and extend the low frequency output.

For more advice on box building, refer to your Authorized Kicker Dealer, or click on the Support tab on the Kicker homepsge, www.kicker.com. Please e-mail [e-mail] or call Technical Support at [phone] for specific or unanswered questions.

WARNING: KICKER products are capable of producing sound levels that can permanently damage your hearing. Turning up a system to a level that has audible distortion is more damaging to your ears than listening to an undistorted system at the same volume level. The threshold of pain is always an indicator that the sound level is too loud and may permanently damage your hearing. Please use common sense when controlling volume,

IMPORTANT SAFETY WARNING - PROLONGED CONTINUOUS OPERATION OF AN AMPLIFIER IN A DISTORTED OR CLIPPED MANNER CAN CAUSE YOUR AUDIO SYSTEM TO OVERHEAT, POSSIBLY CATCHING FIRE AND RESULTING IN SERIOUS DAMAGE TO YOUR COMPONENTS AND/OR VEHICLE.

X Y Z

KICKER® MANUAL DEL PROPIETARIO DE ALTAVOZ SUBWOOFER COMPQ

Modelos: CWQ10 | CWQ12 | CWQ15

Simple line drawing of a symmetrical structure with two triangular supports and a central vertical element labeled 'D' (no text or symbols beyond the label)

Technical diagram of a rectangular box with a circular hole and labeled dimensions (X, Y, Z) — no text or symbols present.

KKICKER®

COMPQ SUBWOOFER-BENUTZERHANDBUCH

Modelle:

CWQ10 | CWQ12 | CWQ15

Simple line drawing of a symmetrical structure with two triangular supports and a central vertical beam labeled 'D' (no text or symbols beyond the label)

3D diagram of a rectangular box with a circular hole and labeled dimensions X, Y, Z (no text or symbols beyond labels)

KKICKER®

MANUEL D'UTILISATION DU CAISSON DE BASSES COMPQ

APPLICATIONS DU CAISSON VENTILÉ

Simple line drawing of a symmetrical structure with two identical triangular supports and a central vertical element labeled 'D' (no text or symbols beyond the label)

D = 3" x 3" pour CWQ12, CWQ15
D = 2" x 2" CWQ10

Diagram of a rectangular box with a circular hole and internal structure, labeled with X, Y, Z axes (no text or symbols beyond labels)

WIRING | CABLEADO | VERKABELUNG | BRANCHEMENT

Paralleled Wiring Cableado en paralelo Parallelschaltung Branchement en parallèle

NICKER amp + amp-

Series Wiring Cableado en series Reihenschaltung Branchement en série

KNCKER amp + amp-

Use the push terminals to wire your subwoofer in series or parallel.

CompQ subwooters are available with dual 2Ω (ohm) or dual 4Ω voice coils. Both coils must be connected to a source of amplification. The dual 2Ω woofer will generate a 100 cod if the coils are wired in parallel or a 40 loss in series. The dual 40 woofer will provide a 2Ω load wired in parallel or 3Ω load wired in series. The terminas with the white dots are for the first voice coil. The terminals with solid red and solid black markings are for the second voice coil.

coil 1+ coil 1- coil 2+ coil 2-

Pro Tip: With a KICKER IQ amplifier, a pair of KICKET OS speakers, and a few KICKER cables, you're looking at a full system upgrade that will dominate! KICKER amplifiers and accessories make it easy to upgrade with your existing or stock source unit. Ask your dealer about KICKER amortizers and speaker upgrades to complete your system!

Dual 2Ω Voice Coils in Dual Subwoofer configuration = 0.5Ω Load Dual 4Ω Voice Coils in Dual Subwoofer configuration = 1Ω Load

Dua 2Ω Voice Coils in Dual Subwoofer Configuration = 2Ω Load Dua 4Ω Voice Coils in Dual Subwoofer Configuration = 4Ω Load

WARNING: If you are using multiple subcoolers that are wired in series to one another, each subcooler must be in a separate chamber, it not the subcoolers could become damaged, resulting in loss of warranty.

Q-CLASS ACOUSTICS LIMITED WARRANTY

When purchased from an Authorized KICKER Dealer, KICKER warrants Q-Class KICKER products to be free from defects in material and workmanship for THREE (3) YEARS from date of original purchase with receipt. In all cases you must have the original receipt. Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction during the warranty period. Kicker will repair or replace (a) is discretion) the defective merchandise with equivalent merchandise at no charge. Warranty replacement may have cosmetic scratches and blemishes. Discontinued products may be replaced with more current equivalent products.

This warranty is valid only for the original purchaser and is not extended to owners of the product subsequent to the original purchaser. Any applicable implied warranties are limited in duration to a period of the excess warranty as provided herein beginning with the date of the original purchase at retail and no warranties, whether express or implied, shall apply to this product thereafter. Some states do not allow limitations on implied warranties; therefore, those exclusions may not apply to you. This warranty gives you specific legal rights; however, you may have other rights that vary from state to state.

WHAT TO DO IF YOU NEED WARRANTY OR SERVICE

Defective merchandise should be returned to your local Authorized Stillwater Designs (Kicker) Dealer for warranty service. Assistance in locating an Authorized Dealer can be found at www.kicker.com or by contacting Stillwater Designs directly. You can confirm that a dealer is authorized by asking to see a current authorized dealer window doca. If it becomes necessary for you to return defective merchandise directly to Stillwater Designs (Kicker), call the Kicker Customer Service Department at [phone] for a Return Merchandise Authorization (RMA) number. Package all defective items in the original container or in a package that will prevent shopping damage, and return to:

Stillwater Designs, 3°00 North Husband Road, Stillwater, OK 74075

The RMA number must be clearly marked on the outside of the package. Please return only defective components. The return of functioning items increases your return freight charges. Non- defective items will be returned freight-collect to you. Include a copy of the original receipt with the purchase date clearly visible, and a "proct-of-purchase" statement listing the Customers name. Dealer's name and invoice number, and product, purchased. Warranty expiration on items without proof-of-purchase will be determined from the type of sale and manufacturing date code. Freight must be prepaid; items sent: freight-collect, or COD, will be refused.

WHAT IS NOT COVERED?

This warranty is valid only if the product is used for the purpose for which it was designed. It does not cover:

Damage due to improper installation Freight Damage Subsequent damage to other components

Speakers damaged due to amplifier clipping or distortion

Any cost or expense related to the removal or reinstallation of product

Products returned without a Return Merchandise Authorization (RMA) number

Items previously repaired or modified by any unauthorized repair facility

Damage caused by exposure to moisture, excessive heat, chemical cleaners, and/or UV radiation

Damage through negligence, misuse, accident or abuse. Repeated returns for the same damage may be considered abuse

HOW LONG WILL IT TAKE?

Service performed by anyone other than KICKER Products with tampered or missing serial numbers The cost of shipping product to KICKER

SD stillwaterdesigns

Kicker strives to maintain a goal of one week for turnaround on service of all acoustics (subwoofers, midrange and coaxial drivers, tweezers, crossovers etc) returns. Delays may be incurred if lack of replacement inventory or parts is encountered. Failure to follow these steps may void your warranty. Any questions can be directed to the Kicker Customer Service Department at [phone].

P.O. Box 459 • Stillwater, Oklahoma 74078 • USA • [phone]

20141222-B-41CWQ

International Warranty

Contact your International Kicker dealer or distributor concerning specific procedures for your country's warranty policies.

Our goods come with guarantee that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods required or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
