USER MANUAL Q-Class 41L7102 KICKER

Owner's Manual | English

L7 SUBWOOFER OWNER'S MANUAL

Models:

8L7 | 10L7

12L7|15L7

Authorized KICKER Dealer:

Purchase Date:

Speaker Model Number:

Speaker Serial Number:

Note: All specifications and performance figures are subject to change. Please visit

www.kicker.com for the most current information. To get the best performance from your new

KICKER Subwoofer, we recommend using genuine KICKER Accessories and Wiring. Please allow two weeks of break-in time for the subwoofer to reach optimum performance.

Sound Check: Poor bass response? Check the system phasing by reversing the positive and negative spooker connections on the subwoofer. If the bass improves, then the subwoofer was out of phase in reference to the rest of the audio system.

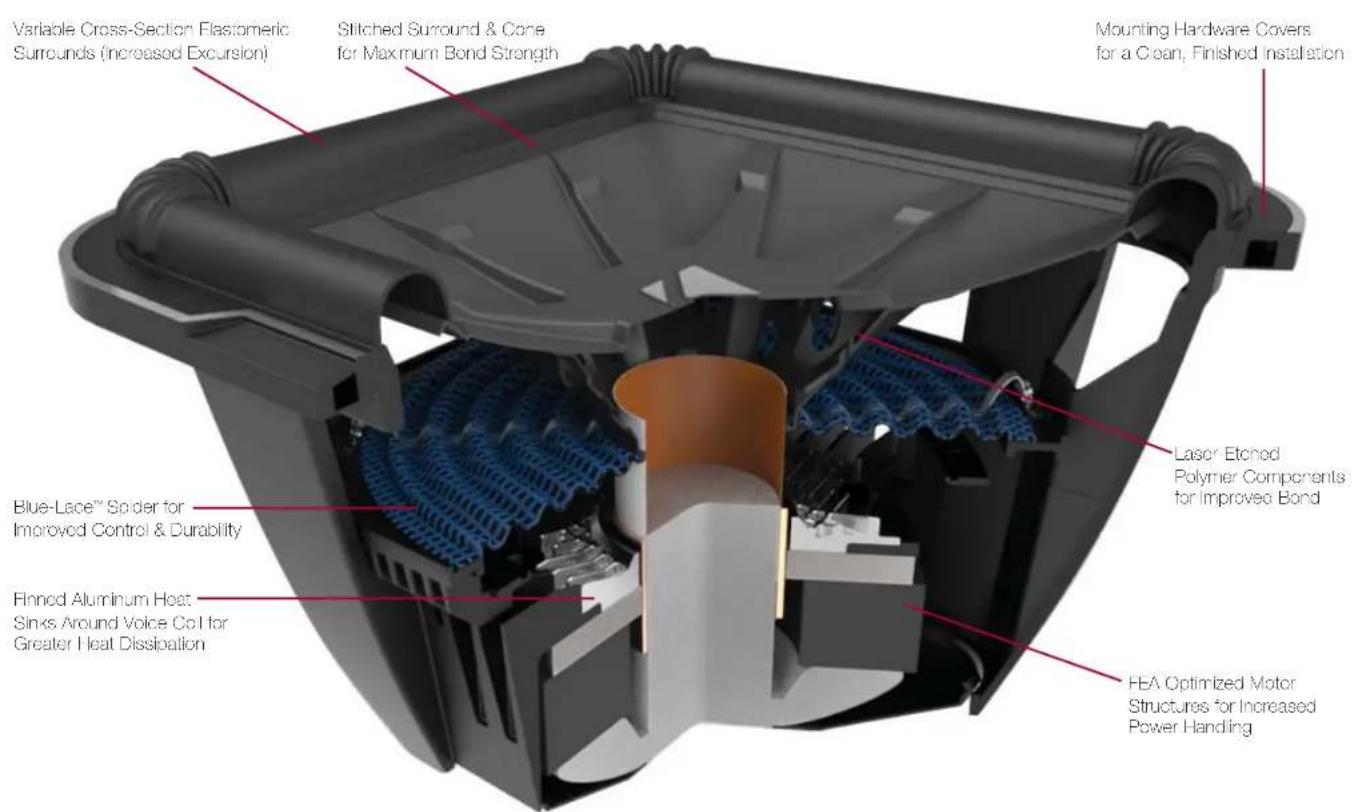

SPECIFICATIONS

Model 8L7		10L7	12L7	15L7
Rated Impedance [Ω] 2 or 4, 2 or 4, 2 or 4, 2 or 4
Fs [Hz]	47.2	37.5	34	26.3
Sensitivity [1W, 1m]	82.4	88.9	86.9	88.6
Qts	0.735	0.507	0.539	0.539
Qms	8.828	9.791	9.488	11.666
Qes	0.802	0.535	0.571	0.565
Re [Ω]	6.6	7.9	6.8	7
Vas [ft³, L]	.322, 9.127	1, 28.32	1.92, 54.274	5.263, 149.048
Continuous Power Handling [Watts RMS]	500	750	900	1200
Outer Frame Dimension [in, cm]	8-13/16, 22.4	10-11/16, 27.2	12-9/16, 32	15-5/8, 38.6
Mounting Depth [in, cm]	5-7/16, 13.8	6-7/8, 17.5	7-7/8, 20	9-3/8, 23.9
Mounting Cutout [in, cm]	7-1/4, 18.4	9-5/16, 23.7	11-1/16, 28.1	13-3/4, 34.9
Frequency Response [Hz]	28 - 100	24 - 100	20 - 100	18 - 100

US Patent - www.kicker.com

WIRING

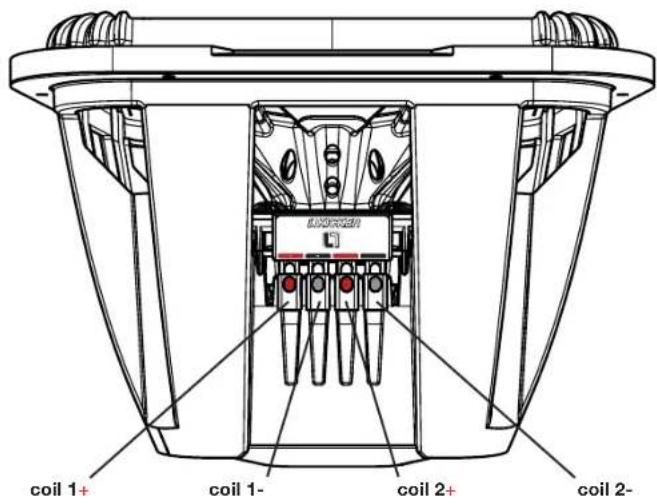

Use the push terminals to wire your subwoofer in series or parallel.

L7 subwoofoers are available with dual 2Ω (ohm) or dual 4Ω voice coil. Both coils must be connected to a source of amplification. The dual 20 woofer will generate a 1Ω load if the coils are wired in parallel or a 4Ω load in series. The dual 4Ω woofer will provide a 2Ω load wired in parallel or 8Ω load wired in series. The terminals with the white dots are for the first voice coil. The terminals with solid-red and solid-black markings are for the second voice coil.

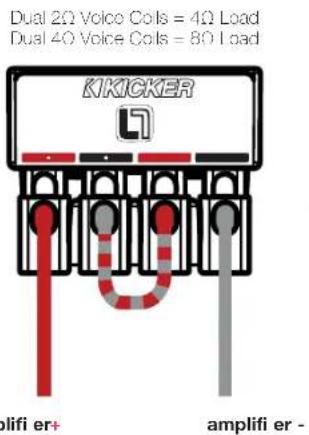

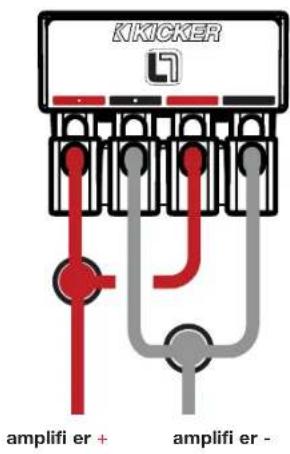

Dual 2Ω Voice Coils = 1Ω Load Dual 4Ω Voice Coils = 2Ω Load

Paralleled Wiring Series Wiring

Pro Tip: With a KICKER IQ amplifier, a pair of KICKER GS speakers, and a few KICKER cables, you're looking at a full system upgrade that will dominate! KICKER amplifiers and accessories make it easy to upgrade with your existing or stock source unit. Ask your dealer about KICKER amplifiers and speaker upgrades to complete your system!

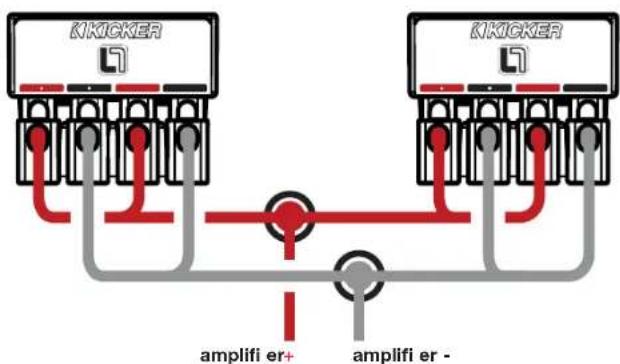

Paralleled Voice Coils, Woofers in Parallel

Dual 2Ω Voice Coils n Dual Subwoofer configuration = 0.5Ω Load
Dual 4Ω Voice Coils n Dual Subwoofer configuration = 1Ω Load

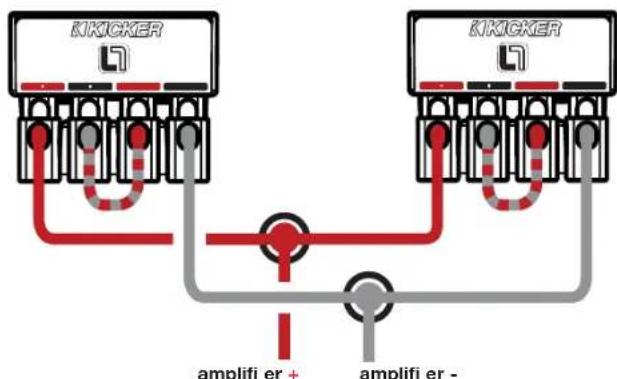

Series Voice Coils, Woofers in Parallel

Dual 2Ω Voice Coils in Dual Subwoofer Conf. guration = 2Ω Load Dual 4Ω Voice Coils in Dual Subwoofer Conf. guration = 4Ω Load

WARNING: If you are using multiple subwoofoers that are wired in series to one another, each subwoofer must be in a separate chamber. If not, the subwoofoers could become damaged, resulting in loss of warranty.

SEATED ENCLOSURE APPLICATIONS

The L7 generates more sound pressure than an equivallently-sized round speaker and excels when used in the recommended sealed boxes. These sealed enclosure designs give the smoothest response with increased energy at the lowest frequencies, 20Hz-30Hz. These designs deliver massive amounts of highly-accurate bass and can be driven with punishing levels of amplifier power. The high performance suspension system can operate in a larger sealed enclosure. This maximum enclosure volume application is ideal for ultra sound quality installations. The maximum enclosure generates a very flat response curve and superbly extends the sub-bass response.

L7 woters perform well in any size sealed enclosure between the minimum and maximum volume recommendations. These systems will exhibit benefits of both designs: Minimum produces high impact bass, and maximum generates low bass frequency protraction. Overall, the system will sound more like the recommended enclosure design it is closest to in enclosure volume. These enclosure recommendations have been calculated with the airspace inside the enclosure and include the displacement of the wocer. All sealed-enclosure airspace should be filed to 50% loose poly-t (polyester fiberfill) stuffing. Do not make the airspace greater than the maximum enclosure volume recommendation.

Minimum Sealed

Model	Volume ft3 (L)	Power Handling
8L7	.4 (11.33)	500W RMS
10L7	.8 (22.65)	750W RMS
12L7	1 (28.32)	900W RMS
15L7	1.75 (49.56)	1200W RMS

Maximum Sealed

Model	Volume ft (L)	Power Handling
8L7 .75 (21.24)	500W RMS
10L7	1.25 (35.4)	750W RMS
12L7	2 (56.64)	800W RMS
15L7	6 (169.9)	1200W RMS

Panel Dimensions for Minimum Sealed Enclosures using 3/4'' (1.8cm) thick MDF

Model	Box Volume [ft3, L]	Panel A [in, cm]	Panel B [in, cm]	Panel C [in, cm]
8L7	.4 (11.33)	11x11, 27.9x27.9	11x7.75, 27.9x19.69	9.5x7.75, 24.13x19.69
10L7	.8 (22.65)	13.5x13.5, 34.3x34.3	13.5x9.5, 34.3x24.13	12x9.5, 30.5x24.13
12L7	1 (28.32)	13.5x13.5, 34.3x34.3	13.5x12, 34.3x30.5	12x12, 30.5x30.5
15L7	1.75 (49.56)	16.5x16.5, 42x42	16.5x13.5, 42x34.3	15X13.5, 38.1X34.3

VENTED ENCLOSURE APPLICATIONS

These boxes are the enclosure of choice for courageous bass, so it space is not a problem and you want to get the most from your L7, try one of these vented designs. L7 subwooers will handle massive amounts of power in any of the recommended enclosures, minimum or maximum. The smaller enclosures are best for use in limited-space applications. The larger recommended enclosures will yield slightly more bass at the lowest frequencies.

The vented minimum design increases bass efficiency and fits in many space-imitd applications. Although it is the smallest recommended vented enclosure, the outo from 301 Iz-80 Iz will be considerably higher than that of a seaed box. The maximum vented design has even more output in this frequency band. The maximum vented enclosure is the largest and most effi cant design,

Vented Compact 8L7		10L7		12L7		15L7
Box Volume, ft3(L) + port displacement: 66 (18.69) 1.25 (35.4) 1.75 (49.6) 3.0 (85)
Port Opening Size, in x in (cm x cm)	1.5x9.5 (3.8x24)	2.5x11.25 (6.4x29)	2.5x13.25 (6.4x34)	2.5x16.25 (6.4x41)
Port Length, in (cm)	19.25 (49)	19.75 (50)	22.5 (57)	19.5 (50)
Power	Handling,	RMS		500		750
Vented SQ 8L7		10L7		12L7		15L7
Box Volume, ft3(L) + port displacement: 1 (28.32) 2.25 (63.7)
Port Opening Size, in x in (cm x cm)	2x9.5 (5.1x24)		3x11.25 (7.8x29)		3x13.25 (7.6x34)		3.5x16.25 (8.9x41)
Port Length, in (cm)	21.25 (54)	18 (46)	14.5 (37)	13.75 (35)
Power	Handling,	RMS		500		750

BOX BUILDING NOTES

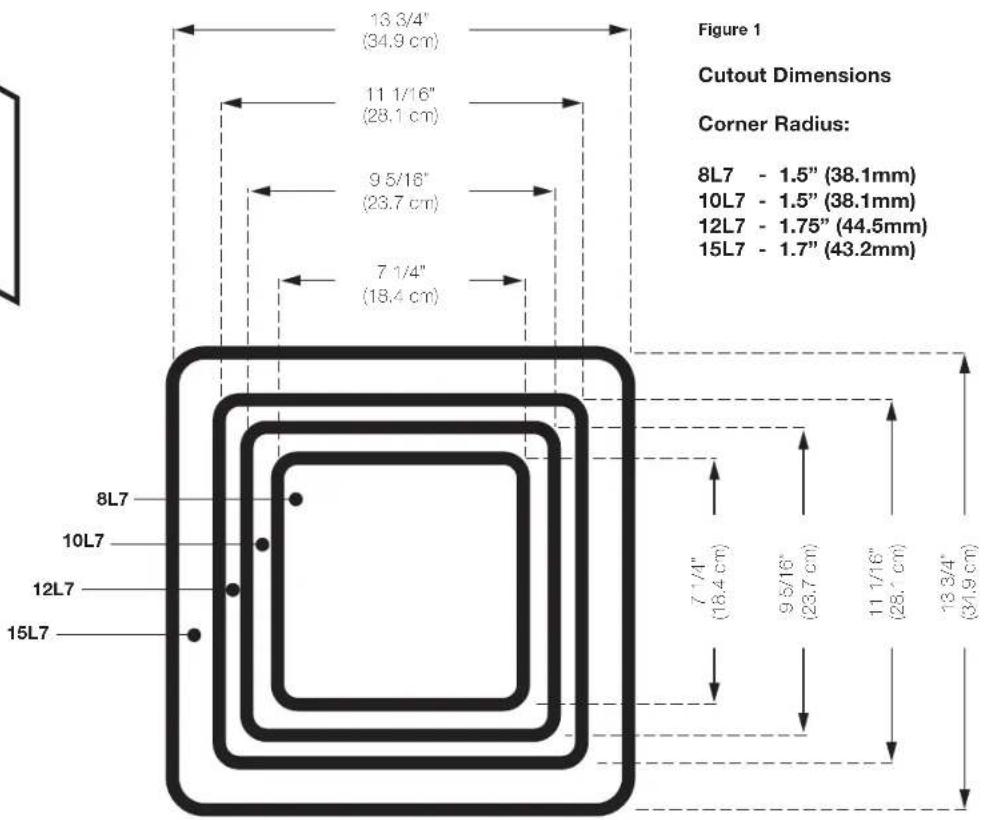

Use 3/4" (1.9cm) or thicker MDF (medium density fiberboard) and seal the joints with silicone. Use the "template" inside your L7's shipping carton to mark the mounting hole, then cut directly on the line. See Figure 1.

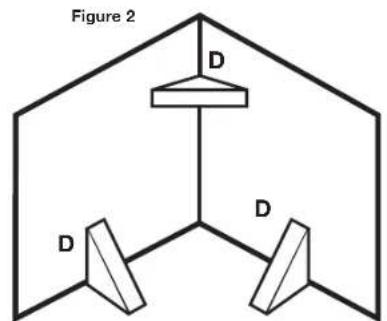

Tnees designs need internal braing. Aod trangular braing between each of the larger unsupported panels. See Figure 2.

D = 3" × 3" for 12L7, 15L7
D = 2" x 2" for 8L7, 10L7

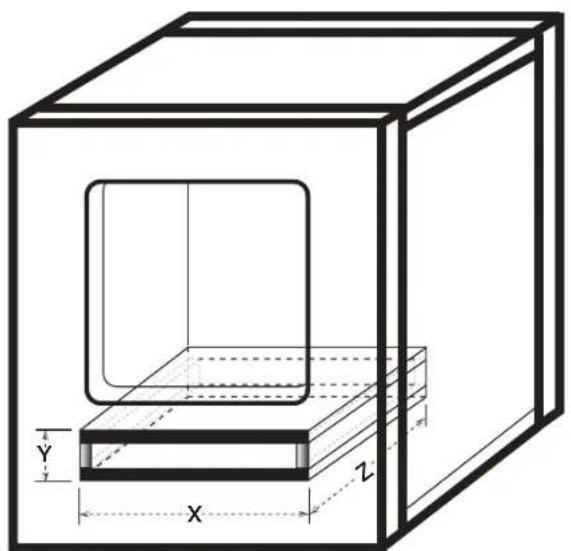

All the cubic feet (1) measurements in this manual include the displacement of the woofer. For the vented enclosures the displacement of the port must be calculated and added to the internal volume of the final design. Use the outer dimensions of the vent and multiply XxYxZ^ , and convert to cubic feet, for example the 12L7 vented Compact design's external vent dimensions are, using 3/4" (1.8cm) MDF:

[(13.25^ + 1.5^ MDF wall thickness)× (2.5^ + 1.5^ MDF wall thickness)× 22.5^ ]× (1ft^3 / 1728in^3) = .77ft^3

Add this number to the internal volume of the enclosure. The 12L7 is:

1.75 ft² + .77 ft³ = 2.52 ft³

Due to the necessary length of these vents, you may want to fold the vent along the bottom and back walls. It will be impractical to use round vents for these designs. Do not install a vent opening against a solid surface, such as an internal brace, back panel or trunk wall, seat or interior panel of your vehicle. The vent opening must remain unobstructed. Use the smallest dimension of the rectangular vent as the minimum amount of space between the vent opening and any solid surface to insure unrestricted air flow.

If you prefer an ultra-smooth bass response, you should loosely fit your L7 enclosure with poly- I stuffing. Vented designs will require covering the end of the port (located inside the box) with grill cloth. chicken wire, or expanded metal to prevent the poly fit from exiting the port. The use of poly-I will slightly decrease efficiency, but will deepen and extend the low frequency output.

For more advice on box building, refer to your Authorized Kicker Dealer, or click on the Support tab on the Kicker Homepage, www.kicker.com. Please e-mail [e-mail] or call Technical Support at [phone] for specific c or unanswered questions.

WARNING: KICKER products are capable of producing sound levels that can permanently damage your hearing! Turning up a system to a level that has audible distortion is more damaging to your ears than listening to an undistorted system at the same volume level. The threshold of pain is always an indicator that the sound level is too loud and may permanently damage your hearing. Please use common sense when controlling volume.

IMPORTANT SAFETY WARNING - PROLONGED CONTINUOUS OPERATION OF AN AMPLIFIER IN A DISTORTED OR CLIPPED MANNER CAN CAUSE YOUR AUDIO SYSTEM TO OVERHEAT, POSSIBLY CATCHING FIRE AND RESULTING IN SERIOUS DAMAGE TO YOUR COMPONENTS AND/OR VEHICLE.

KICKER

MANUAL DEL PROPIETARIO DE ALTAVOZ SUBWOOFER L7

Modelos:

8L7|10L7|12L7|15L7

Modies: 8L7 | 10L7 | 12L7 | 15L7

Ravendour KICKER agree :

Date d'achat:

Doubles boines vocales 2.0 = Charge 1.0 Doubles bobines vocales 2.0 = Charge 4.0 Doules bobines vocales 4.0 = Charge 2.0 Doubles bobines vocales 4.0 = Charge 8.0

Q-CLASS ACOUSTICS LIMITED WARRANTY

When purchased from an Authorized KICKER Dealer, KICKER warrants G-Class KICKER products to be free from defects in material and workmanship for THREE (3) YEARS from date of original purchase with receipt. In all cases you must have the original receipt. Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction during the warranty period. KICKER will repair or replace (a, his discoloration) the defective merchandise with equivalent merchandise at no charge. Warranty replacements may have cosmetic scratches and blamishes. Discontinued products may be replaced with more current equivalent products.

This warranty is valid only for the original purchaser and is not extended to owners of the product subsequent to the original purchaser. Any applicable implied warranties are limited in duration to a period of the excess warranty as provided herein beginning with the date of the original purchase at retail, and no warranty, whether express or implied, shall apply to this product thereafter. Some states do not allow limitations on implied warranties; Incorcls those exclusions may not apply to you. This warranty gives you specific legal rights; however you may have officer rights that vary from state to state.

WHAT TO DO IF YOU NEED WARRANTY OR SERVICE

detive mchdshd t y o a r or by continging Sillwater Design directly. You can confirm that a cior is auorized by asking to see a current authorized dicer window deat. If it becomes necessary for you to return defective merchandise directly to Sllwater Design (Kicker), call the Kicker Customer Service Department at [phone] for a Return Merchandise Authorization (RMA) number. Package all defective items in the original container or in a package that will prevent shipping damage, and return to:

Stillwater Design, St.00 North Husbands Road, Stillwater, OK 74075

The HRM number must be clearly marked on the outside of the package. Please return only defective components. The return of functioning items increases your return freight charges. Non-selective items will be returned freight-collect to you. Include a copy of the original receipt with the purchase date clearly visible, and a "proof-of-purchase" statement listing the Customers name, Dees' name, and invoice number, and product purchased. Warranty expiration on items without proof of purchase will be determined from the type of sale and manufacturing date code. Freight must be prepaid; items sent: freight-collect, or COD, will be refused.

WHAT IS NOT COVERED?

This warranty is valid only if the product is used for the purpose for which it was designed. It does not cover

Damage due to improper installation 1 Weight Damage. Subsequent damage to other components Speakers damage due to amplifier clipping or distortion. Return at

Any costs or expense related to the removal or installation of product Products returned without a Return Merchandise Authorization (FMA) number items, previously repaired or modified by any unauthorized repair facility

Return shipping on non-selective items

Products with tamponed or missing barcode tags

Products purchased from an UNAUTHORIZED dealer

Service performed by anyone other than KCKER Products with tampered or missing serial numbers The cost of shipping product to KCKER

Damage caused by exposure to moisture, excessive heat, chemical cleaners, and/or UV radiation Damage through negligence, misuse, accident or abuse. Repeated returns for the same damage may be considered abuse

HOW LONG WILL IT TAKE?

Stillwaterdesigns

Kicker stivns to maitain a gost of one week for turnaround on service of all acoustics subwoofoers, midange and coaxial drivers, tweeters, crosavers etc) returns. Delays may be incured if lack of replacement inventory or parts is encountered. Failure to follow these steps may void your warranty. Any questions can be directed to the Kicker Customer Service Department at [phone].

P.O.Box459 • Stillwater, Oklahoma 74078 • USA • [phone]

20141106-G41L7

International Warranty

Contact your International Kicker dealer or distributor concerning specific procedures for your country's warranty policies.

Our goods come with guaranee that cannot be excuited under the Australian Consumer Law You are entled to a repatement or return for a mairl fuit and for compensation for any other reasonably tereesble loss or damage. You are also emited to have the goods reaoed or replaced if the good fail to be of acceptable quality and the faeult does not amount to a major failure.

GARANTÍA INTERNACIONAL Version Española
