USER MANUAL Edge 50 Ultra MOTOROLA

[e-mail]

QR code containing a central logo of an open book, likely linking to a digital resource or website.

motorola edge 50 ultra

English....3

العربية 8

Français....13

српски....18

Русский 23

Українська 29

Қазақша 35

Македонски....40

Before using your phone, please read the legal, safety and regulatory information provided with your product.

Caution: screen protectors may reduce your phone's touchscreen sensitivity. Do not use screen protectors thicker than 0.5mm.

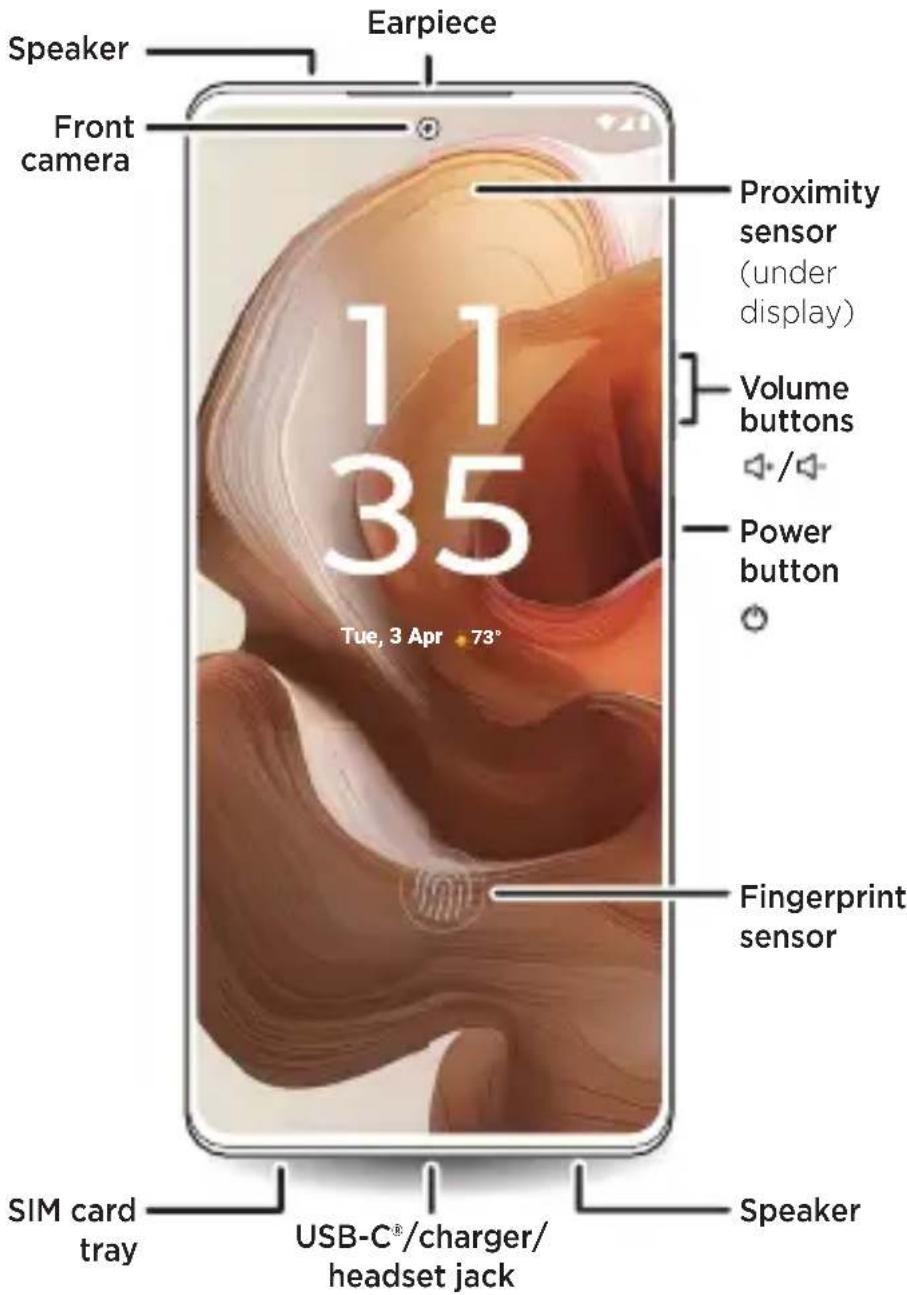

Speaker Front camera 11 35 Tue, 3 Apr •73° Earpiece Proximity sensor (under display) Volume buttons / Power button Fingerprint sensor SIM card tray USB-C®/charger/headset jack Speaker

Note: to use a headset, you'll need one with a USB-C connector. If you're using a 3.5mm headset, you'll need an adapter to connect a 3.5mm connector to USB-C. Headset and adapter may be sold separately.

Water, splash and dust resistance. Water, splash and dust resistance were tested to IP68 standards under controlled laboratory conditions. Withstands immersion in up to 1.5 metres of fresh water for up to 30 minutes. Resistance will decrease as a result of normal wear. Not designed to work while submerged underwater. Do not expose to pressurised water, or liquids other than fresh water. Do not attempt to charge a wet phone. Not waterproof. For more about your phone's water-repellent design and care, swipe up and tap Settings > Help.

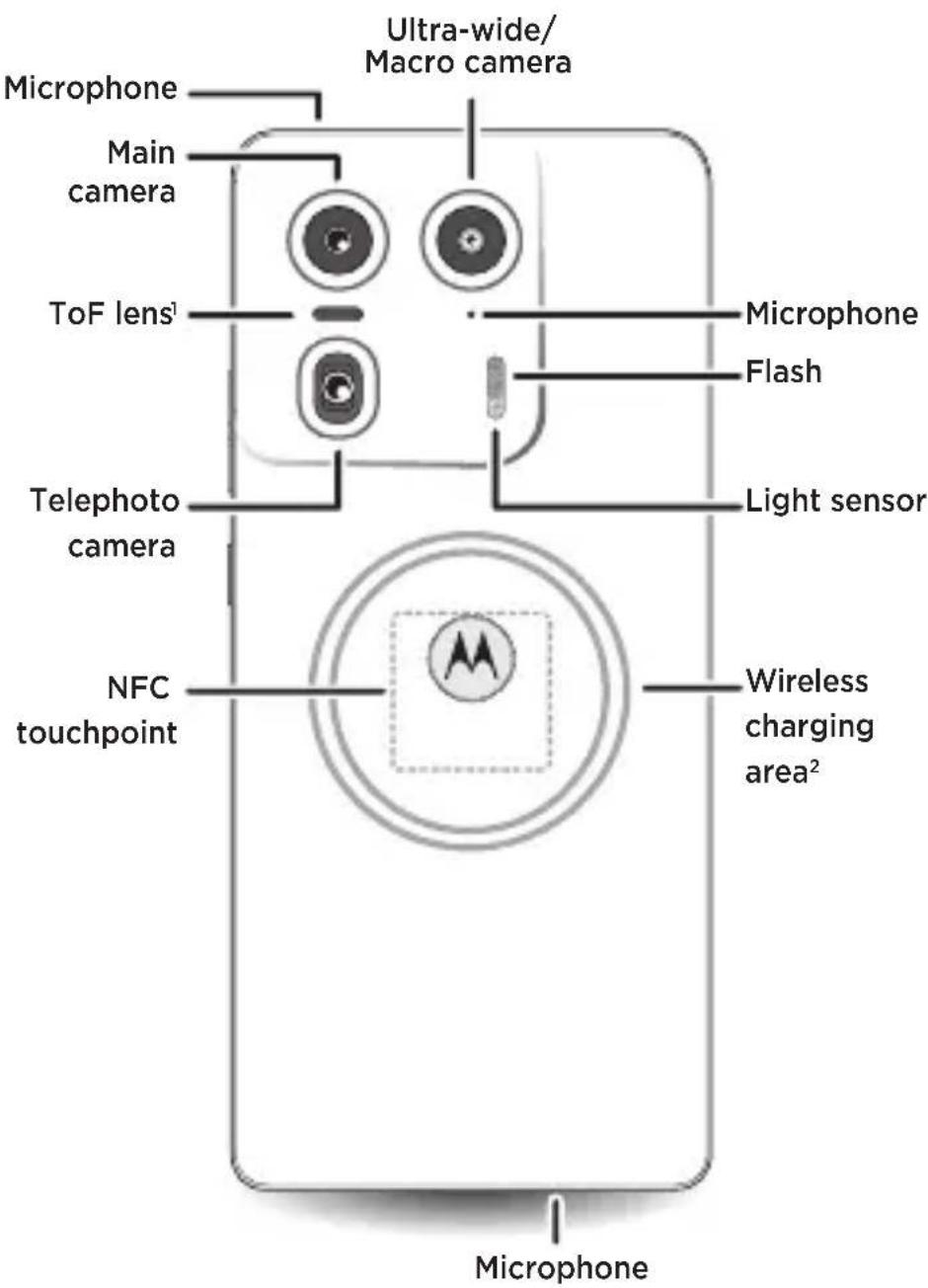

Ultra-wide/ Macro camera Microphone Main camera ToF lens¹ Microphone Flash Telephoto camera Light sensor NFC touchpoint Wireless charging area² Microphone

Time of flight lens.

^2 Wireless charging: charge your phone using a Qi-certified wireless charger (sold separately). Your phone can wirelessly charge another Qi-compatible device. Swipe up from the Home screen and tap Settings > Battery > Power sharing, then tap the switch to turn it on.

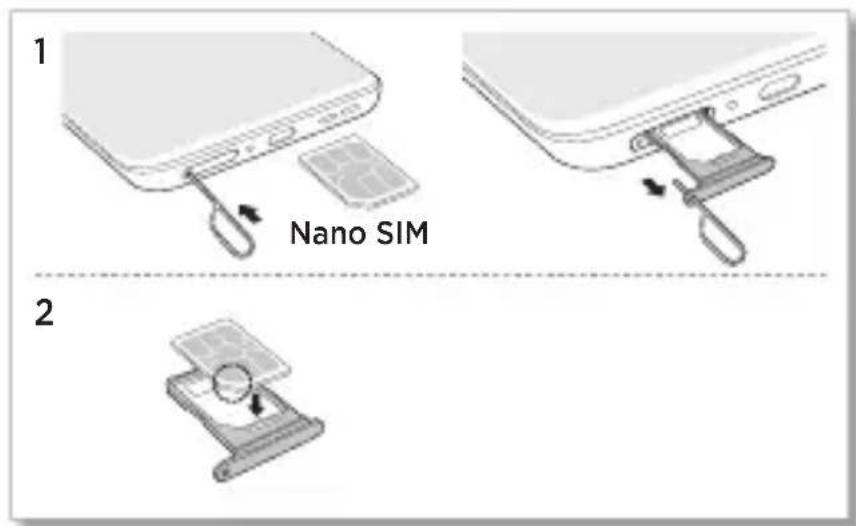

Put in the card and power on

1 Insert the SIM tool into the tray hole to pop out the tray.

Make sure that you use the correct size of SIM card and don't cut the SIM card.

2 Insert the SIM card with the gold contacts up, then gently push the tray into the slot.

1 Nano SIM 2

eSIM option: your phone may have an eSIM (embedded SIM card) in addition to the physical SIM card. Contact your service provider for details if you want to activate and use it.

Connect with 5G: 5G service plan and 5G network coverage required; available only in selected areas; device not compatible with all 5G networks. Contact your service provider for details.

3 Press and hold the power button to turn on your phone, then follow the prompts to get started.

To turn off your phone, press the power and volume up buttons ⏻+at the same time.

Scan with your Camera app for how-to videos.

QR code image with a central circular logo containing a play button symbol

Help and more

Get answers, updates and info:

• Help is here: from the Home screen, swipe up and tap Settings > Help to learn how to use your phone and get support.
• Get more: get software, user guides and more at www.motorola.com/mymotoedge.
  • Get apps: tap Play Store to browse and download apps.

Legal information. This guide provides important legal, safety and regulatory information that you should read before using your product. For the complete legal information, from the Home screen swipe up and tap Settings > , then type Legal information or visit www.motorola.com/device-legal.

Charging and battery safety. To prevent possible burning and injury, the battery in your phone should only be removed by a Motorola-approved service centre or similar skilled personnel.

If your phone becomes unresponsive, press and hold the power button until the screen goes dark and your phone restarts. For the fastest charging speeds, charge your phone using a Motorola 125W USB-C Power Delivery (PD) charger (may be sold separately) and the Motorola PD cable included in the box. Other compatible chargers and cables may be used to charge the device. However, use of such chargers/cables is not recommended and may result in slower charging speeds. Don't charge your phone in temperatures below -20°C or above 45°C. Chargers that do not comply with applicable national standards may be unsafe, with risk of death or injury, and may cause slow charging or product damage. To view applicable standards and to learn more, see the “Legal information” section of this guide or visit www.motorola.com/device-legal.

Warning about high volume usage. To prevent possible hearing damage, do not listen at high volume levels for long periods. When your headset volume reaches the high volume threshold, a warning will be shown. Tap OK to dismiss it, or wait one to five seconds, then press the volume up button to dismiss the alert and enable the volume to continue to be adjusted.

Disposal and recycling. For help recycling products and packaging responsibly, visit www.motorola.com/recycling.

Class 1 laser. This device is classified as a Class 1 Laser product, which is safe in normal use per IEC60825-1:2007 and IEC60825-1:2014.

This device complies with 21 CFR 1040.10 and 1040.11, except for deviations pursuant to Laser Notice 50, dated 24 June 2007. Do not attempt to modify or disassemble.

Extreme heat or cold. Don't use your phone in temperatures below -20°C or above 45°C. Don't store/transport your phone in temperatures below -20°C or above 60°C.

Legal disclaimers. Features, services and applications are network dependent and may not be available in all areas; additional terms/

CLASS 1 LASER PRODUCT

charges may apply. Product specifications and other information contained in this guide are believed to be accurate at the time of printing or release. Motorola reserves the right to correct or change any information without notice.

Arbitration. Your purchase is governed by a binding arbitration clause. For more information and how to opt out, see the legal guide that came with your phone.

SAR information (on e-label). To view specific absorption rate (SAR) values for this phone, from the Home screen swipe up and tap Settings > 🔒, then type Regulatory labels, from your phone's dial pad, type *#07# or visit www.motorola.com/sar.

Supported frequencies and power (Model XT2401-1). This phone is capable of operation on the following frequencies, subject to location and network availability.

Operating mode	Frequency range MHz/Band	Maximum nominal transmit power dBm
Bluetooth 2400 - 2483.5 20 dBm EIRP
Wi-Fi 2400 - 2483.5 20 dBm EIRP
Wi-Fi 5150 - 5250 23 dBm EIRP
Wi-Fi 5250 - 5350/5470 - 5725 20 dBm E	RP
Wi-Fi 5725 - 5850 14 dBm EIRP
Wi-Fi 5945 - 6425 23 dBm EIRP
GNSS 1559 - 1610/1164 - 1215 N/A
NFC 13.56 -18.47 dBuA/m @ 10m
UWB	6489.5 and 7987.2	0 dBm
WPT	100 - 205 kHz	-2.08 dBuA/m @ 10m
GSM	2/3/5/8	33/30
UMTS	1/2/4/5/8	24
LTE	1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28/32/38/39/40/41*/42/43/66	23/(26*)
5G	n1/2/5/7/8/20/26/28/38/40/41/66/71/75/77*/78*	23/(26*)

Copyright and trademarks. MOTOROLA, the stylised M logo, MOTO and the MOTO family of marks are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. Google, Android, Google Play and other related marks and logos are trademarks of Google LLC. USB Type-C® and USB-C® are registered trademarks of USB Implementers Forum. All other product or service names are the property of their respective owners.

© 2024 Motorola Mobility LLC. All rights reserved.

Product ID: motorola edge 50 ultra (Model XT2401-1)

Manual Number: SSC8E30260-A
