Product Type	Managed PoE Network Switch, 24 Ports + 4 SFP+
Dimensions (W x D x H)	440 x 250 x 44 mm (19" 1U rack mount)
Weight	Approximately 3.2 kg
Power Supply	AC Input 100-240 V, 50-60 Hz, IEC connector
Power Consumption	Max. 250 W (depending on PoE load)
Copper Ports	24 x RJ45 10/100/1000 Mbps with PoE+ (IEEE 802.3af/at)
Fiber Ports	4 x SFP+ 1G/10G (ports 25-28)
PoE	Total PoE Budget up to 240 W
Cable Detection	Auto-MDI/MDI-X on all RJ45 ports
LED Indicators	PWR, SYS, Link/ACT/Speed, PoE, SFP+
Operating Temperature	0 °C to 50 °C
Operating Humidity	5 % to 95 % (non-condensing)
Mounting	Desktop or 19" rack (brackets included)
Grounding	Chassis screw for grounding connection
Compliance	CE, WEEE
Maintenance and Cleaning	Disconnect before cleaning; use a dry cloth
Safety	Place on a flat surface, minimum ventilation 25 mm
Warranty	Consult the manufacturer's website
Brand	Intellinet Network Solutions
Model	561761

Frequently Asked Questions - 561761 Intellinet

What is the difference between the copper ports (1-24) and the SFP+ ports (25-28)?

The copper ports (1-24) are RJ45 10/100/1000 Mbps ports with PoE+ support to power devices such as IP cameras or access points. The SFP+ ports (25-28) are slots for optical or copper modules, supporting speeds of 1 or 10 Gbps, ideal for uplinks.

How can I tell if a connection is established on a port?

For ports 1-24, the Link/ACT/Speed LED is solid (orange for 10/100M, green for 1000M) when a connection is active and blinks during data transfer. For ports 25-28, the corresponding LED is orange for 1G and green for 10G.

What is the maximum total PoE power?

The total PoE budget of the switch is approximately 240 Watts, distributed across the 24 PoE+ ports (up to 30 W per port according to IEEE 802.3at).

How do I rack mount the device?

Use the supplied brackets and screws. Disconnect all cables, attach one bracket to each side of the switch with the screws, then screw the brackets to the rack rails. Reconnect the cables.

What should I do if the PWR LED does not light up?

Check that the power cord is properly connected to the switch and to a working power outlet. If the problem persists, try another outlet or contact technical support.

Can I use crossover or straight-through cables?

Yes, all RJ45 ports support Auto-MDI/MDI-X, so you can use either straight-through or crossover cables (UTP/STP Cat5e or higher).

How do I reset the switch to factory defaults?

The manual does not mention a reset button. Generally, press and hold the Reset button (located on the front or back) for 10 seconds with a pointed object. Factory settings will be restored.

What type of SFP+ cable should I use?

The SFP+ ports accept optical modules (SFP+ 1G/10G) or direct attach copper cables (DAC). The distance depends on the module: multimode for short distances, single-mode for long distances.

Do I need to ground the switch?

It is recommended to connect the chassis ground screw to a direct ground (e.g., the rack frame) for electrical protection and interference reduction.

How do I contact Intellinet technical support?

Visit intellinetnetwork.com for contact details and resources. Product registration can be done at register.intellinet-network.com/r/561761.

USER MANUAL 561761 Intellinet

24-Port Gigabit Ethernet PoE+ Switch with Four 10G SFP+ Ports Instructions

Model 561761(IPS-28G04-10G-370)W

Important: Read before use. • Importante: Leer antes de usar.

Exterior view of a Siemens 24 Port Digital/Internet Provider network interface with Ethernet ports and a circular overlay (no readable text or symbols)

INTELLINET®

NETWORK SOLUTIONS

For additional benefits:

Scan to register your product warranty

or go to: register.intellinet-network.com/r/561761

This guide presents the basic steps to set up and operate this device.

For specifications, visit intellinetnetwork.com. Register your product at register.intellinet-network.com/r/561761 or scan the QR code on the cover.

Placement

Prior to use, it is recommended that the switch be placed/positioned:

• on a level surface that can support the weight of the switch (and any other items that need to be considered);
• with a minimum of 25 mm (approx. 1") of clearance on the top and sides for adequate ventilation;
• away from sources of electrical noise: radios, transmitters, broadband amplifiers, etc.;
• where it cannot be affected by excessive moisture.

The switch includes brackets and screws for optional rack mounting.

1 Disconnect any cables from the switch.
2 Position a bracket over the mounting holes on one side of the switch and secure it in place with screws.
3 Repeat Step 2 on the other side of the switch.
4 Position the switch in the rack and screw the brackets to the rack.
5 Reconnect any cables.

Illustration of a computer monitor with two ports and a stack of buttons, emitting sound waves (no text or symbols)

Technical line drawing of a mechanical or electronic component with no visible text or symbols

Chassis Ground Column

Located on the side of the power supply connector, a grounding terminal connector is used to provide proper grounding for your Intellinet Network Solutions switch. If you use the chassis grounding screw, it should be wired to an object that provides earth ground. In rackmount installations,

grounding is typically provided by the metal frame of the mounting rack.

Connections

• All ports on the switch support Auto-MDI/MDI-X functionality, so you can use straight or crossover UTP/STP cables to connect the RJ45 ports to PCs, routers, hubs, other switches, etc. Cat5/5e/6 UTP/STP cables provide optimal performance; if a status LED doesn't indicate a link or activity, check the corresponding device for proper setup and operation.
• Use the included power cable to connect the receptacle on the back of the switch to a power outlet, and confirm that the PWR LED lights.
• The LED indicators make it easier to monitor the switch and its connections. NOTE: All RJ45 ports provide power to a connected device, and all connected devices should comply with IEEE 802.3af/at.

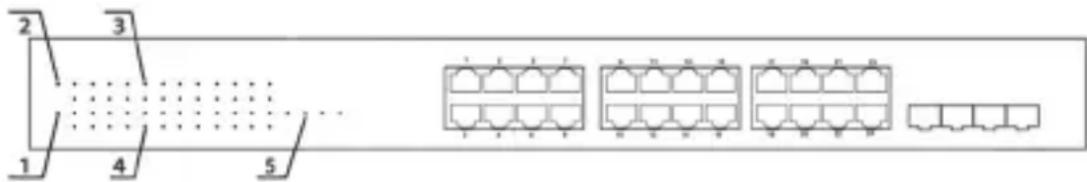

No LED Color Status Description
1 PWR Green			On Unit is receiving power.
			Off Check connection.
2 SYS Green			Blinking System is normal.
			Off System not started.
3	Link / ACT / Speed 1 – 24	10/100M: Orange; 1000M: Green	On Valid port connection.
			Blinking Data transmitted/received.
			Off No link established.
4	PoE 1 – 24	Yellow	On	The connected device is receiving power.
			Blinking	Abnormal power supply at the port.
			Off No PD device is linked.
5	25S – 28S	1G: Orange; 10G: Green	On	Valid port connection.
			Blinking Data transmitted/received.
			Off No link established.

Diagram of a device with two panels and a central screen, showing sound waves (no text or symbols)

Technical line drawing of a mechanical or electronic component with no visible text or symbols

Diagram of a device with two boxes and a lid, showing internal components and sound waves (no text or symbols)

Technical line drawing of a mechanical or electronic component with no visible text or symbols

Diagram of a device with two panels and a central screen, showing sound waves (no text or symbols)

Technical line drawing of a mechanical or electronic device with no visible text, numbers, or symbols

Diagram of a device with two rectangular panels and a base, emitting sound waves (no text or symbols)

Technical line drawing of a mechanical or electronic component with no visible text or symbols

Diagram of a device with two rectangular units and a lid, showing internal components and a dotted line indicating motion (no text or symbols)

Technical line drawing of a mechanical or electronic component with no visible text or symbols

(Applicable In The European Union And Other European Countries With Separate Collection Systems)

ENGLISH: This symbol on the product or its

packaging means that this product must not be treated as unsorted household waste. In accordance with EU Directive 2012/19/EU on

Waste Electrical and Electronic Equipment (WEEE), this electrical product must be disposed of in accordance with the user's local regulations for electrical or electronic waste. Please dispose of this product by returning it to your local point of sale or recycling pickup point in your municipality.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instruction manual may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense. Any changes or modifications made to this equipment without the approval of the manufacturer could result in the product not meeting the Class A limits, in which case the FCC could void the user's authority to operate the equipment.

CE

ENGLISH : This device complies with the requirements of CE 2014/30/EU and / or 2014/35/EU. The Declaration of Conformity for is available at:

support.intellinet-network.com/barcode/561761
