Product Type	Managed PoE+ Network Switch
Brand	Intellinet
Model	562041
Number of RJ45 Ports	48 ports (10/100/1000 Mbps)
Number of SFP Ports	6 SFP ports (gigabit)
PoE+ Power	Up to 30 W per port on ports 1-48
Supported PoE Standards	IEEE 802.3at/af
Management	Web interface, default IP address 192.168.2.1
Auto-MDI/MDI-X	Yes, on all RJ45 ports
Ventilation	Minimum 25 mm clearance around the device
Mounting	On flat surface or in rack (brackets included)
Dimensions (approx.)	440 x 200 x 44 mm (W x D x H)
Weight (approx.)	4.5 kg
Power Supply	Mains, power cord included
Power Consumption	Approximately 250 W (depending on PoE load)
Operating Temperature	0 °C to 40 °C
Operating Humidity	10% to 90% (non-condensing)
Indicator LEDs	Power (PWR), System (SYS), Link/Activity (Link), PoE
Grounding	Ground connector on the rear panel
Cleaning	Use a dry, soft cloth; do not use chemical cleaners
Repairability	Spare parts available from the manufacturer; professional repair recommended

Frequently Asked Questions - 562041 Intellinet

What is the default IP address to access the management interface?

The default IP address is 192.168.2.1. Access it via your browser by entering http://192.168.2.1.

What are the default username and password?

The username is admin. The password is the serial number on the sticker on the bottom of the switch.

How to reset the switch to factory settings?

The manual does not describe a reset button. Use the web interface to restore factory defaults if available, or contact technical support.

What types of cables are recommended for optimal performance?

Use Cat5e, Cat6, Cat6a or Cat8.x UTP or STP cables. Both crossover and straight-through cables are supported thanks to Auto-MDI/MDI-X.

Can I use this switch to power IP cameras or WiFi access points?

Yes, ports 1 to 48 provide up to 30 W per port with PoE+ (IEEE 802.3at/af), compatible with most IP cameras, access points, and other PoE devices.

How to mount the switch in a rack?

Use the provided brackets and screws. Disconnect all cables, attach a bracket to each side of the switch, then screw the brackets into the rack. Reconnect cables after installation.

What does each LED on the front panel mean?

PWR LED (green): on = power present. SYS LED (orange): blinking = system running. Link LED (green): on = link established, blinking = activity. PoE LED (orange): on = device powered.

Why is the LED of a port not lighting up?

Check that the cable is properly connected, the remote device is powered on, and the cable is not faulty. Try a different port or cable.

Does the switch support SFP cables?

Yes, ports 49 to 54 are SFP ports for additional fiber or copper modules. They indicate status with a green LED (on = link, blinking = activity).

How to ground the switch?

Use the ground connector on the rear panel, next to the power input. Connect it to an object providing a direct earth connection (e.g., a ground outlet).

USER MANUAL 562041 Intellinet

54-Port L3 Fully Managed PoE+ Switch with 48 Gigabit Ethernet Ports and 6 SFP+ Uplinks Instructions Model 562041 (IPS-54M06-10G-850W)

Important: Read before use. • Importante: Leer antes de usar.

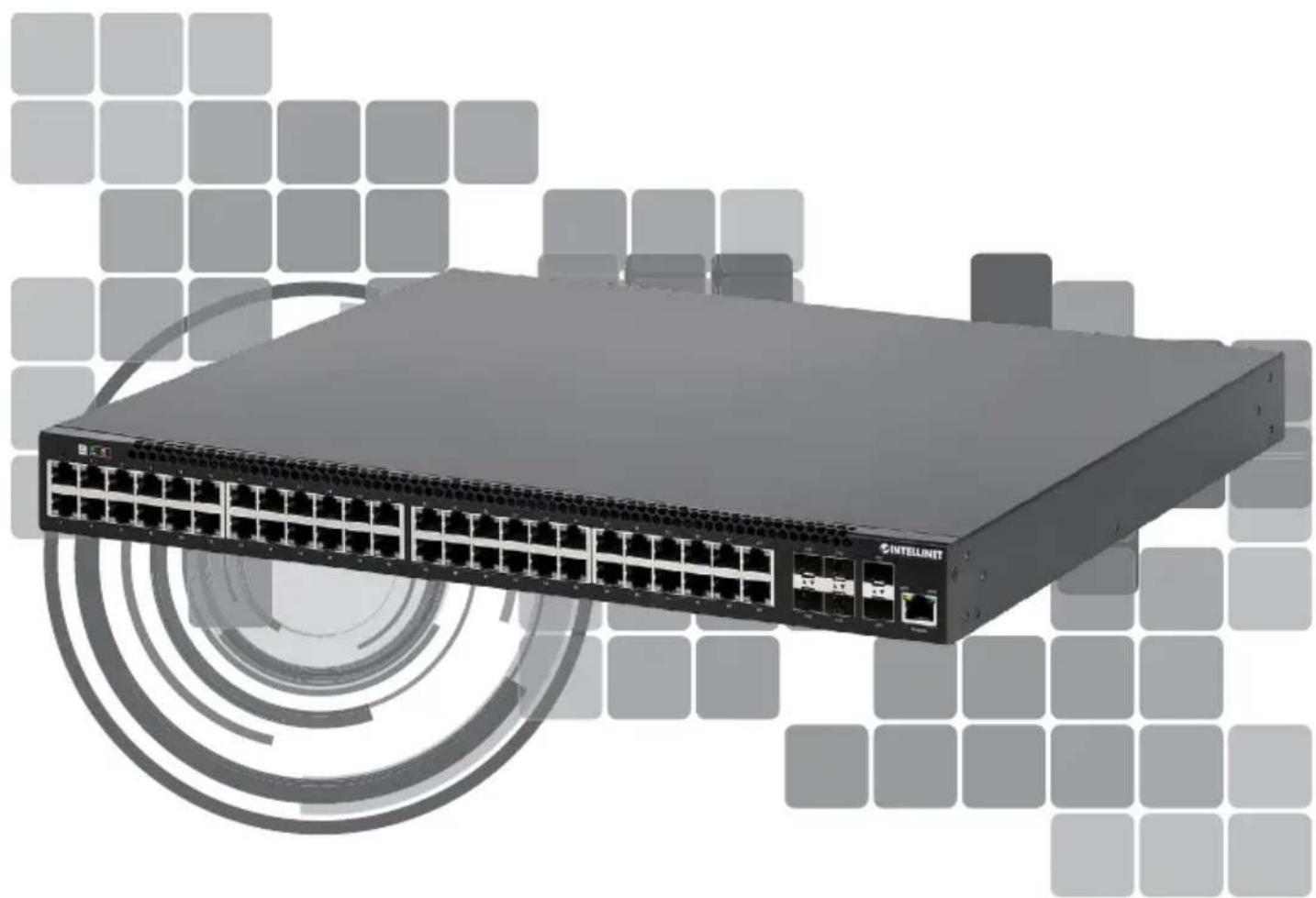

Exterior view of a network switch device (INTELLANT) with multiple Ethernet ports and Ethernet connections, shown against a geometric background with circular patterns (no text or symbols on the device itself)

INTELLINET®

NETWORK SOLUTIONS

For additional benefits:

Scan to register your product warranty

or go to: register.intellinet-network.com/r/562041

This guide presents the basic steps to set up and operate this device.

For the user manual and specifications, visit intellinet-network.com. Register your product at register.intellinet-network.com/r/562041 or scan the QR code on the cover.

Placement

Prior to use, it is recommended that the switch be placed/positioned:

- on a level surface that can support the weight of the switch (and any other items that need to be considered);

- with a minimum of 25 mm (approx. 1") of clearance on the top and sides for adequate ventilation;

- away from sources of electrical noise: radios, transmitters, broadband amplifiers, etc.;

- where it cannot be affected by excessive moisture;

- within 100 m (approx. 328') of network devices (RJ45) it's to be connected to.

- Attach the rubber feet to the bottom of each corner of the switch to increase stability.

Simple 3D diagram of a rectangular block with upward arrows indicating force or movement (no text or symbols)

The switch includes brackets and screws for optional rack mounting.

1 Disconnect any cables from the switch.

2 Position a bracket over the mounting holes on one side of the switch and secure it in place with screws.

3 Repeat Step 2 on the other side of the switch.

4 Position the switch in the rack and screw the brackets to the rack.

5 Reconnect any cables.

Technical line drawing of a mechanical assembly with two views (top and side), no text or symbols present.

Front Panel

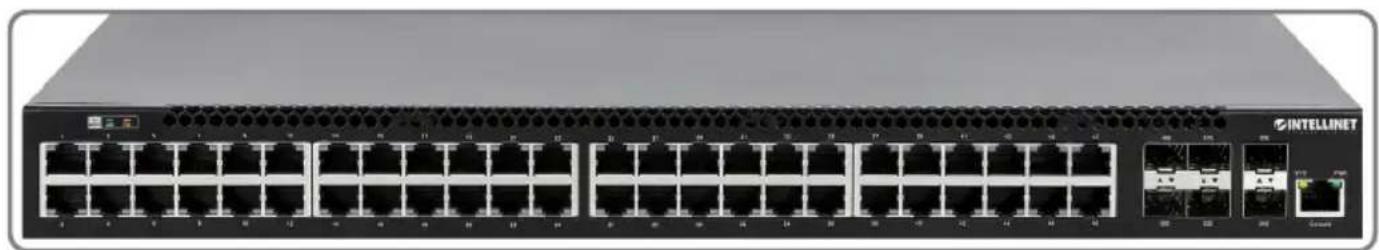

Front view of a network switch device with multiple Ethernet ports and indicator lights (no visible text or labels)

- All ports on the switch support Auto-MDI/MDI-X functionality, so you can use straight or crossover UTP/STP cables to connect the RJ45 ports to PCs, routers, hubs, other switches, etc.

- Cat5e/6/6a/8.x UTP/STP cables provide optimal performance; if a status LED doesn't

indicate a link or activity, check the corresponding device for proper setup and operation.

- Ports 1 – 48 can provide power to a connected powered device (PoE+ output up to 30 watts on ports); all powered devices should comply with IEEE 802.3at/af.

LED Color Status Operation
PWR Green		On The Switch is connected to a power source
		Off The Switch is not connected to a power source
SYS Orange		Flashing System is running.
		Off System is abnormal or no power
1-48 Link	Green	On Port is connected
		Flashing Data is transmitted/received
		Off No link established.
1-48 PoE	Orange	On The connected device (PD) is receiving power.
		Off The port is not powered or no PD is found
49-54 (SFP)	Green	On	Valid port connection.
		Flashing Data transmitted/received.
		Off	No link established.

Rear Panel

Chassis Ground Column

Located on the side of the power supply connector, a grounding terminal connector is used to provide proper grounding for your switch. It should be wired to an object that provides earth ground.

Power

Use the included power cable to connect the receptacle on the back of the switch to a power outlet. Then, turn the On/Off switch to On. WARNING: Avoid turning on the power switch before connecting the power cable, as it may cause a power surge that could damage the Switch.

Basic Web-Based Browser Management

1 Open your Web browser.
2 Enter http:// and the IP address of the switch in the Address field. The default management IP address is 192.168.2.1.
3 Press Enter to display the login screen. In the Username field, enter admin; in the Password field, enter the serial number on the bottom of the switch. Click OK.

Simple 3D diagram of a rectangular block with upward arrows indicating force or movement (no text or symbols)

Technical line drawing of a mechanical assembly with two views (top and side), no text or symbols present.

Anschlüsse

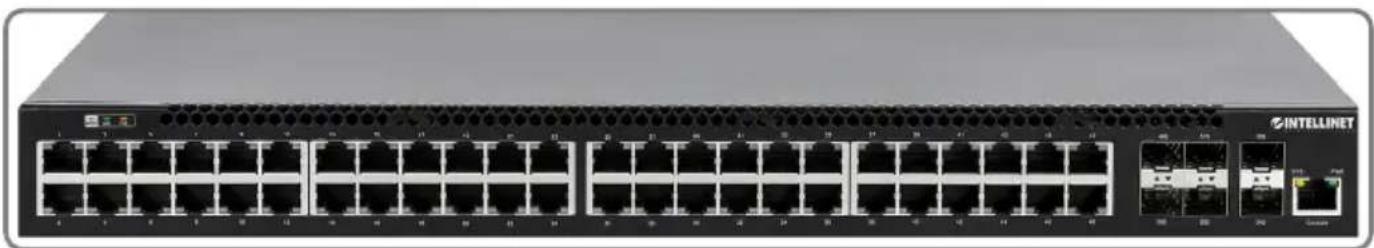

Front view of a network switch device with multiple Ethernet ports and indicator lights (no readable text or symbols)

Simple 3D diagram of a rectangular block with upward arrows indicating force or movement (no text or symbols)

Technical line drawing of a mechanical assembly with two views (top and side), no text or symbols present.

Conexiones

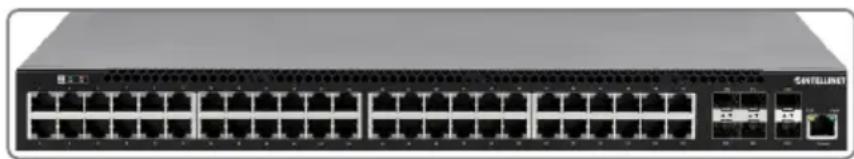

Front view of a network switch device with multiple Ethernet ports and indicator lights (no visible text or labels)

Simple 3D diagram of a rectangular block with four circular openings and upward arrows indicating force or movement (no text or symbols)

Technical line drawing of a mechanical assembly with two views (top and side), no text or symbols present.

Connexions

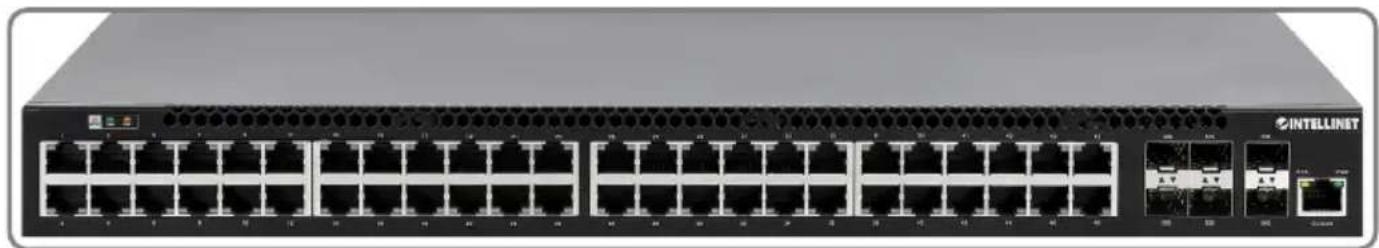

Front view of a network switch device with multiple Ethernet ports and indicator lights (no readable text or symbols)

Simple 3D diagram of a rectangular block with three upward arrows indicating force or displacement (no text or symbols)

Technical line drawing of a mechanical assembly with two views (top and side), no text or symbols present.

Podłączenie

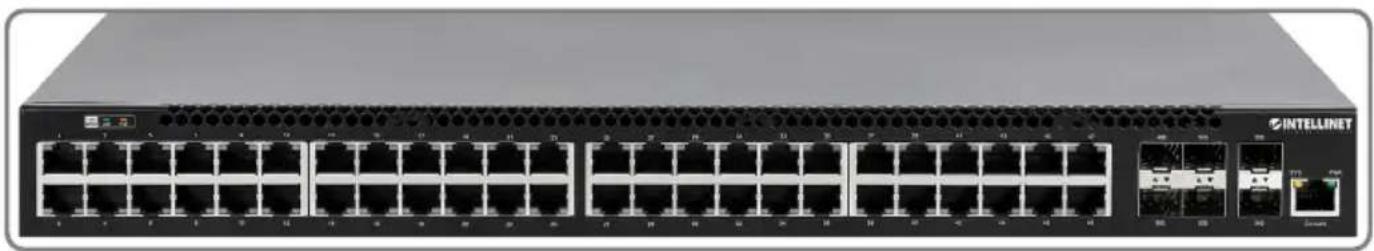

Front view of a network switch device with multiple Ethernet ports and I/O ports (no visible text or labels)

Simple 3D diagram of a rectangular block with upward arrows indicating force or movement (no text or symbols)

Technical line drawing of a rack-mounted device with two views (top and side), no text or symbols present.

Connessioni

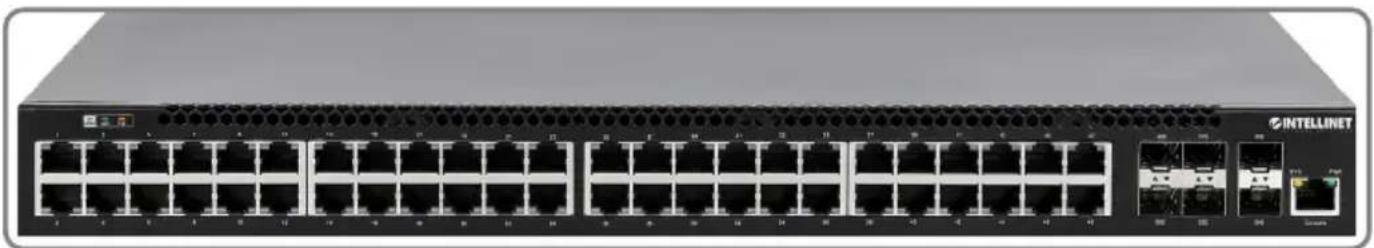

Front view of a network switch device with multiple Ethernet ports and an Intel InNet logo (no readable text or symbols beyond branding)

(Applicable In The European Union And Other European Countries With Separate Collection Systems)

ENGLISH: This symbol on the product or its packaging

means that this product must not be treated as unsorted household waste. In accordance with EU Directive 2012/19/EU on Waste Electrical and Electronic Equipment

(WEEE), this electrical product must be disposed of in accordance with the user's local regulations for electrical or electronic waste. Please dispose of this product by returning it to your local point of sale or recycling pickup point in your municipality.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instruction manual may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense. Any changes or modifications made to this equipment without the approval of the manufacturer could result in the product not meeting the Class A limits, in which case the FCC could void the user's authority to operate the equipment.

CE/UKCA

ENGLISH : This device complies with the requirements of CE 2014/30/EU (UKCA Electromagnetic Compatibility Regulations 2016) and / or 2014/35/EU (UKCA Electrical Equipment [Safety] Regulations 2016). The Declaration of Conformity for is available at:

support.intellinet-network.com/barcode/562041
