Product Type	24-Port Gigabit Ethernet PoE+ Switch with 2 SFP Ports
Model Number	561907 (IPS-24G02-370WB)
Ports	24 x Gigabit Ethernet PoE+ ports (ports 1-24), 2 x SFP ports (ports 25-26)
PoE Budget	370W total, up to 30W per port
Backplane Speed	52 Gbps
Switching Capacity	52 Gbps
Dimensions (approx.)	440 x 200 x 44 mm (19-inch rackmount width)
Weight (approx.)	2.5 kg
Power Supply	AC 100-240V, 50/60Hz, internal
Power Consumption	Maximum 370W (PoE budget + device)
LED Indicators	PWR, LNK/ACT (per port), PoE (per port), PoE Max
Slide Switch Modes	Default, VLAN (port isolation), Extend (10 Mbps up to 250m)
Green Ethernet Technology	Power saving based on link status and cable length
Mounting	Desktop or 19-inch rackmount (brackets included)
Cooling	Active fan(s) (not specified but typical)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Standards	IEEE 802.3af/at (PoE+), IEEE 802.3ab (Gigabit), IEEE 802.3z (SFP)
Warranty	Lifetime (registration required)
Safety Certifications	FCC Class A, CE, UKCA
Accessories Included	Power cord, mounting brackets, screws, rubber feet

Frequently Asked Questions - 561907 Intellinet

How many devices can I power with the PoE switch?

The switch has a total PoE budget of 370W and each port can provide up to 30W. The number of powered devices depends on their power consumption. For example, you could power up to 12 devices at 30W each, or more if they draw less power.

What is the difference between Default, VLAN, and Extend modes?

In Default mode, all ports communicate freely. In VLAN mode, ports 1-24 are isolated from each other but can communicate with ports 25-26 (uplink). In Extend mode, PoE ports operate at 10 Mbps and can reach up to 250 meters (820 ft) for surveillance or other extended distances.

How do I mount the switch in a rack?

Attach the included mounting brackets to each side of the switch using the provided screws. Then secure the brackets to the rack rails using rack screws (not included). Ensure proper ventilation with at least 1 inch clearance.

What type of cable should I use?

For optimal performance, use Cat5e, Cat6, Cat6a, or Cat8 UTP/STP cables. For PoE, ensure the cable is rated for power delivery. The switch supports automatic MDI/MDIX, so straight-through or crossover cables work.

Why is the PoE Max LED orange?

The PoE Max LED turns orange when the total power output reaches 296W, indicating that the PoE budget is nearing its maximum of 370W. You may need to disconnect some powered devices to avoid overload.

Can I use SFP ports for PoE?

No, the two SFP ports (25 and 26) are for fiber or copper SFP modules only and do not provide PoE. They are used for uplink connections.

How do I register the product for warranty?

Scan the QR code on the cover or go to register.intellinet-network.com/r/561907. Follow the instructions to register your product and activate the lifetime warranty.

What should I do if a port LED is not lit?

Ensure the connected device is powered on and the cable is securely connected. Check if the cable is within 100 meters and is not damaged. Try a different port or cable.

Is the switch plug-and-play?

Yes, no configuration is required. Just connect power and network cables, and the switch automatically negotiates speed and duplex settings.

How to clean and maintain the switch?

Disconnect power before cleaning. Use a dry, soft cloth to wipe the exterior. Do not use liquid cleaners or spray. Ensure vents are free of dust.

USER MANUAL 561907 Intellinet

24-Port Gigabit Ethernet PoE+ Switch with 2 SFP Ports

Instructions

Model 561907 (IPS-24G02-370WB)

Important: Read before use. • Importante: Leer antes de usar.

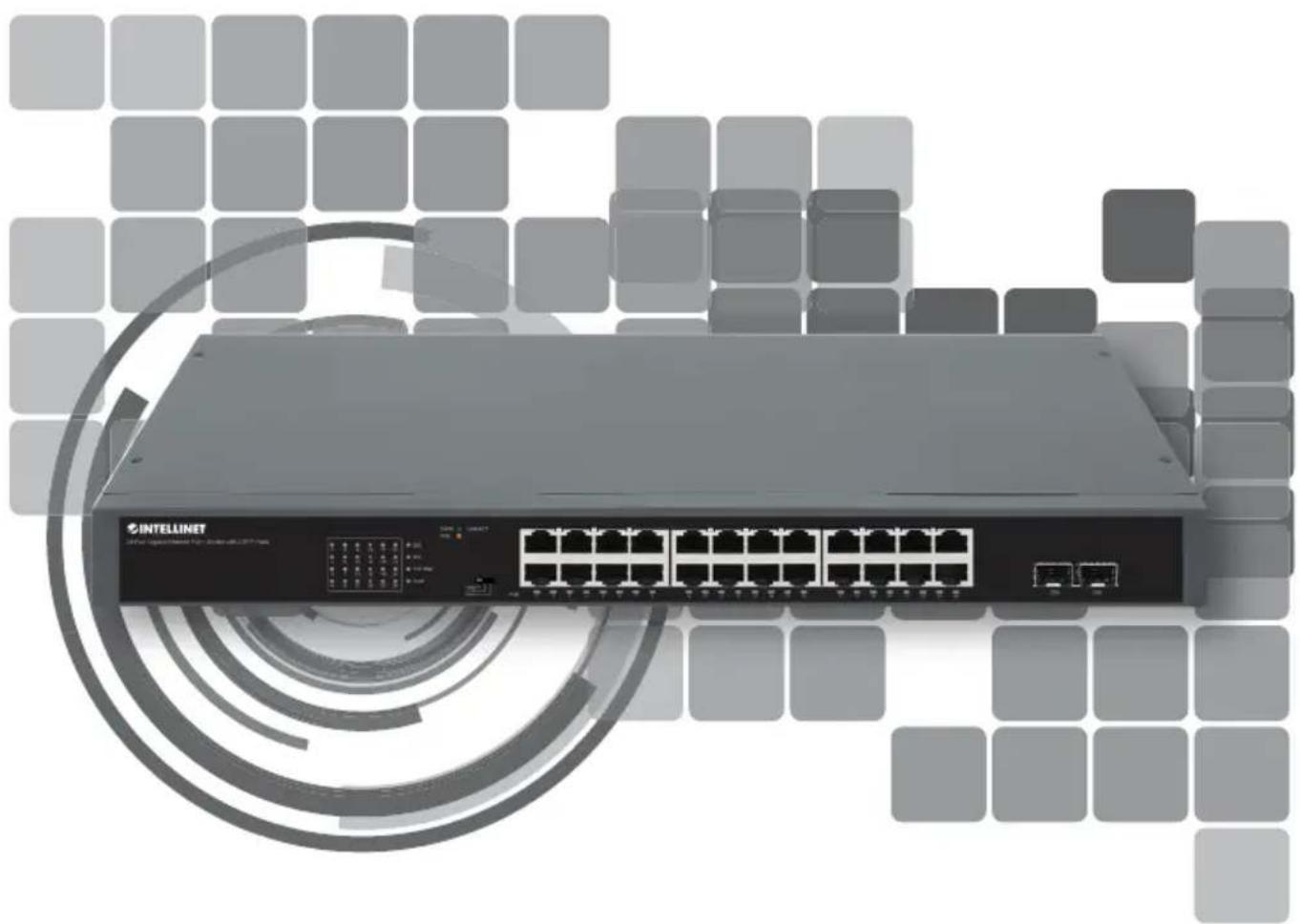

Exterior view of a network switch device (INTELLINET) with visible ports and external circuitry background (no readable text or symbols)

INTELLINET® NETWORK SOLUTIONS

For additional benefits:

Scan to register your product warranty

QR code image containing encoded data, no visible human-readable text

or go to: register.intellinet-network.com/r/561907

The Intellinet Network Solutions 24-Port Gigabit Ethernet PoE+ Switch with 2 SFP Ports offers an array of time-saving, cost-effective features while providing superior network throughput. No configuration is required and installation is plug and play. With a backplane speed of 52 Gbps, plenty of performance is available for your computers, servers and other networking devices. Each of the ports automatically senses the link speed of the connected network device and adjusts to 10, 100 or 1000 Mbps for compatibility and maximum performance. This PoE switch is designed to provide compatible devices with enough power when needed. It offers up to 30 watts of power per port until its power budget of 370 watts is reached.

Green Ethernet Technology

This Intellinet Network Solutions switch detects link status to all connected devices and reduces the power usage of ports not in use. In addition, the switch can adjust the level of power output based on the length of the network cable connected to a particular port. This feature allows for the enjoyment of maximum network performance, and when things slow down, it automatically scales back power usage to conserve energy and save money.

For specifications, visit intellinetnetwork.com. Register your product at register.intellinet-network.com/r/561907 or scan the QR code on the cover.

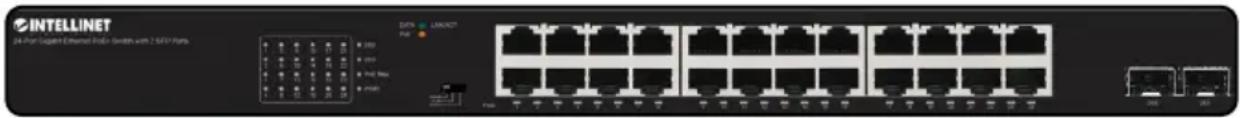

Front Panel

INTELLINET 24 Port Ethernet Interface Switch with 2 SEV Ports DATA LINKOUT PAS USB USB PAS Max PAS0

LED COLOR STATUS STATUS DESCRIPTION
PWR Green		Off Power Off
		On Power On
LNK/ACT(1-24;25 & 26[SFP])	Green	Off No device is connected to the port.
		On A device is connected to the port.
		Flashing Sending or receiving data
PoE (1-24)	Orange	Off No powered device (PD) is connected to the port.
		On The connected device is receiving power.
		Flashing Abnormal power supply
PoE Max Orange		Off The system is using less than 296 W.
		On	The system has reached a total power output of 296 W.The PoE total is nearing its maximum level of 370 W.

Cat5e/6/6a/8.x UTP/STP cables provide optimal performance; if a status LED doesn't indicate a link or activity, check the corresponding device for proper setup and operation.

Slide Switch

Default VLAN Extend

• Default: default mode; allows normal communication between ports 1 – 26.
• VLAN: isolates ports 1 – 24 from each other while allowing them to connect to ports 25 and 26.
• Extend: set PoE ports to full 10 Mbps and extend Ethernet up to 250 meters (820 ft.).

Rear Panel

Power

Use the included power cord to connect the device (on the rear panel) to an AC outlet. The device supports AC 100 – 240 V, 50/60 Hz.

Chassis Ground Column

Located on the side of the power supply connector, a grounding terminal connector is used to provide proper grounding for your Intellinet Network Solutions switch. If you use the chassis grounding screw, it should be wired to an object that provides earth ground. In rackmount installations, grounding is typically provided by the metal frame of the mounting rack.

Placement

Desktop Installation

Prior to use, it is recommended that the switch be placed/positioned on a level surface that can support the weight of the switch (and possibly other objects) with at least 25 mm (approx. 1") of clearance for ventilation; away from sources of electrical noise (radios, transmitters, broadband amplifiers); and within 100 m (approx. 328') of network devices it's to be connected to.

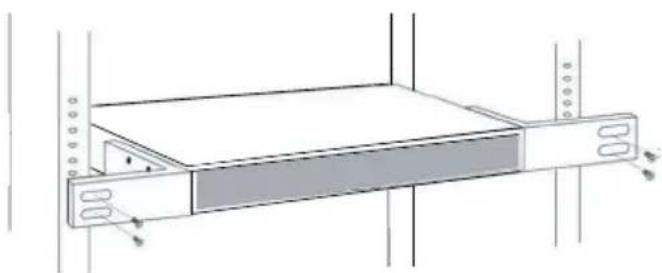

Rackmount Installation

The switch can be mounted in an EIA standard-sized, 19-inch rack. Attach the mounting brackets on the switch's side panels (one on each side) and secure them with the screws provided.

Diagram of a device with two ports and a central panel, showing no text or symbols

Use the screws provided with the equipment rack to mount the Intellinet Network Solutions switch to the rack.

Technical line drawing of a mechanical assembly with a rectangular component and mounting holes (no text or symbols)

INTELLINET 34-Link-Orient Exchange Port+ Switch with 2 GPT Caps DATA OR DIRECT PAS PAS PAS Max PAS

Diagram of a device with two panels and a central screen, showing internal components and heat flow arrows (no text or symbols)

Technical line drawing of a rack-mounted device with mounting holes and a central panel (no text or symbols)

Line drawing of a device with two rectangular units and a smaller front panel, emitting exhaust smoke (no text or symbols)

Diagram of a rack-mounted device with a central tab and mounting holes (no text or symbols)

INTELLINET 44-Point Smart Execution Engine Switch with TCP Ports

Diagram of a device with two rectangular units and a connecting rod, showing internal components and sound waves (no text or symbols)

Technical line drawing of a mechanical or electronic device with a rectangular component and mounting brackets (no text or symbols)

INTELLINET 24-Link Digital Connection Disk / Busdom with 2 GPs Ports MAIN CONNECT USB USB USB USB USB USB

Diagram of a device with two ports and a central panel, showing sound waves (no text or symbols)

Technical line drawing of a rack-mounted device with a central panel and mounting brackets (no text or symbols)

Ethernet e Green Technology

Diagram of a computer monitor with two ports and a separate front panel, showing internal components (no text or symbols)

Technical line drawing of a mechanical or electronic component with no visible text or symbols
