USER MANUAL Streambuds Ultra Hybrid MIXX

[NL] SNELSTARTGIDS 16

[SV] SNABBSTARTSGUIDE 51

[PL] SKRÓCONA INSTRUKCJA OBSŁUGI 56

[CF] GUIDE DE DÉMARRAGE RAPIDE 61

IMPORTANT!

When first taking your earbuds out of the packaging, please remove protective film covering the charge points.

Simple circular icon with a stylized arrow and two black circles inside, no text or symbols present.

LET'S STAY CHARGED

Note: If your earbuds and charge case do not have any power when you first unpack them, place the earbuds into the charge case and plug the charge case into a USB port using the USB C cable [8] provided.

The Earbuds

A voice prompt "Battery low" allows for 2 minutes play time before the earbud(s) powers down stating "Battery low, power off". The Earbuds LED Light [2] will flash WHITE once and will then switch off. Charge the earbuds using the Portable Charging Case [5].

Each LEFT and RIGHT earbud has 4-line LED Charge Indicators L and R on the case.

Place the earbuds in the case and close the lid to charge. The 4 LED indicators L and R will flash to show that the earbuds are charging for 15 seconds and then will turn off.

The Portable Charging Case

To check the battery status of the case, open the lid of the Portable Charging Case 5. The LED Digital Display [6] will show the percentage of the battery remaining for 15 seconds.

With a Type C charging cable

Always connect the case to a suitable USB wall charger, computer USB port or a power bank using the USB Type C charging cable [8] supplied. Plug the supplied cable into the USB C port [7] on the charge case.

When the LED Digital Display number reaches 100 (i.e., 100%) the case is fully charged, and the display will switch off.

Charging the case may take up to 2 hours.

TIP: 15 MINUTE QUICK CHARGE

If you're running low on power, charge your earbuds in the case for 15 minutes and get 2 hours extra play time while on the go

LET'S CONNECT

First time pairing

When you open the Portable Charging Case 5 both earbuds will turn on and connect together. A voice prompt will confirm with 'Power on, pairing'. One Earbud LED Light 2] will flash WHITE to indicate pairing mode.

Go to the Bluetooth settings on your audio device to select 'MIXX StreamBuds Ultra' from the list. Once paired successfully you will hear 'Connected' and the Earbud LED Lights [2] will turn off.

You can now enjoy your music, watch a video or take a call hands free. The earbuds will automatically reconnect to the last device they were paired with, confirming 'Connected'.

FACTORY RESET

When in pairing mode, independently 'tap' 4 times until power off is announced, return bud to case. repeat with other bud. This will complete the Factory Reset process.

LET'S PLAY

Power on

Remove both earbuds from the case. They will automatically turn on and dual pair together. A voice prompt will state "Connected" as confirmation. To manually turn on, long press each Touch Sensor [1] and [3] for 3 seconds.

Power off

Place both earbuds in the case. This will automatically turn off the earbuds and the Bluetooth.

Play / Pause

Tap and hold either Touch Sensor 1] or [3]

Increase Volume

Single tap RIGHT Touch Sensor [3]

Decrease Volume

Single tap LEFT Touch Sensor [1]

Previous Track

Double tap LEFT Touch Sensor [1]

Skip Track

Double tap RIGHT Touch Sensor [3]

Answer / End Call

Tap and hold either Touch Sensor 1] or [3]

(Audio is picked up via the microphones [4].)

You can customise your earbuds using the MIXX control app, see page 4 for further details

LET'S ASK GOOGLE ASSISTANT / SIRI

To activate Siri or Google Assistant, please use the MIXX Control app. Your Voice Assist familiar 'Beep' will sound to confirm connection. You can now ask Siri or Google Assistant a question or state a command.

LET'S INSTALL THE APP

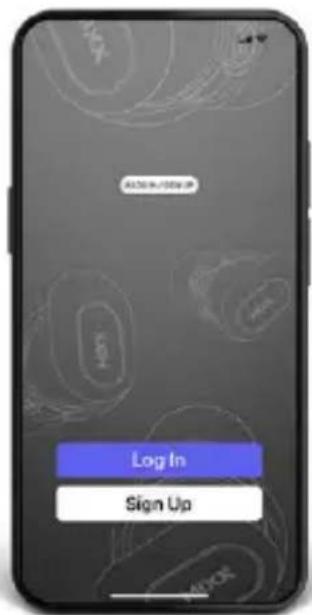

Scan the QR code here to download the free MIXX Control app

Follow the on-screen instructions to create an account

Log In Sign Up

Register United Kingdom Email Address 1 SuperImage Entry and Use dgement

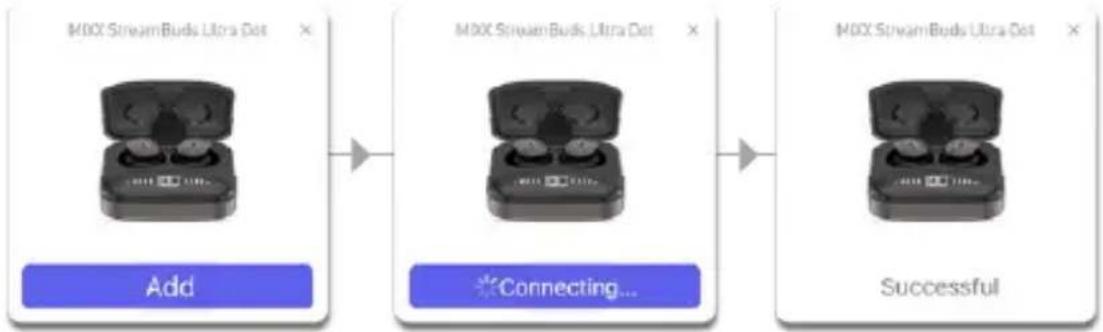

Follow the on-screen instructions to connect to your earphones

HOW TO CUSTOMISE YOUR EARBUDS USING THE APP

Scan the QR code here to view our online tutorials (https://bit.ly/3sN4fGd), for instructions on how to customise your earbud settings.

LET'S BE SAFE

IT IS IMPORTANT THAT YOU PLEASE READ THIS SECTION COMPLETELY.

For your protection

Check with your doctor before use if you are fitted with a medical device such as a pacemaker or a programmable shunt.

Ensure the product is correctly connected using the manufacturer's original accessories included with the product.

Do NOT make unauthorized alterations to this product.

Product may contain small parts which can be a choking hazard. Please keep the product out of reach from children under 6 and animals.

Whilst this product has been made using hypo-allergenic materials, you may suffer some skin irritation after prolonged use.

Do NOT listen to loud music for a long duration of time. We recommend turning the volume down before placing the device in your ears to avoid hearing damage.

Do NOT use the product while operating machinery, including cars, trucks or other vehicles.

Do NOT use noise cancelling mode or use your device in areas where the use of hearing is required for safety. e.g., while riding a bicycle, at a construction site or railroad etc.

Clean only with a dry cloth - Wipe off sweat from the earbuds and the charging case before charging.

IMPORTANT!

Do NOT use a non-certified PD or QC3 wall charger as this may damage the product. Only use the cable supplied to charge your device.

If your product has become damaged in any way, does not operate normally or has been dropped, please refer to a qualified person to have the product checked before continuing to use it.

WARNING:

This product contains a Lithium battery. Incorrect disposal of this battery may result in an explosion.

The operating temperature range for this product is 5^ - 40^ celsius.

Please avoid exposing the product, charging case and cable connectors to prolonged rain, moisture, or liquid spills/splashing.

Please remove your device from your ears immediately if they emit any loud unusual noise or you experience a warming sensation.

If you experience any of the issues listed above, please turn off your device and contact MIXX Ltd on [e-mail]

[FR] GUIDE DEDÉMARRAGE RAPIDE

IMPORTANT!

Simple circular diagram with two black dots and a curved arrow, no text or symbols present.

CHARGE

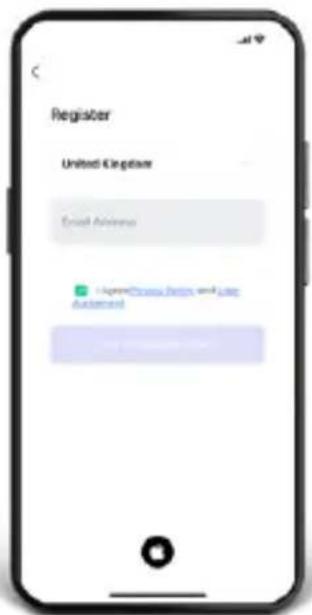

Log In Sign Up

Register United Kingdom Email Address ■ Signed China Design and Update Description

COMMENT PERSONNALISER VOS ÉCOUTEURS À L'AIDE DE L'APPLICATION

Simple circular diagram with two black dots and a curved arrow, no text or symbols present.

AUFLADEN

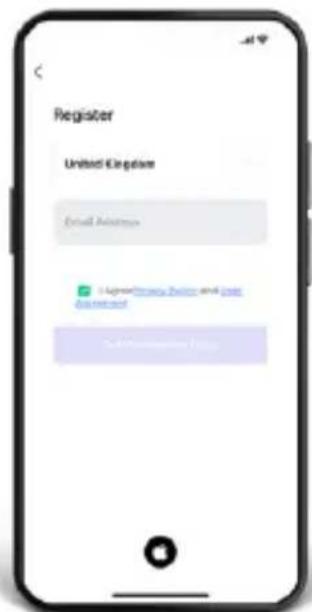

Log In Sign Up

Register United Kingdom Email Address © Copyright © Device and Post Download Cell Management Update

SO PASSEN SIE IHRE OHRHÖRER MIT DER APP AN

Simple circular icon with a document and arrow, no text or symbols present

OPGELADEN BLIJVEN

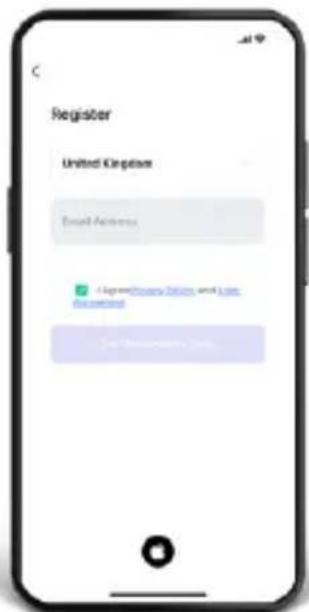

Log In Log In Sign Up

Register United Kingdom Email Address • Corresponds Email and Type Registered • Registration Date

HOE JE JE OORDOPJES AANPASSEN MET DE APP

Simple circular diagram with two black dots inside a rectangle and an arrow indicating rotation (no text or symbols)

SIGAMOS CARGADOS

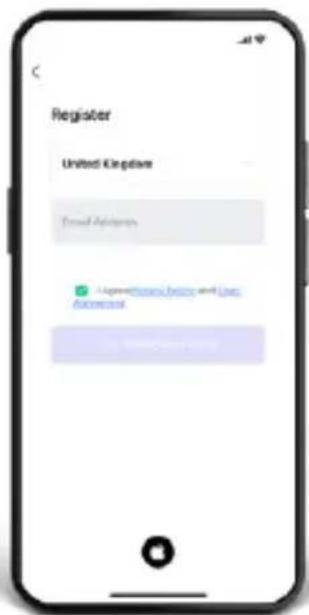

Log In Sign Up

Register United Kingdom Email Address Agricultural, Policy and Use Account

Simple circular diagram with two black dots and a curved arrow, no text or symbols present.

RESTIAMO CARICHI

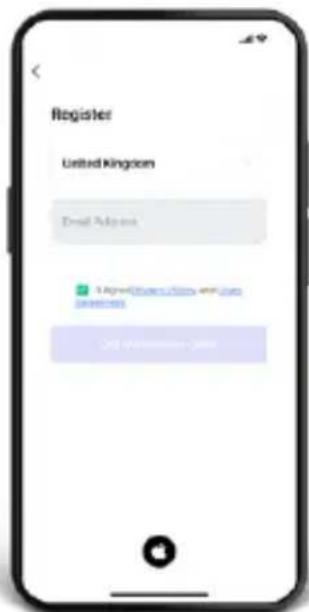

Log In Sign Up

Register United Kingdom Email Address A link between us and us @www.else.com

COME PERSONALIZZARE I TUOI AURICOLARI UTILIZZANDO L'APP

Simple circular diagram with two black dots and a curved arrow, no text or symbols present.

Log In Sign Up

Register United Kingdom Email Account © Copyright © 2019 Copyright © 2019 investments

COMO PERSONALIZAR SEUS FONES DE OUVIDO USANDO O APLICATIVO

Simple circular icon with two black dots and a curved arrow, no text or symbols present.

LAD OS FORBLIVE OPLADET

Log In Sign Up

Register United Kingdom Email Address • Lignee China, Denmark and Japan Accessed • Lignee China, Denmark

SÅDAN TILPASSER DU DINE ∅REK∅P VED HJÆLP AF APPEN

Simple circular icon with a stylized arrow and two black dots inside, no text or symbols present.

PYSYTÄÄN LADATTUNA

Register United Kingdom Email Address 1 August 2023, 19:45:18 Message

HOW TO CUSTOMISE YOUR EARBUDS USING THE APP

Simple circular diagram with two black dots and a curved arrow, no text or symbols present.

NABÍJENÍ

NAINSTALUJME APLIKACI

Log In Sign Up

Register United Kingdom Email: Asihama A Copyright Address: Dettler & Wurt, U.S. Address: 10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

JAK PŘIZPŮSOBIT SLUCHÁTKA POMOCÍ APLIKACE

[SV] SNABBSTARTSGUIDE

VIKTIGT!

Simple circular icon with a document and two dots, no text or symbols present

LÅT OSS HÅLLA OSS LADDADE

Log In Sign Up

Register United Kingdom Email Account HighwayAccess Phone required accessions

HUR DU ANPASSAR DINA HÖRSNAPPAR MED APPEN

Do NOT use a non-certified PD or QC3 wall charger as this may damage the product. Only use the cable supplied to charge

your device.

If your product has become damaged in any way, does not operate normally or has been dropped, please refer to a qualified person to have the product checked before continuing to use it.

Simple circular icon with two black dots and a curved arrow, no text or symbols present.

NAŁADUJ SIE,

ZAINSTALUJMY APLIKACJE,

Log In Sign Up

Register United Kingdom Email Address AgreeCulou, Dian and Lee Accession http://www.100.com

JAK DOSTOSOWAĆ SŁUCHAWKI ZA POMOCA APLIKACJI

Simple circular diagram with two black dots and a curved arrow, no text or symbols present.

TOUJOURS CHARGÉS

Log In Sign Up

Register United Kingdom Email Address I Advanced Access Phone, www.2019-2020

COMMENT PERSONNALISER VOS ÉCOUTEURS À L'AIDE DE L'APPLICATION

[EN] [US] This product can be recycled. Products bearing this symbol must NOT be thrown away with normal household waste. Take the product to a collection point designated for recycling of electronic devices. Find out more about return and collection points through your local authority.
