USER MANUAL WVHF83BB FKIT WHIRLPOOL

Exterior view of a modern office building (no signage)

Two identical black silhouette figures of men, no text or symbols present

Simple line drawing of two hands (no text or symbols)

OFF!

Technical line drawings of a saw blade, a rectangular tool with circular features, and a flat blade (no text or symbols)

Illustration of two types of medical or industrial tools: a measuring tape and a syringe (no text or symbols present)

Line drawing of a flatboard-shaped object with a handle and base (no text or symbols)

Simple line drawing of an open box (no text or symbols)

1x
2,8 m

Simple line drawing of a rectangular electronic device with a circular hole and '1x' label (no text or symbols on the device itself)

1x

1x

Simple line drawing of a rectangular block with horizontal lines indicating hidden edges (no text or symbols)

1x

Simple line drawing of a rectangular object with curved internal lines, resembling a mechanical or architectural component (no text or symbols)

1x

Line drawing of a 3D L-shaped mechanical part (no text or symbols)

1x

4x

1x

2x

RL

2,1 - 3 kw

min. ∅ 120mm

1,6 - 1,85 kw
1
FL

min. ∅ 120mm

Blank white rectangle with rounded corners (no text or symbols)

2,1 - 3 kw

min. ∅ 120mm

1,6 - 1,85 kw

min. ∅ 120mm

RR

① ON/OFF
1+2

4
FR
3+4
3 - 3,7 kw

min. ∅ 230mm

FRONT

Pure geometric shapes: a ruler and a triangular ruler, no text or symbols present.

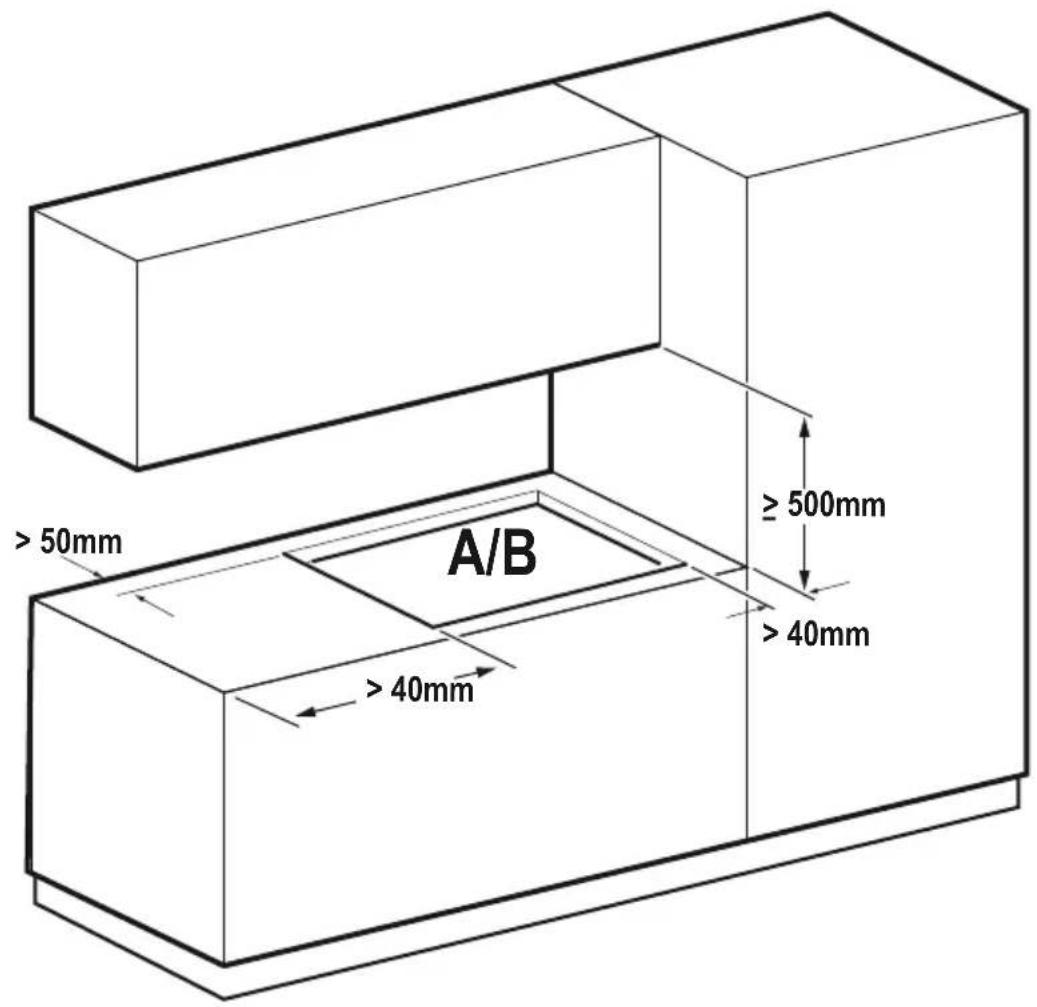

>50mm A/B ≥ 500mm ≥ 40mm > 40mm

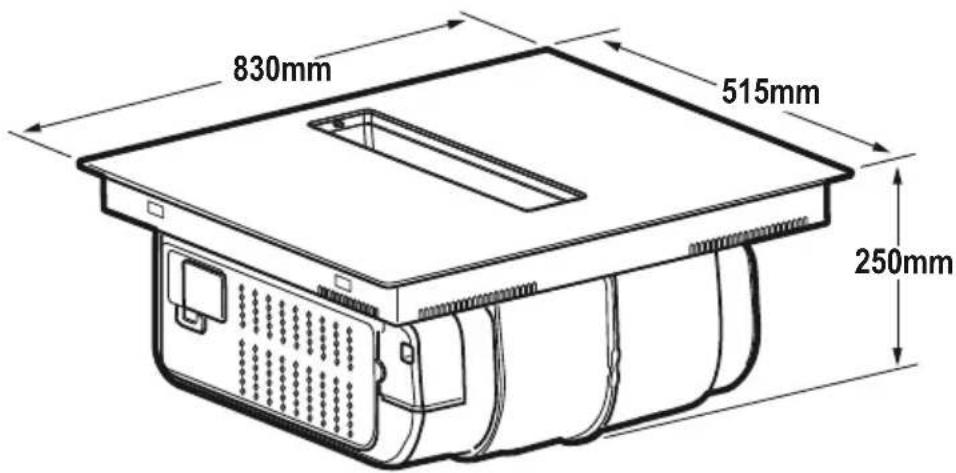

830mm 515mm 250mm

inst.A

Technical line drawing of a mechanical assembly with a circular component and a rectangular block (no text or symbols)

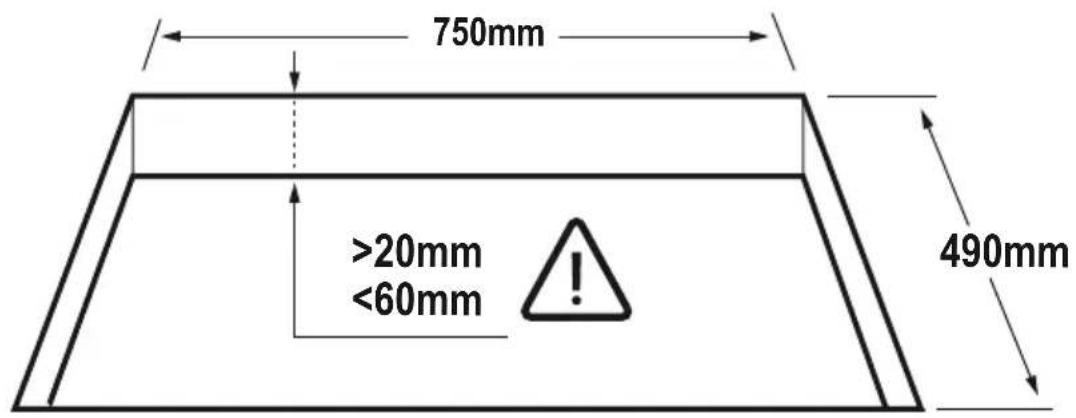

750mm >20mm <60mm 490mm

inst.B

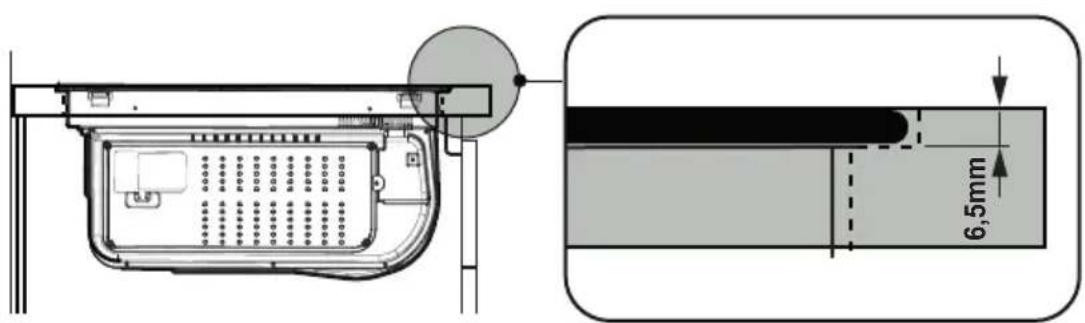

Technical diagram showing a device with internal components and a 6.5mm dimension标注

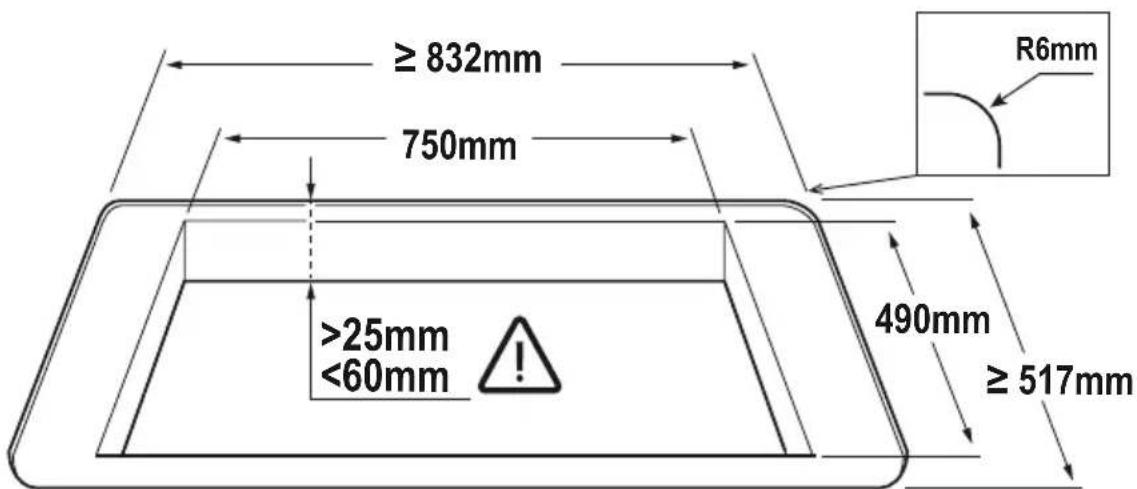

≥ 832mm 750mm R6mm >25mm <60mm 490mm ≥ 517mm

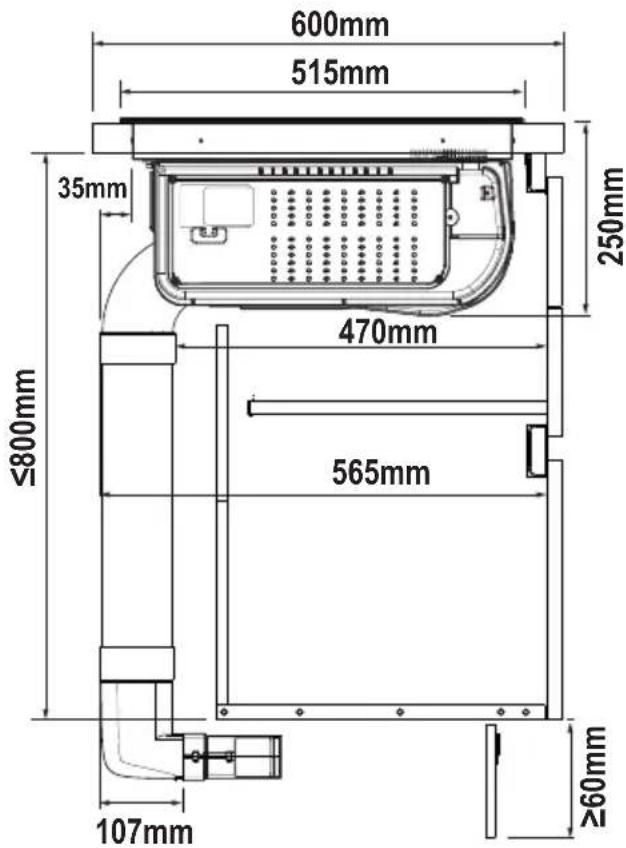

600mm 515mm 35mm 250mm 470mm 565mm ≥800mm 107mm ≥60mm

2

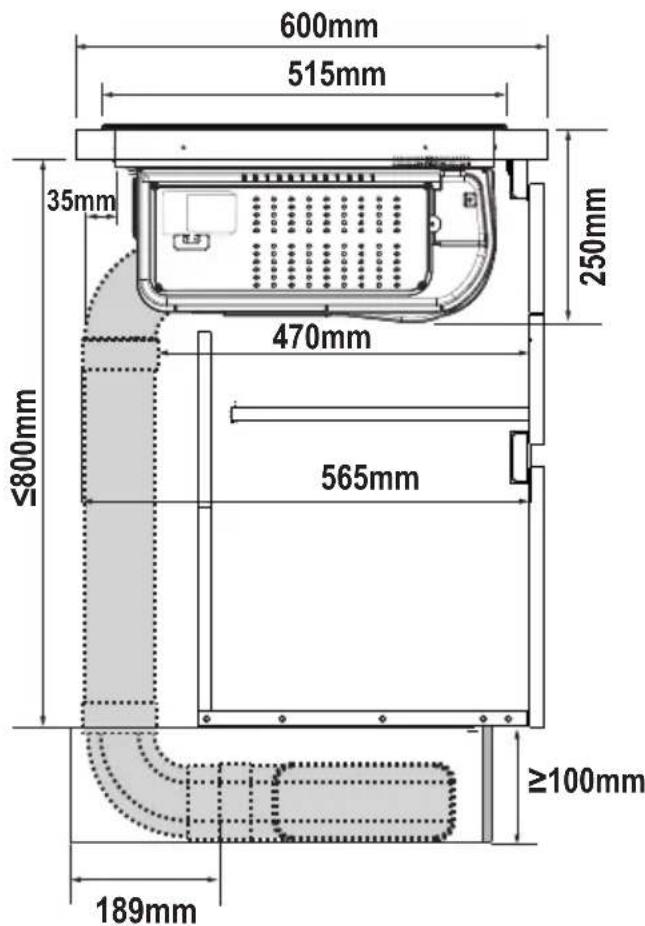

600mm 515mm 35mm 250mm 470mm ≤800mm 565mm ≥100mm 189mm

KIT WINDOW

V-Hz

Diagram showing a window with sound waves and a sensor connected to a panel (no text or symbols)

OFF

Simple line drawing of a door with sound waves and a small square object on the left (no text or symbols)

ON

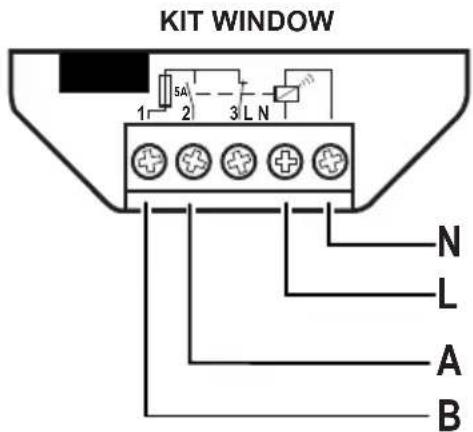

KIT WINDOW 1 5A 2 3 L N N L A B

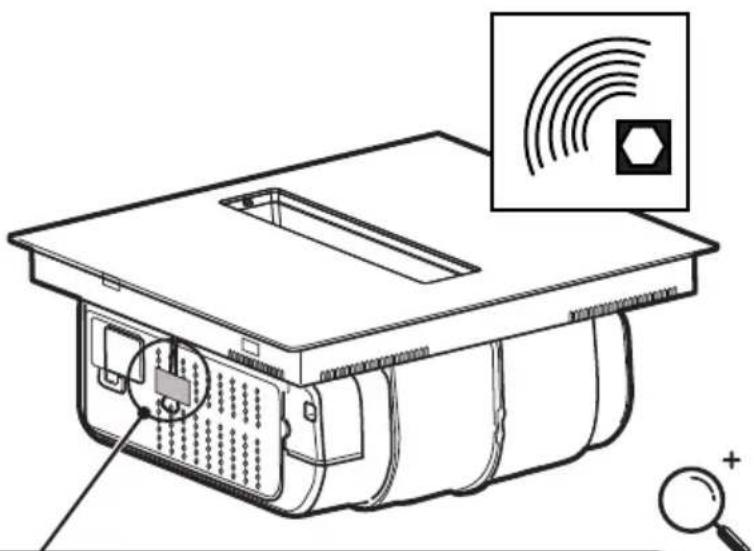

Technical line drawing of a device casing with internal components and a magnifying glass nearby (no text or symbols)

! .1 .2 .3 A B

!

.1

.2

Technical diagram showing a mechanical assembly with a housing and a component, no text or symbols present.

Technical line drawing of a server rack unit with mounting base and ventilation slots (no text or symbols)

4.1

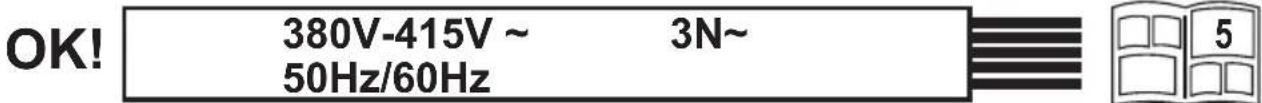

OK! 380V-415V ~ 3N~ 50Hz/60Hz

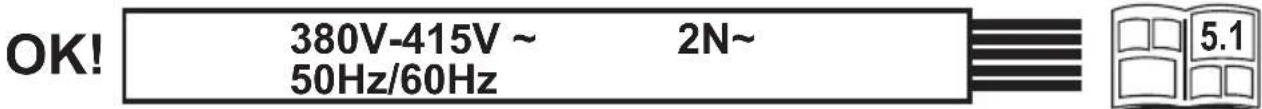

OK! 380V-415V ~ 2N~ 50Hz/60Hz 5.1

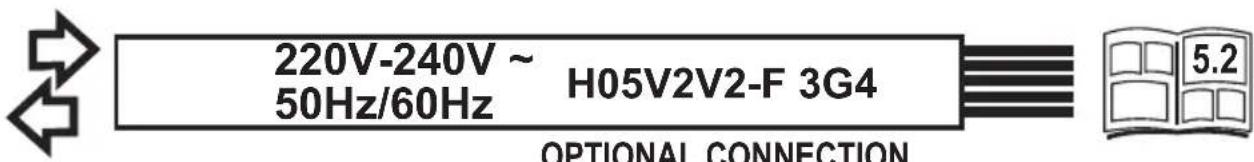

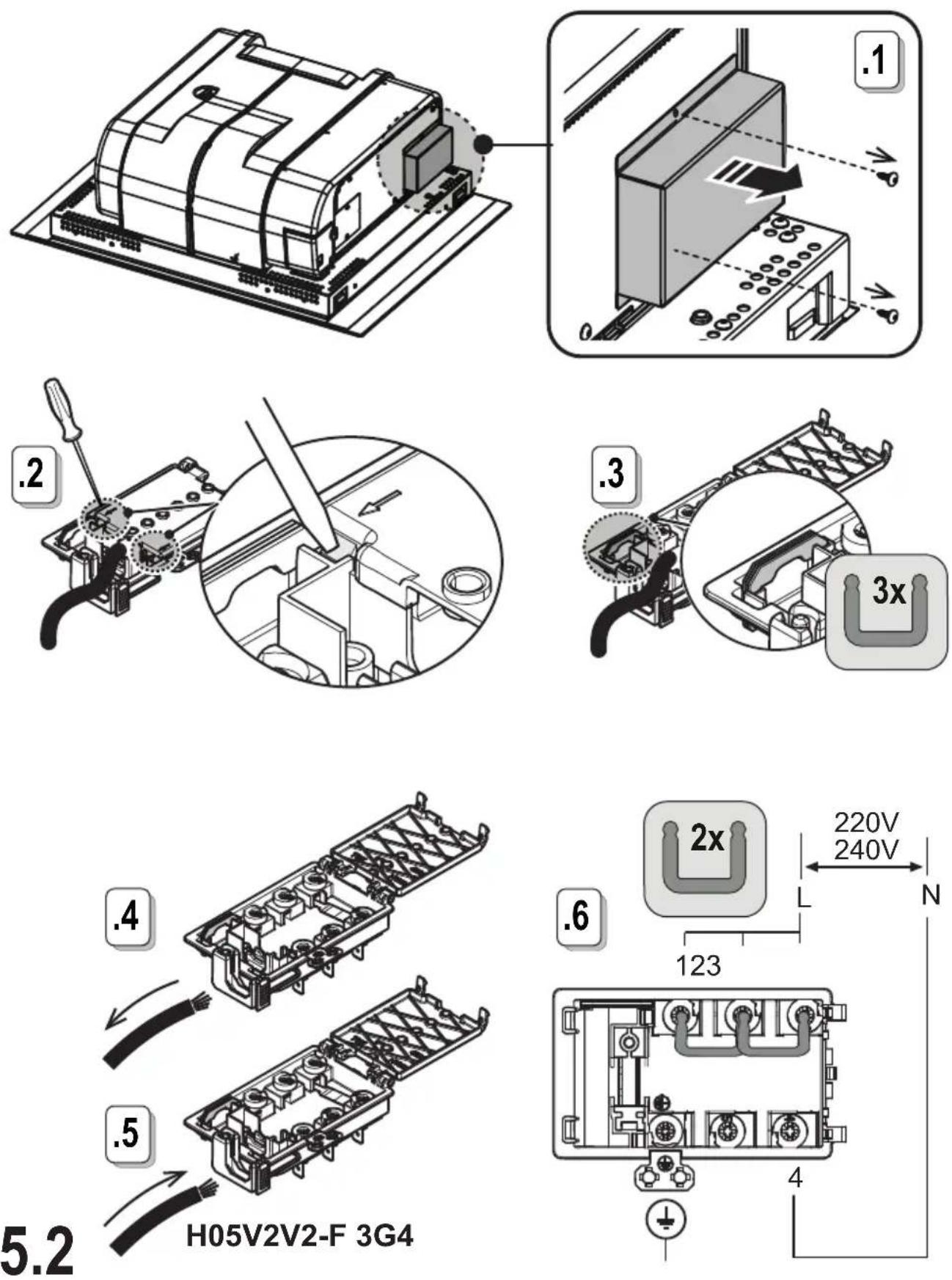

220V-240V ~ H05V2V2-F 3G4 50Hz/60Hz OPTIONAL CONNECTION 5.2

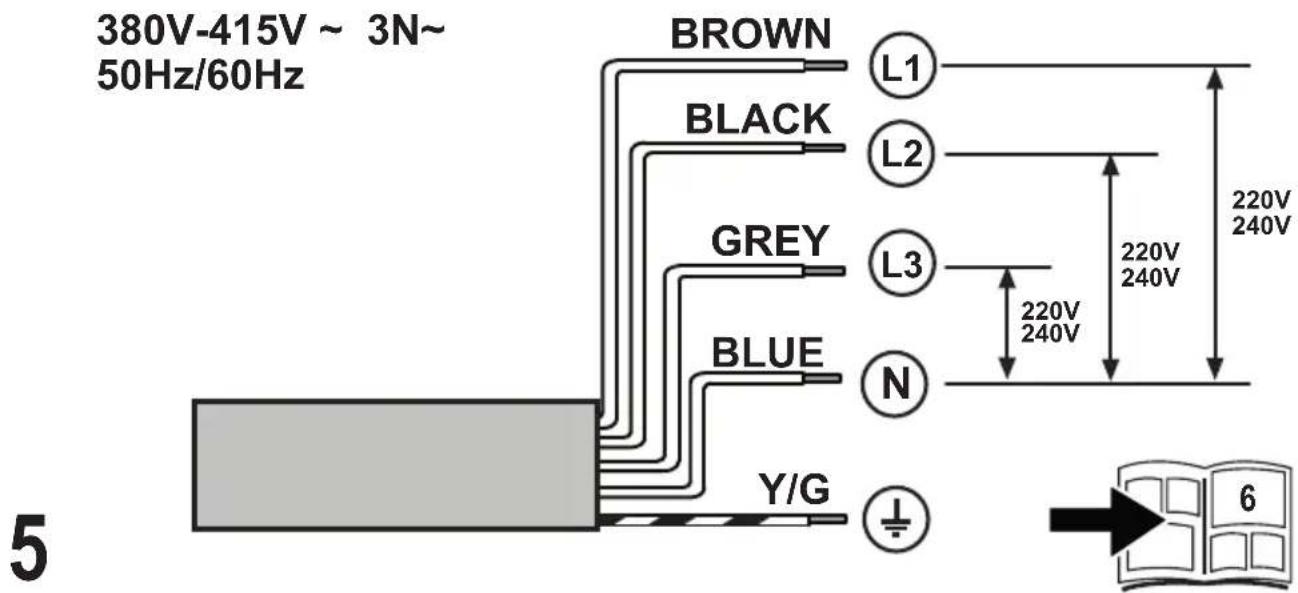

380V-415V ~ 3N~ 50Hz/60Hz BROWN BLACK GREY BLUE Y/G L1 L2 L3 N 220V 240V 220V 240V 220V 240V 6

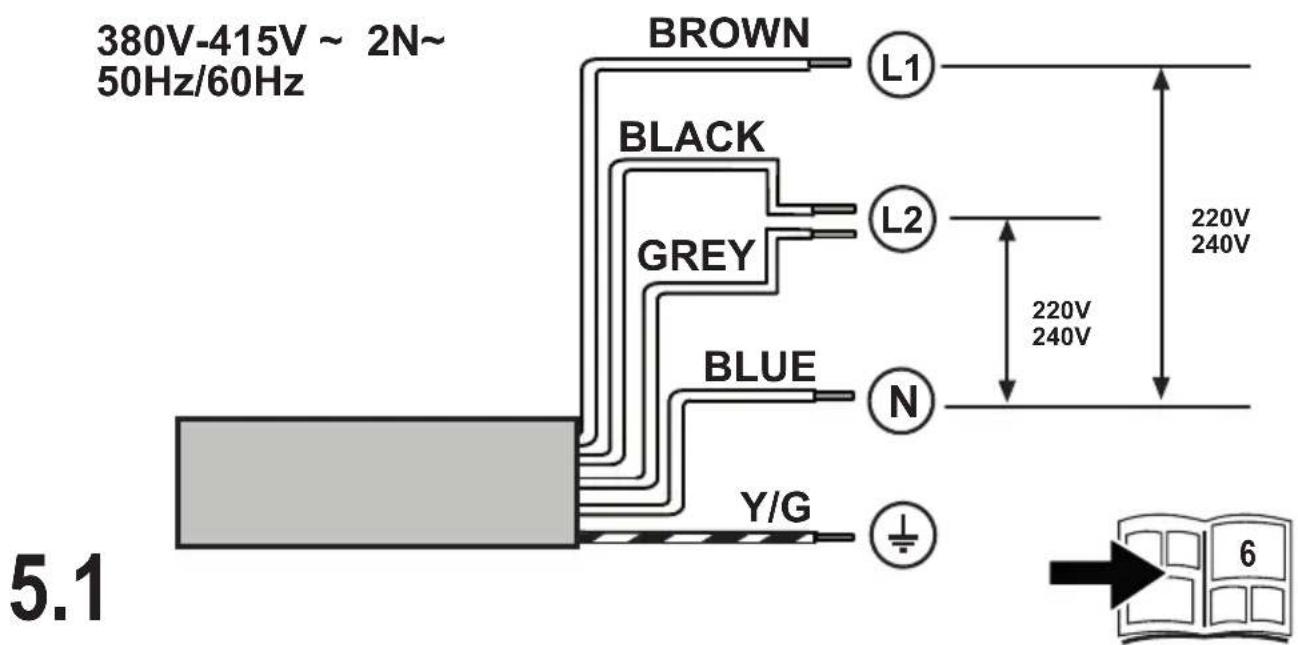

380V-415V ~ 2N~ 50Hz/60Hz BROWN BLACK GREY BLUE Y/G L1 L2 220V 240V 220V 240V 5.1 6

5.1

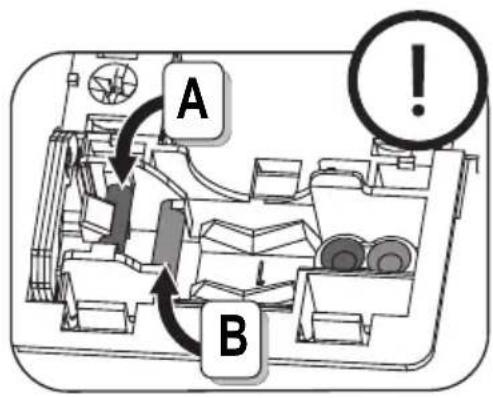

A B

V-Hz

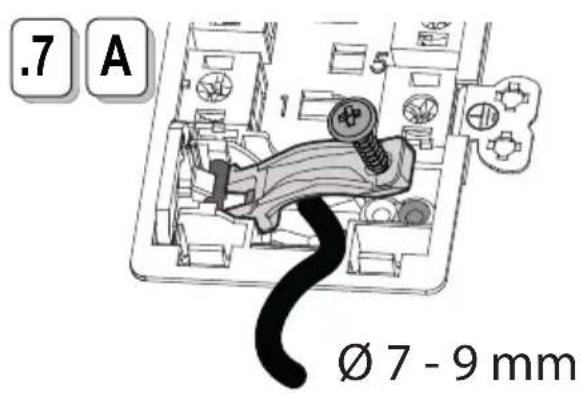

.7 A Ø 7 - 9 mm

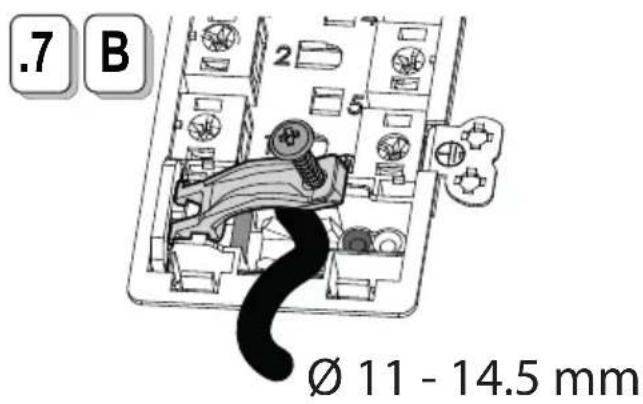

.7 B 2 5 Ø 11 - 14.5 mm

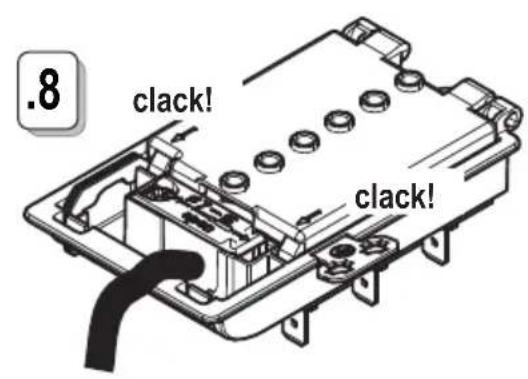

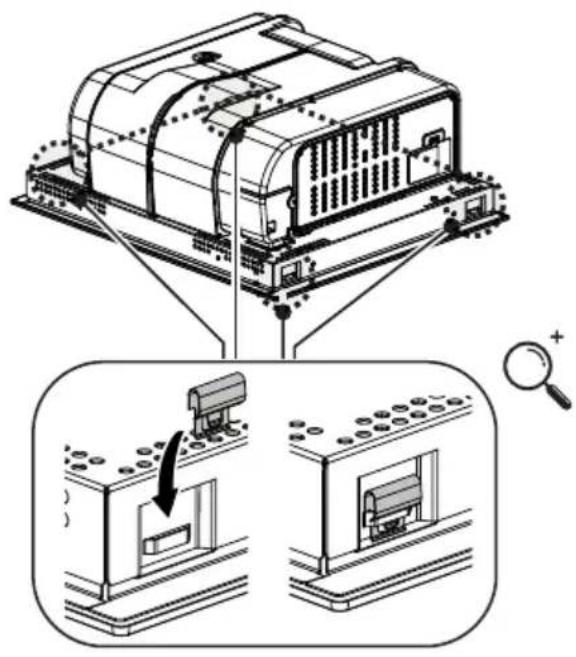

.8 clack! clack!

Technical diagram showing a mechanical assembly with an inset close-up of a device's internal structure, labeled with dimension 9 and magnifying glass indicator.

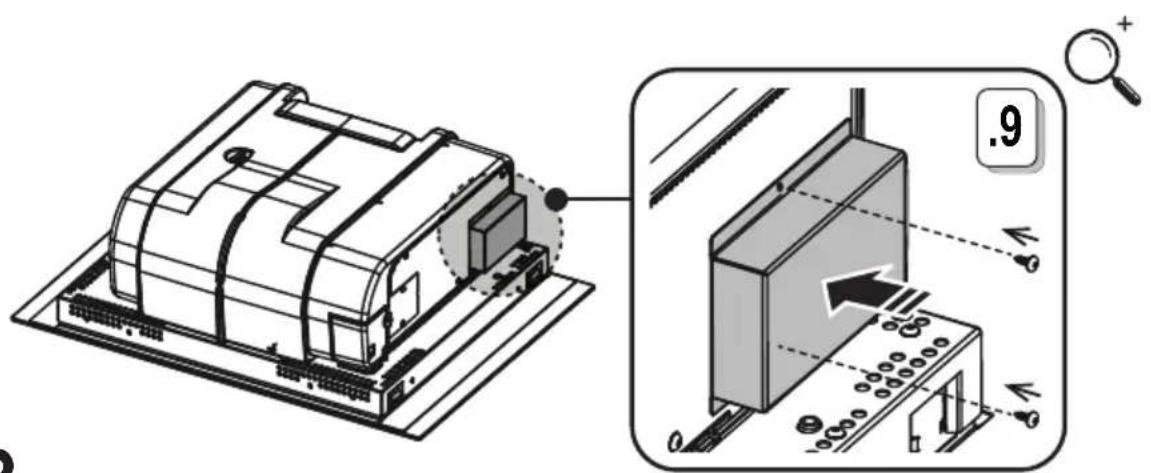

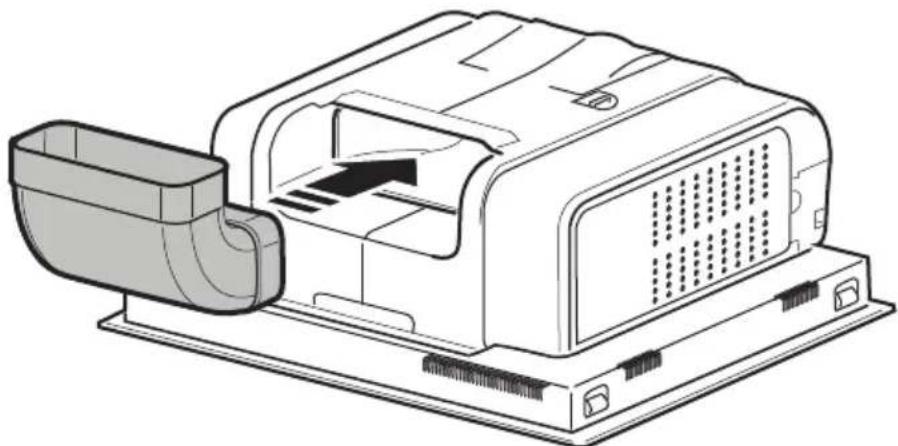

5.3

Illustration of a mechanical component with a 4x multiplier label (no other text or symbols)

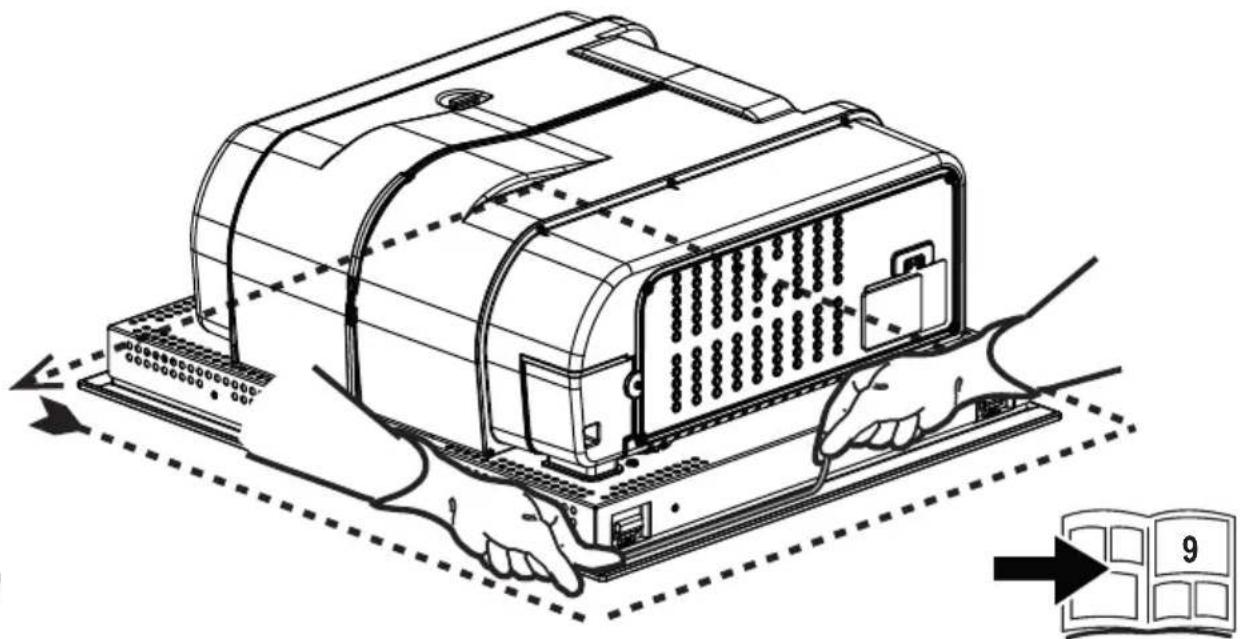

6

Technical illustration of a mechanical device with internal components and a magnified inset showing a close-up of its internal structure (no text or symbols present)

inst.A

inst.B

inst.A

Circular object with concentric rings, labeled '1x' (no other text or symbols)

Pure geometric line drawing of a 3D L-shaped structure without any text, numbers, or symbols

Simple line drawing of a mechanical component with an upward arrow, no text or symbols present

7

Technical diagram showing hands operating a computer with labeled components and an inset image of a 9-pin device.

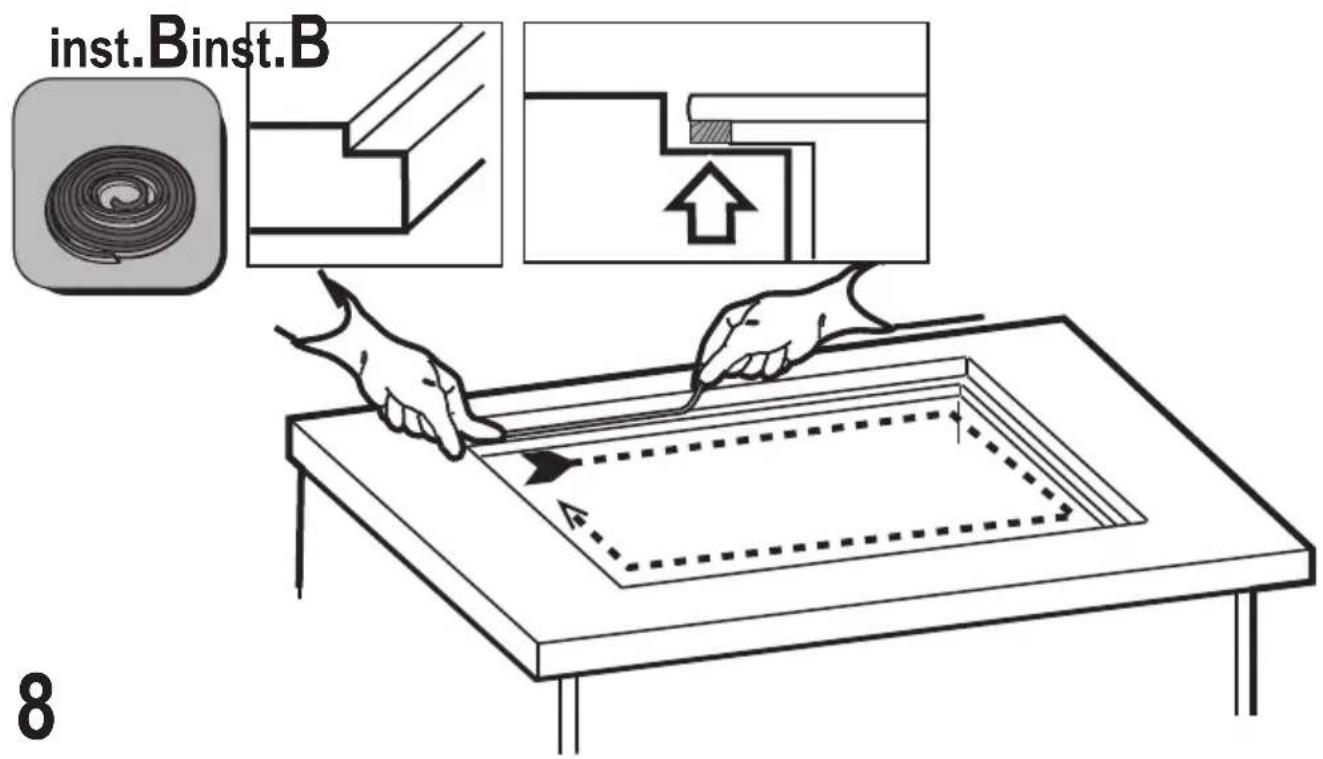

inst.Binst.B 8

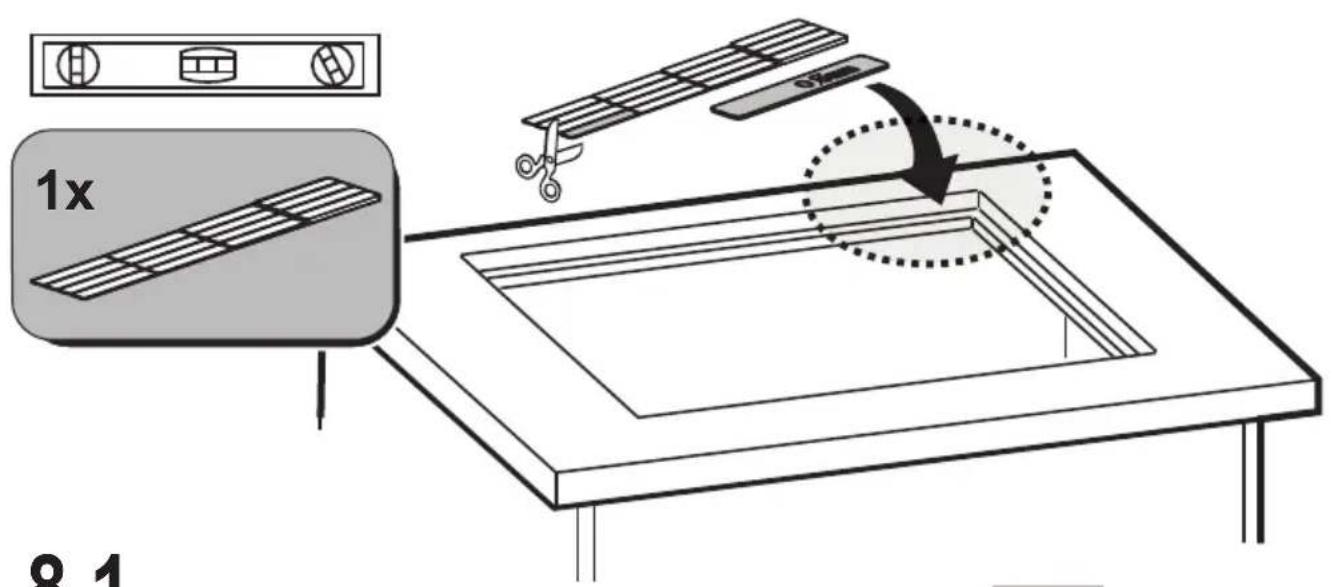

1x 8.1

8.1 (s) 8.2

Diagram showing a house icon with a circular arrow and an open book with the number 10, indicating a change or transformation.

Technical line drawing of a mechanical device with internal components and mounting base (no text or symbols)

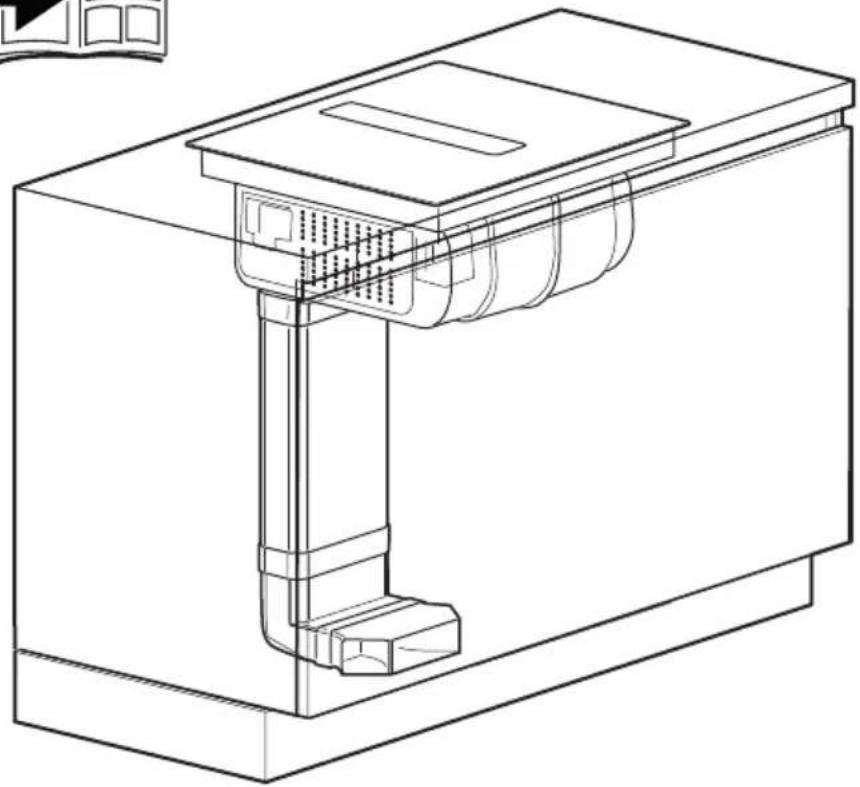

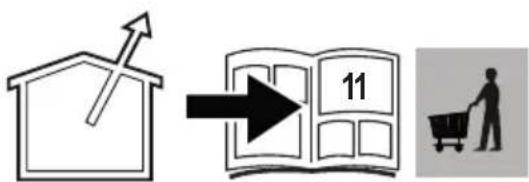

Diagram illustrating home renovation, open book with number 11, and shopping cart icon

Technical line drawing of a mechanical assembly with internal components and mounting base (no text or symbols)

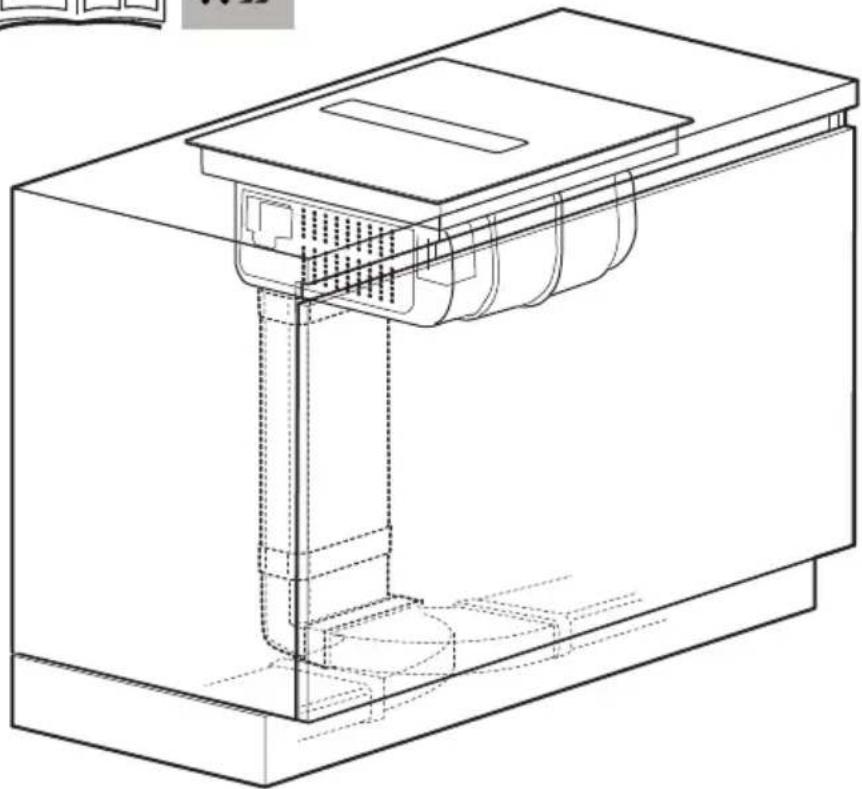

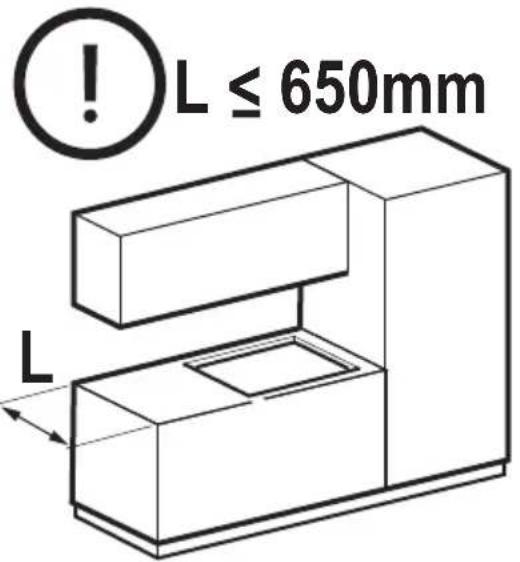

L ≤ 650mm L

Technical line drawing of a mechanical device with internal components and a housing (no text or symbols)

10

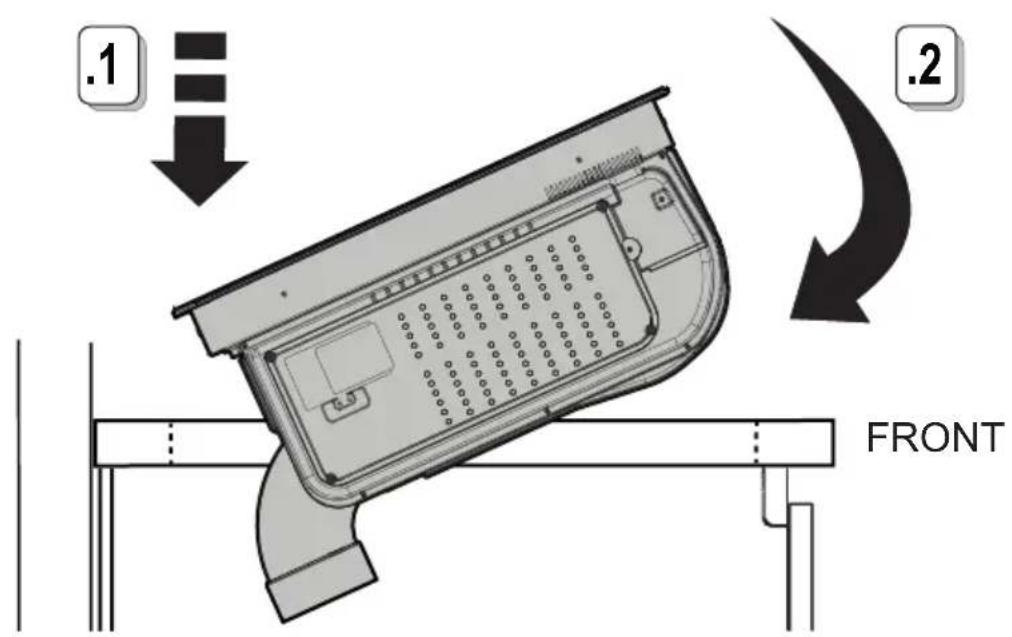

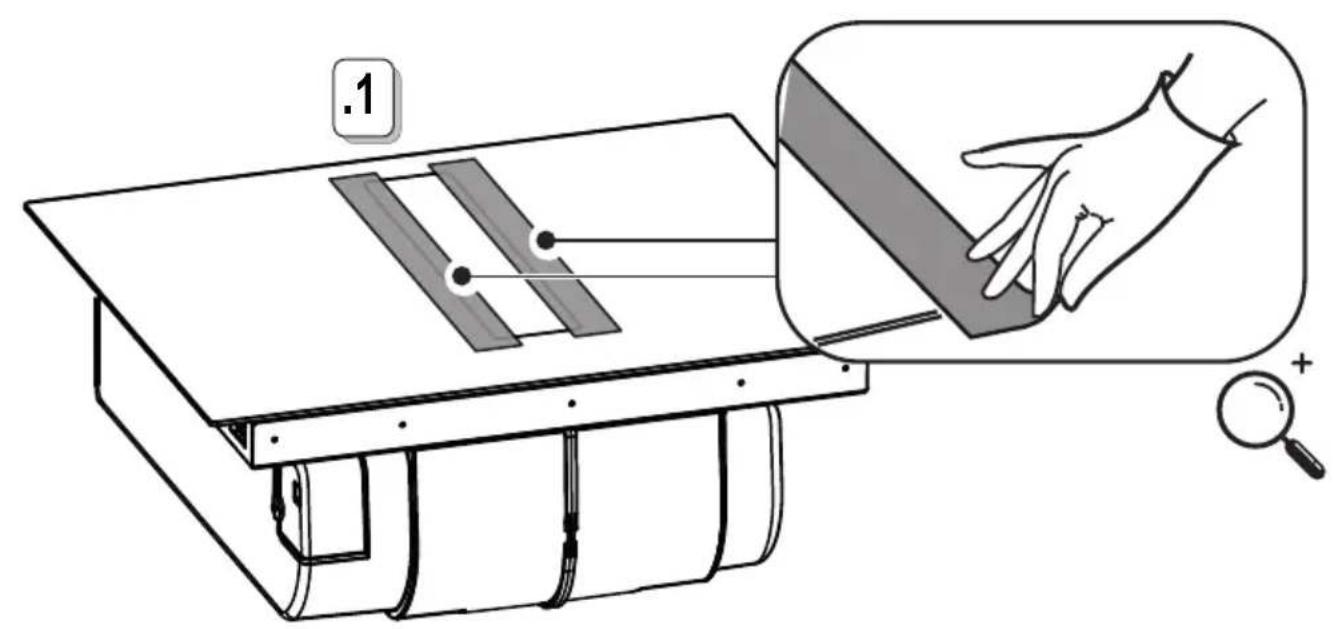

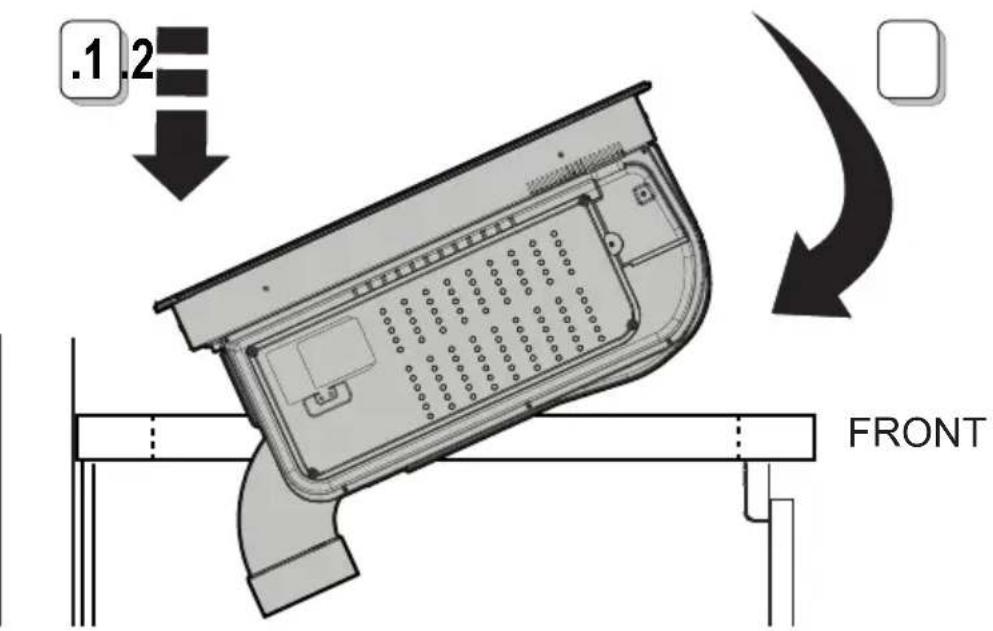

.1.2 FRONT

10.1

10.2

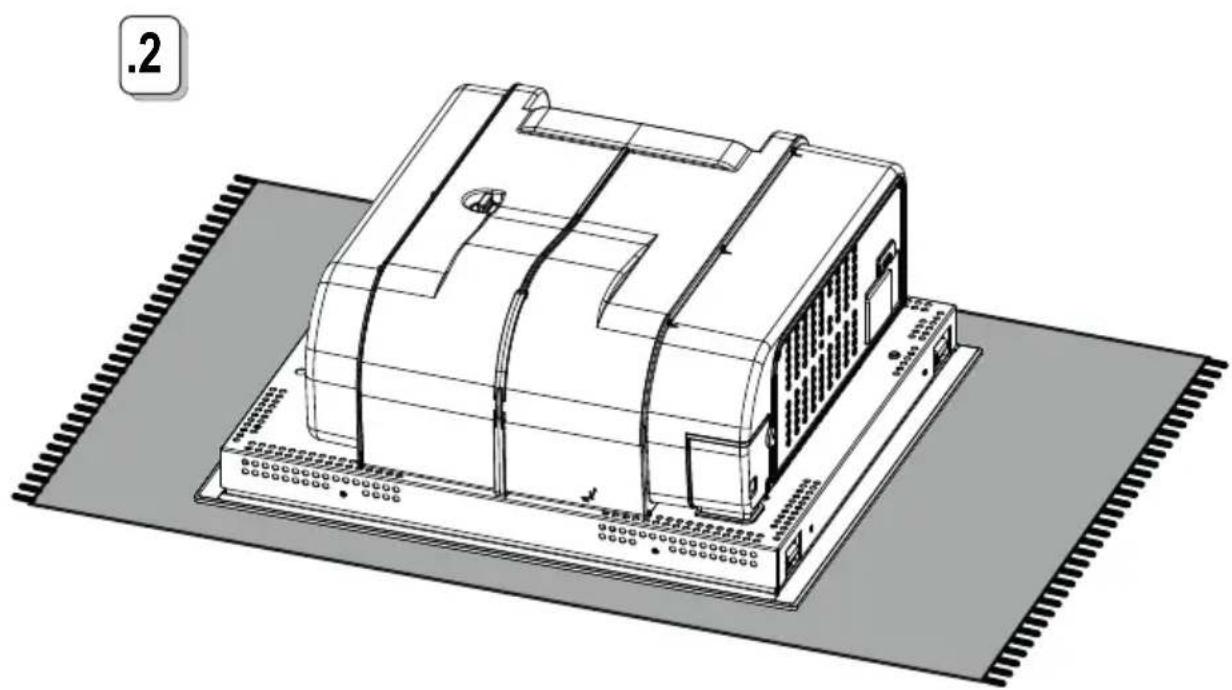

.1 .2 FRONT

10.3

Technical diagram illustrating the installation and assembly of a air conditioner unit, with labeled components and directional arrows.

10.4

Simple line drawing of a house with an upward arrow and a shopping cart, alongside a silhouette of a person (no text or symbols)

Diagram of a device with a shopping cart and a container, no text or symbols present

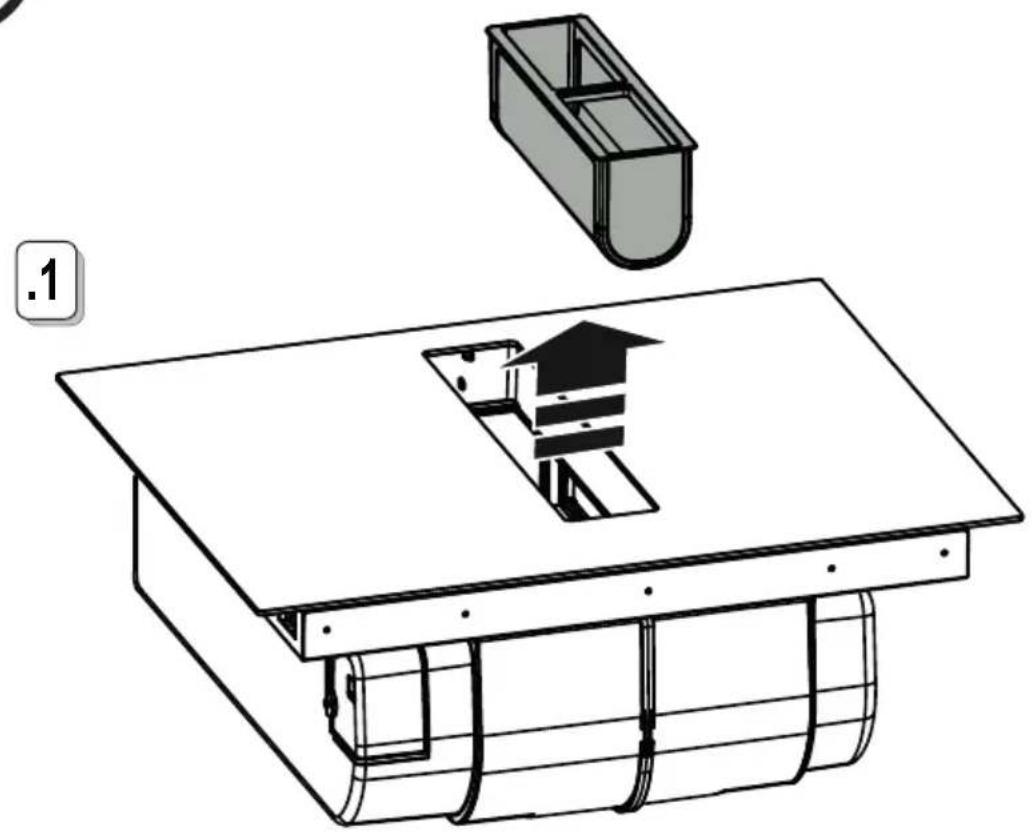

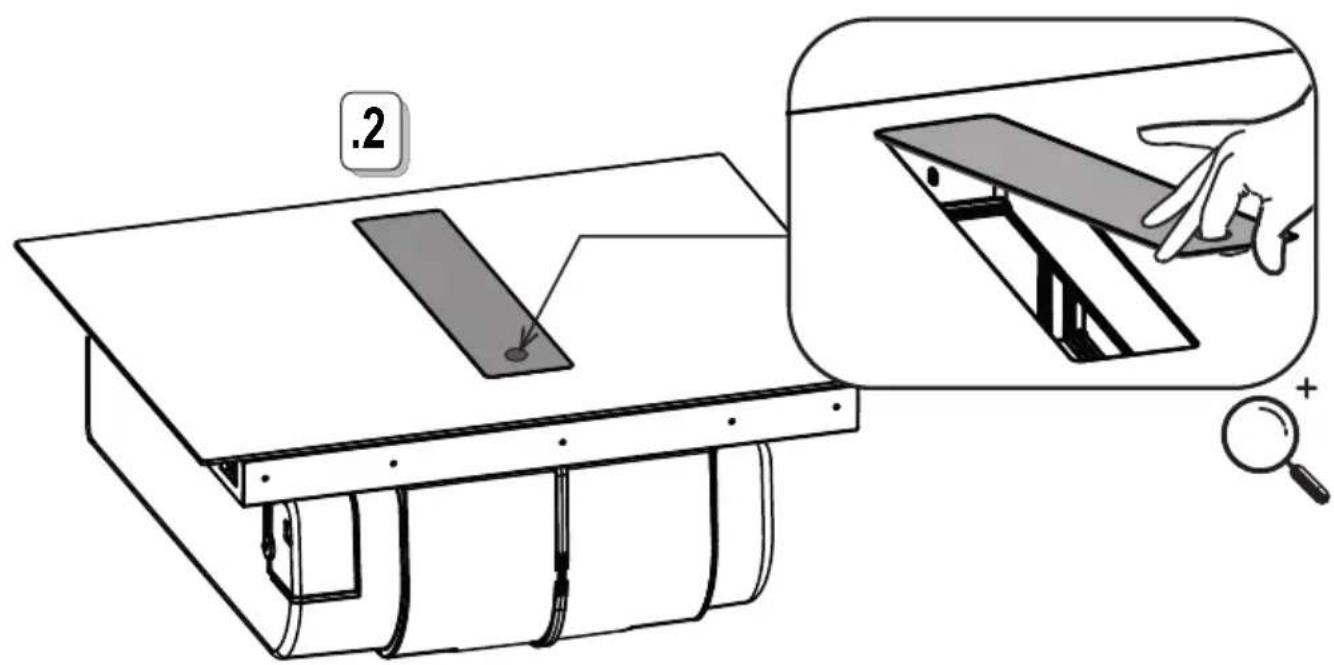

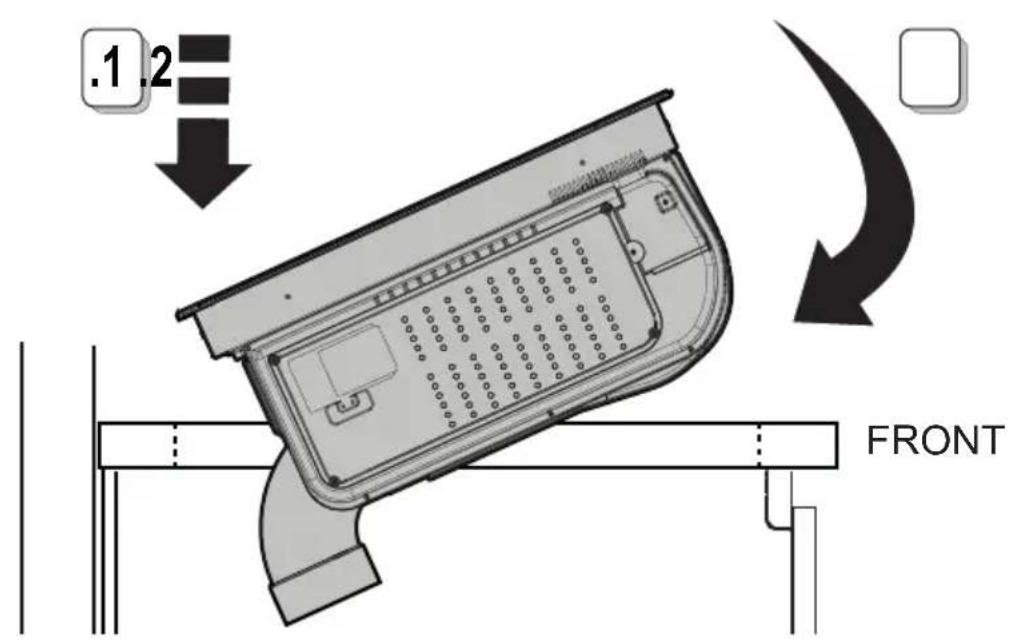

.1 2 FRONT

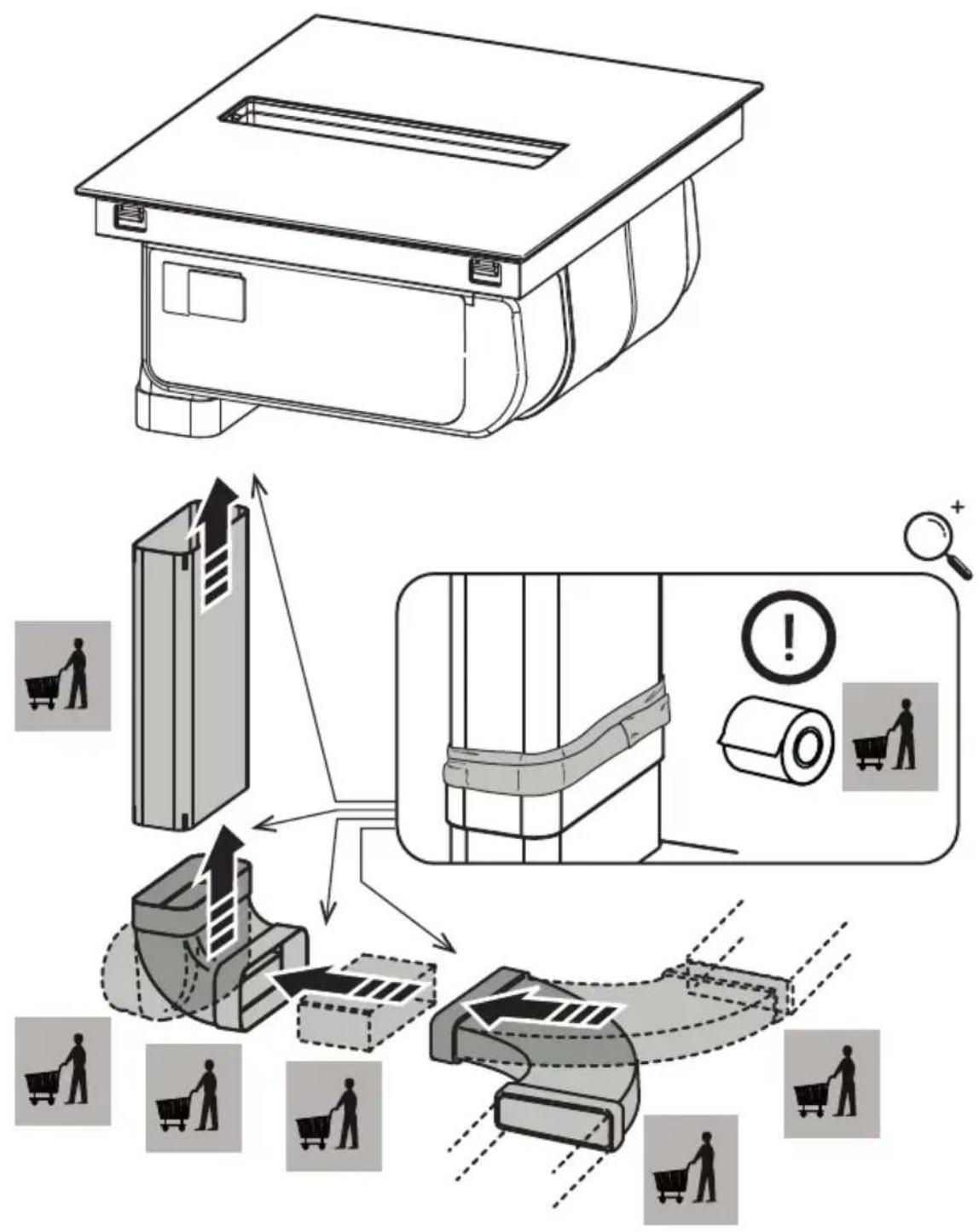

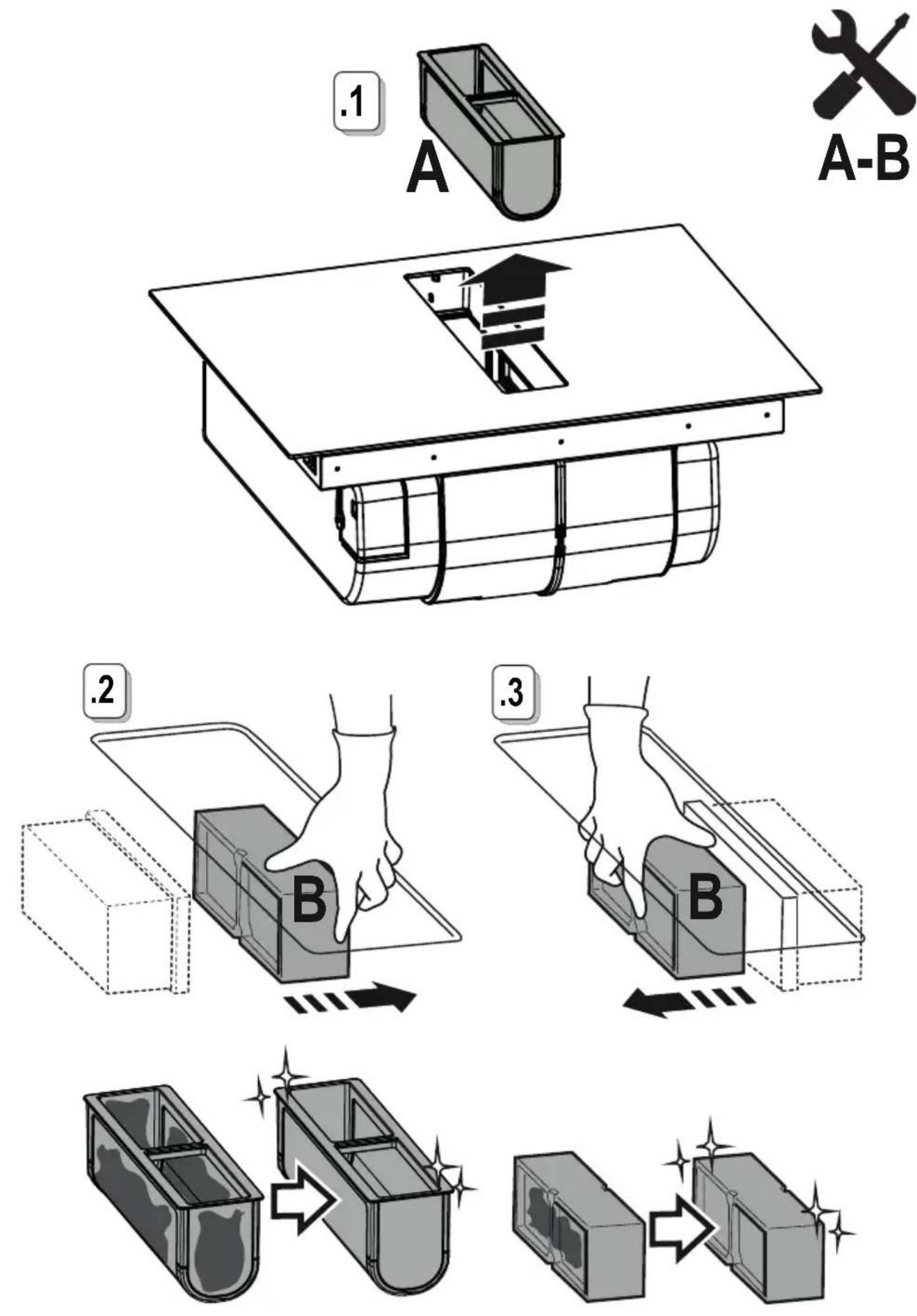

11.1

Diagram illustrating the process of a printer's internal structure and packaging, showing steps from front view to final packaging with icons for shopping and inspection.

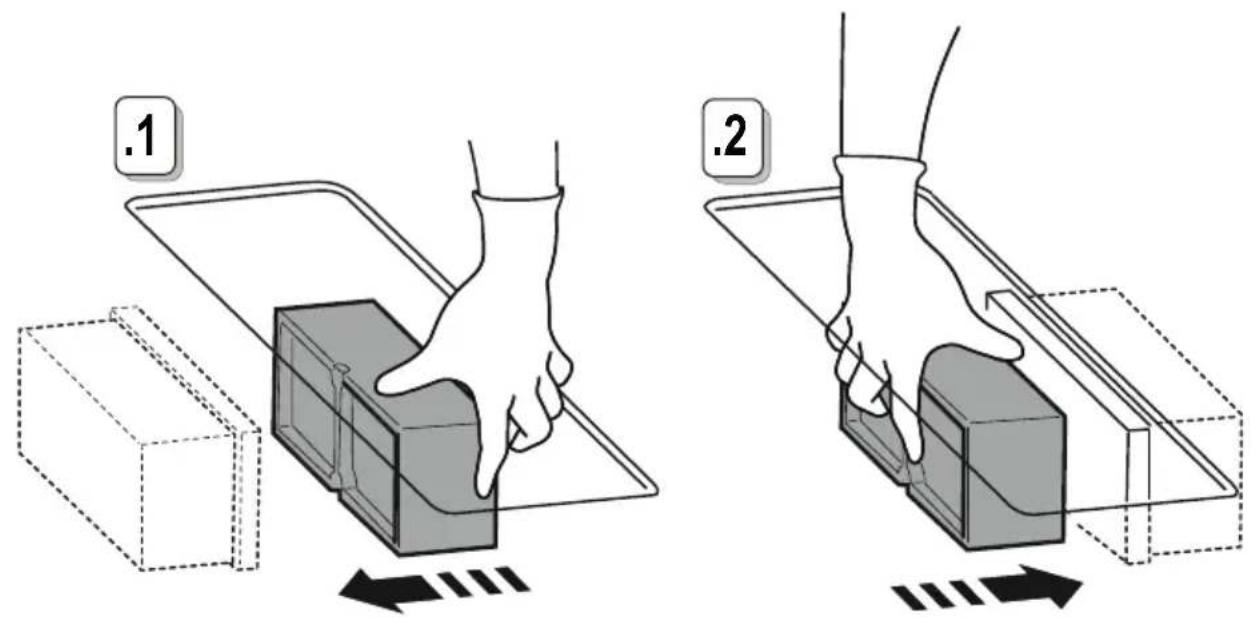

11.2

12.0

Simple 3D illustration of a rectangular box with a side panel, labeled '2x' (no text or symbols on the box itself)

A-B

.1 .2

Technical line drawing of a mechanical assembly with a component mounted on a base plate (no text or symbols)

12.1

1x E

12.2

Diagram illustrating the installation of a door lock mechanism with labeled components and tools

13

Illustration of a battery with a coil, a magnet, and a checkmark above it (no text or symbols)

Illustration of a mechanical device with a cross symbol, no text or labels present

Diagram showing a cooking pot with a checkmark and three upward arrows below indicating pressure or action.

Simple line drawing of a cooking pot with an 'X' symbol above it and two arrows below indicating upward pressure (no text or labels)

Simple line drawing of a cooking pot with a cross symbol above it, no text or labels present.

Simple diagram showing a circular target with a checkmark above it and a smaller circle below, no text or symbols present.

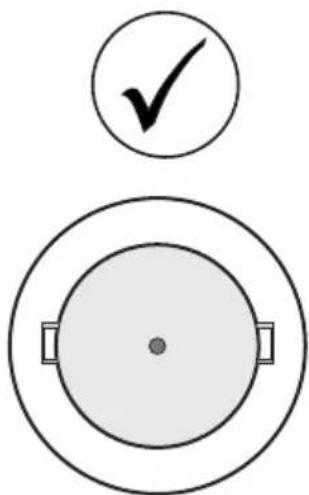

Simple diagram with a checkmark inside a circle and a central dot on the bottom circle (no text or symbols)

- 40 %

IT

SICUREZZA GENERALE

RL FL RR FR

10 9 8 7 5 + + + 8 8 8 - - - 6 2 11 12 6 2 RR RL HOOD 8 8 8 ① (A) 5 1 14 4 FL 2 6 13 8 FILTER FR 2 6

T. Funzione

• Residual Heat Indicator

• Temperature Manager (Warming Function)

Silhouette of a person pushing a shopping cart (no text or symbols)

QR code image containing encoded data, no visible human-readable text

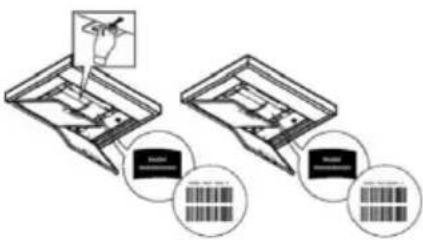

Diagram illustrating a device's internal structure and barcode matching process, with labeled components and annotations.

EN

GENERAL SAFETY

Please note! Pay strict attention to the following instructions: ● The device must be disconnected from the mains before carrying out any installation work. ● Installation or maintenance must be performed by a qualified technician, in compliance with the manufacturer's instructions and local safety regulations. Do not repair or replace any part of the product unless specifically stated in the operating manual. ● By law, the product must be earthed. ● The power cable must be long enough to allow the product, built into the cabinet, to be connected to the mains. ● In order for the installation to comply with current safety regulations, an approved omnipolar switch is required that guarantees complete disconnection from the mains in overvoltage category III, in accordance with the installation rules. ● Do not use power strips or extension cords. ● Once installation is complete, the electrical components must no longer be accessible by the user. ● The product and its accessible parts get hot during use. Be careful not to touch the heating elements. ● Ensure that children do not play with the product; keep children at a safe distance and supervise them as the accessible parts may become very hot during use. ● For people with pacemakers and active implants, it is important to check, prior to using the induction hob, that their pacemaker is compatible with the product. ● Do not touch the heating elements of the product during and after use. ● Avoid contact with kitchen towels or other flammable materials until all components of the product have sufficiently cooled, fire hazard. ● Do not place flammable materials on or near the product. ● Overheated fats and oils easily catch fire. Supervise the cooking of fatty or oily food. ● If the surface is cracked, switch the product off immediately to prevent the risk of an electric shock. ● The product is not intended to be operated with an external timer or a separate remote control system. ● Unattended cooking on a hob with oil or fat can be dangerous and may cause a fire. ● The cooking process must be supervised. A short cooking process must be constantly monitored. ● NEVER attempt to put fires out using water. Instead, turn off the product and smother the flames, for example with a lid or a fire blanket. ● Fire hazard: do not place objects on the cooking surfaces. ● Do not use steam cleaners, risk of electric shock. ● Do not place metal objects, such as knives, forks, spoons or lids on the hob because they could become hot. ● Before connecting the product to the mains: check the rating plate (on the bottom of the product) to ensure that the voltage and power correspond to the mains supply and that the power socket is suitable. If in doubt, consult a qualified electrician.

Important: ● After use, turn off the hob using its control device and do not rely on the pot detector. ● Prevent liquids from boiling over; therefore, turn the heat down when boiling or heating liquids. ● Do not leave the heating elements turned on with empty pots and pans, or without any cookware. ● Switch off the relevant cooking zone when you have finished cooking. ● Never use aluminium foil for cooking and never place products packaged in aluminium directly on the hob. The

aluminium would melt and irreparably damage your product. ● Never heat a tin or can containing foods without opening it first: it might explode! This warning also applies to all other types of hobs. ● High power levels such as the Booster function should not be used to heat certain liquids, such as oil for frying. Excessive heat may be dangerous. In these cases, we recommend the use of a lower power level. ● The cookware must be placed directly on the hob and must be centred. Under no circumstances may any other objects be placed between the pot and the hob. ● If the temperature becomes high, the product automatically decreases the power level of the cooking zones. ● Before doing any cleaning or maintenance work, disconnect the product from the mains by disconnecting the plug or turning off the mains switch. ● For all installation and maintenance operations, always use work gloves. ● The product can be used by children over the age of 8 and by people with reduced physical, sensory or mental capabilities or without experience or the necessary knowledge, as long as they are properly supervised or have been instructed on how to safely use the product and understand the inherent dangers. ● Children must be supervised to ensure they do not play with the product. ● Cleaning and maintenance must never be performed by children unless they are properly supervised. ● The room must be sufficiently ventilated when the product is used at the same time as other appliances that run on gas or other fuels. ● The product must be cleaned frequently both inside and out (AT LEAST ONCE A MONTH); always follow the instructions given in the maintenance manual. ● Failure to comply with the rules for product cleaning and the cleaning/replacement of filters, may create a fire hazard. ● Flambé cooking is strictly prohibited. ● Using a naked flame may damage the filters and cause a fire hazard, and must therefore be avoided under all circumstances. ● Extra care must be taken when frying to prevent the oil from overheating and catching fire. ● Please note! The accessible parts of the device may become hot when the hob is switched on. ● Please note! Do not connect the product to the mains until the installation is complete. ● The regulations laid down by local authorities must be strictly followed with regard to the technical and safety measures to be adopted for fume extraction. ● The extracted air must not be conveyed through the same ducts used to extract the fumes generated by the combustion of gas or other types of fuels. ● Never use the product without the grille properly installed! ● Only use the fastening screws supplied with the product for installation, or if not supplied, purchase the correct type of screws. Use screws of the right length, as indicated in the installation guide. ● When this product is used together with other devices powered with non-electrical energy, the negative pressure of the room must not exceed 4 Pa (4 x 10-5 bar). ● This manual must be stored for future consultation at any time. If sold, transferred or moved, it must remain with the product.

- Range hoods and other cooking fume extractors may adversely affect the safe operation of appliances burning gas or other fuels (including those in other rooms) due to back flow of combustion gases. These gases can potentially result in carbon monoxide poisoning. After installation of a range hood or other cooking

fume extractor, the operation of flued gas appliances should be tested by a competent person to ensure that back flow of combustion gases does not occur. ● During installation, check that the power cord is not damaged risk of fire and electric shocks. Do not use the device with bare feet or if you are not dry. Start the device only once installation is complete. ● Do not use the device if the power cord or plug are damaged, in case of abnormal operation, or if the device is damaged or has fallen. ● If the supplied power cord is damaged, it must be replaced with an identical power cord supplied by the producer, authorised technician, or qualified personnel risk of electric shocks. ● The device must be handled and installed by two or more people – risk of injury. ● Keep children away from the installation area. Once installation is complete, the packaging (plastic, polystyrene parts, etc.) must be kept out of reach of children risk of suffocation. ● Children under the age of 3 must be kept away from the device; children between 3 and 8 years of age can approach the device only if strictly supervised. ● This device is not intended for professional use. Do not use the device outdoors.

Strictly observe the instructions in this manual. All liability is declined for any problems, damage or fires caused by failure to comply with the instructions in this manual. The device is intended for domestic use only, to cook food and extract the fumes generated by cooking. No other use is allowed (e.g. heating rooms). The manufacturer declines any liability for inappropriate use or incorrect control settings.

• Read the instructions carefully: they contain important information on installation, operation and safety.
• Do not make electrical changes to the device.
• Before installing the device, make sure that none of the components are damaged. Otherwise, contact the dealer and do not continue with the installation.
• Check that the device is intact before proceeding with installation. Otherwise, contact the dealer and do not continue with the installation.

INSTALLATION

• The electrical and mechanical installation must be performed by qualified personnel.
• The product is designed to be built into a worktop with a thickness of 2-6 cm in the case of TOP installation; 2.5-6 cm in the case of FLUSH installation.

The minimum distance between the hob and the wall must be at least 5 cm in front, at least 4 cm on the sides and at least 50 cm from overhead wall units.

NB = The recommended distances are given as examples: when planning the spaces, the indications of the kitchen manufacturer must be observed.

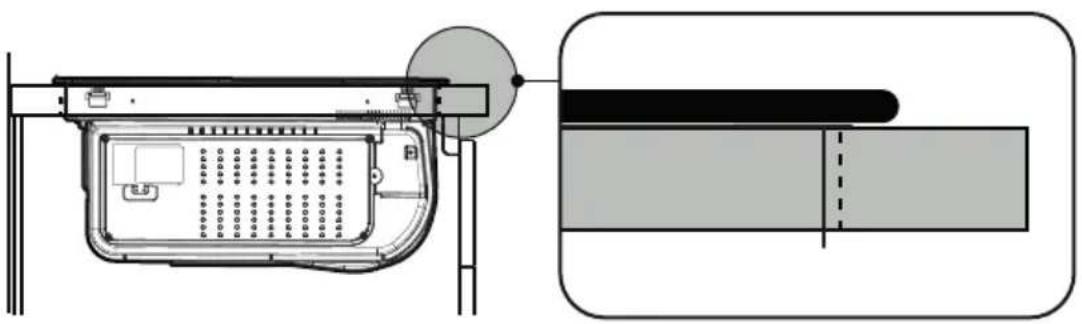

TOP installation: (Fig.7); FLUSH installation: (Fig.8 - 8.1 - 8.2)

- Please note! Failure to install screws and fasteners in accordance with these instructions may result in electrical hazards.

ELECTRICAL CONNECTION

- Disconnect the product from the mains. ● The installation must be carried out by professionally qualified personnel with knowledge of the regulations in force for installation and safety. ● The manufacturer disclaims all liability for persons, animals or property if the guidelines provided in this chapter are not followed. ● The power cable must be long enough to allow removal of the hob from the worktop. ● Check that the voltage on the rating plate on the bottom of the product corresponds to that of the domestic environment where it will be installed. ● Do not use extension cords. ● The earth cable must be 2cm longer than the other cables. ● If the product is not equipped with a power cable, use one with a minimum conductor diameter of 2.5 mm2 for power up to 5500 Watt; for higher power levels, the diameter must be 4 mm2. ● The temperature must not reach 50°C above room temperature anywhere along the cable. ● The product is intended to be permanently connected to the mains, therefore, make the connection to the mains using an approved omnipolar switch that guarantees complete disconnection from the mains in category III overvoltage conditions, and which is readily accessible after the installation.

• Please note! Before reconnecting the circuit to the mains power supply, make sure that it is working correctly, always check that the power cable is correctly installed.
• Please note! The interconnection cable must be replaced by the authorised customer service representative or by a person with similar qualifications. to connect the electrical appliance with the optional single-phase connection, the existing power cord must be removed and replaced with another type of power cord (not supplied) having the following specifications: single-phase connection :cable H05V2V2-F 3G4.

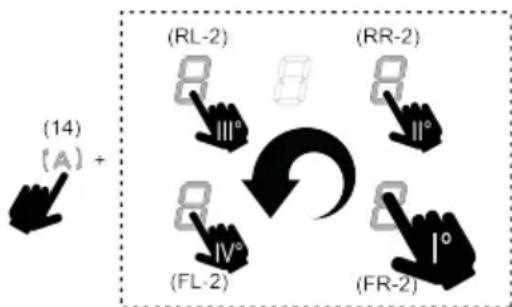

POWER LIMITATION: the product is equipped with a Power Limitation function, which allows a maximum power limit to be set (kw)

The setting must be made when the product is connected to the mains or when the mains power itself is restored (within the following 2 minutes). Size the electrical system protection according to the selected Power Limitation level. For the Power Limitation setting sequence, see the Operation section of this manual.

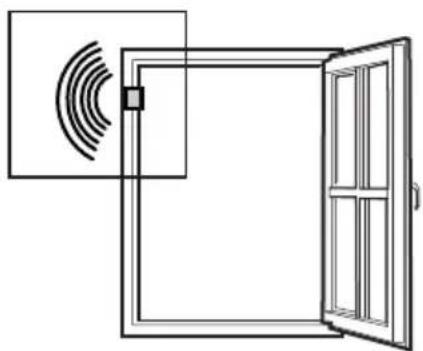

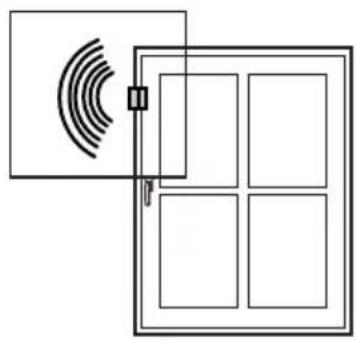

WINDOWS KIT: The product can also be used in conjunction with a Window sensor KIT (not supplied by the manufacturer). If the Window sensor KIT is installed (only if used in DUCT-OUT mode), air extraction will halt every time the window in the room, on which the KIT is applied, is closed. The KIT must be electrically connected to the device by qualified and specialised technical personnel. The KIT must be certified separately in accordance with the safety standards for the component and its use with the device. Installation must be carried out in accordance with current regulations for domestic systems.

PLEASE NOTE: the wiring of the KIT to be connected to the product must be

part of a certified safety extra-low voltage (SELV) circuit. The manufacturer of this device disclaims all liability for any inconvenience, damage or fires caused by defects and/or problems associated with the malfunction and/or incorrect installation of the KIT.

ASSEMBLY

- Before starting the installation: After unpacking the product, check that it has not been damaged during transport and in the case of problems, contact your dealer or Customer Service, before proceeding with the installation; Check that the purchased product is the right size for the installation location; Check for accessories inside the packaging (placed there for ease of transport, such as bags containing screws, the warranty certificate, etc.). Remove and keep them safe; Also check that there is a power socket near the installation area

• Preparing the cabinet for installation:

- The product cannot be installed above cooling appliances, dishwashers, heaters, ovens, washing machines and dryers; Create the cut-outs in the cabinet before inserting the hob and carefully remove shavings or sawdust.

- to optimise the recirculating installation, it is recommended to create a slot in the plinth, in which to insert a commercial grille.

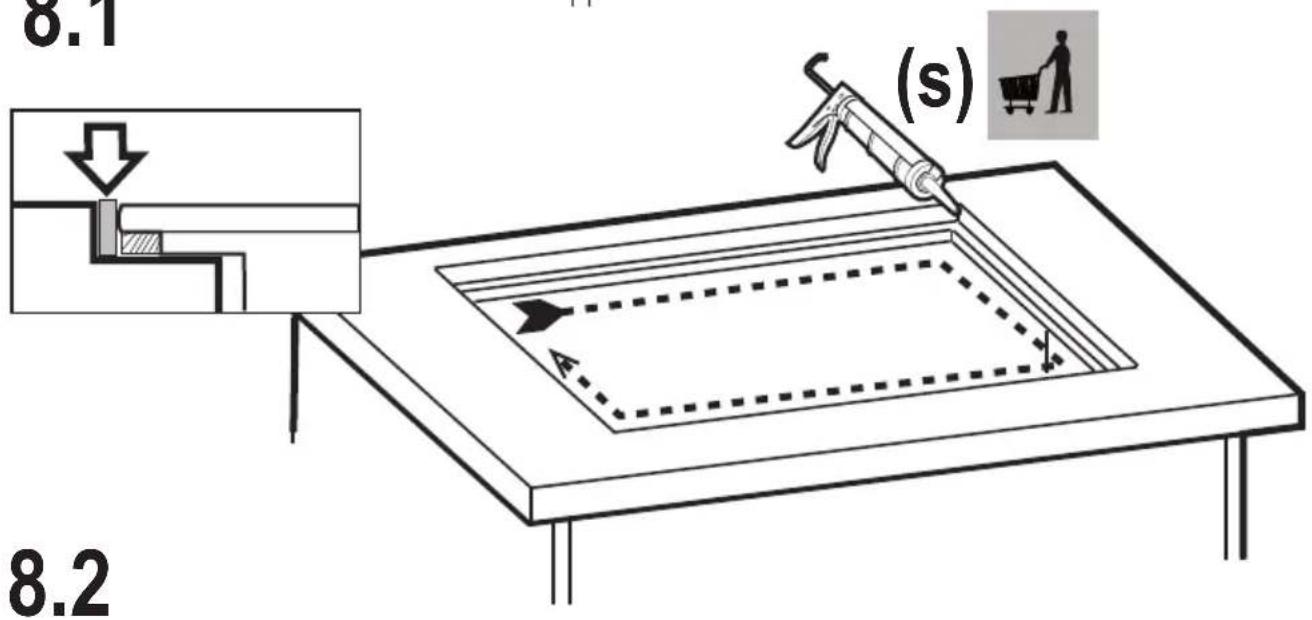

- Important: use a single component adhesive sealant (S) that can withstand high temperatures up to 250^ ; before installation, the surfaces that need to be glued must be thoroughly cleaned, removing all substances that may compromise adhesion (e.g. release agents, preservatives, grease, oils, powders, old adhesive residue, etc.); the adhesive must be evenly spread along the entire perimeter of the frame; after gluing, leave the adhesive to dry for about 24 hours.

The single-component adhesive sealant (S) should only be used in the case of Flush installation, taking care to place it as shown in Fig.8.2.

When installing the gasket (P), take care to position it correctly as shown in the figure:

- TOP installation: the gasket (P) must be attached to the glass Fig.7.

- FLUSH installation - the gasket (P) must be attached to the furniture. Fig.8.

- Note: for correct installation of the product, it is recommended to tape the pipes using an adhesive with the following characteristics: soft elastic PVC film, with acrylic-based adhesive; complies with DIN EN 60454 regulations; flame retardant; excellent resistance against wear; resistant to temperature fluctuations; can be used at low temperatures.

OTHER USEFUL INFORMATION

The device may have different aesthetic features with respect to the illustrations in this handbook, however the operating, maintenance and installation instructions remain the same.

USE

USING THE HOB

The induction cooking system is based on the physical phenomenon of magnetic induction. The main characteristic of this system is the direct transfer of energy from the generator to the pot.

Benefits: When compared to electric hobs, your induction hob is: Safer: lower temperature on the glass surface. Faster: shorter food heating times. More accurate: the hob immediately reacts to your commands. More efficient: 90% of the absorbed energy is transformed into heat. Moreover, once the pot is removed from the hob, heat transmission is immediately interrupted, avoiding unnecessary heat loss.

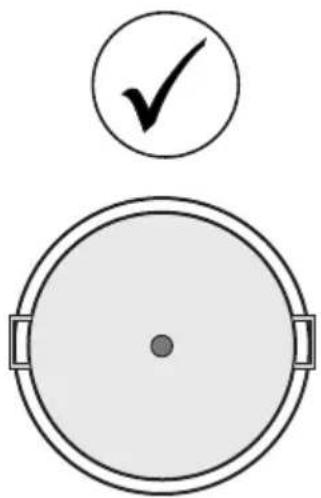

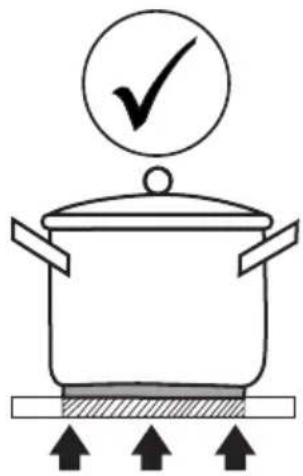

- Recommended pot bottom diameters

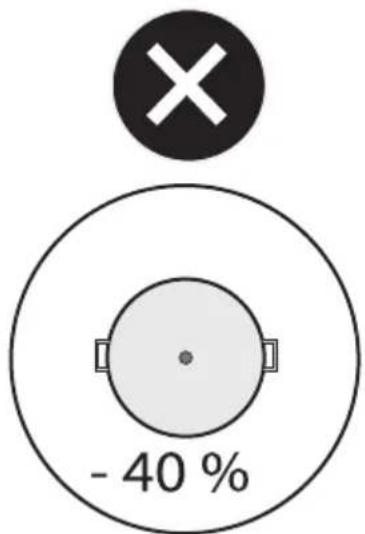

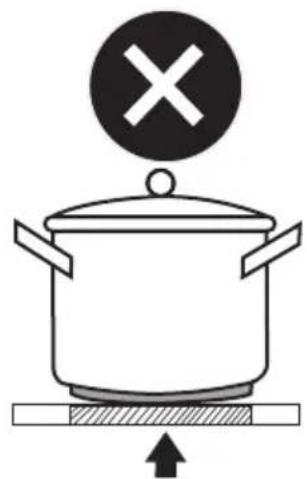

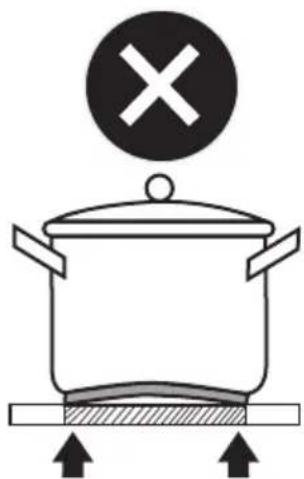

IMPORTANT: if the pots are not of the correct size, the cooking zones will not switch on. To see the minimum pot diameters for each individual zone, consult the illustrated section of this manual.

- Cookware

Important:

Use only pots and pans bearing the symbol

to avoid permanent damage to the hob surface, do not use:

• cookware with a base that is not perfectly flat;
• metal cookware with an enamelled base;
• cookware with a rough base, to avoid scratching the hob surface;
- never place hot pots and pans on the surface of the hob's control panel.

●Pre-existing cookware

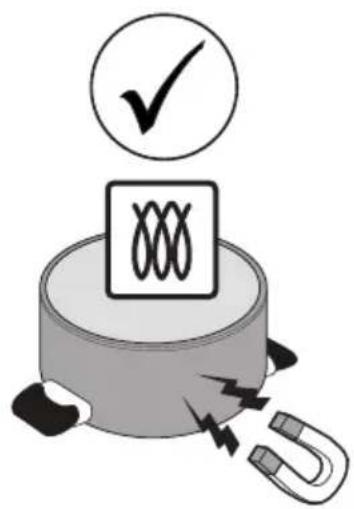

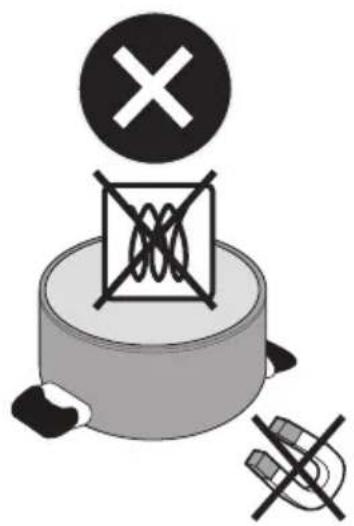

You can check if the pot material is magnetic simply by using a magnet. Pots are not suitable if they are not magnetically detectable. The indications from the previous paragraph also apply here.

USING THE EXTRACTOR FAN

The extraction system can be used in the duct-out version with external evacuation, or in the recirculating version with filtering and internal recirculation.

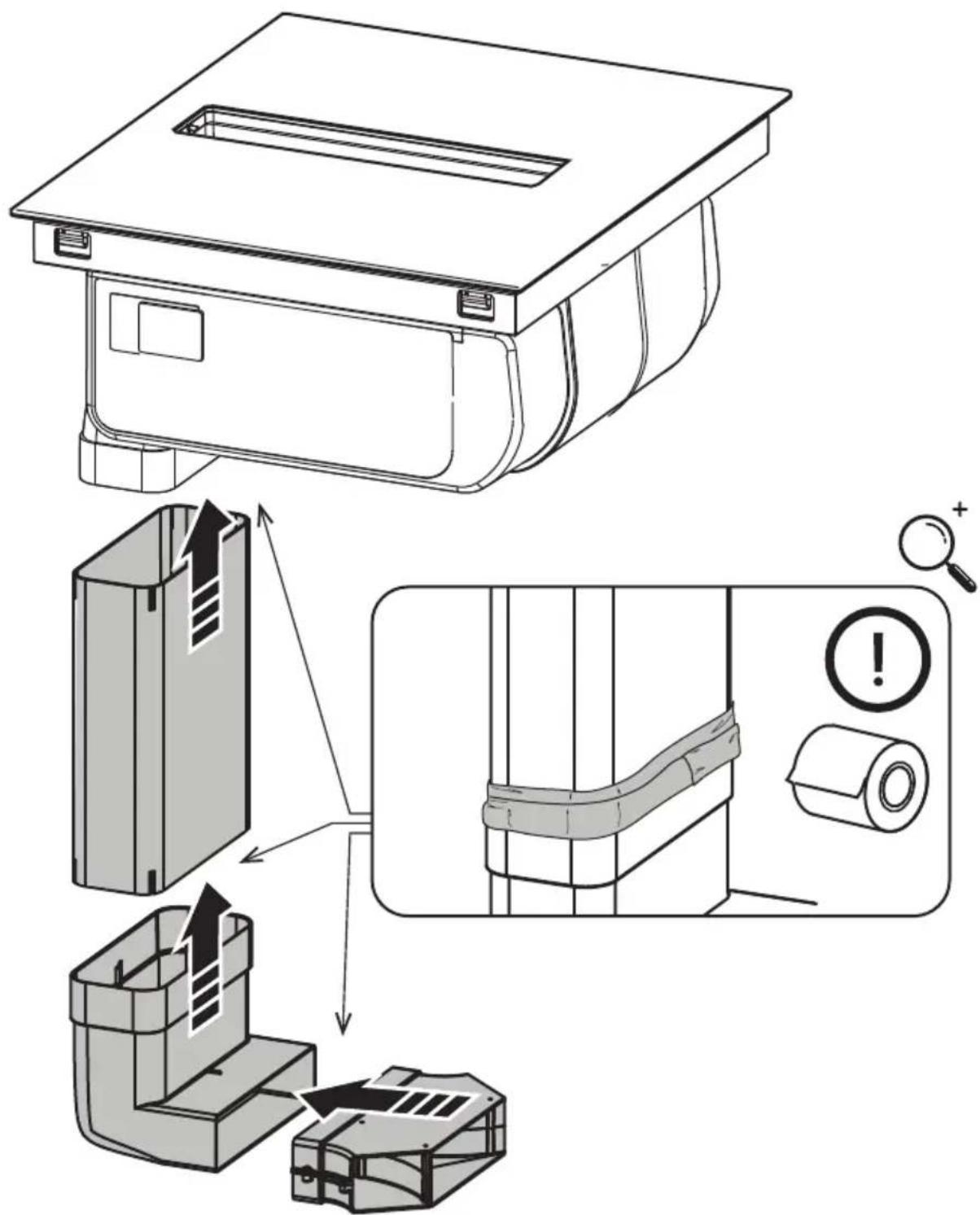

• Recirculating Version:

The extracted air will be filtered in special grease filters and odour filters before being sent back into the room. The product is supplied with all parts necessary for standard installation, with the air outlet positioned in the front part of the plinth. The product is equipped with a set of odour filters. For more information, see the page relating to accessories for the recirculating version (in the illustrated part of this manual).

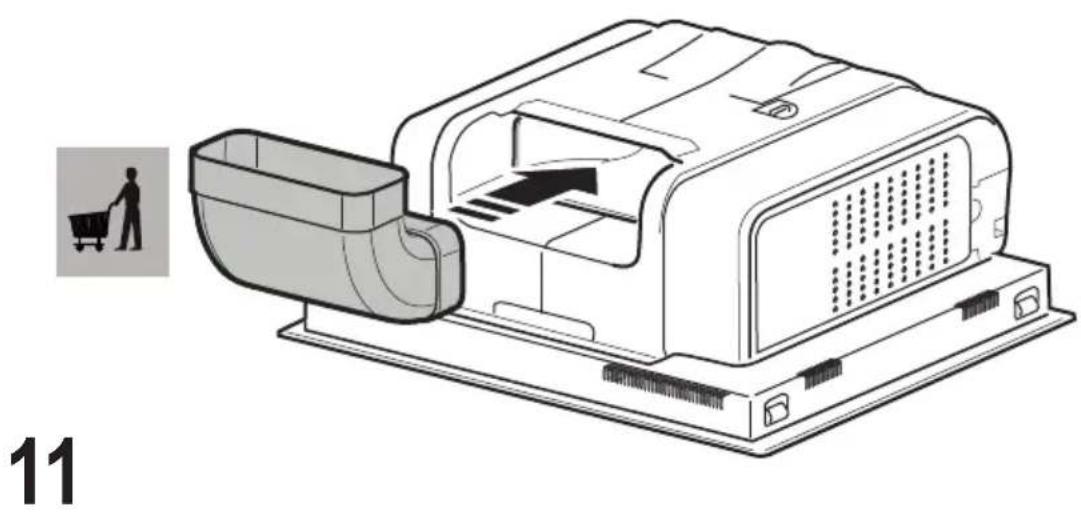

- Duct-Out Version:

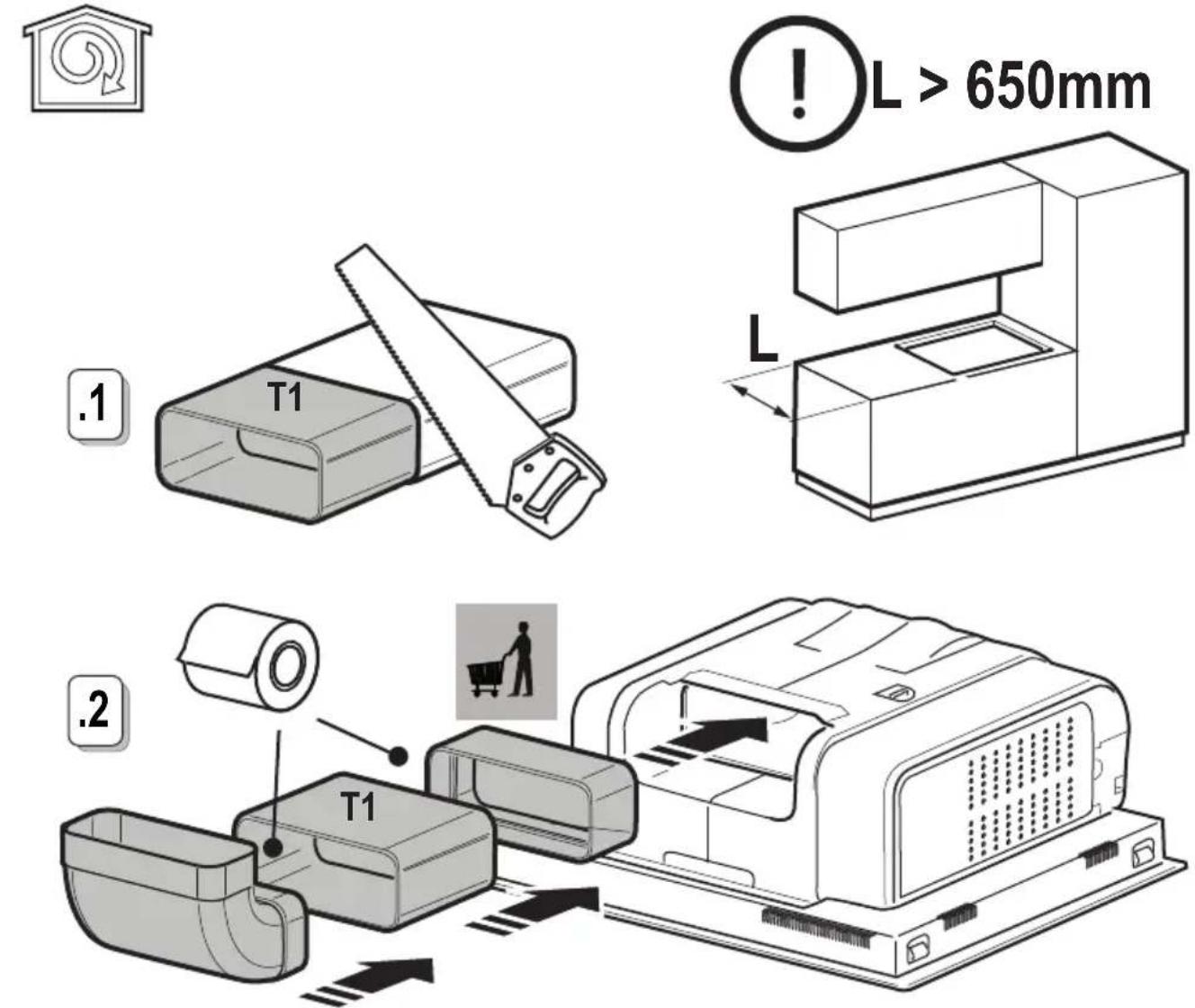

Vapours are exhausted outside via a series of pipes (to be purchased separately). Connect the product to wall-mounted exhaust pipes and holes with a diameter equivalent to the air outlet (connecting flange). For more information on the pipes and their dimensions see the page relating to accessories in the installation manual - Duct-Out version. The use of pipes and outlet holes in the wall with a smaller diameter will reduce the extraction performance and drastically increase the noise level. All responsibility in this regard is therefore denied.

For maximum extraction efficiency: • We recommend a maximum pipe route length of 7 linear metres. • We recommend using no more than two 90° bends along the entire 7 linear metres • Avoid drastic changes in the ducting diameter, seeking to maintain a diameter of ∅ 150 mm (or a rectangular section of 222 x 89 mm).

RECOMMENDATIONS FOR USE

Recommendations for correct use in order to reduce the impact on the environment: When cooking begins, the device should be turned on at minimum speed, and left on for a few minutes even after cooking is complete. Increase the speed only if there is a large quantity of fumes and steam, using the Booster function only in extreme cases. To keep the odour reduction system running efficiently, replace the carbon filter/s when necessary. To ensure the high performance of the grease filter, clean it when necessary. To improve efficiency and minimise noise, use the maximum duct diameter indicated in this manual.

Make good use of the residual heat of your electric hot plate, turning it off a few minutes before cooking is complete. The

base of the pot or pan should cover the entire electric hot plate; use of cookware having a smaller base than the hot plate results in a waste of energy. Cover the pots and pans with perfectly-fitting lids during cooking, and do not use more water than necessary. Cooking without positioning the lid results in much higher energy consumption. Use only flat-bottom pots and pans.

CONTROLS

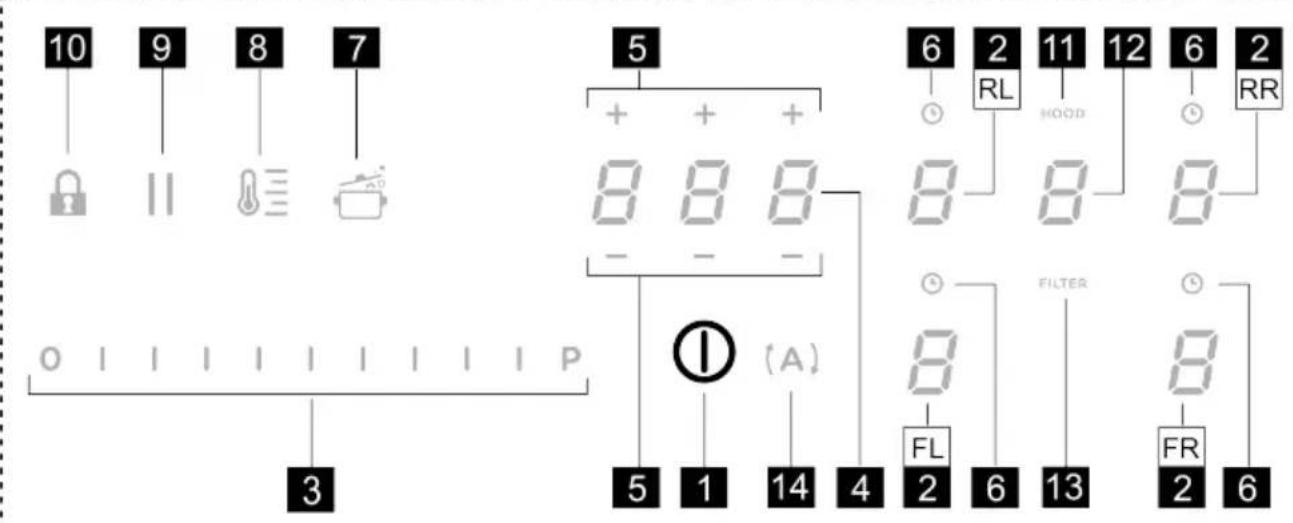

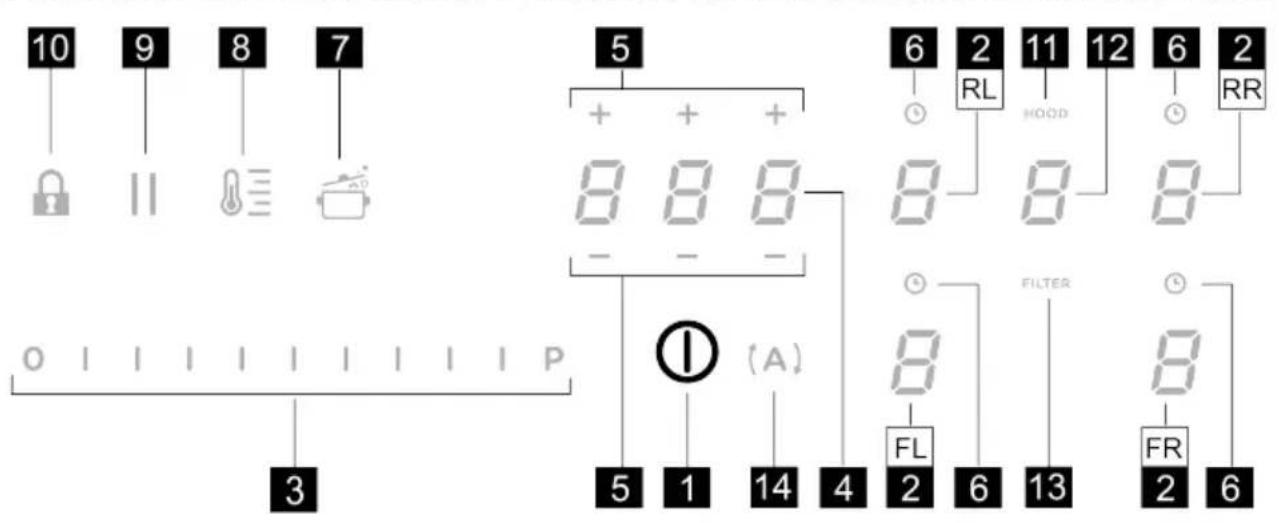

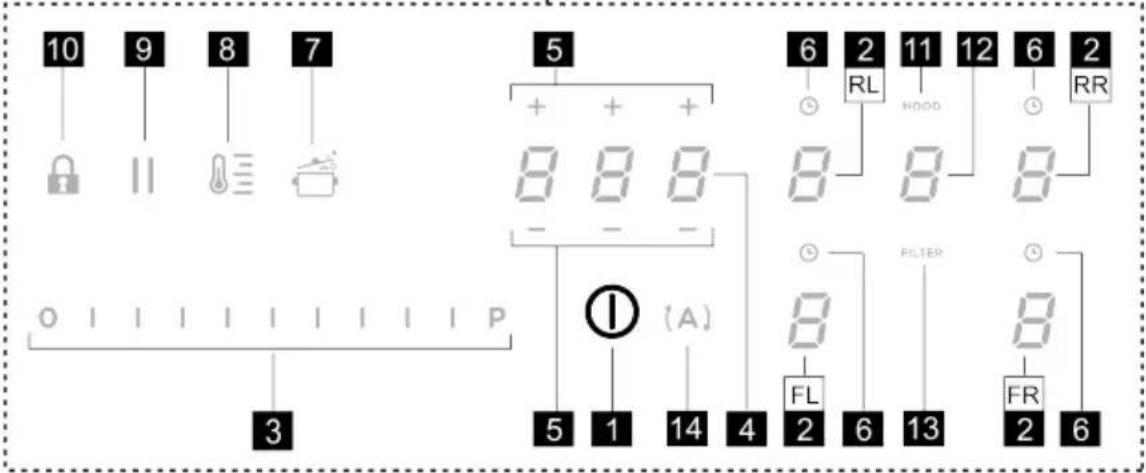

CONTROL PANEL

RL FL RR FR

10 9 8 7 5 6 2 11 12 6 2 RL HOOD RR 0 | | | | | | | | | | P ( A ) 5 1 14 4 FL 2 6 13 FILTER FR 2 6

T. Function
1	ON/OFF of the hob / hob extractor fan
2	Selection of the cooking zones / Cooking zone display
3	Increase/decrease cooking power level and extraction speed (power)
	Display the cooking power level and extraction speed (power)
4	Activate "STAND ALONE" timer
	Display : "STAND ALONE" timer / Cooking Zones Timer.
5	Increase/Decrease "STAND ALONE" Timer time / Cooking Zones timer
6	Activation of Cooking Zones Timer
	Indicator of Cooking Zones Timer active
7	Automatic Heat Up Activation.

8	Temperature Manager activation (Warming Function)
9	Pause
10	Key Lock
11	Indicator Extractor active
	Activation of Filter Saturation Indicator
12	Extractor Selection/Activation
	Extractor Display
	Display of Carbon/ceramic filter - Grease filter saturation
13	Reset Filter Saturation
14	Activation of extractor automatic function

THINGS TO KNOW BEFORE STARTING

All functions of this hob are designed to comply with the most stringent safety regulations. For this reason:

• Some functions will not be activated, or will be automatically deactivated, in the absence of pots on the burners or when they are poorly positioned.
• In other cases the activated functions will be automatically deactivated after a few seconds, if the specific function requires a further setting that has not been selected (e.g.: “Turning the hob on” without “Selecting the cooking zone” and the “Operating temperature”, or the “Lock Function” or the “Timer” function).

Wait for the display to turn off before approaching the cooking zone.

Please note! In the case (for example) of prolonged use, the cooking zone may not immediately shut down because

it is in the cooling phase; the symbol will appear on the cooking zone display to indicate that this phase is under way. Wait for the display to turn off before approaching the cooking zone.

COOKING ZONE DISPLAY

The following is shown on the cooking zone displays:

Function Value
Cooking zone on	0
Power Level	1...9-P
Residual Heat Indicator	H
Pot Detector	Y
Bridge Zone Function active	0
Temperature Manager Function active	0
Pause function	H
Automatic Heat UP function	8

CHARACTERISTICS OF THE HOB

- Safe Activation

The product is activated only in the presence of pots on the cooking zone: the heating process does not start or is interrupted if there are no pots, or if these are removed.

- Pot Detector

The product automatically detects the presence of pots on the cooking zones.

- Safety Shut Down

For safety reasons, each cooking zone has a maximum operating time, which depends on the power level set.

• Residual Heat Indicator

When switching off one or more cooking zones, the residual heat is indicated with a specific visual signal on the display of the corresponding zone by the symbol.

USING THE HOB

Note: Before activating any functions, the desired zone must be activated

• Power-on

Briefly press (touch) Ⓘ ON/OFF (1) hob / extractor fan: the symbol Ⓘ lights up; If you continue to press: all the available functions will become visible for a few seconds, after which only the main ones will remain active; the other ones can be used, and will be activated, later, while using the device.

IMPORTANT: all the available functions will be illuminated with light intensity, which will become more intense only when they are activated.

Press again to turn off

Note: This function has priority over the others.

- Selecting the cooking zones

Briefly press (touch) the Selection/Display (2) area corresponding to the desired cooking zone.

• Power Level

The hob features 9 power levels. Touch and slide your fingers along the Selection bar (3):

to the right to increase the power level;

to the left to decrease the power level.

The power level set will be displayed in the Selection/Display area (2)

- Power Booster

The product features a supplementary power level (after level 3), which remains active for 5 minutes, after which the temperature returns to the previously set value.

Touch and slide your fingers along the Selection bar (3)

(beyond level 9) and activate the Power Booster. The Power Booster level is indicated in the Selection / Display

area (2) with the symbol.

- Cooking Zone Timer

The Cooking Zone Timer function is a countdown that can be set, even simultaneously, on each cooking zone. At the end of the period set, the cooking zones switch off automatically and the user is notified with a dedicated acoustic signal.

Activation of the cooking zone timer function

- Touch (press) the Selection/Display area (2) (power level other than zero)

- Press (6) relating to the cooking zone

- Use the symbols (5) to set the duration of the Timer, which is shown in the Zone/Display (4); while

setting, the symbol (6) flashes.

Note: wait 10 seconds without pressing any other command, so that the Cooking Zone Timer will start.

Note: by pressing and holding (6) again, the cooking zone Timer is reset.

If desired, repeat the operation for several cooking zones:

Each cooking zone can have a different Timer set; in the display (4) the countdown of the cooking zone selected at that moment will appear; if no zone is selected, press the Display (4) to view the STAND-ALONE Timer countdown. When the timer has finished the countdown, an acoustic signal sounds and the cooking zone switches off.

To switch off the Timer:

- select the cooking zone (2)

- set the duration of the Timer to 0.00 using (5). - +

The countdown display mode is the same as for the STAND-ALONE Timer.

- Bridge Zones

Thanks to the Bridge function, the cooking zones can operate in a combined way, creating a single zone with the same power level. This function allows evenly distributed cooking with large-sized pots and pans.

It is possible to use the front cooking zone in combination with the corresponding rear one (to check which zones feature this function, see the illustrated part of this manual).

To activate the Bridge Function:

- simultaneously select both cooking zones you wish to use

- the Display (2) of the "rear" cooking zone will show the symbol

- using the Selection bar (3), it will be possible to set the operating Level (Power), which will be shown on the Display (2) of the "front" zone

To disable the Bridge Function, simply repeat the activation procedure

Note: the Cooking Zone Timer, activated during the Bridge

Function, causes the automatic shut-down of both cooking zones, as in this case they are considered a single combined area.

- Power Limitation

The Power Limitation function allows the product to be used while limiting its maximum absorption, adjusting the absorbed power in all active cooking zones, ensuring that the total absorbed power of the hob does not exceed the set maximum absorption level.

Note: the setting must be made with the hob switched off,

without pressing the ON/OFF (1) button, when the hob is connected to the mains, or reconnected to the mains, within the next 2 minutes.

To set the Power Limitation:

- press (which will flash, only for the first 2 minutes after the product has been switched on)

- while continuing to hold down (A), press, one at a time, all the Selection/Display areas (2) of the cooking zones in a counter-clockwise direction starting from the front left zone (FR); a short acoustic signal will be emitted with each press and when all the Displays (2) have been pressed, it will be possible to release the key:

at this point, the Display (2) of the rear left zone (RL) will

show, in alternating sequence, the symbols and , indicating that the setting can be made.

- select the Display (RL-2) then slide along the Selection

bar (3), until the Display shows the symbols and ; The Display (FL-2) will show the current setting with the values in the table:

Displayed value	Power (Kw)
	7.4 Kw (default setting)
	4.5 Kw
	3.1 Kw

To change the Power Limitation setting:

- press the Display (FL-2) then slide along the Selection bar (3), to

set the new setting. To save the selection made, press the

① ON/OFF (1) button for 2 seconds; an extended audible signal will be emitted to confirm the setting.

• Key Lock

The Key Lock allows you to lock the settings of the hob to prevent accidental tampering with the same, while leaving the set functions enabled.

Activation:

- press (30) Repeat the operation to deactivate.

Note: if any other function is pressed while the Key Lock is

active, the symbol 📄 flash to indicate that the function is in use and must be deactivated if necessary in order to use the hob.

• Automatic Heat UP

The Automatic Heat UP function allows the set power to be reached more quickly; with this function it is possible to cook food faster without the risk of burning it, insofar as the temperature does not exceed the set level. This

function is available for power levels from to . 8

Activation:

- with the cooking zone on, press (7), the Display (2)

will show a flashing , alternating with the power set in the cooking zone.

By increasing the power level of the cooking zone: the Automatic Heat Up function remains active, with the new temperature setting;

By decreasing the power level of the cooking zone: the Automatic Heat Up function is deactivated.

Note: by selecting another cooking zone at the same time,

the symbol (7) will go back to being illuminated with light intensity, and it will be possible to proceed, also for this zone, with the activation of the function; in any case, the function remains active in the zone in which it has already been set, as indicated in the Display (2).

- Pause

The Pause function allows active functions on the hob to be suspended, bringing the cooking power to zero.

Activation:

- press (1), the symbol will flash on the display (2) To deactivate the function:

- press ||(9) the Selection bar (3) will light up - press/slide on the Selection Bar (3) to deactivate the function.

Note: deactivation restores the conditions of the hob before the pause; the hob continues to work with the same settings previously set.

Note: if after 10 minutes, the Pause Function is not deactivated, the hob will turn off automatically.

Note: the Pause Function does not affect the extraction.

- "STAND ALONE" Timer

The Timer function is a countdown independent of the cooking zones (and the extraction zone).

The Timer is activated by pressing the Zone/Display (4). Use the symbols - + (5) to set the duration of the Timer, which is shown in the Zone/Display (4)

Note: wait 10 seconds without pressing any other command, so that the countdown starts.

The Timer can be set up to a maximum of 1(h) and 59(min.) The Zone/Display (4) will show the remaining time; an acoustic signal will be emitted at the end of the countdown.

Note: When the remaining time is less than 10 minutes, a fixed dot will appear in the timer after the first number.

Displayed value	Remaining time
1.35	1h and 35 min
1.35	1min. and 35 sec.

To switch off the Timer:

- select Zone/Display (4)

- set the duration of the Timer to Zero 0.00, using - + (5)

• Temperature Manager (Warming Function)

Temperature Manager is a control function that allows the maintaining of heat at a constant temperature, at an optimised power level; ideal to keep ready-cooked foods warm. The Temperature Manager function is activated the first time the key (8) is pressed.

The symbol appears in the display (2) of the zone that is working in the Temperature Manager

Note: by selecting another cooking zone at the same time, the symbol (8) will go back to being illuminated with light intensity, and it will be possible to proceed, also for this zone, with the activation of the function; in any case, the function remains active in the zone in which it has already been set, as indicated in the Display (2).

- Press (3) again to deactivate and switch off, until the level shown in the Display (2) is brought to

Note: if there are several zones operating in Temperature Manager (Warming Function) mode, select the desired zone first using the Selection zone (2); the function can also be deactivated using the Selection bar (3), by

bringing the Power Level to

USING THE EXTRACTOR

- Switching the extraction system on:

- Switch on the hob as indicated in the "Power-on" chapter on "using the hob";

• Extraction speed (power):

The extractor has 4 speed (power) levels from to, Touch and slide your fingers along the Selection bar (3): to the right to increase the power level, to the left to decrease the power level.

Note: The set power level will be displayed in the Selection/Display area (12)

- Power Booster

The extractor is equipped with 1 additional extraction level called Power Booster; it is timed and it lasts 5 minutes.

To select it, touch and slide your fingers along the

Selection bar (3) (beyond the level); this flashing

symbol will be displayed: i.

Note: after the five minutes, the power will go back to the previously set level.

• Automatic mode

The hood will turn on at the most suitable speed, adapting the extraction capacity to the maximum cooking level used in the cooking zones.

When the cooking zones are switched off, the hood adapts its extraction speed, decreasing it gradually, to eliminate residual vapours and odours.

To activate this function:

Press (14);

Repeat the operation to deactivate.

Note: if, during automatic operation, the speeds from

to are selected using the Selection bar (3), automatic operation is interrupted; if, on the other hand, the Power Booster is selected, automatic operation will resume at the end of the timer and, in the meantime, the symbol (A) keeps flashing.

Note: if the hob automatically shuts down with Automatic mode active, the extractor fan will automatically turn off gradually.

• Filter saturation indicator

The hood indicates when filter maintenance is needed: For the carbon/ceramic odour filters, FILTER (13) lights up For the grease filter, FILTER (13) lights up and flashes

Note: this function is disabled by default (see how to enable it in the paragraph "Activation of filter saturation indicator")

- Reset filter saturation

After performing maintenance on the filters (grease and/or carbon/ceramic) press and hold FILTER (13); it will turn off and the indicator counter will restart.

- Activation of filter saturation indicator

Note: This indicator is normally deactivated.

To activate it, proceed as follows:

• switch on the hob ;
• with the extraction motor and cooking zones off, press the Selection zone (12)
• press and hold HOOD (11) until the Display (12) shows the letters and flashing alternately.

E = carbon/ceramic odour filters; E = grease filters;

CARBON/CERAMIC ODOUR FILTERS

• press the Display (12) when the letter F appears
• press FILTER (13) fixed light.
• press and hold HOOD (11) again to confirm the activation of the carbon/ceramic odour filter.

GREASE FILTER

• press the Display (12) when the letter appears
• press FILTER (13) flashing light.
• press and hold HOOD (11) again to confirm the activation of the grease filter indication.

POWER TABLE

Power level Cooking type Use (based on cooking experience and habits)
Max power	P	Heat quickly	raises the temperature of food in a short space of time to boiling point for water, or to quickly heat cooking liquids
	8.9	Fry - boil	browning, starting cooking, fry frozen products, boil quickly
High power	7.8	Brown - fry - boil - grill	browning, fast rolling boil, cooking and grilling (for brief periods, 5-10 minutes)
	6.7	Brown - cook - stew - fry - grill	browning, slow rolling boil, cooking and grilling (for medium periods, 10-20 minutes), pre-heat accessories
Medium power	4.5	Cook - stew - fry - grill	stewing, light rolling boil, cooking (for long periods), dressing pasta
	3.4	Cooking - simmering - thickening - creaming	longer cooking (rice, sauces, roasts, fish) with accompanying liquids (e.g. water, wine, stock, milk), dressing pasta
	2.3	Cooking - simmering - thickening - creaming	longer cooking (volumes less than one litre: rice, sauces, roasts, fish) with accompanying liquids (e.g. water, wine, stock, milk)
Low power	1.2	Melt - thaw - keep warm - stir	melting butter, gently melting chocolate, defrosting small products
	1	Melt - thaw - keep warm - stir	keeping small portions of just-cooked food warm or maintaining dishes at serving temperature and creaming risot-tos
OFF	0	Support surface	Hob in stand-by or off (possible presence of residual heat from the end of cooking, signalled by H-L-O)

MAINTENANCE

Please note! Before any cleaning or maintenance, make sure the cooking zones are switched off and the heat indicator has turned off.

For product maintenance, see the images at the end of the installation marked by this symbol.

HOB MAINTENANCE

- Cleaning the induction hob

The hob must be cleaned after each use.

Important:

• Do not use abrasive sponges, scouring pads. Their use, over time, may ruin the glass.
• Do not use irritant chemical detergents such as oven sprays or stain removers.
  • DO NOT USE STEAM JET CLEANERS!!!

After each use, leave the hob to cool and clean it to remove deposits and stains caused by food residue. Sugar or food with a high sugar content damage the hob and must be removed immediately. Salt, sugar and sand may scratch the glass surface. Use a soft cloth, paper towel or specific products to clean the hob (follow the Manufacturer's instructions).

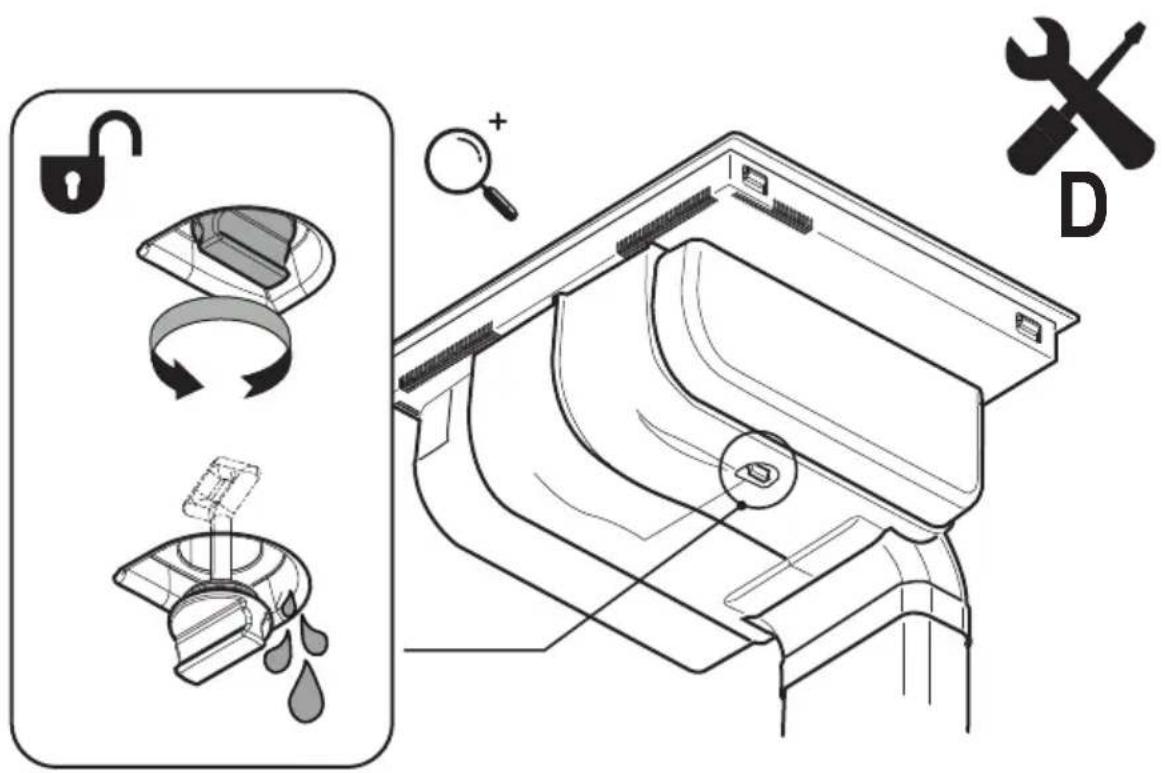

- Cleaning the liquid collection channel :

In the event large quantities of liquids accidentally spill out of the pots, they can be drained using the drain valve on the bottom part of the product so as to eliminate any residue and ensure maximum hygiene levels.

- Cleaning the metal grille:

The grille must be washed by hand with hot water and neutral detergent, then dried thoroughly to prevent oxidation.

For cleaning, use ONLY a cloth moistened with neutral liquid detergents.

DO NOT USE CLEANING UTENSILS OR TOOLS!

Avoid the use of products containing abrasives. DO NOT USE ALCOHOL!

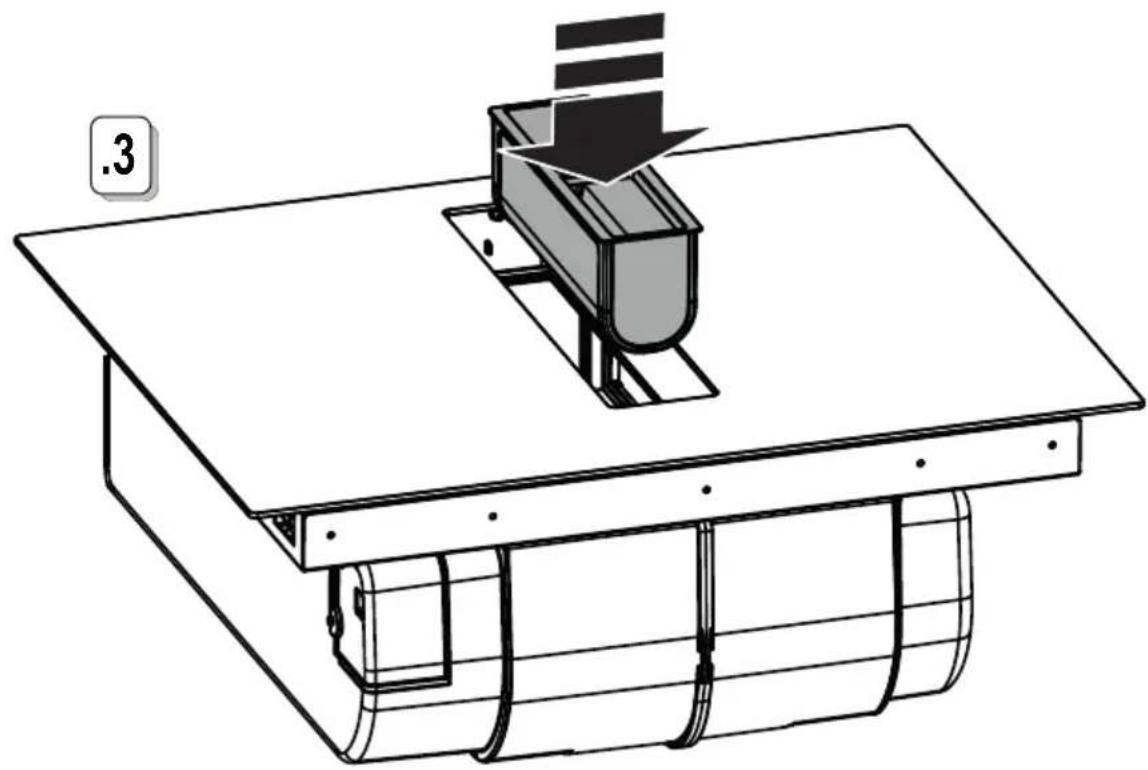

- Grease filter maintenance:

Traps grease particles generated by cooking.

Must be cleaned once a month (or when indicated by the filter saturation indication system), with non-aggressive detergents, either by hand or in the dishwasher at low temperatures and in a short cycle. When cleaned in the dishwasher, the metal grease filter may discolour, but its filtering characteristics remain unchanged.

• Ceramic activated carbon filter maintenance (For Recirculating Version only):

Traps unpleasant odours generated by cooking. The product comes with a set of odour filters.

The saturation of the odour filters can occur after somewhat prolonged use depending on the type of cooking and how regularly the grease filter is cleaned. The odour filters can be thermally regenerated every 2/3 months in an oven preheated to 200^ C for 45 minutes. The correct regeneration of the filter ensures that it can constantly filter efficiently for 5 years.

Please note! Do not place the filters on the floor of the oven but rather in a tray, positioned at an intermediate height.

DISPOSAL

The packaging material is 100% recyclable and is marked by the recycling symbol

Make good use of the residual heat of your electric hot plate, turning it off a few minutes before cooking is complete. The base of the pot or pan should cover the entire electric hot plate; use of cookware having a smaller base than the hot plate results in a waste of energy. Cover the pots and pans with perfectly-fitting lids during cooking, and do not use more water than necessary. Cooking without positioning the lid results in much higher energy consumption. Use only flat-bottom pots and pans.

This device is marked in compliance with the European Directive 2012/19/EC - UK SI 2013 No.3113, Waste Electrical and Electronic Equipment (WEEE).

Make sure that this product is disposed of correctly. The user helps prevent potential negative consequences for the environment and for health. The symbol on the product or accompanying documentation indicates that this product should not be treated as household waste but should be handed over at a suitable collection point for the recycling of electrical and electronic equipment. Dispose of it in accordance with local regulations for waste disposal. For further information about the treatment, recovery and recycling of this product, please contact your local authority, the collection service for household waste or the shop from where the product was purchased.

Device designed, tested and developed in compliance with regulations on:

- Safety: EN/IEC 60335-1; EN/IEC 60335-2-6, EN/IEC 60335-2-31, EN/IEC 62233; • Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; EN/IEC 60704-3; ISO 3741; EN 50564; IEC 62301. EN 60350-2; • EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-3; EN/IEC 61000-3-12.

Declaration of conformity:

This appliance meets the energy label requirements of the European Commission Regulation(EU) N.65/2014 and the Ecodesign requirements of the European Commission Regulation(EU) N.66/2014 in conformity to the European standards IEC 61591 and IEC 60704-2-13. Ecodesign for Energy-Related Products and Energy Information (Amendment) (EU Exit) Regulations 2019, in compliance with the European standard IEC 60350-1.

OPERATING ERRORS

Informative code Description Possible causes Solution
	The command zone switches off due to an excessively high temperature	The temperature inside the electronic parts is too high	Wait for the hob to cool before reusing it
	Container unsuitable Loss of magnetic properties Remove the pot
	Communication problems between the user interface and induction module	No power supply to the module; the power cable has not been connected correctly or it is faulty	Disconnect the hob from the electrical network and check the connection
For all other error signals	Call customer service and report the error code

TECHNICAL SPECIFICATIONS

Height(cm)	Width(cm)	Depth(cm)
25 83 51.5

CE

Silhouette of a person pushing a shopping cart (no text or symbols)

Components not supplied with product

QR code image containing encoded data, no visible human-readable text

To download the safety instructions, user manual, technical data sheet and energy data:

Visit the website docs.whirlpool.eu

Use the QR code

Alternatively, contact Customer Service (using the phone number indicated on the warranty booklet). When contacting Customer Service, communicate the codes on the product rating plate.

Diagram illustrating a barcode scanning process with labeled components and steps

DE

RL FL RR FR

10 9 8 7 5 + + + 8 8 8 - - 6 2 11 12 6 2 RR RL HOOD 8 8 8 ① (A) 5 1 14 4 FL 2 6 13 8 FILTER FR 2 6

T. Funktion

(14) (A) + (RL-2) (RR-2) (FL-2) (FR-2)

Silhouette of a person pushing a shopping cart (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Diagram illustrating a barcode processing workflow with labeled steps and corresponding barcode icons

FR

SÉCURITÉ GÉNÉRALE

RL FL RR FR

10 9 8 7 5 + + + 8 8 8 - - 6 2 11 12 6 2 RR RL HOOD 8 8 8 ① (A) 5 1 14 4 FL 2 6 13 8 FILTER FR 2 6

T. Fonction

• Residual Heat Indicator

• Temperature Manager (Warming Function)

Silhouette of a person pushing a shopping cart (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Diagram illustrating a scanning process with labeled components including barcode and data transfer steps

NL

ALGEMENE VEILIGHEID

RL FL RR FR

10 9 8 7 5 + + + 8 8 8 - - 6 2 11 12 6 2 RR RL HOOD 8 8 8 ① (A) 5 1 14 4 FL 2 6 13 8 FILTER FR 2 6

T. Functie

• Residual Heat Indicator

Silhouette of a person pushing a shopping cart (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Diagram illustrating a device's internal structure and barcode matching process, with labeled components and annotations.

ES

SEGURIDAD GENERAL

RL FL RR FR

10 9 8 7 5 + + + 8 8 8 - - 6 2 11 12 6 2 RR RL HOOD 8 8 8 ① (A) 5 1 14 4 FL 2 6 13 8 FILTER FR 2 6

T. Función

Silhouette of a person pushing a shopping cart (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Diagram illustrating a scanning process with labeled components and barcode indicators

PT

SEGURANÇA GERAL

RL FL RR FR

10 9 8 7 5 + + + 8 8 8 - - - 6 2 11 12 6 2 RR RL HOOD 8 8 8 ① (A) 5 1 14 4 FL 2 6 13 8 FILTER FR 2 6

T. Função

(14) (A) + (RL-2) (RR-2) (RL-2) (RR-2) (RL-2) (RL-2) (RL-2) (RL-2) (RL-2) (RL-2) (RL-2) (RL-2) (RL-2) (RL-2) (RL-2) (RL-2) (RL-2) (RL-2) (RL-2) (RL-2) (RL-2) (RL-2) (RL-2) (RL-2) (RR-2) (RR-2) (RR-2) (RR-2) (RR-2) (RR-2) (RR-2) (RR-2) (RR-2) (RR-2) (RR-2) (RR-2) (RR-2) (RR-2) (RR-2)

• Temperature Manager (Warming Function)

Silhouette of a person pushing a shopping cart (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Visite o website docs.whirlpool.eu

Utilize o código QR

Diagram illustrating a scanning process with labeled components and barcode indicators

CS

OBECNÁ BEZPEČNOST

RL FL RR FR

10 9 8 7 5 6 2 11 12 6 2 RL HOOD RR 0 1 1 14 4 FL FILTER 8 2 6 13 8 FR 2 6 3 (A)

T. Funkce

(14) (A) + (RL-2) (II°) (RR-2) IV° (FL-2) (FR-2)

Silhouette of a person pushing a shopping cart (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Diagram illustrating a barcode processing step with labeled components and corresponding barcode examples.

ET

ÜLDINE OHUTUSTEAVE

RL FL RR FR

10 9 8 7 5 + + + 8 8 8 - - - 6 2 11 12 6 2 RR RL HOOD 8 8 8 ① (A) 5 1 14 4 FL 2 6 13 8 FILTER FR 2 6

T. Funktsioon

Silhouette of a person pushing a shopping cart (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Diagram illustrating a device's internal structure and barcode matching process, with labeled components and annotations.

LT

BENDROJI SAUGA

RL FL RR FR

10 9 8 7 5 + + + 8 8 8 - - 6 2 11 12 6 2 RR RL HOOD 8 8 8 ① (A) 5 1 14 4 FL 2 6 13 8 FILTER FR 2 6

T. Veiksmas

Paspauskite (A) (14);

Silhouette of a person pushing a shopping cart (no text or symbols)

Su gaminiu netiekiami komponentai

QR code image containing encoded data, no visible human-readable text

Diagram illustrating a barcode scanning process with labeled components and steps
