Product type	Speaker with wireless charger
Model	SYMFONISK 805.210.58 (E2122)
Dimensions (approx.)	20.9 × 13.0 × 10.5 cm
Weight (approx.)	1.2 kg
Power supply	Mains 100-240 VAC, 50/60 Hz, max. 2.5 A
USB-C output	USB-C Power Delivery 3.0 (fast charging)
Wireless output	Qi 1.2.4 BPP, frequency 110-148 kHz
Operating temperature	0°C to 40°C
Maximum load on the shelf	3 kg
Main functions	Integrated speaker, Qi wireless charging, simultaneous USB-C charging
Care and cleaning	Wipe with a damp cloth. Do not immerse in water.
Safety	Do not repair yourself. Use only in dry rooms. Keep out of reach of children.
General information	Indoor use only. Complies with FCC and IC standards.

Frequently Asked Questions - SYMFONISK 805.210.58 IKEA

How to charge a device wirelessly?

Place the Qi-compatible device exactly on the + sign on top of the speaker. Charging starts automatically. The LED lights up to indicate charging.

What does the LED indicator mean?

LED on for 3 seconds: power on. LED steady: charging. LED off: charging complete. LED flashing: error (check position or device).

Can I charge a wireless device and a USB device at the same time?

Yes, the speaker allows simultaneous charging of a wireless (Qi) device and a device via the USB-C port.

What type of USB cable to use for fast charging?

Use a USB-C cable compatible with Power Delivery 3.0 to benefit from fast charging. Poor quality cables may reduce speed.

My device heats up during charging, is this normal?

Yes, slight warming is normal during charging. The device cools down once charging is complete.

Which devices are compatible with wireless charging?

All devices compatible with Qi technology (smartphones, earbuds, etc.).

Can I use the speaker without plugging it in?

No, this model only works on mains power. It does not have a built-in battery.

How to clean the speaker?

Unplug it, then wipe with a damp cloth. Never immerse in water.

What to do if the LED flashes?

This indicates an error. Check that the device is properly positioned on the + sign, that the USB cable is not damaged, and that the temperature is within the normal range.

Can I repair the speaker myself?

No, do not open the product. Any repairs must be carried out by a qualified professional to avoid the risk of electric shock.

USER MANUAL SYMFONISK 805.210.58 IKEA

Line drawing of a laptop chassis with an attached cable and connector (no text or symbols)

English

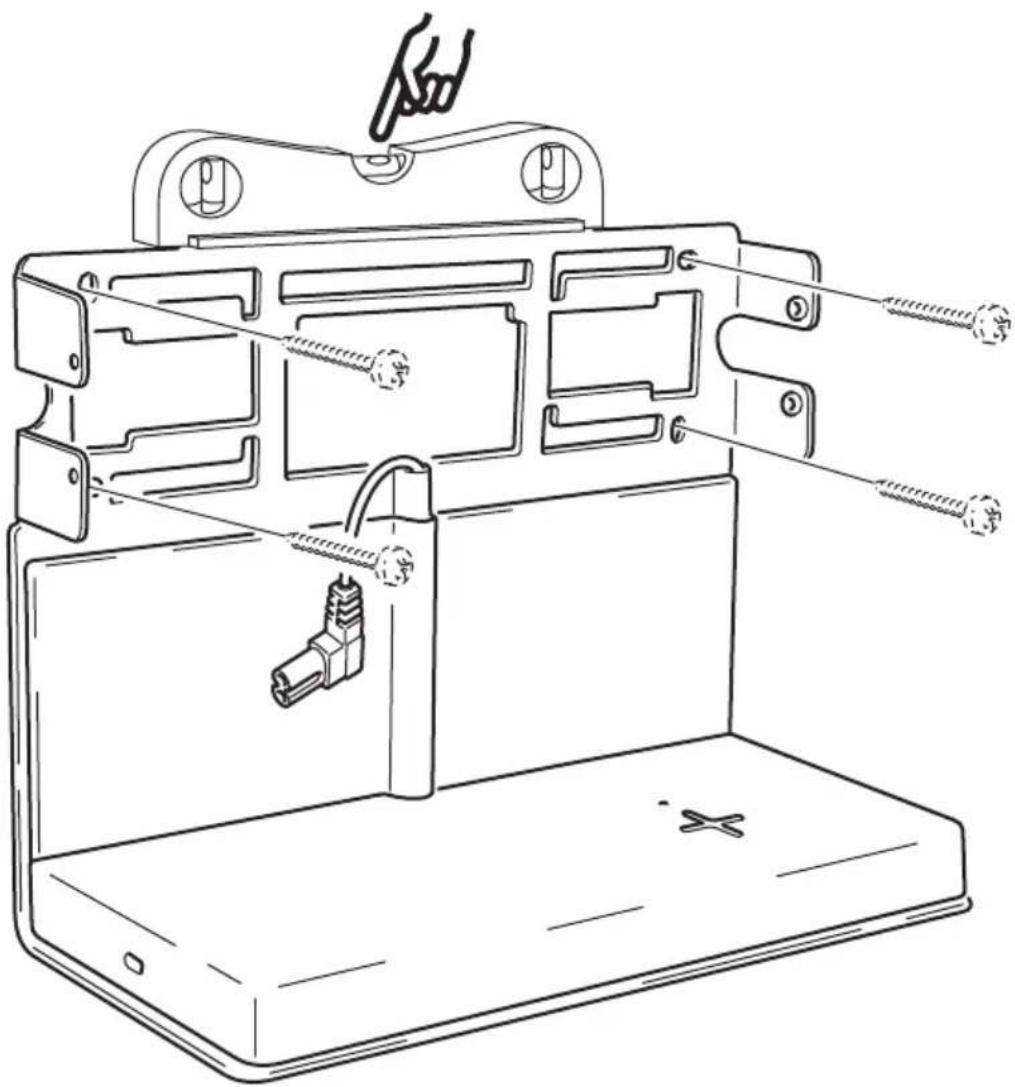

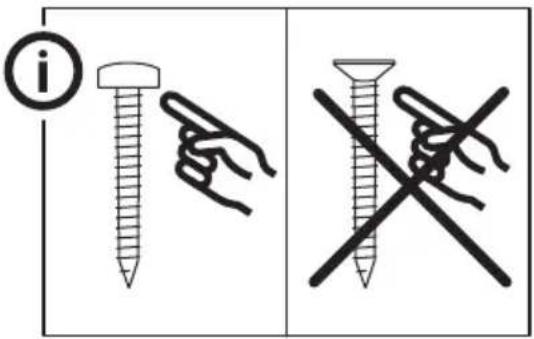

As wall materials vary, screws for fixing to wall are not included. For advice on suitable screw systems, contact your local specialised dealer.

Français

Simple line drawing of a bird figure pointing at a doorbell (no text or symbols)

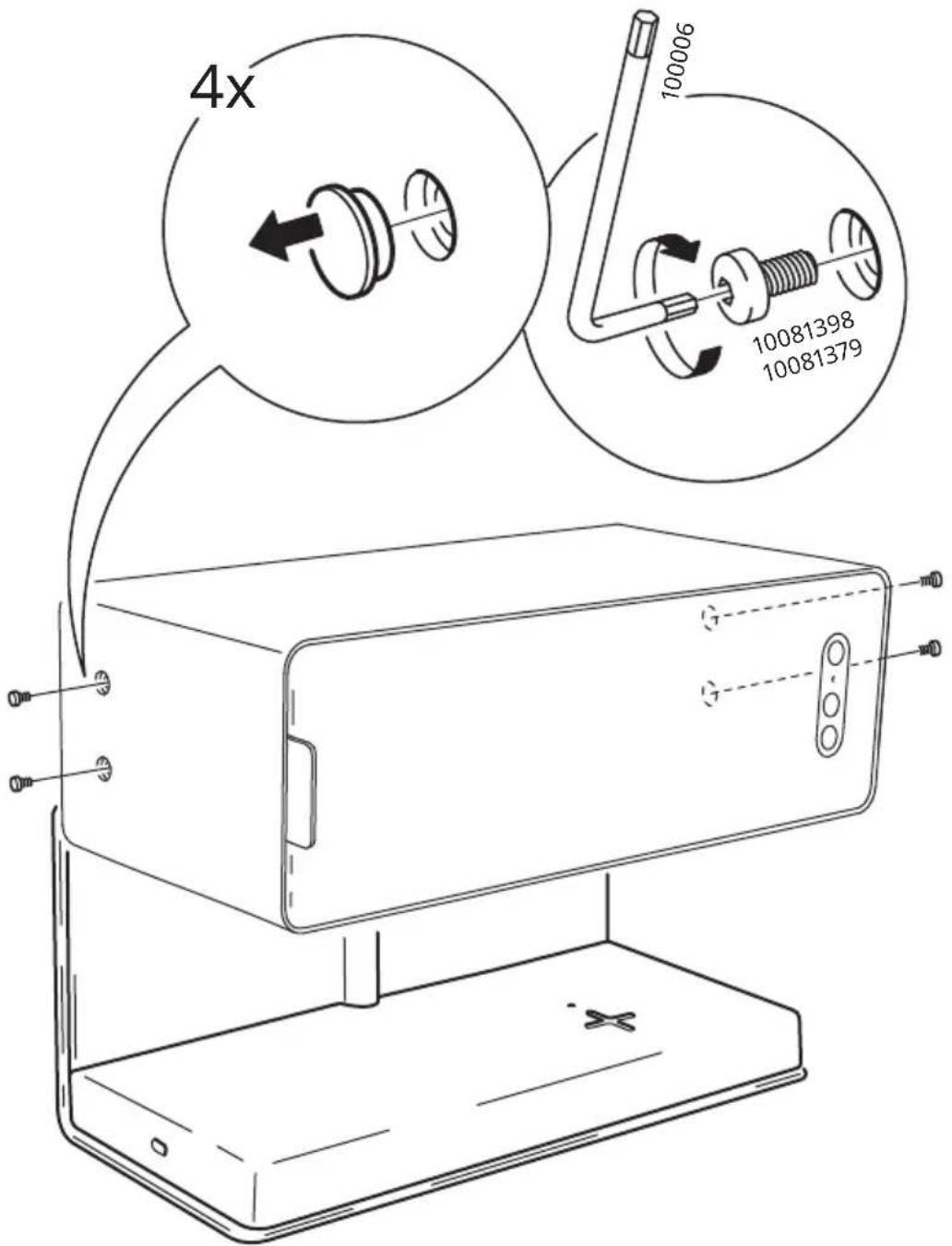

10081398

10081379

4x

Line drawing of a bent pipe or rod with a flanged end, labeled '100006' on the side (no other text or symbols)

1x

1

2

Technical line drawing of a 3D printer with internal components and wiring (no text or symbols)

3

Line drawing of a hand inserting a device into a computer case, showing internal components and cable (no text or symbols)

5

USB-C: 5.0V DC/3.0A 15.0W, 9.0V DC/2.0A 18.0W, 12.0V DC/1.5A 18.0W, 15.0V DC/1.2A 18.0W

English 12

Français 15

Español 18

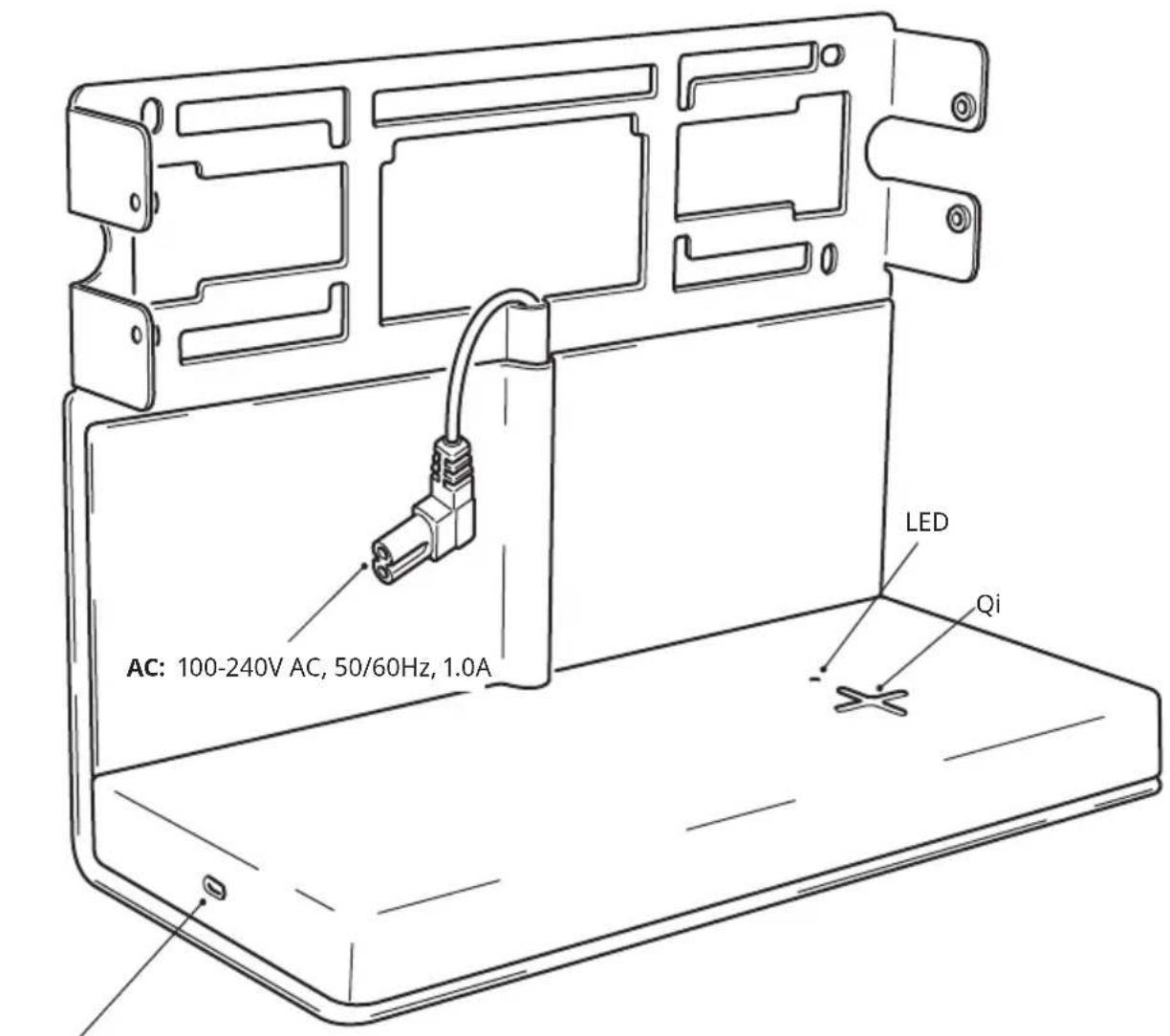

Charger features

• Charges 1 wireless and 1 USB connected device simultaneously.
• USB-C outlet compatible with Power Delivery 3.0 standard (quick-charging).
• Wirelessly charges Qi-certified devices.
  • Certified according to specification Qi 1.2.4 BPP.
• Temperature and power monitor for safety.
• LED status indicator for wireless charging.

Instructions for use

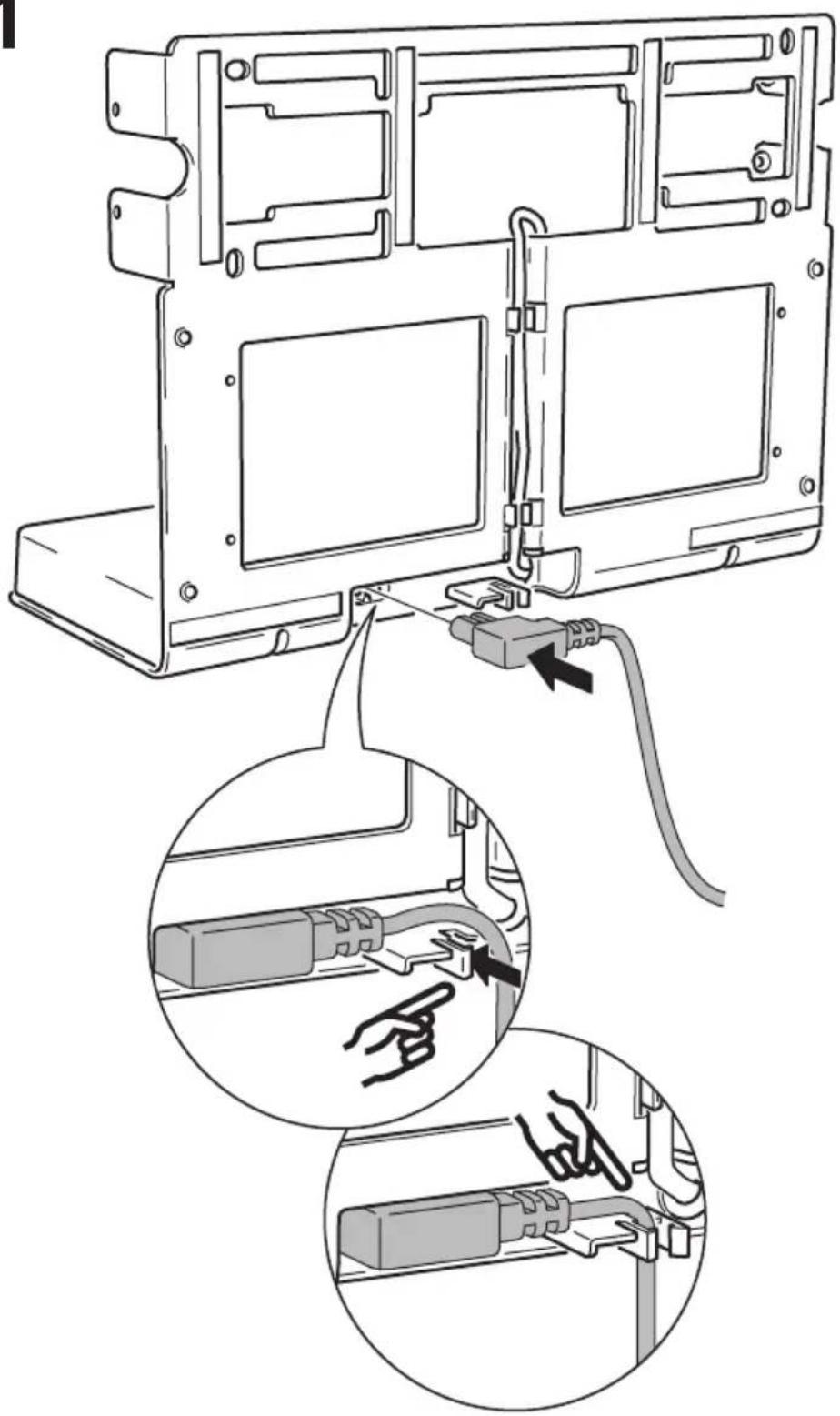

• Plug the power cable into the wall socket.

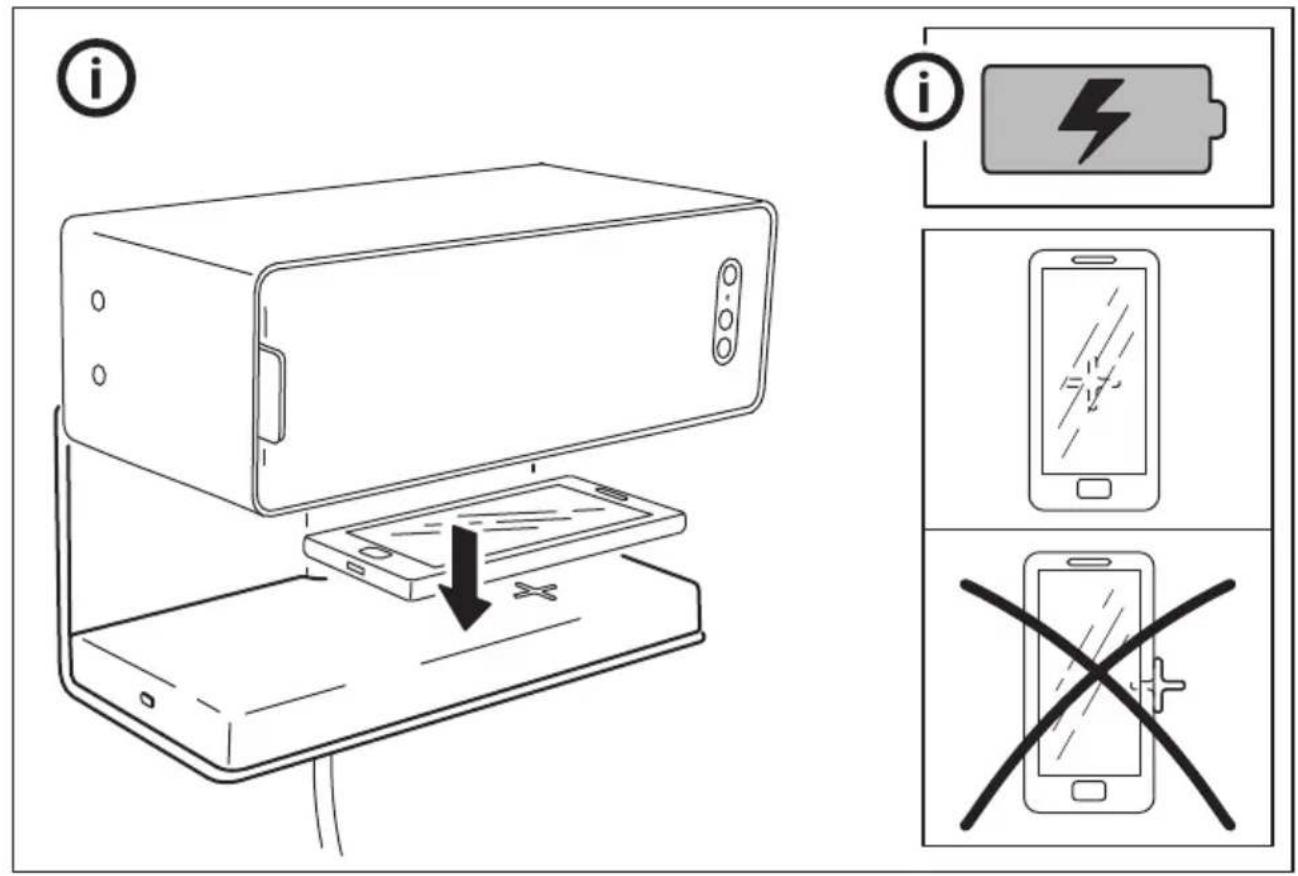

• For wireless charging, place the device to be charged on top of the plus sign (+) on the charger. The device must be placed directly over the plus sign (+) for the charging function to work optimally.
• If your battery is completely discharged, it may take a few minutes before it starts charging.

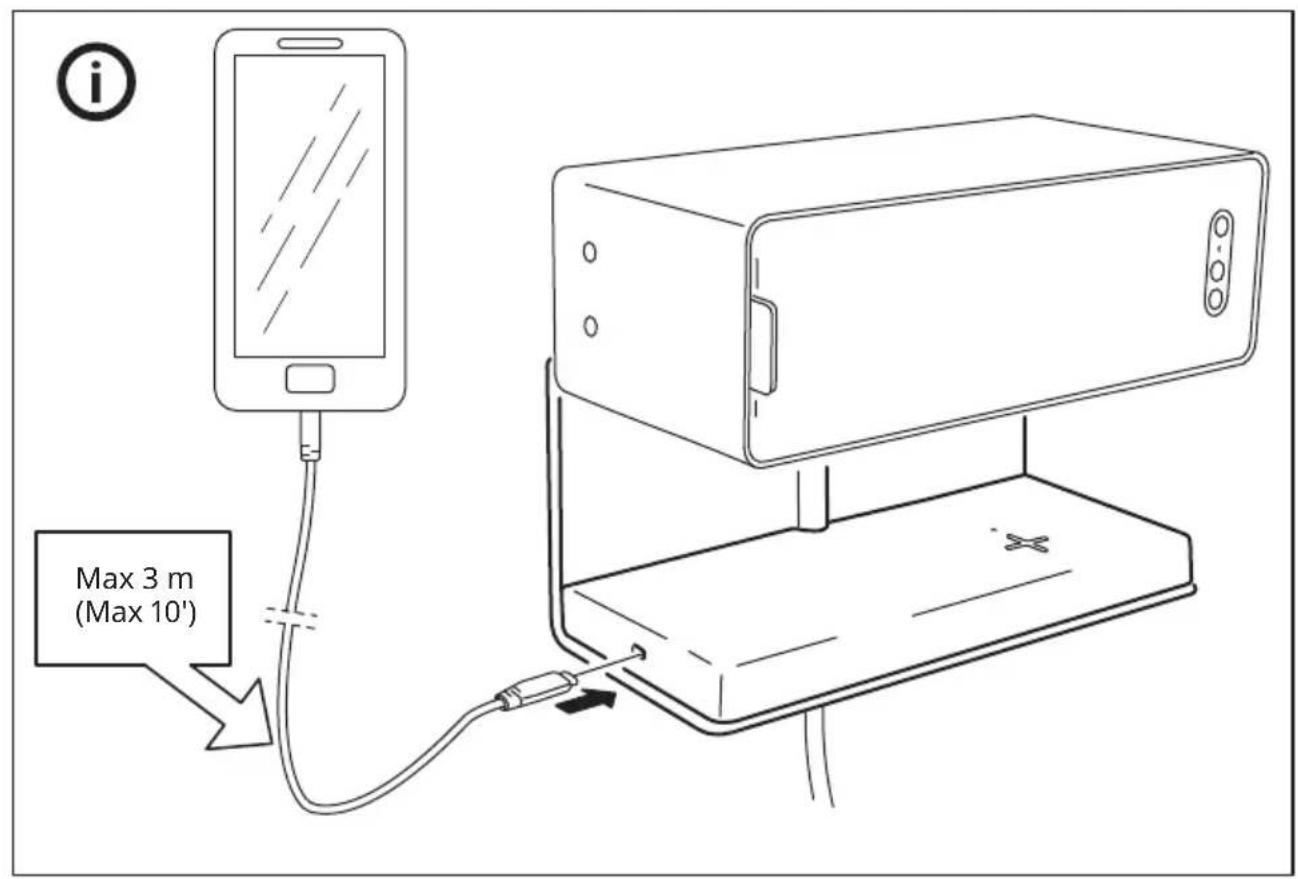

• For USB charging, insert the USB cable in the free slot and the other end in the device you want to charge.
• When charging, only use a recommended USB cable for your device and replace faulty cables immediately.

Wireless charging LED indicator:

Power on: LED lights up for 3 seconds.

Charging: LED on.

Charging completed: LED off.

Error: LED flashes.

Good to know

• Devices may get warm during charging. This is completely normal, and they will gradually cool down again after they are fully charged.
- Charging time may vary based on the device's battery capacity, charge level, the age of the battery and the temperature in the surrounding area.
- Charger operating temperature: 0°C to 40°C (32°F to 104°F).
- USB cable length and quality influences charging speed and performance.
- Unplug the charger from the power source before cleaning and when it is not in use.
- To clean the charger, wipe with a moist cloth. Never submerge the charger in water.

Recommended precautionary measures and technical data, see the back of the charger.

Save these instructions for future use.

WARNING:

• The wall socket must be located near the equipment and must be easily accessible.
• Only use in dry locations.
• Children should be supervised to ensure they do not play with the product.
• Do not subject the devices to wet, moist or excessively dusty environments since this can cause damage to the devices.

• If the device is damaged, it should be disposed of.

• Never use a damage or faulty USB cable for charging, since this can damage the product and your devices.

• Only wirelessly charge devices that are Qi-certified.
  • Maximum load on shelf: 3 kg

Product servicing

Do not attempt to repair this product yourself. If you open or remove parts, you may expose yourself to dangerous voltage points or other risks.

RF EXPOSURE INFORMATION

According to RF exposure regulations, under normal operations the end user shall refrain from being closer than 20 cm from the device.

Technical data

Model: SYMFONISK charging shelf

Type: E2122

Input: 100-240V AC, 50/60Hz, Max 2.5A

Output:

AC: 100-240 V AC, 50/60Hz, 1.0A

USB-C:

5.0V DC/3.0A 15.0W, 9.0V DC/2.0A 18.0W, 12.0V DC/1.5A 18.0W, 15.0V DC/1.2A 18.0W

Qi:

Operating frequency: 110 - 148 kHz

Output power: 0 dBμA /m at 10m

Indoor use only

Manufacturer: IKEA of Sweden AB

Address:

Box 702, SE-343 81 Älmhult, SWEDEN

The 'Qi' symbol is a trademark of the Wireless Power Consortium

This device complies with Part 15 of the FCC Rules.

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation Science and Economic Development Canada's licence-exempt RSS standard(s).

Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation of the device.

WARNING:

Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.
