VAPPEBY 905.173.67 - Speakers IKEA - Free user manual and instructions

Brand	IKEA
Model	VAPPEBY 905.173.67
Product type	Bluetooth speaker
Dimensions (without handle)	199 × 199 × 80 mm
Weight (without battery)	1.5 kg
Power supply	100-240 V AC, 50-60 Hz
Standby power consumption	< 0.2 W
Maximum power consumption	36.0 W
Operating temperature	0 °C to 40 °C
Operating humidity	0 to 95% RH
Bluetooth version	V 5.0
Bluetooth range (open field)	Approx 10 m
Battery (sold separately)	IKEA ENEBY, battery life ~25 h at 50% volume
Auto-off	20 minutes (on/off)
Main functions	Bluetooth, Spotify Tap, 3.5 mm audio input, stereo pairing
Cleaning and maintenance	Damp cloth, avoid abrasive solvents
Safety	Do not open, avoid heat sources, 5 mm ventilation
Repair	Do not repair yourself, contact a professional
General information	Indoor use only, temperature 0-40°C

Frequently Asked Questions - VAPPEBY 905.173.67 IKEA

How to pair my phone with the VAPPEBY speaker?

Turn on the speaker by pressing and holding the ON/OFF button. The LED indicator flashes white. On your phone, enable Bluetooth and select VAPPEBY 20 gen3. The LED turns solid white when pairing is successful.

How to reset the speaker to factory settings?

Press and hold the volume control button (5) for 5 seconds. A confirmation sound is heard and the speaker returns to factory settings.

Can I use a rechargeable battery?

Yes, an IKEA ENEBY battery (sold separately) can be inserted into the compartment (6). It recharges automatically when the speaker is plugged in and turned on.

How to create stereo sound with two VAPPEBY speakers?

Reset both speakers (factory settings). Once in pairing mode (LED flashing rapidly), press the Bluetooth button (4) on the main speaker twice. The LED flashes slowly, a sound confirms pairing. Then connect your device to the main speaker.

How to use Spotify Tap?

Make sure your device is paired and the Spotify app is open (first use). Briefly press the power button (3) to resume playback or change music. The LED flashes twice to confirm.

What to do if the speaker does not connect via Bluetooth?

Check that no cable is plugged into the AUDIO IN jack (disables Bluetooth). Confirm your device supports Bluetooth and is paired to VAPPEBY 20 gen3. Move other Bluetooth devices away.

How to adjust the volume?

Turn the volume control button (5) left to decrease, right to increase.

What does the solid red LED mean?

The solid red LED indicates the speaker is charging (when turned off). Flashing red signals low battery.

How to clean the speaker?

Use a soft, damp cloth. Never use abrasive products or chemical solvents. Do not immerse the speaker in water.

Does the speaker heat up normally?

Yes, it is normal for the charger to heat up during charging. Make sure to leave 5 mm space around the product for ventilation and avoid placing it near heat sources.

USER MANUAL VAPPEBY 905.173.67 IKEA

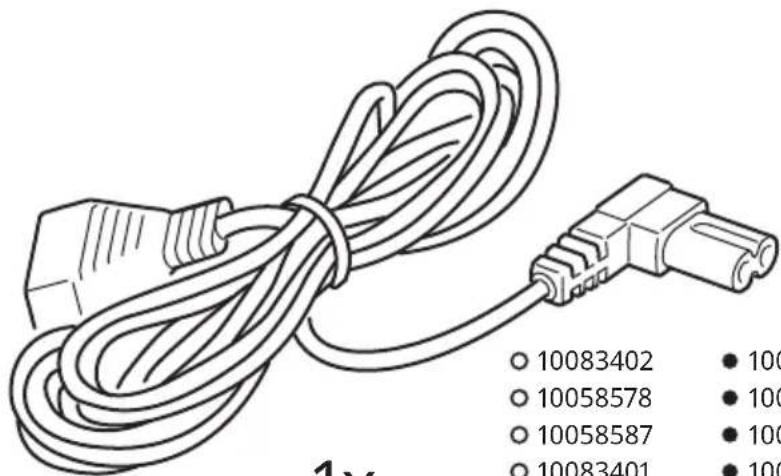

1x

1x

○ 10083402 10058578 ○ 10058587 ○ 10083401 ○ 10058580 ○ 10058579 ○ 10058576 ○ 10058589 ○ 10084045

10083399 10058573 10058582 10083398 10058574 10058583 10058575 10058577 10084044

i

i

i

English 10 Eesti 80 Deutsch 15 Lietuvių 90 Français 20 Portugues 95 Nederlands 25 Româna 100 Dansk 30 Slovensky 105 Íslenska 35 Български 110 Norsk 40 Hrvatski 115 Suomi 45 Ελληνικά 120 Svenska 50 Українська 130 Česky 55 Srpski 135 Español 60 Slovenščina 140 Italiano 65 Türkçe 145 Magyar 70 عربي 150 Polski 75

English

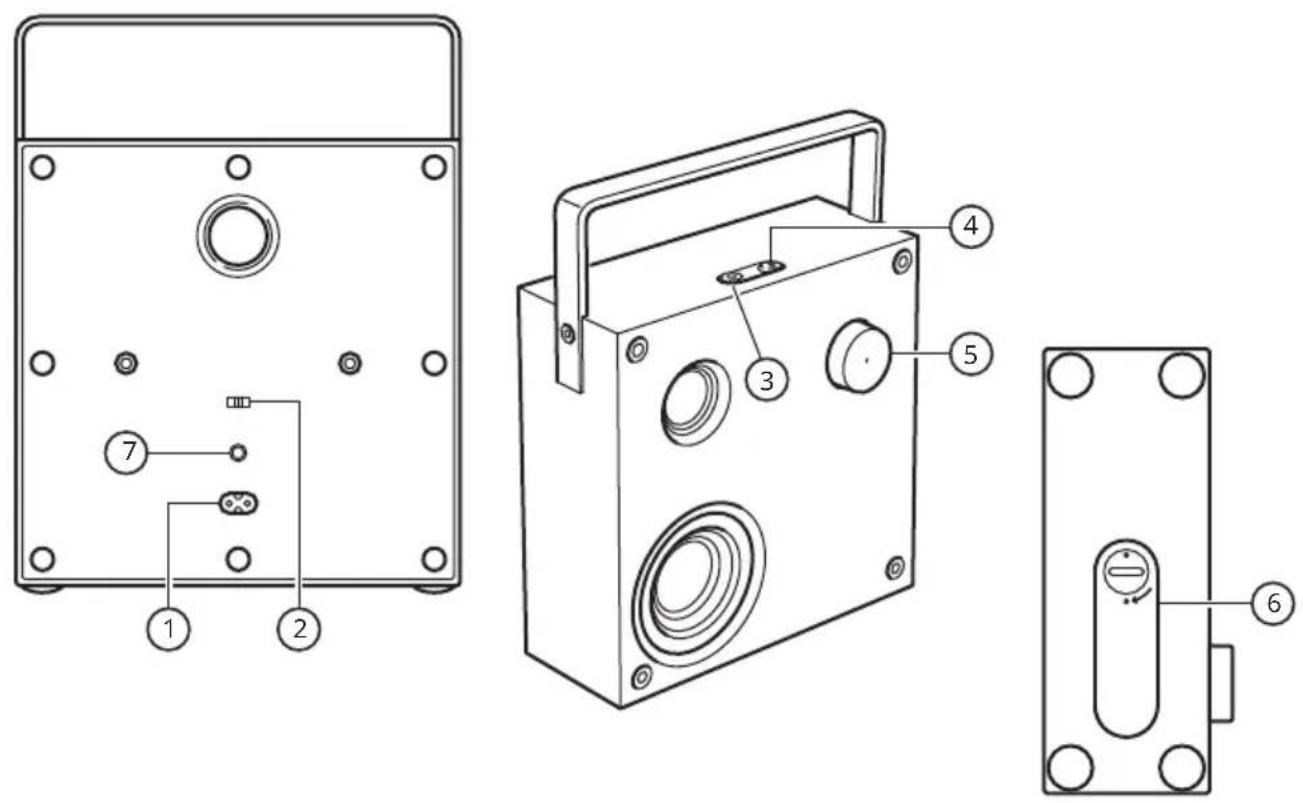

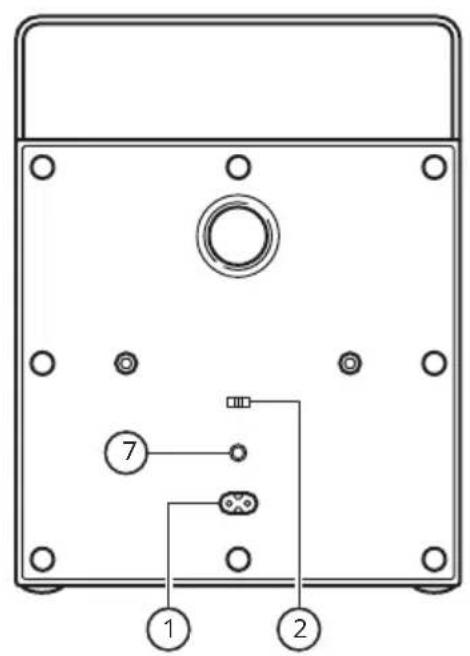

1. AC IN connector.
2. Enable/disable auto-off switch.

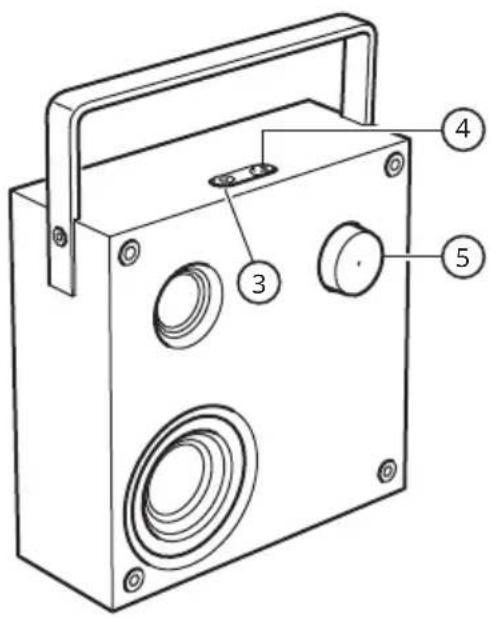

3. Power button and Spotify Tap.
4. Bluetooth pairing button.
5. Volume control and LED status light.
6. Battery compartment lid (battery sold separately).
7. AUDIO IN connector.

LED status (5)

Flashing white: Bluetooth is pairing.

Steady white: Paired to a device.

Flashing red: Low battery.

Steady red: Charging (when speaker is off).

Getting started:

1. Connect mains cord into AC IN (1) connector.

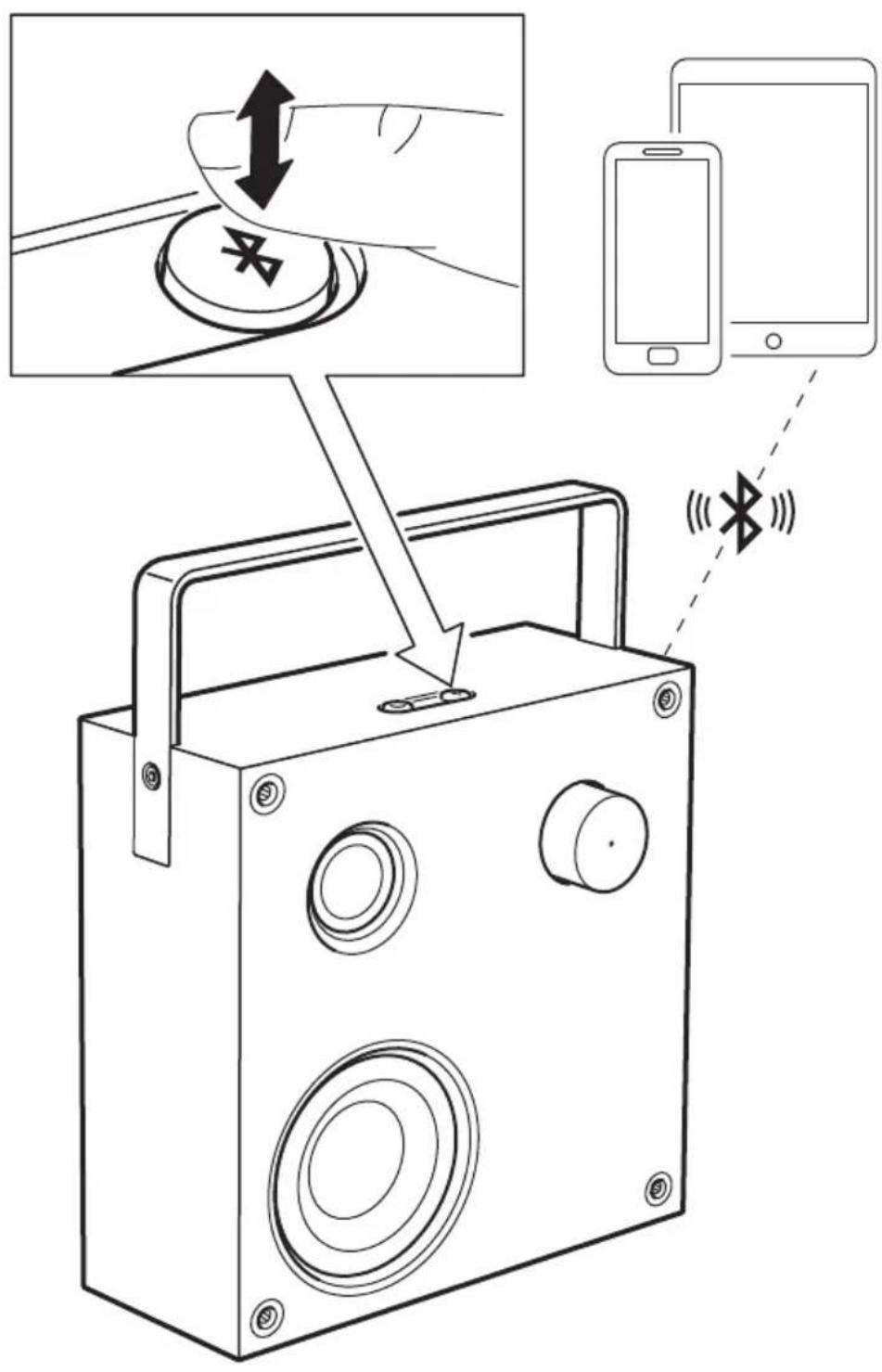

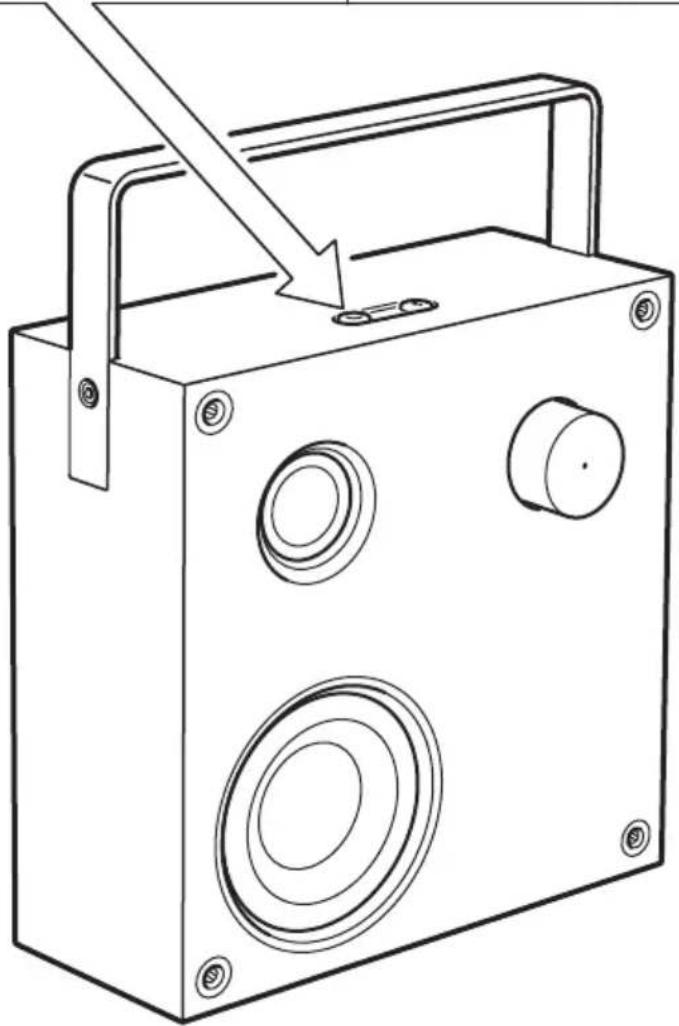

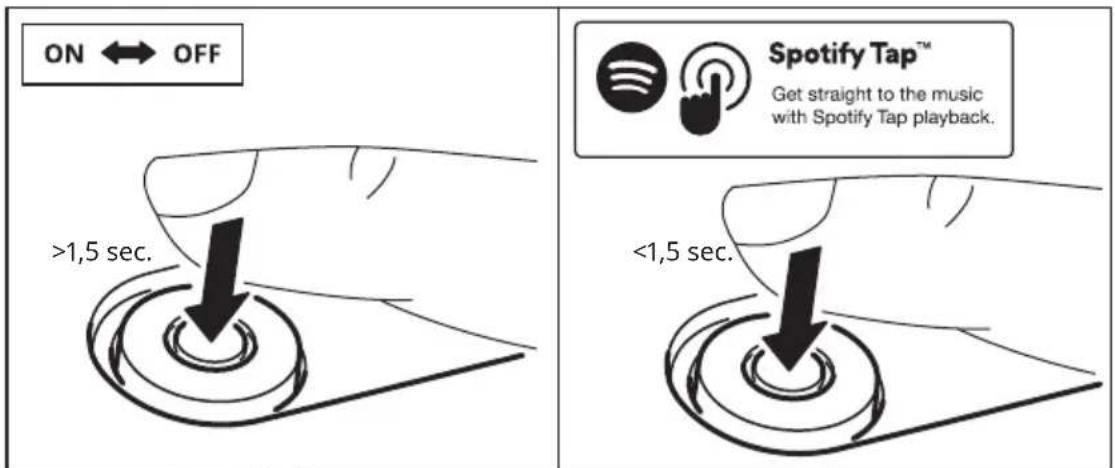

2. Long press on the ON/OFF button (3) to turn the speaker ON. VAPPEBY 20 starts to search for paired devices. If a paired device is found, the LED will change from blinking to a steady light and the speaker is ready to use.
3. If no device is found, the LED continues to blink and enters pairing mode automatically. Go to the Bluetooth settings of your mobile device and connect to VAPPEBY 20 gen3. The LED should now stop blinking and your speaker is ready to use.

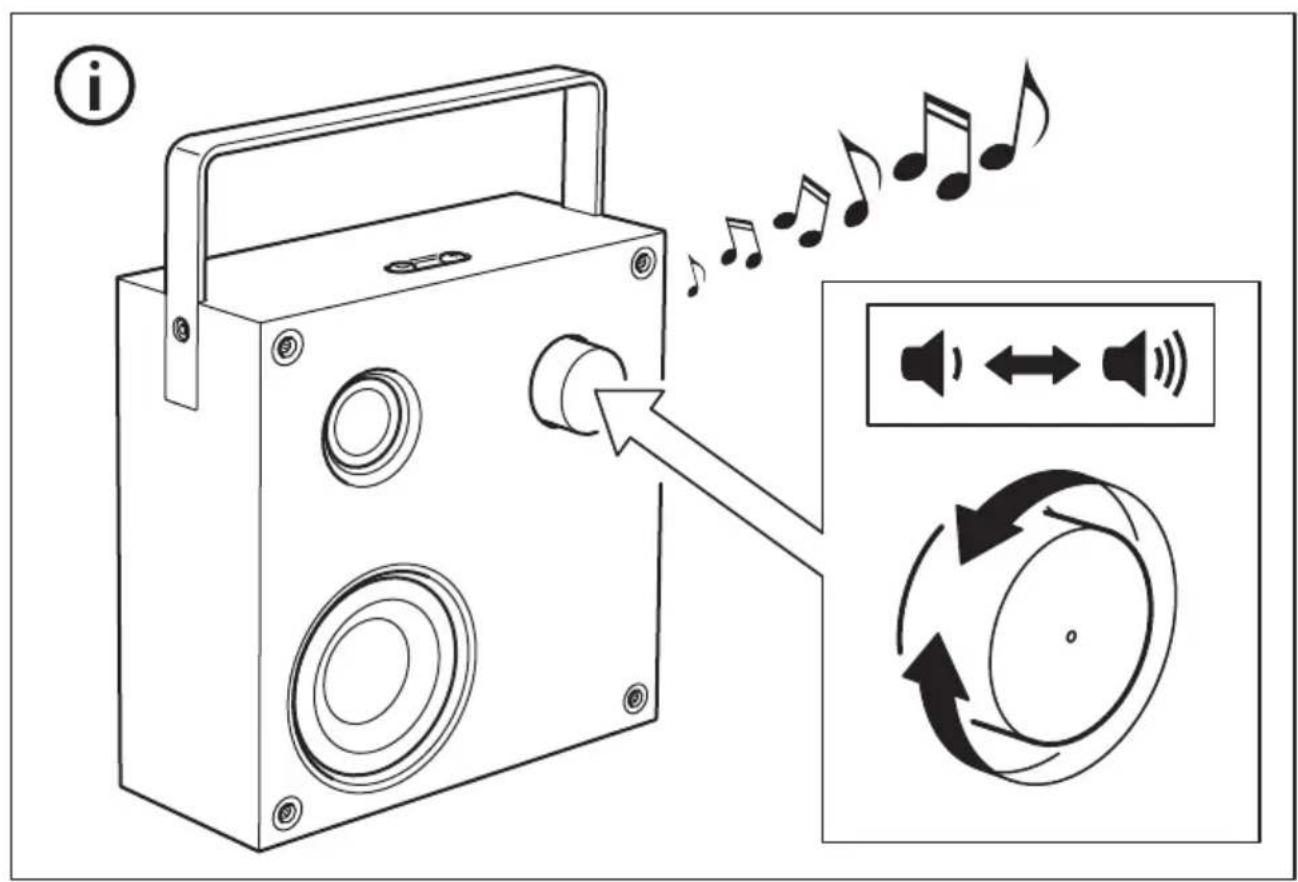

Adjusting the volume

Turn the knob (5) left to decrease or turn it right to increase volume level.

Using Spotify Tap™

Spotify Tap™ allows you to resume and change music directly from your Bluetooth speaker with the press of a button.

If you have an iOS device:

Go to the App Store and download the Spotify app. You will be able to create an account or log in if you already have one.

If you have an Android device:

Go to the Google Play Store and download the Spotify app. You will be able to create an account or log in if you already have one.

First use

1. Make sure your device is paired via Bluetooth to your VAPPEBY speakers.
2. Make sure the Spotify mobile app is open. This will only be needed upon the first use.
3. Press the Power button (3) to start music. The LED indicator should blink twice.

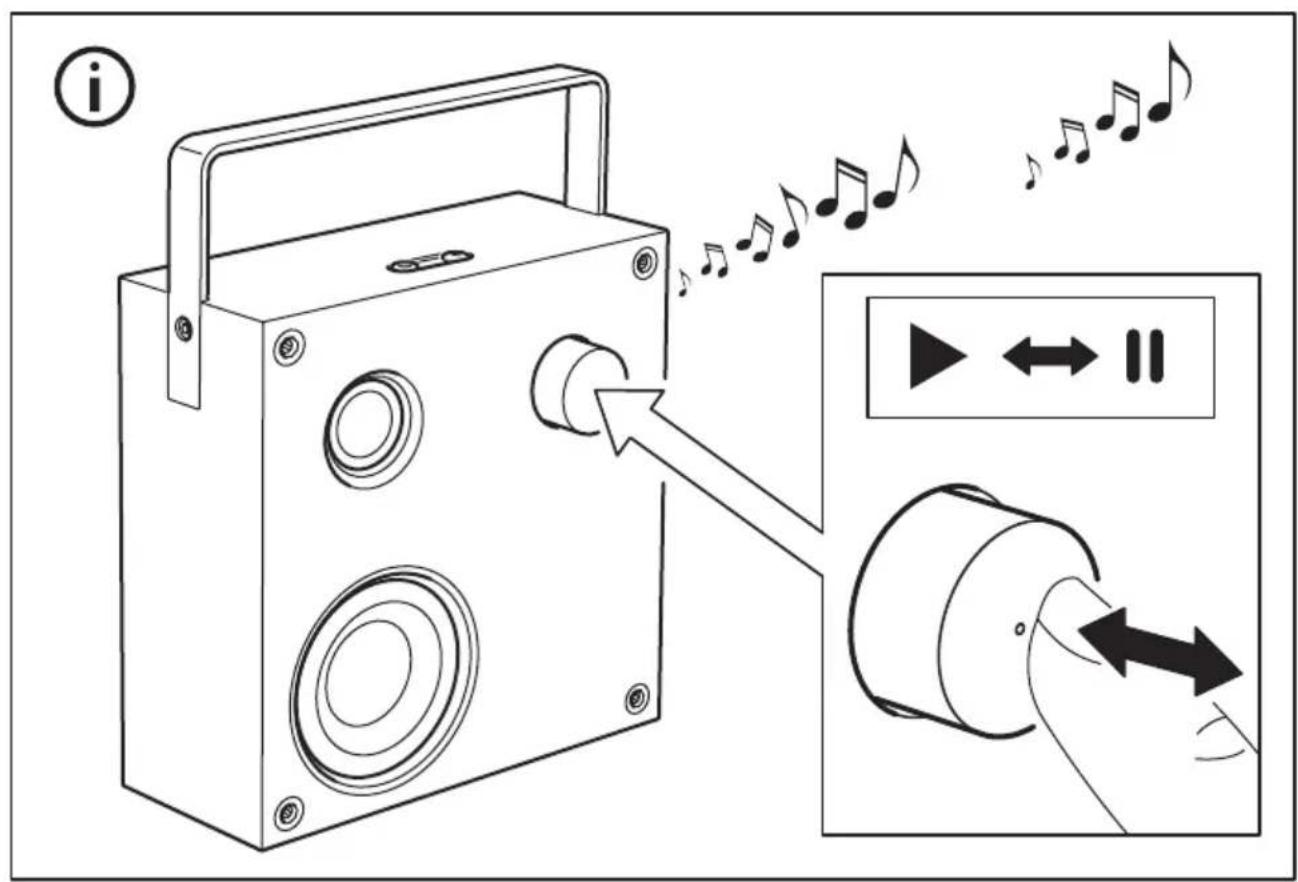

From now on, whenever you quickly press the Power button (3), the music resumes anytime your device is paired and in range.

Changing music

Press the Power button (3) again to change what's playing to a recommended track.

Play music from external source:

Connect a portable audio device to the AUDIO IN (7) jack on the rear panel. The speaker automatically detects the external input and disables Bluetooth functionality. Use a 3.5mm 3-pole audio cable for this feature.

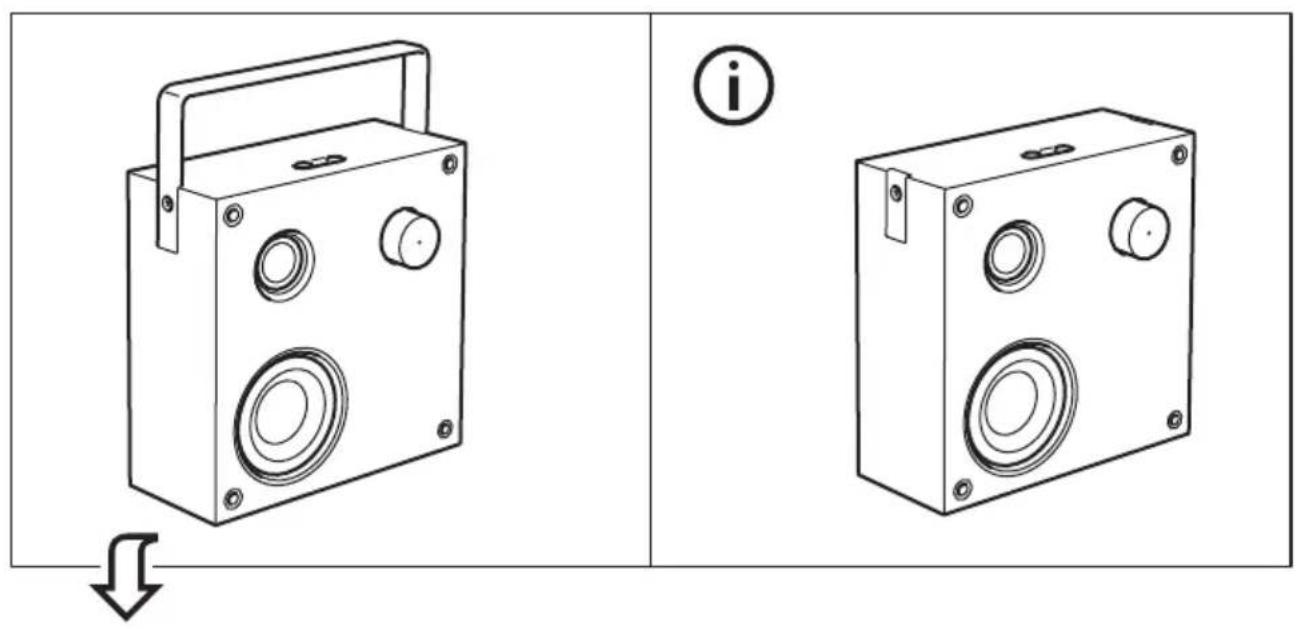

Use speaker throughout the home:

VAPPEBY 20 has the possibility to be portable. ENEBY battery pack is sold separately.

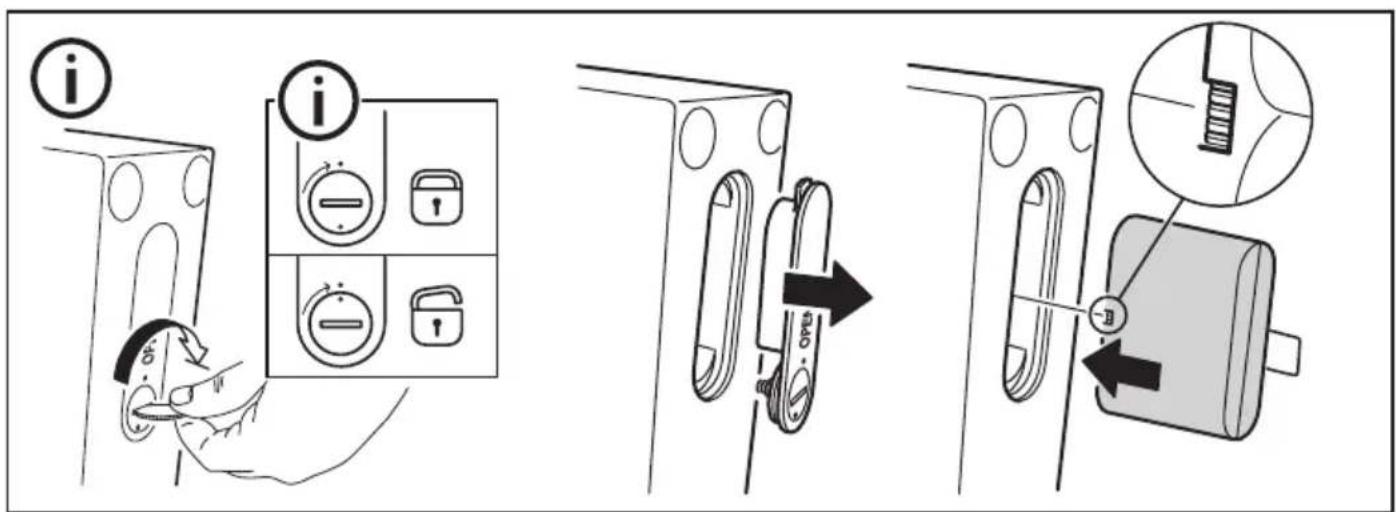

• To insert the battery, open the compartment lid (6) and insert the battery in the correct position.
• The battery charges in the product when a mains cord is connected and the speaker is turned on.
• When the battery is low, a red LED in the knob (5) will flash. During charging, the red LED stays on without flashing.

CAUTION:

Risk of explosion if battery is replaced by an incorrect type.

Replace only with the same or equivalent type.

Other settings:
Unpair Bluetooth devices	Press and hold the Bluetooth pairing button (4) for ≥1.5 s. The speaker will release the Bluetooth connection to the phone and start searching for another device to pair with. The LED will change from steady light to flashing.
Set up a stereo pair You can	pair two identical VAPPEBY 20 gen3 speakers to create a stereo experience. In this configuration, one speaker serves as the left channel and the other serves as the right channel.1. Factory reset both speakers2. Both speakers automatically enter Bluetooth pairing mode (LED quick flash).3. Press twice on the Bluetooth button (4) on one of the speakers (master) to initiate stereo pairing (LED slow flash).4. Successful pairing is confirmed by a system sound.5. Pair the master speaker to your source device.To disconnect a stereo pair, factory reset both speakers.
Enable/Disable the auto-off function	Move the switch (2) to position “20” to enable auto-off. The speaker will turn off automatically after 20 minutes if no music is played. Move the switch (2) to position “∞” to disable the auto-off function.
Factory reset Press and hold the volume knob (5) for 5 seconds. A confirmation sound will be played.

Safety and important notice

WARNING:

• Risk of overheating! Never install the product in a confined space. Always leave a space of at least 5 mm around the product for ventilation. Ensure curtains or other objects never cover the ventilation slots on the product.
• Never place the product or batteries near open flames or other heat sources, including direct sunlight.
• Only use this product indoors. The apparatus shall not be exposed to dripping or splashing, and no objects filled with liquids, such as vases, shall be placed on the apparatus.
• Never place this product on other electrical equipment.
• The mains plug or an appliance coupler is to be used as a disconnect device, the disconnect device shall remain readily operable.
• If the supply cord is damaged, replace it with a new cord set which is type-approved for your country.
• No open flame sources, such as lit candles should be placed on the apparatus.
• Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or similar.

IMPORTANT!

• The speaker is for indoor use only and can be used in temperatures ranging from 0 °C to 40 °C.
• Do not leave the speaker in direct sunlight or near any heat source, as it may overheat.
• Do not subject the speaker to wet, moist or excessively dusty environments, as this may cause damage.
• The range between the speaker and the receiver is measured in open air.
• Different building materials and placement of the units can affect the wireless connectivity range.
• Too high volume can damage your hearing.
• Do not touch the acoustic components.
• Do not use the product as a shelf or stand.

Care instructions

To clean the speaker, wipe with a moist cloth. Never submerge the speaker in water.

Note!

Never use abrasive cleaners or chemical solvents as this can damage the product.

Product servicing

Do not attempt to repair this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks.

Save these instructions for future use.

Troubleshooting

Problem Tip
Cannot use Bluetooth: Make sure 3	5 mm connector is not plugged into AUDIO IN jack on rear panel.
	Make sure your phone, tablet or other media device supports Bluetooth.
	Make sure to connect to the IKEA device called VAPPEBY 20 gen3.
	Make sure your phone, tablet or other media device is paired and that its Bluetooth is turned on.
	Make sure no other Bluetooth devices in the room are paired. If so, turn off the Bluetooth function of the device(s).
Poor sound quality when playing via Bluetooth:	If Bluetooth reception is poor, move the device closer to the speaker or remove any obstacles between the device and the speaker.Note:Bluetooth reception will normally operate at a distance of up to 6-8 m in conditions with an unobstructed path. When objects, furniture or walls are in between, Bluetooth reception will be reduced. When the device is placed in pockets of clothes or in a bag, Bluetooth reception can be reduced.
Poor sound quality when playing via AUDIO IN input:	Make sure your phone, tablet or other media device is not at maximum volume, if so, turn down the volume.

Manufacturer: IKEA of Sweden AB

Address: Box 702, SE-343 81 Älmhult, SWEDEN

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by IKEA is under license. Other trademarks and trade names are those of their respective owners.

Spotify Tap™ Get straight to the music with Spotify Tap playback.

Spotify Tap™ is a trademark owned by Spotify and any use of such marks by IKEA is under license. All other Spotify trademarks, service marks, trade names, logos, domain names, and any other features of the Spotify brand are the sole property of Spotify or its licensors.

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.

Technical data

Model Name: VAPPEBY 20 gen3
Type number: E2036
Input: 100-240VAC 50/60Hz
Standby Power Consumption: <0.2 W
Rated Power Consumption: 36.0 W
Operating temperatures: 0 °C to 40 °C
Operating humidity: 0 to 95% RH
Dimensions (mm): 199x199x80 (without handle)
Weight: 1.5kg (without battery)
Battery playtime at 50% volume: Approximately 25 h	(depends on content)
Auto-off: 20 min
Bluetooth Version: V 5.0
Wireless range (unobstructed): Approximately 10 m
Operating frequency: 2400 - 2483.5 MHz
Radio output power:	8 dBm

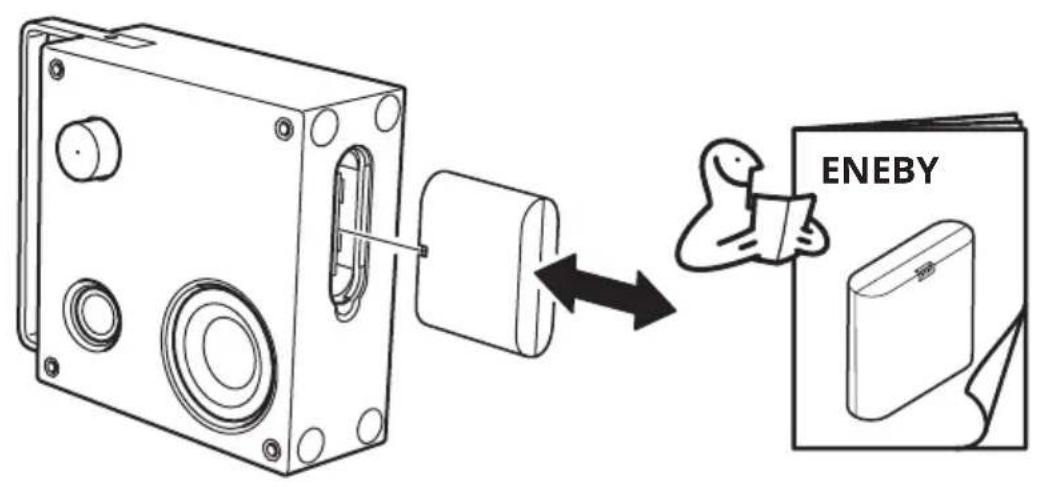

How to use ENEBY battery pack (battery sold separately):

GOOD TO KNOW

• It is normal for the battery to become hot during charging and it will gradually cool down after charging.
• Charging time may vary depending on remaining charge, battery age and ambient temperature.
• Battery storage temperature: -20°C to 25°C.
• Charging operating temperature: 0°C to 45°C.
• Disconnect the battery from the power outlet before cleaning or when it is not in use.
• The battery should not be left discharged for an extended period.
• The battery should not be charged while in contact with flammable materials such as textiles.
• This battery can only be used with IKEA products.

CAUTION

• Do not modify, disassemble, open, drop, crush, puncture, or shred the battery.
• Do not expose the battery to rain or water.
• Risk of fire and burns. Do not open, crush, heat above 140°F (60°C), or incinerate.
• Keep the battery away from open flames or sunlight to prevent heat build-up.
• Keep the battery away from high voltage devices.
• This product is not a toy; keep it away from children. Ensure that all persons who use this product read and follow these warnings and instructions.
• Do not short-circuit the battery or its cells.
• In the event of a cell leaking, do not allow the liquid to come into contact with the skin or eyes.

CARE INSTRUCTIONS

To clean the unit, wipe with a soft cloth moistened with a little mild detergent. Use another soft dry cloth to wipe dry.

NOTE!

Never use abrasive cleaners or chemical solvents since this can damage the product.

Product servicing

Do not attempt to repair this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks.

TECHNICAL DATA

Type: ICBL14.4-36-A1

Capacity: 2600mAh/37.4Wh

Input: DC 16.8V, 2.0A

Output: DC 14.4V, 3.1A

For indoor use only

Rechargeable Li-Ion battery cell inside.

This device conforms to UL STD. 2054

German

French

Manufacturer: IKEA of Sweden AB

Address: Box 702, SE-343 81 Älmhult, SWEDEN

Bluetooth®

Spotify Tap™ Get straight to the music with Spotify Tap playback.

Type: ICBL14.4-36-A1

Capacity: 2600mAh/37.4Wh

Input: 16.8VDC, 2.0A

Output: 14.4VDC, 3.1A

Rechargeable Li-ion battery included.

Dutch

Type: ICBL14.4-36-A1

Capacity: 2600mAh/37.4Wh

Input: DC 16.8V, 2.0A

Output: DC 14.4V, 3.1A

Danish

1. AC input jack.
2. Deactivate/activate auto-off button.
3. On/off button and Spotify button.
4. Bluetooth pairing button.
5. Volume control and status light.
6. Battery compartment lid (battery sold separately).
7. AUDIO input jack.

LED status indicator.

Manufacturer: IKEA of Sweden AB

Type: ICBL14,4-36-A1

Capacity: 2600mAh/37.4Wh

Input power: DC 16.8V, 2.0A

Icelandic

Manufacturer: IKEA of Sweden AB

Address: Box 702, SE-343 81 Älmhult, SWEDEN"

Bluetooth®

Norwegian

1. AC IN connector.
2. Activate/deactivate the auto-off function
3. Power button and press for Spotify.
4. Bluetooth pairing button.
5. Volume control and LED status indicator.
6. Battery compartment cover (batteries sold separately).
7. AUDIO IN connector.

LED status (5)

Manufacturer: IKEA of Sweden AB

Address: Box 702, SE-343 81 Älmhult, SWEDEN

Type: ICBL14.4-36-A1

Capacity: 2600 mAh/37.4 Wh

Input: DC 16.8V, 2.0 A

Output: DC 14.4V, 3.1 A

Finnish

Swedish

Spotify Tap™ Get straight to the music with Spotify Tap playback.

Czech

Spanish

Italian

Hungarian

Spotify Tap™ Get straight to the music with Spotify Tap playback.

Polish

Manufacturer: IKEA of Sweden AB

Address: Box 702 SE-343 81 Älmhult, SWEDEN

Bluetooth®

Estonian

Manufacturer: IKEA of Sweden AB

Address: Box 702, SE-343 81 Älmhult, SWEDEN

Bluetooth®

Spotify Tap™ Get straight to the music with Spotify Tap playback.

Capacity: 2600mAh/37.4Wh

Latvian

Type: ICBL14.4-36-A1

Power: 2600mAh/37.4Wh

Input: DC 16.8V, 2.0A

Output: DC 14.4V, 3.1A

Lithuanian

Get straight to the music with Spotify Tap playback

Type: ICBL14.4-36-A1

Power: 2600 mAh/37.4 Wh

Input: DC 16.8 V, 2.0 A

Portuguese

Romanian

Capacity: 2600mAh/37.4Wh

Input: DC 16.8V, 2.0A

Output: DC 14.4V, 3.1A

Slovak

1. AC IN connector.
2. Power on/off switch for automatic shutdown.
3. Power button and Spotify.
4. Bluetooth pairing button.
5. Volume control and status LED.
6. Battery compartment cover (battery sold separately).
7. AUDIO IN connector.

Bulgarian

Croatian

Greek

Russian

Ukrainian

Spotify Tap™ Get straight to the music with Spotify Tap playback.

Serbian

1. AC IN connector.
2. Switch for enabling/disabling auto power-off.
3. Power button and Spotify Tap.
4. Bluetooth pairing button.
5. Volume control and LED status light.
6. Battery compartment cover (battery sold separately).
7. AUDIO IN connector.

LED status (5)

Spotify Tap™ Get straight to the music with Spotify Tap playback.

Spotify Tap™ is a trademark owned by Spotify and any use of such marks by IKEA is under license. All other Spotify trademarks, service marks, trade names, logos, domain names, and any other Spotify brand features are the sole property of Spotify or its licensors.

Technical data

Naziv modela: VAPPEBY 20 gen3
Broj modela: E2036 VAPPEBY 20 gen3
Ulaz: 100–240 V AC, 50/60 Hz
Potrošnja energije u stanju mirovanja: <0,2 W
Nominalna potrošnja energije: 36,0 W
Radna temperatura: od 0°C do 40°C
Radna vlažnost: od 0 do 95% RV
Dimenzije (mm): 199x199x80 (bez ručke)
Težina: 1,5 kg (bez baterije)
Trajanje baterije na jačini zvuka od 50%: približno 25 sati (zavisi od sadržaja)
Automatsko isključivanje: 20 min.
Verzija Bluetooth tehnologije: V 5.0
Bežični domet (bez prepreka): približno 10 m
Radna frekvencija: 2400–2483,5 MHz
Izlazna snaga radio-signala:	8 dBm

How to use the ENEBY battery pack (battery sold separately):

USEFUL INFORMATION

• It is normal for the battery to heat up during charging. It will gradually cool down after charging.
• Charging time varies and depends on the battery's charge level, its age, and the ambient temperature.
• Storage temperature for the battery: -20°C - 25°C. • Operating temperature: 0°C - 45°C.
• Remove the battery from the power source before cleaning and when not in use.
• The battery should not be left discharged for a long time.
• The battery must not be charged while in contact with flammable materials such as textiles.
• This battery can only be used with IKEA products.

CAUTION

• Do not modify, disassemble, open, drop, break, puncture, or cut the battery.
• Do not expose it to rain or water.
• Risk of fire and burns. Do not open, break, heat above 60°C, or incinerate.
• Keep the battery away from open flames and sunlight to prevent heat buildup.
• Keep the battery away from high-voltage devices.
• This product is not a toy; keep it out of reach of children. All users of this product should read these warnings and instructions.
• Do not short-circuit the battery or its cells.
• If a cell leaks, the liquid must not come into contact with skin and eyes.

MAINTENANCE INSTRUCTIONS

Model: ICBL14.4-36-A1

Capacity: 2600mAh/37.4Wh

Input: DC 16.8V, 2.0A

Output: DC 14.4V, 3.1A

For indoor use only

Rechargeable lithium-ion battery.

Slovenian

1. AC input connector.
2. On/off switch for automatic shutdown.
3. Power button and Spotify Tap playback.
4. Bluetooth pairing button.
5. Volume control and status LED.
6. Battery compartment cover (battery sold separately).
7. Audio input connector (AUDIO IN).

Status LED (5)

Spotify Tap™ Get straight to the music with Spotify Tap playback.

Turkish

Spotify Tap™ Get straight to the music with Spotify Tap playback.

Capacity: 2600mAh/37.4Wh

Input: DC 16.8V, 2.0A
