USER MANUAL MeoPro Optika HD Meopta

MeoPro Optika HD Optika HD CZ

CZ

10x42 HD 8x42 HD

Illustration of a black binoculars with a 10x42 scale label (no text or symbols on the binoculars themselves)

Close-up of two optical binoculars labeled 'Optika HD' with a white curved arrow indicating rotation (no additional text or symbols)

Zaostřeni obrazu

Close-up of two optical binoculars with directional arrows indicating rotation (no text or symbols on the devices themselves)

Black-and-white photo of a medical bag with a bottle and a medical device, no visible text or symbols.

Parametry

Exterior view of a pair of binoculars (no visible text or symbols on the lenses themselves)

10x42 HD 8x42 HD

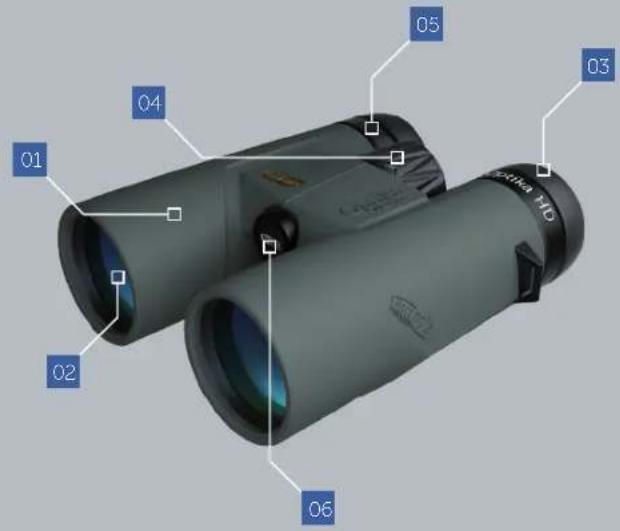

01 Rubber-coated binocular body (left- and right-hand oculars)
C2 Objective
03 Telescopic eyepieces
C4 Focusing knob
C5 Dioptric correction knob
06 Binocular central joint with a threaded tripod mount (after unscrewing the cover)

01 02 03 04 05 06 Canon EF-110

EN

MeoPro Optika HD

Magnesium body

Magnesium alloy body

Ergonomic

Perfectly balanced ergonomic design

Telescopic eyepieces

For comfortable viewing with or without glasses.

Resilient

Robust mechanical design and rubbensed body armour protects the b-noculars from external damage

Meobright

The MeoBright art reflective multi coating ensures extraordinary light transmission.

Nitrogen-filled

Binoculars are sealed and filled with inert nitrogen gas, and protected from internal condensation build up

Waterproof

The binoculars are fully waterproof even when immersed in water and they are completely protected against humidity, rain and snow.

Brilliant image

Maximum resolution and contrast with precise colour representation throughout the entire field of view

HD

HD optics eliminates secondary chromatic aberration

Black binoculars with a 10x42 aperture, shown from above (no text or symbols on the binches themselves)

Inter-eye setting (interpupil) distance

Optika HD C2

Image focusing

Close-up of two optical binoculars with directional arrows indicating rotation (no text or symbols on the devices themselves)

Adjusting the slide-out eye guards

leave eyepieces in retracted position if using eyeglasses)

Optika HD 04

Adjusting the dioptric correction

Diopathic correction adjustment procedure
- Cover the right objective with the cap
- Focus using knob #4
Uncover the right objective and cover the left objective with the cap
- Focus using knob No (make sure not to turn knob M4 in the process)

EN

Package contents

Caps for lens and eyepiece - included in package

Binocular strap – included in package

Optical cloth - included in package

Transport package with strap - included in

package

Caps for lens and eyepiece - included in package

Important!

01 Protect the binocular from falling and hard impact
02 Only clean the glass as recommended
03 Protect the optical surfaces with caps
04 Leave eyepieces in retracted position if using eyeglasses

EN

All Moopta mifecopes feature a robust dust proof and water-proof design but, like any other optical-mechanical devices, they require careful handling and protection of optical surfaces against damage. When a binocular is not being used, its outer optical surfaces should be protected with the covers supplied. Dust deposited on the mechanical parts of the binocular should be removed with a soft cloth; dust on the optical parts should be blown off or wiped off gently with an optical cloth supplied with the binocular. After using the binocular in rain, thorough drying with a soft cloth is recommended.

Make sure to store any optical products in a dry, ventilated area, it stored in extremely humid or tropical conditions, place the product in its case together with a desiccant, e.g. silica gel.

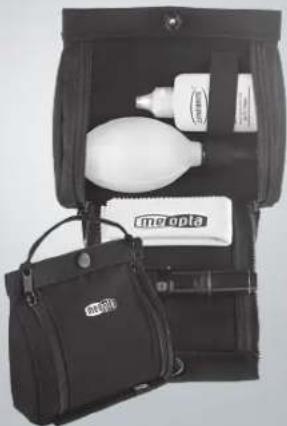

Optical Cleaning Kit

To maintain your optical device in perfect condition we recommend that a special Mecepta cleaning kit be purchased: 2.r1 brush, optical cloth, blowing balloon, cleaning fluid.

Black medical device with a bottle and a medical bag, no visible text or symbols

Specifications

Magnification:	8x 10x
Optical lens diameter (mm)	42 42
Held of view (°)	760.6
Field of view (mv1000m)	131 109
Eye relief (mm)	27 15
Shortest observation distance (m)	2.5 3
Exit pupil diameter (mm)	5.2 4.2
Dioptic range of eyepiece (Dpt)	+ / 4 + / 4
Length (mm)	138 138
Width (mm)	127 127
Height (mm)	49 49
Weight, (g)	650 650

Important!

Upon the expiration of its lifetime, dispose of the equipment as O-category waste – catalogue number 200301 – mixed community waste

The images used in this manual are for illustration only and may differ slightly from the product you have purchased.
