Product Type	Binoculars
Brand	Meopta
Model	MeoStar B1 12x50
Magnification	12x
Objective lens diameter	50 mm
Real field of view	5.25° (92 m/1000 m)
Eye relief	15 mm
Minimum focusing distance	3.5 m
Exit pupil diameter	4.2 mm
Diopter adjustment	±3 Dpt
Weight	1020 g
Weatherproofing	Waterproof and dustproof, nitrogen-filled
Body material	Aluminum alloy with rubber coating
Optical coating	MeoBright 5501 multi-coating, HD lenses
Focusing	Central with knob, diopter adjustment on right eyepiece
Eyecups	Twist-up for use with or without glasses
Interpupillary adjustment	Rotating bridge
Maintenance and cleaning	Use a soft cloth, air blower, and the Meopta cleaning kit. Protect optics with lens caps.
Storage	Dry, ventilated place, with silica gel in humid climate
Accessories	Meopta cleaning kit (brush, cloth, air blower, fluid), lens caps
Warranty	Contact dealer or manufacturer for claims
Manufacturer	Meopta - optika, s.r.o., www.meoptasportsoptics.com

Frequently Asked Questions - MeoStar B1 12x50 Meopta

How to adjust the diopter correction on MeoStar B1 12x50 binoculars?

Close the right objective lens with the cap, focus on an object using the central knob. Then open the right objective and close the left one, then adjust the diopter correction knob (knob 5) until you get a sharp image. Do not touch the central knob.

Are the MeoStar B1 12x50 binoculars waterproof?

Yes, they are completely waterproof and dustproof, nitrogen-filled to prevent internal condensation. They can withstand temporary immersion.

How to use the twist-up eyecups?

If you wear glasses, keep the eyecups in the retracted (down) position. Without glasses, raise them for optimal viewing comfort.

What is the weight of the MeoStar B1 12x50 binoculars?

The weight is approximately 1020 grams.

How to clean the binocular lenses?

Use an air blower to remove dust, then an antistatic cloth or the Meopta cleaning kit. Do not use abrasive products. Wipe gently.

Can I mount the binoculars on a tripod?

Yes, the rotating bridge has an attachment tab for a tripod. Unscrew the plastic cover to access the screw thread.

What is the minimum focusing distance?

The minimum focusing distance is 3.5 meters.

Are the binoculars suitable for eyeglass wearers?

Yes, thanks to the twist-up eyecups, you can retract them to bring your eyes closer to the eyepieces and maintain a full field of view.

Where can I find accessories like a cleaning kit?

The Meopta cleaning kit is available from authorized dealers. It contains a 2-in-1 brush, a cloth, an air blower, and cleaning fluid.

How to store the binoculars for long-term?

Store them in a dry, ventilated place. In humid climates, place them with a silica gel packet in the case to absorb moisture.

USER MANUAL MeoStar B1 12x50 Meopta

Gray binoculars with visible lens and control knobs (no text or symbols)

MeoStar B1

Hliníkové těleso

Abstract grayscale diagram with symmetrical curved shapes and concentric rings, no text or symbols present

Close-up of two metallic cylindrical components with perforated surfaces and a central threaded section (no text or symbols visible)

Close-up of two cylindrical mechanical components with textured surfaces and a central ribbed component, no visible text or symbols.

Zaostřeni obrazu

Two identical mechanical components with rotating arrows, one showing a flat top and the other a flat base (no text or symbols)

Black medical bag with a bottle and blanket labeled 'meopla', no visible text or symbols on the main subject area.

MeoStar B1

Thank you for your trust in the Meopta brand.

Our binoculars have been designed and manufactured with the utmost care by the leading experts of Meopta - optika, s.r.o. The binoculars capitalise on our ample experience in design and technology and eighty years of Meopta tradition. The binoculars are manufactured from premium materials; top-quality optical glass is used for all optical elements.

All binoculars are designed to be 100% water-proof and dust-proof and are filled with an inert gas.

In the event of a complaint or any defect, contact your dealer or the manufacturer directly - Meopta - optika, s.r.o.

For information about our products, news and dealers, visit

www.meoptasportsoptics.com.

MeoStar B1

Aluminum body

Aircraft grade aluminum alloy bocy

Ergonomic

Perfectly balanced ergonomic design

Twist-up eyecups

For comfortable viewing with or without glasses

Shock resistant

The robust mechanical structure and rubber armouring guarantee durable shock resistance

Meobright 5501

Anti-reflective multi-coating MeoBright 5501 ensures extraordinary light transmission.

EN

Nitrogen purged and sealed

Binoculars are sealed and filled with inert nitrogen gas, and protected from internal condensation build up

Waterproof

The binoculars are fully waterproof even when immersed in water and they are completely protected against humidity, rain and snow

Brilliant image

Maximum resolution and contrast with precise colour representation and edge-to-edge clarity throughout the entire field of view.

HD

1 ID optics eliminates secondary chromatic aberration

01 02 03 04 05 06

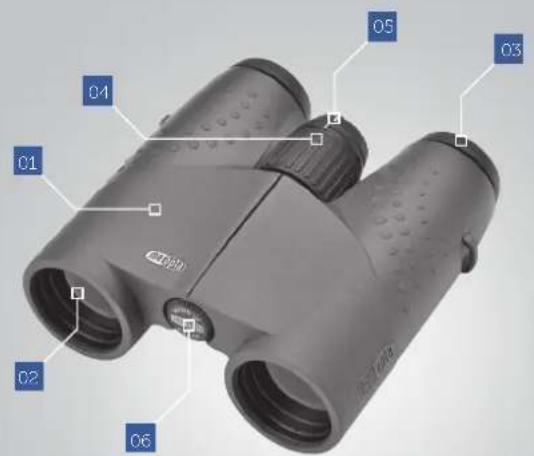

1. Rubber-coated binocular body (left- and right-hand oculars)
2. Objective lens

3. Eyepiece with twist-up eyecups

4. Focusing knob

5. Dioptric correction knob

6. Binocular central joint with a threaded tripod mount (after unscrewing the plastic cover)

Abstract grayscale diagram with concentric circular patterns and directional arrows, no readable text or symbols

Interpupillary distance adjustment

Close-up of two gray mechanical components with perforated surfaces, one showing a circular cutout (no text or symbols visible)

Adjusting the dioptric correction
Dioptic correction adjustment procedure

• Cover the right objective with the cap
• Focus using knob #4
• Uncover the right objective and cover the left objective with the cap
• Focus using knob #5 (make sure not to turn knob #4 in the process)

3D rendered mechanical component with textured surfaces and a central ribbed feature, shown in two views (no text or symbols)

Focusing

Two identical 3D-rendered objects with curved arrows indicating rotation or movement, no text or symbols present.

Adjusting the twist-up eyecups
(for observation with eyeglasses on, leave the eyecups in the down position)

Maintenance and Cleaning

Important!

1. Protect the binocular from falling and hard impact
2. Only clean the glass as recommended
3. Protect the glass with caps

All Meopta binoculars feature a robust dust-proof and water-proof design but, like any other opto-mechanical devices, they require careful handling and protection of the optical surfaces against damage. When a scope is not being used, its outer optical surfaces should be protected with the supplied caps. Dust deposited on the mechanical parts of the scope should be removed with a soft cloth; dust on the optical components should be blown off or wiped off gently with the antistatic cloth supplied with the scope. After using the binocular in the rain, thorough drying with a soft cloth is recommended.

Make sure to store the binocular in a dry, ventilated area. For storage in humid or tropical conditions we recommend to place the binocular in a case, together with a moisture absorbing agent such as silica gel.

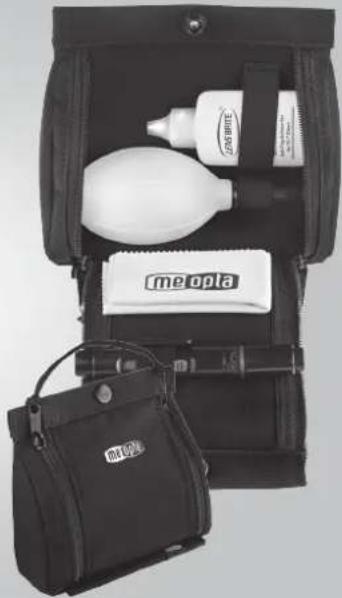

Optical Cleaning Kit

A special Meopta cleaning kit can be purchased to clean your optical device. It contains a high-quality 2-in-1 brush, lens cloth, cleaning blower, and cleaning liquid.

Black-and-white photo of a medical device with a bottle, a blanket labeled 'meopla', and a small bag with 'mclp' visible (no readable text or symbols)

MeoStar B1

Model	8x32	10x32	7x42	8x42	10x42	10x42 HD	7x50	10x50	12x50	12x50 HD	8x56	15x56 HD
Magnification	8	10	7	8	10	10	7	10	12	12	8	15
Optical lens diameter (mm)	32 32	42 42 42	42 50	50 50	50 56 56
Field of view (°)	7,92	6,35	7,84	7,84	6,3	6,31	7,21	6,3	5,25	5,25	6,35	4,2
Field of view (m/1000m)	139	111	137	137	110	110	126	110	92	92	111	73
Eye relief (mm)	15,5	16,3	21,80	17,4	15	15	22,5	17,4	15	15	21,5	15,2
Minimum observing distance (m)	1,7	1,5	3	3	3	2,6	4	4	3,5	3,5	5	5
Exit pupil diameter (mm)	4	3,2	6	5,3	4,2	4,2	7,1	5	4,2	4,2	7	3,7
Dioptric range of eyepiece (Dpt)	±3 ±3	±3 ±3	±3 ±3	±3 ±3	±3 ±3 ±3 ±3
Weight (g)	598	600	890	897	877	898	987	1020	1020	1040	1120	1220
