Product type	Binoculars
Brand	Meopta
Model	MeoPro 8x56 HD
Magnification	8x
Objective lens diameter	56 mm
Field of view	6° (105 m/1000 m)
Minimum focus distance	2.2 m
Weight	1030 g
Body material	Aluminum alloy with rubber coating
Waterproofing	Waterproof and nitrogen-filled (anti-fog)
Diopter adjustment	±3 diopters
Eyecups	Twist-up, suitable for eyeglass wearers
Focusing	Center focus wheel
Power supply	None (optical instrument)
Maintenance	Use Meopta cleaning kit (brush, cloth, blower, fluid)
Safety	Protect from impacts and drops; clean optical surfaces with care
Included accessories	Lens covers, soft cloth
Repairability	Contact the dealer or manufacturer (Meopta-optika, s.r.o.)
Warranty	See supplier conditions

Frequently Asked Questions - MeoPro 8x56 HD Meopta

How to adjust diopter correction on MeoPro 8x56 HD?

Close the right objective with a cover, focus using the center wheel (3), then open the right objective and close the left. Adjust focus using the diopter ring (4) without touching the center wheel.

Are the MeoPro 8x56 HD binoculars waterproof?

Yes, they are fully waterproof and nitrogen-filled to prevent internal condensation. They resist occasional immersion, rain, and snow.

How to clean the binocular lenses?

Use the Meopta cleaning kit: brush off dust, then use the optical cloth and cleaning fluid. Avoid direct contact with fingers.

What is the weight of the MeoPro 8x56 HD?

The weight is approximately 1030 grams, making them sturdy but a bit heavy for prolonged use without a tripod.

Can a tripod be used with these binoculars?

Yes, the rotating hinge of the binoculars has a tab for tripod attachment, after unscrewing the plastic cover.

What is the minimum focus distance?

The minimum observation distance is 2.2 meters, ideal for close objects.

Are the eyecups suitable for glasses?

Yes, the twist-up eyecups allow comfortable viewing with or without glasses.

How to adjust interpupillary distance?

Open or close the two barrels around the central hinge until you see a single circular field of view.

What is the field of view at 1000 meters?

The field of view is 105 meters at 1000 meters (6°).

Where can I find spare parts or repair service?

Contact your dealer or directly the manufacturer Meopta-optika, s.r.o. via the website www.meoptasportsoptics.com.

USER MANUAL MeoPro 8x56 HD Meopta

A BETTER VIEW OF THE WORLD MeoPro HD MEOPOH EUROPEAN OPTICS since 1933 MeoPro HD meopta www.meopta.com

Red and white diagonal striped pattern with no text or symbols

NIKDY SE NEDÍVEJTE DALEKOHLEDEM PRÍMO DO SLUNCE!

NEVER LOOK DIRECTLY INTO THE SUN THROUGH THE DEVICE!

SCHAUEN SIE NIEMALS MIT DEM FERNROHR DIREKT AUF DIE SONNE!

NE JAMAIS REGARDER DIRECTEMENT LE SOLEIL AVEC LA LUNETTE !

NON GUARDARE MAI DIRETTAMENTE IL SOLE ATTRAVERSO IL CANNOCCHIALE!

Diagram of a spacecraft with solar panels and a sun symbol, no text or labels present

01 02 03 04 05 06 MEOFRO HO

Exterior view of a modern binoculars (no text or symbols visible)

MeoPro HD

Hlinikové těleso

Close-up of a mechanical component with a curved arrow indicating rotation or motion (no text or symbols visible)

Zaostření obrazu

03

Close-up of two black mechanical components with a white curved arrow indicating rotation (no text or symbols visible)

Two cylindrical cameras with rotating arms, one labeled 'MEOPRO HD' (no additional text or symbols visible)

Black-and-white photo of a medical device with a bottle, a cloth cover, and a bag labeled 'meopla' (no visible text or symbols on main objects)

MeoPro HD

Two gray binoculars with visible lens and grip, no text or symbols on the devices themselves.

Thank you for your trust in the Meopta brand.

MeoPro binoculars are representative of the traditional quality of Meopta - optika, s.r.o. The binoculars are manufactured from premium materials; top-quality optical glass is used for all optical elements.

All binoculars are designed to be 100% water-proof and dust-proof and are filled with an inert gas.

In the event of a complaint or any defect, contact your dealer or the manufacturer directly – Meopta - optika, s.r.o.

For information about our products, news and dealers, visit

www.meoptasportsoptics.com.

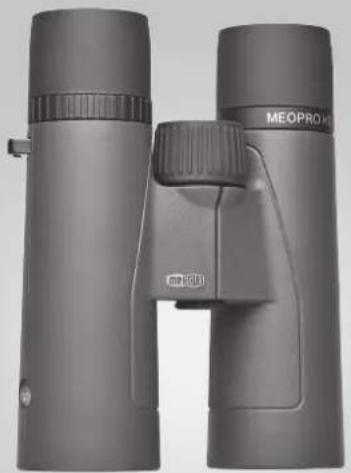

MeoPro HD

Aluminum body

Aircraft grade aluminum alloy body

Ergonomic

Perfectly balanced ergonomic design

Twist-up eyecups

For comfortable viewing with or without glasses

Shock resistant

The robust mechanical structure and rubber armouring guarantee durable shock resistance

Nitrogen purged and sealed

Binoculars are sealed and filled with inert nitrogen gas, and protected from internal condensation build up

Waterproof

The binoculars are fully waterproof even when immersed in water and they are completely protected against humidity, rain and snow

HD

HD optics eliminates secondary chromatic aberration

EN

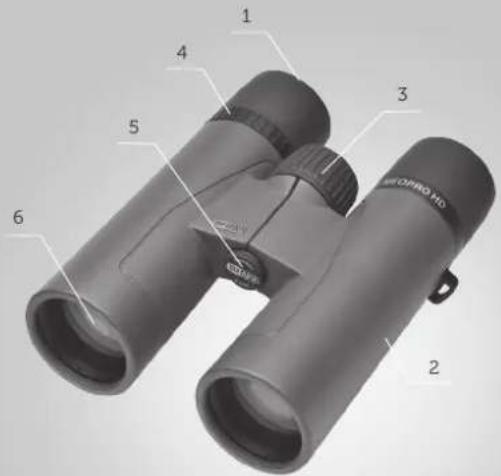

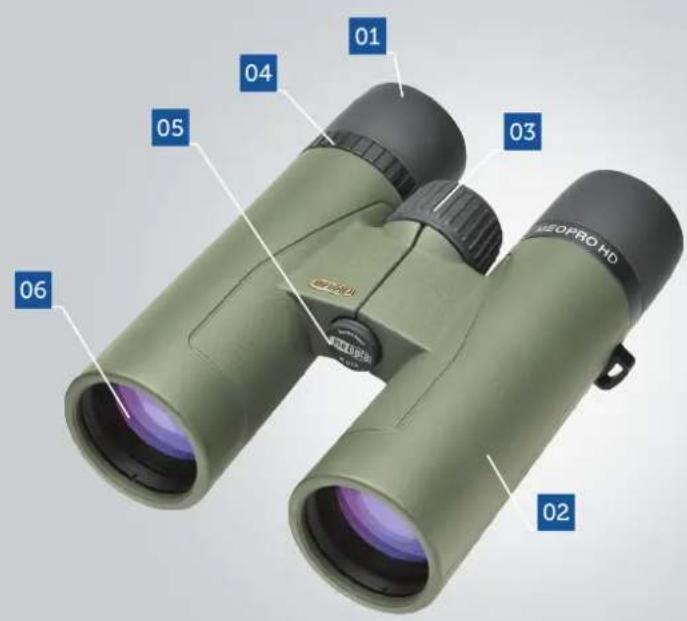

1 2 3 4 5 6 SINO PRO HD

1. Eyepiece with twist-up eyecups
   2 Rubber-coated binocular body (left- and right-hand oculars)

2. Focusing knob

3. Dioptric correction knob

4. Binocular central joint with a threaded tripod mount (after unscrewing the plastic cover)
5. Objective lens

01

Interpupillary distance adjustment

Close-up of a beige optical lens with a curved arrow indicating rotation (no text or symbols visible)

Focusing

03

Close-up of two black mechanical components with a curved arrow indicating rotation (no text or symbols visible)

Adjusting the dioptric correction

Dioptric correction adjustment procedure:

• Cover the right objective with the cap
  -Focus using knob #3
• Uncover the right objective and cover the left objective with the cap
• Focus using knob #4 (make sure not to turn knob #3 in the process)

Two black cylindrical objects with curved arrows indicating rotation, labeled 'MEOPRO HD' (no additional text or symbols)

Adjusting the twist-up eyecups

Maintenance and Cleaning

Important!

1. Protect the binocular from falling and hard impact
2. Only clean the glass as recommended
3. Protect the glass with caps

All Meopta binoculars feature a robust dust-proof and water-proof design but, like any other optomechanical devices, they require careful handling and protection of the optical surfaces against damage. When a scope is not being used, its outer optical surfaces should be protected with the supplied caps. Dust deposited on the mechanical parts of the scope should be removed with a soft cloth;

dust on the optical components should be blown off or wiped off gently with the antistatic cloth supplied with the scope. After using the binocular in the rain, thorough drying with a soft cloth is recommended. Make sure to store the binocular in a dry, ventilated area. For storage in humid or tropical conditions we recommend to place the binocular in a case, together with a moisture absorbing agent such as silica gel.

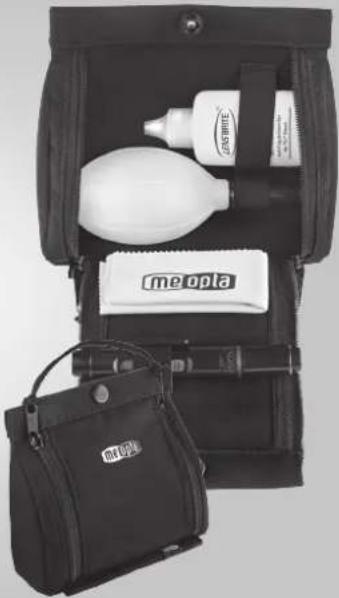

Optical Cleaning Kit

A special Meopta cleaning kit can be purchased to clean your optical device. It contains a high-quality 2-in-1 brush, lens cloth, cleaning blower, and cleaning liquid.

Disposal-related Instructions:

Upon the expiration of its lifetime, dispose of the equipment as O-category waste – catalogue number 200301 – mixed community waste.

Black medical device with labeled parts including a bottle, cloth, and bag (no visible text or symbols)

MeoPro HD

EN

Model	8x32	10x32	8x42	10x42	8x56
Magnification	8x	10x	8x	10x	8x
Optical lens diameter (mm)	32	32	42	42	56
Field of view (°)	8,4	6,7	7,2	6,7	6
Field of view (m/1000m)	148	117	126	117	105
Eye relief (mm)	17	15	20	17	18,5
Minimum observing distance (m)	2	2	2	2	2,2
Exit pupil diameter (mm)	4,0	3,2	5,3	4,2	6,7
Dioptric range of eyepiece (Dpt)	±3	±3	±3	±3	±3
Weight (g)	598	598	730	715	1030

Two gray binoculars with visible lens and control knobs, no text or symbols on the devices themselves.

Close-up of a beige optical binoculars with a curved arrow indicating rotation (no text or symbols visible)

Close-up of two mechanical components labeled 'MEOPRO HD' with a curved arrow indicating rotation (no text beyond label)

Medical device setup with a meopla bag, bottle, and plastic bag (no visible text or symbols)

MeoPro HD

Exterior view of two modern binoculars (no text or symbols visible)

FR

Labeled diagram of a binocular system with numbered parts for identification

Close-up of two camera lens components with a curved arrow indicating rotation (no text or symbols)

Close-up of two optical cameras with a curved arrow indicating rotation (no text or symbols visible)

Black-and-white photo of a medical or laboratory device with labeled parts including a bottle, cloth, and a bag (no visible text or symbols)

MeoPro HD

FR

Two gray binoculars with visible lens and control knobs (no text or symbols on the devices themselves)

Close-up of two black camera lenses with a blue arrow indicating rotation (no text or symbols on the lenses themselves)

Close-up of a beige optical device with a curved arrow indicating rotation or adjustment (no text or symbols visible)

Enfoque de imagen

04

Close-up of two camera lens components with rotational arrows indicating motion (no text or symbols)

Black-and-white photo of a medical device with a bottle, a bag labeled 'meopla', and a strap (no visible text or symbols on main objects)

MeoPro HD

Modelo	8x32	10x32	8x42	10x42	8x56
Aumento	8x	10x	8x	10x	8x
Diámetro del objetivo (mm)	32	32	42	42	56
Campo visual (°)	8,4	6,7	7,2	6,7	6
Campo visual (m/1000m)	148	117	126	117	105
Distancia de la pupila de salida (mm)	17	15	20	17	18,5
Distancia mínima de observación (m)	2	2	2	2	2,2
Diámetro de la pupila de sallida (mm)	4,0	3,2	5,3	4,2	6,7
Ajuste dióptrico (Dpt)	± 3	± 3	± 3	± 3	± 3
Peso (g)	598	598	730	715	1030

Two gray binoculars with visible lens and cover (no text or symbols on the devices themselves)

Close-up of a mechanical component with a curved arrow indicating rotation or motion (no text or symbols visible)

Close-up of two black cylindrical objects with a curved arrow indicating rotation, labeled 'MEOPRO HD' (no additional text or symbols)

Two black cylindrical objects with curved arrows indicating rotation, labeled 'MEOPRO HD' (no additional text or symbols)

Black-and-white photo of a medical device with a bottle, a bag labeled 'meopla', and a small inset image (no readable text or symbols)

MeoPro HD

IT

Exterior view of two gray binoculars (no visible text or symbols)

PT

Close-up of two black camera lenses with a white curved arrow indicating rotation (no text or symbols on the lenses themselves)

Close-up of a mechanical component with a curved arrow indicating rotation or motion (no text or symbols visible)

Focagem da imagem

Two black cylindrical devices with curved arrows indicating rotation or movement, labeled 'MEOPRO HD' (no additional text or symbols)

Black-and-white photo of a medical device with a bottle, a bag labeled 'meopla', and a small inset image (no readable text or symbols)

MeoPro HD

PT

Two gray binoculars with visible lens and control knobs (no text or symbols on the devices themselves)

RU

Close-up of two black mechanical components with a curved arrow indicating rotation (no text or symbols visible)

Close-up of a mechanical component with a curved arrow indicating rotation or motion (no text or symbols visible)

Close-up of two camera lens components with rotational arrow indicators (no text or symbols)

Black medical device with a bottle, towel, and bag labeled 'meopla' (no visible text or symbols on main subject)

MeoPro HD

RU

Two gray binoculars with visible lens and cover (no text or symbols on the devices themselves)
